Build Your Falcon RIM R55 disc

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

PREVIOUS NEXT

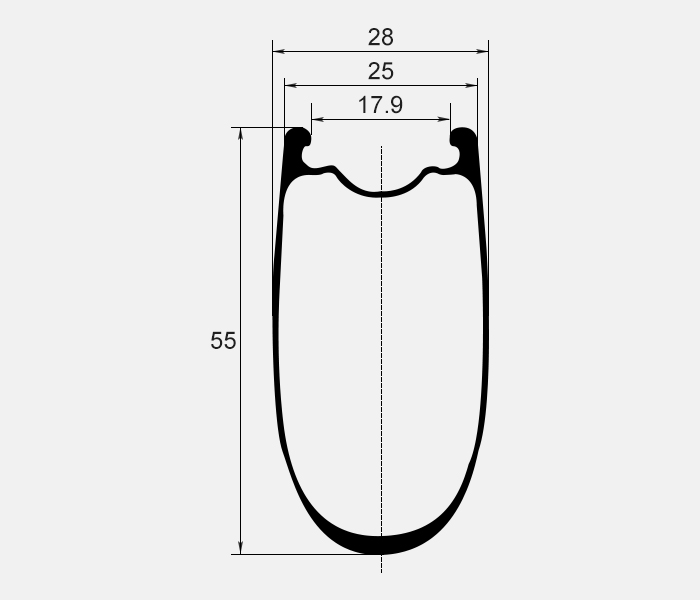

RIM SPECS

Rim Model R55 disc
Material Toray T700 & T800 Premium Carbon Fiber
Size 29”/700C (ETRTO 622mm)
Series FALCON
Intended Use Road/CX
Bead Type Clincher
Tubeless Capable Yes
Inner/Outer Width 17.9mm/25mm
Depth 55mm
ERD 530mm (not including nipple head dimension)
Rim Weight 490+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) 130kg/ 287lbs
Spoke Hole Angle ±6°
Spoke Tension 120~130kgf front disc side and rear drive side
Max Tire Pressure (with 25C) 120psi/ 8.27bar
Recommended Tire Width 21C-38C

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.)

Rim Model: R55 disc
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 29”/700C (ETRTO 622mm)
Series: FALCON
Intended Use: Road/CX
Bead Type: Clincher
Tubeless Capable: Yes
Inner/Outer Width: 17.9mm/25mm
Depth: 55mm
ERD: 530mm (not including nipple head dimension)
Rim Weight: 490+/-15g
Profile: Symmetric (0mm)
Max Cyclist Weight (on flat ground): 130kg/ 287lbs
Spoke Hole Angle: ±6°
Spoke Tension: 120~130kgf front disc side and rear drive side
Max Tire Pressure (with 25C): 120psi/ 8.27bar
Recommended Tire Width: 21C-38C

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

Looking to turn your road disc or tri bike into an aero machine? With a 55mm profile, the R55 disc is deep enough to give you an aerodynamic advantage without compromising ride quality in the stiffest crosswinds.

Comfortable as a race oriented wheelset or a daily driver, the 25mm outer width keeps things aerodynamically optimized with smoother rolling for your 25C ~ 28C tires.
Specs
Rims

Rim Model: R55 disc

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 29”/700C (ETRTO 622mm)

Series: FALCON

Intended Use: Road/CX

Bead Type: Clincher

Tubeless Capable: Yes

Inner/Outer Width: 17.9mm/25mm

Depth: 55mm

ERD: 530mm (not including nipple head dimension)

Rim Weight: 490+/-15g

Profile: Symmetric (0mm)

Max Cyclist Weight (on flat ground): 130kg/ 287lbs

Spoke Hole Angle: ±6°

Spoke Tension: 120~130kgf front disc side and rear drive side

Max Tire Pressure (with 25C): 120psi/ 8.27bar

Recommended Tire Width: 21C-38C

Read more for actual road tire width

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

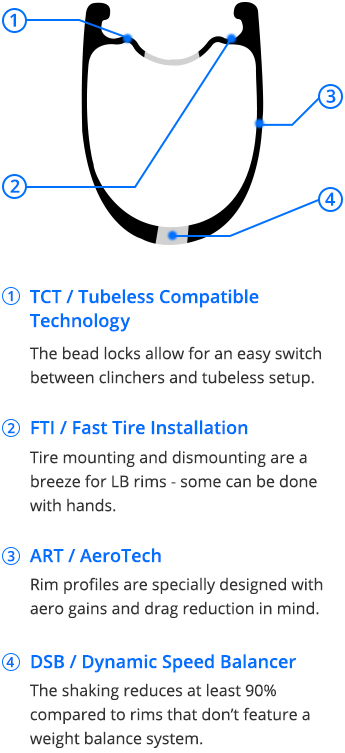

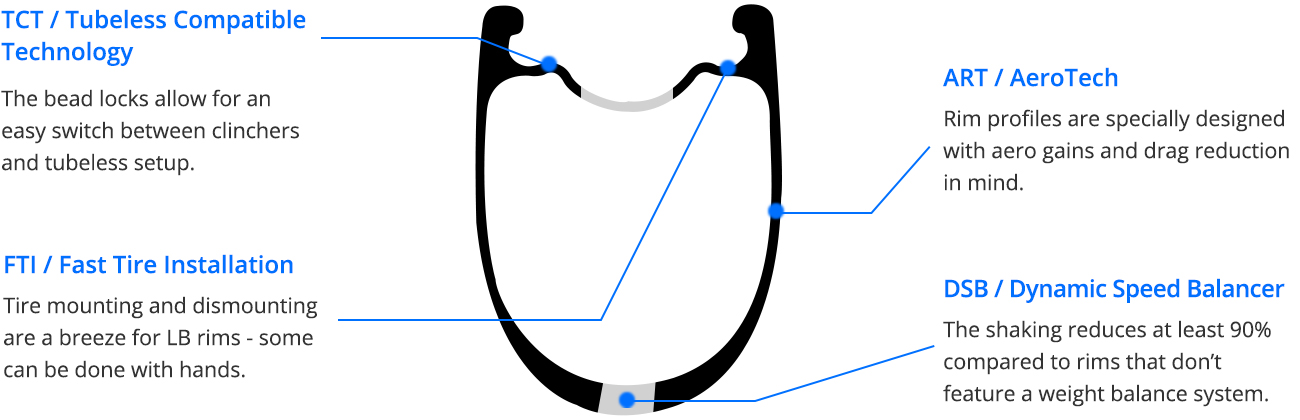

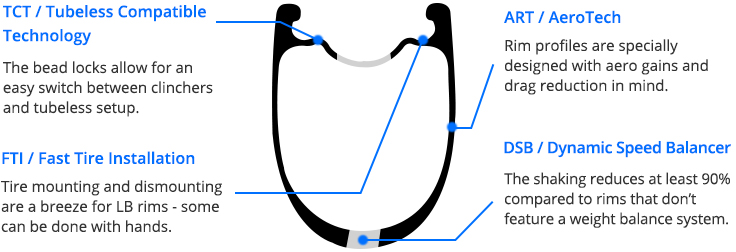

Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

Giant-TCR-Advanced-On-Light-Bicycle-R55-Disc

Dr : Been exactly an year since LBupgrade on my giant TCR advanced .. this made it completely new. Thanks LB

India

r55-700c-road-disc-ud-matte-tubeless-compatible-carbon-wheelset

Light Bicycle : RIMS: R55 Disc 700C Falcon series 24/24h matte UD without spoke access holes HUBS: DT SWISS 350 CL SP 12 / 100mm 12 / 142mm Road 11s SPOKES: Pillar Aero X-TRA 1420 NIPPLES: DT Swiss Brass Black Weight: 1590.2 grams

Vasan : Here are a few pics of my bike with LB wheels. Rode this morning. Felt really good.

India

r55-55mm-road-disc-orange-decal-3k-weave-matte-finish-carbon-rim

Light Bicycle : R55 disc (RRU55C02d) 700c 24H matte 3K Without Holes external hole

r55-disc-carbon-fiber-rims-with-12k-weave-matte-finish

Light Bicycle : Rims: R55 disc Disc matte 12K 24H external hole With Holes

700c-55mm-deep-carbon-wheelset-road-disc

Light Bicycle : Rims: R55 Disc 24H glossy (Unfit with glossy decal) UD With Holes Hubs: Novatec D411SB & D412SB 12/100mm 12/142mm SP 6B Black 24/24H Shimano Road 11S 27T Spokes: Pillar Aero X-TRA 1420 Nipples: DT SWISS Aluminium Black

light-bicycle-55mm-wheel-front-65mm-carbon-wheel-rear

Hayden : The wheels have been working and looking great. Thank you for all the help you gave me.

Canada

PAWEŁ : 55mm carbon glosy 3k disc

Poland

View More Reviews >>
