24 inch BMX carbon rim 507mm BSD 30mm wide 30mm deep

CNC maching application on carbon hoop drilling

glossy or matte finish appearance for BMX hoop

Buy & Configure

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Global (Ship Anywhere)

North American Warehouse

Options Features	Global Warehouse	North American Warehouse
Options Features	Availability	All models	Most popular models
Rim Customization	100% customizable	Default options, special order possible
Wheelset Customization	Yes	Yes
Lead Time	4 weeks / 3 days for Quick Buy	1 week typical
Shipping Region	Worldwide	North America
Wheel building fee	$30 USD per set	$50 USD per set
Warehouse Transfer Fee	No	USD20 per rim USD40 per wheelset
European Shipments Taxes, Duty or Brokerage	Not charged by us, may be charged by the carrier upon importation. (*Prepaid option available at checkout!)	Best to ship from Global warehouse due to excessive shipping costs
Canadian Shipments Taxes, Duty or Brokerage	Not charged by us, may be charged by the carrier upon importation	Charged by Light Bicycle upfront
Other Areas Taxes, Duty or Brokerage	Not charged by us, may be charged by the carrier upon importation	Not charged by us, may be charged by the carrier upon importation
Shipping Methods	EMS, EMS Plus, DHL, TPD, TNT, FedEx, MTS, SF	UPS

Our apologies, we do not stock this item at the North American warehouse.

Our Global warehouse can make any rim model and ship worldwide. Feel free to email us (sales@lightbicycle.com) if you want custom builds. We’ll get back to you in 24hrs.

The data will take some time to load, please wait.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

QUICK BUY

FULL CUSTOM

Bead type This is a required option.

hook

Finish This is a required option.

matte

Weave This is a required option.

Center Channel Hole This is a required option.

With Holes

Without Hole

Brake System This is a required option.

Non Disc - Grooved Graphene Surface

Disc

Decal This is a required option.

Blank (No decal)

Front Holes Count This is a required option.

20h

Rear Holes Count This is a required option.

24h

Ｈole Count This is a required option.

24h

DEFAULT SETTINGS

HUBS

DT Swiss 350 Black StraightPull Shimano Road 11s 18t

F-QR/100mm R-QR/130mm Non-disc(Rim-brake)

Carbon-Ti X-Hub Black StraightPull Shimano Road 11s 56t

F-12/100mm R-12/142mm CenterLock

SPOKES & NIPPLES

Sapim CX-Ray and aluminum black nipples

ACCESSORIES

Valve sterm (x2) are included

Piece Weight:g+/-25

Subtotal: USD +

Lead time: typically ships in 3 days

ADD TO CART

Brake System This is a required option.

Rim Brake

None

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

20H

24H

28H

32H

36H

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

glossy

matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

12K

Valve Hole Type This is a required option.

Presta

Schrader

Decal This is a required option.

Our BMX rims share with MTB rims the stunning Avery vinyl logo-kit stickers- Item No. STMTB03

Blank (No decal)

Blue

Green

Magenta

Orange

Red

White

Yellow

Silver

Gold

Turquoise

Purple

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 380.00g+/-15

Subtotal: USD 155+

PREVIOUS NEXT

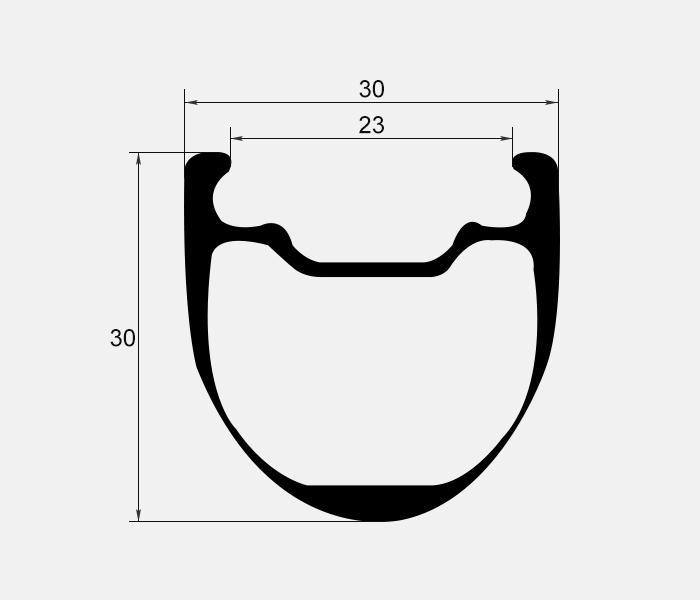

RIM SPECS

Size 24 inch
Use BMX
Type Hook
Tubeless Ready
Inner/Outer Width 23mm/30mm
Depth 30mm
BSD 507mm
ERD 464mm (not including nipple head dimention)
Weight 380+/-15g
Offset 0mm (symmetric)
Weight Limit 130 kgs
Spoke Tension ≤145kgf recommended
Tire Pressure 110psi max
Tire size 23C~50C recommended

TECH

The Moto Cruiser featuring a 23mm internal is able to support tires from 23C-50C. A stiffer, more responsive wheel with minimal rotational weight will get you up to speed faster and keep momentum longer. This is the all around rim that can make you a track legend or trail boss. Whether you’re aiming for the hole shot or hitting that lippy 8 pack, the Moto Cruiser will boost control on you cruiser with a lower rotational weight and a wide, stable contact patch.

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>

WHAT IS IN THE BOX

GALLERY

Adventure collection from all over the world.

LEARN MORE

COMMENTS

Josh 2020/09/28

Can you build a 24in mountain bike rim for a Kona Stink 24 that uses QR skewers?

LightBicycle 2020/09/28

Hi Josh, What is your tire width? Then we can check which 24" rim is better for you. We have below 24" mtb rims. I am not sure whether it is too wide for you. https://www.lightbicycle.com/24-inch-BMX-carbon-rim-507mm-BSD-30mm-wide-30mm-deep.html Thanks, Lightbicycle
