Build Your Falcon Pro WHEEL WAER106d-F
All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.
WHEELSET SPECS
RIMS
Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.
- Rim Model AER106 disc
- Material Toray T700 & T800 Premium Carbon Fiber
- Size 29”/700C (ETRTO 622mm)
- Series FALCON Pro
- Intended Use Tri/TT
- Bead Type Clincher
- Tubeless Capable Yes

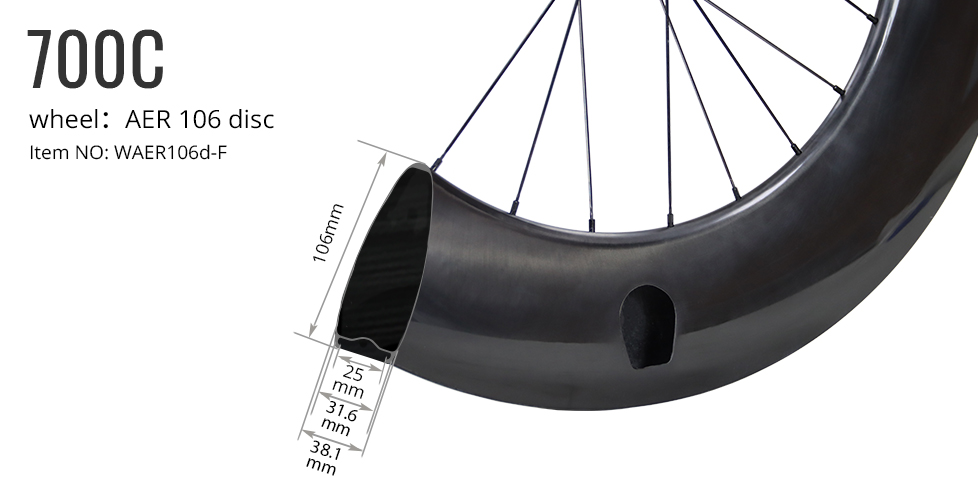

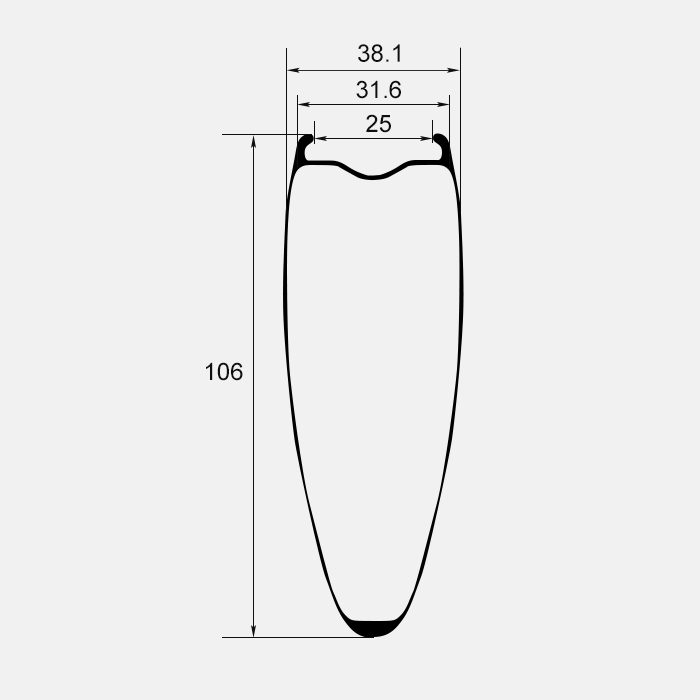

- Inner/Outer Width 25mm/31.6mm
- Depth 106mm
- ERD 427mm (not including nipple head dimension)
- Weight 650+/-25g
- Offset Symmetric (0mm)
- Max Cyclist Weight (on flat ground) 135kg/ 298lbs
- Spoke Hole Angle ±9°
- Spoke Tension 120~135kgf front disc side and rear drive side
- Max Tire Pressure (with 25C) 120psi/ 8.27bar
- Recommended Tire Width 28C~32C
HUBS
We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).
- Model Light Bicycle Pace-Hub, DT SWISS 240 EXP, DT SWISS 350
- Front Axle Size 12 / 100mm
- Hole 24H
OTHER PARTS
Leave a note at checkout or contact us if you want spare spokes or nipples.
- Spokes Light Bicycle S1420 Bladed, Light Bicycle T1423 Bladed, Berd PolyLight in Black, Berd PolyLight in White, Sapim CX Ray in Black, Sapim D-Light, Sapim D-light, Sapim Race, Sapim CX Ray in Silver, Alpina Extralite
- Nipples Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black, Aluminium Silver, Aluminium Blue, Aluminium Gold, Aluminium Green, Aluminium Lime, Aluminium Orange, Aluminium Purple
TECH
Cyclists often consider deep-section wheels a key upgrade for their bikes, as they are what contact the air first.
Building on the success of our AER180, we introduce the AER106 Disc front wheel—engineered to slice through wind, efficiently transfer power, and deliver reliable stability.
With its 106mm deep profile, the AER106 Disc enhances aerodynamics by reducing turbulence and improving airflow attachment.
Constructed from premium materials with an optimized layup, it offers durability for race conditions and steady handling when it matters.
The disc brake system ensures consistent speed control and braking in all weather.
Pair the AER106 Disc front wheel with a full-disc rear wheel to experience the advantages of a mixed-depth wheelset.
WARRANTY
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
WHAT IS IN THE BOX
Cyclists often consider deep-section wheels a key upgrade for their bikes, as they are what contact the air first.
Building on the success of our AER180, we introduce the AER106 Disc front wheel—engineered to slice through wind, efficiently transfer power, and deliver reliable stability.
With its 106mm deep profile, the AER106 Disc enhances aerodynamics by reducing turbulence and improving airflow attachment.
Constructed from premium materials with an optimized layup, it offers durability for race conditions and steady handling when it matters.
The disc brake system ensures consistent speed control and braking in all weather.
Pair the AER106 Disc front wheel with a full-disc rear wheel to experience the advantages of a mixed-depth wheelset.
-
Overview
Cyclists often consider deep-section wheels a key upgrade for their bikes, as they are what contact the air first. Building on the success of our AER180, we introduce the AER106 Disc front wheel—engineered to slice through wind, efficiently transfer power, and deliver reliable stability.
With its 106mm deep profile, the AER106 Disc enhances aerodynamics by reducing turbulence and improving airflow attachment. Constructed from premium materials with an optimized layup, it offers durability for race conditions and steady handling when it matters. The disc brake system ensures consistent speed control and braking in all weather.
Pair the AER106 Disc front wheel with a full-disc rear wheel to experience the advantages of a mixed-depth wheelset. -
