Build Your Falcon Pro WHEELSET TURBO 50 DISC
All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.
WHEELSET SPECS
RIMS
Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.
- Rim Model Turbo 50 disc
- Material Toray T700 & T800 Premium Carbon Fiber
- Size 29”/700C (ETRTO 622mm)
- Series FALCON PRO
- Intended Use Road/Gravel
- Bead Type Clincher
- Tubeless Capable Yes
- Inner/Outer Width 25mm/32mm
- Depth 50mm
- ERD 540mm (not including nipple head dimension)
- Rim Weight 410g+/-15
- Profile Symmetric (0mm)
- Max Cyclist Weight (on flat ground) 135kg/ 298lbs
- Spoke Hole Angle ±7°
- Spoke Tension 120~135kgf front disc side and rear drive side
- Max Tire Pressure (with 28C) 80psi/5.52bar
- Recommended Tire Width 28C~50C
HUBS
We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).
- Model DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine 1/1, Chris King R45D, Industry Nine Solix, Carbon-Ti X-Hub, Light Bicycle Pace-Hub
- Front Axle Size 12 / 100mm
- Rear Axle Size 12 / 142mm
- Driver Body Shimano Road 11S, Shimano Road 11S Alloy, Sram XDR Alloy, Sram XDR, Shimano Micro Spline Road Alloy
- Hole 24H
OTHER PARTS
Leave a note at checkout or contact us if you want spare spokes or nipples.
- Spokes Sapim CX Ray, Pillar Aero X-TRA 1420, Sapim CX Sprint-Rear drive side/ CX Ray-Other sides
- Nipples Aluminium Black, Aluminium Red, Brass Black
TECH

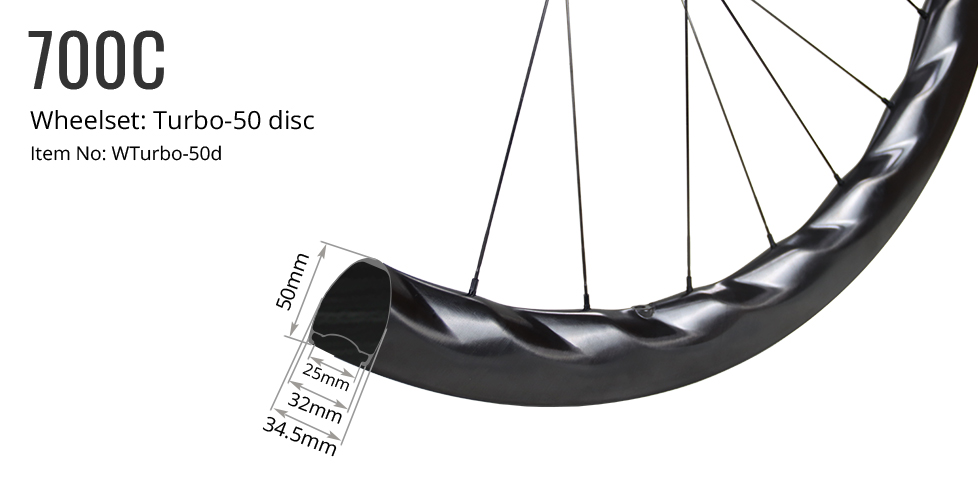

Turbo rims feature a 25mm internal width, 32mm external width, and a maximum width of 34.5mm, making them ideal for mainstream 28c and 30c tire sizes. The measured width of labelled 28c and 30c tires usually ranges from 30mm to 34mm. The rim width of the Turbo rims, when paired with these tires, adheres to the 105% rule of thumb.

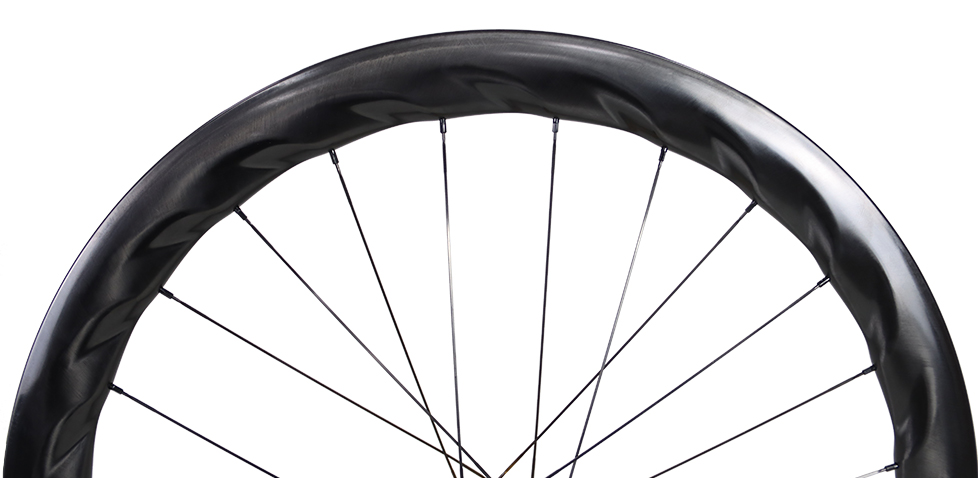

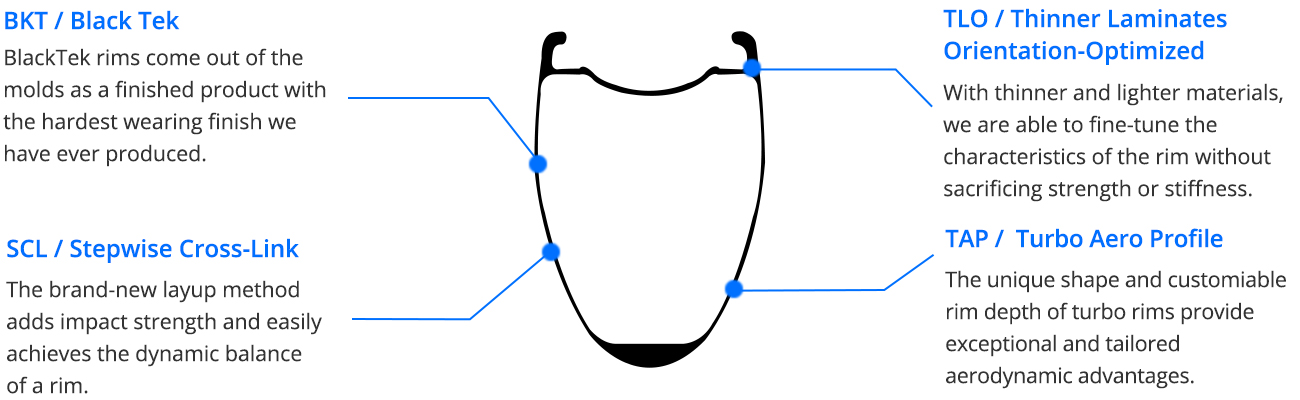

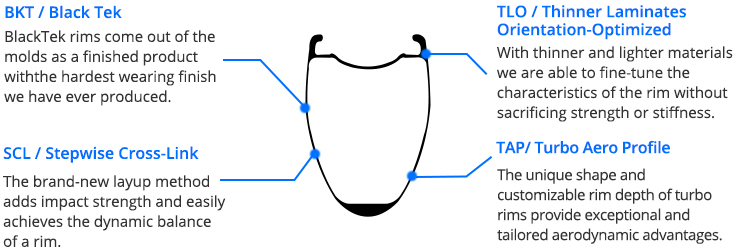

The aero advantage of the Turbo wheels comes from their shape and rim depth. The smooth curvature of the rim sidewall reduces air drag and enhances crosswind stability, similar to our tested and proven X-Flow profile. The rim shape also enhances lateral stiffness, making the wheel feel more responsive during acceleration.
Available in carbon spoke and steel spoke versions, feel free to customize your Turbo 50 wheels.



WARRANTY
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.


WHAT IS IN THE BOX





Turbo rims feature a 25mm internal width, 32mm external width, and a maximum width of 34.5mm, making them ideal for mainstream 28c and 30c tire sizes. The measured width of labelled 28c and 30c tires usually ranges from 30mm to 34mm. The rim width of the Turbo rims, when paired with these tires, adheres to the 105% rule of thumb.
The aero advantage of the Turbo wheels comes from their shape and rim depth. The smooth curvature of the rim sidewall reduces air drag and enhances crosswind stability, similar to our tested and proven X-Flow profile. The rim shape also enhances lateral stiffness, making the wheel feel more responsive during acceleration.
Available in carbon spoke and steel spoke versions, feel free to customize your Turbo 50 wheels.
Gallery
Lee : Good:
a very good price
moderate weight
an incredibly pretty rim design
I would highly recommend LB wheel sets around.
South Korea
Light Bicycle : RIMS: Turbo-50d Hook UD Glossy Crystal Painting Disc 21H External Hole With Drain Holes With Access Holes
HUB-F Light Bicycle Speed-Hub Gen2 Black 12 / 100mm Straight Pull Center lock 21H Ceramic Bearings
HUB-R Light Bicycle Speed-Hub Gen2 Black 12 / 142mm Straight Pull Center lock 21H Ceramic Bearings 36T Shimano Road 11S
SPOKE Thrust-4 Carbon Black Straight Pull Standard Head
NIPPLE Customized For Carbon Spokes
Light Bicycle : RIMS: Turbo-50d Hook UD Glossy Crystal Painting Disc 24H Internal Hole With Drain Holes With Access Holes
HUB-F: DT SWISS 240 EXP Black 12 / 100mm Straight Pull Center lock 24H
HUB-R: DT SWISS 240 EXP Black 12 / 142mm Straight Pull Center lock 24H EXP 36 Shimano Road 11S Alloy
SPOKE: Sapim CX Ray Black Straight Pull Standard Head
NIPPLE: DT Swiss/ Sapim Brass Silver Internal
Light Bicycle : RIMS: Turbo-50d Hook Braided UD Paintless Disc 24H External Hole With Drain Holes No Access Holes
HUB-F: Chris King R45D Gold 12 / 100mm J-bend Center lock 24H
HUB-R: Chris King R45D Gold 12 / 142mm J-bend Center lock 24H NBK 45T Shimano Road 11S
SPOKE: Sapim CX Sprint-Rear drive side/ CX Ray-Other sides Black J-bend uncertain Standard Head
NIPPLE: Sapim Brass Black Universal External
Jo : RIMS: Turbo-50d Hook UD Paintless Disc 21H External Hole With Drain Holes With Access Holes
HUB-F: Light Bicycle Speed-Hub Gen2 Black 12 / 100mm straight pull Center lock 21H Steel Bearings
HUB-R: Light Bicycle Speed-Hub Gen2 Black 12 / 142mm straight pull Center lock 21H Steel Bearings 36T Sram XDR
SPOKE: Thrust-4 Black straight pull Standard Head
NIPPLE: LB design Aluminium Black Customized For Carbon Spokes
South Korea
Huang : RIMS: Turbo-50d Hook UD Paintless Disc 21H External Hole With Drain Holes With Access Holes 5 Years
HUB-F Light Bicycle Speed-Hub Gen2 Champagne 12 / 100mm straight pull Center lock 21H Steel Bearings
HUB-R Light Bicycle Speed-Hub Gen2 Champagne 12 / 142mm straight pull Center lock 21H Steel Bearings 36T Shimano Road 11S
SPOKE LB Flyweight Carbon Spoke (Special Edition) Black straight pull
NIPPLE LB design Aluminium Black Customized For carbon spokes
China
Light Bicycle : Rims: Turbo-50 disc Hook UD Paintless External Hole With Drain Holes With Access Holes 21/21H
Hubs: Light Bicycle Speed-Hub Gen2 12/100 12/142 Straight pull Center lock Steel Bearings 36T Shimano Road 11S
Spokes: LB Flyweight Carbon Spoke (Special Edition)
Nipples: Aluminium Black (for carbon spokes only)
