Build Your Carbon Spoke Wheelset

Choose the spoke type based on your needs.

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

The MTB wheelsets are still in transit to this warehouse. We’ll update this page when they’re available. Learn more about our European Warehouse.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA / EU shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to talk about the special requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Wheelset Type This is a required option.

Type	Spoke Head	Hub Compatibility	Nipple Compatibility	Shape	Weight
SE-Bladed	Straightpull	Light Bicycle Speed-Hub	LB design	Aero bladed	2.8g (straightpull)

SE-Bladed

Straightpull

Light Bicycle Speed-Hub

LB design

Aero bladed

2.8g (straightpull)

Carbon Spoke Build (Special Edition)

Rim Model This is a required option.

Model	Width	Depth	Size	Use	Profile	Weight	Tire	Series
AR25 disc	24/29.2mm	25mm	700C	Gravel	Asymmetric -2.1	250g	28-50c	Falcon Pro
AR465 disc	21/28mm	46.5mm	700C	Road/CX/Gravel	Road/ CX/ Gravel	Symmetric	460g / 410g	23-43c	Falcon Pro
AR565 disc	21/28mm	56.5mm	700c	Road/CX/Gravel	Road/ CX/ Gravel	Symmetric	495g / 440g	23c-43c	Falcon Pro
AR46 disc	21/28mm	46mm	700C	Road/CX/Gravel	Road/ CX/ Gravel	Symmetric	435g	23c-43c	Falcon
AR56-30 disc	23/30mm	56mm	700C	Road/CX/Gravel	Road/ CX/ Gravel	Symmetric	460g	23c-50c	Falcon
Turbo-40 disc	25/32mm	40mm	700c	Road/CX/Gravel	Road/ CX/ Gravel	Symmetric	380g	28-50C	Falcon Pro
Turbo-50 disc	25/32mm	50mm	700c	Road/CX/Gravel	Road/ CX/ Gravel	Symmetric	410g	28-50C	Falcon Pro
Turbo-65 disc	25/32mm	65mm	700c	Road/Gravel	Road/ Gravel	Symmetric	500g	28-50C	Falcon Pro
Airia 32 disc	23.5/30mm	32mm	700C	Road/CX	Road/ CX	Symmetric	285g	25-50C	Falcon Pro
Airia 45 disc	23.5/30mm	45mm	700C	Road/CX	Road/ CX	Symmetric	330g	25-50C	Falcon Pro
Airia 55 disc	23.5/30mm	55mm	700C	Road	Road	Symmetric	355g	25-50C	Falcon Pro
Airia 65 disc	23.5/30mm	65mm	700C	Road	Road	Symmetric	420g	25-50C	Falcon Pro
Airia 47 disc	25/31.5mm	47mm	700C	Road	Road	Symmetric	340g	28-50C	Falcon Pro
Airia 52 disc	25/31.5mm	52mm	700C	Road	Road	Symmetric	350g	28-50C	Falcon Pro

AR465 disc

AR565 disc

AR46 disc

AR56-30 disc

Turbo 65 disc

Turbo 50 disc

Turbo 40 disc

Airia 32 disc

Airia 45 disc

Airia 55 disc

Airia 65 disc

Airia 47 disc

Airia 52 disc

AR45 disc

AR35 disc

PREVIOUS NEXT

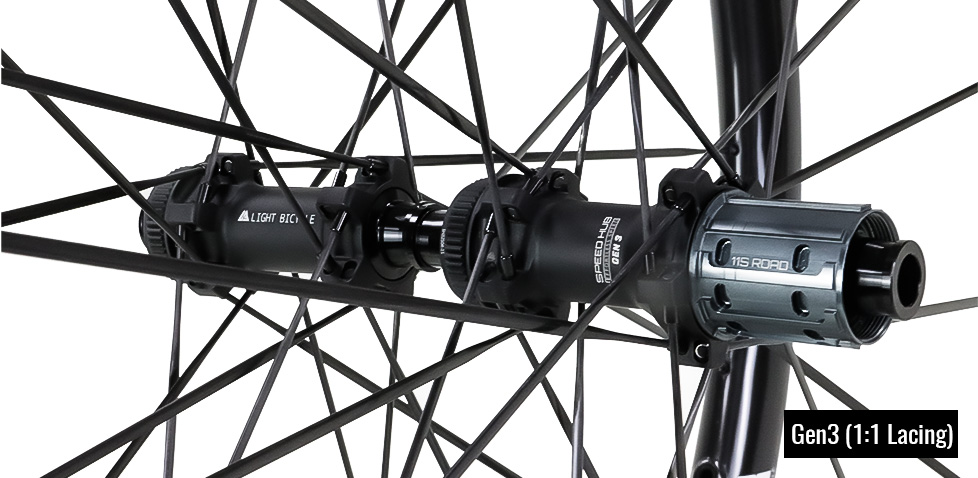

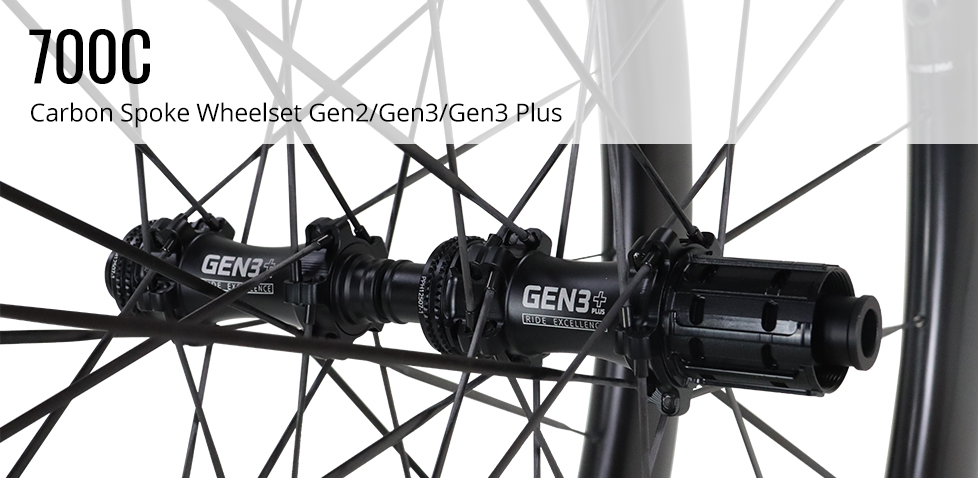

We’re excited to introduce the third-generation Speed-Hub GEN3 alongside our ultralight Airia series. The GEN3 features a 1:1 lacing pattern with 20 holes front and rear, and a newly engineered flange hole design tailored for our T-head Thrust-4 carbon spokes. While it comes standard with the Airia series, the GEN3 is also compatible with other regular-shaped rims.

The Speed-Hub GEN2 (21H) is purpose-built for the Turbo series (Turbo 40, 50, 65, and 78). Its 2:1 lacing pattern helps equalize spoke tension between the drive and non-drive sides. The GEN2 uses round-head Thrust-4 carbon spokes and is also available for other road models outside of the Turbo line. For custom builds, feel free to email us or leave a comment to place a special order.

Spokes

Carbon Spokes (SE)

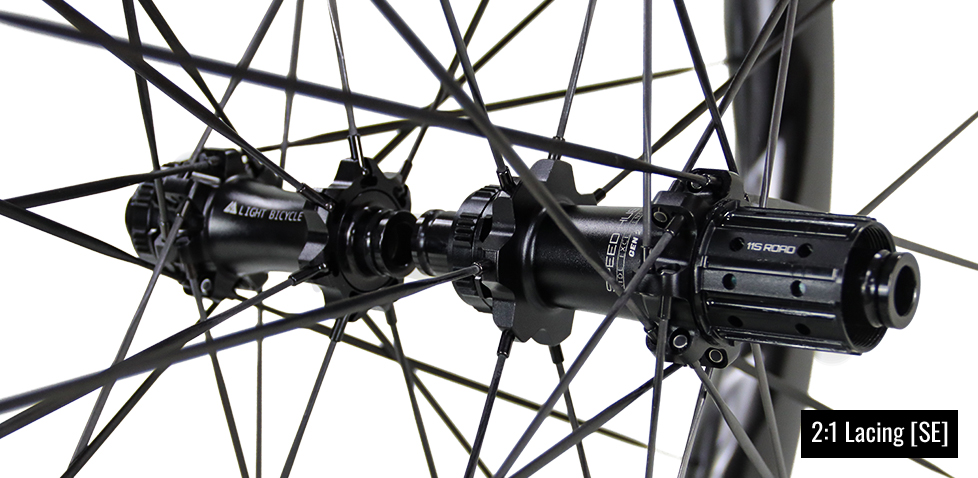

The special edition pairs our best budget Speed hubs with exclusive carbon spokes of an aero advantage.

Model: Light Bicycle Thrust-4 Carbon
Material: UD carbon fiber
Diameter: 2.2 - 1.1×4 - 2.2
Neck Type: Straightpull
Spoke Head: Round, T-Head
Weight: 2.8g
Nipples: Light Bicycle

Hubs

Feel free to let us know if you want hubs or specs unlisted.

Model: Light Bicycle Speed-Hub GEN2/GEN3
Front Axle Size: 12 / 100mm
Rear Axle Size: 12 / 142mm
Driver Body: Shimano Road 11S, Sram XDR
Hole: 21H, 20H
Bearings: Steel

Rims

Let us know if you want to build with unlisted rims of our lineup.

Model: AR25 disc, AR465 disc, AR565 disc, AR46 disc, AR56-30 disc, Turbo-40 disc, Turbo-50 disc, Turbo-65 disc, Airia 32 disc, Airia 45 disc, Airia 47 disc, Airia 52 disc, Airia 55 disc, Airia 65 disc
Depth: 25mm, 35mm, 40mm, 45mm, 46.5mm, 47mm, 50mm, 52mm, 55mm, 56.5mm, 46mm, 56mm, 65mm

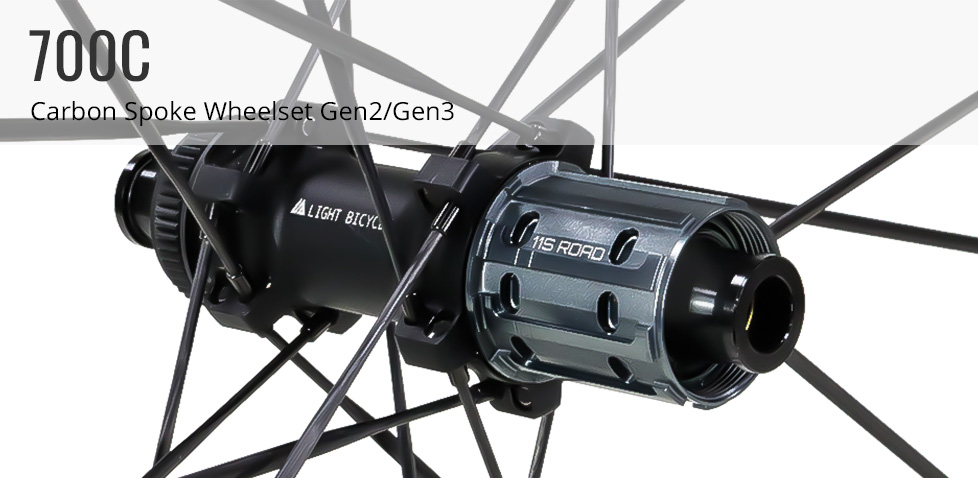

Overview

We’re excited to introduce the third-generation Speed-Hub GEN3 alongside our ultralight Airia series. The GEN3 features a 1:1 lacing pattern with 20 holes front and rear, and a newly engineered flange hole design tailored for our T-head Thrust-4 carbon spokes. While it comes standard with the Airia series, the GEN3 is also compatible with other regular-shaped rims.

The Speed-Hub GEN2 (21H) is purpose-built for the Turbo series (Turbo 40, 50, 65, and 78). Its 2:1 lacing pattern helps equalize spoke tension between the drive and non-drive sides. The GEN2 uses round-head Thrust-4 carbon spokes and is also available for other road models outside of the Turbo line. For custom builds, feel free to email us or leave a comment to place a special order.
Specs
Spokes

Carbon Spokes (SE)

The special edition pairs our best budget Speed hubs with exclusive carbon spokes of an aero advantage.

Model: Light Bicycle Thrust-4 Carbon

Material: UD carbon fiber

Diameter: 2.2 - 1.1×4 - 2.2

Neck Type: Straightpull

Spoke Head: Round, T-Head

Weight: 2.8g

Nipples: Light Bicycle

Hubs

Feel free to let us know if you want hubs or specs unlisted.

Model: Light Bicycle Speed-Hub GEN2/GEN3

Front Axle Size: 12 / 100mm

Rear Axle Size: 12 / 142mm

Driver Body: Shimano Road 11S, Sram XDR

Hole: 21H, 20H

Bearings: Steel

Rims

Let us know if you want to build with unlisted rims of our lineup.

Model: AR25 disc, AR465 disc, AR565 disc, AR46 disc, AR56-30 disc, Turbo-40 disc, Turbo-50 disc, Turbo-65 disc, Airia 32 disc, Airia 45 disc, Airia 47 disc, Airia 52 disc, Airia 55 disc, Airia 65 disc

Depth: 25mm, 35mm, 40mm, 45mm, 46.5mm, 47mm, 50mm, 52mm, 55mm, 56.5mm, 46mm, 56mm, 65mm
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Light Bicycle Speed Hubs: From the date of purchase, 5-year pro warranty.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims/hubs with 10% /25% discount for the Non-Pro series /Pro rim series and 15% for the hubs.

Learn More >>

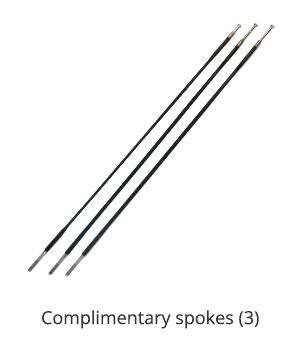

In The Box

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Download user guides >>

FAQs On Carbon Spoke Wheels

Are carbon spokes better than steel?

The carbon spokes are designed for riders who prioritize speed improvement over comfort and leisure. With a higher stiffness-to-weight ratio compared to steel counterparts, the carbon-spoke wheelset maximizes wheel stiffness while keeping things lightweight. This means that a carbon-spoked wheel often feels more responsive and a bit harder than a steel-spoked wheel build.
What rims are compatible with the carbon spokes?

The carbon spokes are compatible with all road and gravel carbon rims of our lineup. On our online wheelset builder, we only list some of the most asked rim models. Feel free to let us know if you want to special order something different.
GEN2 or GEN3: Which carbon spoke build is right for you?

The GEN3 hubset is designed for lower weight and enhanced aerodynamic performance, coming in around 20 grams lighter than the GEN2. In contrast, the GEN2 prioritizes durability and stiffness with its triplet (2:1) lacing. Please note: the Turbo series (21H only) is exclusively compatible with the GEN2 hub, while the Airia series (20H only) is exclusively compatible with the GEN3 hub.

Gallery

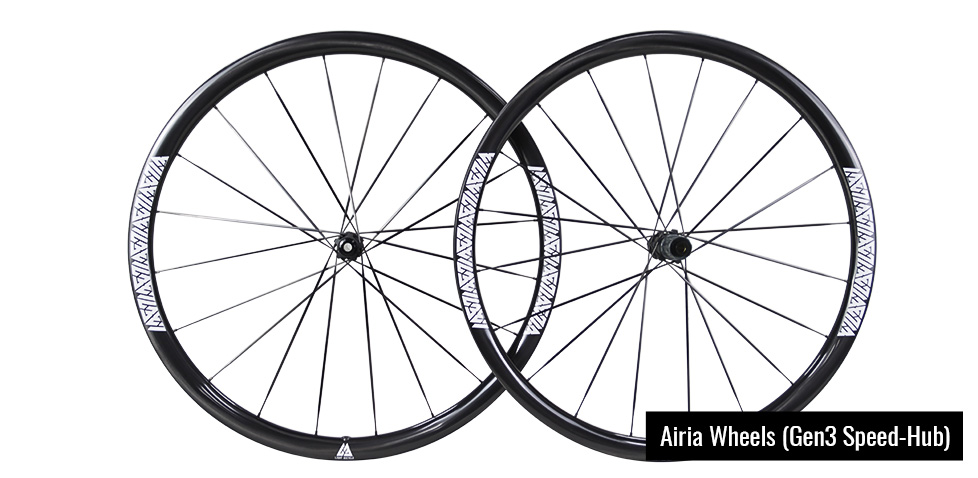

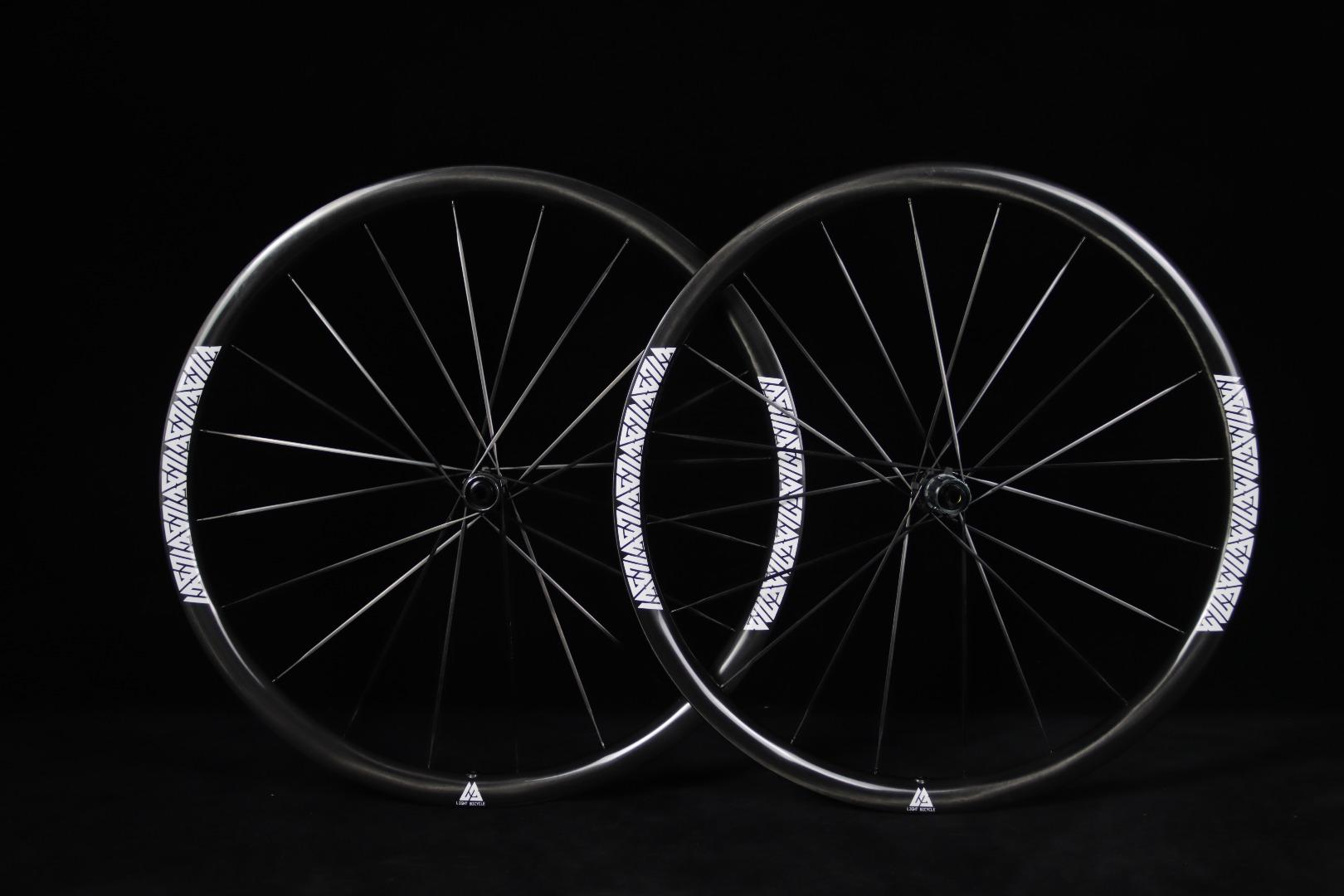

light-bicycle-airia-32-disc-brake-carbon-spoke-wheelset-paired-with-speed-hub-gen3

Light Bicycle : RIMS: AIRIA32d Standard Hook UD Paintless Disc 20H External Hole No Drain Holes With Access Holes HUB-F: Light Bicycle Speed-Hub Gen3 Black 12 / 100mm Straight Pull Center lock 20H Steel Bearings HUB-R: Light Bicycle Speed-Hub Gen3 Black 12 / 142mm Straight Pull Center lock 20H Steel Bearings 36T Shimano Road 11S SPOKE: LB Thrust-4 Carbon Black Straight Pull T-head NIPPLE: LB design Aluminium Black (for carbon spokes only)

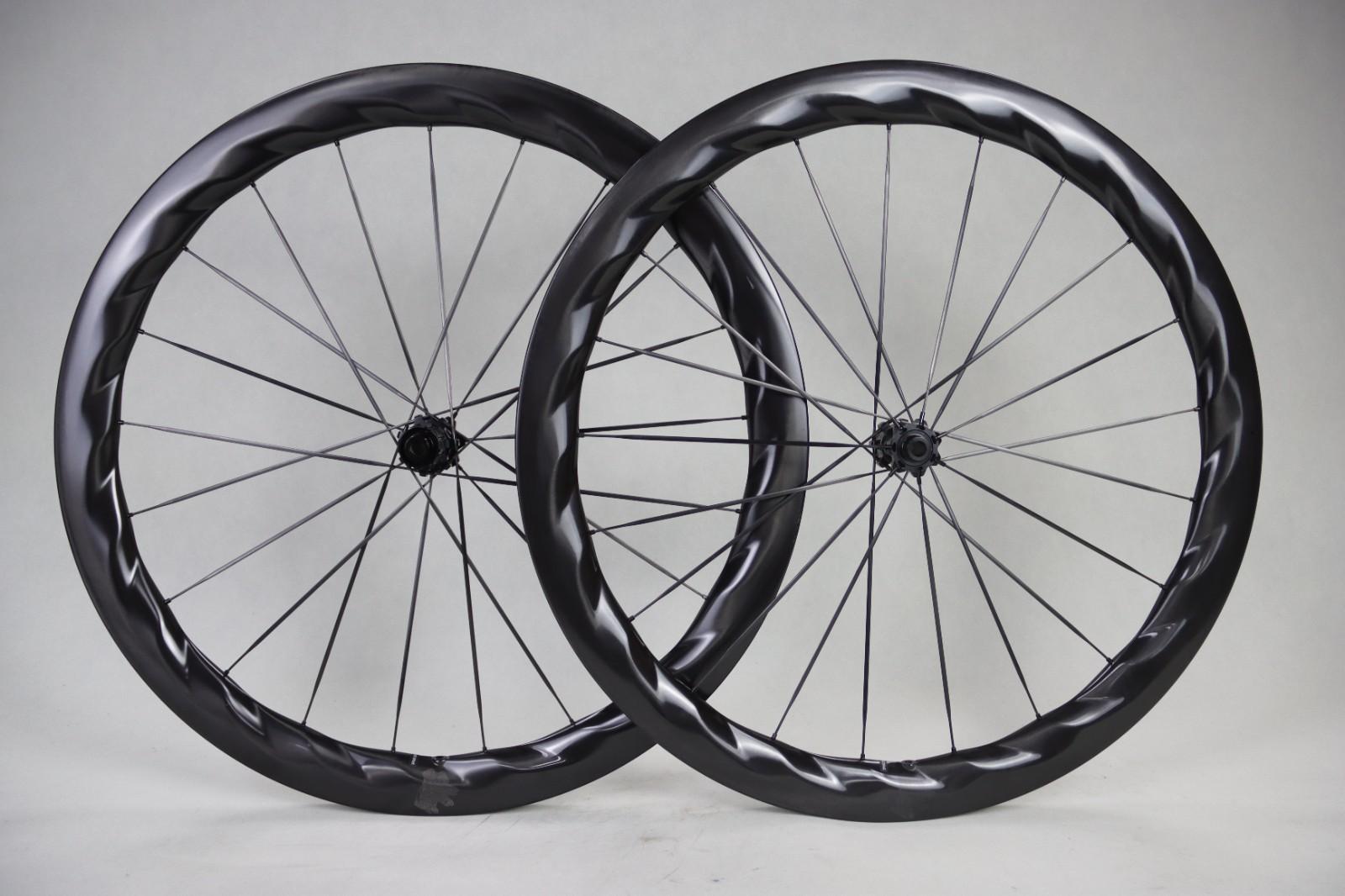

light-bicycle-falcon-turbo-pro-50-carbon-wheelset-laced-to-speed-hub-gen-2

Light Bicycle : RIMS: Turbo 50 Disc Hook UD Paintless Disc 21H External Hole With Drain Holes With Access Holes HUB-F: Light Bicycle Speed-Hub Gen2 Black 12 / 100mm Straight Pull Center lock 21H Steel Bearings HUB-R: Light Bicycle Speed-Hub Gen2 Black 12 / 142mm Straight Pull Center lock 21H Steel Bearings 36T Shimano Road 11S NIPPLE: Aluminium Black (for carbon spokes only) SPOKE: LB Flyweight Carbon Spoke (Special Edition)

AR565-disc-all-road-carbon-spoke-wheelset-1337g

Light Bicycle : Rims: AR565 Disc X-Flow Flyweight Paintless UD 21/21H With Drain Holes With Access Holes Hubs: Light Bicycle Speed Hub 12/100mm 12/142mm SP Centerlock 24T Sram XDR Spokes: Light Bicycle Flyweight Carbon SP Spokes (Race-Edition) Nipples: Light Bicycle aluminum black Weight: 1337g This build is not available online yet. Leave a comment below if you want to special order this set.

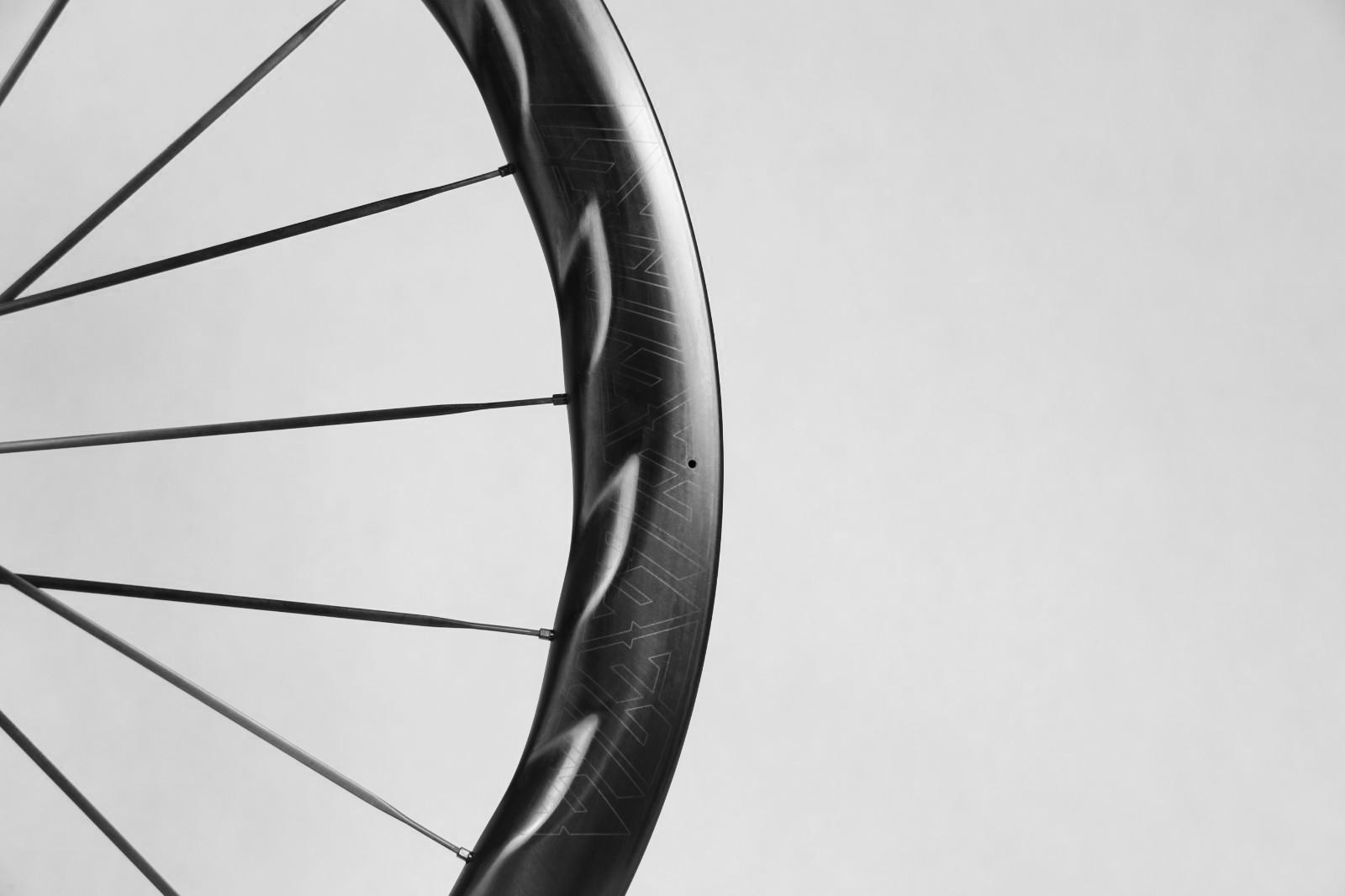

light-bicycle-turbo50-disc-25mm-internal-width-32mm-external-width

Light Bicycle : Rims: Turbo-50 disc Hook UD Paintless External Hole With Drain Holes With Access Holes 21/21H Hubs: Light Bicycle Speed-Hub Gen2 12/100 12/142 Straight pull Center lock Steel Bearings 36T Shimano Road 11S Spokes: LB Flyweight Carbon Spoke (Special Edition) Nipples: Aluminium Black (for carbon spokes only)

AR25-disc-gravel-carbon-spoke-wheelset-994g-ultralight

Light Bicycle : Rims: AR25 Disc Hybrid Hook UD Paintless 21H External Hole With Drain Holes With Access Holes Hubs: Light Bicycle Speed-Hub 12/100mm 12/142mm Straightpull Centerlock 21/21H 24T Shimano Road 11S Spokes: Light Bicycle Flyweight Carbon (race-edition) Nipples: LB design Aluminium Black Weight: 994g

Light-Bicycle-speed-hub-ceramic-bearing-road-bike-hubs

Light Bicycle : Rims: AR465 Disc Flyweight 21H/24H Braided UD With Drain Holes Hubs: Light Bicycle Speed Hub Straightpull 12/100mm 12/142mm Shimano Road 11s Spokes: Light Bicycle Flyweight Carbon Spokes (Race-Edition) 2:1 Lacing Nipples: LB Design aluminum (for carbon spokes) Front - 615g, Rear - 733g

light-bicycle-turbo-65-turbo-78-disc-brake-custom-mixed-depth-wheelset

Light Bicycle : RIM-F: Turbo-65d Hook UD Paintless Disc 21H External Hole With Drain Holes With Access Holes HUB-F: Light Bicycle Speed-Hub Gen2 Black 12 / 100mm Straight Pull Center lock 21H Ceramic Bearings RIM-R: Turbo-78d Hook UD Paintless Disc 21H External Hole With Drain Holes With Access Holes HUB-R: Light Bicycle Speed-Hub Gen2 Black 12 / 142mm straight pull Center lock 21H Ceramic Bearings 36T Sram XDR SPOKE: LB Thrust-4 Carbon Black Straight Pull Standard Head NIPPLE: LB design Aluminium Black (for carbon spokes only) Universal External

Light Bicycle : Rims: Light Bicycle AR465 disc flyweight hooked paintless UD 21H with drain holes with access holes Hubs: Light Bicycle Speed Hub 12/100mm 12/142mm straightpull centerlock 21H Shimano Road 11s Spokes: Light Bicycle Flyweight carbon spokes 2:1 lacing Nipples: Light Bicycle aluminum black

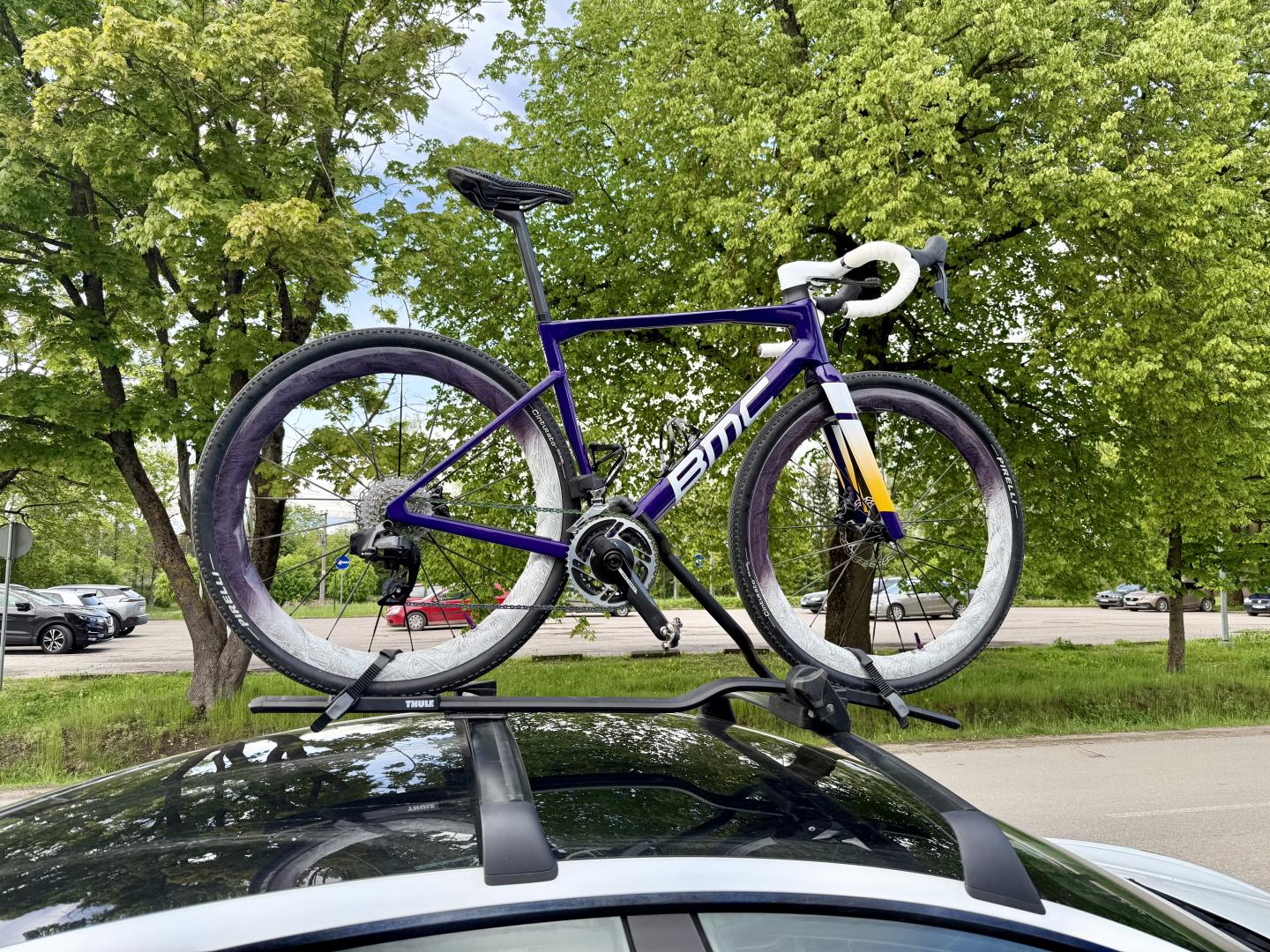

light-bicycle-turbo-50-disc-brake-carbon-spoke-wheelset-mounted-on-pirelli-tyres

Light Bicycle : RIMS: Turbo-50d Hook UD Glossy Crystal Painting Disc 21H External Hole With Drain Holes With Access Holes HUB-F: Light Bicycle Speed-Hub Gen2 Black 12 / 100mm straight pull Center lock 21H Steel Bearings HUB-R: Light Bicycle Speed-Hub Gen2 Black 12 / 142mm straight pull Center lock 21H Steel Bearings 36T Sram XDR SPOKE: LB Thrust-4 Carbon Black straight pull uncertain Standard Head NIPPLE: LB design Aluminium Black Customized for carbon spokes

Light Bicycle : Rim: AR465 Disc Flyweight Braided UD Paintless UD 21H With Access Holes With Drain Holes Hub: Light Bicycle Speed Hubs 12/142mm Straightpull Centerlock Shimano Road 11s Spokes: Light Bicycle Flyweight Carbon Spokes (custom paint: red - Pantone 185C, orange - 165C, blue - 2184c) 2:1 lacing Nipples: Light Bicycle aluminum (specific for carbon spokes)

COMMENTS

Skyler 2025/05/30

Hey I looking to upgrade my wheels or find new wheels with carbon spokes , looking to get some marginal weight changes and different ride feel , and from what I’ve been seeing that’s where things are going any help or suggestions on how to go about this

LightBicycle 2025/05/30

Hi Skyler, May I know your tire width and your weight? Do you ride all-road? Any prefered wheel depth? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Vincent 2025/05/26

Hi Light Bicycle, I’m interested in configuring a pair of wheels with you and had a few quick questions: When will the new Airia wheels be available with carbon spokes? Is it possible to get pink spoke nipples with a carbon spoke build? I’m 180 cm tall and weigh 65 kg. I currently ride 28 mm tires at 5 bar pressure. Would you recommend carbon spokes for rides between 100–200 km? Can the spoke tension be adjusted to suit my weight? Thanks a lot in advance! Wishing you a great day. Vincent

LightBicycle 2025/05/27

Hi Vincent, It is okay okay to order our Airia wheeset road disc 700C with carbon spokes here now. Please place the order through email. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

James 2024/04/27

Is it possible to make the AR56-30 wheels in a flyweight version? I weigh 73 kg.

LightBicycle 2024/04/30

Hi James, Thanks for your inquiry! Sorry for the late reply. It is okay to manufacture AR56 rims road disc 700C around 30g lighter for you. Does it work for you? What tire width and tire pressure will you ride? Do you ride aggressively? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Sun 2023/10/08

Hi, I would like an ultra-light disc brake climbing wheelset. I'm 80kg, so no flyweight option, please. It would be AR25 Rim, Carbon Spoke with either Extralite SPD3 or CarbonTi. Can I get a quote with full specs for these builds?

LightBicycle 2023/10/09

Hi Sun, Thanks for reaching out! We have sent the quote through an email, please check it. Best regards, Light Bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

JEONG 2023/05/04

I want to use Flyweight Spokes (SE) But I want a rim-height wheel of 40mm to 50mm for a wheel set of less than 1400g Is this possible??

LightBicycle 2023/05/04

Hi Jeong, Thanks for your inquiry! May i know your weight? What is your tire width？ Do you like 700C road disc 40mm~50mm wheelset? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Christopher 2023/04/17

Hi I would like an ultra light climbing wheelset but I am 85 Kilos so no flyweight options. Berd Spoked no Depth Rim with Extralite hubs can you build that? Regards, Christopher Tan

LightBicycle 2023/04/18

Hi Christopher, Hi Christopher, Thanks for reaching out! Given the fact that you are looking for a climbing wheelset. Berd spokes won't be the best fit here. It would be too compliant. The stiffness would be a key to consider when it comes to climbing. So carbon spokes make more sense. The new flyweight carbon spokes are actually better in tensile strength compared to steel spokes. It provides better stiffness. And the butted version is lighter than Berd spokes in some cases like 270mm. It's 2.3g each and Berd spokes are 2.5g on average. Build with Extralite hubs, they would be super light. Have you figured out the rims you like to build with yet? 35mm would be a sweet spot for both climbing and tarmac. Or are you looking for our AR25 super lightweight wheelset? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 6 customer reviews>>
