Build Your WHEELSET WAnax Gravel

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Global Shop

US Shop

CA Shop

EU Shop

Ships worldwide. See what's on sale>>

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the US Shop. Check this link to see what items we stock, or send us an email to discuss.

Our Global Shop can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelsets. We will get back to you via email to discuss in 24hrs.

Our apologies, we do not stock this item at the CA Shop. Check this link to see what items we stock, or send us an email to discuss.

The wheelsets are still in transit to this shop. We’ll update this page when they’re available. Learn more about our European shop.

You can order this product from our Global or North American shops.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

DEFAULT SETTINGS

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Hub Brand This is a required option.

Model	Weight	POE	Cost	Reliability	Quality	Unique Feature	Color Options	Warehouse Location	Website
DT 350	374g	18/36/54	Low	Better	Good	Quiet and reliable (18t option)	One	China	DT SWISS
DT 240S	317g	18/36/54	Medium	Best	Best	Quiet and reliable (18t option)	One	China/N.A.	DT SWISS
DT 240 EXP	299g	EXP 36	Medium	Best	Best	Quiet and reliable (EXP 36 )	One	China/N.A.	DT SWISS
DT 180	290g	EXP 36	High	Best	Best	Super Light, EXP 36	One	China/N.A.	DT SWISS
Chris King	326g	45	High	Best	Best	Rebuildable bearings	Nine	China	CHRIS KING
Industry Nine	327g	60	Medium	Better	Best	Loud, engagement	Eleven	China/N.A.	INDUSTRY NINE
Onyx	434g	Infinite	High	Better	Best	Silent, sprag clutch	Eighteen+ (Custom Available)	North America	ONYX
Carbon-Ti	270g	56	High	Better	Best	Extreme Light	Nine	China	Caron-Ti
LB Pace-Hub	275/285g	36/48	Low	Better	Good	Light, reliable, economic	One	China	Light Bicycle
Light Bicycle Speed-Hub Gen2	295g	36	Low	Better	Good	Proprietary for Carbon Spokes Steel Bearing/Ceramic	Two	China	Light Bicycle
Light Bicycle Pace-Hub	275/285g	36/48	Low	Better	Good	Economic, reliable, light	One	China	Light Bicycle

Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

Light Bicycle Pace-Hub

DT SWISS 240 EXP

DT SWISS 350

Industry Nine Solix

Erase Road Centerlock Hubs

Chris King R45D

Carbon-Ti X-Hub

Front Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 100mm

Rear Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 142mm

Freehub Body This is a required option.

1. Shimano Road 11S works with 11/12-speed cassette directly or 8/9/10-speed mountain cassette with a spacer(s) .
2. Shimano MTB 10/11S works with 8/9-speed directly or 10-speed with a spacer or 11-speed road cassette if one of the inner cogs removed.
3. Campagnolo (Campy) 11S works with 9/10/11/12-speed Campy cassette with no spacers required.
4. Sram XDR could run XDR (road) cassette inherently and is compatible to run mountain bike XD cassette with a 1.85mm spacer.
5. Shimano Micro Spline (MS) works with 12-speed MS cassette only.

Shimano Road 11S

Shimano Road 11S Alloy

Sram XDR Alloy

Sram XDR

Shimano HG11/12

Campagnolo N3W

Shimano Microspline (Road/Gravel)

Spoke Head This is a required option.

J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes

straight pull

J-bend

Brake System This is a required option.

6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt. If you need the conversion kit, please contact us. Our hubs are provided without rotor lockrings by default.

6-bolt

Center lock

Hub Color This is a required option.

Black

Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

24H

28H

Rear Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

28H

Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 4 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

24T - Made out of hardened steel as e-bike specific.

EXP 36 - With only a single spring, making the hubs faster and lighter. More precise contact makes a longer lifespan.

EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.

36T

45T

48T*

56T

605POE

EXP 36

EXP 54

Spoke This is a required option.

Brand	Model	Type	Thread Diameter (mm)	Weight(g)	Gauge	Riding Style	Available(Warehouse Location)
Sapim	Race	Double Butted	2.0 - 1.8 - 2.0	5.7g (260mm)	14G	Heavy Duty	North America, China
Sapim	D-Light	Double Butted	2.0 - 1.65 - 2.0	4.8g (260mm)	14G	Versatile	North America, China
Sapim	CX-Ray	Aero	2.0 - 0.9/2.2 - 2.0	4.4g (260mm)	N/A	Light Aero	North America, China
Sapim	CX-Sprint	Aero	2.0 - 1.25/2.25 - 2.0	5.2g (260mm)	N/A	Light Aero	China
DT SWISS	Competition Race	Double Butted	2.0 - 1.6 - 2.0	4.8g (260mm)	14G	Versatile	China
Pillar	PSR X-TRA 1420	Aero	2.0 - 0.95/2.2 - 2.0	4.4g (260mm)	N/A	Inexpensive Aero	China
Pillar	Wing 20	Aero	2.2 - 1.2/2.0 - 2.0	4.3g (260mm)	N/A	Light Aero	China
Light Bicycle	Oil slick J-bend	Single butted	2.0 - 2.0 - 1.95	6.7g (260mm)	14G	Cool color	China
Light Bicycle	Thrust-4 Carbon	Aero	2.2-1.1/4.0-2.2	2.8g (SP, 260mm)	N/A	Light Aero/Stiff	China
Berd	PolyLight	Rope-like	2.0-1.8	2.5g (260mm)	N/A	Extreme Light	North America

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.
DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)
Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.
Pillar Wing 20 - Pillar patented highest level of aerodynamic bladed spoke reducing potential weak spots and twisting during tensioning. Currently, they are offered in oil slick color only with increased wear and corrosion resistance.
Sapim CX Sprint-Rear drive side/ CX Ray-Other sides - This customized combo increases the rear drive side power transmition efficiency significantly while grabs superior light-weight and aero performance.
Oil slick J-bend - They are made by a qualified manufacturer in Taiwan with custom design by Light Bicycle. They are J-bend only so do not order these spokes for SP hubs you configured in the previous step.
LB Thrust-4 Carbon - The Thrust-4 Carbon spokes are designed to boost high tensile strength. The 4mm all-road profile ensures great crosswind stability.
Berd PolyLight >> - It is constructed from an advanced polymer called ultra high molecular weight polyethylene (UHMWPE) and are widely considered to be the lightest bicycle spoke option in the world.

Alpina Ultralite Aero

Nipple This is a required option.

Nipple Brand	Model	Material	Color	Length	Available (Warehouse Location)
Sapim	Double Square Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	16mm	Norh America
Sapim	Polyax/ Polyax Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	14mm	China
Sapim	Polyax Secure Lock	Brass	Black	14mm	China/N.A.
DT Swiss	DT SQUORX (PRO HEAD PRO LOCK)	Alloy	Black, Red	15mm	China
DT Swiss	Standard PRO LOCK	Brass	Black	14mm	China
Light Bicycle	N/A	Brass	Oil slick	14mm	China
Light Bicycle	Aluminium Black (for carbon spokes)	Alloy	Black	8.9mm	China

Please select Aluminium Black (for carbon spokes) nipples when you have chosen LB Flyweight Carbon spokes.

Brass Black

Brass Oil slick

Aluminium Black

Aluminium Red

Brake System This is a required option.

Disc

Version This is a required option.

Version	Weight	Material	Layup	Max Load
Standard	Standard	Toray T700	Standard Layup	135 kgs
Flyweight	40g - 70g lighter	Toray T800 and T700	New layup for weight saving	90 kgs

Front Flyweight / Rear Standard with specific layup is also a good option that proves the harmony of weight and strength.

Standard

Nipple Hole This is a required option.

External Hole

Finish This is a required option.

Paintless: The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.

Crystal Painting: A fantastic painting effect designed by Light Bicycle.

Full Custom: This option offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3~5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR REQUIREMENT IN QUOTES IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed to finalize the details.

Paintless

Weave This is a required option.

Rim Warranty This is a required option.

For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

5 Years

Lifetime USD +100/rim

Center Channel Hole This is a required option.

With Access Holes

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Decal << Read It First This is a required option.

1. Grey Laser Engraving (Falcon Pro) - Our laser engraving technology is eco-friendly and adds a snappy, polished aesthetic to your new rims.
Please note: Contrary to rims with any coated/painted finishes (matte, glossy and satin) as well as Crystal Painting, laser engraving could work with paintless rims only.

2. Full Custom - Add some additional personalization and go full custom with your rim graphics! Laser engraving is available in one colour (light grey) and starts at $5 USD per rim. If you select this option, LEAVE YOUR REQUEST IN QUOTES IN THE NOTES AT CHECKOUT. For example: "I need my personalized logo printed" or "Just text 'ABC racing' ". We will reach out to you once the order is placed to finalize the details of custom graphics.

Anax Gravel White Waterslide Decals

Full Custom (Laser only) USD +5

Spare spokes This is a required option.

We include 4 spare spokes with every Anax32 wheelset to make replacements even easier, which consists of two spokes for the drive side and two for the non-drive side of each wheel (front and rear). Each spoke is precision-calculated to match the exact dimensions of your hubs, ensuring a perfect fit and optimal performance.

None

Alpina Ultralite Aero *4PCS USD +12

Valve Stem This is a required option.

None

Apply Purple Valve Stem USD +9.9 each

Apply Blue Valve Stem USD +9.9 each

Apply Gold Valve Stem USD +9.9 each

Apply Orange Valve Stem USD +9.9 each

Apply Red Valve Stem USD +9.9 each

Apply Silver Valve Stem USD +9.9 each

Apply Green Valve Stem USD +9.9 each

Apply Champagne Gold Valve Stem USD +9.9 each

Apply Black Valve Stem USD +9.9 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Apply Tubeless Tape USD +6 each

Send Photos for Shipping Confirmation This is a required option.

Send Photos for Shipping Confirmation could be offered at NO extra charge so that you could have your tailored products viewed/inspected before shipping and the photos shared with your friends in advance.

It takes about 1~3 business days added to the lead time subject to the orders queuing status.

If you have any special requirement on the photos, such as weight measurement, please leave a note at checkout.

Yes (1-3 days longer)

No ( I do not need photos)

Recon Pro orders start shipping in October.

- + Pair

Brake System This is a required option.

Disc

Version This is a required option.

Version	Weight	Material	Layup	Max Load
Standard	Standard	Toray T700	Standard Layup	135 kgs
Flyweight	40g - 70g lighter	Toray T800 and T700	New layup for weight saving	90 kgs

Standard

Rim Warranty This is a required option.

5 Years

Lifetime USD +100/rim

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

None

Add Tubeless Tape USD +8 each

Apply Tubeless Tape USD +8 each

Recon Pro orders start shipping in October.

- + Pair

Piece Weight: 1403.16g+/-3%

Subtotal: USD 1282.8+

Piece Weight: 0.00g+/-3%

Subtotal: USD 0+

PREVIOUS NEXT

WHEELSET SPECS

RIMS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

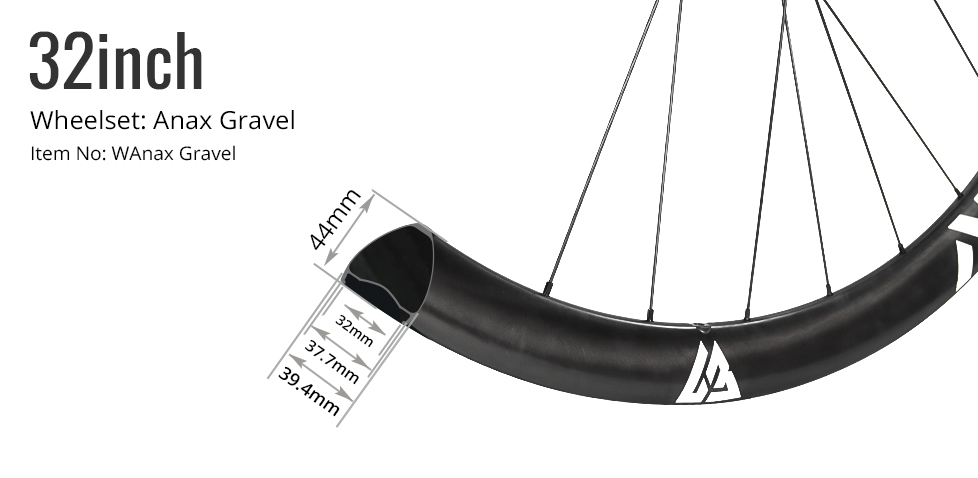

Rim Model Anax Gravel
Material Toray T700 & T800 Premium Carbon Fiber
Size 32inch
Intended Use CX/Gravel
Bead Type Clincher
Tubeless Capable Yes

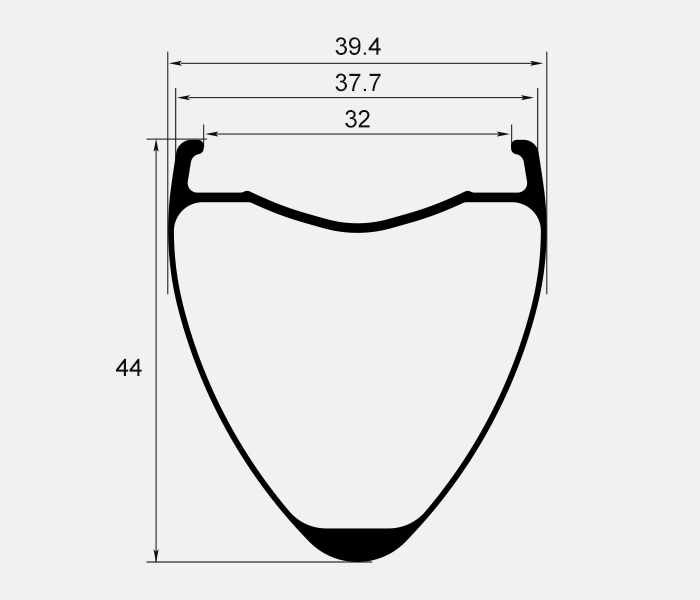

Inner/Outer Width 32mm/37.7mm
Depth 44mm
ERD 615mm (not including nipple head dimension)
Rim Weight Standard 400+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight Standard 120kg/265Ibs
Spoke Hole Angle ±6°
Spoke Tension 120~135kgf front disc side and rear drive side
Max Tire Pressure (with 45C) 55psi/3.79bar
Recommended Tire Width 42C~70C

HUBS

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model Light Bicycle Pace-Hub, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Solix, Erase Road Centerlock Hubs, Chris King R45D, Carbon-Ti X-Hub
Front Axle Size 12 / 100mm
Rear Axle Size 12 / 142mm
Driver Body Shimano Road 11S, Shimano Road 11S Alloy, Sram XDR Alloy, Sram XDR, Shimano HG11/12, Campagnolo N3W, Shimano Microspline (Road/Gravel)
Hole 24H, 28H

OTHER PARTS

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes Alpina Ultralite Aero
Nipples Brass Black, Brass Oil slick, Aluminium Black, Aluminium Red

For too long, gravel bike design has been dictated by road racing heritage. We’ve been conquering unpaved wilderness with wheel diameters meant for smooth pavement—until now. Our latest 32-inch Anax Gravel breaks the cycle. It isn't just a larger wheel; it is a technical departure from "road-plus" thinking, engineered specifically to redefine the gravel footprint.

Its 32-inch architecture creates a shallower angle of attack, converting trail impact into forward momentum and allowing you to maintain speed with less effort. By pairing an elongated longitudinal footprint—optimized for 42C to 70C tires — with proportional geometry for riders 183cm+, we’ve restored the "flick-able" soul of the gravel racer.

The Anax Gravel is a masterpiece of custom engineering. We build each wheelset to your exact specs using a curated selection of reliable hubs—LB Pace, DT Swiss, Industry Nine, Chris King, or Carbon-Ti—perfectly tensioned with Alpina Ultralite Aero spokes for uncompromising performance.

The wheelset has passed our in-house R&D impact test of 110J (UCI standard 40J).

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Rim Model: Anax Gravel
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 32inch
Intended Use: CX/Gravel
Bead Type: Clincher
Tubeless Capable: Yes
Inner/Outer Width: 32mm/37.7mm
Depth: 44mm
ERD: 615mm (not including nipple head dimension)
Rim Weight: Standard 400+/-15g
Profile: Symmetric (0mm)
Max Cyclist Weight: Standard 120kg/265Ibs
Spoke Hole Angle: ±6°
Spoke Tension: 120~135kgf front disc side and rear drive side
Max Tire Pressure (with 45C): 55psi/3.79bar
Recommended Tire Width: 42C~70C

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: Light Bicycle Pace-Hub, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Solix, Erase Road Centerlock Hubs, Chris King R45D, Carbon-Ti X-Hub
Front Axle Size: 12 / 100mm
Rear Axle Size: 12 / 142mm
Driver Body: Shimano Road 11S, Shimano Road 11S Alloy, Sram XDR Alloy, Sram XDR, Shimano HG11/12, Campagnolo N3W, Shimano Microspline (Road/Gravel)
Hole: 24H, 28H

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes: Alpina Ultralite Aero
Nipples: Brass Black, Brass Oil slick, Aluminium Black, Aluminium Red

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

For too long, gravel bike design has been dictated by road racing heritage. We’ve been conquering unpaved wilderness with wheel diameters meant for smooth pavement—until now. Our latest 32-inch Anax Gravel breaks the cycle. It isn't just a larger wheel; it is a technical departure from "road-plus" thinking, engineered specifically to redefine the gravel footprint.

Its 32-inch architecture creates a shallower angle of attack, converting trail impact into forward momentum and allowing you to maintain speed with less effort. By pairing an elongated longitudinal footprint—optimized for 42C to 70C tires — with proportional geometry for riders 183cm+, we’ve restored the "flick-able" soul of the gravel racer.

The Anax Gravel is a masterpiece of custom engineering. We build each wheelset to your exact specs using a curated selection of reliable hubs—LB Pace, DT Swiss, Industry Nine, Chris King, or Carbon-Ti—perfectly tensioned with Alpina Ultralite Aero spokes for uncompromising performance.

The wheelset has passed our in-house R&D impact test of 110J (UCI standard 40J).
Specs
Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Rim Model: Anax Gravel

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 32inch

Intended Use: CX/Gravel

Bead Type: Clincher

Tubeless Capable: Yes

Inner/Outer Width: 32mm/37.7mm

Depth: 44mm

ERD: 615mm (not including nipple head dimension)

Rim Weight: Standard 400+/-15g

Profile: Symmetric (0mm)

Max Cyclist Weight: Standard 120kg/265Ibs

Spoke Hole Angle: ±6°

Spoke Tension: 120~135kgf front disc side and rear drive side

Max Tire Pressure (with 45C): 55psi/3.79bar

Recommended Tire Width: 42C~70C

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: Light Bicycle Pace-Hub, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Solix, Erase Road Centerlock Hubs, Chris King R45D, Carbon-Ti X-Hub

Front Axle Size: 12 / 100mm

Rear Axle Size: 12 / 142mm

Driver Body: Shimano Road 11S, Shimano Road 11S Alloy, Sram XDR Alloy, Sram XDR, Shimano HG11/12, Campagnolo N3W, Shimano Microspline (Road/Gravel)

Hole: 24H, 28H

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes: Alpina Ultralite Aero

Nipples: Brass Black, Brass Oil slick, Aluminium Black, Aluminium Red
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

Be the first to review this product and help riders of your style choose the most suited.

Write a review now >>

Rider Story

We would love to hear your story and earn a $50 reward. Tell us your personal riding story that highlights the joys and challenges of riding.

Share your rider story now >>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

No.	Test Item	Test Standard	Compliance Rate	Measured Data
1	Drops Stiffness Vertical Test (Upwards)	50kgf static pressure deformation ≤ ( 11 ) MM	100%	10.01/9.81
2	Drops Stiffness Vertical Test (Downwards)	50kgf static pressure deformation ≤ ( 11 ) MM	100%	10.12/9.94
3	Hoods Stiffness Vertical Test (Downwards)	30kgf static pressure deformation ≤ ( 6 ) MM	100%	5.26/5.26
4	Handlebar In-Phase Loading Fatigue Test	Stage1: F=(+/-400) N=(+/-40.8) kgf, Frequency 2HZ, Cycles (150000)	100%	150,000 cycles, product intact
5	Handlebar In-Phase Loading Fatigue Test	Stage2: F=(+/-440) N=(+/-44.9) kgf, Frequency 2HZ, Cycles (100000)	100%	100,000 cycles, product intact
6	Handlebar Out-Phase Loading Fatigue	Stage1: F=(+/-280) N=(+/-28.6) kgf, Frequency 2HZ, Cycles (150000)	100%	150,000 cycles, product intact
7	Handlebar Out-Phase Loading Fatigue	Stage2: F=(+/-308) N=(+/-31.4) kgf, Frequency 2HZ, Cycles (100000)	100%	100,000 cycles, product intact
8	Impact Test	55J	100%	55J
9	Product Weight	( 250 +/-15 ) g	100%	259g

We use cookies for a better experience. Learn more.

Customize

Your Cookie Preferences

We use cookies to improve your experience on this website. You may choose which types of cookies to allow and change your preferences at any time. Disabling cookies may impact your experience on this website. You can learn more by viewing our Cookie Policy.

Essential Cookies

Cookies required to enable basic website functionality.
Performance Cookies

Cookies used to understand how the website is being used.
Preference Cookies

Cookies that are used to enhance the functionality of the website.
Advertising Cookies

Cookies used to deliver advertising that is more relevant to your interests.

Aceept All Cookies

Save Preferences

Reject All Cookies

Save Preferences

Reject All Cookies

Accept All Cookies

Specialized	Tarmac SL8	Colnago	V3
	Tarmac SL7		V4R/C68
	ALLEZ SPRINT		V3R/C64
	Aethos S-Works 2026		V5RS
Trek	MADONE SLR GEN8	Cannondale	SUPERSIX EVO G4
	MADONE SLR GEN7		SUPERSIX EVO G3
	EMONDA SLR		SYSTEMSIX
	MADONE SLR		LAB71
Quick Pro	ER:ONE		Supersix Evo 1 2023
Scott	NEW ADDICT RC	Factor	OSTRO VAM
	ADDICT		02 VAM
	NEW FOIL RC	Rose	Rose Xlite 6
	FOIL		Backroad 2019
Cervelo	R5	Pinarello	Dogma F12
	Caledonia
Please provide bike photo if you have any of the bikes listed below.
BMC	TMR 01
	SLR 01
	Teammachine SLRO1
Bianchi	Specialissima RC
Deda	OCR/BOTECHIA OCR
FOCUS	IZALCOMAX
Merida	REACTO/SCULTURA
Orbea	ORCA OMX/OMR
Ribble	CGR SL
Ridley	HELIUM SLX
	NOAH
TIME	ADH
Wilier	CENTO 10
	Triestina
	ZERO
	FLANTEE SLR/CENTO 10 SL
Can't find your bike model? Please let us know at sales@lightbicycle.com.

Use	Lightweight Road Riding
Width	340/380mm, 360/400mm, 375/415mm, 395/435mm
Stem Length	90mm, 100mm, 110mm, 120mm, 130mm
Material	Toray T700 & T800 Carbon Fiber
Finish	Matte/Glossy/Paintless/Custom Paint
Weave	UD/Marble
Weight	Starting from 250g
Reach	70mm
Drop	123mm
Stack	36.3mm
Steer Size	1-1/8″ (28.6mm), OD2 not Compatible
Flare	9°
Sweep	4°
Stem Angle	-10°
Impact Strength	Surpasses 55J Impact Test
Rider Weight Limit	120 kgs
Cable Routing	Internal & External
Computer Mount	Default Alloy Aluminum or 3D-Printed Titanium
Spacer	Universal 52mm/56mm or 3D-Printed Custom
Bolts	Titanium
Warranty	3-Year Warranty, contact us for our US$129 Handlebar Free Replacement Program.

Build Your WHEELSET WAnax Gravel

Overview

Specs

Warranty

In The Box

Rims

Hubs

Other Parts

Overview

Specs

Rims

Hubs

Other Parts

Warranty

In The Box

Gallery

Rider Story
