DEFAULT SETTINGS
Piece Weight: g+/-
Subtotal: USD +
Lead time:
Added to cart! View cart
Center Channel Hole This is a required option.
No Access Holes
DEFAULT SETTINGS
RIMS
Matte, UD, hook, blank (no decal), 24h, with drain holes
Paintless, UD, blank (no decal), 28h, with access holes
HUBS
DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t
12*100mm (F) & 12*142mm (R)
DT Swiss 350 Straightpull Centerlock Sram XD 18t
15/110mm (F) & 12/148mm (R) boost
SPOKES & NIPPLES
Sapim CX Sprint-rear drive side / CX Ray-other sides
Sapim aluminum black external
Sapim CX Ray & Sapim aluminum black external
ACCESSORIES
2 valves & 1 spare 18T ratchet
2 valves & 2 adapters (centerlock to 6-bolt)
Note: the wheelset price includes the warehouse transfer cost ($80).
Piece Weight: g+/-
Subtotal: USD + (discount price)
Lead time: typically ships in 3 business days
Added to cart! View cart
This item has gone out of stock currently.
More products are in transit and we will update the availability soon.
Leave a comment or email us (sales@lightbicycle.com) if you want to get notified when available.
You can also order this product from other shops.
We do not stock this item at the Australian shop. See what's available.
You can order this product from our Global / NA shops.
Please fill out this form if you are looking for a custom wheelset.
We'll get back to you soon to study the customization requests via email.
Our apologies, we do not offer this item at the Global warehouse.
Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.
Our apologies, we do not stock this item at the US Shop. Check this link to see what items we stock, or send us an email to discuss.
Our Global Shop can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelsets. We will get back to you via email to discuss in 24hrs.
Our apologies, we do not stock this item at the CA Shop. Check this link to see what items we stock, or send us an email to discuss.
Our Global Shop can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelsets. We will get back to you via email to discuss in 24hrs.
The wheelsets are still in transit to this shop. We’ll update this page when they’re available. Learn more about our European shop.
You can order this product from our Global or North American shops.
Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.
DEFAULT SETTINGS
Piece Weight: g+/-
Subtotal: USD +
Lead time:
Added to cart! View cart
HUB
SPOKES/NIPPLES
RIM
ACCESSORIES/OTHERS
OVERVIEW
HUB
Shopping Style
|
Options
Features |
Quick Buy | Full Custom |
|---|---|---|
| Inventory | Parts in stock (Assembled upon order) |
Manufactured upon order |
| Customization | Least customizable | 100% Customizable |
| Lead Time | ≤ 3 days | 4 weeks typically |
| Availability | Limited models | All models |
| Shipping | Worldwide | Worldwide |
Quick Buy (In Stock)
Full Custom (Made to Order)
DEFAULT SETTINGS
Rims
Hook, matte, UD, with drain holes
Hook, matte, UD, with access holes, with drain holes
Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes
Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes
Paintless, UD, 5-year warranty, no drain holes
Grooved graphene surface, hook, matte, UD, with access holes, with drain holes
Grooved graphene surface, hook, matte, UD, no access holes, with drain holes
Matte UD, 32H, Centered (Staggered)
Hubs
Hope Pro 4 Fatsno J-bend 6-bolt
15/150mm (F) & 12/197mm (R) Sram XD
Straightpull centerlock black 24H
12/100mm & 12/142mm
Shimano Road 11S
DT Swiss straightpull / Bitex j-bend, centerlock, 28H
J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H
15/110mm boost & 12/148mm boost Sram XD
DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear
100mm QR & 130mm QR Shimano Road 11S
Spokes
Sapim CX Ray black
Sapim D-Light
Accessories
No decals/valves/tape
No decals/valves/tape/pads
No decals/valves
Piece Weight: g+/-
Subtotal: USD +
Lead time:
Added to cart! View cart
Hub Brand This is a required option.
| Model | Weight | POE | Cost | Reliability | Quality | Unique Feature | Color Options | Warehouse Location | Website |
|---|---|---|---|---|---|---|---|---|---|
| Novatec | 287g | 27 | Low | Good | Good | Inexpensive | Three | China | NOVATEC |
| Bitex | 258g | 24 | Low | Good | Good | Light | Two | China | BITEX |
| DT 350 | 374g | 18/36/54 | Low | Better | Good | Quiet and reliable (18t option) |
One | China | DT SWISS |
| DT 240S | 317g | 18/36/54 | Medium | Best | Best | Quiet and reliable (18t option) |
One | China/N.A. | DT SWISS |
| DT 240 EXP | 299g | EXP 36 | Medium | Best | Best | Quiet and reliable (EXP 36 ) |
One | China/N.A. | DT SWISS |
| DT 180 | 290g | EXP 36 | High | Best | Best | Super Light, EXP 36 | One | China/N.A. | DT SWISS |
| Chris King | 326g | 45 | High | Best | Best | Rebuildable bearings | Nine | China | CHRIS KING |
| Industry Nine | 327g | 60 | Medium | Better | Best | Loud, engagement | Eleven | China/N.A. | INDUSTRY NINE |
| Onyx | 434g | Infinite | High | Better | Best | Silent, sprag clutch | Eighteen+ (Custom Available) |
North America | ONYX |
| Carbon-Ti | 270g | 56 | High | Better | Best | Extreme Light | Nine | China | Caron-Ti |
| ARC | 332g | 48 | Low | Better | Good | Economic and reliable | One | China | ARC |
| Chosen | 260g | 24 | Low | Better | Good | Economic and reliable | One | China | Chosen |
| Light Bicycle Pace-Hub | 275/285g | 36/48 | Low | Better | Good | Economic, reliable, light | One | China | Light Bicycle |
| Light Bicycle Speed-Hub Gen3 |
275g | 36 | Low | Better | Good | Proprietary for Carbon Spokes Steel Bearing (upgradable to ceramic) |
Two | China | Light Bicycle |
| Light Bicycle Speed-Hub Gen2 |
295g | 36 | Low | Better | Good | Proprietary for Carbon Spokes Steel Bearing (upgradable to ceramic) |
Two | China | Light Bicycle |
Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS
* POE = Points of Engagement
* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.
* Average weight will vary slightly depending on axle and freehub combination.
Light Bicycle Pace-Hub
DT SWISS 180
DT SWISS 240 EXP
DT SWISS 350
Chris King R45D
Industry Nine Solix
Carbon-Ti X-Hub
Erase Road Centerlock Hubs
Front Axle This is a required option.
If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.
By default, skewers are only offered with QR hubs.
12 / 100mm
Rear Axle This is a required option.
If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.
By default, skewers are only offered with QR hubs.
12 / 142mm
Freehub Body This is a required option.
1. Shimano Road 11S works with 11/12-speed cassette directly or 8/9/10-speed mountain cassette with a spacer(s) .
2. Shimano MTB 10/11S works with 8/9-speed directly or 10-speed with a spacer or 11-speed road cassette if one of the inner cogs removed.
3. Campagnolo (Campy) 11S works with 9/10/11/12-speed Campy cassette with no spacers required.
4. Sram XDR could run XDR (road) cassette inherently and is compatible to run mountain bike XD cassette with a 1.85mm spacer.
5. Shimano Micro Spline (MS) works with 12-speed MS cassette only.
Shimano Road 11S
Shimano Road 11S Alloy
Sram XDR Alloy
Sram XDR
Shimano Micro Spline Road Alloy
Shimano HG11/12
Campagnolo N3W
Shimano Microspline (Road/Gravel)
Spoke Head This is a required option.
J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes
straight pull
J-bend
Brake System This is a required option.
6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt.
If you need the conversion kit, please contact us. Our hubs are provided without rotor lockrings by default.
6-bolt
Center lock
Hub Color This is a required option.
Black
Matte Black
Orange
Red
Turquoise
Front Holes Count This is a required option.
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.
Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.
24H
28H
Rear Holes Count This is a required option.
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.
Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.
24H
28H
Ratchet This is a required option.
DT Swiss hubs use star ratchets and are available in 4 different models with varying points of engagement.
18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.
36T - Happy medium, doubles the engagement points.
54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.
24T - Made out of hardened steel as e-bike specific.
EXP 36 - With only a single spring, making the hubs faster and lighter. More precise contact makes a longer lifespan.
EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.
36T
45T
48T*
54T
56T
605T
EXP 36
EXP 54
Spoke This is a required option.
| Brand | Model | Type | Thread Diameter (mm) | Weight(g) | Gauge | Riding Style | Available(Warehouse Location) |
|---|---|---|---|---|---|---|---|
| Sapim | Race | Double Butted | 2.0 - 1.8 - 2.0 | 5.7g (260mm) | 14G | Heavy Duty | North America, China |
| Sapim | D-Light | Double Butted | 2.0 - 1.65 - 2.0 | 4.8g (260mm) | 14G | Versatile | North America, China |
| Sapim | CX-Ray | Aero | 2.0 - 0.9/2.2 - 2.0 | 4.4g (260mm) | N/A | Light Aero | North America, China |
| Sapim | CX-Sprint | Aero | 2.0 - 1.25/2.25 - 2.0 | 5.2g (260mm) | N/A | Light Aero | China |
| DT SWISS | Competition Race | Double Butted | 2.0 - 1.6 - 2.0 | 4.8g (260mm) | 14G | Versatile | China |
| Pillar | PSR X-TRA 1420 | Aero | 2.0 - 0.95/2.2 - 2.0 | 4.4g (260mm) | N/A | Inexpensive Aero | China |
| Pillar | Wing 20 | Aero | 2.2 - 1.2/2.0 - 2.0 | 4.3g (260mm) | N/A | Light Aero | China |
| Light Bicycle | Oil slick J-bend | Single butted | 2.0 - 2.0 - 1.95 | 6.7g (260mm) | 14G | Cool color | China |
| Light Bicycle | Thrust-4 Carbon | Aero | 2.2-1.1/4.0-2.2 | 2.8g (SP, 260mm) | N/A | Light Aero/Stiff | China |
| Berd | PolyLight | Rope-like | 2.0-1.8 | 2.5g (260mm) | N/A | Extreme Light | North America |
Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.
DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)
Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.
Pillar Wing 20 - Pillar patented highest level of aerodynamic bladed spoke reducing potential weak spots and twisting during tensioning. Currently, they are offered in oil slick color only with increased wear and corrosion resistance.
Sapim CX Sprint-Rear drive side/ CX Ray-Other sides - This customized combo increases the rear drive side power transmition efficiency significantly while grabs superior light-weight and aero performance.
Oil slick J-bend - They are made by a qualified manufacturer in Taiwan with custom design by Light Bicycle. They are J-bend only so do not order these spokes for SP hubs you configured in the previous step.
LB Thrust-4 Carbon - The Thrust-4 Carbon spokes are designed to boost high tensile strength. The 4mm all-road profile ensures great crosswind stability.
Berd PolyLight >> - It is constructed from an advanced polymer called ultra high molecular weight polyethylene (UHMWPE) and are widely considered to be the lightest bicycle spoke option in the world.
Pillar Aero X-TRA 1420
Sapim CX Ray
Sapim CX Sprint-Rear drive side/ CX Ray-Other sides
Nipple This is a required option.
| Nipple Brand | Model | Material | Color | Length | Available (Warehouse Location) |
|---|---|---|---|---|---|
| Sapim | Double Square Secure Lock | Alloy | Black, Red, Green, Blue, Gold, Lime, Purple, Orange | 16mm | Norh America |
| Sapim | Polyax/ Polyax Secure Lock | Alloy | Black, Red, Green, Blue, Gold, Lime, Purple, Orange | 14mm | China |
| Sapim | Polyax Secure Lock | Brass | Black | 14mm | China/N.A. |
| DT Swiss | DT SQUORX (PRO HEAD PRO LOCK) | Alloy | Black, Red | 15mm | China |
| DT Swiss | Standard PRO LOCK | Brass | Black | 14mm | China | Light Bicycle | N/A | Brass | Oil slick | 14mm | China | Light Bicycle | Aluminium Black (for carbon spokes) | Alloy | Black | 8.9mm | China |
Please select Aluminium Black (for carbon spokes) nipples when you have chosen LB Flyweight Carbon spokes.
Brass Black
Brass Oil slick
Aluminium Black
Aluminium Red
Brake System This is a required option.
Disc
Version This is a required option.
| Version | Weight | Material | Layup | Max Load |
|---|---|---|---|---|
| Standard | Standard | Toray T700 | Standard Layup | 135 kgs |
| Flyweight | 40g - 70g lighter | Toray T800 and T700 | New layup for weight saving | 90 kgs |
Front Flyweight / Rear Standard with specific layup is also a good option that proves the harmony of weight and strength.
Standard
Flyweight USD +12
Bead type This is a required option.
Hybrid Hook
Finish This is a required option.
Paintless: The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.
Crystal Painting: A fantastic painting effect designed by Light Bicycle.
Full Custom: This option offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3~5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR REQUIREMENT IN QUOTES IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed to finalize the details.
Paintless
Full Custom
Weave This is a required option.
UD
Rim Warranty This is a required option.
For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.
5 Years
Lifetime USD +100/rim
Center Channel Hole This is a required option.
With Access Holes: This is the traditional method. Spoke access holes are drilled in the center channel to allow the nipples to easily be fed through the rim. Tubeless tape is required to seal the rim.
No Access Holes: No spoke access holes are drilled in the center channel. Feeding the nipples through the rim is more challenging, but it allows for a tubeless setup without the need for tape. This kind of system is known as "road tubeless" and was made popular by Mavic. Some companies still refer to it as "UST style", however, UST is actually a specific interface between the tire and rim which was developed by a partnership between Mavic, Michelin, and Hutchinson.
Currently, rims with 'No Access Holes' do not work with our carbon spokes.
With Access Holes
No Access Holes
Drain Hole This is a required option.
The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.
It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.
Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>
With Drain Holes
No Drain Holes
Decal << Read It First This is a required option.
1. Grey Laser Engraving (Falcon Pro) - Our laser engraving technology is eco-friendly and adds a snappy, polished aesthetic to your new rims.
Please note: Contrary to rims with any coated/painted finishes (matte, glossy and satin) as well as Crystal Painting, laser engraving could work with paintless rims only.
2. Full Custom - Add some additional personalization and go full custom with your rim graphics! Laser engraving is available in one colour (light grey) and starts at $5 USD per rim. If you select this option, LEAVE YOUR REQUEST IN QUOTES IN THE NOTES AT CHECKOUT. For example: "I need my personalized logo printed" or "Just text 'ABC racing' ". We will reach out to you once the order is placed to finalize the details of custom graphics.
Full Custom (Laser only) USD +5
Grey Laser Engraving (Falcon Pro)
Blank (No decal)
Wheel Bag This is a required option.
Our all-new single wheel bag provides reliable storage for your wheel. Plus, an internal pocket is designed to store skewers and other tools. The wheel bag safely and comfortably accommodates most road and mountain bike wheels, including 700C, 26", 27.5", and 29" wheels. The wheel bag is with Light Bicycle logo by default. If you hope to get one without logo, please leave a note at checkout.
For a wheelset product, when selecting "Add Wheel Bag", you'll get two wheel bags; while for a single front/rear wheel product, you'll get one wheel bag.
None
Add Wheel Bag USD +25.5 each
Valve Stem This is a required option.
None
Apply Purple Valve Stem USD +9.9 each
Apply Blue Valve Stem USD +9.9 each
Apply Gold Valve Stem USD +9.9 each
Apply Orange Valve Stem USD +9.9 each
Apply Red Valve Stem USD +9.9 each
Apply Silver Valve Stem USD +9.9 each
Apply Green Valve Stem USD +9.9 each
Apply Champagne Gold Valve Stem USD +9.9 each
Apply Black Valve Stem USD +9.9 each
Tubeless Tape This is a required option.
Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape
Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.
You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.
None
Add Tubeless Tape USD +6 each
Apply Tubeless Tape USD +6 each
Rear Wheel Dishing Pattern This is a required option.
While the vast majority of frames require Centered (Traditional) dishing, those of Cannondale’s with Ai offset design (Asymmetric Integration) comply with a special kind of offset dishing for the rear wheel.
Know more about
Cannondale’s Ai technology >>
Centered (Traditional)
Ai offset- 6mm
Ai offset- 3mm
Send Photos for Shipping Confirmation This is a required option.
Send Photos for Shipping Confirmation could be offered at NO extra charge so that you could have your tailored products viewed/inspected before shipping and the photos shared with your friends in advance.
It takes about 1~3 business days added to the lead time subject to the orders queuing status.
If you have any special requirement on the photos, such as weight measurement, please leave a note at checkout.
Yes (1-3 days longer)
No ( I do not need photos)
Recon Pro orders start shipping in October.
Hub Brand This is a required option.
| Model | Weight | POE | Cost | Reliability | Quality | Unique Feature | Color Options | Warehouse Location | Website |
|---|---|---|---|---|---|---|---|---|---|
| Novatec | 287g | 27 | Low | Good | Good | Inexpensive | Three | China | NOVATEC>/td> |
| Bitex | 258g | 24 | Low | Good | Good | Light | Two | China | BITEX |
| DT 350 | 374g | 18/36/54 | Low | Better | Good | Quiet and reliable (18t option) |
One | China | DT SWISS |
| DT 240S | 317g | 18/36/54 | Medium | Best | Best | Quiet and reliable (18t option) |
One | China/N.A. | DT SWISS |
| DT 240 EXP | 299g | EXP 36 | Medium | Best | Best | Quiet and reliable (EXP 36 ) |
One | China/N.A. | DT SWISS |
| DT 180 | 290g | EXP 36 | High | Best | Best | Super Light, EXP 36 | One | China/N.A. | DT SWISS |
| Chris King | 326g | 45 | High | Best | Best | Rebuildable bearings | Nine | China | CHRIS KING |
| Industry Nine | 327g | 60 | Medium | Better | Best | Loud, engagement | Eleven | China/N.A. | INDUSTRY NINE |
| Onyx | 434g | Infinite | High | Better | Best | Silent, sprag clutch | Eighteen+ (Custom Available) |
North America | ONYX |
| Carbon-Ti | 270g | 56 | High | Better | Best | Extreme Light | Nine | China | Caron-Ti |
| ARC | 332g | 48 | Low | Better | Good | Economic and reliable | One | China | ARC |
| Chosen | 260g | 24 | Low | Better | Good | Economic and reliable | One | China | Chosen |
| Light Bicycle Pace-Hub | 275/285g | 36/48 | Low | Better | Good | Economic, reliable, light | One | China | Light Bicycle |
| Light Bicycle Speed-Hub Gen3 |
275g | 36 | Low | Better | Good | Proprietary for Carbon Spokes Steel Bearing (upgradable to ceramic) |
Two | China | Light Bicycle |
| Light Bicycle Speed-Hub Gen2 |
295g | 36 | Low | Better | Good | Proprietary for Carbon Spokes Steel Bearing (upgradable to ceramic) |
Two | China | Light Bicycle |
Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS
* POE = Points of Engagement
* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.
* Average weight will vary slightly depending on axle and freehub combination.
Light Bicycle Pace-Hub
DT SWISS 180
DT SWISS 240 EXP
Chris King R45D
Industry Nine Solix
Onyx Vesper
Carbon-Ti X-Hub
Erase Road Centerlock Hubs
Front Axle This is a required option.
If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.
By default, no Quick Release skewers are offered with hubs.
12 / 100mm
15 / 100mm
QR / 100mm
Rear Axle This is a required option.
If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.
By default, no Quick Release skewers are offered with hubs.
12 / 142mm
QR / 135mm
Freehub Body This is a required option.
1. Shimano Road 11S works with 11/12-speed cassette directly or 8/9/10-speed mountain cassette with a spacer(s) .
2. Shimano MTB 10/11S works with 8/9-speed directly or 10-speed with a spacer or 11-speed road cassette if one of the inner cogs removed.
3. Campagnolo (Campy) 11S works with 9/10/11/12-speed Campy cassette with no spacers required.
4. Sram XDR could run XDR (road) cassette inherently and is compatible to run mountain bike XD cassette with a 1.85mm spacer.
5. Shimano Micro Spline (MS) works with 12-speed MS cassette only.
Shimano Road 11S
Shimano Road 11S Alloy
Sram XDR Alloy
Campy 11S Alloy
Sram XDR
Shimano Micro Spline Road Alloy
Shimano HG11/12
Campagnolo N3W
Shimano Microspline (Road/Gravel)
Spoke Head This is a required option.
J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes
straight pull
J-bend
Brake System This is a required option.
6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt.
If you need the conversion kit, please contact us. Our hubs are provided without rotor lockrings by default.
6-bolt
Center lock
Hub Color This is a required option.
Choose your hub shell colour. By default, Onyx hubs come with anodized black tension caps and end caps. These parts are available in other anodized-only colours, so please specify in the notes at checkout if you want something other than black.
Anodized-Black
Anodized-Black Matte
Anodized-Blue
Anodized-Gold
Anodized-Green
Anodized-Orange
Anodized-Purple
Anodized-Red
Anodized-Silver
Black
Blue
Gold
Green
Lime
Matte Black
Orange
Pink
Powdercoat-Black Aura
Powdercoat-Blue Baby
Powdercoat-Blue Candy
Powdercoat-Green Antifreeze
Powdercoat-Green Fluorescent
Powdercoat-Green Kawasaki
Powdercoat-Pink Fluorescent
Powdercoat-Purple Candy
Purple
Red
Silver
Turquoise
Front Holes Count This is a required option.
ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h
MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please contact us.
24H
28H
Rear Holes Count This is a required option.
ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h
MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please contact us.
24H
28H
Ratchet This is a required option.
Our North America shop offers DT Swiss 350 SL hubs with star ratchet.
36T - The standard offer of the SL version.
54T - Faster engagement, but shallow teeth require more careful re-greasing.
DT Swiss 180 and 240 EXP take EXP ratchets.
EXP 36 - The more precise contact makes a longer lifespan.
EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.
Industry Nine and Chris King hubs as well as more others apply pawl system while Onyx goes with dead-silent Sprag Clutch engagement.
36T
45T
48T*
56T
605T
EXP 36
EXP 54
Sprag Clutch
Spoke This is a required option.
| Brand | Model | Type | Thread Diameter (mm) | Weight(g) | Gauge | Riding Style | Available(Warehouse Location) |
|---|---|---|---|---|---|---|---|
| Sapim | Race | Double Butted | 2.0 - 1.8 - 2.0 | 5.7g (260mm) | 14G | Heavy Duty | North America, China |
| Sapim | D-Light | Double Butted | 2.0 - 1.65 - 2.0 | 4.8g (260mm) | 14G | Versatile | North America, China |
| Sapim | CX-Ray | Aero | 2.0 - 0.9/2.2 - 2.0 | 4.4g (260mm) | N/A | Light Aero | North America, China |
| Sapim | CX-Sprint | Aero | 2.0 - 1.25/2.25 - 2.0 | 5.2g (260mm) | N/A | Light Aero | China |
| DT SWISS | Competition Race | Double Butted | 2.0 - 1.6 - 2.0 | 4.8g (260mm) | 14G | Versatile | China |
| Pillar | PSR X-TRA 1420 | Aero | 2.0 - 0.95/2.2 - 2.0 | 4.4g (260mm) | N/A | Inexpensive Aero | China |
| Pillar | Wing 20 | Aero | 2.2 - 1.2/2.0 - 2.0 | 4.3g (260mm) | N/A | Light Aero | China |
| Light Bicycle | Oil slick J-bend | Single butted | 2.0 - 2.0 - 1.95 | 6.7g (260mm) | 14G | Cool color | China |
| Light Bicycle | Thrust-4 Carbon | Aero | 2.2-1.1/4-2.2 | 2.8g (SP, 260mm) | N/A | Light Aero/Stiff | China |
| Berd | PolyLight | Rope-like | 2.0-1.8 | 2.5g (260mm) | N/A | Extreme Light | North America |
Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.
DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)
Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.
Pillar Wing 20 - Pillar patented highest level of aerodynamic bladed spoke reducing potential weak spots and twisting during tensioning. Currently, they are offered in oil slick color only with increased wear and corrosion resistance.
Sapim CX Sprint-Rear drive side/ CX Ray-Other sides - This customized combo increases the rear drive side power transmition efficiency significantly while grabs superior light-weight and aero performance.
Oil slick J-bend - They are made by a qualified manufacturer in Taiwan with custom design by Light Bicycle. They are J-bend only so do not order these spokes for SP hubs you configured in the previous step.
LB Thrust-4 Carbon - The Thrust-4 Carbon spokes are designed to boost high tensile strength. The 4mm all-road profile ensures great crosswind stability.
Berd PolyLight >> - It is constructed from an advanced polymer called ultra high molecular weight polyethylene (UHMWPE) and are widely considered to be the lightest bicycle spoke option in the world.
Alpina Extralite
Sapim CX Ray in Black
Nipple This is a required option.
| Nipple Brand | Model | Material | Color | Length | Available (Warehouse Location) |
|---|---|---|---|---|---|
| Sapim | Double Square Secure Lock | Alloy | Black, Red, Green, Blue, Gold, Lime, Purple, Orange | 16mm | North America |
| Sapim | Polyax/ Polyax Secure Lock | Alloy | Black, Red, Green, Blue, Gold, Lime, Purple, Orange,Silver | 14mm | China |
| Sapim | Polyax Secure Lock | Brass | Black | 14mm | China/N.A. |
| DT Swiss | DT SQUORX (PRO HEAD PRO LOCK) | Alloy | Black, Red | 15mm | China |
| DT Swiss | Standard PRO LOCK | Brass | Black | 14mm | China |
Brass Black
Aluminium Silver
Aluminium Black
Aluminium Red
Aluminium Blue
Aluminium Gold
Aluminium Green
Aluminium Lime
Aluminium Orange
Aluminium Purple
Brake System This is a required option.
Disc
Version This is a required option.
| Version | Weight | Material | Layup | Max Load |
|---|---|---|---|---|
| Standard | Standard | Toray T700 | Standard Layup | 135 kgs |
| Flyweight | 40g - 70g lighter | Toray T800 and T700 | New layup for weight saving | 90 kgs |
Standard
Bead type This is a required option.
Hybrid Hook
Finish This is a required option.
The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.
Paintless
Weave This is a required option.
UD
Rim Warranty This is a required option.
For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.
5 Years
Lifetime USD +100/rim
Decal This is a required option.
Grey Laser Engraving (Falcon Pro)
Valve Stem This is a required option.
We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions
None
Add Valve Stem USD +7 each
Tubeless Tape This is a required option.
Choose your hub shell colour. By default, Onyx hubs come with anodized black tension caps and end caps. These parts are available in other anodized-only colours, so please specify in the notes at checkout if you want something other than black.
None
Add Tubeless Tape USD +8 each
Apply Tubeless Tape USD +8 each
Front Vittoria Tire This is a required option.
Please note that the tires will NOT be pre-installed on the wheels.
Feel free to contact us (support@lightbicycle.com) if you want to special order other Vittoria tires.
None
Terreno Dry,700x38c,TNT,Anthracite,490g USD +59.99
Terreno Wet,700x38c,TNT,Anthracite,500g USD +59.99
Rear Vittoria Tire This is a required option.
Please note that the tires will NOT be pre-installed on the wheels.
Feel free to contact us (support@lightbicycle.com) if you want to special order other Vittoria tires.
None
Terreno Dry,700x38c,TNT,Anthracite,490g USD +59.99
Terreno Wet,700x38c,TNT,Anthracite,500g USD +59.99
Recon Pro orders start shipping in October.
Hub Brand This is a required option.
| Model | Weight | POE | Cost | Reliability | Quality | Unique Feature | Color Options | Warehouse Location | Website |
|---|---|---|---|---|---|---|---|---|---|
| Novatec | 287g | 27 | Low | Good | Good | Inexpensive | Three | China | NOVATEC |
| Bitex | 258g | 24 | Low | Good | Good | Light | Two | China | BITEX |
| DT 350 | 374g | 18/36/54 | Low | Better | Good | Quiet and reliable (18t option) |
One | China | DT SWISS |
| DT 240S | 317g | 18/36/54 | Medium | Best | Best | Quiet and reliable (18t option) |
One | China/N.A. | DT SWISS |
| DT 240 EXP | 299g | EXP 36 | Medium | Best | Best | Quiet and reliable (EXP 36 ) |
One | China/N.A. | DT SWISS |
| DT 180 | 290g | EXP 36 | High | Best | Best | Super Light, EXP 36 | One | China/N.A. | DT SWISS |
| Chris King | 326g | 45 | High | Best | Best | Rebuildable bearings | Nine | China | CHRIS KING |
| Industry Nine | 327g | 60 | Medium | Better | Best | Loud, engagement | Eleven | China/N.A. | INDUSTRY NINE |
| Onyx | 434g | Infinite | High | Better | Best | Silent, sprag clutch | Eighteen+ (Custom Available) |
North America | ONYX |
| Carbon-Ti | 270g | 56 | High | Better | Best | Extreme Light | Nine | China | Caron-Ti |
| ARC | 332g | 48 | Low | Better | Good | Economic and reliable | One | China | ARC |
| Chosen | 260g | 24 | Low | Better | Good | Economic and reliable | One | China | Chosen |
| Light Bicycle Pace-Hub | 275/285g | 36/48 | Low | Better | Good | Economic, reliable, light | One | China | Light Bicycle |
| Light Bicycle Speed-Hub Gen3 |
275g | 36 | Low | Better | Good | Proprietary for Carbon Spokes Steel Bearing (upgradable to ceramic) |
Two | China | Light Bicycle |
| Light Bicycle Speed-Hub Gen2 |
295g | 36 | Low | Better | Good | Proprietary for Carbon Spokes Steel Bearing (upgradable to ceramic) |
Two | China | Light Bicycle |
Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS
* POE = Points of Engagement
* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.
* Average weight will vary slightly depending on axle and freehub combination.
Light Bicycle Pace-Hub
DT SWISS 180
DT SWISS 240 EXP
DT SWISS 350
Chris King R45D
Industry Nine Solix
Onyx Vesper
Carbon-Ti X-Hub
Erase Road Centerlock Hubs
Front Axle This is a required option.
If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.
By default, skewers are only offered with QR hubs.
12 / 100mm
15 / 100mm
QR / 100mm
Rear Axle This is a required option.
If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.
By default, skewers are only offered with QR hubs.
12 / 142mm
QR / 135mm
Freehub Body This is a required option.
1. Shimano Road 11S works with 11/12-speed cassette directly or 8/9/10-speed mountain cassette with a spacer(s) .
2. Shimano MTB 10/11S works with 8/9-speed directly or 10-speed with a spacer or 11-speed road cassette if one of the inner cogs removed.
3. Campagnolo (Campy) 11S works with 9/10/11/12-speed Campy cassette with no spacers required.
4. Sram XDR could run XDR (road) cassette inherently and is compatible to run mountain bike XD cassette with a 1.85mm spacer.
5. Shimano Micro Spline (MS) works with 12-speed MS cassette only.
Shimano Road 11S
Shimano Road 11S Alloy
Sram XDR Alloy
Campy 11S Alloy
Sram XDR
Shimano Micro Spline Road Alloy
Shimano HG11/12
Campagnolo N3W
Shimano Microspline (Road/Gravel)
Spoke Head This is a required option.
straight pull
J-bend
Brake System This is a required option.
6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt.
If you need the conversion kit, please contact us. Our hubs are provided without rotor lockrings by default.
6-bolt
Center lock
Hub Color This is a required option.
Anodized-Black
Anodized-Black Matte
Anodized-Blue
Anodized-Gold
Anodized-Green
Anodized-Orange
Anodized-Purple
Anodized-Red
Anodized-Silver
Black
Blue
Gold
Green
Lime
Matte Black
Orange
Pink
Powdercoat-Black Aura
Powdercoat-Blue Baby
Powdercoat-Blue Candy
Powdercoat-Green Antifreeze
Powdercoat-Green Fluorescent
Powdercoat-Green Kawasaki
Powdercoat-Pink Fluorescent
Powdercoat-Purple Candy
Purple
Red
Silver
Turquoise
Front Holes Count This is a required option.
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.
Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.
24H
28H
Rear Holes Count This is a required option.
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.
Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.
24H
28H
Ratchet This is a required option.
DT Swiss hubs use star ratchets and are available in 4 different models with varying points of engagement.
18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.
36T - Happy medium, doubles the engagement points.
54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.
24T - Made out of hardened steel as e-bike specific.
EXP 36 - With only a single spring, making the hubs faster and lighter. More precise contact makes a longer lifespan.
EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.
36T
45T
48T*
54T
56T
605T
EXP 36
EXP 54
Sprag Clutch
Spoke This is a required option.
| Brand | Model | Type | Thread Diameter (mm) | Weight(g) | Gauge | Riding Style | Available(Warehouse Location) |
|---|---|---|---|---|---|---|---|
| Sapim | Race | Double Butted | 2.0 - 1.8 - 2.0 | 5.7g (260mm) | 14G | Heavy Duty | North America, China |
| Sapim | D-Light | Double Butted | 2.0 - 1.65 - 2.0 | 4.8g (260mm) | 14G | Versatile | North America, China |
| Sapim | CX-Ray | Aero | 2.0 - 0.9/2.2 - 2.0 | 4.4g (260mm) | N/A | Light Aero | North America, China |
| Sapim | CX-Sprint | Aero | 2.0 - 1.25/2.25 - 2.0 | 5.2g (260mm) | N/A | Light Aero | China |
| DT SWISS | Competition Race | Double Butted | 2.0 - 1.6 - 2.0 | 4.8g (260mm) | 14G | Versatile | China |
| Pillar | PSR X-TRA 1420 | Aero | 2.0 - 0.95/2.2 - 2.0 | 4.4g (260mm) | N/A | Inexpensive Aero | China |
| Pillar | Wing 20 | Aero | 2.2 - 1.2/2.0 - 2.0 | 4.3g (260mm) | N/A | Light Aero | China |
| Light Bicycle | Oil slick J-bend | Single butted | 2.0 - 2.0 - 1.95 | 6.7g (260mm) | 14G | Cool color | China |
| Light Bicycle | Thrust-4 Carbon | Aero | 2.2-1.1/4-2.2 | 2.8g (SP, 260mm) | N/A | Light Aero/Stiff | China |
| Berd | PolyLight | Rope-like | 2.0-1.8 | 2.5g (260mm) | N/A | Extreme Light | North America |
Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.
DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)
Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.
Pillar Wing 20 - Pillar patented highest level of aerodynamic bladed spoke reducing potential weak spots and twisting during tensioning. Currently, they are offered in oil slick color only with increased wear and corrosion resistance.
Sapim CX Sprint-Rear drive side/ CX Ray-Other sides - This customized combo increases the rear drive side power transmition efficiency significantly while grabs superior light-weight and aero performance.
Oil slick J-bend - They are made by a qualified manufacturer in Taiwan with custom design by Light Bicycle. They are J-bend only so do not order these spokes for SP hubs you configured in the previous step.
LB Thrust-4 Carbon - The Thrust-4 Carbon spokes are designed to boost high tensile strength. The 4mm all-road profile ensures great crosswind stability.
Berd PolyLight >> - It is constructed from an advanced polymer called ultra high molecular weight polyethylene (UHMWPE) and are widely considered to be the lightest bicycle spoke option in the world.
Alpina Extralite
Sapim CX Ray in Black
Nipple This is a required option.
| Nipple Brand | Model | Material | Color | Length | Available (Warehouse Location) |
|---|---|---|---|---|---|
| Sapim | Double Square Secure Lock | Alloy | Black, Red, Green, Blue, Gold, Lime, Purple, Orange | 16mm | North America |
| Sapim | Polyax/ Polyax Secure Lock | Alloy | Black, Red, Green, Blue, Gold, Lime, Purple, Orange,Silver | 14mm | China |
| Sapim | Polyax Secure Lock | Brass | Black | 14mm | China/N.A. |
| DT Swiss | DT SQUORX (PRO HEAD PRO LOCK) | Alloy | Black, Red | 15mm | China |
| DT Swiss | Standard PRO LOCK | Brass | Black | 14mm | China |
Brass Black
Aluminium Black
Aluminium Red
Aluminium Blue
Aluminium Gold
Aluminium Green
Aluminium Lime
Aluminium Orange
Aluminium Purple
Aluminium Silver
Brake System This is a required option.
Disc
Version This is a required option.
| Version | Weight | Material | Layup | Max Load |
|---|---|---|---|---|
| Standard | Standard | Toray T700 | Standard Layup | 135 kgs |
| Flyweight | 40g - 70g lighter | Toray T800 and T700 | New layup for weight saving | 90 kgs |
Standard
Bead type This is a required option.
Hybrid Hook
Finish This is a required option.
The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.
Paintless
Weave This is a required option.
UD
Rim Warranty This is a required option.
For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.
5 Years
Lifetime USD +100/rim
Decal This is a required option.
Grey Laser Engraving (Falcon Pro)
Valve Stem This is a required option.
We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions
None
Add Valve Stem USD +7 each
Tubeless Tape This is a required option.
None
Add Tubeless Tape USD +8 each
Apply Tubeless Tape USD +8 each
Front Vittoria Tire This is a required option.
Please note that the tires will NOT be pre-installed on the wheels.
Feel free to contact us (support@lightbicycle.com) if you want to special order other Vittoria tires.
None
Terreno Dry,700x38c,TNT,Anthracite,490g USD +59.99
Terreno Wet,700x38c,TNT,Anthracite,500g USD +59.99
Rear Vittoria Tire This is a required option.
Please note that the tires will NOT be pre-installed on the wheels.
Feel free to contact us (support@lightbicycle.com) if you want to special order other Vittoria tires.
None
Terreno Dry,700x38c,TNT,Anthracite,490g USD +59.99
Terreno Wet,700x38c,TNT,Anthracite,500g USD +59.99
Recon Pro orders start shipping in October.
Piece Weight: 1298.28g+/-3%
Subtotal: USD 986+
Piece Weight: 1408.28g+/-3%
Subtotal: USD 942.8+
Piece Weight: 1408.28g+/-3%
Subtotal: USD 942.8+
Added to cart!
View cart or continue
shopping.
WHEELSET SPECS
RIMS
Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.
HUBS
We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).
OTHER PARTS
Leave a note at checkout or contact us if you want spare spokes or nipples.
TECH

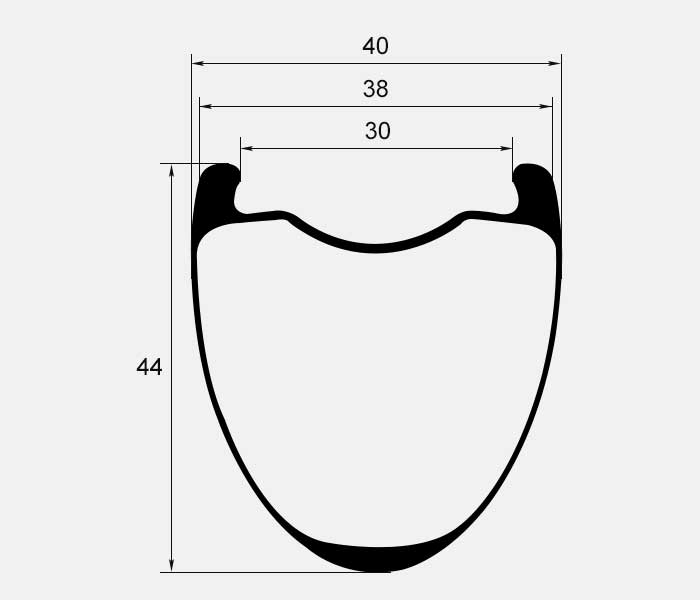

The WG44 is aero-optimized in width and depth dimensions, delivering a fast-rolling feel previously available only in narrow gravel rim and tire pairings. Featuring an inner width of 30mm and the widest part of the sidewall at 40mm, the WG44 reduces irregular air movements along the rim-tire interface. Air passes the tire and rim concurrently rather than being disrupted prematurely, making the best use of the 44mm aero depth. Even on wider, plusher tires you’ll benefit from this design.
The WG44 features a versatile 44mm aero depth. In exposed areas, the 44mm depth brings enough aero gains and responsiveness without losing control in crosswinds. Adventure anywhere on the WG44!
When configuring the wheelset, you will find a variety of hubs and spokes from brands like DT Swiss, Carbon-Ti, and Sapim to choose from. We only list some of the most popular options, so feel free to get in touch with us to special order. With over 10 years of wheel-building expertise, we calculate the spoke lengths, handlace the wheels to the desired pattern, tension and true the wheels, and do stress-reliving to get your product in a perfect state. You can install the wheels to start a new adventure immediately upon receiving it.
The rim/wheelset has passed our in-house R&D impact test of 105J(Standard)/90J(Flyweight).
WARRANTY
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
WHAT IS IN THE BOX
The WG44 is aero-optimized in width and depth dimensions, delivering a fast-rolling feel previously available only in narrow gravel rim and tire pairings. Featuring an inner width of 30mm and the widest part of the sidewall at 40mm, the WG44 reduces irregular air movements along the rim-tire interface. Air passes the tire and rim concurrently rather than being disrupted prematurely, making the best use of the 44mm aero depth. Even on wider, plusher tires you’ll benefit from this design.
The WG44 features a versatile 44mm aero depth. In exposed areas, the 44mm depth brings enough aero gains and responsiveness without losing control in crosswinds. Adventure anywhere on the WG44!
When configuring the wheelset, you will find a variety of hubs and spokes from brands like DT Swiss, Carbon-Ti, and Sapim to choose from. We only list some of the most popular options, so feel free to get in touch with us to special order. With over 10 years of wheel-building expertise, we calculate the spoke lengths, handlace the wheels to the desired pattern, tension and true the wheels, and do stress-reliving to get your product in a perfect state. You can install the wheels to start a new adventure immediately upon receiving it.
The rim/wheelset has passed our in-house R&D impact test of 105J(Standard)/90J(Flyweight).
Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.
We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).
Leave a note at checkout or contact us if you want spare spokes or nipples.
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.
Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.
The WG44 is aero-optimized in width and depth dimensions, delivering a fast-rolling feel previously available only in narrow gravel rim and tire pairings. Featuring an inner width of 30mm and the widest part of the sidewall at 40mm, the WG44 reduces irregular air movements along the rim-tire interface. Air passes the tire and rim concurrently rather than being disrupted prematurely, making the best use of the 44mm aero depth. Even on wider, plusher tires you’ll benefit from this design.
The WG44 features a versatile 44mm aero depth. In exposed areas, the 44mm depth brings enough aero gains and responsiveness without losing control in crosswinds. Adventure anywhere on the WG44!
When configuring the wheelset, you will find a variety of hubs and spokes from brands like DT Swiss, Carbon-Ti, and Sapim to choose from. We only list some of the most popular options, so feel free to get in touch with us to special order. With over 10 years of wheel-building expertise, we calculate the spoke lengths, handlace the wheels to the desired pattern, tension and true the wheels, and do stress-reliving to get your product in a perfect state. You can install the wheels to start a new adventure immediately upon receiving it.
The rim/wheelset has passed our in-house R&D impact test of 105J(Standard)/90J(Flyweight).
Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.
We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).
Leave a note at checkout or contact us if you want spare spokes or nipples.
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.
Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.
We would love to hear your story and earn a $50 reward. Tell us your personal riding story that highlights the joys and challenges of riding.
COMMENTS
Sam 2025/11/25
Hello, Please could I have a quote for the following wheel set namely WG44 with BERD spokes and DTswiss 240 hub. HUB Hub BrandDT SWISS 240 EXP Front Axle12 / 100mm Rear Axle12 / 142mm Freehub BodySram XDR Alloy Spoke HeadStraight pull Brake SystemCenter lock Hub ColorBlack Front Holes Count24H Rear Holes Count28H RatchetEXP 36 SPOKES/NIPPLES BERD Black spokes NippleBrass Black RIM Brake SystemDisc VersionStandard Bead typeHybrid Hook FinishPaintless WeaveUD Rim Warranty5 Years Center Channel HoleNo Access Holes Drain Hole With Drain Holes ACCESSORIES/OTHERS DecalBlank (No decal) Wheel BagNone Valve StemNone Tubeless TapeNone Rear Wheel Dishing Pattern Centered (Traditional) Send Photos for Shipping ConfirmationNo ( I do not need photos) SERVICE FEE Wheel buildingUSD30 per wheelset Thank you Sam
LightBicycle 2025/11/25
Hi Sam, Thanks for reaching out! We have sent the quote to you via email, pls check it. Light Bicycle
REPLY
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
Mac 2025/09/19
Hi Guys, are you able to build WG44 (DT 350) with 28 spokes? While bikepacking my total system weight can reach 130kg in terrain. I am a bit wary of wheel durability with 24 spokes only. Regards, Maciej
LightBicycle 2025/09/22
Hi Mac, Yes, it is okay to drilling 28H for WG44 gravel wheelset 700C, but we have no DT Swiss 350 hubs with 28H. Would you be interested in our Pace hub? We have 28H option for that. You can learn more about our Pace hub here: https://www.lightbicycle.com/newsletter/introducing-the-pace-hub.html Thanks, Lightbicycle
REPLY
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
M 2025/05/23
Hi, I sent an email about the Turbo 40 v Turbo 50, but I'd like to follow up and ask which wheelset of the Turbo 40, AR465, and WG44 (assuming proper tire pairing, all same build specs) is most aerodynamic? I'm contemplating two different scenarios - amateur road racing with climbing (old pavement, using 28-32 c tires), and gravel bike racing (40-50 c tires), also with climbing. Hi, I'm interested in buying either a set of the Turbo 40 or the Turbo 50 wheelsets, and plan to swap tires on them to alternate the wheels from an all-road bike to a gravel bike. I'm an average rider who enjoys amateur racing. Would you recommend one wheelset size vs the other? I imagine the 50 may be more aerodynamic, but the 40 slightly more stable in cross-winds? Thanks for your help!
LightBicycle 2025/05/24
Hi M, Is there a lot of crosswind in your riding environment? If so , we recommend Turbo-40 road disc wheels. Medium depth is less affected by crosswinds and is lighter in weight. If not, the Turbo-50 will be better, to get more Aero. Thanks, Lightbicycle
REPLY
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
Kevin 2024/10/30
Can you build up your WR 44 in flyweight to your Light Bicycle version 2 hubs and spokes, and how much? Thanks Kevin
LightBicycle 2024/10/30
Hi Kevin, Yes, sure. We can build WG44 flyweight wide gravel wheelset with Gen2 hubs and carbon spokes as below. It is USD1124.8/pair, 1190g+/-25 - Rims: WG44, hook, UD paintless flyweight, 24H, disc, with LB laser logo - Hubs: black LB speed hub Gen2, front 12*100mm/rear 12*142mm, shimano road 11S, straight pull, center lock, 36T - Spokes: black carbon spokes LB - Nipples: black aluminum Thanks, Lightbicycle
REPLY
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
Liam 2024/10/02
Hi, I'm interested in a set of these rims with black Berd spokes and black Onyx Vesper hook flange hubs w/ XDR. Is this configuration available? Thanks!
LightBicycle 2024/10/03
Hi Liam, YES. We can build the WG44d wheelset with Berd spokes and the Onyx hook flange hubs. We have send the quote and the estimated weight to you through the email. Please check it : D Best regards, Light Bicycle
REPLY
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
Pascal 2023/12/30
Hi, I was recommended by one of your customers who happens to have the same bike as mine, an OPEN WI.DE with SRAM Force eTap AXS drivetrain, Eagle XX1 AXS rear derailleur, and a 10-50T cassette. I currently ride on a pair of Enve AG25 and I would like to add another set of wheels for 70/30 road use. I most likely will mount tires from 32mm to 40mm max, like the Specialized Pathfinder Pro or similar. Could you please tell me the cost of a WG44 wheelset with DTSWISS A)180 hub B)240 hub? Thank you. Pascal
LightBicycle 2024/01/02
Hi Pascal, We have sent an email to you with the quotes, please check and let us know if you have any further concerns. BR, LIGHT BICYCLE
REPLY
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
Eduardo 2023/08/06
Can these wheels be bought with carbon spokes?
LightBicycle 2023/08/06
Hi Eduardo, Thanks for reaching out! Yes, we could build the WG44 wheels with Carbon Spokes. I have sent an email to you, please check it. Br, Light Bicycle
REPLY
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
Jon 2023/07/31
Does this have x-flow profile?
LightBicycle 2023/08/01
Hi Jon, We are sorry, but the WG44 is not in an X-Flow design. If you like this kind of profile and in-depth 40mm, you could go for the 'WR40' disc rim, with inner /outer Width: 25mm/32mm. Please let me know if you have any further questions. Best regards Light Bicycle
REPLY
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
Jesse 2023/07/30
Hi there, I'm curious if you would be willing to lace a set of your new WG44 rims, to some DT240 or DT350 hubs, with 15x110 and 12x148 boost spacing? I'm looking at building a drop bar 29er, and I love the idea of some "aero" profile rims for a true rigid mtb with some 2.0" tires. Thanks, Jesse
LightBicycle 2023/07/31
Hi Jesse, Thanks for reaching out! I have sent an email to you about the quote, please check it. BR Light Bicycle
REPLY
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
Get in touch
Feel free to leave a comment if you have any questions or suggestions on our products or other issues.
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
| Specialized | Tarmac SL8 | Colnago | V3 |
| Tarmac SL7 | V4R/C68 | ||
| ALLEZ SPRINT | V3R/C64 | ||
| Aethos S-Works 2026 | V5RS | ||
| Trek | MADONE SLR GEN8 | Cannondale | SUPERSIX EVO G4 |
| MADONE SLR GEN7 | SUPERSIX EVO G3 | ||
| EMONDA SLR | SYSTEMSIX | ||
| MADONE SLR | LAB71 | ||
| Quick Pro | ER:ONE | Supersix Evo 1 2023 | |
| Scott | NEW ADDICT RC | Factor | OSTRO VAM |
| ADDICT | 02 VAM | ||
| NEW FOIL RC | Rose | Rose Xlite 6 | |
| FOIL | Backroad 2019 | ||
| Cervelo | R5 | Pinarello | Dogma F12 |
| Caledonia | |||
| Please provide bike photo if you have any of the bikes listed below. | |||
| BMC | TMR 01 | ||
| SLR 01 | |||
| Teammachine SLRO1 | |||
| Bianchi | Specialissima RC | ||
| Deda | OCR/BOTECHIA OCR | ||
| FOCUS | IZALCOMAX | ||
| Merida | REACTO/SCULTURA | ||
| Orbea | ORCA OMX/OMR | ||
| Ribble | CGR SL | ||
| Ridley | HELIUM SLX | ||
| NOAH | |||
| TIME | ADH | ||
| Wilier | CENTO 10 | ||
| Triestina | |||
| ZERO | |||
| FLANTEE SLR/CENTO 10 SL | |||
| Can't find your bike model? Please let us know at sales@lightbicycle.com. | |||
| No. | Test Item | Test Standard | Compliance Rate | Measured Data |
|---|---|---|---|---|
| 1 | Drops Stiffness Vertical Test (Upwards) | 50kgf static pressure deformation ≤ ( 11 ) MM | 100% | 10.01/9.81 |
| 2 | Drops Stiffness Vertical Test (Downwards) | 50kgf static pressure deformation ≤ ( 11 ) MM | 100% | 10.12/9.94 |
| 3 | Hoods Stiffness Vertical Test (Downwards) | 30kgf static pressure deformation ≤ ( 6 ) MM | 100% | 5.26/5.26 |
| 4 | Handlebar In-Phase Loading Fatigue Test | Stage1: F=(+/-400) N=(+/-40.8) kgf, Frequency 2HZ, Cycles (150000) | 100% | 150,000 cycles, product intact |
| 5 | Stage2: F=(+/-440) N=(+/-44.9) kgf, Frequency 2HZ, Cycles (100000) | 100% | 100,000 cycles, product intact | |
| 6 | Handlebar Out-Phase Loading Fatigue | Stage1: F=(+/-280) N=(+/-28.6) kgf, Frequency 2HZ, Cycles (150000) | 100% | 150,000 cycles, product intact |
| 7 | Stage2: F=(+/-308) N=(+/-31.4) kgf, Frequency 2HZ, Cycles (100000) | 100% | 100,000 cycles, product intact | |
| 8 | Impact Test | 55J | 100% | 55J |
| 9 | Product Weight | ( 250 +/-15 ) g | 100% | 259g |
| Use | Lightweight Road Riding |
| Width | 340/380mm, 360/400mm, 375/415mm, 395/435mm |
| Stem Length | 90mm, 100mm, 110mm, 120mm, 130mm |
| Material | Toray T700 & T800 Carbon Fiber |
| Finish | Matte/Glossy/Paintless/Custom Paint |
| Weave | UD/Marble |
| Weight | Starting from 250g |
| Reach | 70mm |
| Drop | 123mm |
| Stack | 36.3mm |
| Steer Size | 1-1/8″ (28.6mm), OD2 not Compatible |
| Flare | 9° |
| Sweep | 4° |
| Stem Angle | -10° |
| Impact Strength | Surpasses 55J Impact Test |
| Rider Weight Limit | 120 kgs |
| Cable Routing | Internal & External |
| Computer Mount | Default Alloy Aluminum or 3D-Printed Titanium |
| Spacer | Universal 52mm/56mm or 3D-Printed Custom |
| Bolts | Titanium |
| Warranty | 3-Year Warranty, contact us for our US$129 Handlebar Free Replacement Program. |
Born from German NACA airfoil expertise and advanced CFD analysis, the AeroRevo is an ode to aerodynamic performance. Every contour is meticulously optimized to minimize frontal area and aerodynamic drag. By integrating a slammed -10° stem angle with a compact 70mm reach, the geometry naturally dictates an aggressive position. Furthermore, the narrow width options (340-395mm at the hoods) significantly streamline the rider’s silhouette, complemented by a subtle flare for high-speed stability and control.
The AeroRevo’s monolithic construction is a masterclass in carbon engineering. This unified structure allows carbon fibers to work in perfect, uninterrupted harmony, resulting in an exceptional stiffness-to-weight ratio and superior vibration dampening. With a starting weight of just 250g, the AeroRevo sets a new benchmark for lightweight integrated cockpits.
We understand that choosing carbon handlebars goes beyond performance — comfort matters too. Expertly contoured for a natural grip, its profile offers maximum spatial freedom, allowing for aggressive sprinting without the risk of forearm contact. With a raised hood position of 5.15mm for enhanced comfort and control, it delivers ideal performance for both racers and endurance riders.
With the builder in mind, the AeroRevo is optimized for internal cable routing with easy wiring for both mechanical and electronic shifting. Our "painless" internal routing system features widened ports and guided channels, transforming a daunting task into a straightforward, confidence-building process. Both you and your mechanics will enjoy the design.
The AeroRevo redefines versatility. With 18 different width and stem length pairings, your ideal geometry is no longer a compromise. Our 3D-printed headset spacers ensure a seamless, 'native' fit for 99% of mainstream bikes, while unlimited custom paint options grant you total creative freedom. Your cockpit, your fit, your masterpiece.
See the full bike list.
Our dedicated computer mount is a study in material efficiency, utilizing 3D-printed titanium to achieve an exceptional strength-to-weight ratio. The mount features a signature triangular architecture, engineered to provide a rock-solid, vibration-free platform for your electronics on even the most demanding terrain. Embracing the Light Bicycle DNA of personalization, this system serves as a gateway to unlimited custom possibilities, ensuring your cockpit is as functional as it is unique.
Your Cookie Preferences
We use cookies to improve your experience on this website. You may choose which types of cookies to allow and change your preferences at any time. Disabling cookies may impact your experience on this website. You can learn more by viewing our Cookie Policy.
Cookies required to enable basic website functionality.
Cookies used to understand how the website is being used.
Cookies that are used to enhance the functionality of the website.
Cookies used to deliver advertising that is more relevant to your interests.
