Buy & Configure
Find your size and choose from the seven combos available.
Specifications
Info
- Reach 75mm
- Drop 116mm

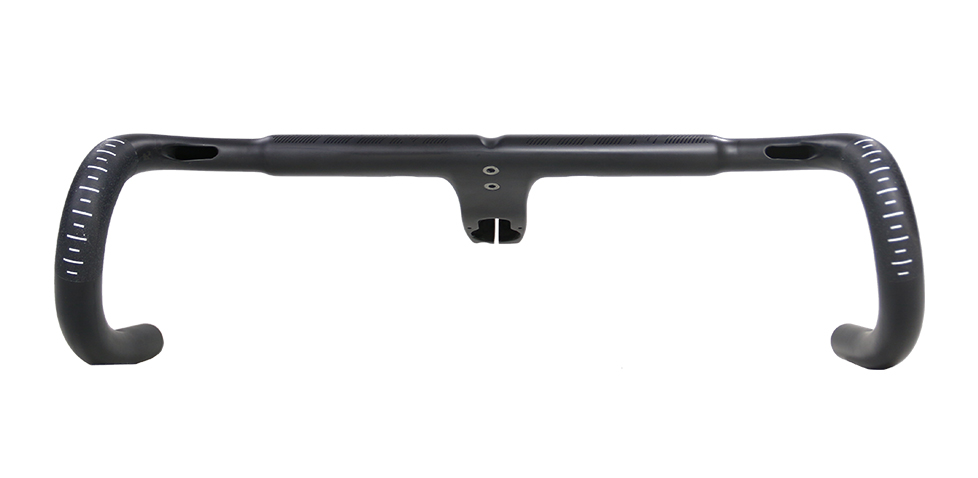

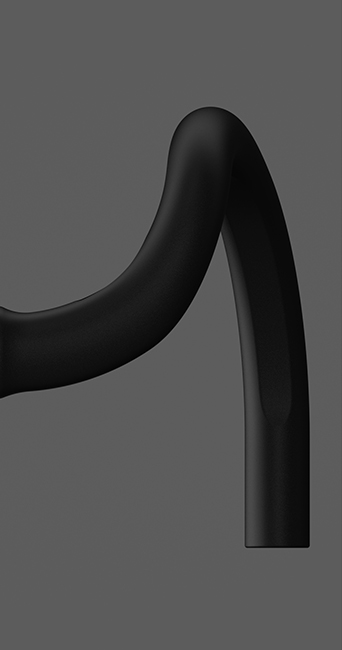

- Flare 20°
- Backsweep 4°
- Stem angle -6°
- Stem length 70-80-90-100mm
- Stem diameter 31.8/28.6mm
- Weave & Finish Matte UD, Paintless Marble
- Di2 Compatible Yes
Weight
-
Handlebar Weight
400-70/80 285+/-15g
420-80/90 300+/-15g
440-90/100 310+/-15g
460-100 320+/-15g - Carbon GPS Mount Weight 25+/-5g
- Spacer Weight 30+/-5g

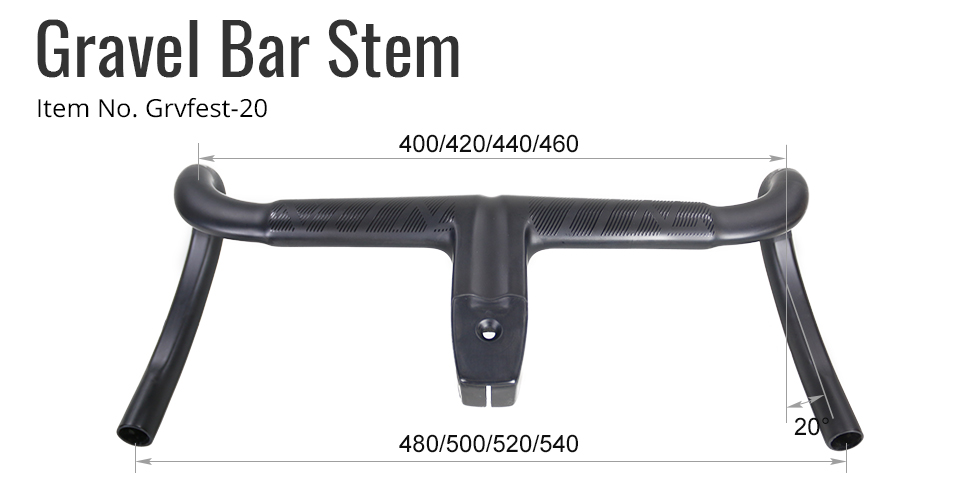

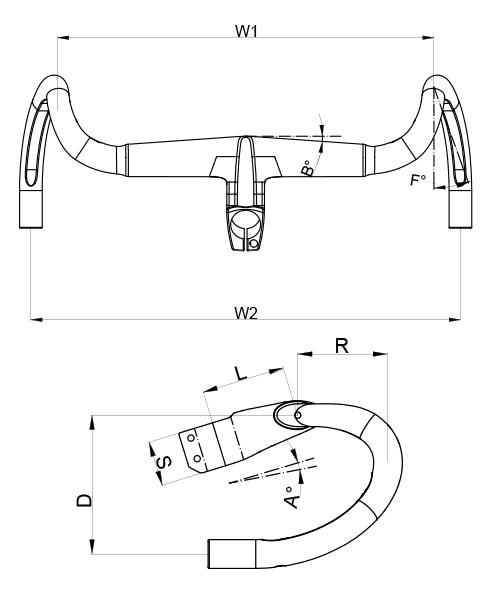

Geometry & Sizing
Size | 400 | 420 | 440 | 460 |
---|---|---|---|---|
W1-Width | 407mm | 427mm | 447mm | 467mm |
W2-Width | 456mm | 476mm | 496mm | 516mm |
L-Length | 70/80mm | 80/90mm | 90/100mm | 100mm |
R-Reach | 75mm | 75mm | 75mm | 75mm |
D-Drop | 116mm | 116mm | 116mm | 116mm |
F-Flare | 20° | 20° | 20° | 20° |
B-Backsweep | 4° | 4° | 4° | 4° |
A-Stem Angle | -6° | -6° | -6° | -6° |
W1-Width | 407mm | 427mm | 447mm | 467mm |
W2-Width | 456mm | 476mm | 496mm | 516mm |
L-Length | 70/80mm | 80/90mm | 90/100mm | 100mm |
R-Reach | 75mm | 75mm | 75mm | 75mm |
D-Drop | 116mm | 116mm | 116mm | 116mm |
F-Flare | 20° | 20° | 20° | 20° |
B-Backsweep | 4° | 4° | 4° | 4° |
A-Stem Angle | -6° | -6° | -6° | -6° |
Highlights
Gallery
Be the first to review this product and help riders of your style choose the most suited.
If you've got a longer story to tell and a few pictures won't cut it, check out our storytelling feature and consider sharing your story!
