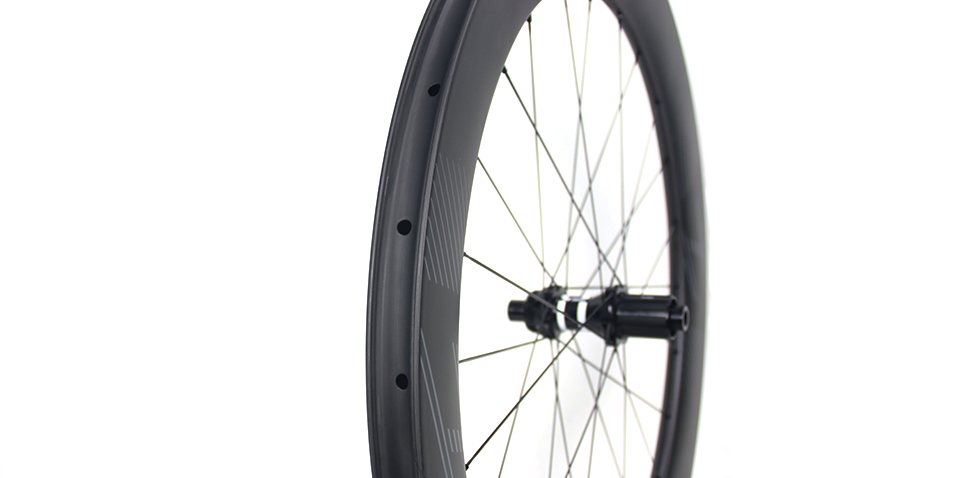

super light and aero benefit 65mm deep wide wheels

Archive Product

If you are interested in purchasing any of these archive items, please fill out the form below with the necessary details. We will get back to you as soon as possible with availability and pricing information.

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Global Shop

US Shop

CA Shop

EU Shop

Ships worldwide. See what's on sale>>

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the US Shop. Check this link to see what items we stock, or send us an email to discuss.

Our Global Shop can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelsets. We will get back to you via email to discuss in 24hrs.

Our apologies, we do not stock this item at the CA Shop. Check this link to see what items we stock, or send us an email to discuss.

The wheelsets are still in transit to this shop. We’ll update this page when they’re available. Learn more about our European shop.

You can order this product from our Global or North American shops.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

DEFAULT SETTINGS

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Hub Brand This is a required option.

Model	Weight	POE	Cost	Reliability	Quality	Unique Feature	Color Options	Warehouse Location	Website
Novatec	287g	27	Low	Good	Good	Inexpensive	Three	China	NOVATEC
Bitex	258g	24	Low	Good	Good	Light	Two	China	BITEX
DT 350	374g	18/36/54	Low	Better	Good	Quiet and reliable (18t option)	One	China	DT SWISS
DT 240S	317g	18/36/54	Medium	Best	Best	Quiet and reliable (18t option)	One	China/N.A.	DT SWISS
DT 240 EXP	299g	EXP 36	Medium	Best	Best	Quiet and reliable (EXP 36 )	One	China/N.A.	DT SWISS
DT 180	290g	EXP 36	High	Best	Best	Super Light, EXP 36	One	China/N.A.	DT SWISS
Chris King	326g	45	High	Best	Best	Rebuildable bearings	Nine	China	CHRIS KING
Industry Nine	327g	60	Medium	Better	Best	Loud, engagement	Eleven	China/N.A.	INDUSTRY NINE
Onyx	434g	Infinite	High	Better	Best	Silent, sprag clutch	Eighteen+ (Custom Available)	North America	ONYX
Carbon-Ti	270g	56	High	Better	Best	Extreme Light	Nine	China	Caron-Ti
ARC	332g	48	Low	Better	Good	Economic and reliable	One	China	ARC
Chosen	260g	24	Low	Better	Good	Economic and reliable	One	China	Chosen
Light Bicycle Pace-Hub	275/285g	36/48	Low	Better	Good	Economic, reliable, light	One	China	Light Bicycle
Light Bicycle Speed-Hub Gen3	275g	36	Low	Better	Good	Proprietary for Carbon Spokes Steel Bearing (upgradable to ceramic)	Two	China	Light Bicycle
Light Bicycle Speed-Hub Gen2	295g	36	Low	Better	Good	Proprietary for Carbon Spokes Steel Bearing (upgradable to ceramic)	Two	China	Light Bicycle

Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

Light Bicycle Pace-Hub

DT SWISS 180

DT SWISS 240 EXP

DT SWISS 350

Industry Nine 1/1

Chris King R45D

Industry Nine Solix

Carbon-Ti X-Hub

Front Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 100mm

Rear Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 142mm

Freehub Body This is a required option.

1. Shimano Road 11S works with 11/12-speed cassette directly or 8/9/10-speed mountain cassette with a spacer(s) .
2. Shimano MTB 10/11S works with 8/9-speed directly or 10-speed with a spacer or 11-speed road cassette if one of the inner cogs removed.
3. Campagnolo (Campy) 11S works with 9/10/11/12-speed Campy cassette with no spacers required.
4. Sram XDR could run XDR (road) cassette inherently and is compatible to run mountain bike XD cassette with a 1.85mm spacer.
5. Shimano Micro Spline (MS) works with 12-speed MS cassette only.

Shimano Road 11S

Shimano Road 11S Alloy

Sram XDR Alloy

Sram XDR

Shimano Micro Spline Road Alloy

Spoke Head This is a required option.

J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes

straight pull

J-bend

Brake System This is a required option.

6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt. If you need the conversion kit, please contact us. Our hubs are provided without rotor lockrings by default.

6-bolt

Center lock

Hub Color This is a required option.

Black

Matte Black

Orange

Red

Turquoise

Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

24H

Rear Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

24H

28H

Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 4 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

24T - Made out of hardened steel as e-bike specific.

EXP 36 - With only a single spring, making the hubs faster and lighter. More precise contact makes a longer lifespan.

EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.

36T

45T

54T

56T

605T

90T

EXP 36

EXP 54

Recon Pro orders start shipping in October.

- + Pair

Hub Brand This is a required option.

Model	Weight	POE	Cost	Reliability	Quality	Unique Feature	Color Options	Warehouse Location	Website
Novatec	287g	27	Low	Good	Good	Inexpensive	Three	China	NOVATEC
Bitex	258g	24	Low	Good	Good	Light	Two	China	BITEX
DT 350	374g	18/36/54	Low	Better	Good	Quiet and reliable (18t option)	One	China	DT SWISS
DT 240S	317g	18/36/54	Medium	Best	Best	Quiet and reliable (18t option)	One	China/N.A.	DT SWISS
DT 240 EXP	299g	EXP 36	Medium	Best	Best	Quiet and reliable (EXP 36 )	One	China/N.A.	DT SWISS
DT 180	290g	EXP 36	High	Best	Best	Super Light, EXP 36	One	China/N.A.	DT SWISS
Chris King	326g	45	High	Best	Best	Rebuildable bearings	Nine	China	CHRIS KING
Industry Nine	327g	60	Medium	Better	Best	Loud, engagement	Eleven	China/N.A.	INDUSTRY NINE
Onyx	434g	Infinite	High	Better	Best	Silent, sprag clutch	Eighteen+ (Custom Available)	North America	ONYX
Carbon-Ti	270g	56	High	Better	Best	Extreme Light	Nine	China	Caron-Ti
ARC	332g	48	Low	Better	Good	Economic and reliable	One	China	ARC
Chosen	260g	24	Low	Better	Good	Economic and reliable	One	China	Chosen
Light Bicycle Pace-Hub	275/285g	36/48	Low	Better	Good	Economic, reliable, light	One	China	Light Bicycle
Light Bicycle Speed-Hub Gen3	275g	36	Low	Better	Good	Proprietary for Carbon Spokes Steel Bearing (upgradable to ceramic)	Two	China	Light Bicycle
Light Bicycle Speed-Hub Gen2	295g	36	Low	Better	Good	Proprietary for Carbon Spokes Steel Bearing (upgradable to ceramic)	Two	China	Light Bicycle

Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

Light Bicycle Pace-Hub

DT SWISS 180

DT SWISS 240 EXP

DT SWISS 350

Chris King R45D

Industry Nine Solix

Onyx Vesper

Front Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 100mm

15 / 100mm

QR / 100mm

Rear Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 142mm

QR / 135mm

Freehub Body This is a required option.

Shimano Road 11S

Shimano Road 11S Alloy

Sram XDR Alloy

Campy 11S Alloy

Sram XDR

Shimano Micro Spline Road Alloy

Spoke Head This is a required option.

straight pull

J-bend

Brake System This is a required option.

6-bolt

Center lock

Hub Color This is a required option.

Anodized-Black

Anodized-Black Matte

Anodized-Blue

Anodized-Gold

Anodized-Green

Anodized-Orange

Anodized-Purple

Anodized-Red

Anodized-Silver

Black

Blue

Gold

Green

Lime

Matte Black

Orange

Pink

Powdercoat-Black Aura

Powdercoat-Blue Baby

Powdercoat-Blue Candy

Powdercoat-Green Antifreeze

Powdercoat-Green Fluorescent

Powdercoat-Green Kawasaki

Powdercoat-Pink Fluorescent

Powdercoat-Purple Candy

Purple

Red

Silver

Turquoise

Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

24H

28H

Rear Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

24H

28H

Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 4 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

24T - Made out of hardened steel as e-bike specific.

EXP 36 - With only a single spring, making the hubs faster and lighter. More precise contact makes a longer lifespan.

EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.

36T

45T

54T

605T

EXP 36

EXP 54

Sprag Clutch

Recon Pro orders start shipping in October.

- + Pair

Piece Weight: 1541.00g+/-3%

Subtotal: USD 651+

Piece Weight: 1541.00g+/-3%

Subtotal: USD 651+

PREVIOUS NEXT

WHEELSET SPECS

RIMS

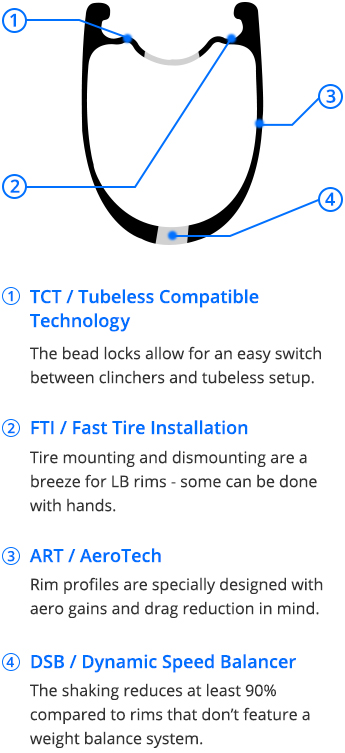

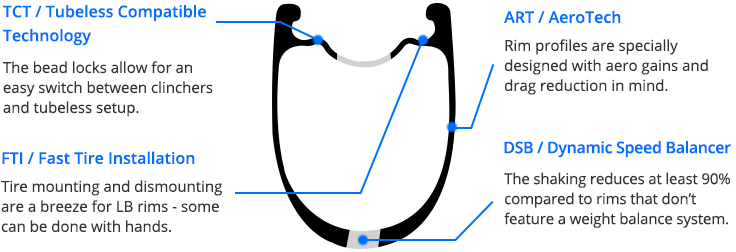

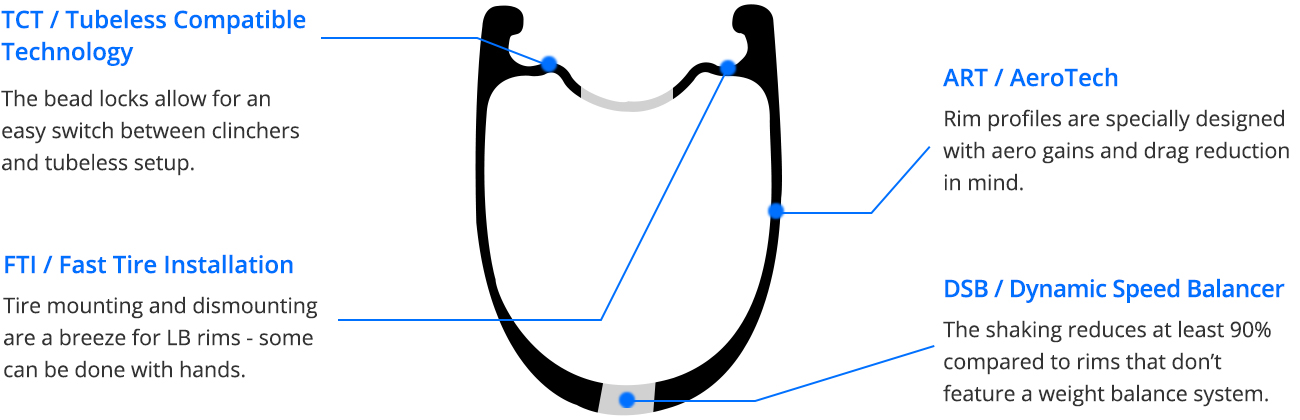

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Rim Model WR65 disc
Size 700C
Series FALCON
Use CX/Gravel
Type Clincher
Tubeless Ready

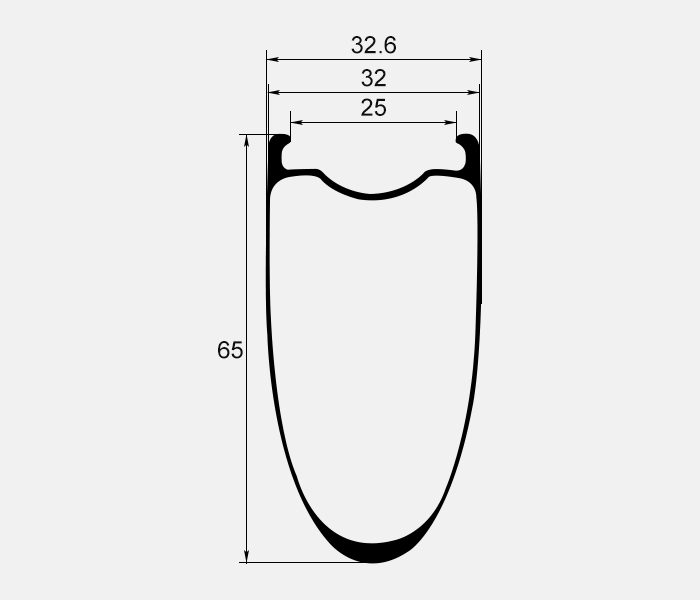

Inner/Outer Width 25mm/32mm
Depth 65mm
ERD 510mm (not including nipple head dimension)
Weight Standard 540+/-15g, Flyweight 500+/-15g
Offset 0mm (symmetric)
Weight Limit (on flat ground) Standard 135kg, Flyweight 90kg
Spoke Hole Angle ±8°
Spoke Tension 115 ~130kgf front, 120~130kgf rear
Tire Pressure (with 28C) 80psi max
Tire 28C~50C recommended

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Rim Model: WR65 disc
Size: 700C
Series: FALCON
Use: CX/Gravel
Type: Clincher
Tubeless: Ready
Inner/Outer Width: 25mm/32mm
Depth: 65mm
ERD: 510mm (not including nipple head dimension)
Weight: Standard 540+/-15g, Flyweight 500+/-15g
Offset: 0mm (symmetric)
Weight Limit (on flat ground): Standard 135kg, Flyweight 90kg
Spoke Hole Angle: ±8°
Spoke Tension: 115 ~130kgf front, 120~130kgf rear
Tire Pressure (with 28C): 80psi max
Tire: 28C~50C recommended

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: Light Bicycle Pace-Hub, DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine 1/1, Chris King R45D, Industry Nine Solix, Carbon-Ti X-Hub, Onyx Vesper
Front Axle Size: 12 / 100mm, 15 / 100mm, QR / 100mm
Rear Axle Size: 12 / 142mm, QR / 135mm
Driver Body: Shimano Road 11S, Shimano Road 11S Alloy, Sram XDR Alloy, Sram XDR, Shimano Micro Spline Road Alloy, Campy 11S Alloy
Hole: 24H, 28H

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes:
Nipples:

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

As one of our widest road rims designs, the WR65 is the answer for the gravel rider trying to squeeze out every aerodynamic advantage from their setup.

Designed with racing in mind, the WR65 features a deep New Gen Aero Shape that decreases lateral resistance. With a 65mm deep and stiff profile, the WR65 is designed for experienced bike handlers looking for an aero edge or larger riders.
The rim/wheelset has passed our in-house R&D impact test of 120J(UCI standard 40J).
Specs
Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Rim Model: WR65 disc

Size: 700C

Series: FALCON

Use: CX/Gravel

Type: Clincher

Tubeless: Ready

Inner/Outer Width: 25mm/32mm

Depth: 65mm

ERD: 510mm (not including nipple head dimension)

Weight: Standard 540+/-15g, Flyweight 500+/-15g

Offset: 0mm (symmetric)

Weight Limit (on flat ground): Standard 135kg, Flyweight 90kg

Spoke Hole Angle: ±8°

Spoke Tension: 115 ~130kgf front, 120~130kgf rear

Tire Pressure (with 28C): 80psi max

Tire: 28C~50C recommended

Read more for actual road tire width

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: Light Bicycle Pace-Hub, DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine 1/1, Chris King R45D, Industry Nine Solix, Carbon-Ti X-Hub, Onyx Vesper

Front Axle Size: 12 / 100mm, 15 / 100mm, QR / 100mm

Rear Axle Size: 12 / 142mm, QR / 135mm

Driver Body: Shimano Road 11S, Shimano Road 11S Alloy, Sram XDR Alloy, Sram XDR, Shimano Micro Spline Road Alloy, Campy 11S Alloy

Hole: 24H, 28H

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes:

Nipples:
Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

light-bicycle-wr65-disc-wide-carbon-road-wheels-installed-on-a-cervelo-bike

Chthin : WR65 Wheelset which had a noticable reponse once start to accelerating with less efford to make a speed wrap with 700C X 30 VITTORIA CORSA PRO

light-bicycle-wr65-wide-road-bike-wheelset

Pieter : Best wheels I’ve ever had: fast and so stable. I’ve sold my 42 mm wheels; I don’t need them, even in strong winds. The large internal width of the WR65 has made the tire so much more stable in corners.

light-bicycle-wr65-disc-brake-wide-road-carbon-wheels-paired-with-continental-pure-contact-tyre

Svend : WR65 rims with 47C tyres

Denmark

light-bicycle-wr65-disc-wide-road-carbon-wheelset-vittoria-zaffiro-graphene

Light Bicycle : 2022 BMC RM01 + WR65 vittoria zaffiro graphene, 30c front. 32c rear. inflated to 60psi measure 32.2mm and 33.5mm no fitment issues and nice rigid response with 28 spokes front and rear.

UK(Britain)

light-bicycle-wr65-disc-carbon-fiber-wheelset

Light Bicycle : WR65 Standard Hook 12K Twill Vertical Glossy Disc 28H External Hole With Drain Holes With Access Holes WR65 Standard Hook 12K Twill Vertical Glossy Disc 28H External Hole With Drain Holes With Access Holes HUB-F DT SWISS 240 EXP Black Lefty 1.0 J-bend 6-bolt 28H HUB-R DT SWISS 240 EXP Black 12 / 148mm BOOST straight pull 6-bolt 28H NBK EXP 36 Shimano MTB 10/11S SPOKE Sapim CX Ray Black Customized Standard Head NIPPLE DT Swiss/ Sapim Brass Black Universal External

light-bicycle-wr45-disc-wr65-disc-carbon-wheelsets-builds-on-specialized-flagship-medellin

Camilo : Both bikes feature a WR rim, one with 45mm depth and the other 65mm. Awesome handling in crosswinds due to the ultra wide rim profile and the 25mm internal makes the wheels very comfortable.

United States

light-bicycle-wr65-disc-carbon-wheelset-laced-to-dt-swiss-240-exp-hubs

Mario : Crème de la crème of all wheels out there - wr65

UK(Britain)

light-bicycle-wr65-disc-wheels-installed-on-a-time-bicycle

Mario : Awesome wheels, they’ve been absolutely bombproof so far, still run true after 20k km. Hope LB will start to make even wider profile rims of this depth.

UK(Britain)

View More Reviews >>

COMMENTS

Erick 2021/05/27

Evening! I have an old Panasonic road bike that has 27” x 1 1/4” wheels. Would any of your carbon wheels fit this bike? Thanks! -Erick 360.649.7258

LightBicycle 2021/05/28

Hi Erick, Most road wheels on the market now are 700c or 650b (27.5"). They are bigger than your old wheels. So can you find a way to measure the fork spacing for wheels? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Marius 2021/04/04

Do you plan to make an AR version /Falcon pro with 65mm witdh?

LightBicycle 2021/04/05

Hi Marius, Currently,i can not see any schedule or plan for 65mm deep AR/pro road disc rims 700C. I will check with our team and get back to you later. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Rick 2020/12/02

hi, am interested in the Falcon WR65 dics wheelset. i would like the DT Swiss 350 hubs. Front need: 12X 100mm thru axle. But the Rear i need : Quick release 135mm. if I order the rear in this configuration, can I later convert this DT Swiss 350 hub to 12 X142 thru axle??

LightBicycle 2020/12/02

Hi Rick, We ran out of DT 350 hubs, will you consider Bitex hubs or other hubs instead? It's easier to get, and has a 135mm rear hub available. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

We use cookies for a better experience. Learn more.

Customize

Your Cookie Preferences

We use cookies to improve your experience on this website. You may choose which types of cookies to allow and change your preferences at any time. Disabling cookies may impact your experience on this website. You can learn more by viewing our Cookie Policy.

Essential Cookies

Cookies required to enable basic website functionality.
Performance Cookies

Cookies used to understand how the website is being used.
Preference Cookies

Cookies that are used to enhance the functionality of the website.
Advertising Cookies

Cookies used to deliver advertising that is more relevant to your interests.

Aceept All Cookies

Save Preferences

Reject All Cookies

Save Preferences

Reject All Cookies

Accept All Cookies

Archive Product

Overview

Specs

Tech

Warranty

In The Box

Rims

Hubs

Other Parts

Overview

Specs

Rims

Hubs

Other Parts

Tech

Warranty

In The Box

Gallery
