AM727 asymmetric rim profile carbon 650b inch carbon rims mtb

INTERNATIONAL

NORTH AMERICAN

Ships from China to worldwide destination. Contact us if your location is not listed.

Ships from Canada/United States warehouse to North American countries only. Contact us if you have special requests.

  • 1

    RIM

  • 2

    ACCESSORIES

  • 3

    OVERVIEW

RIM

Hole This is a required option.

16H

18H

20H

24H

28H

32H

36H

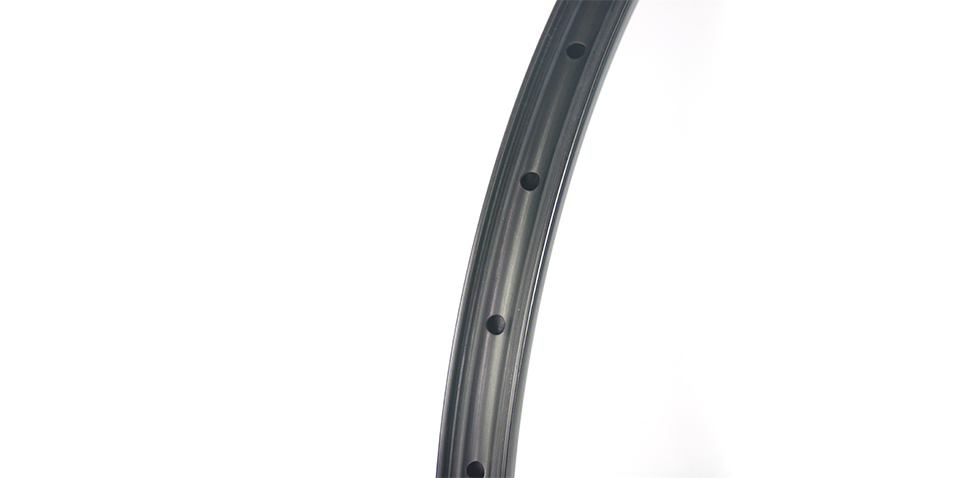

Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

Finish This is a required option.

paintless

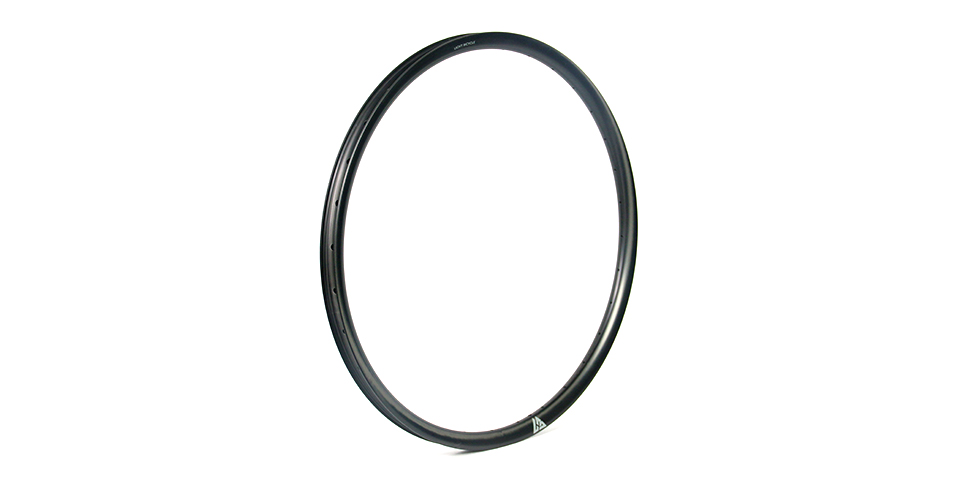

Our Recon Pro rims come out of molds as a finished product, with a scratch resistant and near flawless finish, eliminating the need for sanding or painting (Paintless Finish).

Weave This is a required option.

UD

Rim Warranty This is a required option.

3 Years

5 Years USD +25

Lifetime USD +50

For Recon Pro Series ( MTB rim), Falcon Pro (Future Road rim) and Drift Pro (Fatbike rim), 3-year warranty is set as standard, and optional 5-year or Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

Decal This is a required option.

stealth

blue

green

magenta

orange

red

yellow

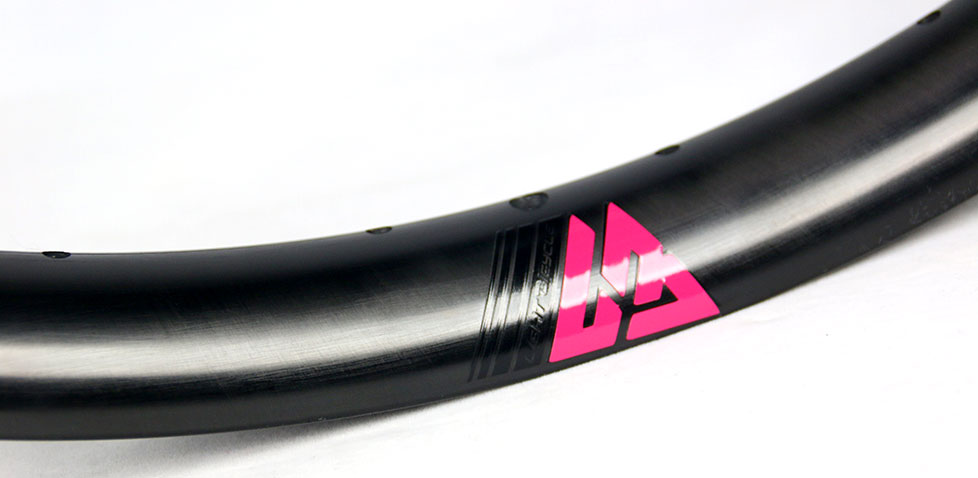

The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Valve Stem This is a required option.

None

Add Valve Stem USD +7

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

Tubeless Tape This is a required option.

None

Add Tubeless Tape USD +6

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

27mm-carbon-rim

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks

Non-Stocked, typically ships within 1-2 weeks

Recon Pro orders start shipping in October.

- + PCS

Hole This is a required option.

32H

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please contact us.

Finish This is a required option.

paintless

Our Recon Pro rims come out of molds as a finished product, with a scratch resistant and near flawless finish, eliminating the need for sanding or painting (Paintless Finish).

Weave This is a required option.

UD

Rim Warranty This is a required option.

3 Years

5 Years USD +25

Lifetime USD +50

For Recon Pro Series ( MTB rim), Falcon Pro (Future Road rim) and Drift Pro (Fatbike rim), 3-year warranty is set as standard, and optional 5-year or Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

Decal This is a required option.

stealth

blue

green

magenta

orange

red

yellow


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Valve Stem This is a required option.

None

Add Valve Stem USD +7

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

Tubeless Tape This is a required option.

None

Add Tubeless Tape USD +8

We use a tubeless tape with high tensile strength and only one lap is required so it is very light. It uses a natural rubber adhesive that does not leave any residue on the rims.

27mm-carbon-rim

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks

Non-Stocked, typically ships within 1-2 weeks

Recon Pro orders start shipping in October.

- + PCS

Weight: 385.00g+/-15

Final total: USD 278.00+(3.5% paypal fee included)

Weight: 385.00g+/-15

Final total: USD 306.00+(3.5% paypal fee included)

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

RIM SPECS

  • Size 650B
  • Use All Mountain
  • Type Hookless
  • Tubeless Ready
  • Inner/Outer Width 27mm/33mm
  • Depth 24mm
  • ERD 553mm (not including nipple head dimension)
  • Weight 385g+/-15
  • Offset 2mm (asymmetric)
  • Weight Limit 130kg
  • Spoke Hole Angle ±6°
  • Spoke Tension 145kgf
  • Tyre Pressure 35psi
  • Tire 2.1" ~ 2.7" recommended

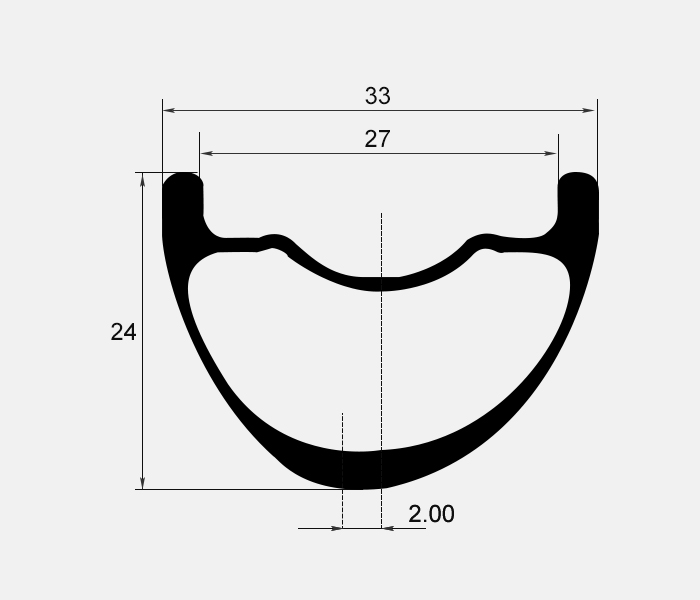

MTB carbon rim profile

Teleport to the wheelset building page.

Our swiss army knife of mountain bike rims: technical XC race, light enduro, endurance, or just good plain mountain biking! The AM727’s are really light, fast, compliant, and can create a quiver-killer wheelset.


A sensible 27mm internal width keeps things modern, but doesn’t overkill in the stiffness or width department. Want to run 2.1” tires for an XC race one day, 2.3’s for an all day epic, then burly 2.4’s for some double black trails the next? No problem! The AM727’s are a great choice for riders wanting a versatile lightweight rim that feels at home on a wide range of terrain.

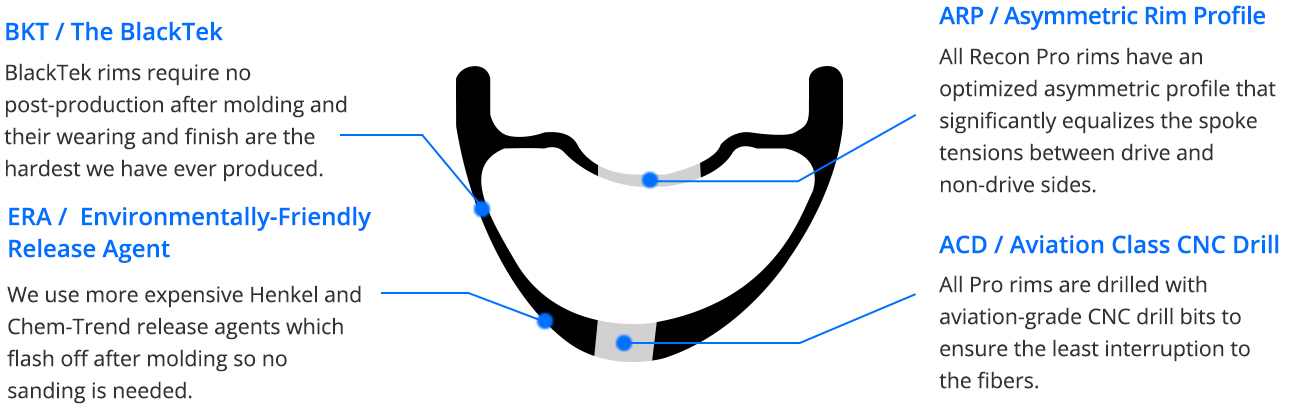

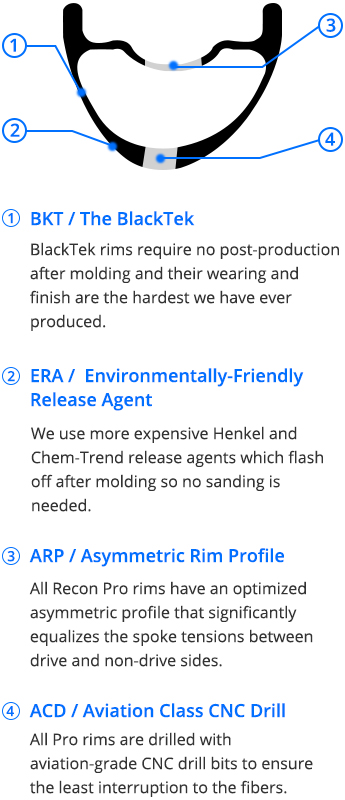

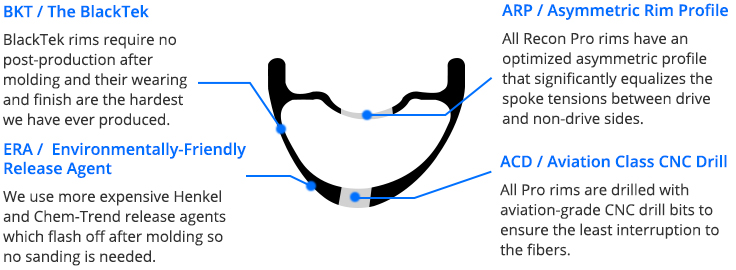

ExoTek: Our Recon Pro rims are designed to come out of the molds as a finished product which requires the most high quality manufacturing processes. The new resin system has superior consistency and forms the smoothest and most durable finish we’ve ever created. From a lengthened fatigue life to more robust interlaminar bonds, ExoTek raises the bar in performance and aesthetic.


EcoTek : Built from the highest grade of steel, we’ve engineered a completely new series of molds and developed a process that delivers a near flawless product. More time is taken through the layup and assembly process so that no post-production finishing is required. This new process is more environmentally friendly because it requires less heating cycles, no sanding, and no painting.


BlackTek : Rims featuring BlackTek come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clearcoat. BlackTek rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed. This is the most hard wearing and scratch resistant finish we have ever produced.


Asymmetric : Over the years, we’ve optimized an asymmetric profile that maintains the outright impact performance of a symmetric design but enjoys the benefits of offset spoke holes. This design significantly equalizes spoke tension between drive and non-drive spokes which results in a stronger wheel build that stays true longer.


Tubeless : All of our rims are tubeless compatible with bead seat retention. In most cases a floor pump is all that is needed to seal our rims. The bead shape is tailored to each rim width to achieve the best fit. Our hookless and clincher profiles have a smooth radius to reduce the chance of a pinch flat.


For Non-Pro Series Rims: From the date of purchase, 15 Months Warranty
For Pro Series Rims: From the date of purchase, 3 Years Warranty. Light Bicycle is pleased to offer the options to purchase an extended 5-year Premium warranty or lifetime Premium warranty with minimum charge respectively.

Crash Replacement: It is applicable with the same period as to warranty time range that you purchased for the rim in terms of 15-month/ 3-year/ 5-year/ Lifetime, with 10%+ discount subject to rim model.

Know more about the warranty policy >>
