RECON PRO rim AM735 All Mountain

AM735 asymmetric rim profile carbon 650b carbon rims mtb

Buy & Configure

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

RIM SPECS

  • Size 650B
  • Series RECON PRO
  • Use All Mountain
  • Type Hookless
  • Tubeless Ready

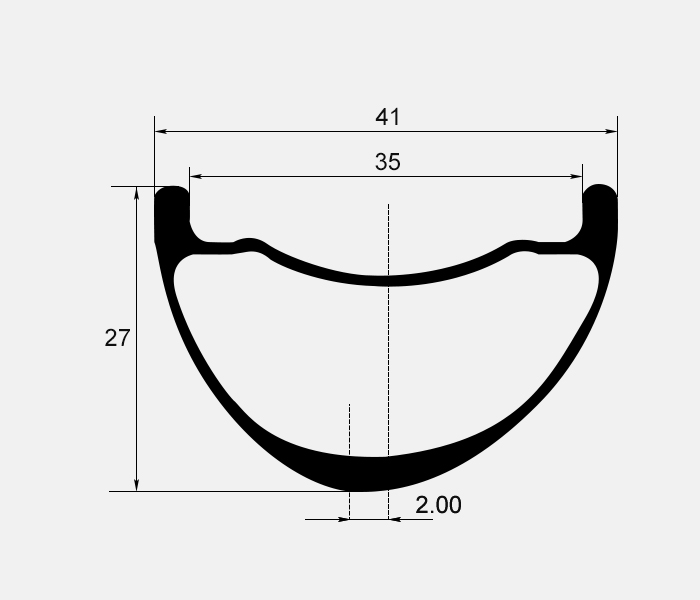

  • Inner/Outer Width 35mm/41mm
  • Depth 27mm
  • ERD 547mm (not including nipple head dimension)
  • Weight 455+/-15g
  • Offset 2mm (asymmetric)
  • Weight Limit 140kg
  • Spoke Hole Angle ±7°
  • Spoke Tension ≤145kgf recommended
  • Tire Pressure 35psi max
  • Tire 2.4" ~ 3.1" recommended

Read more for TL tire pressure charts

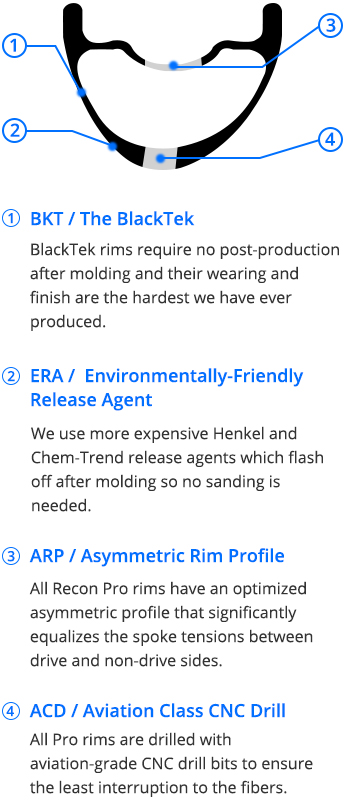

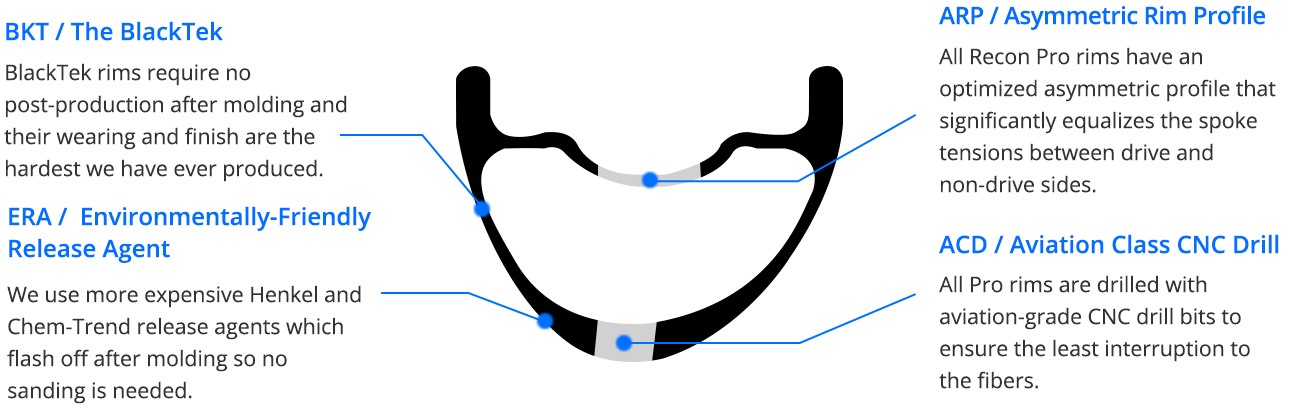

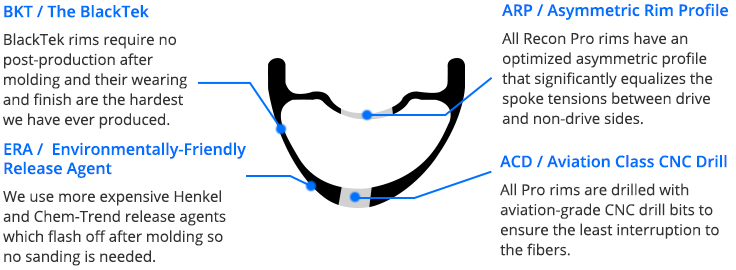

TECH

Built to handle a host of new wide format tires all the way up to a full-on 3.0” Plus tire, with our durable BlackTek finish, updated profile, and new manufacturing process, the AM735 is sure to stand the test of time.

Utilizing our updated asymmetric profile and new manufacturing process, you’re getting a very modern rim that is not only strong and scratch resistant, but also quite versatile.


Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>


WHAT IS IN THE BOX


Gallery

Light: Rims: AM735 Recon Pro 32/32H tubeless-ready UD Paintless 27.5 Hubs: Onyx Vesper 15 / 110mm Torque J-bend Center lock Anodized-Purple Onyx Vesper 12 / 148mm BOOST Anodized-Purple Sprag Clutch Sram XD Alloy Spokes: Sapim CX Ray Black J-bend Nipples: Sapim Aluminium Black External Weight: 1729.04 grams
1
Antonio: Hello, this wheels are nice c938..Cheers.
Switzerland
1

COMMENTS

R

Ron 2021/03/16

i would like to order these AM735 rims(2) UD paintless, orange decals, spokes and orange nipples. and possibly extended warranty i already have the hubs: Raceface Vault J424 32H (Front/rear) how do i purchase through your Canada warehouse? i am based here in Ontario CA thank you


LightBicycle 2021/03/17

Hi Ron, Our NA team has reached you through email about theis AM735 650B rims. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

Randy 2019/02/23

I would like the 40mm wide rim for a 27.5 wheel with 28 spoke holes. Can you do that?


LightBicycle 2019/02/25

Hi Randy, Yes, we can make the AM735 650B rim with 28 spoke holes drilled. How many rims are you looking for? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Carlo 2018/09/18

can the back rim be offset for my Cannondale Bad Habit 2016 by 6mm?


LightBicycle 2018/09/19

Dear Carlo Thanks for the inquiry! In fact, this MTB rim you are looking at is with 2mm offset itself (asymmetric rim). Normally, we build an offset wheelset for the Cannondale bikes with symmetric rims. What is the tire width that you use? Will our RM650BC05 (35mm wide, symmetric rim, recommended tire width 2.2"~2.7") work for you? We can build the offset wheelset with this rim for you if you like. As for the front wheel, you can build it with AM735 (41mm asymmetric rim). Below is the quote for your ref. Let me know if you are interested. Please check on your inbox for our detailed quote. Thanks Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
