Build Your Recon Pro WHEELSET AM727

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.


Buy rim only

WHEELSET SPECS

RIMS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

  • Model AM727
  • Material Toray T700 & T800 Premium Carbon Fiber
  • Size 27.5"/650B (ETRTO 584mm)
  • Series RECON PRO
  • Intended Use All Mountain
  • Bead Type Hookless
  • Tubeless Capable Yes

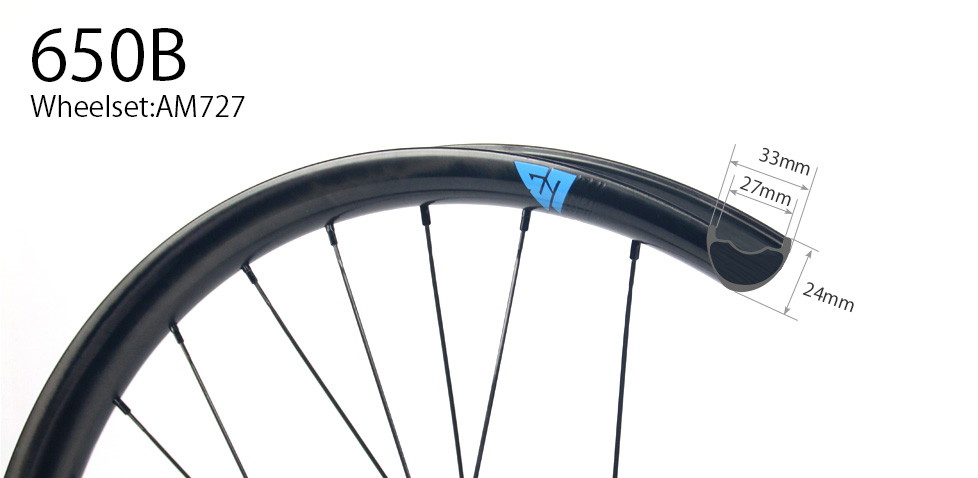

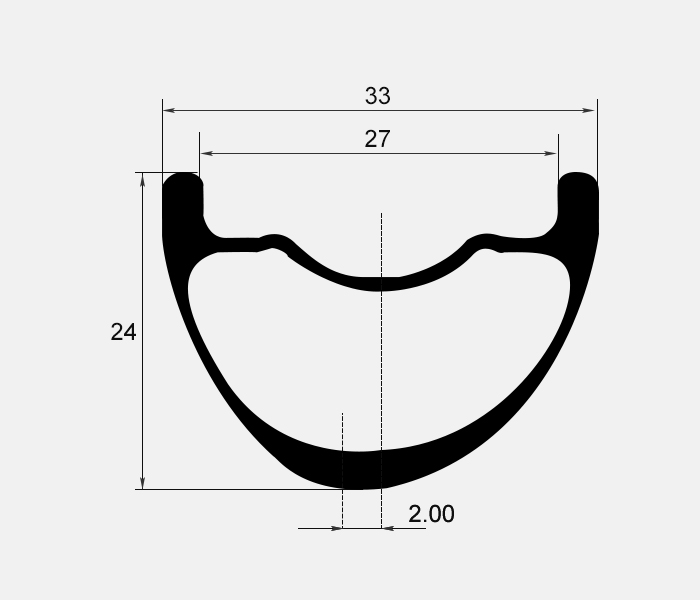

  • Inner/Outer Width 27mm/33mm
  • Depth 24mm
  • ERD 553mm (not including nipple head dimension)
  • Rim Weight 385g+/-15
  • Profile Asymmetric (2mm)
  • Max Cyclist Weight (on flat ground) 130kg/ 287lbs
  • Spoke Hole Angle ±7°
  • Spoke Tension 115~130kgf front disc side and rear drive side
  • Max Tire Pressure 40psi/ 2.75bar
  • Recommended Tire Width 2.1" ~ 2.7"

HUBS

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

  • Model DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1, Chris King BOOST, Bitex BX212F / BX212R, Hope Pro 5, Onyx Vesper
  • Front Axle Size 15 / 100mm, 15 / 110mm BOOST, 15 / 100mm Torque, 15 / 110mm RS-1, 15 / 110mm Torque, 20 / 110mm BOOST DH, 20 / 110mm Old DH, Lefty 2.0 Supermax, QR / 100mm
  • Rear Axle Size 12 / 142mm, 12 / 148mm BOOST, 12 / 157mm Super BOOST, 12 / 150mm, QR / 135mm, Single Speed
  • Driver Body Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy
  • Hole 28H, 32H

OTHER PARTS

Leave a note at checkout or contact us if you want spare spokes or nipples.

  • Spokes DT Swiss Competition Race, Sapim CX Ray, Oil slick J-bend, Sapim D-Light, Sapim Race
  • Nipples Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black, Aluminium Silver, Aluminium Blue, Aluminium Gold, Aluminium Green, Aluminium Lime, Aluminium Orange, Aluminium Purple

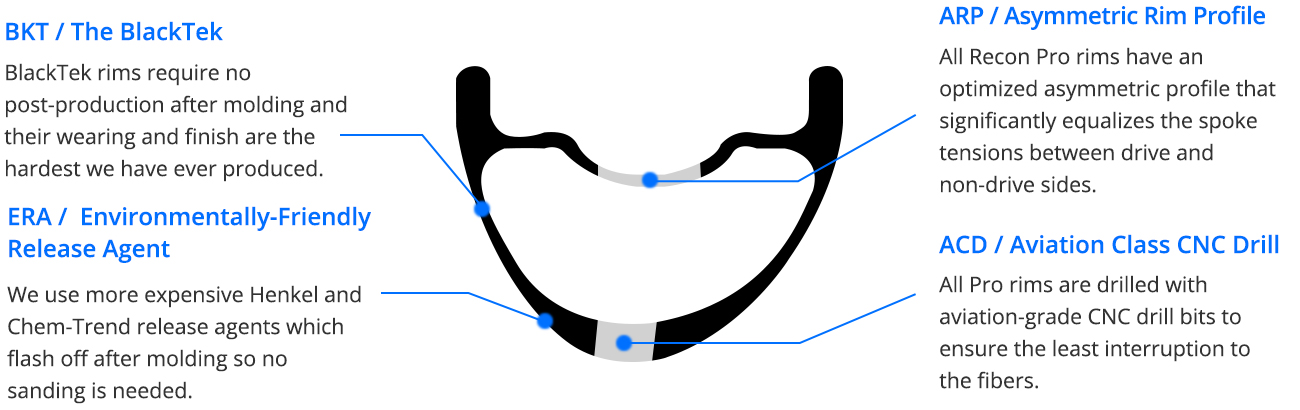

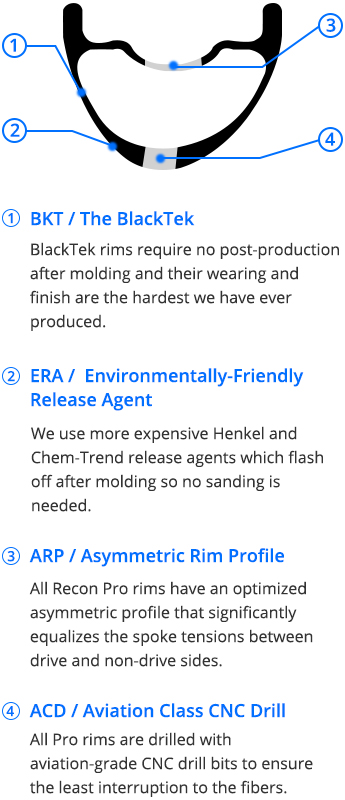

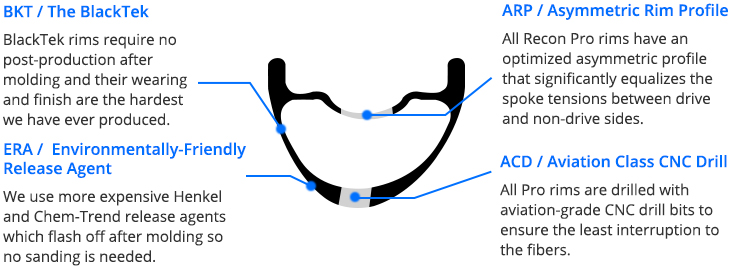

TECH

Our swiss army knife of mountain bike wheels: technical XC race, light enduro, endurance, or just good plain mountain biking! The AM727's are really light, fast, compliant, and can create a quiver-killer wheelset.

A sensible 27mm internal width keeps things modern, but doesn't overkill in the stiffness or width department. Want to run 2.1" tires for an XC race one day, 2.3's for an all day epic, then burly 2.4's for some double black trails the next? No problem! The AM727's are a great choice for riders wanting a versatile lightweight wheels that feels at home on a wide range of terrain.


Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>


WHAT IS IN THE BOX


Our swiss army knife of mountain bike wheels: technical XC race, light enduro, endurance, or just good plain mountain biking! The AM727's are really light, fast, compliant, and can create a quiver-killer wheelset.

A sensible 27mm internal width keeps things modern, but doesn't overkill in the stiffness or width department. Want to run 2.1" tires for an XC race one day, 2.3's for an all day epic, then burly 2.4's for some double black trails the next? No problem! The AM727's are a great choice for riders wanting a versatile lightweight wheels that feels at home on a wide range of terrain.

  • Overview

    Our swiss army knife of mountain bike wheels: technical XC race, light enduro, endurance, or just good plain mountain biking! The AM727's are really light, fast, compliant, and can create a quiver-killer wheelset.

    A sensible 27mm internal width keeps things modern, but doesn't overkill in the stiffness or width department. Want to run 2.1" tires for an XC race one day, 2.3's for an all day epic, then burly 2.4's for some double black trails the next? No problem! The AM727's are a great choice for riders wanting a versatile lightweight wheels that feels at home on a wide range of terrain.

  • Specs

  • Tech

  • Warranty

  • In The Box

Light Bicycle : RIMS: AM727 UD Paintless 32H External Holes With Drain Holes With Access Holes HUB-F: Son 28 Anodized-Black 12 / 100mm J-bend Centerlock 32H HUB-R: Bitex BX212R Oil Slick 12 / 148mm BOOST J-bend Centerlock 32H 28T Sram XD SPOKES: DT Swiss Competition Black J-bend NIPPLES: Sapim Brass Oil slick External
2
Paul : 2017 Pivot Mach4 Carbon Recon Pro am727 Industry Nine Hydra hubs Vittoria Barzo 27x2.35 Wheels feel absolutely amazing, hubs are just sick fast engaging and beautiful. I shaved a full pound by switching to this setup from my old aluminum dt swiss wheel set.
United States
1

View More Reviews >>

COMMENTS

D

David 2018/11/21

How much with Black Friday coupon and shipping. Shimano micro spline, and center lock.


LightBicycle 2018/11/21

Hi David, The discount is different for different type of 650B wheels. Which do you prefer? AM728: $954/pair ($1134-$180=$954) AM727: $1124/pair ($1154-$30=$1124) Thanks, Lightbicycle


J

Jon 2021/02/01

Is it possible to get just tear wheel


LightBicycle 2021/02/02

Hi Jon, It is okay to get just rear 650B wheel. Please list your wheel specs here. Then we can quote accordingly. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Alin 2020/09/27

Hi there! I'm looking for rear wheel only. How much this costs? The hubs run ceramic bearings? Thanks!


LightBicycle 2020/09/28

Hi Alin, Onyx Vesper hubs are with ceramic bearing. The AM727 650B rear wheel will be around USD800 if it is with Onyx Versper rear hub. Thanks, Lightbicyle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

D

Darren 2020/05/12

Hello, I'm looking for a light weight 650B tubeless disc wheel set to replace the set that came stock on my Ibis Hakka MX gravel bike. Here's the link to the bike specifications: https://www.ibiscycles.com/bikes/hakka-mx ...and here's the specifications of the current wheel set (733 Aluminum): https://www.ibiscycles.com/wheels/details/?wheelset=854 I am running a SRAM XD cassette. I'd like to continue to run 2.1" width tires, or somewhere close to that. What rim (maybe the AM727 rim?), spokes and hubs build would you recommend and what would be the cost in Canadian dollars? I am 150 lb (68 kg) and would like the lightest build for my weight but still strong enough to withstand the rigours of gravel biking.


LightBicycle 2020/05/12

Hi Darren, We just sent you an email for quotation with this 650B wheelset and weight. Please check. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
