Build Your Frameset Journey Gravel CX Adventure Tour

Find your size and choose from the 4 color combos available.

Specifications

Frameset

  • Model Journey

    Introduction >>

  • Size XS, S, M, L
  • Color Matte Classic Black (Grey Decals), Glossy Midnight Blue (Light Grey Decals), Glossy Forest Green (Black Decals), Glossy Metallic Silver (Black Decals)
  • Fork Light Bicycle Carbon
    * Coating colors same as the frame
  • Seatpost Light Bicycle Carbon (31.6 × 350mm)
  • Headtube 1 1/8”-1 1/2”
  • Bottom Bracket BSA Threaded (68mm)
  • Disc Brake Flat mount (140 / 160mm)
  • Axle Spacing 12 × 100mm Front
    12 × 142mm Rear
  • Max Chain Ring 48/36T (2X), 42T (1X)
  • Groupset Compatibility Mechanical / Electronic (Di2/ eTap / Campy EPS)
    * Fully internal for electronic groupset only
  • Max Tire Size 700 × 50C / 27.5 × 2.0” (S, M, L)
    700 × 35C / 27.5 × 2.0” (XS)
  • Suggested Use Gravel, CX, Adventure, Tour

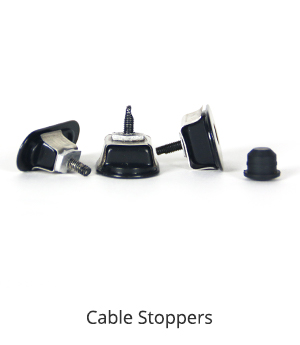

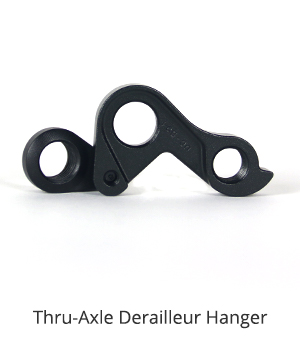

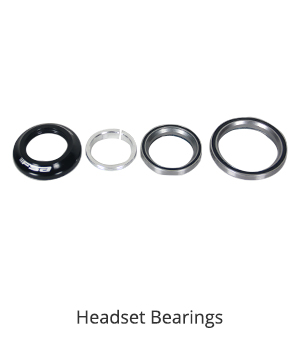

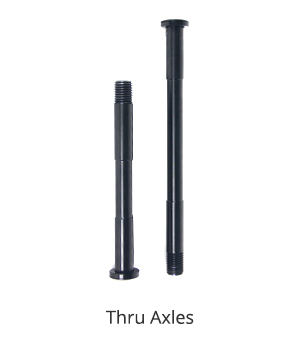

  • Accessories FSA Integrated Headset, Derailleur Hangers, Cable Routing Grommets, Thru-Axles

Weight

  • Frame Weight XS 1100+/-50g
    S 1145+/-50g
    M 1160+/-50g
    L 1200+/-50g
  • Fork Weight 445g
  • Seatpost Weight 217g

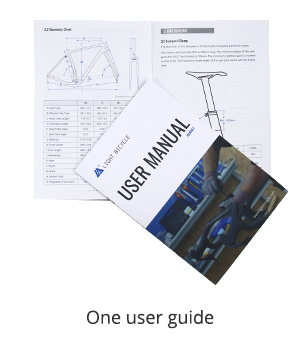

  • View User Manual >>

Geometry & Sizing

If you are on the edge of a suggested size: consider sizing up if you have longer legs or you want a more relaxed position; or size down for a more aggressive and maneuverable ride. Find Your Size >>

gravel-bike-frame-geometry carbon-gravel-fork-details
Frame size XS S M L
A-Seat Tube 450mm 480mm 510mm 540mm
B-Effective Top Tube 521mm 542mm 559mm 574mm
C-Head Tube Length 110mm 137mm 165mm 195mm
D-Chainstay Length 415mm 420mm 425mm 430mm
E-Head Tube Angle 70.0° 70.8° 70.8° 70.8°
F-Seat Tube Angle 73.5° 73.5° 73.5° 73.5°
G-BB Drop 77.5mm 75.0mm 75.0mm 72.5mm
H-Front Center 594mm 604mm 622mm 639mm
I-Fork Length 400mm 400mm 400mm 400mm
J-Wheel Base 997mm 1013mm 1036mm 1059mm
K-Rake 56mm 51mm 51mm 51mm
L-Reach 362mm 375mm 384mm 392mm
M-Stack 537mm 563mm 590mm 616mm
N-Steerer Tube 300mm 300mm 300mm 300mm
O-Integrated Crown Race 126° 126° 126° 126°

Highlights

Carbon Construction

Internal Cable Routing

Smart Mounts

Huge Tire Clearance

Recommended Wheels

Build your gravel bike with these wheels for a premium riding experience.

700C disc bike wheels 27mm wide 24mm deep clincher for cyclocross road and gravel bikes

700c-Falcon-WHEELSET
AR24 DISC-27mm wide-24mm deep

USD: 611+ Standard 1119g+/-25

700C tubeless bicycle wheels 28mm wide 46.5mm deep clincher for cyclocross road and gravel bikes

700c-Falcon Pro-WHEELSET
AR465 DISC-28mm wide-46.5mm deep

USD: 824+ Standard 1306.4g+/-25

700C tubeless bicycle wheels 32mm wide 40mm deep clincher for cyclocross road and gravel bikes

700c-Falcon Pro-WHEELSET
WR40 DISC-32mm wide-40mm deep

USD: 804+ Standard 1313g+/-25

700C disc bike wheels 27mm wide 24mm deep clincher for cyclocross road and gravel bikes

700c-Falcon-WHEELSET
AR24 DISC-27mm wide-24mm deep

USD: 611+ Standard 1119g+/-25

700C tubeless bicycle wheels 28mm wide 46.5mm deep clincher for cyclocross road and gravel bikes

700c-Falcon Pro-WHEELSET
AR465 DISC-28mm wide-46.5mm deep

USD: 824+ Standard 1306.4g+/-25

700C tubeless bicycle wheels 32mm wide 40mm deep clincher for cyclocross road and gravel bikes

700c-Falcon Pro-WHEELSET
WR40 DISC-32mm wide-40mm deep

USD: 804+ Standard 1313g+/-25

WARRANTY

We warranty the gravel frame, fork, and seat post from manufacturer's defects in materials and workmanship for a period of 3 years from the date of purchase. Within the warranty period, if your frameset is damaged in a crash, we offer a 10% crash replacement.

3-years-warranty

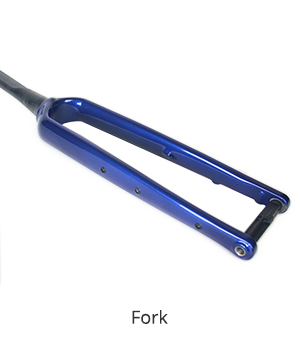

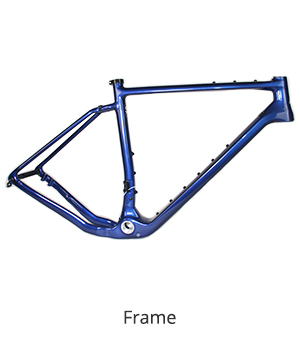

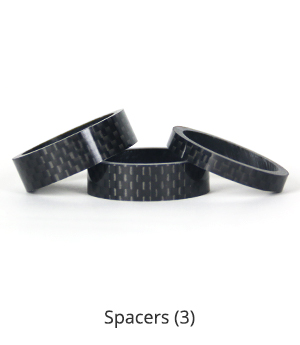

WHAT IS IN THE BOX

James : Here is the completed bike, I wrapped the bars & put it on a scale. The weight is 7430g.
United States
1
Paul-Julien : I love my custom wheelset! I have built my bike and rode the whole summer with it. I mostly shopped the Journey frameset for those characteristics: Carbon (lightweight) Many mounting points Possible to mount fenders and a rack Possible internal cable routing Accommodate large tires (700x45C) Accepts 2x drivetrain
Canada
1
United States
0
Philipp : I love the Light Bicycle Journey frame for bike packing!
Switzerland
1
Kurt : Frame and wheels all assembled!
United States
1
Light Bicycle : Frameset (Fork & Seatpost): Light Bicycle Journey Size L Metallic Silver Handlebars: Easton EC70 AX 46mm Carbon Stem: Phoenix Team 31.8mm Saddle: WTB Volt Shifter: Sram Force AXS e-Tap 12-Speed Brakes: Sram Force e-Tap AXS 2-piston Wheels: WR40 braided weave, BERD Polylite spokes, Chris King Hubs, Sapim secure lock nipples Pedals: Shimano XTR M9100 Crankset: Sram Force 1 DUB 36t 170mm Cassette: Sram XG-1270 10-36t Rotor: Sram Centerline CenterLock – 160mm Chain: Sram Force Flattop 12-Speed Tires: Vittoria Terreno Dry Anthracite 38c
1
Light Bicycle : Journey Metallic Silver Glossy Carbon Frameset (With Black Decals & oil slick sticker)
1
Light Bicycle : Journey Midnight Blue Glossy Carbon Frameset (With Oil Slick Top Tube Sticker)
1

View More Reviews >>

COMMENTS

H

Henning 2023/01/03

Hey, can I buy one of your d-shaped forks for my titanium bike with tapered headset? Best regards, Henning


LightBicycle 2023/01/06

Hi Henning, Normally this gravel fork is sold together with frame. Can you confirm that the fork is compatible with your gravel frame? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Mat 2022/04/04

What is the maximum torque for the Rear Derailleur Hanger Bolt, Seat Post Clamp, and the Compression Plug? Thanks


LightBicycle 2022/04/12

Hi Mat, The recommended torque for the derailleur hanger bolt is 3Nm, and that for the seat post clamp is 5Nm. For the compression bolt, the suggested torque is 7-8Nm. Thanks, Light Bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

Sean 2021/10/22

Can the front derailleur routing be used with a full housing up into the seat tube for a dropper? Thanks.


LightBicycle 2021/10/22

Hi Sean, Do you have a 1X crankset? Just for confirming, you want to use the routing hole located on the downtube, correct? You can use it for dropper Seatpost. But the diameter might not be big enough. Remove the internal cable housing, and drill the hole a little bigger to fit the cable on this gravel bike frameset. Thanks, Lightbicycle
