Build Your Recon WHEELSET RM26C05

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy rim only

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Hub Brand This is a required option.

Model	Weight	POE	Cost	Reliability	Quality	Unique Feature	Color Options	Warehouse Location	Website
Novatec	287g	27	Low	Good	Good	Inexpensive	Three	China	NOVATEC
Bitex	258g	24	Low	Good	Good	Light	Two	China	BITEX
DT 350	374g	18/36/54	Low	Better	Good	Quiet and reliable (18t option)	One	China	DT SWISS
DT 240S	317g	18/36/54	Medium	Best	Best	Quiet and reliable (18t option)	One	China/N.A.	DT SWISS
DT 240 EXP	299g	EXP 36	Medium	Best	Best	Quiet and reliable (EXP 36 )	One	China/N.A.	DT SWISS
DT 180	290g	EXP 36	High	Best	Best	Super Light, EXP 36	One	China/N.A.	DT SWISS
Chris King	326g	45	High	Best	Best	Rebuildable bearings	Nine	China	CHRIS KING
Industry Nine	327g	60	Medium	Better	Best	Loud, engagement	Eleven	China/N.A.	INDUSTRY NINE
Onyx	434g	Infinite	High	Better	Best	Silent, sprag clutch	Eighteen+ (Custom Available)	North America	ONYX
Carbon-Ti	270g	56	High	Better	Best	Extreme Light	Nine	China	Caron-Ti
ARC	332g	48	Low	Better	Good	Economic and reliable	One	China	ARC
Chosen	260g	24	Low	Better	Good	Economic and reliable	One	China	Chosen
Light Bicycle Pace-Hub	275/285g	36/48	Low	Better	Good	Economic, reliable, light	One	China	Light Bicycle
Light Bicycle Speed-Hub Gen2	295g	36	Low	Better	Good	Proprietary for Carbon Spokes Steel Bearing (upgradable to ceramic)	Two	China	Light Bicycle

Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

DT SWISS 180

DT SWISS 240 EXP

DT SWISS 350

Industry Nine Hydra

Industry Nine 1/1

Chris King BOOST

Bitex BX212F / BX212R

Hope Pro 5

Front Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

15 / 100mm

15 / 110mm BOOST

Rear Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 142mm

12 / 148mm BOOST

12 / 157mm Super BOOST

Freehub Body This is a required option.

1. Shimano Road 11S works with 11/12-speed cassette directly or 8/9/10-speed mountain cassette with a spacer(s) .
2. Shimano MTB 10/11S works with 8/9-speed directly or 10-speed with a spacer or 11-speed road cassette if one of the inner cogs removed.
3. Campagnolo (Campy) 11S works with 9/10/11/12-speed Campy cassette with no spacers required.
4. Sram XDR could run XDR (road) cassette inherently and is compatible to run mountain bike XD cassette with a 1.85mm spacer.
5. Shimano Micro Spline (MS) works with 12-speed MS cassette only.

Shimano MTB 10/11S

Sram XD

Shimano MTB 10/11S Alloy

Sram XD Alloy

Shimano Micro Spline

Shimano Micro Spline Alloy

Spoke Head This is a required option.

J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes

straight pull

J-bend

Brake System This is a required option.

6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt. If you need the conversion kit, please contact us. Our hubs are provided without rotor lockrings by default.

6-bolt

Center lock

Hub Color This is a required option.

Black

Matte Black

Matte Turquoise

Oil Slick

Orange

Red

Turquoise

Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

28H

32H

Rear Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

28H

32H

Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 4 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

24T - Made out of hardened steel as e-bike specific.

EXP 36 - With only a single spring, making the hubs faster and lighter. More precise contact makes a longer lifespan.

EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.

108T

27T

36T

54T

690T

72T

90T

EXP 36

EXP 54

Spoke This is a required option.

Brand	Model	Type	Thread Diameter (mm)	Weight(g)	Gauge	Riding Style	Available(Warehouse Location)
Sapim	Race	Double Butted	2.0 - 1.8 - 2.0	5.7g (260mm)	14G	Heavy Duty	North America, China
Sapim	D-Light	Double Butted	2.0 - 1.65 - 2.0	4.8g (260mm)	14G	Versatile	North America, China
Sapim	CX-Ray	Aero	2.0 - 0.9/2.2 - 2.0	4.4g (260mm)	N/A	Light Aero	North America, China
Sapim	CX-Sprint	Aero	2.0 - 1.25/2.25 - 2.0	5.2g (260mm)	N/A	Light Aero	China
DT SWISS	Competition Race	Double Butted	2.0 - 1.6 - 2.0	4.8g (260mm)	14G	Versatile	China
Pillar	PSR X-TRA 1420	Aero	2.0 - 0.95/2.2 - 2.0	4.4g (260mm)	N/A	Inexpensive Aero	China
Pillar	Wing 20	Aero	2.2 - 1.2/2.0 - 2.0	4.3g (260mm)	N/A	Light Aero	China
Light Bicycle	Oil slick J-bend	Single butted	2.0 - 2.0 - 1.95	6.7g (260mm)	14G	Cool color	China
Light Bicycle	LB Flyweight Carbon (Regular Edition-Bladed)	Aero	3.2-1.5/3-3.2	2.65g (SP, 260mm); 2.8g (J-bend,260mm)	N/A	Light Aero/Stiff	China
Light Bicycle	LB Flyweight Carbon (Regular Edition-Butted)	Aero	2.3 - 2/2.3-2.3	2.3g (SP, 260mm)	N/A	Light/Stiff	China
Berd	PolyLight	Rope-like	2.0-1.8	2.5g (260mm)	N/A	Extreme Light	North America

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.
DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)
Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.
Pillar Wing 20 - Pillar patented highest level of aerodynamic bladed spoke reducing potential weak spots and twisting during tensioning. Currently, they are offered in oil slick color only with increased wear and corrosion resistance.
Sapim CX Sprint-Rear drive side/ CX Ray-Other sides - This customized combo increases the rear drive side power transmition efficiency significantly while grabs superior light-weight and aero performance.
Oil slick J-bend - They are made by a qualified manufacturer in Taiwan with custom design by Light Bicycle. They are J-bend only so do not order these spokes for SP hubs you configured in the previous step.
LB Flyweight Carbon Regular Edition >> -It maximizes wheel stiffness while keeping things more aero, designed to unlimit your hub choice making your wheels more customizable than ever.
LB Flyweight Carbon Special Edition >> - It maximizes wheel stiffness while keeping things light, designed to pair seamlessly with our Speed Hubs through the use of specially designed aluminium nipples.
Berd PolyLight >> - It is constructed from an advanced polymer called ultra high molecular weight polyethylene (UHMWPE) and are widely considered to be the lightest bicycle spoke option in the world.

DT Swiss Competition Race

Sapim CX Ray

Oil slick J-bend

Nipple This is a required option.

Nipple Brand	Model	Material	Color	Length	Available (Warehouse Location)
Sapim	Double Square Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	16mm	Norh America
Sapim	Polyax/ Polyax Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	14mm	China
Sapim	Polyax Secure Lock	Brass	Black	14mm	China/N.A.
DT Swiss	DT SQUORX (PRO HEAD PRO LOCK)	Alloy	Black, Red	15mm	China
DT Swiss	Standard PRO LOCK	Brass	Black	14mm	China
Light Bicycle	N/A	Brass	Oil slick	14mm	China
Light Bicycle	Aluminium Black (for carbon spokes)	Alloy	Black	8.9mm	China

Please select Aluminium Black (for carbon spokes) nipples when you have chosen LB Flyweight Carbon spokes.

Aluminium Black

Aluminium Red

Brass Oil slick

Brass Black

Version This is a required option.

All Mountain (AM) - This version is mid-weight and suitable for all mountain and trail riding.

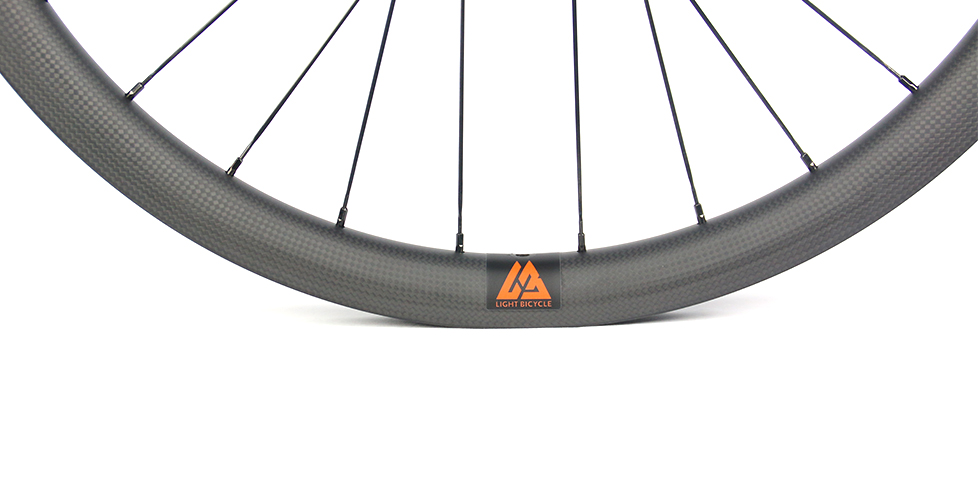

Enduro (EN) - This version comes out with additional reinforcement (Heavy Duty) and is the right fit for more aggressive riders pedaling on enduro.

All Mountain

Enduro USD +5

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3-5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Glossy

Matte

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

12K

Full Custom USD +15

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Decal This is a required option.

The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Silver

Blue

Green

Magenta

Orange

Red

Yellow

Blank (No decal)

Wheel Bag This is a required option.

Our all-new single wheel bag provides reliable storage for your wheel. Plus, an internal pocket is designed to store skewers and other tools. The wheel bag safely and comfortably accommodates most road and mountain bike wheels, including 700C, 26", 27.5", and 29" wheels. The wheel bag is with Light Bicycle logo by default. If you hope to get one without logo, please leave a note at checkout.

For a wheelset product, when selecting "Add Wheel Bag", you'll get two wheel bags; while for a single front/rear wheel product, you'll get one wheel bag.

None

Add Wheel Bag USD +25.5 each

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Apply Tubeless Tape USD +6 each

Rear Wheel Dishing Pattern This is a required option.

While the vast majority of frames require Centered (Traditional) dishing, those of Cannondale’s with Ai offset design (Asymmetric Integration) comply with a special kind of offset dishing for the rear wheel.

Know more about Cannondale’s Ai technology >>

Centered (Traditional)

Ai offset- 6mm

Ai offset- 3mm

Send Photos for Shipping Confirmation This is a required option.

Send Photos for Shipping Confirmation could be offered at NO extra charge so that you could have your tailored products viewed/inspected before shipping and the photos shared with your friends in advance.

It takes about 1~3 business days added to the lead time subject to the orders queuing status.

If you have any special requirement on the photos, such as weight measurement, please leave a note at checkout.

Yes (1-3 days longer)

No ( I do not need photos)

Recon Pro orders start shipping in October.

- + Pair

Piece Weight: 1365.00g+/-3%

Subtotal: USD 612+

PREVIOUS NEXT

WHEELSET SPECS

RIMS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model RM26C05
Material Toray T700 & T800 Premium Carbon Fiber
Size 26" (ETRTO 559mm)
Series RECON
Intended Use All Mountain/Enduro
Bead Type Hookless
Tubeless Capable Yes

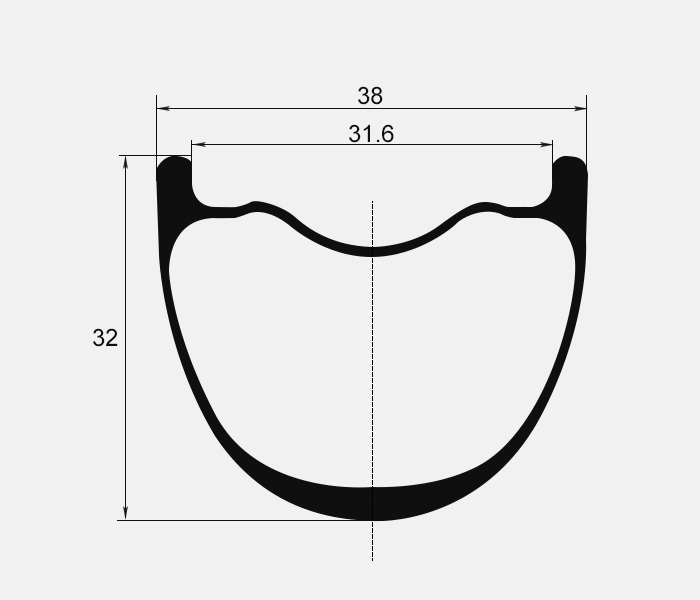

Inner/Outer Width 31.6mm/38mm
Depth 32mm
ERD 511mm (not including nipple head dimension)
Rim Weight AM 420+/-15g, HD485+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) 140kgs/ 309lbs
Spoke Hole Angle ±6°
Spoke Tension 115~130kgf front disc side and rear drive side
Max Tire Pressure 40psi/ 2.75bar
Recommended Tire Width 2.3" ~ 3.1"

HUBS

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1, Chris King BOOST, Bitex BX212F / BX212R, Hope Pro 5
Front Axle Size 15 / 100mm, 15 / 110mm BOOST
Rear Axle Size 12 / 142mm, 12 / 148mm BOOST, 12 / 157mm Super BOOST
Driver Body Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy
Hole 28H, 32H

OTHER PARTS

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes DT Swiss Competition Race, Sapim CX Ray, Oil slick J-bend
Nipples Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black

Looking for the playfulness of 26'' wheels in a package tough enough to handle whatever the mountain throws at it? The AM632 (WM26C05) offers a wide profile, modern shape, and versatility to handle everything from a trail tire to a high volume all-mountain or reinforced enduro tire. The EN version has an extra wrap of 3k carbon fiber around the nipple bed, reinforced sidewalls to support G-Out forces, and increased rim stiffness, increasing suitability for aggressive riders over 200 pounds.

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model: RM26C05
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 26" (ETRTO 559mm)
Series: RECON
Intended Use: All Mountain/Enduro
Bead Type: Hookless
Tubeless Capable: Yes
Inner/Outer Width: 31.6mm/38mm
Depth: 32mm
ERD: 511mm (not including nipple head dimension)
Rim Weight: AM 420+/-15g, HD485+/-15g
Profile: Symmetric (0mm)
Max Cyclist Weight (on flat ground): 140kgs/ 309lbs
Spoke Hole Angle: ±6°
Spoke Tension: 115~130kgf front disc side and rear drive side
Max Tire Pressure: 40psi/ 2.75bar
Recommended Tire Width: 2.3" ~ 3.1"

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1, Chris King BOOST, Bitex BX212F / BX212R, Hope Pro 5
Front Axle Size: 15 / 100mm, 15 / 110mm BOOST
Rear Axle Size: 12 / 142mm, 12 / 148mm BOOST, 12 / 157mm Super BOOST
Driver Body: Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy
Hole: 28H, 32H

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes: DT Swiss Competition Race, Sapim CX Ray, Oil slick J-bend
Nipples: Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

Looking for the playfulness of 26'' wheels in a package tough enough to handle whatever the mountain throws at it? The AM632 (WM26C05) offers a wide profile, modern shape, and versatility to handle everything from a trail tire to a high volume all-mountain or reinforced enduro tire. The EN version has an extra wrap of 3k carbon fiber around the nipple bed, reinforced sidewalls to support G-Out forces, and increased rim stiffness, increasing suitability for aggressive riders over 200 pounds.
Specs
Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model: RM26C05

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 26" (ETRTO 559mm)

Series: RECON

Intended Use: All Mountain/Enduro

Bead Type: Hookless

Tubeless Capable: Yes

Inner/Outer Width: 31.6mm/38mm

Depth: 32mm

ERD: 511mm (not including nipple head dimension)

Rim Weight: AM 420+/-15g, HD485+/-15g

Profile: Symmetric (0mm)

Max Cyclist Weight (on flat ground): 140kgs/ 309lbs

Spoke Hole Angle: ±6°

Spoke Tension: 115~130kgf front disc side and rear drive side

Max Tire Pressure: 40psi/ 2.75bar

Recommended Tire Width: 2.3" ~ 3.1"

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1, Chris King BOOST, Bitex BX212F / BX212R, Hope Pro 5

Front Axle Size: 15 / 100mm, 15 / 110mm BOOST

Rear Axle Size: 12 / 142mm, 12 / 148mm BOOST, 12 / 157mm Super BOOST

Driver Body: Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy

Hole: 28H, 32H

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes: DT Swiss Competition Race, Sapim CX Ray, Oil slick J-bend

Nipples: Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black

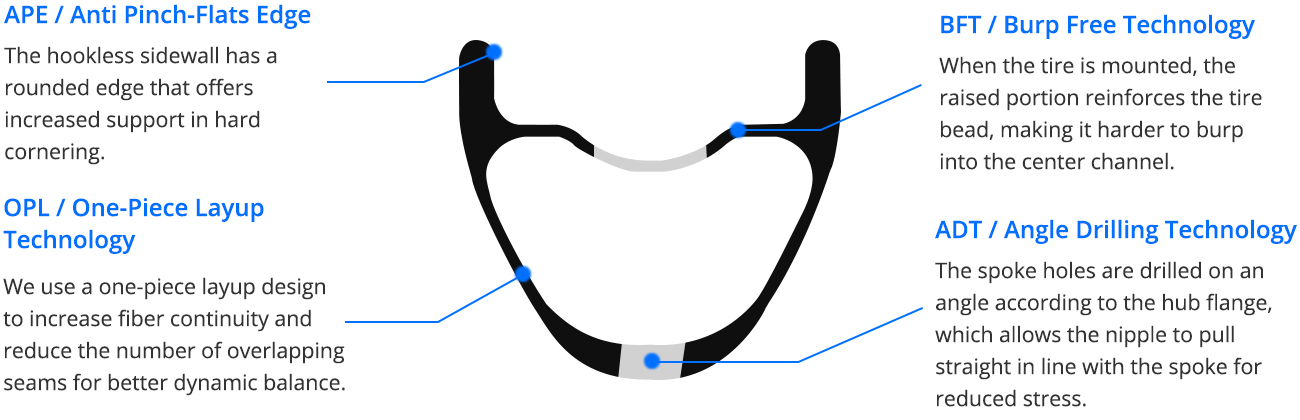

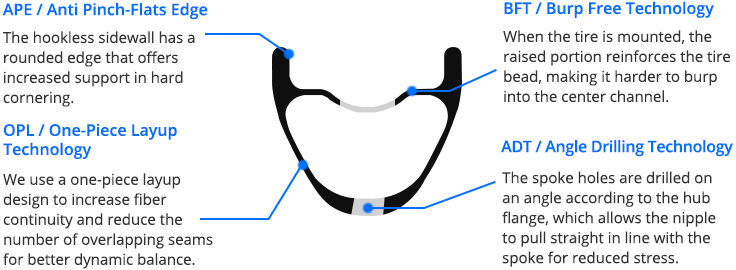

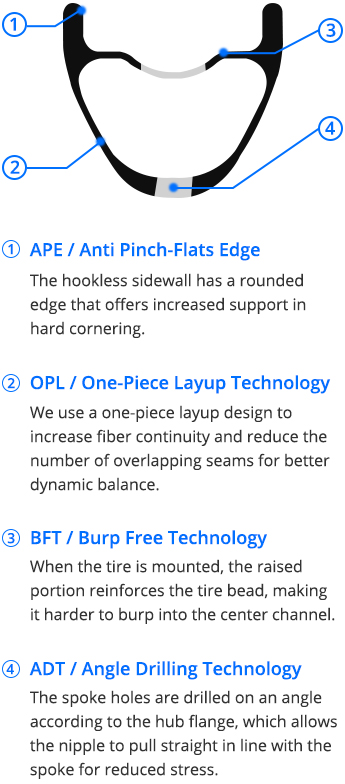

Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

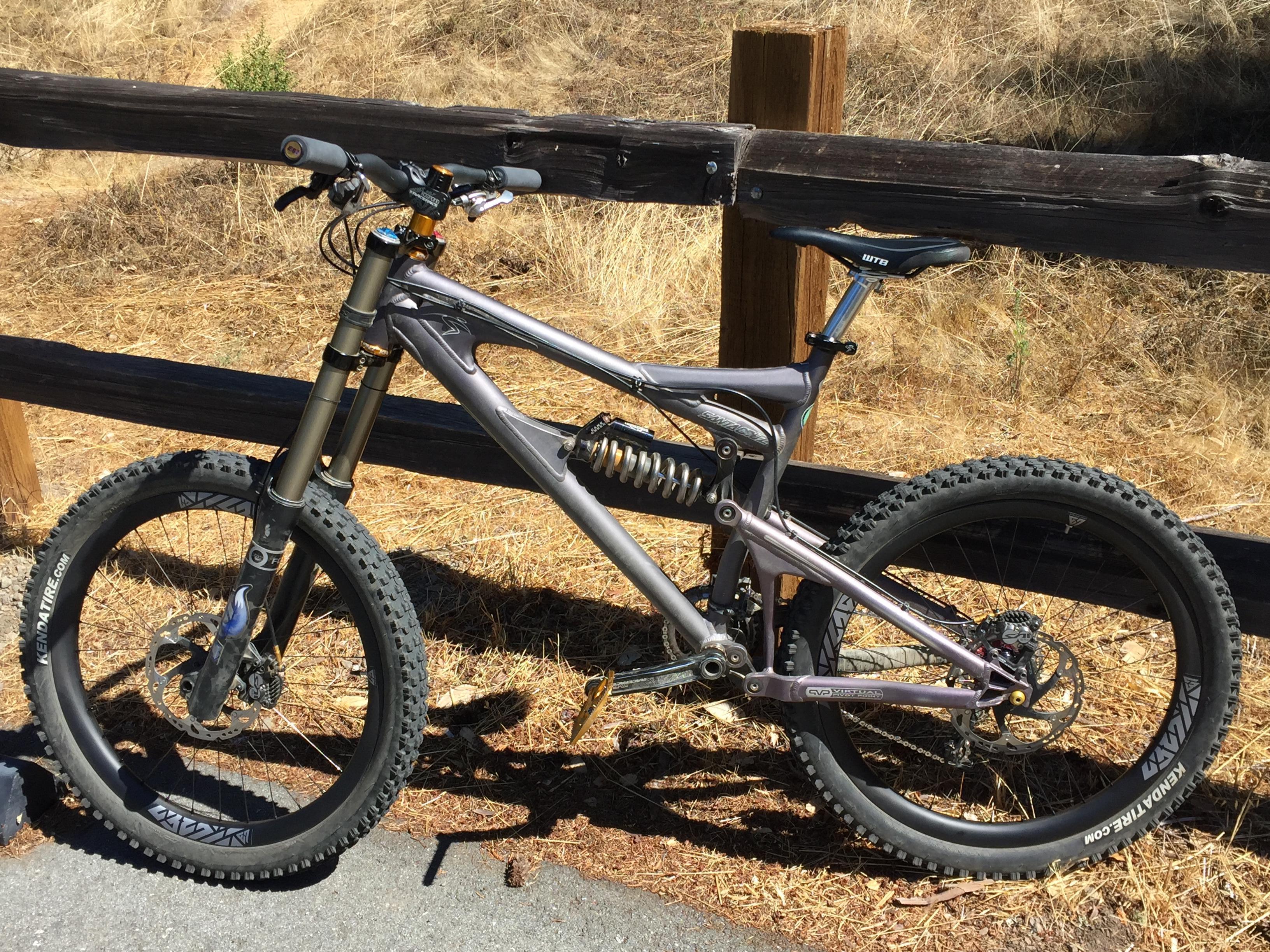

light-bicycle-rm26c05-26-inch-carbon-fiber-rims-built-on-a-skillclown-heart-dirt-jump-bike

Add a comment...

China

Light Bicycle : Rims: RM26C05 All Mountain Braided UD Glossy 24/32H External Hole No Drain Holes With Access Holes Sticker: Light Bicycle - Grey

Inspired-trials-bike-on-Light-Bicycle-RM26C05-wheels

Joe : I’m interested in your carbon rims but I’d like to run higher tyre pressure. Do you sell rims that will take 60 psi?

Singapore

Jim : Santa Cruz VP-Free w/Fox 40, Cane Creek DB w/titanium coil spring and with the 26er Hand-built Endro Downhill carbon fiber wheelset.

United States

Warren : Hello, I really love the yellow rims you guys built for me last year.I'd like to order a similar set for my 27.5 bike.

Canada

View More Reviews >>

COMMENTS

Damir 2022/08/19

Hi there! Currently, I'm running my 26 inch wheel set built with DT swiss FR560 rims (570 grams), dartmoor reel pro hubs and continental tires ( 670 grams each) My front wheel weights around 2000 grams with the rotor, rear wheel 2600 with the rotor and cassette. Considering it's a fresh new build, would it worth it to go with your 38 mm wide and 33 mm deep 26er rims?

LightBicycle 2022/08/20

Hi Sir, If you replace the FR560 rims with our RM26C05 26er rims, it would save you 300g in total. With a wider profile, you can run a wider range of tires in the future. And carbon rims certainly are more stiff than alloy rims. What hubs are used on your current wheels? They can be reused if they are in good condition. You need new spokes to build the wheels up. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Sean 2022/04/20

Do you have any front hub options for 20 x 110?

LightBicycle 2022/04/20

Hi Sean, Thanks for your inquiry! Yes, we have 20*110mm I9 hubs here. Do you like 20*110mm old DH or 20*110mm boost DH? Which 26er wheelset do you like? You can list the complete wheelset specs here, we can quote accordingly for you. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Gonzalo 2021/07/08

Hello! I have already the hubs, it's possible to buy only the rim???

LightBicycle 2021/07/08

Hi Gonzalo, It is okay to order bike rims only. Which 26er bike rims do you like? Then we can quote accordingly for you. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

BRUNO 2020/06/10

Hi, I'm about to bring an old enduro bike back to it's glory so I'd like to buy the wheelset from you. I'm building it as a mullet bike 27,5 front/26 rear, however the hub axle size should be 15/110 boost and 135/5 qr. I'll be between 2.4 and 2.5 tyres with rimpact rim protection for some peace of mind and even though I never broke or bent a wheel in my life, I am a heavy rider, 120kg with gear, and I'll be riding double black diamond trails and bike park tracks. I think that a combination of the rm26c05 and rm650bc13 rims with the heavy duty option would be the best fit for me. As for the hubs I do love the Dt Swiss 240s straightpull same as my carbon wheelset of my Xc bike, however I'll be open to hear your opinion. Are the 28 dt Swiss competition spokes on alloy nipples strong enough?

LightBicycle 2020/06/11

Hi Sir, 1. The new EXP version 135*5qr conversion kit would have to wait till July (at least). 2. I would suggest going with DT 350 hubs if you prefer the ratchet system over pawls. The straight pull version only available in 28H. 3. If you don't mind the pawl system, the Industry Nine hubs would be also a good choice. But you should know that they are very loud hubs. Some people love it, some people don't. So just a heads-up to you. 4. We can make a reinforced version (heavier than the heavy-duty) for you if you are concerned about the durability. We will charge USD8-10 extra per rim for the customization. Let me know if it's ok with you. 5. The Sapim CX-Ray spokes are the most popular spokes we sell. But given the fact that you are a big guy and riding enduro, I would say DT competition race round spokes or sapim D-light round or sapim race spokes would be safer. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Kenneth 2016/05/04

I am interested in your 26C05 wheel set , I will provide a set of SRAM XO hubs with 32 holes. I am a 200 pound rider and the wheels will be on a,long travel trail bike. Would you recommend the heavy rims? All the other specifics to the 26C05 set would remain the same , not including shipping could you quote a price for the build Thanks Kenneth

Light-Bicycle 2016/05/05

Hello Kenneth, Thanks for your inquiry. Pillar psr x-tra 1420 aero spokes are not strong enough. We recommend DT competition race round spokes or black sapim cx-ray bladed spokes. The price for wheelset with following specs is USD473 - Rims: RM26C05-38mm, AM version, 12K, matte, 32H, no decal - Hubs: the buyer will provide it - Spokes: black DT competition race round spokes - Nipples: black, brass or aluminum If it is with sapim cx-ray bladed spokes, the price will be USD537/pair, the wheelset weight will be 20g lighter. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Girth 2016/01/15

Hi, I am only after a rear wheel based on, Hope Pro 2 Evo 142 x 12 in Black, 26" 38mm All mountain rim, Matte, 3k, Dt Swiss competition spokes, Shimano 10sp Mtb free hub, 32 hole. If you could give me a quote for the wheel and for freight to Australia that would be great. Cheers, Girth

Light-Bicycle 2016/01/15

Hello Girth, Thanks for your inquiry. The 38mm wide 26er rear wheel with following specs is $479/pcs. Shipping with EMS is $43. All pricing in USD. Wheel weight 918 /-20g. -Rim: RM26C05, 3k matte, 32H, 420 /-15g. -Hub: Black, Hope pro2 evo 12*142mm TA, with Shimano mtb 10s -Spokes: Black, DT competition round -Nipples: Alloy or brass? Silver or black? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Sage 2015/12/29

Could you for the sake of inquiry make one with green Industry 9 spokes?

Light-Bicycle 2015/12/30

Hi Sage, We have received your two inquires. Due to time difference, sorry for the late reply. Currently, only Novatec/ Hope/ DT Swiss hubs are available, not Industry 9 hubs. Sorry about that. Hope & DT Swiss are with good quality also, and idea for long-term use. If you like, we can build it as following specs. -Rims: RM26C05, 38mm width, HD version for your aggressive riding, 485 /-15g. Please find attached rim profile. Rim weave in UD matte is more popular. -Hubs: What hub axle size do you like for front & rear? Standard qr or thru axle? - Spokes: Pillar x-tra 1420 aero (4.3g for 260mm) or DT competition spoke (5.8g for 260mm). DT competition spokes are much heavier, but stronger. -Nipples: Alloy or brass? Black or silver? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Aaron 2015/12/27

Hi, I would like to see pictures of the difference between UD matte and UD gloss rims and 3k matte and 3k gloss please. 1: Also I want to know if you sell 38mm wide by 26" in a hookless design the same as 27.5..? I wanted to re-use my original hubs if possible from my bike (specialized enduro- with DTswiss hubs) but the front hub is a 27 spoke hub which i know is different from the normal 28 or 32 2: so I need to know if you can make a rim for me with 27 spoke holes instead of 28..? I need a quote for the cost of two options. Option A. -26"rims only 38mm dh 32 hole rear and 27 hole front Option B. -26" 38mm dh 32 hole rear 28 hole front with dt swiss 240 hubs straight pull black spokes super competion Thankyou for your time Aaron

Light-Bicycle 2015/12/28

Hello Aaron, Thanks for your inquiry. Please find attached pictures of the rim weave & finish. 3k/12k/UD are the 3 choices for cosmetic appearance. The rim strength & weight is virtually identical. UD Matte is the most popular. -Yes, the 38mm wide 26er rim is available. Rim profile attached for reference. You can use your original hubs to build the wheels. - For spoke count, we can manufacture from 16H to 36H. So, rim in 27H is fine. All the prices are the same if the rims with different spoke counts. For special count, you can not change or cancel the order, hope that is okay for you. - RM26C05 (38mm wide 26er HD rim) hookless: 485 /-15g, USD181/pcs -The 38mm wide 26er HD wheelset with DT 240S hubs & DT competition spokes is USD970/pair. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Owen 2015/12/01

What would you suggest for all mountain and some enduro racing use? Fully loaded inc. pack I'm approx 90kg. 26" wheels, must be 135/12 rear and 20mm through axle front. Tubeless ready. Blue/black graphics and details where possible.

Light-Bicycle 2015/12/02

Hello Owen, Thanks for your inquiry. We’d like to recommend 38mm wide 26er AM wheels as following specs. It is much wider and stronger. -Rims: RM26C05 tubeless compatible, AM version 420 /-15g. Please find attached rim profile. Rim weave in 3k matte & UD matte are more popular. Which do you prefer? -Hubs: Hope pro2 evo front 20mm thru axle/ 12*35mm thru axle. Blue? With freehub Shimano or Sram? -Spokes: Black, DT competition spokes. It is much heavier, but stronger. -Nipples: Alloy or brass? Black or silver? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

lcw 2015/09/21

Hello- Do you offer a true UST rim option (no holes on the inside, eliminating the need for rim tape when running tubeless). Thanks, -LCW

Light-Bicycle 2015/09/21

Hello LCW, Thanks for your inquiry. Yes, we can manufacture the 26er rims in UST version (without spoke holes on rim bed, only valve hole). Please find attached pictures. Is that what you like? RM26C05 (38mm wide 26er UST rim) hookless: 420 /-15g, USD173/pcs Please find attached rim profile. Rim weave in 3k matte & UD matte are more popular. Do you like it? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Elmer 2015/09/20

Hi, when is the Hope pro 2 evo 12x150mm rear hub gonna be back in stock? Thanks

Light-Bicycle 2015/09/21

Hello Elmer, Thanks for your inquiry. The black Hope pro2 evo 12*150mm in 32H is available. What is the front hub axle size you like? For rims, it is hookless 38mm wide 26er rim (420 /-15g). Please find attached rim profile. Rim weave in 3k matte & UD matte are more popular. Do you like it? For spokes & nipples, it is black Pillar Aero X-TRA 1420 spoke & Pillar PT 734 nipple (black/blue/gold/green/red/silver). Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A 2015/08/28

Could you recommend me a tyre compatible with this wheel, please? Thanks.

Light-Bicycle 2015/08/28

Hello AH, Thanks for your inquiry. The 38mm wide 26er wheels can work with 2.1’’-2.7’’ width tyre. We can build the wheels as following specs. -Rims: Hookless 38mm width, 420 /-15g. Please find attached rim profile. Rim weave in 3k matte & UD matte are more popular. Do you like it? -Hubs: Novatec & Hope hubs are available. What hub axle size do you like for front & rear? Standard qr or thru axle? -Spokes: Black, Pillar Aero X-TRA 1420 aero -Nipples: Pillar PT 734. Do you like black/blue/gold/green/red/silver? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

andi 2015/08/08

Hello, i am interested in the 26 dh version but i need a 12*157 mm rear hub and i see that there is no option like this type from hope or novatech hubs. Do you have rear hubs that would fit the 157*12 rear spacing?

Light-Bicycle 2015/08/10

Hello Andi, Thanks for your inquiry. We can build the 26er wheelset with Novatec 12*157mm thru axle as following specs. -Rims: Hookless 38mm wide 26er DH rims, 480 /-15g. Please find attached rim profile. Rim weave in 3k matte & UD matte are more popular. Do you like it? -Hubs: We have Hope & Novatec with 12*157mm thru axle for Shimano 8/9/10s. What hub axle size do you like for front? -Spokes: Black, DT competition spoke -Nipples: Black, DT brass nipple Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Gr 2015/07/28

hello, What are the differents between AM and DH version ?

Light-Bicycle 2015/07/28

Hello Greg, Thanks for your inquiry. Both AM & DH versions are stiff, but DH is stronger with extra carbon material. May I know your weight? Then we can check whether AM is ok for your riding or not. RM26C05: Hookless 38mm wide 26er rims. Please find attached rim profile. AM: 420 /-15g, USD173/pcs DH: 480 /-15g, USD181/pcs For rim weave, do you prefer 3k, 12k or UD? Matte or glossy? 32H? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Baylen 2015/07/13

Hi there. I have a 2013 Specialized Enduro comp 26' mtb. Im looking at a new carbon rear wheel as i recently cracked mine. What hubs would fit my bike? Can you guys sell just a rear wheel? If so how much would a rear wheel be?

Light-Bicycle 2015/07/14

Hello Baylen, Thanks for your inquiry. We can build the 26er rear wheel as following specs. -Rim: Hookless 38mm wide 26er AM rim, 430 /-15g. Please find attached rim profile. For rim weave, do you prefer 3k, 12k or UD? Matte or glossy? 32H? -Hub: We recommend the Hope pro2 evo hub. Hope hub is with good quality. Most of our customers choose Hope hub. Do you like it? What hub axle size do you like for rear? QR or thru axle? -Spokes: Black, Pillar Aero X-TRA 1420 aero -Nipples: Pillar PT 734. Do you like black/blue/gold/green/red/silver? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 19 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

We use cookies for a better experience. Learn more.

Customize

Your Cookie Preferences

We use cookies to improve your experience on this website. You may choose which types of cookies to allow and change your preferences at any time. Disabling cookies may impact your experience on this website. You can learn more by viewing our Cookie Policy.

Essential Cookies

Cookies required to enable basic website functionality.
Performance Cookies

Cookies used to understand how the website is being used.
Preference Cookies

Cookies that are used to enhance the functionality of the website.
Advertising Cookies

Cookies used to deliver advertising that is more relevant to your interests.

Aceept All Cookies

Save Preferences

Reject All Cookies

Save Preferences

Reject All Cookies

Accept All Cookies

Build Your Recon WHEELSET RM26C05

Overview

Specs

Tech

Warranty

In The Box

Rims

Hubs

Other Parts

Overview

Specs

Rims

Hubs

Other Parts

Tech

Warranty

In The Box

Gallery
