FALCON rim AR28 disc Gravel

29er disc bike rims 29mm wide 28mm deep clincher for cyclocross and gravel bikes

Buy & Configure

Our Global Warehouse ships products worldwide, while our North American Warehouse provides faster shipping service for customers living in North America.

GLOBAL OPTIONS
NORTH AMERICAN OPTIONS
  • 1

    RIM

  • 2

    ACCESSORIES

  • 3

    OVERVIEW

RIM

Brake System This is a required option.

Disc

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

16H

18H

20H

24H

28H

32H

36H

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

glossy

matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

12K

3K

UD

Center Channel Hole This is a required option.

WITH HOLES: This is the traditional method. Holes are drilled in the center channel to allow the nipples to easily be fed through the rim. Tubeless tape is required to seal the rim.


WITHOUT HOLES: No holes are drilled in the center channel. Feeding the nipples through the rim is more challenging, but it allows for a tubeless setup without the need for tape. This kind of system is known as "road tubeless" and was made popular by Mavic. Some companies still refer to it as "UST style", however, UST is actually a specific interface between the tire and rim which was developed by a partnership between Mavic, Michelin, and Hutchinson.

With Holes

Without Holes

Decal This is a required option.

Road rims use super light waterslide decals (matte colors). The decal is very thin and applied under a clearcoat so they are non-removeable.

Pictures about light-bicycle decal >>

If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.

Pictures about custom graphics >>

Blank (No decal)

Stealth (Grey)

Blue

Green

Magenta

Orange

Red

White

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

700C gravel oriented 28mm high carbon rim

Recon Pro orders start shipping in October.

- + PCS

Brake System This is a required option.

Disc

Hole Count This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please contact us.

24H

28H

Finish This is a required option.

matte

Weave This is a required option.

UD

Decal This is a required option.

NA warehouse offers road rims and flyweight rims using super light waterslide decals (glossy black). The decal is very thin and applied under a clearcoat so they are non-removeable.

Non-removeable glossy black waterslide graphics

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

We use a tubeless tape with high tensile strength and only one lap is required so it is very light. It uses a natural rubber adhesive that does not leave any residue on the rims.

If you would like to purchase an additional roll of tape (not installed), then you can find that in the accessories section here- Buying Tubeless Rim Tape

None

Apply Tubeless Tape USD +8 each

700C gravel oriented 28mm high carbon rim

Recon Pro orders start shipping in October.

- + PCS

Weight: 380.00g+/-15

Final total: USD 179+

Weight: 380.00g+/-15

Final total: USD 199+

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

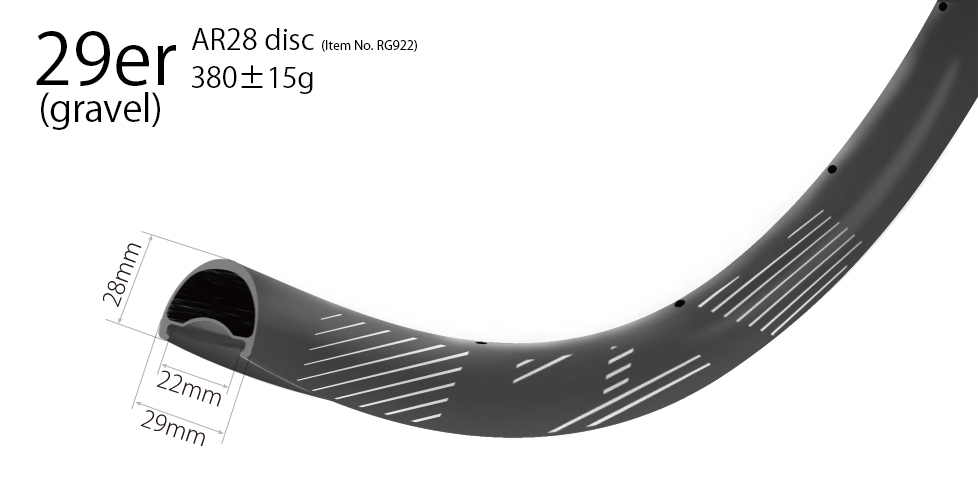

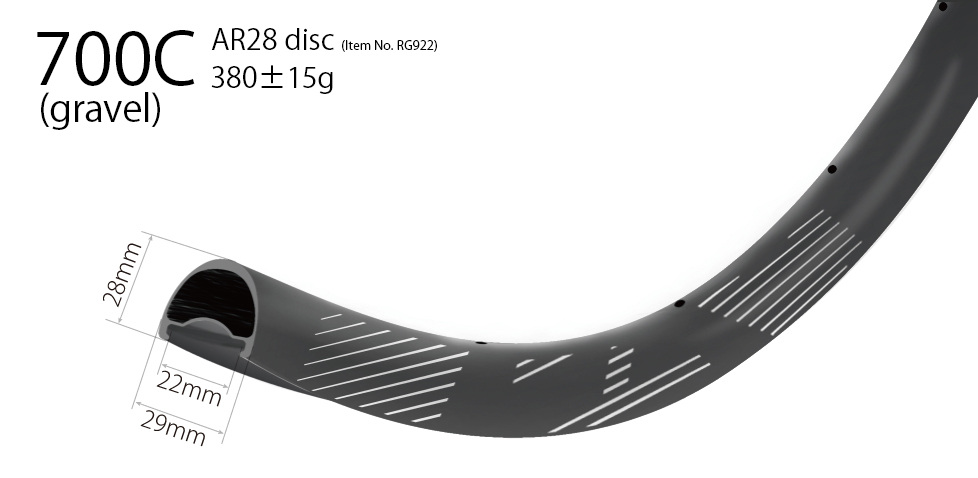

RIM SPECS

  • Rim Model AR28 disc
  • Size 700C
  • Series FALCON
  • Use Gravel
  • Type Clincher
  • Tubeless Ready

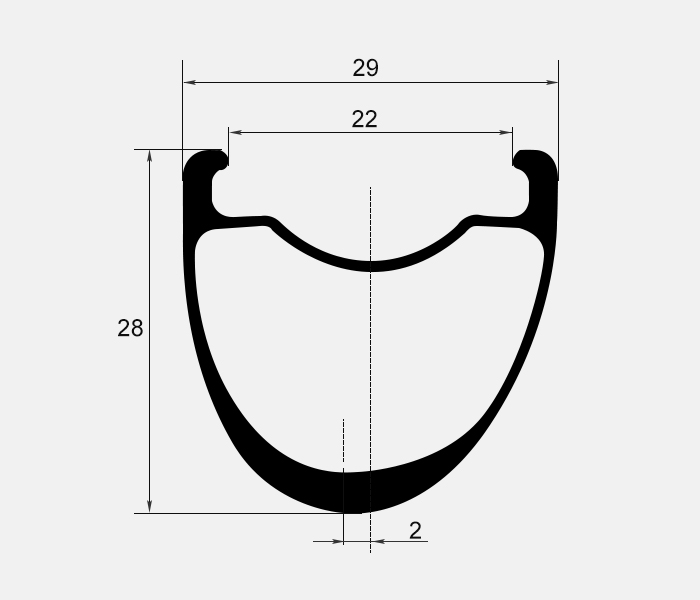

  • Inner/Outer Width 22mm/29mm
  • Depth 28mm
  • ERD 584mm (not including nipple head dimension)
  • Weight 380+/-15g
  • Offset 2mm (asymmetric)
  • Weight Limit (on flat ground) 125kg
  • Spoke Hole Angle ±6°
  • Spoke Tension 120 ~ 130kgf front, 120 ~130kgf rear
  • Tire Pressure (with 25C) 110psi max
  • Tire 23C~50C recommended

Read more for actual road tire width

TECH

The RG922 is one of the newest members of the Flyweight family and part of our Falcon road line. With an asymmetric profile and 22mm internal width, this rim is designed for high performance ultralight wheelset builds.

Our Flyweight construction method uses a blend of Toray T700 and T800, and a thinner pre-preg for a lighter rim weight without reducing the actual number of layers in the layup schedule. Our spoke hole patching treatment removes unnecessary weight from the nipple bed, making this rim a truly light, high pressure-capable product with a weight of just 380g.


Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>


WHAT IS IN THE BOX


Gallery

Philippe : A combination of 650b with 48mm tires at the rear and 700c with 38mm tire at the front is just right for gravel: good traction and comfort, slacker geometry. AR36 (RG722) rear and AR28 (RG922) front with 28 J-bent spokes, light (1440g/pair) should be plenty strong and durable. Good mid clearance at the back mud.
Hong Kong
2
LB : Rims: AR28 700c falcon 24/24H Hubs: Chris King R45D J-bend CL 12 / 100mm 12 / 142mm Spokes: Pillar Aero X-TRA 1420 Nipples: DT SWISS Aluminium Black
1
LB : RG922 (AR28) Disc matte UD 24H UST external hole RG922 (AR28) Disc matte UD 24H UST external hole HUB-F Carbon-Ti X-Hub 12 / 100mm straight pull Center lock Black Matte 24H NBK HUB-R Carbon-Ti X-Hub 12 / 142mm Sram XDR straight pull Center lock Black Matte 24H 56T NBK SPOKE Pillar Aero X-TRA 1420 Black straight pull uncertain NIPPLE Sapim Aluminium Black Polyax External
1
John : I have received the wheels - they are a work of art! All of your assistance is greatly appreciated.
Australia
1
Yannoo : Rims AR28: light and stiff. Very good feeling: steering precision, power transmission, efficiency, good tire performance. Easy wheel truing with spoke direction indicator. Wheelset weighs 1520g with DT 240s IS, Sapim CX-Ray, Nipples Polyax 14mm
France
1

COMMENTS

N

Neil 2020/07/29

Regarding the FALCON rim AR28 disc Gravel- I tried to build this into a set but could not select DT240s and the discount code did not work. It also would not let me select 28 holes for the front. What I need is 28x28 with DT240s (if discount code works) or DT350s if code does not work.


LightBicycle 2020/07/30

Hi Neil, We have new 240 exp hubs in front 24H/rear 24H or front 24H/rear 28H options. For old 240S hubs, we have front 24H/rear 24H and front 28H/rear 28H. Which do you prefer for AR28 disc wheelset? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

D

Daniel 2020/01/23

I would like a rim the width and height like the "29er disc bike rims 29mm wide 28mm deep clincher for cyclocross and gravel bikes" But for use with 700c tires.


LightBicycle 2020/01/23

Hi Daniel, Thanks for your reaching out!For RG922, it is the same size as 700C. This rim is actually 700C size. You can mount 700C 23C~50C tires on these RG922 gravel bike rims/wheels. Don't worry. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

P

Paul 2019/10/21

Are these rims compliant with the ISO 5775 tubeless standard?


LightBicycle 2019/10/22

Hi Paul, Thanks for your inquiry. For our RG922 700C gravel rim, yes, it is in the ISO 5775 standard. It is okay to fit 700C*28C~ 700C* 45C tubeless tires. Don't worry about it. We have sold this model bike rims for more than 2 years. There are no tire fitting problem at all. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Jason 2019/10/06

Hi, What is the sidewall height for the GR922 rims? Specifically I am asking about the G Height of the rim as per ETRTO standards see: https://www.google.com/amp/s/janheine.wordpress.com/2019/04/10/safety-advice-non-standard-rims-and-rene-herse-tires/amp/


LightBicycle 2019/10/18

Hi Jason, For RG922 gravel bike rim, the side wall height(G height) is 5.5mm. It is for tubeless. Please let us know if there is any other questions. If you add rim tape on rim bed, it G height will be around 5.2mm for tubeless. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

H

Henry 2019/02/11

Hello. I'm am interested in the RG922 29er Rim in 32H. I weigh exactly 275 pounds (125 kilos). Is there another rim you recommend, or is this one OK? Do you offer the RG922 32H in a version for a heavier rider/bike? Thank you!


LightBicycle 2019/02/14

Hi Henry, What kind of riding you usually do? What tire width you plan to use? Normally, road riding won't be too aggressive, so your weight is ok for RG922 gravel rim. With 32 spokes, the wheelset you built would be very strong for big rider. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

Rod 2018/11/17

Is there a hookless option for this rim?


LightBicycle 2018/11/29

Hi Rod, The gravel rim you are looking at RG922 (29mm wide, 28mm deep) only provide the hook version for now. If you are looking for a close profile rim, you can look at our RM29C06 (27mm wide, 24mm deep) or the newly launched scratch proof rim XC925 (30mm wide, 23mm deep). You can check out the rim profiles from the attachment. Details are as follows pages. Let me know if you have any questions or want quotes for a wheelset. RM29C06: https://www.lightbicycle.com/bead-hook-less-rims-carbon-29er-light-bike-rim-tubeless-compatible.html XC925: https://www.lightbicycle.com/Hand-built-XC925-asymmetric-rim-profile-carbon-fiber-mtb-29er-wheels.html Thanks, Lightbicycle


T

Todd 2019/10/10

Are you offering this in hookless yet?


LightBicycle 2019/10/11

Hi Todd, We can customize the hookless version of RG922 (29mm wide, 28mm deep) gravel wheels for you if you like. It's not available online. I can create the invoice for you, we won't charge extra for this customization. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Collin 2018/11/06

Is the valve hole for Schrader valve or Presta?


LightBicycle 2018/11/07

Dear Collin Our bike rims are drilled for Presta valve by default. If you like Schrader size, you can leave a message on the order. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Collin 2018/11/06

What valve stem length should I use for the RG922? 32mm? 48mm? 60mm?


LightBicycle 2018/11/09

Hi Collin, We recommend 44mm length valve stem for RG922 gravel rim (28mm depth). You can see more details about valve stem choice at https://www.lightbicycle.com/bicycle-tubeless-rim-valve-stem.html to see our recommendation for valve stem length in case you want other rims. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

O

otavio 2018/07/13

I'd like to replace my roval control sl (2016) rim, 24h that cracked and is out of warranty. Is there any similar rim profile/weight that you offer? thank you


LightBicycle 2018/07/14

Hi Otavio, May i know your tire width, your weight, tire pressure and riding style please? Then we can check which 29er mtb bike rim is better to replace your Roval control SL 24H rim. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Craig 2018/06/11

Hi, I would like a quote for: RG922, 28H, 15X100/12X142,Hope Pro 4, Sapim CX Ray, Aluminum Black nipple, UD Gloss, White decal, Stem, and Tape. Shipped to US Zip 99338


LightBicycle 2018/06/12

Hi Craig, Quotation for gravel wheelset is as below. Wheelset WRG922 is USD1013.65/pair with 5% discount for below specs --Rims: RG922, 29mm wide, 28mm deep, UD, glossy, 28H, hook --Hubs: black Hope Pro 4, front 15*100mm/rear 12*142mm, Shimano MTB 10/11s, 6-bolt, J-bend --Spokes: black Sapim CX-Ray, J-bend --Nipples: black alloy Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
