Build Your Falcon RIM R65 disc

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy wheelset

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Bead type This is a required option.

Hook

Brake System This is a required option.

Disc

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

24H

28H

32H

Full Custom

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3-5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Glossy

Matte

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

12K

Hexa-Comb USD +15

Full Custom USD +15

Center Channel Hole This is a required option.

With Access Holes: This is the traditional method. Spoke access holes are drilled in the center channel to allow the nipples to easily be fed through the rim. Tubeless tape is required to seal the rim.

No Access Holes: No spoke access holes are drilled in the center channel. Feeding the nipples through the rim is more challenging, but it allows for a tubeless setup without the need for tape. This kind of system is known as "road tubeless" and was made popular by Mavic. Some companies still refer to it as "UST style", however, UST is actually a specific interface between the tire and rim which was developed by a partnership between Mavic, Michelin, and Hutchinson.

Currently, rims with 'No Access Holes' do not work with our carbon spokes.

With Access Holes

No Access Holes

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

Decal This is a required option.

Road rims use super light waterslide decals (matte colors). The decal is very thin and applied under a clearcoat so they are non-removeable.

Pictures about light-bicycle decal >>

If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.

Pictures about custom graphics >>

Blank (No decal)

Stealth (Grey)

Blue

Green

Magenta

Orange

Red

White

Yellow

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 540.00g+/-15

Subtotal: USD 162+

PREVIOUS NEXT

RIM SPECS

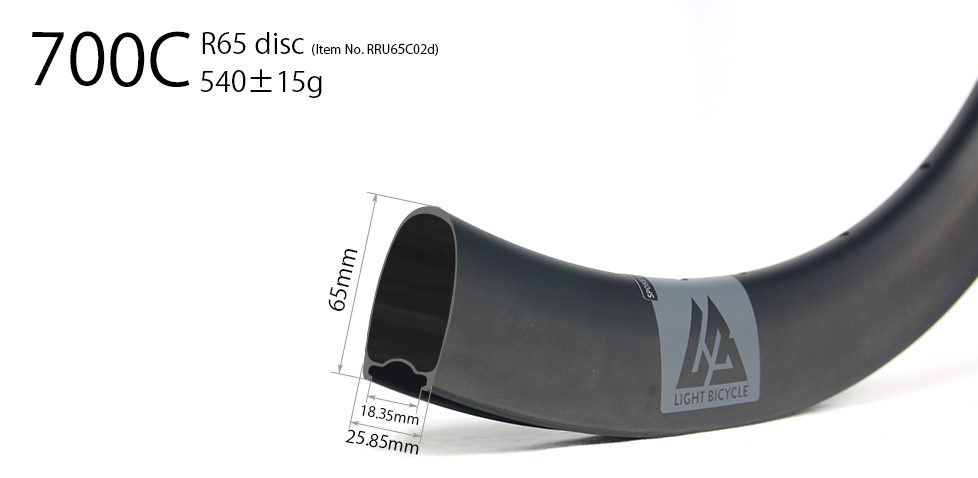

Rim Model R65 disc
UCI-Approved >>
Material Toray T700 & T800 Premium Carbon Fiber
Size 29”/700C (ETRTO 622mm)
Series FALCON
Intended Use Road
Bead Type Clincher
Tubeless Capable Yes

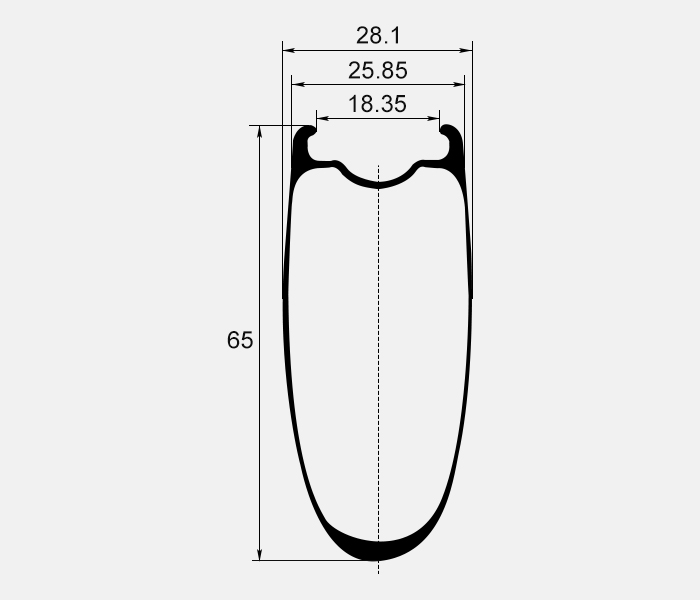

Inner/Outer Width 18.35mm/25.85mm
Depth 65mm
ERD 510mm (not including nipple head dimension)
Rim Weight 540+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) 135kg/ 298lbs
Spoke Hole Angle ±8°
Spoke Tension 120~135kgf front disc side and rear drive side
Max Tire Pressure (with 25C) 120psi/ 8.27bar
Recommended Tire Width 21C-38C

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.)

Rim Model: R65 disc
UCI-Approved >>
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 29”/700C (ETRTO 622mm)
Series: FALCON
Intended Use: Road
Bead Type: Clincher
Tubeless Capable: Yes
Inner/Outer Width: 18.35mm/25.85mm
Depth: 65mm
ERD: 510mm (not including nipple head dimension)
Rim Weight: 540+/-15g
Profile: Symmetric (0mm)
Max Cyclist Weight (on flat ground): 135kg/ 298lbs
Spoke Hole Angle: ±8°
Spoke Tension: 120~135kgf front disc side and rear drive side
Max Tire Pressure (with 25C): 120psi/ 8.27bar
Recommended Tire Width: 21C-38C

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

Featuring our new U-shaped profile and an incredibly aerodynamic 65mm depth, the R65 disc is the perfect partner for your time-trial, triathlon, or crit racing bike. These build up into some of our stiffest and most aerodynamic wheelsets and maintain top speed like no other. The 25.85mm outer width keeps things aerodynamically optimized with smoother rolling for your 25C ~ 28C tires.
Specs
Rims

Rim Model: R65 disc
UCI-Approved >>

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 29”/700C (ETRTO 622mm)

Series: FALCON

Intended Use: Road

Bead Type: Clincher

Tubeless Capable: Yes

Inner/Outer Width: 18.35mm/25.85mm

Depth: 65mm

ERD: 510mm (not including nipple head dimension)

Rim Weight: 540+/-15g

Profile: Symmetric (0mm)

Max Cyclist Weight (on flat ground): 135kg/ 298lbs

Spoke Hole Angle: ±8°

Spoke Tension: 120~135kgf front disc side and rear drive side

Max Tire Pressure (with 25C): 120psi/ 8.27bar

Recommended Tire Width: 21C-38C

Read more for actual road tire width

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

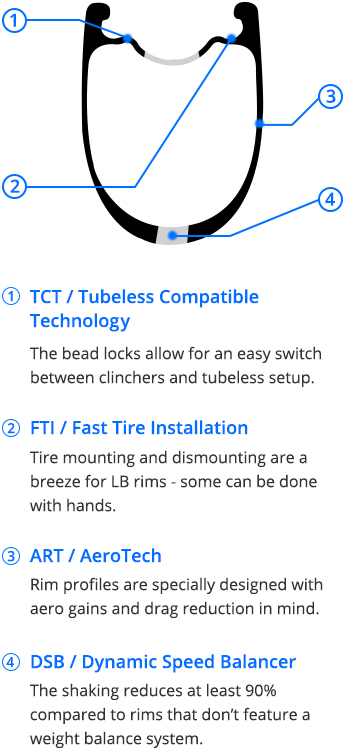

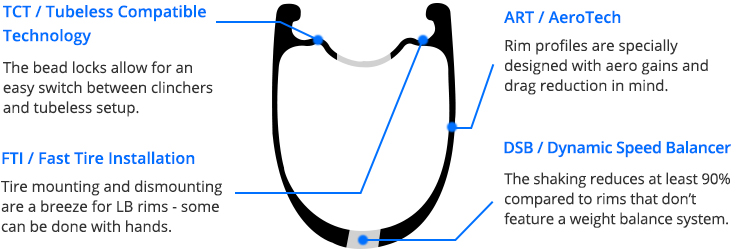

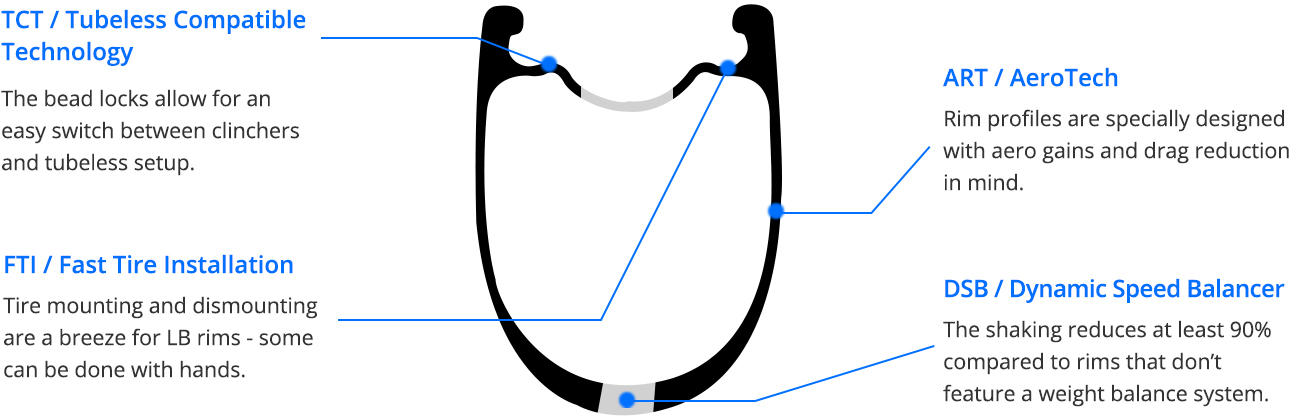

Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

Tyler : I ordered custom R88 and R65 rims with my logos printed on them and they came out absolutely amazing. Laced them to Hunt hubs and couldn't be happier. Insanely well priced, stiff, and very attractive. Lightbicycle was also incredibly easy to work with in regards to custom hoops!

United States

pinarello-dogma-on-light-bicycle-r65-aero-wheels

Shane : I like the wheels a fair bit.

Singapore

road-bike-aero-wheelset-700c-65mm-deep-front-88mm-deep-rear

Light Bicycle : Rims: R65-F R88-R Matte UD 24/24H With Drain Holes With Access Holes Hubs: Novatec D411SB D412SB 12/100mm 12/142mm Straightpull Centerlock 27T Shimano Road 11s Spokes: Pillar Aero X-TRA 1420 Nipples: Sapim aluminum black external Tape: With tubeless tapes

orbea-bike-on-light-bicycle-r65-carbon-aero-wheels

Jake : Love the look of these!

United States

cannondale-synapse-on-light-bicycle-R65-disc-carbon-wheels

Michael : I just received my new wheelset ! Wow they are amazing: the look is wonderful, the build quality is exellent !! I just set them up on my bike: the tubeless setup went good directly with Pirelli's Pzero Race TLR.

Belgium

Light Bicycle : Rims: R65 Disc 700c hook matte UD tubeless Leave a comment if you want to customize decals for your carbon rims/wheels.

R65-700c-road-disc-65mm-carbon-rims-gold-decals

Light Bicycle : R65 Disc matte Hexa-Comb 24H tubeless ready

light-bicycle-r45-disc-r65-disc-on-rose-x-lite-disc-brake

Flo : Rear: FALCON rim R65 disc Road Front: FALCON rim R45 disc Road Hubs: DT Swiss 240 EXP Staightpull DT Aerolite Spokes and hidden nipples perfect!

Germany

View More Reviews >>

COMMENTS

jusuf 2020/08/16

There is a NICHE in the market of carbon Rims it MUST include A 60mm 32mm rim wide a nd mmore importantly a 65mm rim 30 mm Wide 500gram ENVE LIKE Fast and Light Rear Rim (internal 23-24mm max!!!) it doesnt exist elsewhere!!! i have neen writing to you about this, check ...and do it! You will see...

LightBicycle 2020/08/17

Hi Jusuf, We are working on a new WR65 (32mm wide, 65mm deep) gravel rim, which is exactly what you wanted. Our schedule is to release it in September. Thanks, Lightbicycle

Jusuf 2020/08/31

Well, i feel grateful, for my bithday is in September, LoL Any ideas the weight will be?? Standard and Light? PLZ P.S. This will imply 65mm will draw to it the 55mm 32mm wide rim too......

LightBicycle 2020/09/01

Hi Jusuf, We are working on a new WR65 (32mm wide, 65mm deep) gravel bike rim, which is exactly what you wanted. Our schedule is to release it in September. Let me know if you are interested. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Tmaher 2020/04/09

65mm deep carbon 700C 25mm wide road disc rim clincher Im interested in ordering a set od 65's. I prefer a very quiet free hub. Any recommendations will be appreciated. tom

LightBicycle 2020/04/09

Hi Tom, If you prefer quiet hubs, I would recommend the Onyx or DT SWISS 180/240s/350. The Onyx hubs are famous for the sound. They are the quietest hubs on the market right now. But Onyx hubs can be a bit heavy if you do mind the weight. On the other hand, DT hubs are relatively quiet compare to other hubs. Especially the 180s. But it's more expensive than DT 240s hubs. My suggestion would be the DT 240s/350 hub, you can reduce the sound by adding extra grease (but not too many, pls follow the DT SWISS guideline). Do you like R65 disc 700C complete wheelset? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Mikuláš 2019/08/16

Hey guys, I am thinking about building new bike, aero specific, and looking for wheelset with around 60-65mm depth. Is it possible to to build one in your factory or I can get the rims only? 65mm rim for disc brakes 6-bolt Novatec D411SB / D412SB hubs 12x100 12x142 Shimano road 11s 24 holes Pillar Aero X-TRA 1420 spoke Is it possible to count weight and price (with shipping to the Czech Republic included) od this wheelset? Thank you. Mikuláš

LightBicycle 2019/08/17

Hi Mikulas, Yes, it is okay to get these road disc rims only. We just sent you the cost to your email, please check. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Build Your Falcon RIM R65 disc

Overview

Specs

Tech

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Tech

Warranty

In The Box

Gallery
