65mm wide carbon fat bike rim 26er hookless double wall tubeless compatible

INTERNATIONAL

NORTH AMERICAN

Ships from China to worldwide destination. Contact us if your location is not listed.

Ships from Canada/United States warehouse to North American countries only. Contact us if you have special requests.

  • 1

    RIM

  • 2

    ACCESSORIES

  • 3

    OVERVIEW

RIM

Hole This is a required option.

16H

18H

20H

24H

28H

32H

36H

Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

Spoke hole drilling This is a required option.

centered

dual

offset

Centered drilling is the most popular.

Finish This is a required option.

glossy

matte

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Weave This is a required option.

12K

3K

UD

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

Decal This is a required option.

No

black

blue

green

magenta

orange

red

white

yellow

These rims use waterslide decals. The decal is very thin and applied under a clearcoat so they are non-removeable.

Pictures about light-bicycle decal >>

If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.

Pictures about custom graphics >>

26er fat bike rim

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks

Non-Stocked, typically ships within 1-2 weeks

Recon Pro orders start shipping in October.

- + PCS

Hole This is a required option.

32H

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please contact us.

Spoke hole drilling This is a required option.

centered

Centered drilling is the most popular.

Finish This is a required option.

matte

Weave This is a required option.

UD

Decal This is a required option.

No

black

blue

green

magenta

orange

red

white

yellow


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

26er fat bike rim

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks

Non-Stocked, typically ships within 1-2 weeks

Recon Pro orders start shipping in October.

- + PCS

Weight: 500.00g+/-20

Final total: USD 252.00+(3.5% paypal fee included)

Weight: 500.00g+/-20

Final total: USD 267.00+(3.5% paypal fee included)

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

RIM SPECS

  • Size 26er
  • Use Sand, Snow, Single Track
  • Type Beadless / Hookless
  • Tubeless Ready

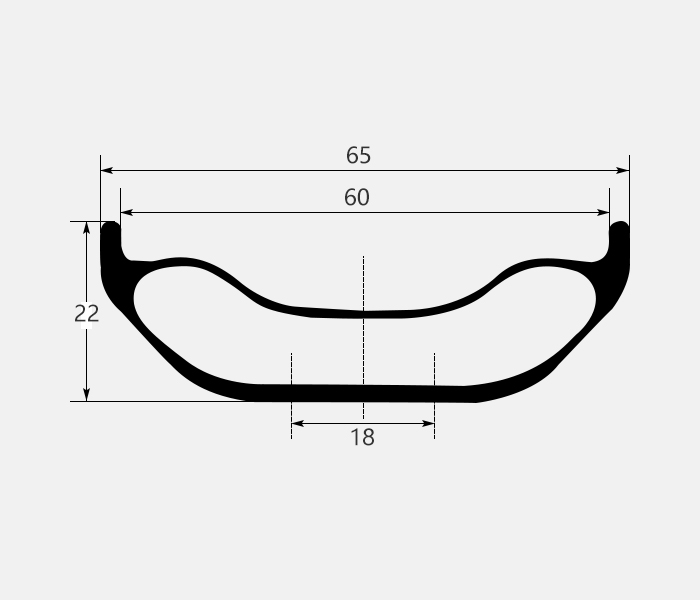

  • Inner/Outer Width 60mm/65mm
  • Depth 22mm
  • ERD 531mm (not including nipple head dimension)
  • Weight 500+/-20g
  • Offset 0mm (symmetric)
  • Drilling Offset ±9mm
  • Weight Limit 120kg
  • Spoke Hole Angle ±5°
  • Spoke Tension ≤135kgf recommended
  • Tyre Pressure ≤25psi recommended
  • Tire 3.8" ~ 4.2" recommended
Just a few years ago the idea of a lightweight fatbike rim may have seemed like an oxymoron, but at just 500g, the 650mm width rim proves that there is no need for your fatbike wheels to be heavy. This is the perfect option for year round fatbike riding and racing. While it doesn’t offer quite as much float in deep snow or sand as the 85mm width, the 60mm inner width can still handles up to 4.8″ tires.

Manufacturing process: Our air bladders are made from a special material which produces smoother walls, result in a lighter rim, and are completely removed without harsh chemicals. They are removed through the valve hole with a unique process so that the rim does not have to be patched like traditional manufacturers use. This significantly improves the strength of the rims. Read More about our process


T700: Constructed with premium Toray T700 carbon fiber. The best strength to weight ratio with no expense spared.

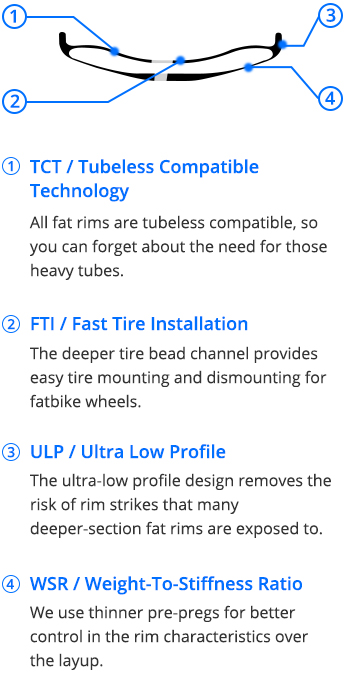

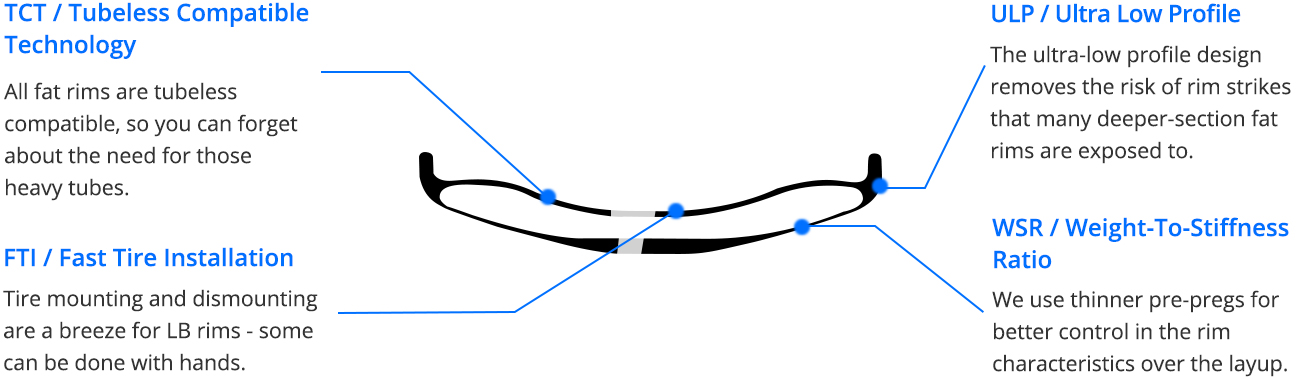

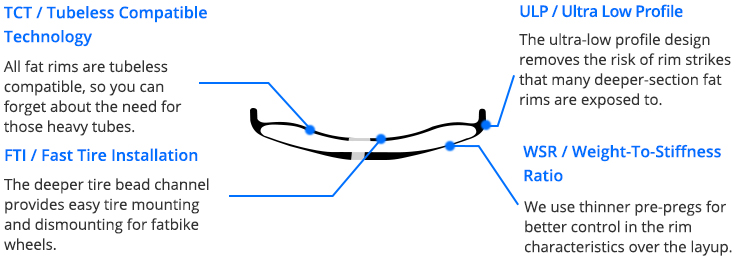

Tubeless: Tubeless (no tube) system performs perfectly at super low pressure. The rim mold is modified with better tubeless tyre setup , this design not only reinforces sidewall, also provides superior tire seal, especially for tubeless tires. Tubeless makes your fat bikes much lighter.


Double-wall: Double-wall construction makes fat bike rim with better stiffness and ride handling.


Fat wide: It is a standard width for a wide variety of fat bike riding. The expansive contact patch makes fat bike rims comfortable to ride.


Ultra low profile: it makes fat rims light-weight and fast-rolling. The super-flat design provides better pinch flat protection.


Fast tire installtion: deeper tire bead channel provides easy tire mounting & dismounting for fat bike wheels.


Precise layup: Each rim carries its own layup schedule documents which are followed meticulously by the layup workers. Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim.


Angled Holes: Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress. This results in fewer broken spokes and nipples.


Bead lock: The small ridges on either side of the drop channel help secure tubeless tires in place. The bead lock makes it easier to seal up tubeless tires with a floor pump, and they are incredibly hard to burp.


For Non-Pro Series Rims: From the date of purchase, 15 Months Warranty
For Pro Series Rims: From the date of purchase, 3 Years Warranty. Light Bicycle is pleased to offer the options to purchase an extended 5-year Premium warranty or lifetime Premium warranty with minimum charge respectively.

Crash Replacement: It is applicable with the same period as to warranty time range that you purchased for the rim in terms of 15-month/ 3-year/ 5-year/ Lifetime, with 10%+ discount subject to rim model.

Know more about the warranty policy >>

Gallery

Eric Hornaday : Took this picture. Your rims are 80gm lighter than Wiskey Carbon Rims and 200gm lighter than stock Surly Marge Lite rims
USA
2
mLee : RSNOW03 65mm Fat 3K matte laced to Tune Fat King/Kong hubs. Wheelset came in under 1800g.
USA
3

COMMENTS

P

Paul 2018/10/20

Looking to convert your RSNOW03 rims to tubeless. What size rim strip would you recommend? Do you recommend any specific manufactures?


LightBicycle 2018/10/22

Hi Paul, Usually, to make sure the rim strip would work well for the tubeless fat bike rim, we would recommend using a rim stripe that 1~2mm narrower than the rim width itself. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Christian 2017/12/31

Can I put a hub motor in these wheels? https://www.lightbicycle.com/65mm-wide-carbon-fat-bike-rim-26er-hookless-double-wall-tubeless-compatible.html


LightBicycle 2018/01/02

Hello Christian, Thanks for your inquiry. Would you please share us some hub details and let us know the hub weight? Then we will check if our rim is strong enough to work with your hub. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

K

Kenny 2016/12/30

How wide a tire can I run on the 26"x 65mm rim ?


LightBicycle 2016/12/30

Hello Kenny, It is okay for 4.0~5.0 inch tires. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

colin 2016/10/07

Hi guys, ive been trying to get in contact with you for the past week to order some 90mm fat bike wheels. Would you like some money orrrrrrrr??


Light-Bicycle 2016/10/08

Helo Colin, Sorry for the late reply. We were on National Day vacation from October 1st~7th. Currently, for fatbike hubs, we only have black front 15*150mm/rear 12*197mm in stock. Does it work for you? Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Chris 2016/09/16

Hello. I currently run 80mm aluminum wheels with 4" tires on my Salted Bikes Sandfly fat bike. Two questions: 1.) What range of tire widths can I run on your 65mm rims? 2.) Are you considering a 27.5 rim option? Thanks!


Light-Bicycle 2016/09/18

Hello Chris, Sorry for the late reply. Because we were on the vacation in last 3 days. For our 26er fat bike rim, the recommend tires width are 4.0''-4.8'' tires. Recently, we do open the new rim mold of 650B fat bike rim. Rim profile attached for reference. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

V

Vincent 2016/02/28

Hi, is the fat rim 65mm ex stock?


Light-Bicycle 2016/02/29

Hello Vincent, Thanks for your inquiry. Currently, we only have 34mm width asymmetrical rims in stock. We can finish the 26er fat bike rims in 12 business days. Does it work for you? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

Scott 2016/01/05

Hi, I'm interested in building a wheelset for my fatboy. I would like the 65mm carbon rim in a 3k matte


Light-Bicycle 2016/01/06

Hello Scott, Thanks for your inquiry. The 65mm wide 26er wheelset with following specs is USD1009/pair. -Rims: RSNOW03, 65mm width, 3k matte, 500 /-20g. Centered drilling? -Hubs: Black, Hope pro2 evo fatsno hubs. What hub axle size do you like for front & rear? -Spokes: Pillar x-tra 1420 aero (4.3g for 260mm) or DT competition spoke (5.8g for 260mm). DT competition spokes are much heavier, but stronger. -Nipples: Alloy or brass? Black or silver? Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

G

Greg 2015/09/04

What are prices for a fatbike carbon wheelset, complete build - rims, hubs, spokes? 197 rear, 135 front


Light-Bicycle 2015/09/08

Hello Greg, Thanks for your inquiry. The 65mm wide 26er fat bike wheelset is USD1027/pair (with Hope fatsno hubs) as following specs. The shipping cost is USD85 for one fat bike wheelset to USA by EMS. -Rims: Hookless 65mm wide 26er fat bike rims, 480 /-20g. Please find attached rim profile. Please find attached rims cross-section drawings. Rim weave in 3k matte & UD matte are more popular. Do you like it? For drilling, do you like centered drilling, offset drilling or dual spoke hole pattern? Please find attached profiles. -Hubs: Black, Hope pro2 evo fatsno front 9*135mm QR/ 12* rear 197mm thru axle. With freehub Shimano or Sram? -Spokes: Black, Pillar Aero X-TRA 1420 aero -Nipples: Pillar PT 734. Do you like black/blue/gold/green/red/silver? Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

K

Kirby 2015/07/29

Can you send me the 3K and 12K glossy finish rim pictures for evaluate the quality! Also, what is the difference between this two finishing? Best regards Kirby


Light-Bicycle 2015/07/30

Hello Kirby, Thanks for your inquiry. Please find attached pictures of the rim weave. For 3k/12k/UD, it is the outer carbon fiber layer to make the carbon fiber with different outlook, and all the inside carbon fiber are the same. So, the rim strength & weight is almost the same. For matte and glossy, it is only the painting different. Glossy looks shinny, a bit thicker painting than matte painting. But matte looks more popular. 3k matte &UD matte are more popular. Which do you prefer? RSNOW03 (65mm wide 26er fat bike rim): 480 /-30g, USD243/pcs Please find attached rim profile. For drilling, do you like centered drilling, offset drilling or dual spoke hole pattern? Please find attached profiles. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

Sven 2015/06/01

You can also create a full fat bike wheel?? And what is the more price than.?


Light-Bicycle 2015/06/02

Hello Sven, Thanks for your inquiry. Please find the attached cross-section drawing of the 65mm wide 26er hookless rim. For the rims, do you prefer UD, 3k or 12k? Matte or glossy? 32H? Which spoke drilling do you prefer? Offset, dual or centered drilling? Please find the attached pictures. http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ There are Hope Fatsno fat bike hubs here. What axle size do you prefer for the hubs? For the spokes, they are black bladed Pillar Aero PSR X-TRA 1420, black round DT competition and black sapim cx-ray spoke. The prices are the same for the Pillar and DT spoke. The Sapim spoke will be more expensive. Thanks, Light-bicycle
