AM733 asymmetric rim profile carbon 27.5 inch carbon rims mtb

BUYING OPTIONS

Global warehouse ship to most countries while the North America warehouse only ship to the United States and Canada

GLOBAL
NORTH AMERICA
  • 1

    RIM

  • 2

    ACCESSORIES

  • 3

    OVERVIEW

RIM

Version This is a required option.

AM - This model is mid-weight and suitable for all mountain and trail riding. Can be used for light-duty enduro.
EN - This version has additional reinforcement and is suitable for more aggressive riders. It's the best choice for Enduro style riding.

AM733

EN733 (For Enduro/ E-bike) USD +5

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

16H

18H

20H

24H

28H

32H

36H

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

glossy

matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

12K

3K

UD

Decal This is a required option.


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Stealth

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

AM733 asymmetric rim profile carbon 27.5 inch carbon rims mtb

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + PCS

Version This is a required option.

AM - This model is mid-weight and suitable for all mountain and trail riding. Can be used for light-duty enduro.
EN - This version has additional reinforcement and is suitable for more aggressive riders. It's the best choice for Enduro style riding.

AM733

EN733 (For Enduro/ E-bike) USD +5

Hole Count This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please contact us.

32H

Finish This is a required option.

matte

Weave This is a required option.

UD

Decal This is a required option.


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Stealth

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

We use a tubeless tape with high tensile strength and only one lap is required so it is very light. It uses a natural rubber adhesive that does not leave any residue on the rims.

None

Add Tubeless Tape USD +8 each

AM733 asymmetric rim profile carbon 27.5 inch carbon rims mtb

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + PCS

Weight: 460.00g+/-15

Final total: USD 163.00+

Weight: 460.00g+/-15

Final total: USD 183.00+

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

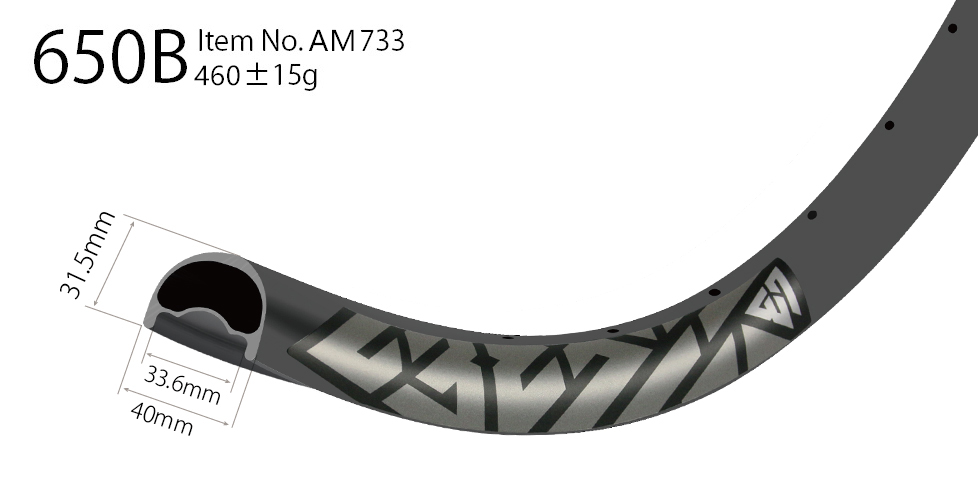

RIM SPECS

  • Size 650B
  • Use All Mountain/ Enduro
  • Type Hookless
  • Tubeless Ready

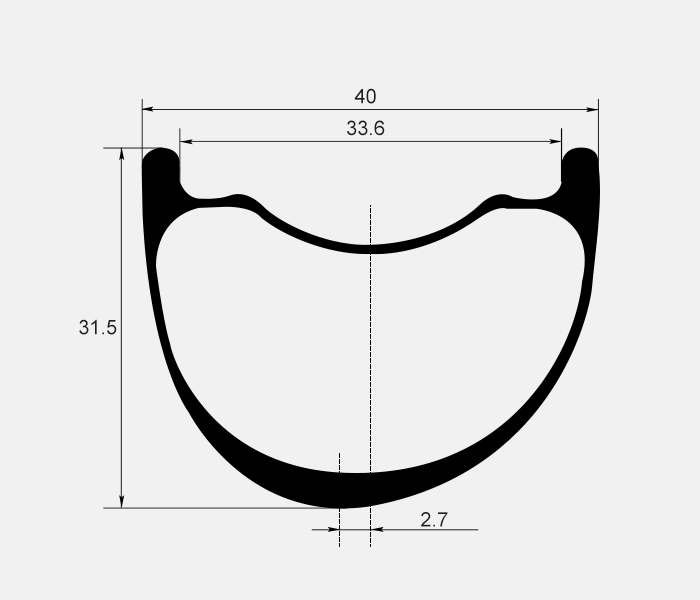

  • Inner/Outer Width 33.6mm/40mm
  • Depth 31.5mm
  • ERD 537mm (not including nipple head dimension)
  • Weight AM 460+/-15g, EN 510+/-15g
  • Offset 2.7mm (asymmetric)
  • Weight Limit 140kg
  • Spoke Hole Angle ±5°
  • Spoke Tension ≤145kgf recommended
  • Tyre Pressure ≤80psi recommended
  • Tire 2.4" ~ 3.1" recommended

Teleport to the wheelset building page.

Built to handle the most technical trails on the mountain, the AM733’s 33mm internal width is a perfect fit for the new breed of ultra wide 2.4-2.8” tires. You’ll appreciate the confidence boost with the massive air volume, impressive traction, and bead seat bumps to keep those big tires in order.


Available in two layup styles, the standard layup is suitable for most riders, but if you are over 200 pounds or tend to ride your equipment really hard, consider the extra layer of 3k carbon in the EN version. Not only does this support G-Out forces, but it also makes the EN733 incredibly stiff and perfect for the hardest charging of riders.


E-bike Approved! This rim's Enduro Version is designed to be compatible with mid-drive e-bikes.

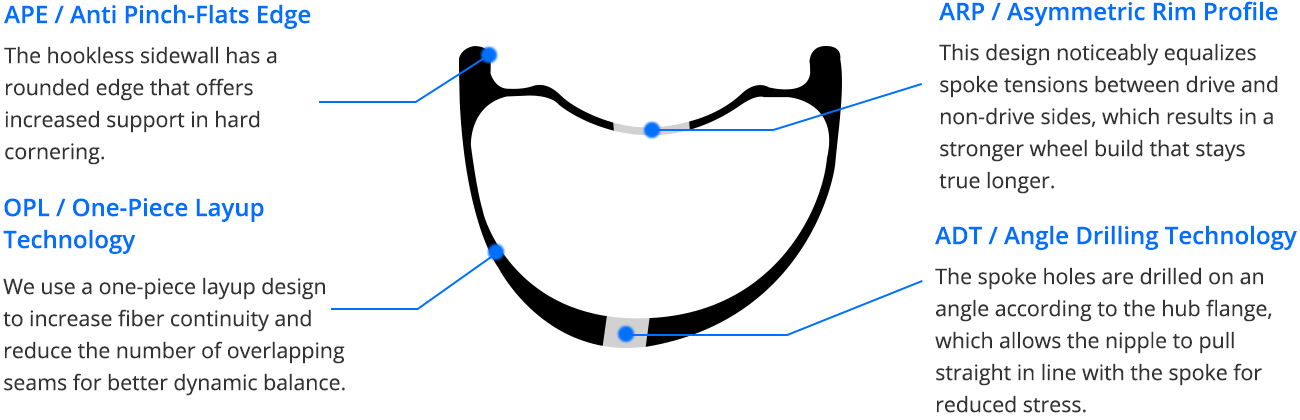

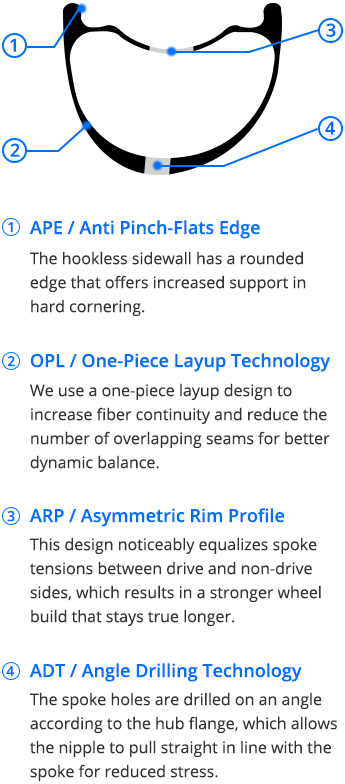

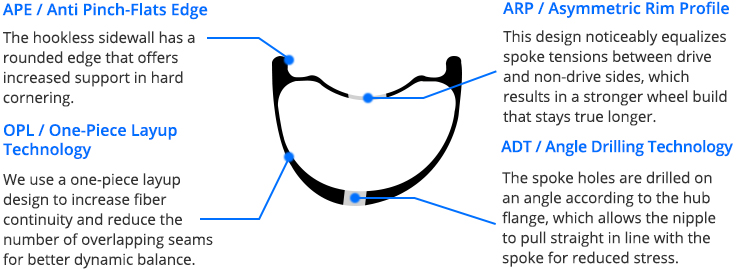

Hookless: Carbon fiber flows continuously over the bead area to provide the best impact resistance and a significant strength increase compared to a clincher rim.


Manufacturing process: Our air bladders are made from a special material which produces smoother walls, result in a lighter rim, and are completely removed without harsh chemicals. They are removed through the valve hole with a unique process so that the rim does not have to be patched like traditional manufacturers use. This significantly improves the strength of the rims. Read More about our process


T700: Constructed with premium Toray T700 carbon fiber. The best strength to weight ratio with no expense spared.


Precise layup: Each rim carries its own layup schedule documents which are followed meticulously by the layup workers. Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim.


Angled Holes: Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress. This results in fewer broken spokes and nipples.


U-Shape: U-shape profile spreads the force of impacts and creates a more robust product.


Bead lock: The small ridges on either side of the drop channel help secure tubeless tires in place. The bead lock makes it easier to seal up tubeless tires with a floor pump, and they are incredibly hard to burp.


Asymmetrical: The profile allows for equalized spoke tension which creates a stronger wheel that stays true.


Tubeless: While the rims are optimized for a tubeless setup with the addition of tubeless tape, they also work with tubes.


For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Know more about the warranty policy >>

Gallery

Joe Campbell : Photo of the finished product.Joe
UK
1

COMMENTS

J

James 2019/02/23

Can I get this with the glossy finish and custom decal? What is the additional cost? Also why is the offset 2.7mm compared to 2.0mm on your other rims? Thanks!


LightBicycle 2019/02/23

Hi James, Hi James, It is okay to make AM733/EN733 650B rims with glossy finish. Do you like UD glossy or 3K glossy? There is no additional cost. For custom decal, the cost will be around USD75~90 for 2 colors. May i know your graphic design sketch? Then we can quote accordingly for you. For 2.7mm on this rim, because it is wider rim than other rims. For wider rims, they can have bigger offset to get spokes more balanced between drive side and non drive side. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

I

Igor 2019/02/02

Is this rim good for e mtb and also any special steps to calculate spokes length/build this rim ?


LightBicycle 2019/02/02

Hi Igor, Thanks for your inquiry! For AM733 rims(40mm outer/33.6mm inner) and AM740 rims(46mm outer/40mm inner), they are both good for E-mtb bike. May i know your tire width please? Then we can check which rim is better for you. Normally, we use heavy duty version for E-bikes. It is around 50g added on each rim. Is it your E-bike mid-motor or hub motor? What is your hubs brand and dimension as below? For spoke caculation, it needs hubs specs. Then we can get the spoke length for your reference. - Internal hole rim or external hole rim - Hub manufacturer name and model - Hole count - Front and rear axle width - Straight pull or J-bend? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Manfred 2018/08/19

Hi, I ride the RM650BC05 for about 3 years. It works very well. Because of wheight: It is possible to order especially a light rim (e.g. -15gramm) that is nearer at the weight of RM650BC05? Greetings Manfred


LightBicycle 2018/08/20

Hi Manfred, The AM733 650B rim is wider and deeper than RM650BC05. If we make it similar weight to RM650BC05, it will make the rim much weaker. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

ronald 2017/03/22

hello good pm how much the price of the rim en733 110x15 front 12x148 rear i'm looking for 40mm outer diameter 32 hole 27.5 down hill specific


LightBicycle 2017/03/24

Hello Ronald, Thanks for your inquiry! Do you like rims only or wheelset(built with hubs, spokes and nipples)? Then we can quote accordingly. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

P

Panda 2017/03/08

Hi Gary, I like to order 27.5 650b Rims laced to hope pro 4 32holes. Front 20mm by 110mm and rear 150 mm by 12mm. Can u pls advise on the wheel spokes length needed and nipple size thanks in advance, panda


LightBicycle 2017/03/09

Hi Panda, Due to the complexity and variations with calculating spoke lengths, we cannot guarantee the spokes will be the perfect length for your wheels. For this reason it is best to confirm the spokes length with your own builder. Below are the spokes length we used for your reference only. -Wheelset: EN733 built with Hope pro4 front 20*110mm/ rear 12*150mm 32H hubs and 14mm nipples -Lacing pattern: 3 cross for front and rear -Front wheel: 259mm-NDS, 261mm-DS -Rear wheel: 260mm-NDS, 260mm-DS Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

W

Winston 2017/03/07

Hi! I am using chris king ISO hubs - non boost. For the am733 and en733 rims, what would be the appropriate spokes length for these rims. Thank you


LightBicycle 2017/03/08

Hi Winston, Due to the complexity and variations with calculating spoke lengths, we cannot guarantee the spokes will be the perfect length for your wheels. For this reason it is best to confirm the suitable spokes length with your own builder. Below are the spokes length we will use for your reference only. -Wheelset: AM733 or EN733 built with Chris King ISO J-bend 32H standard hubs -Lacing pattern: 3 cross for front and rear -Front wheel: 259mm-NDS, 261mm-DS -Rear wheel: 260mm-NDS, 259mm-DS Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Aaron 2017/01/31

when would the rims ship if I purchased today?


LightBicycle 2017/02/04

Hello Aaron, Sorry for the late reply. We were on Chinese New Year vacation in the last 10 days and just get back to office today. UD matte 32H EN733 are in stock and will ship within 2 business days. EMS delivery takes another 4-7 days to arrive. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

Ryan 2017/01/13

Is the en733 suitable for industry nine 2.9/2.7 butted spokes? Thank you.


LightBicycle 2017/01/14

Hello Ryan, Thanks for your inquiry. The strongest spokes that can be used on our rims are double butted 2/1.8/2mm. The industry nine 2.9/2.7 butted spokes are too stiff to use with carbon rims. It is not allowed to be used on our rims or there is no warranty. Can you change to double butted 2/1.8/2mm spokes? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

SEAN 2016/12/27

Weight Limit 125kg...IS that for 1 rim or a combined total for 2 rims?


LightBicycle 2016/12/27

Hello Sean, Thanks for your inquiry. The weight limit is for 2pcs rims. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

G

Gary 2016/12/07

Hi I'm looking to buy a pair of your 650b en733 rims, could you tell me what length spokes I'd need for 32h hope pro 4 hubs with j bend spokes. 100x15 front and 142x12 rear. Thanks


LightBicycle 2016/12/08

Hello Gary, Below are the spokes length for your reference. Due to the complexity and variations with calculating spoke lengths, we cannot guarantee the spokes will be the perfect length for your wheels. So, it will be best if you confirm the spokes length with your own builder. -Wheelset: EN733 built with Hope pro4 J-bend 6-bolt 32H hubs -Lacing pattern: 3 cross for front and rear -Front wheel: 260mm-NDS, 261mm-DS -Rear wheel: 260mm-NDS, 259mm-DS Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
