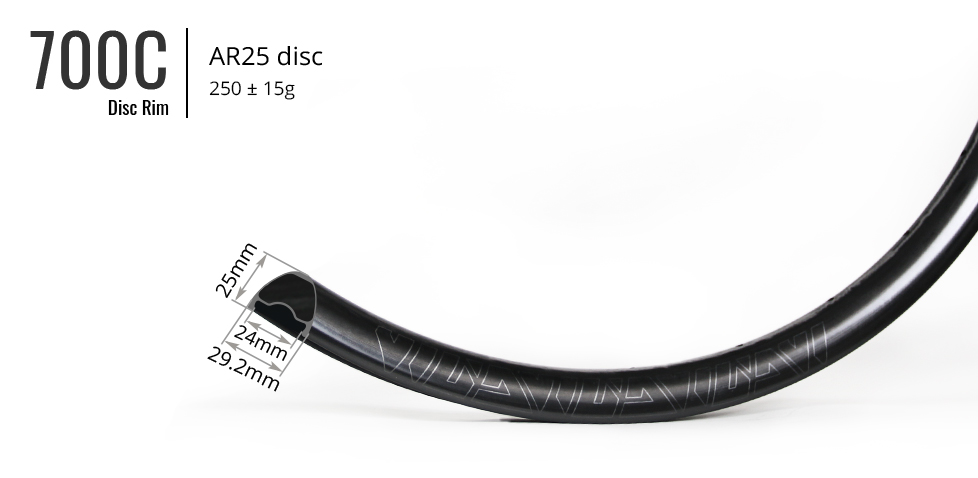

AR25-Disc-Carbon-Gravel-Rim-250g-lightweight-hill-climb-rim-700c

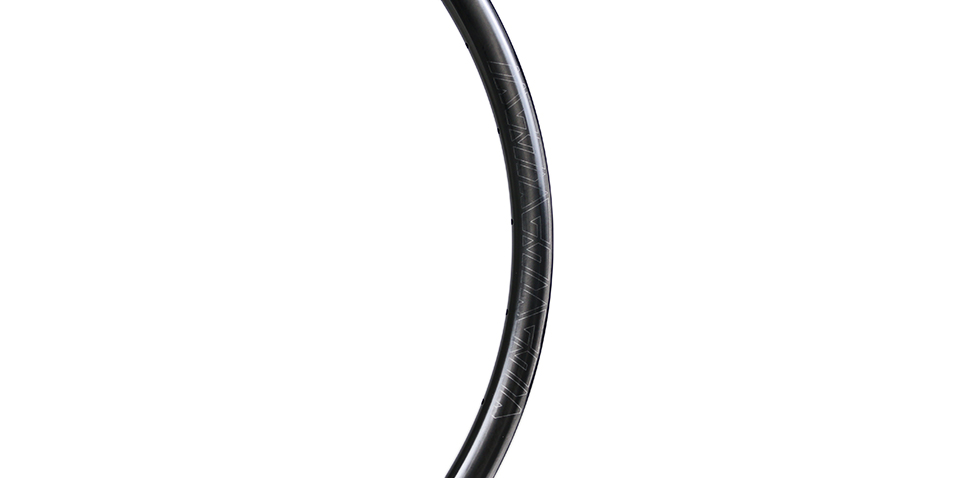

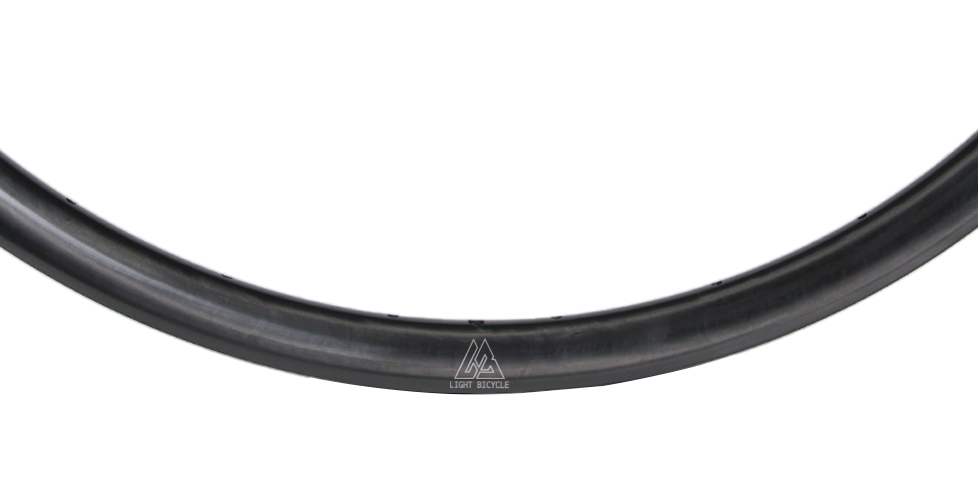

AR25-disc-carbon-rim-laser-engraved-decal

Archive Product

If you are interested in purchasing any of these archive items, please fill out the form below with the necessary details. We will get back to you as soon as possible with availability and pricing information.

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Global Shop

US Shop

CA Shop

EU Shop

Ships worldwide. See what's on sale>>

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the US Shop. Check this link to see what items we stock, or send us an email to discuss.

Our Global Shop can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelsets. We will get back to you via email to discuss in 24hrs.

Our apologies, we do not stock this item at the CA Shop. Check this link to see what items we stock, or send us an email to discuss.

The wheelsets are still in transit to this shop. We’ll update this page when they’re available. Learn more about our European shop.

You can order this product from our Global or North American shops.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

DEFAULT SETTINGS

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

PREVIOUS NEXT

RIM SPECS

Model AR25 disc
Rim Introduction >>
Material Toray T700 & T800 Premium Carbon Fiber
Size 29"/700C (ETRTO 622mm)
Series FALCON PRO
Intended Use Gravel/Road
Bead Type Hybrid Hook
Tubeless Capable Yes

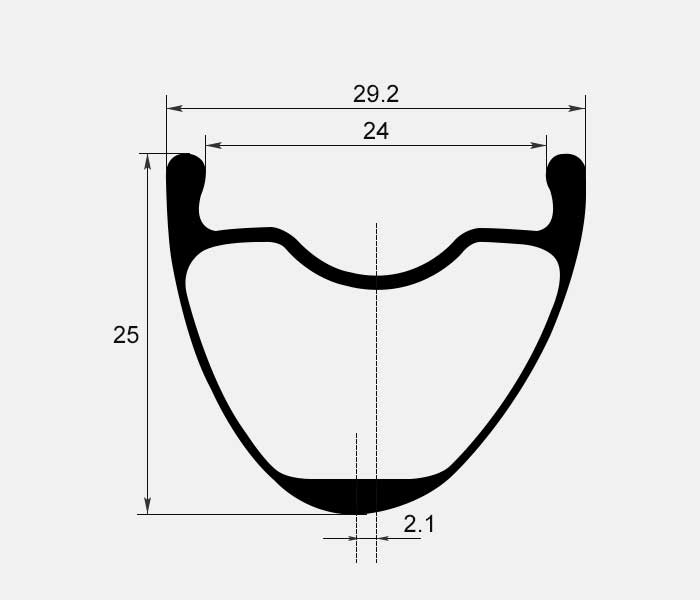

Inner/Outer Width 24mm/29.2mm
Depth 25mm
ERD 588.2mm (not including nipple head dimension)
Rim Weight 250+/-15g
Profile Asymmetric (2.1mm)
Max Cyclist Weight (on flat ground) 90kg/ 198lbs
Spoke Hole Angle ±9°
Spoke Tension 120~135kgf front disc side and rear drive side
Max Tire Pressure (with 28C) 50psi max
Recommended Tire Width 28C ~ 50C

As the lightest 700c gravel rim we've developed, the AR25 disc is designed to transform your ride feel with the super lightweight (250g only) and the proper compliance to absorb the shocks from the gnarly ground. Nimbleness and stability, you can eat your cake and have it.

The innovative hybrid hooks allow you to run at a higher pressure, compared to hookless shape, without risking blowouts. Ride more, ride safely. The rims are designed tubeless-ready: compatible with both tubed and tubeless setups.

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model: AR25 disc
Rim Introduction >>
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 29"/700C (ETRTO 622mm)
Series: FALCON PRO
Intended Use: Gravel/Road
Bead Type: Hybrid Hook
Tubeless Capable: Yes
Inner/Outer Width: 24mm/29.2mm
Depth: 25mm
ERD: 588.2mm (not including nipple head dimension)
Rim Weight: 250+/-15g
Profile: Asymmetric (2.1mm)
Max Cyclist Weight (on flat ground): 90kg/ 198lbs
Spoke Hole Angle: ±9°
Spoke Tension: 120~135kgf front disc side and rear drive side
Max Tire Pressure (with 28C): 50psi max
Recommended Tire Width: 28C ~ 50C

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

As the lightest 700c gravel rim we've developed, the AR25 disc is designed to transform your ride feel with the super lightweight (250g only) and the proper compliance to absorb the shocks from the gnarly ground. Nimbleness and stability, you can eat your cake and have it.

The innovative hybrid hooks allow you to run at a higher pressure, compared to hookless shape, without risking blowouts. Ride more, ride safely. The rims are designed tubeless-ready: compatible with both tubed and tubeless setups.
Specs
Rims

Model: AR25 disc
Rim Introduction >>

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 29"/700C (ETRTO 622mm)

Series: FALCON PRO

Intended Use: Gravel/Road

Bead Type: Hybrid Hook

Tubeless Capable: Yes

Inner/Outer Width: 24mm/29.2mm

Depth: 25mm

ERD: 588.2mm (not including nipple head dimension)

Rim Weight: 250+/-15g

Profile: Asymmetric (2.1mm)

Max Cyclist Weight (on flat ground): 90kg/ 198lbs

Spoke Hole Angle: ±9°

Spoke Tension: 120~135kgf front disc side and rear drive side

Max Tire Pressure (with 28C): 50psi max

Recommended Tire Width: 28C ~ 50C

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

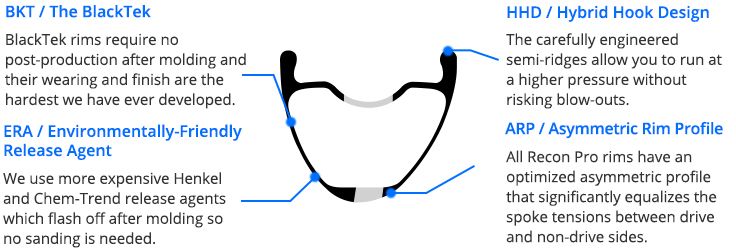

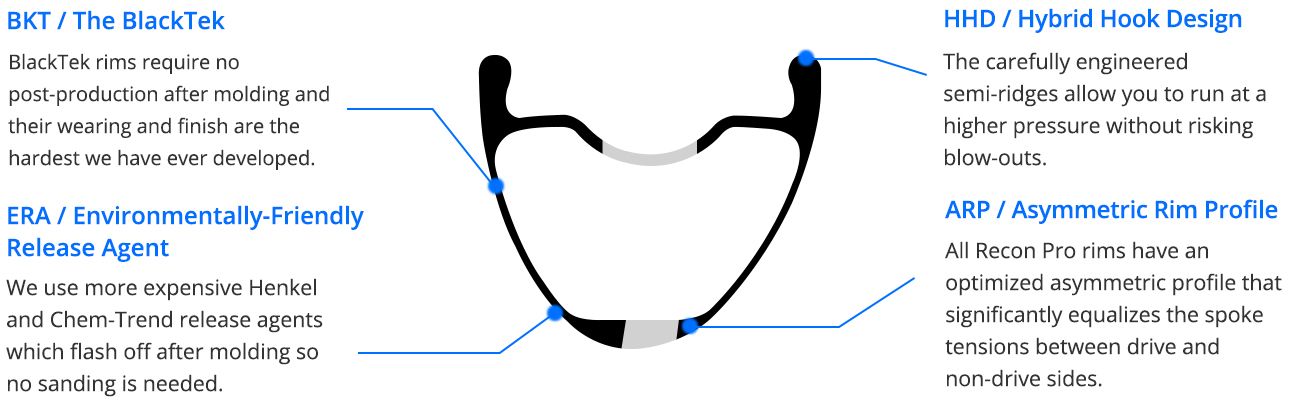

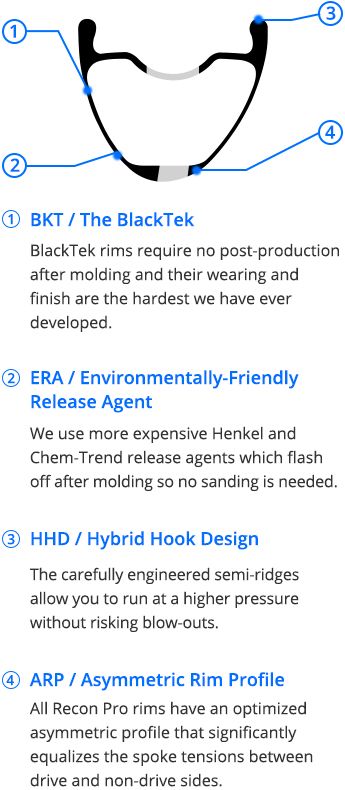

Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

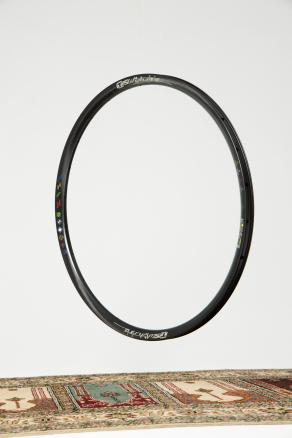

light-bicycle-ar25-disc-custom-full-carbon-fiber-rim

Light Bicycle : RIM: AR25d Hybrid Hook UD Paintless Disc 24H External Hole With Drain Holes With Access Holes

light-bicycle-custom-carbon-wheelset-disc-brakes-sub-1kg-build

Acelane : Easy sub 1 kg build, PACE Hub and Alpina Hyerplight, default UD finish rim Stocked that they only 975gr on my scale

Indonesia

light-bicycle-ar25-disc-best-budget-road-carbon-wheels

Light Bicycle : RIMS: AR25 Disc Hybrid Hook UD Paintless Disc 24H External Hole With Drain Holes No Access Holes HUB-F: Light Bicycle Pace-Hub Black 12 / 100mm Straight Pull Center lock 24H Steel Bearings HUB-R: Light Bicycle Pace-Hub Black 12 / 142mm Straight Pull Center lock 24H Steel Bearings 36T Shimano Road 11S SPOKE: Sapim CX Sprint-Rear Drive Side/ CX Ray-Other Sides NIPPLE: Sapim Brass Oil Slick

light-bicycle-ar25-disc-brake-custom-carbon-wheel-bicycle

Light Bicycle : RIMS: AR25d 300 Hybrid Hook UD Paintless Disc 24H External Hole No Drain Holes No Access Holes HUB-F: DT SWISS 240 EXP Black 12 / 100mm straight pull Center lock 24H HUB-R: DT SWISS 240 EXP Black 12 / 142mm straight pull Center lock 24H EXP 54 Shimano Road 11S Alloy SPOKE: Sapim CX Ray Customized Straight Pull NIPPLE DT Swiss/ Sapim Aluminium Black External

light-bicycle-ar25-disc-carbon-bike-wheels-laced-to-chris-king-r45d-hubs

Light Bicycle : RIMS: AR25d Hybrid Hook UD Glossy Disc 24H External Hole With Drain Holes No Access Holes HUB-F: Chris King R45D Silver 12 / 100mm J-bend Center lock 24H HUB-R: Chris King R45D Silver 12 / 142mm J-bend Center lock 24H 45T Shimano Road 11S SPOKE: Sapim CX Ray Silver J-bend NIPPLE: DT Swiss/ Sapim Aluminium Silver Universal External

light-bicycle-ar25-disc-carbon-spoke-wheelset-laced-to-speed-hub-gen2-champagne-12

Light Bicycle : RIMS: AR25d Hybrid Hook UD Paintless Disc 21H External Hole With Drain Holes With Access Holes HUB-F: Light Bicycle Speed-Hub Gen2 Champagne 12 / 100mm Straight Pull Center lock 21H Steel Bearings HUB-R: Light Bicycle Speed-Hub Gen2 Champagne 12 / 142mm Straight Pull Center lock 21H Steel Bearings 36T Shimano Road 11S SPOKE: LB Thrust-4 Carbon Black straight pull uncertain Standard Head NIPPLE: LB design Aluminium Black (for carbon spokes only)

light-bicycle-ar25-disc-carbon-wheelset-hybrid-hook

Light Bicycle : RIMS: AR25d Hybrid Hook UD Paintless Disc 24H External Hole No Drain Holes No Access Holes HUB-F: NonPlus NPC/LB Co-Brand Matte Grey 12 / 100mm straight pull Center lock 24H Steel Bearings HUB-R: NonPlus NPC/LB Co-Brand Matte Grey 12 / 142mm straight pull Center lock 24H Steel Bearings 45T Shimano Road 11S SPOKE: Alpina Hyperlight Aero Black Straight Pull NIPPLE: Sapim Aluminium Black Universal External

light-bicycle-ar25-disc-carbon-wheelset-laced-to-light-bicycle-pace-hubs

Light Bicycle : RIMS: AR25d Hybrid Hook UD Paintless Disc 24H External Hole No Drain Holes With Access Holes HUB-F Light Bicycle Pace-Hub Black 12 / 100mm straight pull Center lock 24H Ceramic Bearings HUB-R Light Bicycle Pace-Hub Black 12 / 142mm straight pull Center lock 24H Ceramic Bearings 48T Sram XDR SPOKE Alpina Hyperlight Aero Black Straight Pull Standard Head NIPPLE DT Swiss/ Sapim Aluminium Black Universal External

View More Reviews >>

COMMENTS

B 2024/10/08

I have a set of DT Swiss RR22 Dicut Disc Brake Wheel Set. Great pair of wheels but outdated rimvise. Rims are 18mm inner , to narrow for everything above 25mm. Is it posible to replace rims for Falcon Pro AR25 rims while keeping hubs and spokes? I guess new nipples are in order?

LightBicycle 2024/10/09

Hi Sir, What is the ERD of the DT Swiss RR22 Dicut rim? If the ERDs are close or the same then the spoke lengths are the same. For nipples, it is better to use new ones. Thanks, Lightbicycle

LightBicycle 2024/10/09

Hi Sir, What is the ERD of the DT Swiss RR22 Dicut rim? If the ERDs are close or the same then the spoke lengths are the same. For nipples, it is better to use new ones. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Chris 2024/09/22

Hello, I am looking to buy these rims (Falcon Pro RIM AR25 disc) and build them myself. Can you please tell me what is the spoke length I need for Sapim CX-Ray for 24/24 2x cross for Chris King R45D hubs?

LightBicycle 2024/09/23

Hi Chris, Thanks for reaching out. The spoke length of the AR25 wheelset 700C disc with Chris King R45D hubs （J-bend, 24H, center lock) and 14mm nipples is as below for your reference. It is 2 cross for the front and rear wheel. The front wheel drive side: 283mm non drive side: 281mm The rear wheel drive side: 281mm non drive side: 283mm Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Mike 2023/07/25

I am interested in using Ar25 for my road bike to make I a light weight climbing wheel set. . I am on Enve ar3.4 and I like the wide inside dimension, but want a shorter side wall because of cross winds on the mountain I climb several times a week. Do you think these are the best rim for this application? Thanks

LightBicycle 2023/07/26

Hi Mike, Nice to see you :D The AR25 is with an Inner/Outer Width: 24mm/29.2mm, Depth 25mm. It's intended for Gravel use and with super lightweight (250g+/-15 only) and has the proper compliance to absorb the shocks from the gnarly ground. Nimbleness and stability, you can eat your cake and have it. Best regards Light Bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Andi 2023/07/25

Hi It says max tires pressure for 28 mm is 70 psi. Is that for tubeless setup or clincher setup? Or what is the max tires pressure if I'm using inner tubes? Thank you

LightBicycle 2023/07/25

Hi Andi, If you are planning on running with tubes. What would be the tire size? 28C? Usually, the difference is small. So you can take 70psi as a max reference. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

David 2023/07/08

Hello! On this rim (AR25 / road) is it possible to apply the option "No Access Holes"? Will I be able to fit in 12/14mm sapim nipples? How realistic/possible is a custom(?) 32 hole order? Regards from Berlin, David

LightBicycle 2023/07/10

Hi David Linden, Good day! Thanks for reaching out! I read your message on our website. Here are the answers: 1. Yes, we could apply the AR25 rim 'No access holes'. 2. Yes, if you want to build 'No access hole' AR25 wheels, you could build them with 12/14mm Sapim nipples. 3. We could customize 32 holes on the rims. Best regards, Light Bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Paweł 2023/04/04

Hi, do you think AR25 will be OK for 100-105kg rider+bike combined (gravel bikepacking), or should I order a strenghtened version?

LightBicycle 2023/04/04

Hi Pawel, Our recommended rider weight is 90kg. A reinforced version would be more suitable if 100~105kg rider+bike combined. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Eric 2023/02/06

Is it possible to buy this rim with 32 holes and a glossy finish? Would this customizations affect the weight of the rim? Thanks!

LightBicycle 2023/02/07

Hi Eric, Yes, we can drill the AR25 super light 700C disc rim with 32 holes for you. Can you tell me your hub specs so we can confirm if you need special drilling angles? Glossy is a paint finish. AR25 rims came out of the mold as a finished product, so no paint is applied by default. Please confirm if you want to add extra glossy paint to the rim. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Łukasz 2022/10/17

Hi! Do you offer AR25 rims without access holes or with carbon spokes? I can’t see those options being available in the configurator. Thanks, Łukasz

LightBicycle 2022/10/17

Hi Lukasz, 1. If you want carbon spokes, the lead time would be 2 months. And it cannot be build without access holes because the nipples are inside of the rim chamber. 2. You can have AR25 700C DISC without access holes. I will send you the order via email when you confirm the specs you want. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Wes 2022/10/14

Does the max weight include the bicycle and gear or just the rider? I weight about 72kg and my bike and gear weigh about 15kg, which would put me very close to the 90kg limit for the AR25 rims. Thanks

LightBicycle 2022/10/15

Hi Wes, The max weight 90KG is for rider weight only. Do you ride aggressively? gravel or road disc bike? Then we can check whether AR25 700C good for you or not. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 9 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Archive Product

Overview

Specs

Tech

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Tech

Warranty

In The Box

Gallery
