Carbon beadless 50mm wide 29 inch rims for 29 plus mountain bikes tubeless compatible

BUYING OPTIONS

Global warehouse ship to most countries while the North American warehouse only ship to the United States and Canada

GLOBAL
NORTH AMERICAN
  • 1

    RIM

  • 2

    ACCESSORIES

  • 3

    OVERVIEW

RIM

Hole This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

16H

18H

20H

24H

28H

32H

36H

Spoke hole drilling This is a required option.

Centered drilling is the most popular.

centered

offset

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

glossy

matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

12K

3K

UD

Decal This is a required option.


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Stealth

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

carbon 29er 50mm wide

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + PCS

Hole This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please contact us.

32H

Spoke hole drilling This is a required option.

Centered drilling is the most popular.

centered

Finish This is a required option.

matte

Weave This is a required option.

UD

Decal This is a required option.


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Stealth

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

We use a tubeless tape with high tensile strength and only one lap is required so it is very light. It uses a natural rubber adhesive that does not leave any residue on the rims.

None

Add Tubeless Tape USD +8 each

carbon 29er 50mm wide

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + PCS

Weight: 490.00g+/-20

Final total: USD 173.00+

Weight: 490.00g+/-20

Final total: USD 193.00+

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

RIM SPECS

  • Size 29er
  • Use Plus
  • Type Hookless
  • Tubeless Ready

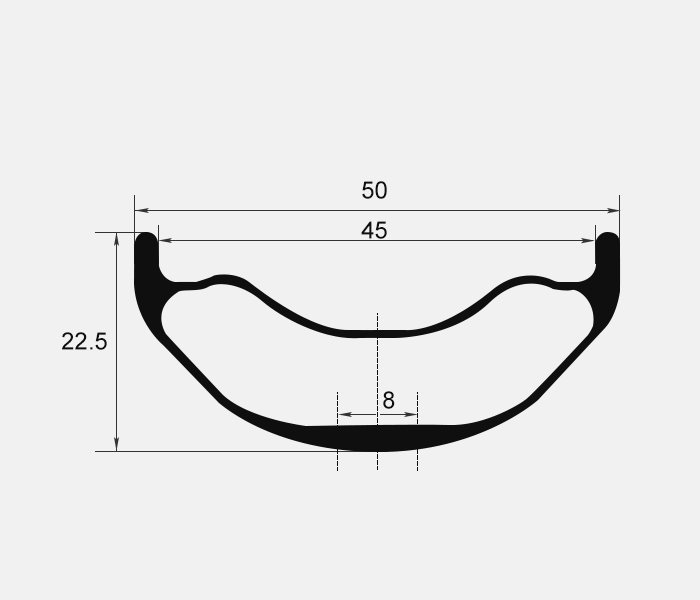

  • Inner/Outer Width 45mm/50mm
  • Depth 22.5mm
  • ERD 594mm (not including nipple head dimension)
  • Weight 490+/-20g
  • Offset 0mm (symmetric)
  • Drilling offset ±4mm
  • Weight Limit 135kg
  • Spoke Hole Angle ±5°
  • Spoke Tension ≤145kgf recommended
  • Tyre Pressure ≤35psi recommended
  • Tire 2.8" ~ 3.1" recommended

Teleport to the wheelset building page.

With a huge 45mm internal width and the ability to run anything from a 2.8” tire right up to a monstrous 3.2”, the XC945 (RM29C15) will give you the smooth rolling traction you’ve always wanted.


Typically, stock alloy plus rims are built with heavier spokes to make up for their lack of stiffness. With a vertically compliant rim and significant side stiffness, lighter spokes are used to reduce overall wheel weight. Upgrading to our plus rims can easily save more than a pound off of a stock rim! Breath new life into your ride and bring a new level of responsiveness, stiffness, and control.

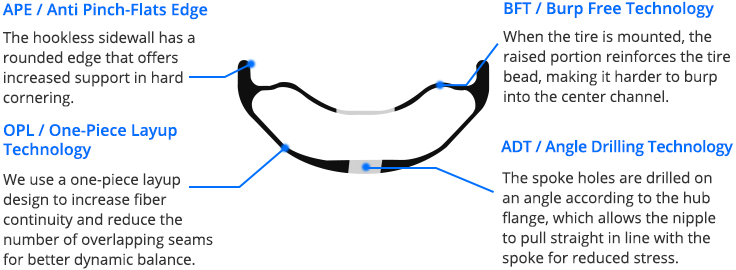

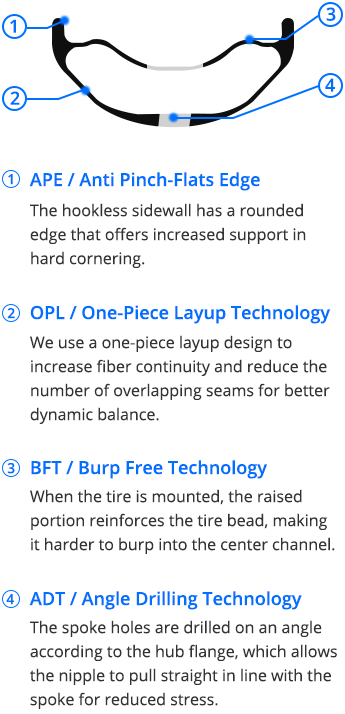

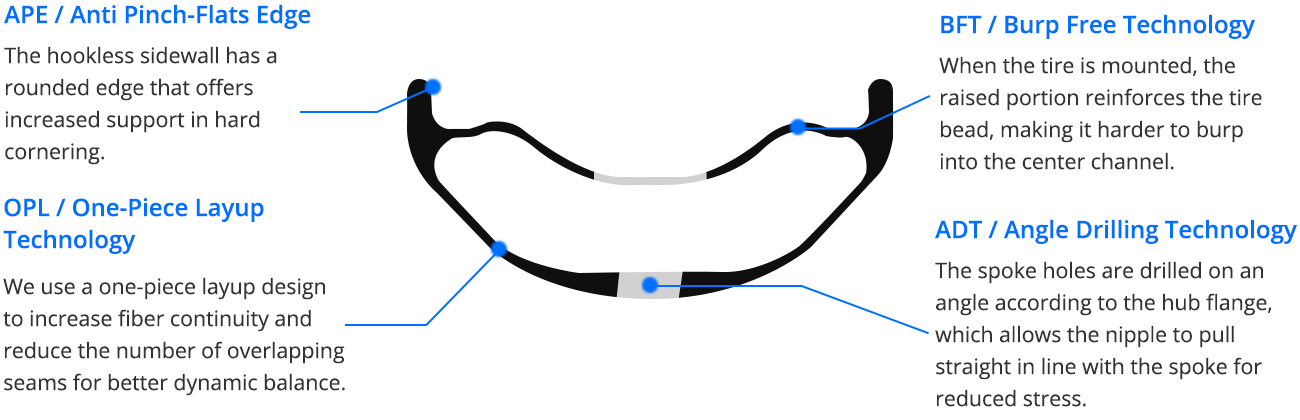

Hookless: Carbon fiber flows continuously over the bead area to provide the best impact resistance and a significant strength increase compared to a clincher rim.


Manufacturing process: Our air bladders are made from a special material which produces smoother walls, result in a lighter rim, and are completely removed without harsh chemicals. They are removed through the valve hole with a unique process so that the rim does not have to be patched like traditional manufacturers use. This significantly improves the strength of the rims. Read More about our process


T700: Constructed with premium Toray T700 carbon fiber. The best strength to weight ratio with no expense spared.


Precise layup: Each rim carries its own layup schedule documents which are followed meticulously by the layup workers. Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim.

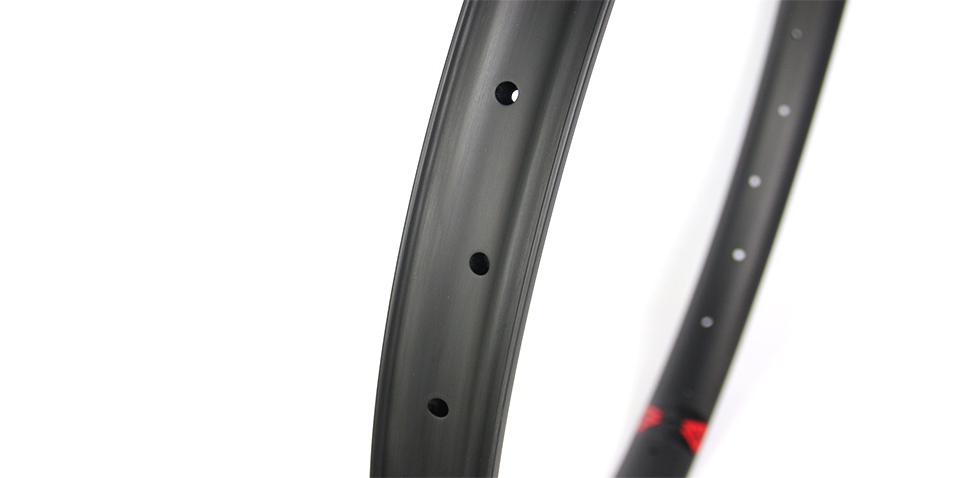

Angled Holes: Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress. This results in fewer broken spokes and nipples.


Bead lock: The small ridges on either side of the drop channel help secure tubeless tires in place. The bead lock makes it easier to seal up tubeless tires with a floor pump, and they are incredibly hard to burp.


Tubeless: While the rims are optimized for a tubeless setup with the addition of tubeless tape, they also work with tubes.


For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Know more about the warranty policy >>

Gallery

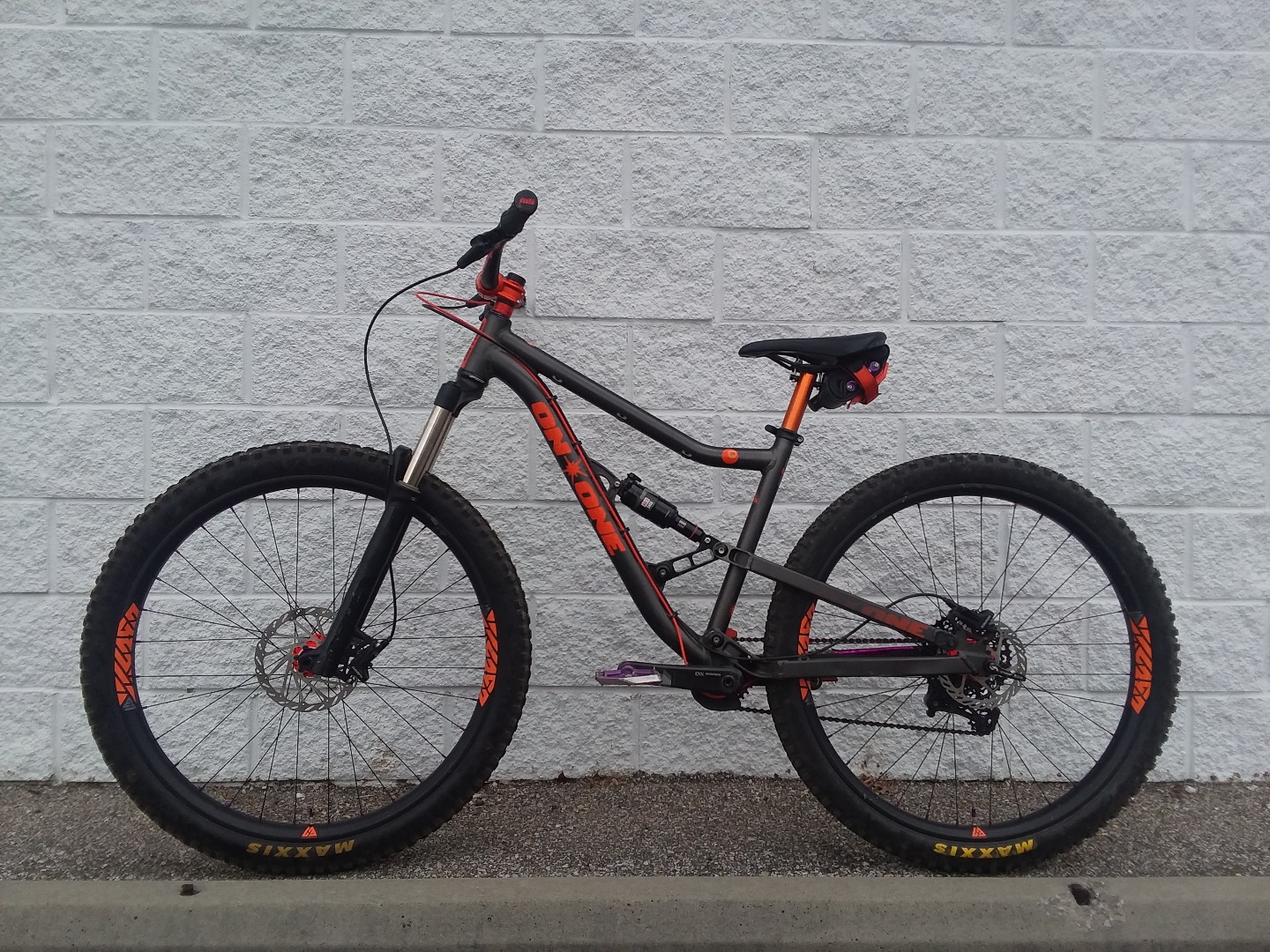

Ross Arney : On-One Codeine 29er with LB AM wheels, Onyx hubs, XX1 complete drivetrain, and plenty of bling! Almost 2000 miles on this wheelset with plenty of drops, sends, huck to flats, races, and crashes, and they still hold up strong! I love LB wheels \m/
United States
1
Jeff : 29" plus titanium Carver
USA
1

COMMENTS

G

Geoff 2018/07/05

Hi there, What's the best spoke hole drilling pattern for a Rohloff hub? What diameter are the spoke holes? Rohloff recommend a minimum 4.4mm. Thanks, Geoff


LightBicycle 2018/07/05

Hi Geoff, May i have your hub specs link? And what spoke gauge do you use? Is it 13G or 14G? Then we can check which spoke hole diameter is good for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Alex 2018/04/04

Hi guys - for the 29-plus rim with offset drilling, how much adjustment do you recommend for spoke length to compensate for the offset? A typical non-plus design would add/subtract 1mm usually. Thanks!


LightBicycle 2018/04/05

Hi Alex, Thanks for your inquiry! For RM29C15 plus rim, the drilling offset is +/-4mm. Please find attached rim drawing. The spoke holes are drilling with offset+4mm and -4mm. Please let us know if there is any other questions. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Jesse 2017/10/14

Could you give me a price on this rim mated to a 100mm aluminum nimbus isis unicycle hub. The spokes I would like to use are sapim cx-ray.


LightBicycle 2017/10/14

Hi Jesse, Sorry for the delay reply! Currently, we only have DT 240s/350s and Hope hub in stock. If you like "100mm aluminum nimbus isis unicycle hub", can you send us the hub link for our reference? Then we can check if we can get the hub for you. May I know your tire width and your weight please? Then we can check which rim is better for you and quote accordingly. Do you just want a wheel for your unicycle? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Jason 2017/08/14

Hello, I want to make a custom wheel with 18 holes with dual drilling pattern, so 36 total. Can you do this for me? Thanks, Jason


LightBicycle 2017/08/16

Hi Chris, Thanks for your massage! In order to calculate the spoke length more accurately, could you please offer more information about the hubs & nipples that you will use? And then we can give you the spoke length accordingly. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Chris 2017/08/03

Can these rims be made in a heavy duty version? What would the price increase be?


LightBicycle 2017/08/04

Hi Chris, Thanks for your massage! Yes, it is okay to make the rim with Heave Duty version, 60g added and USD8 added. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Jason 2017/02/22

Why are the center drilled holes not in a straight line? Do the hole locations make the wheel weaker or heavier?


LightBicycle 2017/02/23

Hello Jason, Thanks for your inquiry. The 50mm wide 29er plus rim is much wider, so the spoke holes are drilled with center drilling which allow for better balance of tensions in a wheel build, resulting in a stronger, stiffer, and more durable wheel. It won’t make the wheel heavier but make it more reliable. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Jim 2017/01/06

I would like replace the wheelset and hopefully save some weight on my Trek Stache. It is boost front and rear is there an option for an orange hub?


LightBicycle 2017/01/09

Hello Jim, Thanks for your inquiry. Yes, Hope pro4 front 15*110mm/ rear 12*148mm boost hubs in orange are available. Does it work for you? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

W

warren 2017/01/03

hi,could you please give me a price on a 64 hole,29 plus rim.and do you ship to new zealand?thanks


LightBicycle 2017/01/04

Hello Warren, Thanks for your inquiry. RM29C15 (50mm plus): 490 /-20g, $210/pcs Delivery cost: $58.40 for one rim, and $68.10 for two rims to New Zealand by EMS. All pricing in USD. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

Roger 2016/07/14

Could you price me up this rim with a lefty front hub 32 hole black?


Light-Bicycle 2016/07/14

Hello Roger, Thanks for your inquiry. The 50mm wide 29er plus front wheel with following specs is USD472/pcs. -Rim: RM29C15, 32H, 490 /-20g, center drilling? UD matte and 3k matte are what we recommend. Does that work for you? -Hub: Black, Project 321 lefty hub for Cannondale -Spokes: Black, DT competition race -Nipples: Alloy or brass? Silver or black? Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Tim 2016/03/15

Can these rims be purchased without the logos?


Light-Bicycle 2016/03/16

Hello Tim, Thanks for your inquiry. Sure. Only customers require for graphic on rims, we will do it accordingly. For customers who do not mention graphic, there will be no graphic on rims. Thanks, Lightbicycle


R

RIch 2016/07/11

Need some help building my rims 29plus, fr 15/142 rr 12/177 wondering if I can use dt 240 hubs with SramXX1 freehub 6bolt 32H Dt swiss spokes


Light-Bicycle 2016/07/12

Hello Rich, Thanks for your inquiry. Currently, only blue Hope pro2 front 15*142mm/ rear 12*17mm are available, not DT 240S fat bike hubs. Also, DT Swiss manufactures the DT 350 Big Ride hubs only. Which hubs do you prefer? We can quote accordingly for you. Thanks, Light-bicycle
