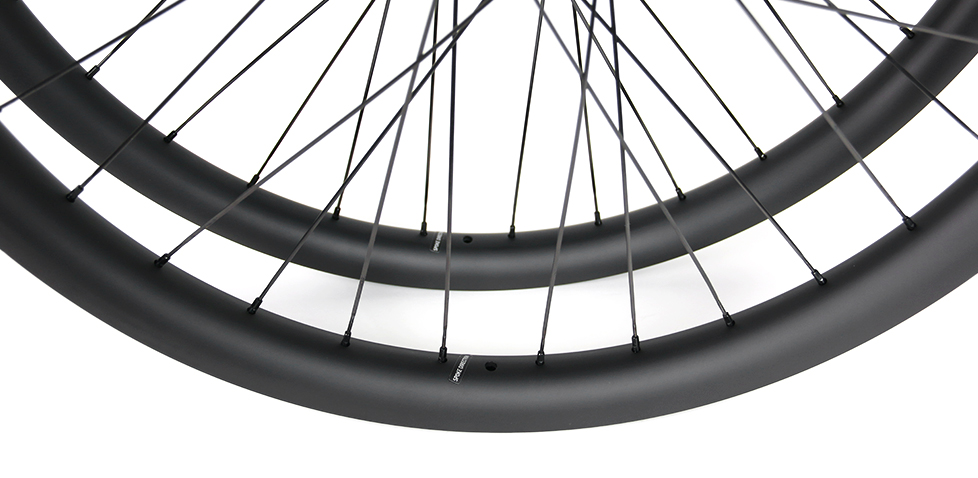

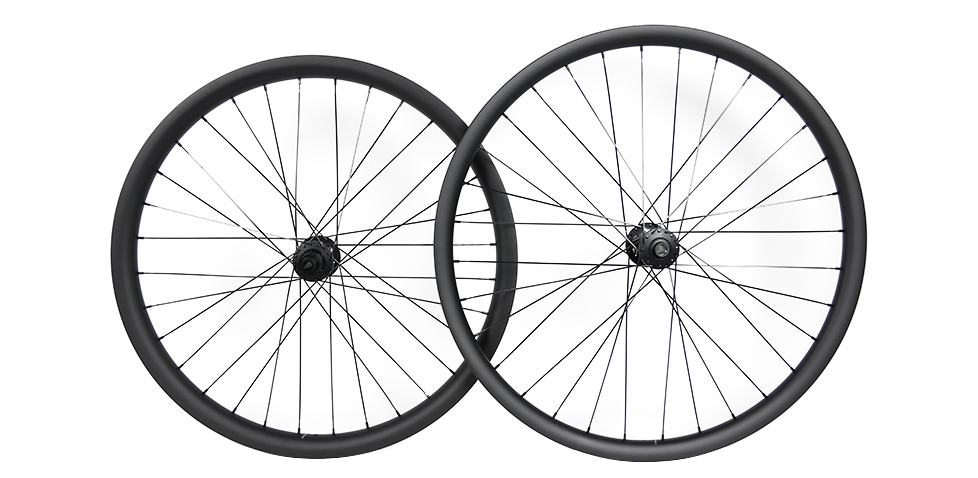

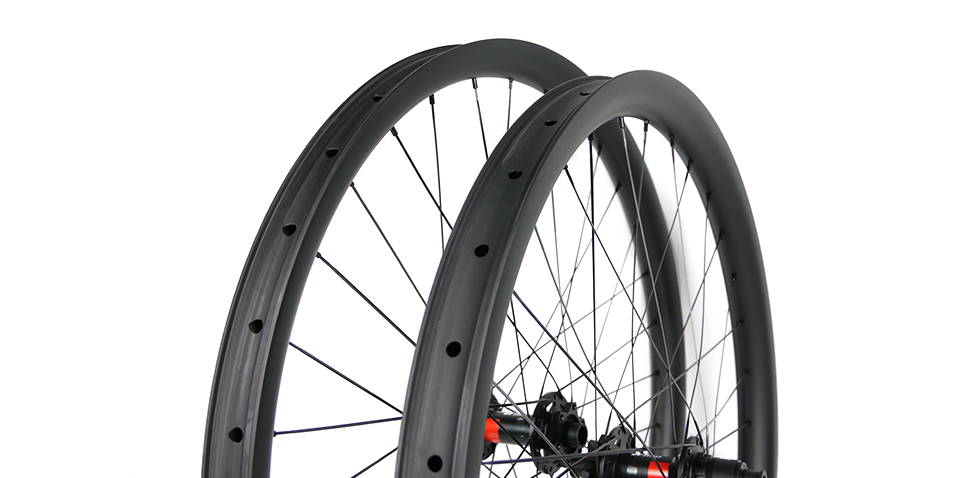

Build Your Recon WHEELSET AM933/EN933 (F) + AM733/EN733 (R)

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.


WHEELSET SPECS

RIMS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

  • Model AM933/EN933 (F) + AM733/EN733 (R)
  • Material Toray T700 & T800 Premium Carbon Fiber
  • Size 29er (F) + 650B (R)
  • Series RECON
  • Intended Use All Mountain/ Enduro
  • Bead Type Hookless
  • Tubeless Capable Yes
  • Inner/Outer Width Front 33mm/39mm, Rear 33.6mm/40mm
  • Depth Front 28mm, Rear 31.5mm
  • Profile Asymmetric (Front 3mm, Rear 2.7mm)
  • Max Cyclist Weight (on flat ground) 125kg/ 276lbs
  • Spoke Hole Angle Front ±6°, Rear ±5°
  • Spoke Tension 120~130kgf front disc side and rear drive side
  • Max Tire Pressure 40psi/ 2.75bar
  • Recommended Tire Width Front 2.3"-3.1" , Rear 2.4" ~ 3.1"

HUBS

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

  • Model DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Hope Pro 4, Chris King ISO AB / ISO B, Industry Nine Hydra, Industry Nine 1/1, Bitex BX212F / BX212R, Onyx Vesper
  • Front Axle Size 15 / 100mm, 15 / 110mm BOOST, 15 / 100mm Torque, 15 / 110mm RS-1, 15 / 110mm Torque, 20 / 110mm, 20 / 110mm BOOST DH, 20 / 110mm Old DH, Lefty 2.0 Supermax, QR / 100mm
  • Rear Axle Size 12 / 142mm, 12 / 148mm BOOST, 12 / 150mm, 12 / 157mm, 12 / 157mm Super BOOST, QR / 135mm, Single Speed
  • Driver Body Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy
  • Hole 28H, 32H

OTHER PARTS

Leave a note at checkout or contact us if you want spare spokes or nipples.

  • Spokes Sapim CX Ray, Sapim D-light, Oil slick J-bend
  • Nipples Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black, Aluminium Silver, Aluminium Blue, Aluminium Gold, Aluminium Green, Aluminium Lime, Aluminium Orange, Aluminium Purple

TECH

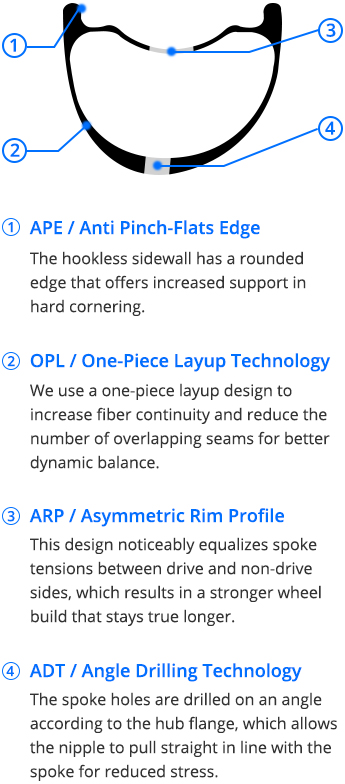

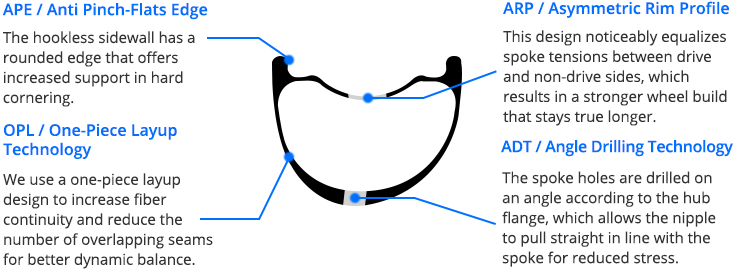

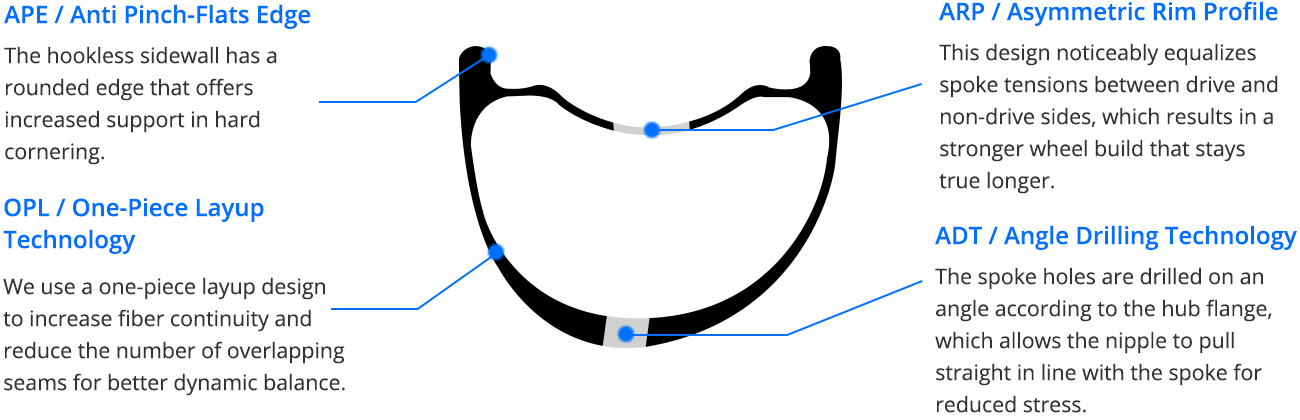

Wider, stronger and stiffer. When aggressive riding is in your DNA, the 933 and 733 are the answer to the call. With a wide profile, the rims are designed to work perfectly with the new breed of ultra wide trail tires. The huge air volume will give you stability and an insane amount of traction that will encourage riding in the nastiest of conditions. The mixed-size combo of 29er front and 650b rear transforms the riding characteristics of your bike. Swapping out the rear wheel for a smaller diameter 650B (27.5) rim brings back the playful feel that was missing, by slackening out the head tube angle, lowering the bottom bracket, and decreasing the effective length of the bike.

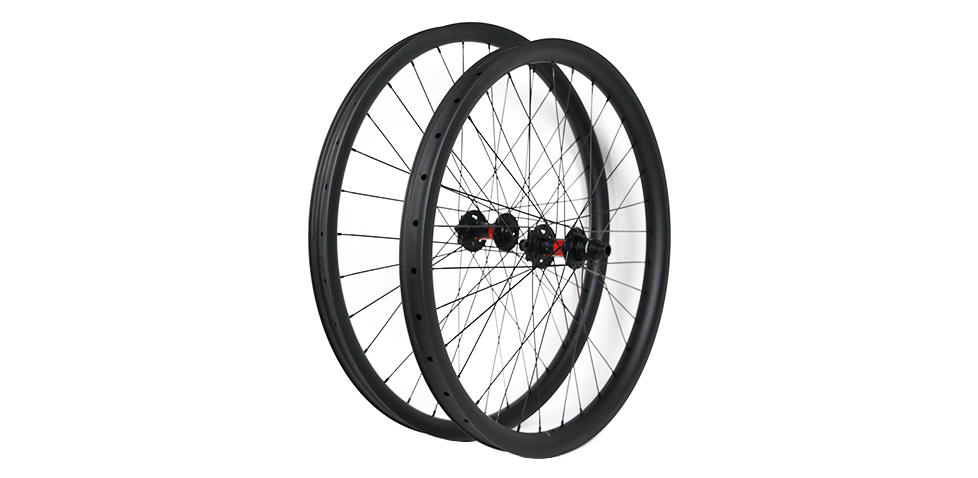

The 933 and the 733 come in two different layup styles. While the standard layup is suitable for most riders, the EN version features an extra layer of 3k carbon for heavier riders or those notoriously tough on equipment. Not only does this help support G-Out forces, but it also makes the EN933 one of our stiffest options.

E-bike Approved! This wheel's Enduro Version is designed to be compatible with mid-drive e-bikes.


Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>


WHAT IS IN THE BOX


Wider, stronger and stiffer. When aggressive riding is in your DNA, the 933 and 733 are the answer to the call. With a wide profile, the rims are designed to work perfectly with the new breed of ultra wide trail tires. The huge air volume will give you stability and an insane amount of traction that will encourage riding in the nastiest of conditions. The mixed-size combo of 29er front and 650b rear transforms the riding characteristics of your bike. Swapping out the rear wheel for a smaller diameter 650B (27.5) rim brings back the playful feel that was missing, by slackening out the head tube angle, lowering the bottom bracket, and decreasing the effective length of the bike.

The 933 and the 733 come in two different layup styles. While the standard layup is suitable for most riders, the EN version features an extra layer of 3k carbon for heavier riders or those notoriously tough on equipment. Not only does this help support G-Out forces, but it also makes the EN933 one of our stiffest options.

E-bike Approved! This wheel's Enduro Version is designed to be compatible with mid-drive e-bikes.

  • Overview

    Wider, stronger and stiffer. When aggressive riding is in your DNA, the 933 and 733 are the answer to the call. With a wide profile, the rims are designed to work perfectly with the new breed of ultra wide trail tires. The huge air volume will give you stability and an insane amount of traction that will encourage riding in the nastiest of conditions. The mixed-size combo of 29er front and 650b rear transforms the riding characteristics of your bike. Swapping out the rear wheel for a smaller diameter 650B (27.5) rim brings back the playful feel that was missing, by slackening out the head tube angle, lowering the bottom bracket, and decreasing the effective length of the bike.

    The 933 and the 733 come in two different layup styles. While the standard layup is suitable for most riders, the EN version features an extra layer of 3k carbon for heavier riders or those notoriously tough on equipment. Not only does this help support G-Out forces, but it also makes the EN933 one of our stiffest options.

    E-bike Approved! This wheel's Enduro Version is designed to be compatible with mid-drive e-bikes.

  • Specs

  • Tech

  • Warranty

  • In The Box

Light Bicycle : Rims: EN933 29er-F EN733 27.5-R Glossy Braided UD 32H With Access Holes Hubs: Chris King ISO AB ISO B 3D Violet 15/110mm 12/148mm Boost J-bend 6-bolt 72T Sram XD Spokes: Provided by the customer Sticker: Purple
1

View More Reviews >>

COMMENTS

A

Anthony 2023/07/03

Hi,I am looking to build a lighter set of wheels for AM & Enduro. Kindly provide quote & weight of wheels based on below:- Recon Pro WHEELSET EN932 (F) + EN732 (R) or Recon WHEELSET AM933/EN933 (F) + AM733/EN733 (R) Chris King BOOST 6-BOLT REAR, Gloss Black, Steel bearing, SRAM XD Chris King BOOST 6-BOLT FRONT (110 X 15MM), Gloss Black, Steel bearing Sapim CX-Ray Black spokes, Aluminium Black nipples Thank you, Anthony


LightBicycle 2023/07/03

Hi Anthony, Thanks for your inquiry! Please check the wheelset weight and price as below, let me know if you have any questions. front EN932/rear EN732+Chris King boost hubs(28H)+ sapim cx-ray spokes: USD1674.8/pair, 1793g+/-25, 5 years warranty front AM933/rear AM733+Chris King boost hubs(28H)+ sapim cx-ray spokes: USD1422.8/pair, 1740g+/-25, 3 years warranty front EN933/rear EN733+Chris King boost hubs(28H)+ sapim cx-ray spokes: USD1432.8/pair, 1840g+/-25, 3 years warranty May i know your weight please? Do you ride aggressively or not? Then we can check which 29er wheelset is better for you. Thanks, Lightbicycle
