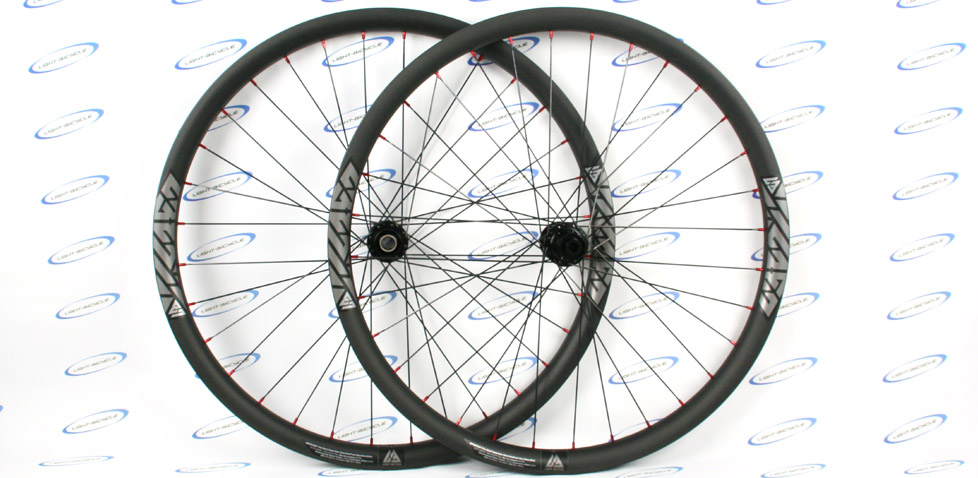

Hand-built AM728 asymmetric rim profile carbon fiber mtb 650B wheels

BUYING OPTIONS

Global warehouse ship to most countries while the North America warehouse only ship to the United States and Canada

GLOBAL
NORTH AMERICA
  • 1

    HUB

  • 2

    SPOKES/NIPPLES

  • 3

    RIM

  • 4

    ACCESSORIES

  • 5

    OVERVIEW

HUB

Spoke This is a required option.

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

DT Swiss Competition Race

Sapim CX Ray

Nipple This is a required option.

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Aluminium Black

Aluminium Red

Brass Black

Version This is a required option.

AM - This model is mid-weight and suitable for all mountain and trail riding. Can be used for light-duty enduro.
EN - This version has additional reinforcement and is suitable for more aggressive riders. It's the best choice for Enduro style riding.

AM728

EN728 USD +5

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

glossy

matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

12K

3K

UD

Decal This is a required option.


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Stealth

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

650b bike wheels

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + Pair

Spoke This is a required option.

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

Sapim CX Ray

Sapim D-Light

Sapim Race

Nipple This is a required option.

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Aluminium Black

Aluminium Red

Aluminium Blue

Aluminium Gold

Aluminium Green

Aluminium Lime

Aluminium Orange

Aluminium Purple

Version This is a required option.

AM - This model is mid-weight and suitable for all mountain and trail riding. Can be used for light-duty enduro.
EN - This version has additional reinforcement and is suitable for more aggressive riders. It's the best choice for Enduro style riding.

AM728

EN728 USD +5

Finish This is a required option.

matte

Weave This is a required option.

UD

Decal This is a required option.


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Stealth

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

We use a tubeless tape with high tensile strength and only one lap is required so it is very light. It uses a natural rubber adhesive that does not leave any residue on the rims.

None

Add Tubeless Tape USD +8 each

650b bike wheels

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + Pair

Weight: 820.00g+/-25

Final total: USD 338.00+

Weight: 820.00g+/-25

Final total: USD 398.00+

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

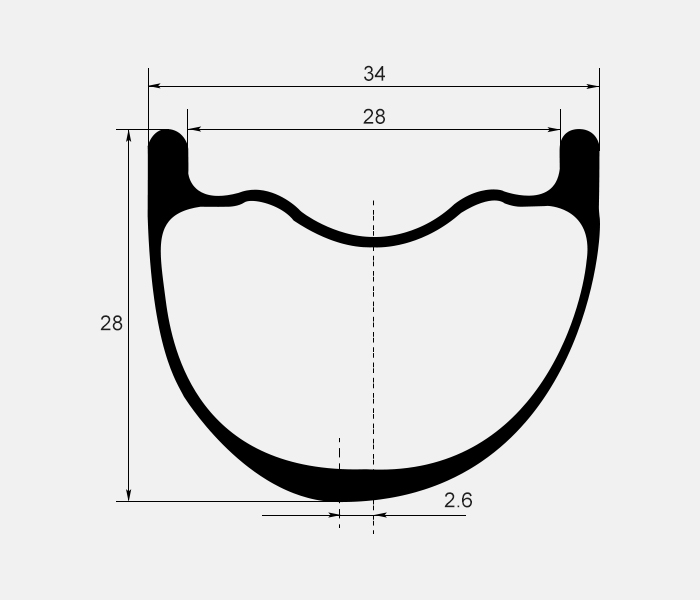

RIM SPECS

  • Size 650B
  • Use All Mountain/Enduro
  • Type Hookless
  • Tubeless Ready

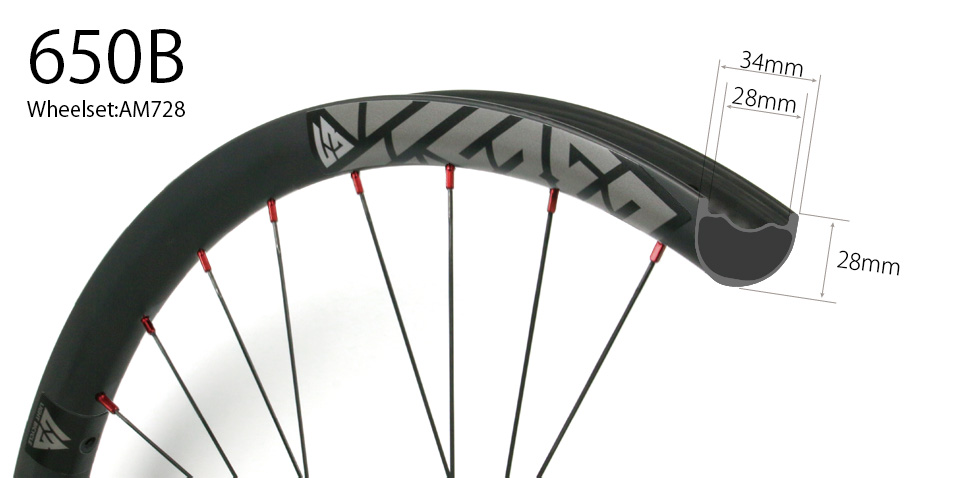

  • Inner/Outer Width 28mm/34mm
  • Depth 28mm
  • ERD 546mm (not including nipple head dimension)
  • Weight AM 410+/-15g, EN 460+/-15g
  • Offset 2.6mm (asymmetric)
  • Weight Limit 125kg
  • Spoke Hole Angle ±5°
  • Spoke Tension ≤145kgf recommended
  • Tyre Pressure ≤35psi recommended
  • Tire 2.1" ~ 2.7" recommended

Teleport to the rim page.

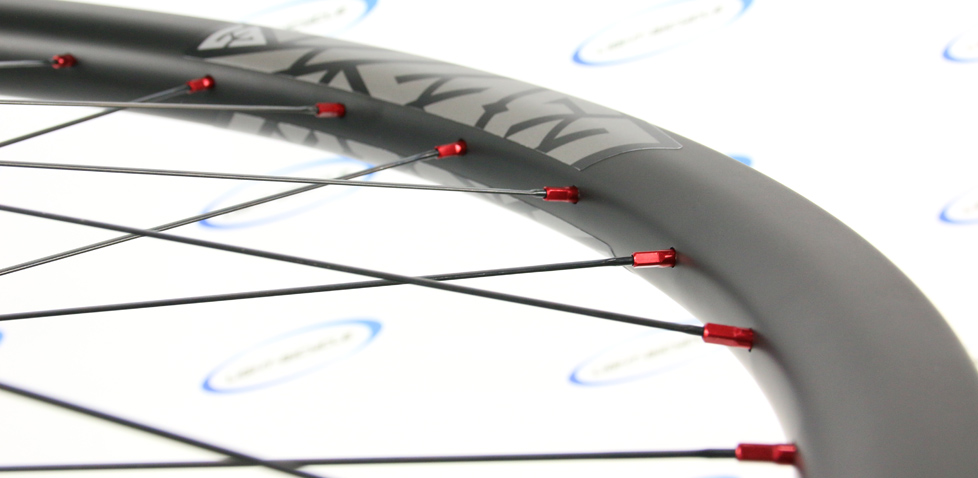

Our 34mm wide AM728 rims have become our most popular asymmetric product thanks to its versatility. The 28mm inner width offers a wide and stable tire profile for your enduro tires, without becoming square-edged. You can easily get away with running 2.2’s or 2.5’s, but 2.3” - 2.4” tires are the sweet spot. The EN version has an extra wrap of 3k carbon fiber around the nipple bed, and reinforced sidewalls support G-Out forces, and increased rim stiffness, increasing suitability for aggressive riders over 200 pounds.


More air volume, a wider stance, and the bead seat retention system will keep your tires in place on race day and provide an incredibly solid tubeless platform. Wheel stiffness is further increased with a deep profile, allowing for cornering and charging through rough terrain with more speed and confidence than ever before.

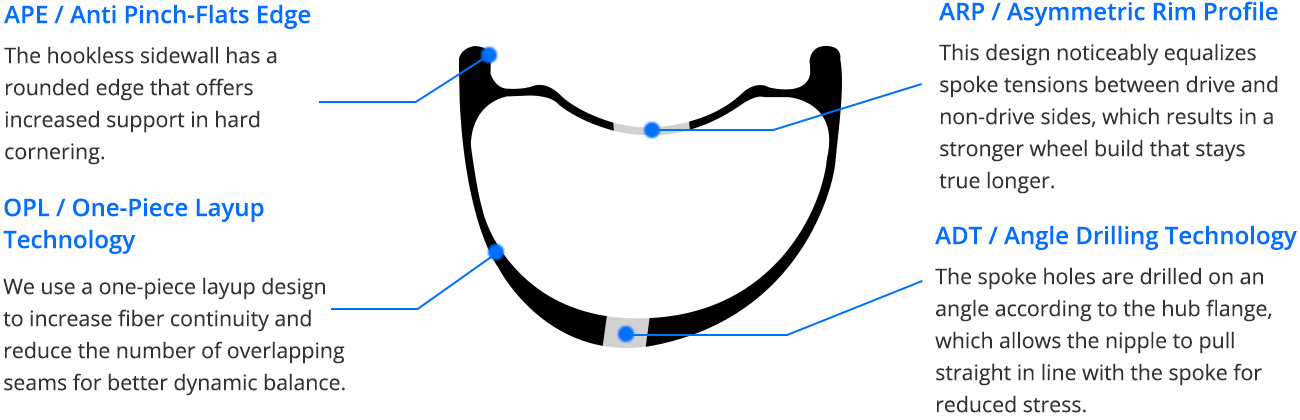

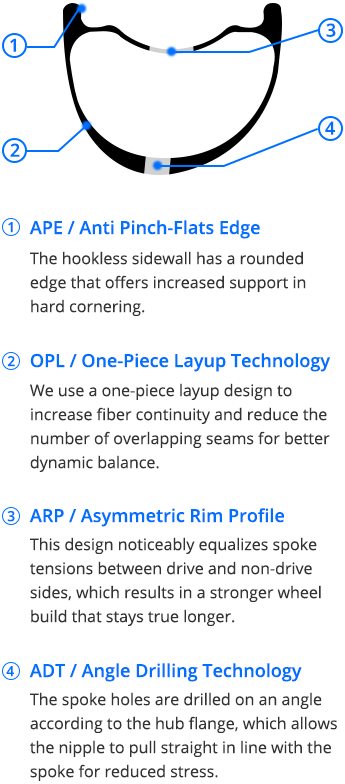

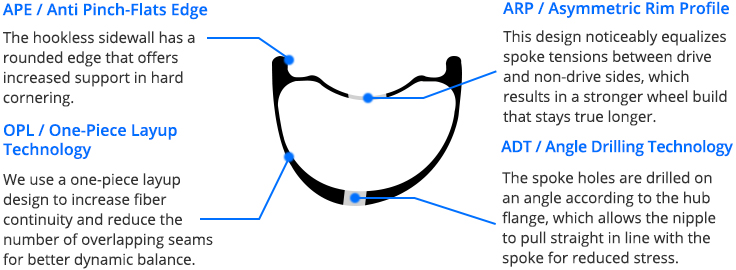

Hookless: Carbon fiber flows continuously over the bead area to provide the best impact resistance and a significant strength increase compared to a clincher rim.


Manufacturing process: Our air bladders are made from a special material which produces smoother walls, result in a lighter rim, and are completely removed without harsh chemicals. They are removed through the valve hole with a unique process so that the rim does not have to be patched like traditional manufacturers use. This significantly improves the strength of the rims. Read More about our process

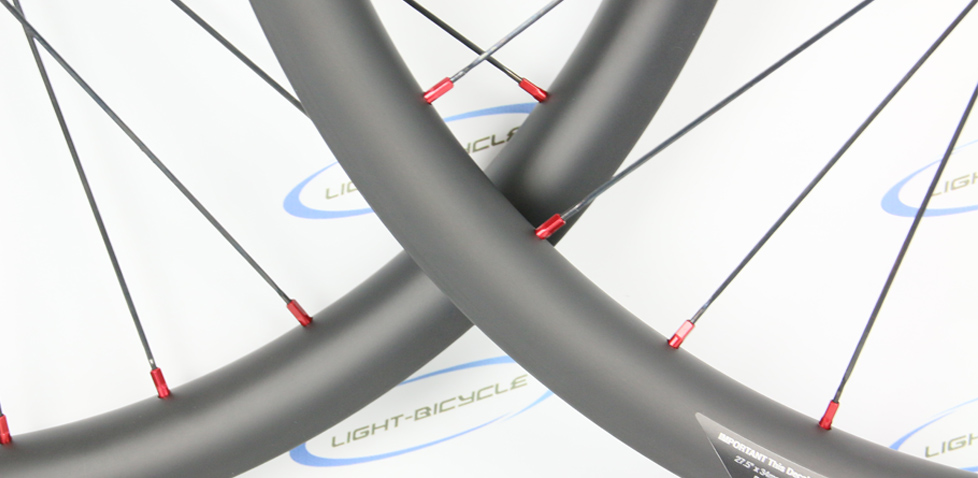

Hand-Built: Each wheelset is painstakingly built by hand to tension within 5% variance. Each spoke's tension rating is recorded in our system, as is the roundness and lateral tolerance.


T700: Constructed with premium Toray T700 carbon fiber. The best strength to weight ratio with no expense spared.


Precise layup: Each rim carries its own layup schedule documents which are followed meticulously by the layup workers. Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim.

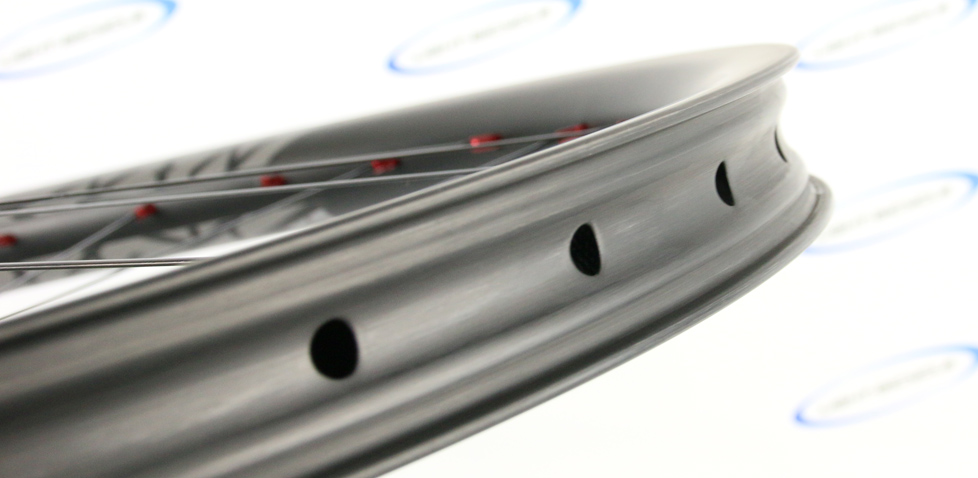

Angled Holes: Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress. This results in fewer broken spokes and nipples.


U-Shape: U-shape profile spreads the force of impacts and creates a more robust product.


Bead lock: The small ridges on either side of the drop channel help secure tubeless tires in place. The bead lock makes it easier to seal up tubeless tires with a floor pump, and they are incredibly hard to burp.


Asymmetrical: The profile allows for equalized spoke tension which creates a stronger wheel that stays true.


Tubeless: While the rims are optimized for a tubeless setup with the addition of tubeless tape, they also work with tubes.


For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Know more about the warranty policy >>

Gallery

EN728 : WOW, JUST WOW!!!!!!
Canada
1
Dave Barrett : AM 728 650b wheelset with Dt 240 straight pull hubs and Sapim CX Ray, came in at 1432g. Superb quality and only took four days to get to Spain
Spain
1
Waldo Coetzee : Hi, My wheelset arrived yesterday and everything came exactly as specified. I also weighed the wheelset before installing the rim tape and valves and it came to 1644 g which is the same as claimed. So far I am very happy.Thank you for all your assistance!Regards,Waldo
South Africa
1
Antonio Abreu : Riding these beauties for the last couple months and still rolling perfectly ! Thank you Light Bicycle for all the support !
Poland
1
Antonio Abreu : Making the Light Bicycle carbon wheels spin and shine !
Poland
1

COMMENTS

P

pedro 2017/12/12

is it possible to order a wheelset with boost front hub and 12x142 rear hub? thank you.


LightBicycle 2017/12/13

Hi Pedro, Yes, we can build wheelset with front boost/rear 12*142mm hubs. We sent an quotation to you through email. Have you got it? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

G

Gabriel 2017/04/07

Hello guys, want to order a wheel set and wondering if the red hubs are going to be available soon. Thanks


LightBicycle 2017/04/07

Hello Gabriel, Thanks for your inquiry. Do you like Hope pro4 boost hubs in red? If so, we can get the red hubs for you once you place the order. Because most of our customers prefer black or orange, and we only stock both color. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

autodrome 2017/03/14

New DT Swiss 240S 15*110mm straight pull predictive steering hub is available for Rock Shox RS-1 forks. If you need this hub, please contact us http://www.auto-drome.in


LightBicycle 2017/03/15

Hello Autodrome, Thanks for your contact. Are you interested in AM728 wheelset built with DT 240S front predictive steering hub? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

Sam 2017/02/16

Hi, do you do the pro 4 hubs in purple?


LightBicycle 2017/02/17

Hello Sam, Thanks for your inquiry. Yes, Hope pro4 hubs in purple are available. If you like to order, we can create the invoice accordingly for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

L

Luke 2016/12/30

I don't see 32H DT Swiss 240 available.


LightBicycle 2016/12/30

ello Luke, Thanks for your inquiry. DT 240S J-bend 6-bolt standard hubs (front 15*100mm/ rear 12*142mm) are available on our website. Do you like 32H boost hubs? If so, it be will available at the end of January 2017. Does that wok for you? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Andy 2016/12/20

Hi there, are you Abel to provide tune King/kong hubs if so which Price and how do i order them in the config. thx andy


LightBicycle 2016/12/22

Hello Andy, Thanks for your inquiry. Currently, only Hope pro4 hubs and DT Swiss hubs are available, not tune King/kong hubs. Sorry for the inconvenience. Or you can order the rims only and build the wheels at your local shop. Then you are able to get the hubs you like for wheels building. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Mike 2016/10/27

Hi Is it possible to get Dt Swiss straight pull 350 Hubs? Thanks


Light-Bicycle 2016/10/28

Hello Mike, Thanks for your inquiry. Yes, DT Swiss 350 straight pull 6-bolt front 15mm/ rear 12*142mm are available. With freehub body Shimano or Sram XX? Thanks, Light-bicycle


M

Mike 2016/10/29

HI This would be for a Shimano hub. How would I go about purchasing, what would price be and what would the timing be on this? Looks like a J bend hub wheel would ship in 1-2 business days, how would this compare. Mike


Light-Bicycle 2016/10/30

Hello Mike, Thanks for your inquiry. UD matte rims are in stock and wheels will ship within 2-3 business days. EMS delivery takes another 4-7 days to arrive. Hope and DT Swiss J-bend 6-bolt hubs are available. Which do you prefer? Thanks, Light-bicycle


M

mike 2016/11/02

HI I am looking for the following... AM 728 Rim, Matte, UD DT Swiss 350 Straight Pull, Shimano drive body, 6 bolt Sapim CX Ray Spokes This does not appear in the above configuration tool, Is it possible to get this combination? If so what is the price, are the hubs in stock... If hubs are something you will need to order how much time will this add to build and delivery? Mike


Light-Bicycle 2016/11/02

Hello Mike, Thanks for your inquiry. Recently, only one set of DT 350 straight pull 6-bolt hubs are in stock. That is why we remove it on from website. We can build the AM728 wheelset as below.UD matte 28H rims are in stock and wheels will ship within 3 business days. -Rims: AM728, UD matte, 28H, 410 /-15g -Hubs: Black, DT 350 straight pull 6-bolt for Shimano mtb 10/11s. Is that front 15mm TA/ rear 12*142mm TA? -Spokes: Black, Sapim cx-ray -Nipples: Alloy or brass? Black or red? Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

JB 2016/10/15

I need front & rear boost hubs in centerlock. What are the brand, model, 28H or 32H do you have available in stock now?


Light-Bicycle 2016/10/17

Hello Jeremy, Thanks for your inquiry. Currently, DT 240S and DT 350S J-bend center lock 32H boost hubs are available. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Jason 2016/10/10

Do you folks have the 54T upgrade for the DT Swiss hubs? How much would that cost?


Light-Bicycle 2016/10/11

Hello Jason, Thanks for your inquiry. Our DT Swiss hub is able to upgrade into 54T. Which wheelset are you interested in? We can quote accordingly for you. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Mike 2016/10/09

Are you able to mark down value or declare as "gift" for customs?


Light-Bicycle 2016/10/11

Hello Mike, yes, it is okay. But your email address is incorrect. We can not reply you through email. Sorry about that. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.
