Buy & Configure
Global warehouse ship to most countries while the North America warehouse only ship to the United States and Canada
Hub Brand This is a required option.
| Model | Weight | POE | Cost | Reliability | Quality | Unique Feature | Color Options | Warehouse Location | Website |
|---|---|---|---|---|---|---|---|---|---|
| Hope | 487g | 44 | Low | Good | Good | Easy service | Six | China/N.A. | HOPE |
| DT 180 | 290g | 36 | High | Best | Best | Super Light, EXP | One | China/N.A. | DT SWISS |
| DT 350 | 477g | 18/36/54 | Low | Better | Good | Reliability, value | One | China/N.A. | DT SWISS |
| DT 240S | 395g | 18/36/54 | Medium | Best | Best | Quiet and reliable (18t option) |
One | China/N.A. | DT SWISS |
| Chris King ISO | 508g | 72 | High | Best | Best | Rebuildable Bearings (18t option) |
Nine | China | CHRIS KING |
| Tune King/Kong | 334g | 24 | High | Better | Best | Light | Nine | China | TUNE |
| Tune Princess/Prince | 298g | 24 | High | Good | Best | Super Light | Nine | China | TUNE |
| Onyx Classic | 623g | Infinite | High | Better | Better | Silent, sprag clutch | Twenty Three+ (Custom Available) |
North America | ONYX |
| Onyx Vesper | 586g | Infinite | High | Better | Better | Silent, sprag clutch | Six colors and more to follow |
North America | ONYX |
| Industry Nine 1/1 | 410g | 90 | Low | Good | Good | Loud, engagement | Black Only | North America | INDUSTRY NINE |
| Industry Nine Hydra | 402g | 690 | Medium | Better | Best | Loud, engagement | Eleven | North America | INDUSTRY NINE |
* POE = Points of Engagement
* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.
* Average weight will vary slightly depending on axle and freehub combination.
DT SWISS 180
DT SWISS 240S
DT SWISS 350
Hope Pro 4
Chris King ISO AB / ISO B
Tune King / Kong
Tune Princess Skyline / Prince
Front Axle This is a required option.
If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.
By default, no Quick Release skewers are offered with hubs.
15 / 100mm
15 / 110mm BOOST
15 / 110mm RS-1
20 / 110mm
Lefty 1.0
QR / 100mm
Rear Axle This is a required option.
If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.
By default, no Quick Release skewers are offered with hubs.
12 / 142mm
12 / 148mm BOOST
12 / 150mm
QR / 135mm

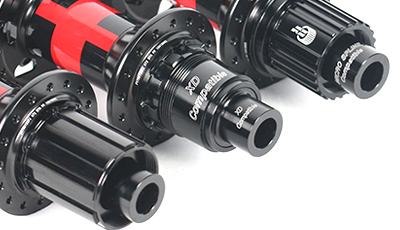

Freehub Body This is a required option.
Sram 9/10 speed and Shimano MTB 9/10/11 speed cassettes use the same Shimano Freehub.
The new Shimano XTR M9100 cassette uses the splined freehub.
Only the Sram 11/12 speed cassettes use the Sram XD freehub driver. SRAM has XX1, XX1 Eagle, X01, X01 Eagle, X1, GX, GX Eagle which all use the Sram XD freehub body.
If you are unsure, please contact us and we'll reach out to confirm your order.
Shimano MTB 10/11S
Sram XD
Shimano Micro Spline
Spoke Head This is a required option.
J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes
straight pull
J-bend
Brake System This is a required option.
6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt.
If you need the conversion kit, please contact us.
6-bolt
Center lock
Hub Color This is a required option.
Black
Blue
Froggy Green
Gold
Matte Mango
Matte Slate
Orange
Red
Silver
Front Holes Count This is a required option.
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.
28H
32H
Rear Holes Count This is a required option.
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.
28H
32H
Ratchet This is a required option.
DT Swiss hubs use star ratchets and are available in 3 different models with varying points of engagement.
18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.
36T - Happy medium, doubles the engagement points.
54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.
EXP - With only a singlel spring, making the hubs faster and lighter, more complete engagement of the ratchet teeth for more precise contact, and therefore a longer lifespan.
18T
24T
36T
44T
54T
72T
EXP
Spoke This is a required option.
| Brand | Model | Type | Thread Diameter (mm) | Weight(g) | Gauge | Riding Style | Available(Warehouse Location) |
|---|---|---|---|---|---|---|---|
| Sapim | Race | Double Butted | 2.0 - 1.8 - 2.0 | 5.7g (260mm) | 14G | Heavy Duty | North America, China |
| Sapim | D-Light | Double Butted | 2.0 - 1.65 - 2.0 | 4.8g (260mm) | 14G | Versatile | North America, China |
| Sapim | CX-Ray | Aero | 2.0 - 0.9/2.3 - 2.0 | 4.4g (260mm) | N/A | Light Aero | North America, China |
| DT SWISS | Competition Race | Double Butted | 2.0 - 1.6 - 2.0 | 4.8g (260mm) | 14G | Versatile | China |
| Pillar | PSR X-TRA 1420 | Aero | 2.0 - 0.95/2.2 - 2.0 | 4.4g (260mm) | N/A | Inexpensive Aero | China |
Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.
DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)
Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.
DT Swiss Competition Race
Sapim CX Ray
Nipple This is a required option.
| Nipple Brand | Model | Material | Color | Length | Available (Warehouse Location) |
|---|---|---|---|---|---|
| Sapim | Double Square Secure Lock | Alloy | Black, Red, Green, Blue, Gold, Lime, Purple, Orange | 16mm | Norh America |
| Sapim | Polyax/ Polyax Secure Lock | Alloy | Black, Red, Green, Blue, Gold, Lime, Purple, Orange | 14mm | China |
| Sapim | Polyax Secure Lock | Brass | Black | 16mm | China |
| DT Swiss | DT SQUORX (PRO HEAD PRO LOCK) | Alloy | Black, Red | 15mm | China |
| DT Swiss | Standard PRO LOCK | Brass | Black | 14mm | China |
Aluminium Black
Aluminium Red
Brass Black
Version This is a required option.
Our XC rims are front and rear specific.
The front rim uses a lighter pre-preg and a blend of Toray T700/T800 as well as Flyweight internal spoke hole patching.
The rear rim uses a continuous spoke bed and a stiffer reinforced layup design to create a balanced feel between the front and rear wheels.
Front Flyweight / Rear Standard
Finish This is a required option.

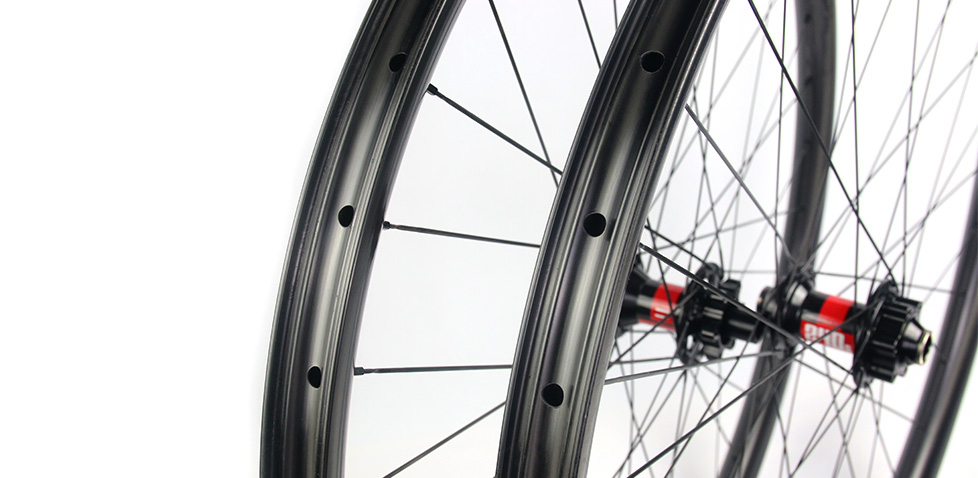

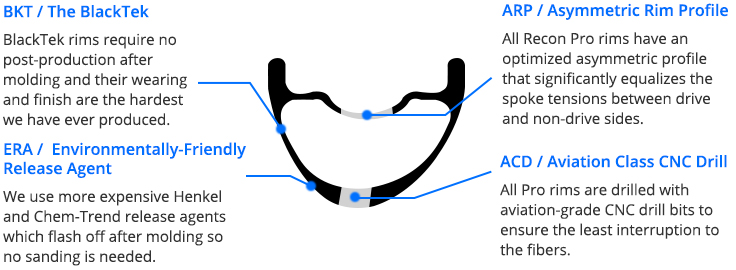

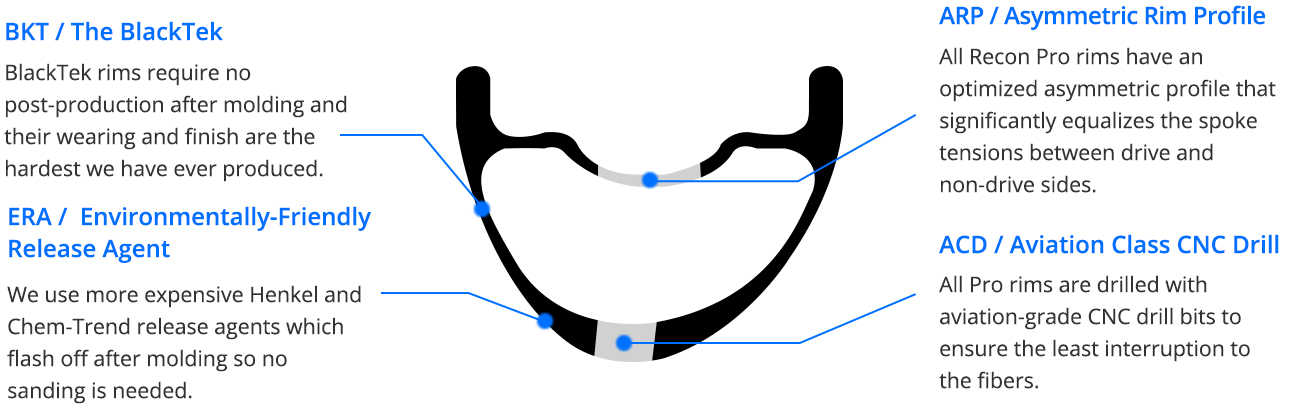

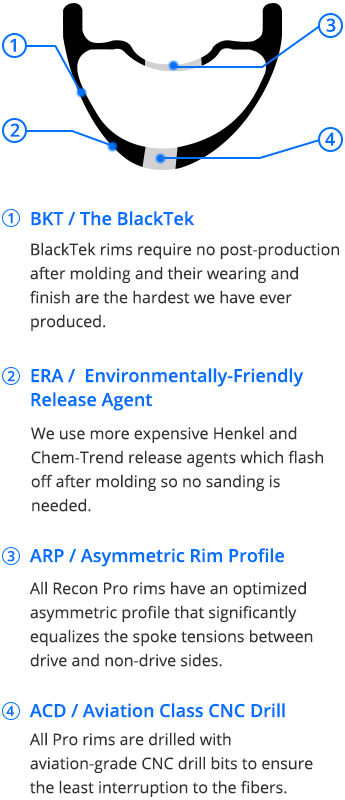

Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a finished product, with a scratch resistant and near flawless finish, eliminating the need for sanding or painting.
paintless
Weave This is a required option.
UD
Rim Warranty This is a required option.
For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.
5 Years
Lifetime USD +50/rim
Decal This is a required option.
The stock graphic is a glossy black waterslide for a subtle look. Avery vinyl logo-kits are available in 11 colours. The vinyl is replaceable and easy to install.
No
Black
Blue
Green
Magenta
Orange
Red
White
Yellow
Silver
Gold
Turquoise
Purple
Valve Stem This is a required option.
We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions
None
Add Valve Stem USD +7 each
Tubeless Tape This is a required option.
One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape
None
Add Tubeless Tape USD +6 each
In Stock, typically ships within 2 business days
In Stock, typically ships within 2 business days
Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page
Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page
Recon Pro orders start shipping in October.
Hub Brand This is a required option.
| Model | Weight | POE | Cost | Reliability | Quality | Unique Feature | Color Options | Warehouse Location | Website |
|---|---|---|---|---|---|---|---|---|---|
| Hope | 487g | 44 | Low | Good | Good | Easy service | Six | China/N.A. | HOPE |
| DT 180 | 290g | 36 | High | Best | Best | Super Light, EXP | One | China/N.A. | DT SWISS |
| DT 350 | 477g | 18/36/54 | Low | Better | Good | Reliability, value | One | China/N.A. | DT SWISS |
| DT 240S | 395g | 18/36/54 | Medium | Best | Best | Quiet and reliable (18t option) |
One | China/N.A. | DT SWISS |
| Chris King ISO | 508g | 72 | High | Best | Best | Rebuildable Bearings (18t option) |
Nine | China | CHRIS KING |
| Tune King/Kong | 334g | 24 | High | Better | Best | Light | Nine | China | TUNE |
| Tune Princess/Prince | 298g | 24 | High | Good | Best | Super Light | Nine | China | TUNE |
| Onyx Classic | 623g | Infinite | High | Better | Better | Silent, sprag clutch | Twenty Three+ (Custom Available) |
North America | ONYX |
| Onyx Vesper | 586g | Infinite | High | Better | Better | Silent, sprag clutch | Six colors and more to follow |
North America | ONYX |
| Industry Nine 1/1 | 410g | 90 | Low | Good | Good | Loud, engagement | Black Only | North America | INDUSTRY NINE |
| Industry Nine Hydra | 402g | 690 | Medium | Better | Best | Loud, engagement | Eleven | North America | INDUSTRY NINE |
* POE = Points of Engagement
* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.
* Average weight will vary slightly depending on axle and freehub combination.
DT SWISS 180
DT SWISS 240S
DT SWISS 350
Hope Pro 4
Industry Nine 1/1
Industry Nine Hydra
Onyx Classic
Onyx Vesper
Front Axle This is a required option.
If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.
By default, no Quick Release skewers are offered with hubs.
15 / 100mm
15 / 100mm Torque
15 / 110mm BOOST
15 / 110mm RS-1
15 / 110mm Torque
20 / 110mm
20 / 110mm BOOST DH
20 / 110mm Old DH
Lefty 1.0
Lefty 2.0 Supermax
QR / 100mm
Rear Axle This is a required option.
If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.
By default, no Quick Release skewers are offered with hubs.
12 / 142mm
12 / 148mm BOOST
12 / 150mm
12 / 157mm
12 / 157mm Super BOOST
QR / 135mm
Single Speed
Freehub Body This is a required option.
Sram 9/10 speed and Shimano MTB 9/10/11 speed cassettes use the same Shimano Freehub.
The new Shimano XTR M9100 cassette uses the splined freehub.
Only the Sram 11/12 speed cassettes use the Sram XD freehub driver. SRAM has XX1, XX1 Eagle, X01, X01 Eagle, X1, GX, GX Eagle which all use the Sram XD freehub body.
If you are unsure, please contact us and we'll reach out to confirm your order.
Shimano MTB 10/11S Alloy
Shimano MTB 10/11S Steel
Sram XD Alloy
Sram XD Steel
Shimano Micro Spline Alloy
Spoke Head This is a required option.
J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes
straight pull
J-bend
Brake System This is a required option.
6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt.
If you need the conversion kit, please contact us.
6-bolt
Center lock
Hub Color This is a required option.
If you don't see the color option you're looking for, please choose another option listed online and proceed to checkout, and leave us a note with your preference in the checkout notes or by emailing sales@lightbicycle.com once ordered.
Powdercoat Options: Black Chrome, Blue Baby, Blue Candy, Gold, Green Antifreeze, Green Fluorescent, Green Kawasaki, Black Aura, Orange Fluorescent, Pink Fluorescent, Purple Candy, Red Candy, White Frost, Yellow Cardinal, Yellow Fluorescent.
Anodized-Black
Anodized-Black Matte
Anodized-Blue
Anodized-Green
Anodized-Orange
Anodized-Purple
Anodized-Red
Anodized-Silver
Black
Blue
Gold
Green
Lime
Orange
Pink
Purple
Red
Silver
Turquoise
Front Holes Count This is a required option.
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.
28H
32H
Rear Holes Count This is a required option.
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.
28H
32H
Ratchet This is a required option.
DT Swiss hubs use star ratchets and are available in 3 different models with varying points of engagement.
18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.
36T - Happy medium, doubles the engagement points.
54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.
EXP - With only a singlel spring, making the hubs faster and lighter, more complete engagement of the ratchet teeth for more precise contact, and therefore a longer lifespan.
18T
36T
44T
54T
690T
90T
EXP
Sprag Clutch
Spoke This is a required option.
| Brand | Model | Type | Thread Diameter (mm) | Weight(g) | Gauge | Riding Style | Available(Warehouse Location) |
|---|---|---|---|---|---|---|---|
| Sapim | Race | Double Butted | 2.0 - 1.8 - 2.0 | 5.7g (260mm) | 14G | Heavy Duty | North America, China |
| Sapim | D-Light | Double Butted | 2.0 - 1.65 - 2.0 | 4.8g (260mm) | 14G | Versatile | North America, China |
| Sapim | CX-Ray | Aero | 2.0 - 0.9/2.3 - 2.0 | 4.4g (260mm) | N/A | Light Aero | North America, China |
| DT SWISS | Competition Race | Double Butted | 2.0 - 1.6 - 2.0 | 4.8g (260mm) | 14G | Versatile | China |
| Pillar | PSR X-TRA 1420 | Aero | 2.0 - 0.95/2.2 - 2.0 | 4.4g (260mm) | N/A | Inexpensive Aero | China |
Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.
DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)
Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.
Sapim CX Ray
Sapim D-Light
Sapim Race
Nipple This is a required option.
| Nipple Brand | Model | Material | Color | Length | Available (Warehouse Location) |
|---|---|---|---|---|---|
| Sapim | Double Square Secure Lock | Alloy | Black, Red, Green, Blue, Gold, Lime, Purple, Orange | 16mm | Norh America |
| Sapim | Polyax/ Polyax Secure Lock | Alloy | Black, Red, Green, Blue, Gold, Lime, Purple, Orange | 14mm | China |
| Sapim | Polyax Secure Lock | Brass | Black | 16mm | China |
| DT Swiss | DT SQUORX (PRO HEAD PRO LOCK) | Alloy | Black, Red | 15mm | China |
| DT Swiss | Standard PRO LOCK | Brass | Black | 14mm | China |
Why no brass option? The North America warehouse uses Sapim double square secure lock alloy nipples. The oversized head offers 100% thread engagement and a significant increase in strength. The corrosion-resistant anodized treatment makes the need for heavy brass nipples irrelevant. If you want black brass nipples regardless, you can let us know in the notes section at checkout
Aluminium Black
Aluminium Red
Aluminium Blue
Aluminium Gold
Aluminium Green
Aluminium Lime
Aluminium Orange
Aluminium Purple
Version This is a required option.
Our XC rims are front and rear specific.
The front rim uses a lighter pre-preg and a blend of Toray T700/T800 as well as Flyweight internal spoke hole patching.
The rear rim uses a continuous spoke bed and a stiffer reinforced layup design to create a balanced feel between the front and rear wheels.
Front Flyweight / Rear Standard
Finish This is a required option.

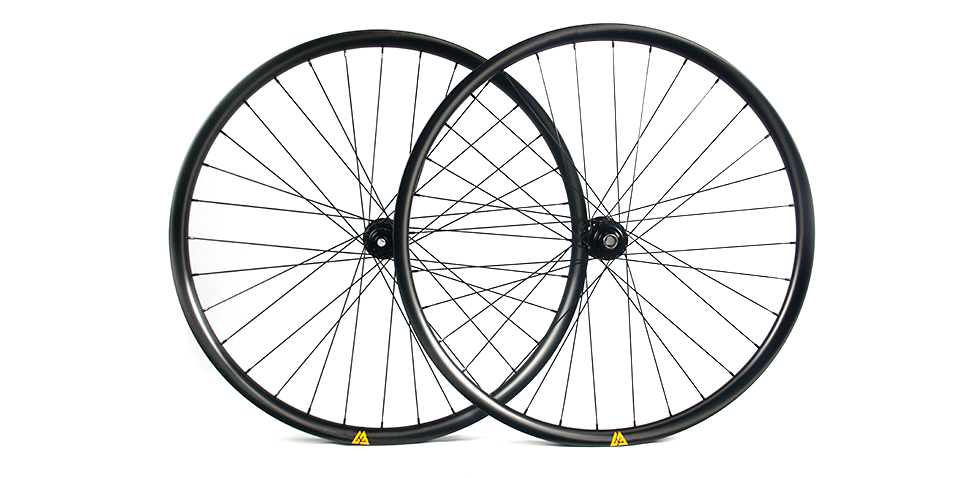

Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a finished product, with a scratch resistant and near flawless finish, eliminating the need for sanding or painting.
paintless
Weave This is a required option.
UD
Rim Warranty This is a required option.
For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.
5 Years
Lifetime USD +50/rim
Decal This is a required option.
The stock graphic is a glossy black waterslide for a subtle look. Avery vinyl logo-kits are available in 11 colours. The vinyl is replaceable and easy to install.
Black (Stock)
Blue
Green
Magenta
Orange
Red
Yellow
White
Silver
Gold
Turquoise
Purple
Valve Stem This is a required option.
We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions
None
Add Valve Stem USD +7 each
Tubeless Tape This is a required option.
We use a tubeless tape with high tensile strength and only one lap is required so it is very light. It uses a natural rubber adhesive that does not leave any residue on the rims.
If you would like to purchase an additional roll of tape (not installed), then you can find that in the accessories section here- Buying Tubeless Rim Tape
None
Apply Tubeless Tape USD +8 each
In Stock, typically ships within 2 business days
In Stock, typically ships within 2 business days
Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page
Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page
Recon Pro orders start shipping in October.
Weight: 1112.00g+/-25
Final total: USD 869+
Weight: 690.00g+/-25
Final total: USD 608+
Added to cart! View cart or continue shopping.
RIM SPECS
Our new generation of Flyweight XC rims are updated with a wider profile and a front/rear specific layup. They are targeted towards cross country racers who seek every possible edge on the course.
Our goal with this iteration was to produce the lightest possible rim-set without sacrificing performance or reliability. The ultralight front rim utilizes a blend of Toray T700 and T800 carbon fiber and receives our spoke hole patching treatment, which maximizes weight reduction. The rear rim uses a continuous spoke bed and a stiffer reinforced layup design to create a balanced feel between the front and rear wheels.
Now with a wider profile, increased resistance to impacts, as well as a tailored front/rear design, the XC725' build the ultimate XC race wheelset.
ExoTek: ExoTek-applied rims are designed to come out of the molds as a finished product which requires the most high quality manufacturing processes. The new resin system has superior consistency and forms the smoothest and most durable finish we’ve ever created. From a lengthened fatigue life to more robust interlaminar bonds, ExoTek raises the bar in performance and aesthetic.
EcoTek : Built from the highest grade of steel, we’ve engineered a completely new series of molds and developed a process that delivers a near flawless product. More time is taken through the layup and assembly process so that no post-production finishing is required. This new process is more environmentally friendly because it requires less heating cycles, no sanding, and no painting.
BlackTek : Rims featuring BlackTek come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clearcoat. BlackTek rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed. This is the most hard wearing and scratch resistant finish we have ever produced.
Flyweight: Our lightest construction method uses an exclusive unidirectional prepreg with a very low fiber areal weight. A variable thickness nipple bed reinforces key areas around the spoke holes, eliminating excess material. A blend of Toray T-700 and T-800 offers the weight saving benefits of T-800 carbon without compromising the strength or stiffness of the rim.

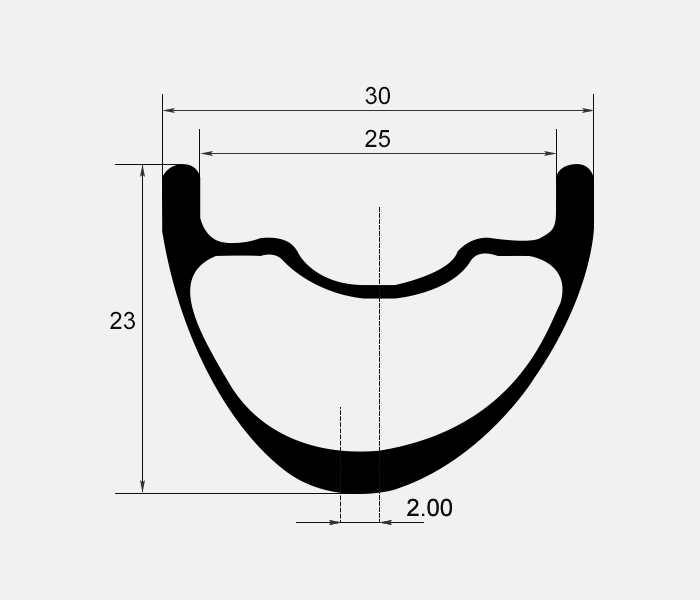

Asymmetric : Over the years, we’ve optimized an asymmetric profile that maintains the outright impact performance of a symmetric design but enjoys the benefits of offset spoke holes. This design significantly equalizes spoke tension between drive and non-drive spokes which results in a stronger wheel build that stays true longer.
Tubeless : All of our rims are tubeless compatible with bead seat retention. In most cases a floor pump is all that is needed to seal our rims. The bead shape is tailored to each rim width to achieve the best fit. Our hookless and clincher profiles have a smooth radius to reduce the chance of a pinch flat.
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
COMMENTS
Paul 2019/09/27
LightBicycle 2019/09/28
REPLY
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
Nigel 2019/05/27
LightBicycle 2019/05/28
REPLY
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
David 2019/04/03
LightBicycle 2019/04/03
REPLY
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
Jason 2019/01/29
LightBicycle 2019/01/30
REPLY
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
LEAVE COMMENTS
We are here for you if you need any assistance.
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
