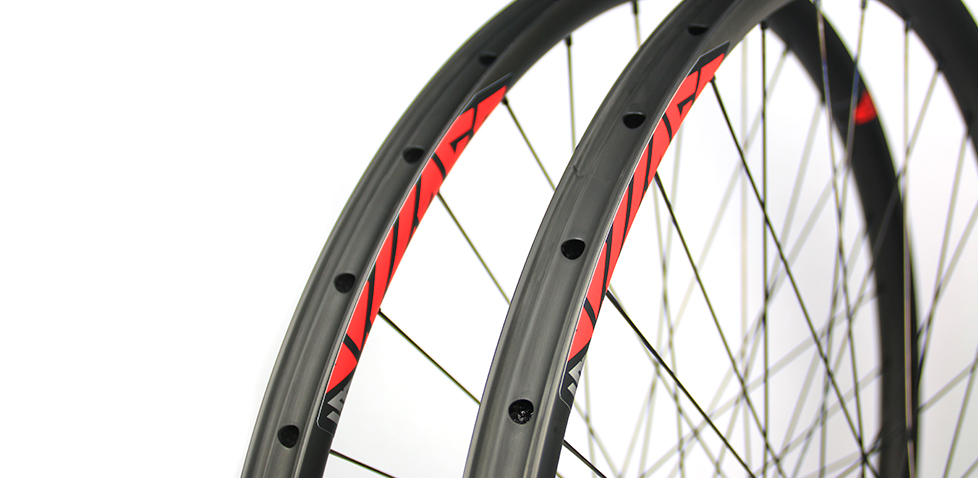

Hand-built XC923 asymmetric cross country carbon fiber mtb 29er wheels

INTERNATIONAL

Ships from China to worldwide destination. Contact us if your location is not listed.

Ships from Canada/United States warehouse to North American countries only. Contact us if you have special requests.

  • 1

    HUB

  • 2

    SPOKES/NIPPLES

  • 3

    RIM

  • 4

    ACCESSORIES

  • 5

    OVERVIEW

HUB

Hub Brand This is a required option.

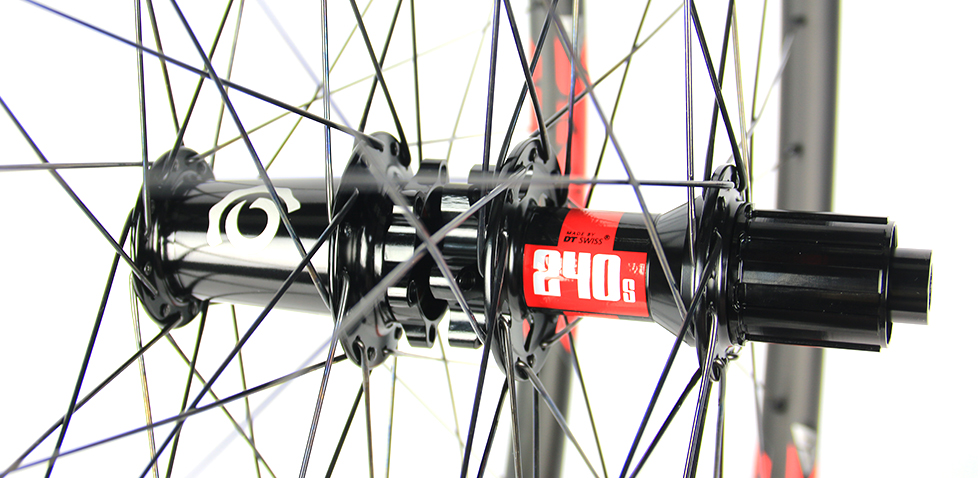

DT SWISS 240S

DT SWISS 350

Hope Pro 4

Model Weight POE Cost Reliability Quality Unique Feature Color Options Warehouse Location Website
Hope 487g 44 6 6 7 Easy service Six China HOPE
DT 350 477g 18/36/54 7 8 7 Reliability, value One China DT SWISS
DT 240S 395g 18/36/54 3 10 9 Quiet and reliable (18t option) One China DT SWISS
Industry Nine 440g 120 3 9 9 Loud, engagement Eleven North America INDUSTRY NINE
Onyx 623g Infinite 2 9 9 Silent, sprag clutch Twenty Three+ (Custom Available) North America ONYX

* For the rank: 1 Worst, 10 Best.

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

Front Axle This is a required option.

15 / 100mm

15 / 110mm BOOST

15 / 110mm RS-1

20 / 110mm

Lefty 1.0

QR / 100mm

Front-hub-axle

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

Rear Axle This is a required option.

12 / 142mm

12 / 148mm BOOST

12 / 150mm

QR / 135mm

Rear-hub-axle

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

Freehub Body This is a required option.

Shimano MTB 10/11S

Shimano Micro Spline XTR

Sram XD

Sram 9/10 speed and Shimano MTB 9/10/11 speed cassettes use the same Shimano Freehub.

The new Shimano XTR M9100 cassette uses the splined freehub.

Only the Sram 11/12 speed cassettes use the Sram XD freehub driver. SRAM has XX1, XX1 Eagle, X01, X01 Eagle, X1, GX, GX Eagle which all use the Sram XD freehub body.

If you are unsure, please contact us and we'll reach out to confirm your order.

Spoke Head This is a required option.

straight pull

J-bend

J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes

Brake System This is a required option.

6-bolt

Center lock

6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt. If you need the conversion kit, please contact us.

Hub Color This is a required option.

Black

Blue

Orange

Red

Front Holes This is a required option.

28H

32H

Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

Rear Holes This is a required option.

28H

32H

Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

Ratchet This is a required option.

18T

36T

44T

54T

DT Swiss hubs use star ratchets and are available in 3 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

Spoke This is a required option.

DT Swiss Competition Race

Sapim CX Ray USD +87

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

Nipple This is a required option.

Aluminium Black

Aluminium Red

Brass Black

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Finish This is a required option.

glossy

matte

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Weave This is a required option.

12K

3K

UD

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

Decal This is a required option.

stealth

blue

green

magenta

orange

red

yellow

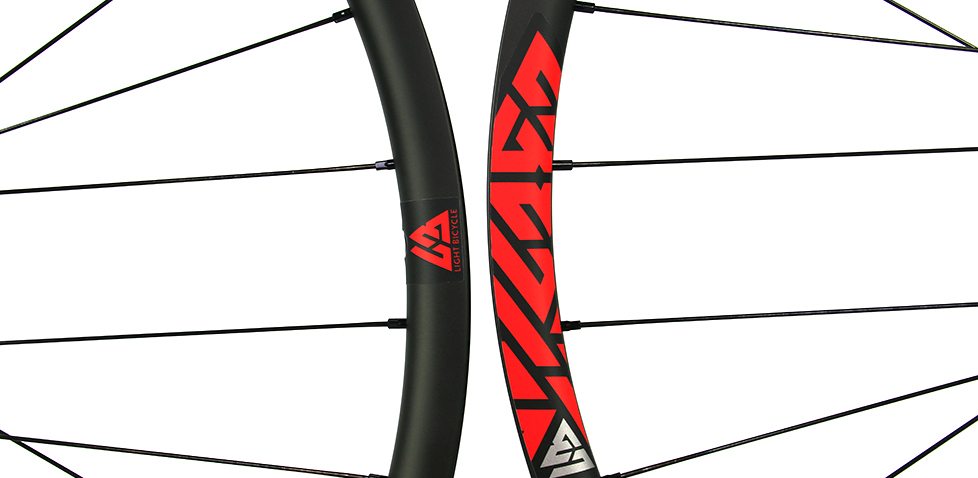

The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Valve Stem This is a required option.

None

Add Valve Stem USD +7

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

Tubeless Tape This is a required option.

None

Add Tubeless Tape USD +6

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

carbon cross country mountain bike

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks

Non-Stocked, typically ships within 1-2 weeks

Recon Pro orders start shipping in October.

- + Pair

Weight: 740.00g+/-25

Final total: USD 762.00+(3.5% paypal fee included)

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

RIM SPECS

  • Size 29er
  • Use Cross Country
  • Type Hookless
  • Tubeless Ready
  • Inner/Outer Width 23mm/28mm
  • Depth 23mm
  • ERD 593mm (not including nipple head dimension)
  • Weight 370+/-15g
  • Offset 2.6mm (asymmetric)
  • Weight Limit 105kg
  • Spoke Hole Angle ±5°
  • Spoke Tension ≤145kgf recommended
  • Tyre Pressure ≤35psi recommended
  • Tire 1.9" ~ 2.4" recommended

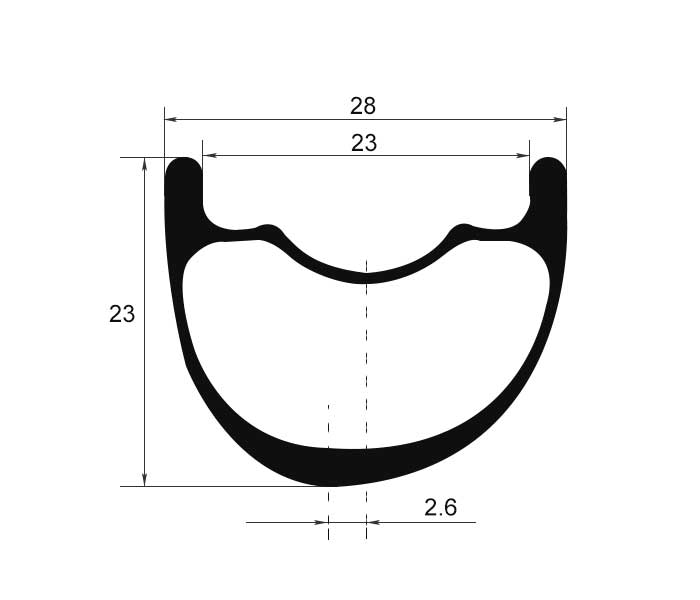

MTB carbon rim profile

Teleport to the rim page.

The wheels use an easy to set up tubeless system complete with bead retention that still allows for quick tire changes. Of course you can still use tubes as required.


From all day epics and marathon events to hard charging short track XC racing, these wheels have a huge performance edge over wheelsets in this weight and price category. To achieve this kind of weight with an alloy wheelset, you have to make sacrifices to rim strength or width, stiffness, and build strength.

Cuopon code (USD90.00 off per wheelset): VK4RMA7N

Hookless: Carbon fiber flows continuously over the bead area to provide the best impact resistance and a significant strength increase compared to a clincher rim.


Manufacturing process: Our air bladders are made from a special material which produces smoother walls, result in a lighter rim, and are completely removed without harsh chemicals. They are removed through the valve hole with a unique process so that the rim does not have to be patched like traditional manufacturers use. This significantly improves the strength of the rims. Read More about our process


Hand-Built: Each wheelset is painstakingly built by hand to tension within 5% variance. Each spoke's tension rating is recorded in our system, as is the roundness and lateral tolerance.


T700: Constructed with premium Toray T700 carbon fiber. The best strength to weight ratio with no expense spared.


Precise layup: Each rim carries its own layup schedule documents which are followed meticulously by the layup workers. Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim.


Angled Holes: Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress. This results in fewer broken spokes and nipples.


U-Shape: U-shape profile spreads the force of impacts and creates a more robust product.


Bead lock: The small ridges on either side of the drop channel help secure tubeless tires in place. The bead lock makes it easier to seal up tubeless tires with a floor pump, and they are incredibly hard to burp.


Asymmetrical: The profile allows for equalized spoke tension which creates a stronger wheel that stays true.


Tubeless: While the rims are optimized for a tubeless setup with the addition of tubeless tape, they also work with tubes.


For Non-Pro Series Rims: From the date of purchase, 15 Months Warranty
For Pro Series Rims: From the date of purchase, 3 Years Warranty. Light Bicycle is pleased to offer the options to purchase an extended 5-year Premium warranty or lifetime Premium warranty with minimum charge respectively.

Crash Replacement: It is applicable with the same period as to warranty time range that you purchased for the rim in terms of 15-month/ 3-year/ 5-year/ Lifetime, with 10%+ discount subject to rim model.

Know more about the warranty policy >>

Gallery

Jay Oliver Dy : Sharing with you the LB rims installed and used for the first time.And here's my photo riding the beautiful LB rims.Worked great!
Philippines
1
Andrew Hutton : The wheels and rims arrived, they look awesome.
South Africa
1
Les Hegedus : I just wanted to drop you a line to let you know how much I have been enjoying my Light Bicycle wheelset - they are awesome! I have a season of hard riding on them, and they are holding up great! They are light, stiff and fast! Everything I was hoping for! They also look AMAZING! The stickers matched up very well with my bike - I love my Light Bicycle wheels! I will be in the market next year for a set of Cyclocross wheels, and I am definitely coming to Light Bicycle for them!
Canada
1

COMMENTS

N

neil 2018/03/14

I'm after a xc923 wheelset suitable for an RS-1 fork (dt swiss 240), 12x142 rear, 6 bolt, whats the price plus delivery times on these to new zealand


LightBicycle 2018/03/14

Hi Neil, We have DT Swiss 240s PS hub to match with your RS-1 fork. We sent the quotation for this carbon wheelset to your email address. Have you got it? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Anon 2018/01/29

Hi, Can these be built up using a 32-hole Shutter Precision PD-8 Dynamo Hub 9x100mm? Could I buy three wheels total (one pair built on DT240S, one front wheel on the custom hub)?


LightBicycle 2018/01/30

Hi Anon, Yes, we can build our wheel with the hub you mentioned. Will you send us the SP PD-8 hub or you need us to purchase it? Then we can quote accordingly for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Marek 2018/01/10

Hi, can you special order Extralite Hyperboost hubs for a custom built wheelset?


LightBicycle 2018/01/11

Hello Marek, Thanks for your inquiry. We can get the Extralite Hyperboost hubs for you. However, the lead time for the hubs are around 2 months. Is it too long for you to wait for the wheels? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Mauro 2017/12/14

Dear, Could I get a quote for the following: Rims: 29er, XC923, 28h, UD, matte, orange decal, w/ valve stem, w/ rim tape Front/Rear Holes: 28 H Freehub Body: Shimano MTB 10/11S Spoke Head: straight pull Brake System: 6-bolt Hubs: DT 240, Black, 15x100 front, 12x142 rear Spokes: pillar aero x-tra 1420 Nipple: aluminum black Include in price Shipping, customs, tax to United States, Florida (Zip Code 33126). Questions: a) It is possible to send to China, Zhongcun town , Panyu Distric , Guangzhou City - Guangdong (Zip 511495)? what would be the cost of shipping? b) You have a store on the AliExpress.com? Best regards! Mauro


LightBicycle 2017/12/15

Hello Mauro, For tax, it is different for different country. We do not take charge of tax cost, so not sure how much you have to pay. But we can declare the value lower, then you do not have to pay high tax cost. Please let us know the value you expect us to declare, then we will do accordingly. It is okay to ship to Guangdong China. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Tony 2017/12/08

Hi,what type of carbon wheel set would you suggest for me I race in cross country events in new zealand.


LightBicycle 2017/12/09

Hello Tony, Thanks for your inquiry! We have 29er 27mm wide standard/flyweight rim and 28mm wide asymmetric rim for XC riding. May I know your weight? Do you ride aggressively? Then we will do some recommendations. DT 240S hubs and Sapim cx-ray spokes are the lightest hubs and spokes we have here. Does that work for you? What hubs axle size for front and rear? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

adamparpi 2017/07/11

Good afternoon, I wanted to know if the cost I see refers to the front and rear pair, possibly for shipment can be done with an express courier, if I buy a pair there is a further discount? Thank you


LightBicycle 2017/07/12

Hi Adam, Thanks for your inquiry! Currently, we have 3 delivery ways for 1 pair wheelset to Italy as below. Which one do you want? EMS delivery cost: USD78, it will take 5~10 days. DHL delivery cost: USD198, it will take around 5 days. TPD delivery cost(pre-paid): USD155.9, it will take around 5~12 days. You will not have pay the tax or VAT cost. Which do you prefer? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

D

Doug 2017/04/17

Hi there, Can you give me a rough price to ship a wheel set to Austraila? Cheers!


LightBicycle 2017/04/18

Hello Doug, Thanks for your inquiry. The delivery cost is $58 USD for one wheelset to Australia by EMS. Are you interested in XC923 wheels? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Anthony 2017/04/04

Hi - Can you get the DT Swiss Predictive Steering hub (for RS-1 fork?) If so how long is the time to wait? 28hole, Straight pull. Rear - 142x12, DT240, XD DRiver body. XC923 rim.


LightBicycle 2017/04/05

Hello Anthony, Thanks for your inquiry. We have DT 240S straight pull predictive steering hub for RS-1 fork. UD matte 28H XC923 rims are in stock and wheels will ship within 3 business days. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Martin 2017/01/07

Hi I dont know much about wheels. I know I have a 100mm x15mm axle at the front, a 142mm x 12mm axle at the rear and 6 bolt disks. I am looking for a set of 29er carbon wheels for XC racing. This is what I have selected, can you give me your opinion if everything looks like a good choice or you would have another suggestion?; WM29C25 Front axle:15 / 100mm Rear axle:12 / 142mm Freehub body:SRAM XX1 Brake system:6-bolt Front holes:32H Rear holes:32H Spoke head:J-bend Hub Color:Red Hub Brand:Hope Hub Model:Pro 4 44T Version:XC923 Spoke:Sapim CX Ray Nipple:Aluminium Black Finish:matte Weave:UD Decal:red Valve Stem:Add Valve Stem Tubeless Tape:None Thanks Martin


LightBicycle 2017/01/09

Hello Martin, Thanks for your inquiry. Our 28mm wide 29er wheelset (WM29C25) is designed for XC riding and suitable for you riding. If you are ready to order, we can create the invoice accordingly for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

Rean 2016/12/29

I'm interested in the XC923, DT Swiss 240 boost hubs, 32 hole, center lock. Will the DT 240 center lock boost hub be available in January? Is the cost similar to the AM928 at $1131/set?


LightBicycle 2016/12/30

Hello Rean, The DT 240S J-bend center lock boost hubs will be available at the end of January 2017. Does that work for you? Thanks, Lightbicycle


REPLY

Please leave your name here.
