If you are interested in purchasing any of these archive items, please fill out the form below with the necessary details. We will get back to you as soon as possible with availability and pricing information.

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.


RIM SPECS

  • Model RM26C03
  • Material Toray T700 & T800 Premium Carbon Fiber
  • Size 26" (ETRTO 559mm)
  • Series RECON
  • Intended Use All Mountain/Enduro
  • Bead Type Hookless
  • Tubeless Capable Yes
  • Inner/Outer Width 27mm/33mm
  • Depth 30mm
  • ERD 515mm (not including nipple head dimension)
  • Rim Weight AM 385+/-15g, HD440+/-15g
  • Profile Symmetric (0mm)
  • Max Cyclist Weight (on flat ground) 135kgs/ 298lbs
  • Spoke Hole Angle ±6°
  • Spoke Tension 115~130kgf front disc side and rear drive side
  • Max Tire Pressure 35psi/ 2.41bar
  • Recommended Tire Width 2.1" ~ 2.7"

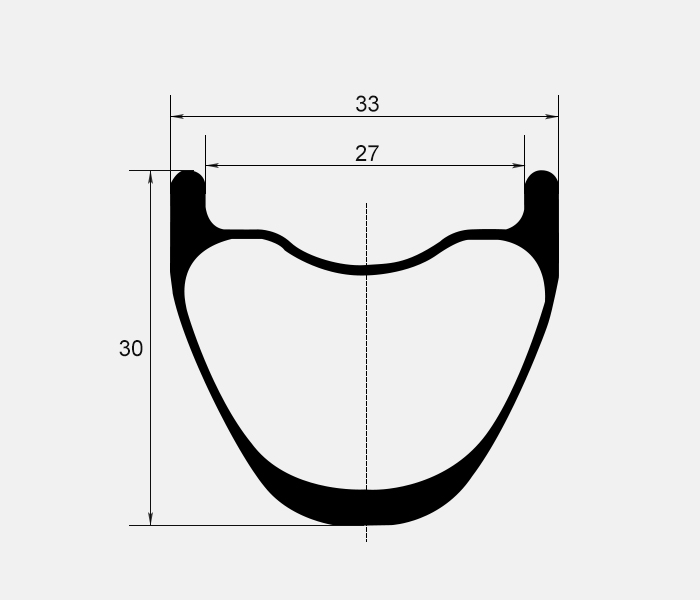

MTB carbon rim profile

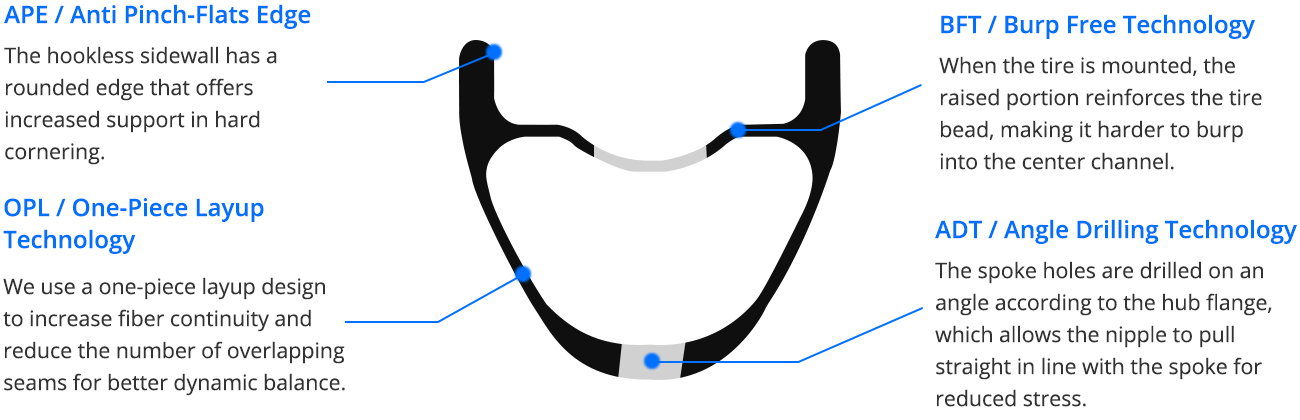

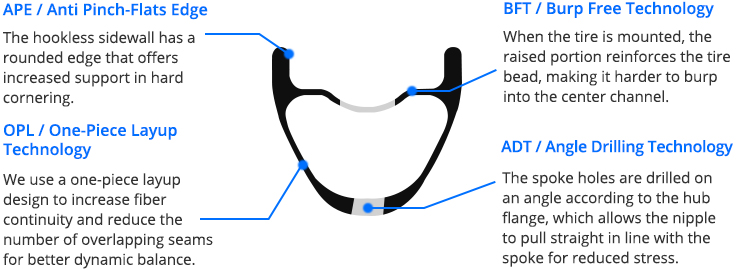

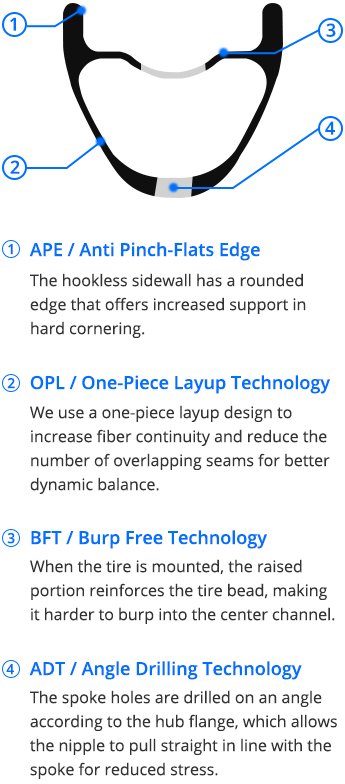

TECH

With a stable 27mm inner width, U-shaped profile, and strong hookless design, the AM627 (RM26C03) provides an incredibly durable platform.

Versatility is the name of the game. The rim mounts 2.1” to 2.5” tires and tackles a huge range of terrain - all with the playfulness that only a 26” bike can provide. The EN layup has an extra wrap of 3k carbon fiber around the nipple bed, reinforced sidewalls to support G-out forces, and increased rim stiffness, increasing suitability for aggressive riders over 200 pounds. The AM627 features our new U-shaped profile, bead seat bumps, and a tubeless ready setup that is up for whatever the mountain brings.


Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>


WHAT IS IN THE BOX


Overview

Specs

Tech

Warranty

In The Box

With a stable 27mm inner width, U-shaped profile, and strong hookless design, the AM627 (RM26C03) provides an incredibly durable platform.

Versatility is the name of the game. The rim mounts 2.1” to 2.5” tires and tackles a huge range of terrain - all with the playfulness that only a 26” bike can provide. The EN layup has an extra wrap of 3k carbon fiber around the nipple bed, reinforced sidewalls to support G-out forces, and increased rim stiffness, increasing suitability for aggressive riders over 200 pounds. The AM627 features our new U-shaped profile, bead seat bumps, and a tubeless ready setup that is up for whatever the mountain brings.

Gallery

light-bicycle-rm26c03-installed-on-a-kona-caldera
Alex : Keeping the old 26er alive with a set of Recon rims laced on some hope pro 2 hubs. Can not wait for the first ride on these!
UK(Britain)
1
light-bicycle-rm26c03-moto-g3-review-mixed-depth-cargo-bike-wheelset
Timothy : RIM-R: RM26C03 490 UD Matte 32H External Hole With Drain Holes With Access Holes RIM-F: Moto G3 450 UD Matte None 32H External Hole With Access Holes Presta HUB-F: Hope Pro 5 Black QR / 100mm J-Bend 6-Bolt 32H HUB-R: Hope Pro 5 Black QR / 135mm J-Bend 6-Bolt 32H 54T Shimano MTB 10/11S SPOKE: Sapim Race Black J-bend NIPPLE: DT Swiss/ Sapim Brass Black Universal External
Canada
1
light-bicycle-rm26c03-all-mountain-carbon-wheelset-laced-to-green-onyx-hubs
Hou : RIMS: RM26C03 All Mountain 3K Glossy 32H External Hole With Drain Holes With Access Holes HUB-F: Onyx Classic Anodized-Green Lefty 1.0 J-bend 6-bolt 32H Ceramic HUB-R: Onyx Vesper Anodized-Green QR / 135mm J-bend 6-bolt 32H NBK Sprag Clutch Shimano MTB 10/11S Alloy SPOKE: Sapim Race Black J-bend NIPPLE: Sapim Aluminium Black External
China
1
light-bicycle-rm26c03-26-inch-oil-slick-mtb-wheels
Light Bicycle : RIMS: RM26C03 All Mountain UD Glossy Crystal Painting 32H External Hole No Drain Holes With Access Holes HUB-F Customized 32H HUB-R Customized 32H SPOKE Oil Slick J-bend Oil Slick J-bend Standard Head NIPPLE DT Swiss/ Sapim Aluminium Black Universal External
1
26er-mtb-in-seven-gravel-race
Kurt : I’m a long time mtb fan, but have been expanding into other disciplines over the last few years. On the 13th May 2023 I raced at the Seven Gravel Race in Nannup, Western Australia, and placing 17 out of 99 finishers in my category (male; 40-44). Cool thing is I did it on a 26 mtb!
Australia
1
RM26C03-26er-ud-satin-gold-I9-hydra-hub-silver-nipple-carbon-wheelset
Light Bicycle : Rims: RM26C03 UD Satin 32/32H Tubeless-Ready Heavy-Duty Version Hubs: Industry Nine Hydra 20/110mm Non-BOOST J-bend 6-bolt Gold Industry Nine Hydra 10/135mm 6-bolt J-bend Gold 690T Single Speed Spokes: Sapim Race J-bend Silver Nipples: Sapim Brass Silver Polyax Secure Lock External Weight: 1726.76 grams
2
-Tomac-Snyper-full-suspension-mtb-fox-36-front-fork-shimano-deore-xt-groupset-lb-mtb-26er-carbon-rims
Daryn : Rims: RM26C03 Bike: Tomac Snyper
United States
1
David : The wheels arrived last Tuesday, quick service. They are really beautiful, well finished and true. I had to buy different valves, the Stans 35mm valves are too short for the deep rim and I now have 44mm valves.Here is a photograph of the bike now, I love the three levels of carbon weave, frame, fork and wheel.The wheels have made a big difference, the bike is smoother over rough ground and turns better.
Australia
1

View More Reviews >>

COMMENTS

D

Debbie 2021/04/15

Hi, how well do these rims fare under direct sunlight? Is it safe to let the bike (with the rims) stand in the sun for an extended period of time? What about leaving it in a black car in the Sahara desert at noon? Can you please clarify how resistant they are to heat? I suppose cold is not an issue?

LightBicycle 2021/04/15

Hi Debbie, The rims will deform or damaged if near heat sources like fire, exhaust pipes, etc. Putting the rims under the sun won't be a problem. It will absorb heat, yes, but won't affect the character of the rim itself per se. What would be the environment temperature exactly do you likely put the wheels? Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

P

Pete 2021/03/18

Can you please clarify whether the core of the provided valves is removable?

LightBicycle 2021/03/18

Hi Pete, Yes, the decals around the valve core is removable. The decal is sticker type. Of you can leave a message to us so we don't apply it to your rims in the first place. Or, we can pack the decals separately so you can apply it yourself. Let me know how you like to proceed so I can help. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

K

Kevin 2020/06/13

I want to order some 26 rims from you and I plan on using the for bmx racing and dirt jumping. I know I want the HD version but my concern is I run my tires at 60-65psi and I also weigh 195 pounds. What rim do you offer for this application.

LightBicycle 2020/06/13

Hi Kevin, What 26er tires are you planning to run? We can special made reinforced version on the HD version basics. Dirt jumps would require much stronger rim, especially for the rear. I would suggest rims with hook bead design for you since you plan to run with 60-65psi. Will it work for you? The RM26C02 26er bike rim is with 23mm internal, 30mm outer width. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

F

FRANK 2020/05/08

Hi quick question. Im looking to order this 26 inch rim. Could i use the rest of the hardware (spokes, hubs and stems) from my existing rim? Best regards

LightBicycle 2020/05/08

Hi Frank, It is okay to use our 26er rims on your current hubs. But for spoke, maybe the spoke length has to be different, then you will have to use new spokes/nipples. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

B

Brendan 2019/10/21

I am considering the RM26C03 AM or RM26C03 HD (maybe AM front / HD rear?) for my 4X bike that I mainly use at the BMX track. I need to pump my tires to at least 60 psi - will that be a problem with these rims? I have a set of Enve M90s on another build and I always pump them even higher than 60 psi (with inner tubes) and never had any problems. Please advise, thanks!

LightBicycle 2019/10/22

Hi Brendan, Is it your BMX bike 24" or 26"? Then we can check which bike rims are better for you. We have 24" BMX downhill rims/wheels here. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

D

Dmitry 2018/09/15

Hello I want to use your rims for dirt jumping, because they are light and stiff enough for my riding style, i suppose. But one question left: I will use rim with tubes, and usually I ride 65-70 psi in my tyres. Won't your rim brake under this pressure? i'm 70 kg and have technical riding style. If it will break, will you make some special rims for dirt jumping and pump track in the future? I think they will be popular! Thank you in advance.

LightBicycle 2018/09/17

Hi Mitya, For the RM26C03 (MTB rim, 33mm wide), The hookless version and only OK for the tire pressure under 40psi. There is gravel 650b rim(RG722,29mm wide, 36mm deep) ) here. Is 650b size OK for you? RG722 is OK for 65-70 psi. You can check out more about the rim at https://www.lightbicycle.com/Disc-650B-gravel-rims-29mm-wide-36mm-deep-tubeless-for-cyclocross-and-gravel-bikes.html We will discuss more with you by mail. Please do remember to check your inbox. Thanks,

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

P

Paco 2018/05/27

I prefer to wait until you got this rims in Euro warehouse. As I read, shipping from this warehouse is free, instead $90 from China warehouse. Best regards

LightBicycle 2018/05/28

Hi Paco, I will let you know when RM26C03 is stocked in EU and quote for you. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Callan 2017/12/28

Hi Team, I'm a big fan of your wheels , and currently run the RM26C03 (33mm width / non HD). I'm looking to fit Schwalbe Procore to protect the rims and run lower pressures without burping the tyres. Have you done any testing of Procore on these rims, and are they able to take 6 bar of pressure? Thanks, Callan

LightBicycle 2017/12/28

Hello Callan, Thanks for your support. For the Procore system, we do not have a lot of testing information on it, but so far the customers we've heard from say it's working. Personally, I think our 33mm rims do not have tire burping issues. The larger issue is with g-outs, not impacts from too low of pressure (generally speaking), so I am not sure if Procore is super beneficial. For inner chamber, it can work with 4-6 bar. It will be better if you go with 4bar. For outer chamber, you can try 0.8-1.5 bar. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

crabby 2017/08/08

What is the tire size for the listed max pressure? Interested in running these rims on a dirt jump bike for cruiser class BMX racing, and hoping to get closer to 65/70psi. Is that possible?

LightBicycle 2017/08/09

Hi Crabby, For all our mtb rims, it can hold to 75psi. The rim strength is okay. But we are worring the tires will blow out if you ride around 65/70psi while cornoring. It is better to ride less than 40psi on these rims. Is your bike BMX? We only hear about 20" BMX bikes. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

I

Ivan 2016/04/02

Hello, I currently own a pair of Industry 9 Torch Trail 32h 26in Alum and I'm looking to swap the rims to wider carbon rims. I like the Torch hubs and color spokes and was wondering if I can still use the same spokes with the RM26C03 rim. I don't know enough about what the correct spoke lenght is. The Torch Trail rims are 534mm ERD and I think the spokes length 266mm (I think). Thanks!

Light-Bicycle 2016/04/05

Hello Ivan, Thanks for your inquiry. Sorry for the late reply. We were on vacation last 3 days. For our RM26C03 rim, it is with 515mm ERD. For spoke length, it will be also different if the lacing is different. So, you can check below link to get correct spoke length. http://www.prowheelbuilder.com/spokelengthcalculator/ You only have to fill in rim ERD:515mm, and choose the hubs and the lacing pattern you like. Then you will get the spoke length. Thanks, Lightbicycle

J

Jeff 2017/06/12

Ivan, did you ever find a wider carbon rim that would work with your existing I9 Torch hubs and spokes with the 534 ERD? If so, do you mind telling me which ones you found? Thanks!

LightBicycle 2017/06/13

Hi Jeff, If you use the 26er downhill riding, I recommend you 38mm wide 26er heavy duty rim which is more durable and specially designed for downhill riding. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

F

francois 2017/04/14

Hello, Your RIM ar only with valve PRESTA (small valve) ? it is possible with valve SHRADER (big valve) ? thank's for your response.

LightBicycle 2017/04/14

Hi Francois, Thanks for your inquiry. Normally, our rim is drilled with PRESTA valve directly, but we can manufacture the rim with SHRADER valve for you also. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Martin 2017/03/27

Hey LB, i was wondering if the RM26C03 will come with angled holes? Thanks, Martin

LightBicycle 2017/03/28

Hello Martin, Thanks for your inquiry. Yes, the RM26C03 is drilled with angle hole ( /-6 degree). Picture attached for your reference. Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

P

Pepe 2017/01/23

Hello, is possible to pay customs fees in advance? Best regards

LightBicycle 2017/01/24

Hello Pete, Thanks for your inquiry. For XDB delivery, the tax is pre-paid. Normally, the delivery cost is $140 for two rims to Spain by XDB delivery, then you don’t need to pay the tax. Thanks, Lightbicycle

P

Pepe 2017/01/24

I want only one rim: All Mountain 28h UD No decal No valve No tubeless tape. Is possible to pain all the rim in Pantone 388C color? Best regards

P

Pepe 2017/01/24

Also I need -16 Sapim CX Ray straight pull black in 265mm -16 Sapim CX Ray straight pull black in 263mm -32 aluminium black nipples Got you for sale? Best regards

LightBicycle 2017/02/09

Hello Pete, Thanks for your inquiry. For XDB delivery, the tax is pre-paid. Normally, the delivery cost is $140 for two rims to Spain by XDB delivery, then you don’t need to pay the tax. RM26C03 (33mm width): 385 /-15g, $170/pcs Chinese New Year vacation is coming (from 25th Jan ~ 4th Feb). If you place the order recently, we will arrange manufacturing when we get back to office. Sorry to keep you waiting. Thanks, Lightbicycle

LightBicycle 2017/02/10

Hello Pepe, Sorry for the late reply. We were on Chinese New Year vacation in the last 10 days and just get back to office today. It will be great if you reply via email. Then we are able to create the purchase link based on email record once you are ready to order. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

L

2016/10/26

I can not make a wheelset with 26c03 AM rims on the website. Can you help me with a proposal to build and price if I want to build a wheelset with this rims

Light-Bicycle 2016/10/26

Hello Sir, Hello Gue, Thanks for your inquiry. We can build the 33mm wide 26er wheels for you. We have Hope hubs, DT Swiss 240S and 350 hubs. Which do you prefer for wheelset? Then we can quote accordingly for you. Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

W

Winston 2016/04/24

Hi. I am planning to buy the heavy duty version of this RM26CO03. Please let me know the ERD of the heavy duty carbon rim so I can determine the right length os spokes. Thank you

Light-Bicycle 2016/04/25

Hi Winston, For the RM26CO03 with heavy duty, the ERD is 515mm. We will add more carbon materials to the wall thickness to reinforce the heavy duty version. The ERD are the same for the AM and HD version. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
