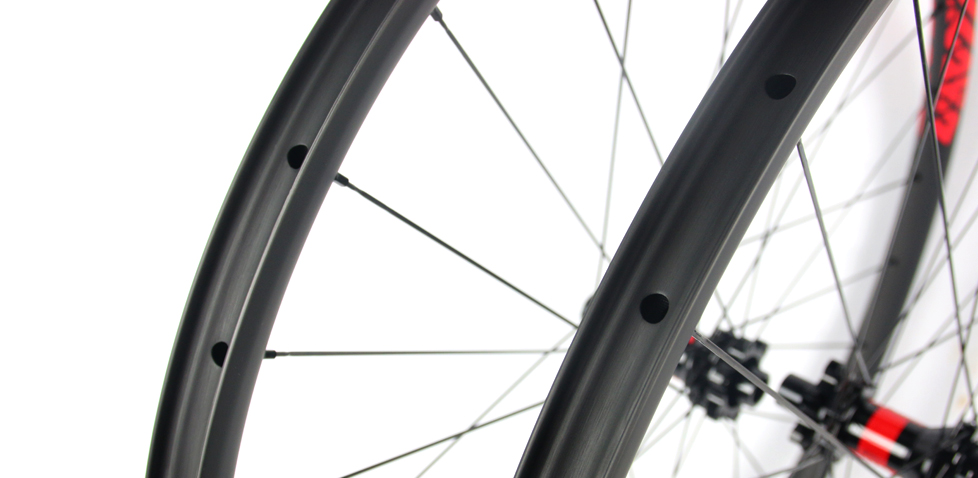

beadless carbon 29er XC light weight mtb tubeless wheelset hand-built 27mm wide

INTERNATIONAL

Ships from China to worldwide destination. Contact us if your location is not listed.

Ships from Canada/United States warehouse to North American countries only. Contact us if you have special requests.

  • 1

    HUB

  • 2

    SPOKES/NIPPLES

  • 3

    RIM

  • 4

    ACCESSORIES

  • 5

    OVERVIEW

HUB

Hub Brand This is a required option.

DT SWISS 240S

DT SWISS 350

Hope Pro 4

Model Weight POE Cost Reliability Quality Unique Feature Color Options Warehouse Location Website
Hope 487g 44 6 6 7 Easy service Six China HOPE
DT 350 477g 18/36/54 7 8 7 Reliability, value One China DT SWISS
DT 240S 395g 18/36/54 3 10 9 Quiet and reliable (18t option) One China DT SWISS
Industry Nine 440g 120 3 9 9 Loud, engagement Eleven North America INDUSTRY NINE
Onyx 623g Infinite 2 9 9 Silent, sprag clutch Twenty Three+ (Custom Available) North America ONYX

* For the rank: 1 Worst, 10 Best.

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

Front Axle This is a required option.

15 / 100mm

15 / 110mm BOOST

15 / 110mm RS-1

20 / 110mm

Lefty 1.0

QR / 100mm

Front-hub-axle

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

Rear Axle This is a required option.

12 / 142mm

12 / 148mm BOOST

12 / 150mm

QR / 135mm

Rear-hub-axle

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

Freehub Body This is a required option.

Shimano MTB 10/11S

Shimano Micro Spline XTR

Sram XD

Sram 9/10 speed and Shimano MTB 9/10/11 speed cassettes use the same Shimano Freehub.

The new Shimano XTR M9100 cassette uses the splined freehub.

Only the Sram 11/12 speed cassettes use the Sram XD freehub driver. SRAM has XX1, XX1 Eagle, X01, X01 Eagle, X1, GX, GX Eagle which all use the Sram XD freehub body.

If you are unsure, please contact us and we'll reach out to confirm your order.

Spoke Head This is a required option.

straight pull

J-bend

J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes

Brake System This is a required option.

6-bolt

Center lock

6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt. If you need the conversion kit, please contact us.

Hub Color This is a required option.

Black

Blue

Orange

Red

Front Holes This is a required option.

28H

32H

Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

Rear Holes This is a required option.

28H

32H

Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

Ratchet This is a required option.

18T

36T

44T

54T

DT Swiss hubs use star ratchets and are available in 3 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

Spoke This is a required option.

DT Swiss Competition Race

Sapim CX Ray USD +87

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

Nipple This is a required option.

Aluminium Black

Aluminium Red

Brass Black

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Version This is a required option.

Standard

Flyweight USD +107

Version RM29C06 Standard RM29C06 Flyweight
Weight 360+/-15g 280+/-15g
Material Toray T700 Toray T800 and T700
Layup Standard Layup New layup for weight saving
Warranty -15 months warranty
-15 months crash replacement
with 10% discount
-15 months warranty
-15 months crash replacement
with 10% discount
Max Weight 100kg 90kg

Finish This is a required option.

glossy

matte

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Weave This is a required option.

12K

3K

UD

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

Decal This is a required option.

stealth

blue

green

magenta

orange

red

yellow


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Valve Stem This is a required option.

None

Add Valve Stem USD +7

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

Tubeless Tape This is a required option.

None

Add Tubeless Tape USD +6

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

beadless carbon 29er XC light weight mtb tubeless wheelset hand-built 27mm wide

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks

Non-Stocked, typically ships within 1-2 weeks

Recon Pro orders start shipping in October.

- + Pair

Weight: 720.00g+/-25

Final total: USD 588.00+(3.5% paypal fee included)

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

RIM SPECS

  • Size 29er
  • Use Cross Country
  • Type Hookless
  • Tubeless Ready
  • Inner/Outer Width 22mm/27mm
  • Depth 24mm
  • ERD 593mm (not including nipple head dimension)
  • Weight Flyweight 280+/-15g, Standard 360+/-15g
  • Offset 0mm (symmetric)
  • Weight Limit Flyweight 90kg, Standard 100kg
  • Spoke Hole Angle ±5°
  • Spoke Tension ≤145kgf recommended
  • Tyre Pressure ≤35psi recommended
  • Tire 1.9" ~ 2.3" recommended

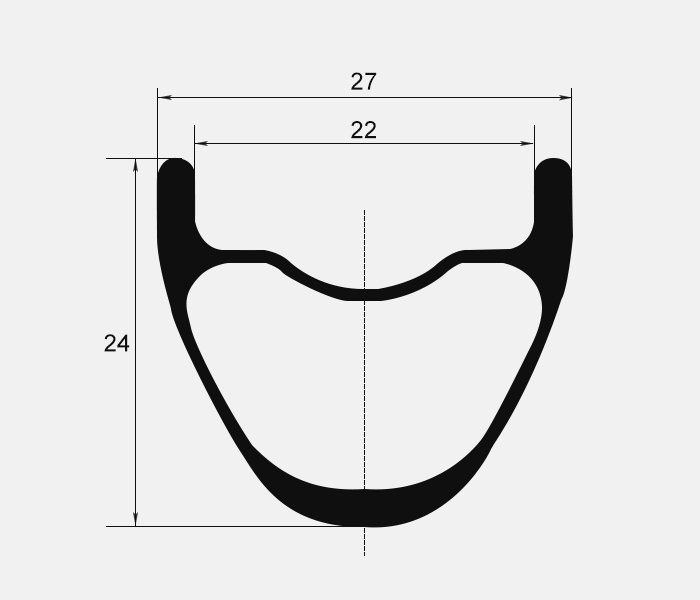

MTB carbon rim profile

Teleport to the rim page.

The Flyweight is a new series of wheels from Light Bicycle. Targeted specifically towards racers who seek every possible edge on the race course. Our goal was to produce the lightest possible wheels without sacrificing performance.


Drawing on our engineers’ years of experience and countless revisions in each step of the manufacturing process, we are able to produce a strong and stiff XC wheel while dramatically reducing the weight.


Construction: We used a special uni-directional pre-preg with a very low fiber areal weight. This is an exclusive process to our Flyweight rims. To further reduce the weight we used a blend of Toray T700 and T800 specific layups. We opted for a new subtle ultralight waterslide graphic in glossy black with a matte finish overtop in the spirit of keeping these as true cross country race oriented rims.

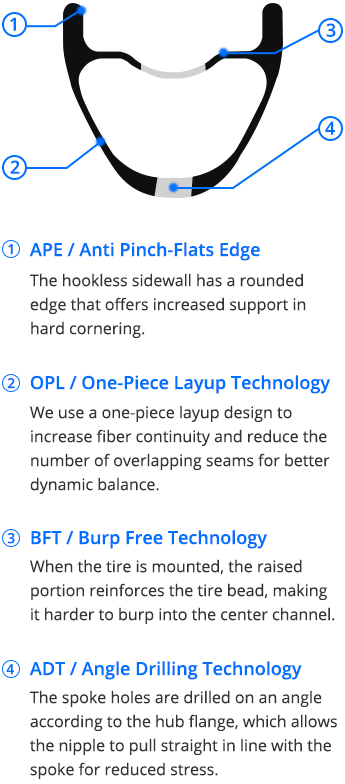

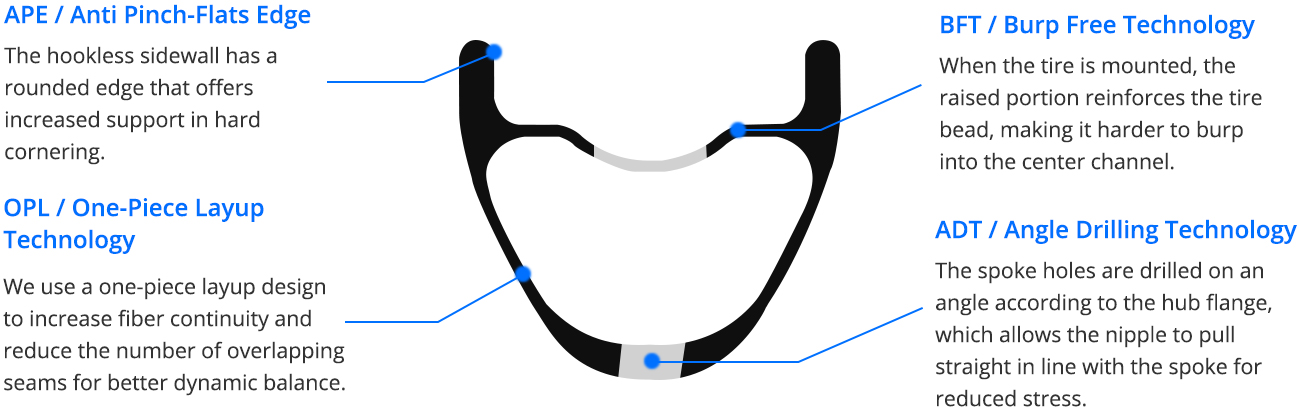

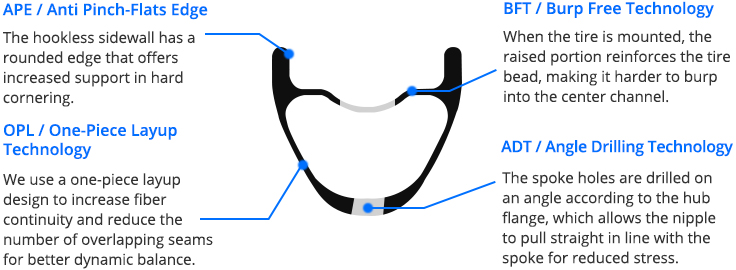

Hookless: Carbon fiber flows continuously over the bead area to provide the best impact resistance and a significant strength increase compared to a clincher rim.


Manufacturing process: Our air bladders are made from a special material which produces smoother walls, result in a lighter rim, and are completely removed without harsh chemicals. They are removed through the valve hole with a unique process so that the rim does not have to be patched like traditional manufacturers use. This significantly improves the strength of the rims. Read More about our process


Hand-Built: Each wheelset is painstakingly built by hand to tension within 5% variance. Each spoke's tension rating is recorded in our system, as is the roundness and lateral tolerance.


Angled Holes: Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress. This results in fewer broken spokes and nipples.


U-Shape: U-shape profile spreads the force of impacts and creates a more robust product.


Tubeless: While the rims are optimized for a tubeless setup with the addition of tubeless tape, they also work with tubes.


Material: Standard: Constructed with premium Toray T700 carbon fiber. The good strength to weight ratio with no expense spared.
Flyweight: Hybrid construction of Toray T800 and T700 was used to reduce wall thickness in key areas while enhancing the overall rim stiffness. These rims are available with the UD material only due to the strict standards required to produce the Flyweight model. We used a lower FAW (fiber areal weight) and a thinner prepreg to achieve a more adjustable layup schedule design which reduces the stress between the layers of carbon fiber.


Lightweight: Standard: It is the light one around our current 29er rims, the good choice for lightweight 29er wheels & bike.
Flyweight: It is a new series of rims from Light Bicycle. Targeted specifically towards racers who seek every possible edge on the race course. 280 grams only!


Precise layup: Standard: Each rim carries its own layup schedule documents which are followed meticulously by the layup workers. Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim.
Flyweight: New layup design at the nipple bed to reduce the amount of material required and reinforce the key area around the spoke holes.


For Non-Pro Series Rims: From the date of purchase, 15 Months Warranty
For Pro Series Rims: From the date of purchase, 3 Years Warranty. Light Bicycle is pleased to offer the options to purchase an extended 5-year Premium warranty or lifetime Premium warranty with minimum charge respectively.

Crash Replacement: It is applicable with the same period as to warranty time range that you purchased for the rim in terms of 15-month/ 3-year/ 5-year/ Lifetime, with 10%+ discount subject to rim model.

Know more about the warranty policy >>

Gallery

Jeff : I have 7000km on these wheels now, great build quality, and nice wide support for my 28mm tyres
Australia
1
Tomas : My final look - custom stickers :-)
Czech Republic
1
Luke Sosnowski : Hi,Attached is a picture of the bike with the wheels purchased from your company, after about eight races.I am very happy with the wheels, and have recommended them to several people who asked about them.Regards,Luke
USA
3
Todd Garten : I had them built up and installed this evening and took them out for a night ride tonight. The stability is crazy good on these bad boys! Thanks for all of your help!
USA
3
Timo Kiiveri : my bike tuned.
Finland
1
Rich Weinstock : build complete. 18.4 lbs as pictured. Superlight, durable (no "weight weenie" parts), pro-level XC hardtail. 2014 Scott Scale 900SL frame, Sid World Cup fork, XX1, raceface next SL crank, magura MT8 brakes, ritchey WCS / Superlogic cockpit....
USA
1

COMMENTS

P

Patrick 2018/04/10

Any chance you will be making a flyweight XC rim that has a inner diameter of 25 with a outer of 30 or so? This seems to be where DT Swiss and Enve are going with there light race wheels. if you made this I would order it tomorrow! Patrick


LightBicycle 2018/04/10

Hi Patrick, We have RM29C19 with 24mm inner/30mm outer width, will this work for you? https://www.lightbicycle.com/U-shape-29er-rim-30mm-wide-hookless-MTB-bike-carbon-rims-tubeless-compatible.html Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

E

Esteban 2018/03/07

When you refer to maximum weight for the standard and flyweight versions, are you considering the combined weight of rider and bike or only rider?


LightBicycle 2018/03/08

Hi Esteban, The max weight is referred to the rider. Note that RM29C06 is intended design for XC racing . May i know your weight and riding style please? Then we can check whether it is strong enough for your riding or not. Thanks, Lightbicycle


F

Fritz 2018/10/13

Same question I am 175 Ride trails that are sometimes rough Thinking flyweight with 32 hole rims What do you think?


LightBicycle 2018/10/15

Hi Fritz, For the max weight limit, it's 100kg on standard rim and 90kg on flyweight rim. So, the flyweight wheels is OK for your weight and riding. The 32H wheels will be slightly stronger than 28H. The 32H wheels is also 40g roughly added compared to 28H wheels. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

SB 2017/11/25

I have a 2017 cannondale Scalpel with the newer Lefty 2.0. just wondering which front hub you would recommend to build on the Flyweight rims? thanks


LightBicycle 2017/11/25

Hi sir, Do you want front wheel only or do you like complete wheelset? Then we can quote accordingly for you. Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

B

bobo 2017/07/14

will the XX1 freehub accept the XO 12 speed cassette ?


LightBicycle 2017/07/14

Hi Bobo, All Sram 9 or 10 speed cassettes are with Shimano freehub style. Only the Sram 11/12 speed cassettes use the Sram XD freehub driver. Sram has X01, XX1, X1 which all use the Sram XD freehub body. Do you mean Sram 12 speed cassettes? If yes, Sramxx1 is compatible with Sram 12 speed cassettes. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

B

brian 2017/06/09

Ship date & origin location for a set of 29" MTB wheels [29C06]?


LightBicycle 2017/06/09

Hello Brian, Thanks for your inquiry. We have 28H and 32H rims in stock. It will be fast to build wheels. What hubs do you like for wheelset? Then we can check on the lead time accordingly. All our wheelsets are built in China currently. We also have US building line currently. Which country are you from? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Thomas 2017/06/06

Hello there - are you able to supply/build these wheels with the Hope single speed rear hub at all ? Thanks, Thomas


LightBicycle 2017/06/07

Hello Thomas, Thanks for your continued support. We can build the rear wheel with Hope pro4 single speed hub. Are the hubs with front 15*100mm/ rear 10*135mm single speed? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

W

William 2017/03/29

Hi, I have a 2014 Cannondale team scalpel carbon with Enve XC 29er carbon rims. I shattered the rear rim and need a replacement rim. I am looking for the hoop only. I am looking at your 29c06 rim. Is this the closest rim you have to my current Enve? I only need the hoop to repair my wheel. Do you sell just the hoop and what is the cost?


LightBicycle 2017/03/30

Hello William, Thanks for your inquiry. Our RM29C06 rim is designed for XC riding and will work with your bike. It is okay to buy the rim only. Normally, you need to get some new spokes also, because the rim ERD is different, so the spoke length will be different. RM29C07 (27mm width): 360 /-15g, $165/pcs Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

E

Ed 2017/02/16

I don't see an option to choose different hubs other than the Hopes. Is the price the same for DT350 and Hope hubs? 28 hole, 6 bolt IS, J bend, 15x100 FW, 135 QR RW, Shimano compatable 10 speed freehub. Thanks Ed


LightBicycle 2017/02/17

Hello Ed, Thanks for your inquiry. Hope and DT Swiss hubs are available. But there are not all axle or QR options on our website. Sorry for the inconvenience. Please find our quotations as below. All pricing in USD. -WM29C06 (with Hope pro4 hubs, Sapim cx-ray spokes): $867/pair -WM29C06 (with DT 350 hubs, Sapim cx-ray spokes): $767/pair Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

B

B5000 2016/08/31

Hi Light Bicycle Staff, I have a question- I was looking at your 29er XC 27mm wheelset for use on my cyclocross bike and using 33-38mm cyclocross tubeless tires. Would this work? Best, B5000 葉伯榮


Light-Bicycle 2016/09/01

Hello Mr. Ye, Thanks for your inquiry. The recommend tires width for RM29C06 rim are 1.9’’-2.3’’. The 22mm internal width mountain bike rim is a bit wide for those tires. I am more concerned about the higher pressure when using road tires as the 22/27mm rims are hookless and made for lower pressures (up to 40psi riding pressure). I would go with the 25mm deep or 35mm deep u-shaped road rims tubeless compatible. The internal width is about 18mm which would work well with 33C-38C tires or narrower tires. The clincher bead will handle the pressure better. Some customers prefer the 35mm deep for the back wheel and 25mm deep in the front wheel for weight savings. Also, we are able to manufacture the road rims without brake tracks for disc bike. Does that work for you? Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

mike 2016/08/31

Have you had any issues with burping or the tire falling off the rim with the hookless setup? specifically with tires that are tubeless ready? Thanks


Light-Bicycle 2016/09/01

Hello Mike, There is zero issues of holding tires for hook-less rims. The rim is without bead hook, it is ok to hold tubeless and tubeless-ready tires. The rim wall is more smooth and straight, and the tire will touch rim walls fully and mounted perfectly. We have sold lots of hookless rims to customers. I am sure that you will like it. Rim profile attached for reference. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
