Build Your Recon WHEELSET RM29C07 All Mountain/Enduro

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy rim only

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Hub Brand This is a required option.

Model	Weight	POE	Cost	Reliability	Quality	Unique Feature	Color Options	Warehouse Location	Website
Novatec	287g	27	Low	Good	Good	Inexpensive	Three	China	NOVATEC
Bitex	258g	24	Low	Good	Good	Light	Two	China	BITEX
DT 350	374g	18/36/54	Low	Better	Good	Quiet and reliable (18t option)	One	China	DT SWISS
DT 240S	317g	18/36/54	Medium	Best	Best	Quiet and reliable (18t option)	One	China/N.A.	DT SWISS
DT 240 EXP	299g	EXP 36	Medium	Best	Best	Quiet and reliable (EXP 36 )	One	China/N.A.	DT SWISS
DT 180	290g	EXP 36	High	Best	Best	Super Light, EXP 36	One	China/N.A.	DT SWISS
Chris King	326g	45	High	Best	Best	Rebuildable bearings	Nine	China	CHRIS KING
Industry Nine	327g	60	Medium	Better	Best	Loud, engagement	Eleven	China/N.A.	INDUSTRY NINE
Onyx	434g	Infinite	High	Better	Best	Silent, sprag clutch	Eighteen+ (Custom Available)	North America	ONYX
Carbon-Ti	270g	56	High	Better	Best	Extreme Light	Nine	China	Caron-Ti
ARC	332g	48	Low	Better	Good	Economic and reliable	One	China	ARC
Chosen	260g	24	Low	Better	Good	Economic and reliable	One	China	Chosen
Light Bicycle Pace-Hub	275/285g	36/48	Low	Better	Good	Economic, reliable, light	One	China	Light Bicycle
Light Bicycle Speed-Hub Gen2	295g	36	Low	Better	Good	Proprietary for Carbon Spokes Steel Bearing (upgradable to ceramic)	Two	China	Light Bicycle

Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

DT SWISS 180

DT SWISS 240 EXP

DT SWISS 350

Industry Nine Hydra

Industry Nine 1/1

Chris King BOOST

Bitex BX212F / BX212R

Hope Pro 5

Front Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

15 / 100mm

15 / 110mm BOOST

Rear Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 142mm

12 / 148mm BOOST

12 / 157mm Super BOOST

Freehub Body This is a required option.

1. Shimano Road 11S works with 11/12-speed cassette directly or 8/9/10-speed mountain cassette with a spacer(s) .
2. Shimano MTB 10/11S works with 8/9-speed directly or 10-speed with a spacer or 11-speed road cassette if one of the inner cogs removed.
3. Campagnolo (Campy) 11S works with 9/10/11/12-speed Campy cassette with no spacers required.
4. Sram XDR could run XDR (road) cassette inherently and is compatible to run mountain bike XD cassette with a 1.85mm spacer.
5. Shimano Micro Spline (MS) works with 12-speed MS cassette only.

Shimano MTB 10/11S

Sram XD

Shimano MTB 10/11S Alloy

Sram XD Alloy

Shimano Micro Spline

Shimano Micro Spline Alloy

Spoke Head This is a required option.

J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes

straight pull

J-bend

Brake System This is a required option.

6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt. If you need the conversion kit, please contact us. Our hubs are provided without rotor lockrings by default.

6-bolt

Center lock

Hub Color This is a required option.

Black

Matte Black

Matte Turquoise

Oil Slick

Orange

Red

Turquoise

Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

28H

32H

Rear Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

28H

32H

Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 4 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

24T - Made out of hardened steel as e-bike specific.

EXP 36 - With only a single spring, making the hubs faster and lighter. More precise contact makes a longer lifespan.

EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.

108T

27T

36T

54T

690T

72T

90T

EXP 36

EXP 54

Spoke This is a required option.

Brand	Model	Type	Thread Diameter (mm)	Weight(g)	Gauge	Riding Style	Available(Warehouse Location)
Sapim	Race	Double Butted	2.0 - 1.8 - 2.0	5.7g (260mm)	14G	Heavy Duty	North America, China
Sapim	D-Light	Double Butted	2.0 - 1.65 - 2.0	4.8g (260mm)	14G	Versatile	North America, China
Sapim	CX-Ray	Aero	2.0 - 0.9/2.2 - 2.0	4.4g (260mm)	N/A	Light Aero	North America, China
Sapim	CX-Sprint	Aero	2.0 - 1.25/2.25 - 2.0	5.2g (260mm)	N/A	Light Aero	China
DT SWISS	Competition Race	Double Butted	2.0 - 1.6 - 2.0	4.8g (260mm)	14G	Versatile	China
Pillar	PSR X-TRA 1420	Aero	2.0 - 0.95/2.2 - 2.0	4.4g (260mm)	N/A	Inexpensive Aero	China
Pillar	Wing 20	Aero	2.2 - 1.2/2.0 - 2.0	4.3g (260mm)	N/A	Light Aero	China
Light Bicycle	Oil slick J-bend	Single butted	2.0 - 2.0 - 1.95	6.7g (260mm)	14G	Cool color	China
Light Bicycle	LB Flyweight Carbon (Regular Edition-Bladed)	Aero	3.2-1.5/3-3.2	2.65g (SP, 260mm); 2.8g (J-bend,260mm)	N/A	Light Aero/Stiff	China
Light Bicycle	LB Flyweight Carbon (Regular Edition-Butted)	Aero	2.3 - 2/2.3-2.3	2.3g (SP, 260mm)	N/A	Light/Stiff	China
Berd	PolyLight	Rope-like	2.0-1.8	2.5g (260mm)	N/A	Extreme Light	North America

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.
DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)
Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.
Pillar Wing 20 - Pillar patented highest level of aerodynamic bladed spoke reducing potential weak spots and twisting during tensioning. Currently, they are offered in oil slick color only with increased wear and corrosion resistance.
Sapim CX Sprint-Rear drive side/ CX Ray-Other sides - This customized combo increases the rear drive side power transmition efficiency significantly while grabs superior light-weight and aero performance.
Oil slick J-bend - They are made by a qualified manufacturer in Taiwan with custom design by Light Bicycle. They are J-bend only so do not order these spokes for SP hubs you configured in the previous step.
LB Flyweight Carbon Regular Edition >> -It maximizes wheel stiffness while keeping things more aero, designed to unlimit your hub choice making your wheels more customizable than ever.
LB Flyweight Carbon Special Edition >> - It maximizes wheel stiffness while keeping things light, designed to pair seamlessly with our Speed Hubs through the use of specially designed aluminium nipples.
Berd PolyLight >> - It is constructed from an advanced polymer called ultra high molecular weight polyethylene (UHMWPE) and are widely considered to be the lightest bicycle spoke option in the world.

Sapim D-Light

Sapim CX Ray

Oil slick J-bend

Nipple This is a required option.

Nipple Brand	Model	Material	Color	Length	Available (Warehouse Location)
Sapim	Double Square Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	16mm	Norh America
Sapim	Polyax/ Polyax Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	14mm	China
Sapim	Polyax Secure Lock	Brass	Black	14mm	China/N.A.
DT Swiss	DT SQUORX (PRO HEAD PRO LOCK)	Alloy	Black, Red	15mm	China
DT Swiss	Standard PRO LOCK	Brass	Black	14mm	China
Light Bicycle	N/A	Brass	Oil slick	14mm	China
Light Bicycle	Aluminium Black (for carbon spokes)	Alloy	Black	8.9mm	China

Please select Aluminium Black (for carbon spokes) nipples when you have chosen LB Flyweight Carbon spokes.

Aluminium Black

Aluminium Red

Brass Oil slick

Brass Black

Version This is a required option.

All Mountain (AM) - This version is mid-weight and suitable for all mountain and trail riding.

Enduro (EN) - This version comes out with additional reinforcement (Heavy Duty) and is the right fit for more aggressive riders pedaling on enduro.

All Mountain

Enduro USD +5

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3-5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Glossy

Matte

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

12K

Full Custom USD +15

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Decal This is a required option.

The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Silver

Blue

Green

Magenta

Orange

Red

Yellow

Blank (No decal)

Wheel Bag This is a required option.

Our all-new single wheel bag provides reliable storage for your wheel. Plus, an internal pocket is designed to store skewers and other tools. The wheel bag safely and comfortably accommodates most road and mountain bike wheels, including 700C, 26", 27.5", and 29" wheels. The wheel bag is with Light Bicycle logo by default. If you hope to get one without logo, please leave a note at checkout.

For a wheelset product, when selecting "Add Wheel Bag", you'll get two wheel bags; while for a single front/rear wheel product, you'll get one wheel bag.

None

Add Wheel Bag USD +25.5 each

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Apply Tubeless Tape USD +6 each

Rear Wheel Dishing Pattern This is a required option.

While the vast majority of frames require Centered (Traditional) dishing, those of Cannondale’s with Ai offset design (Asymmetric Integration) comply with a special kind of offset dishing for the rear wheel.

Know more about Cannondale’s Ai technology >>

Centered (Traditional)

Ai offset- 6mm

Ai offset- 3mm

Send Photos for Shipping Confirmation This is a required option.

Send Photos for Shipping Confirmation could be offered at NO extra charge so that you could have your tailored products viewed/inspected before shipping and the photos shared with your friends in advance.

It takes about 1~3 business days added to the lead time subject to the orders queuing status.

If you have any special requirement on the photos, such as weight measurement, please leave a note at checkout.

Yes (1-3 days longer)

No ( I do not need photos)

Recon Pro orders start shipping in October.

- + Pair

Piece Weight: 1405.00g+/-3%

Subtotal: USD 647+

PREVIOUS NEXT

WHEELSET SPECS

RIMS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model RM29C07
Material Toray T700 & T800 Premium Carbon Fiber
Size 29"/29er (ETRTO 622mm)
Series RECON
Use All Mountain/Enduro
Bead Type Hookless
Tubeless Capable Yes
Intended Use All Mountain/Enduro

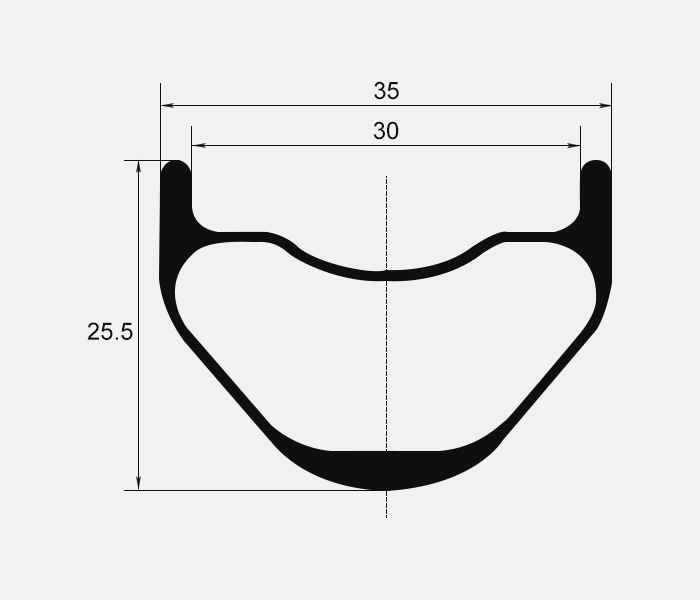

Inner/Outer Width 30mm/35mm
Depth 25.5mm
ERD 589mm (not including nipple head dimension)
Rim Weight AM 420+/-15g, HD 465+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) 130kgs/ 286 lbs
Spoke Hole Angle ±5°
Spoke Tension 115~130kgf front disc side and rear drive side
Max Tire Pressure 40psi/ 2.75bar
Recommended Tire Width 2.2" ~ 2.7"

HUBS

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1, Chris King BOOST, Bitex BX212F / BX212R, Hope Pro 5
Front Axle Size 15 / 100mm, 15 / 110mm BOOST
Rear Axle Size 12 / 142mm, 12 / 148mm BOOST, 12 / 157mm Super BOOST
Driver Body Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy
Hole 28H, 32H

OTHER PARTS

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes Sapim D-Light, Sapim CX Ray, Oil slick J-bend
Nipples Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black

This 35mm wide carbon fiber 29 inch wheels provides more durability, lateral stiffness and power transfer. It is designed for riders who looking for a wider and more aggressive 29er wheels. It is hand-built carbon mtb wheels.

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model: RM29C07
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 29"/29er (ETRTO 622mm)
Series: RECON
Use: All Mountain/Enduro
Bead Type: Hookless
Tubeless Capable: Yes
Intended Use: All Mountain/Enduro
Inner/Outer Width: 30mm/35mm
Depth: 25.5mm
ERD: 589mm (not including nipple head dimension)
Rim Weight: AM 420+/-15g, HD 465+/-15g
Profile: Symmetric (0mm)
Max Cyclist Weight (on flat ground): 130kgs/ 286 lbs
Spoke Hole Angle: ±5°
Spoke Tension: 115~130kgf front disc side and rear drive side
Max Tire Pressure: 40psi/ 2.75bar
Recommended Tire Width: 2.2" ~ 2.7"

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1, Chris King BOOST, Bitex BX212F / BX212R, Hope Pro 5
Front Axle Size: 15 / 100mm, 15 / 110mm BOOST
Rear Axle Size: 12 / 142mm, 12 / 148mm BOOST, 12 / 157mm Super BOOST
Driver Body: Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy
Hole: 28H, 32H

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes: Sapim D-Light, Sapim CX Ray, Oil slick J-bend
Nipples: Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

This 35mm wide carbon fiber 29 inch wheels provides more durability, lateral stiffness and power transfer. It is designed for riders who looking for a wider and more aggressive 29er wheels. It is hand-built carbon mtb wheels.
Specs
Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model: RM29C07

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 29"/29er (ETRTO 622mm)

Series: RECON

Use: All Mountain/Enduro

Bead Type: Hookless

Tubeless Capable: Yes

Intended Use: All Mountain/Enduro

Inner/Outer Width: 30mm/35mm

Depth: 25.5mm

ERD: 589mm (not including nipple head dimension)

Rim Weight: AM 420+/-15g, HD 465+/-15g

Profile: Symmetric (0mm)

Max Cyclist Weight (on flat ground): 130kgs/ 286 lbs

Spoke Hole Angle: ±5°

Spoke Tension: 115~130kgf front disc side and rear drive side

Max Tire Pressure: 40psi/ 2.75bar

Recommended Tire Width: 2.2" ~ 2.7"

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1, Chris King BOOST, Bitex BX212F / BX212R, Hope Pro 5

Front Axle Size: 15 / 100mm, 15 / 110mm BOOST

Rear Axle Size: 12 / 142mm, 12 / 148mm BOOST, 12 / 157mm Super BOOST

Driver Body: Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy

Hole: 28H, 32H

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes: Sapim D-Light, Sapim CX Ray, Oil slick J-bend

Nipples: Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black

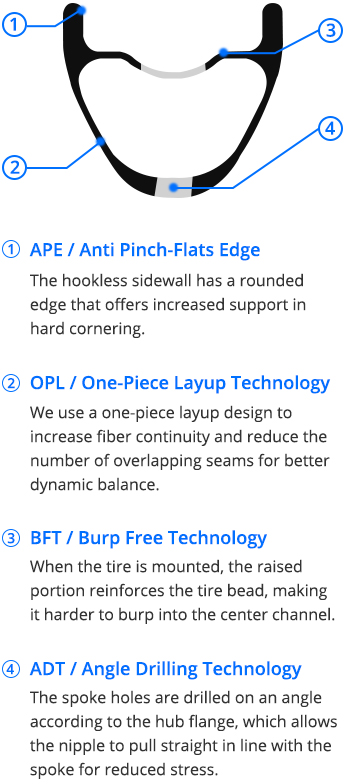

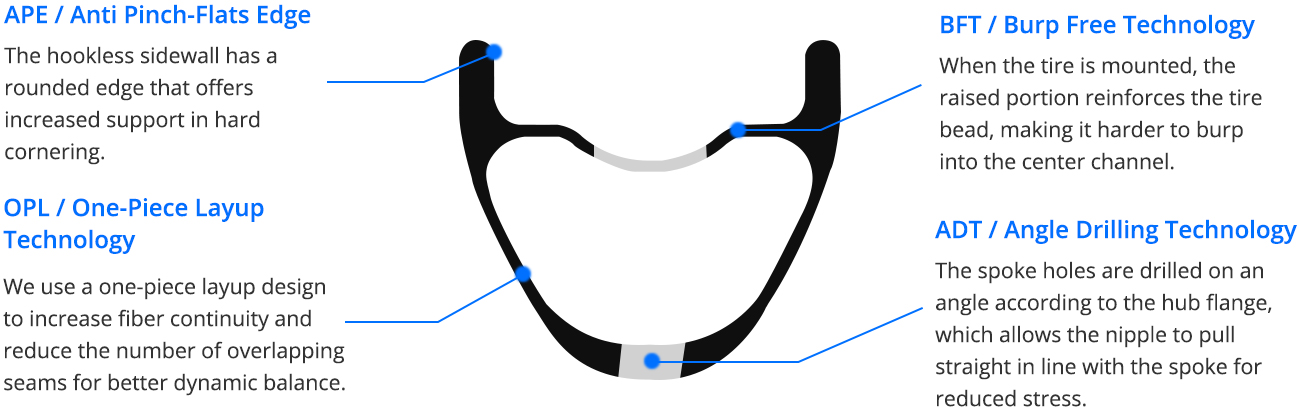

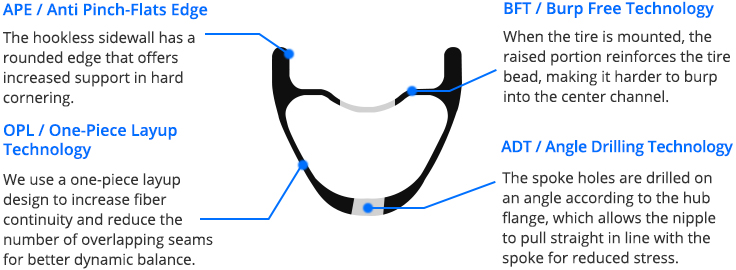

Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

light-bicycle-rm29c07-handbuilt-carbon-mountain-bike-wheels

Light Bicycle : RIMS: RM29C07 Enduro Marble Glossy 32H External Hole No Drain Holes With Access Holes HUB-F: Industry Nine Hydra Orange 15 / 110mm BOOST J-bend 6-bolt 32H Enduro Brand HUB-R: Industry Nine Hydra Orange 12 / 148mm BOOST J-bend 6-bolt 32H Enduro Brand 690T Sram XD Alloy SPOKE: Sapim D-Light 290mm NIPPLE: Sapim Customized Polyax Secure Lock External

light-bicycle-rm29c07-dt-swiss-350-boost-mtb-wheelset-29er

Light Bicycle : Rims: RM29C07 All Mountain UD Matte 32H External Hole No Drain Holes No Access Holes Hubs: DT SWISS 350 Black 15 / 110mm 12 / 148mm BOOST J-bend 6-bolt 32H NBK 54T Sram XD Spokes: Sapim D-Light Black J-bend Nipples: Sapim Brass Black Universal External

light-bicycle-27.5-29-mixed-size-mullet-emtb-wheels

Andrew : These have because my “go to wheels” now for all my bikes, regardless of type of bike or riding. The quality is right up there, they are strong but light. Handle on the trail as good as any I’ve tried. These are the only wheels I use now.

Australia

santa-cruz-trail-bike-on-light-bicycle-rm29c07-wheels-29er

Keven : RM29C07 Review These are my new trail wheels built with DT Swiss 350 hubs. They are light but still sturdy; great for technical trail riding. Looking forward to riding these in the Alps.

UK(Britain)

onyx-vesper-mtb-boost-hubs-fluorescent-pink

Light Bicycle : Rims: RM29C07 Heavy-Duty (465g) Matte UD 32/32H No Access Holes No Drain Holes Hubs: Onyx Vesper Powdercoat-Pink Fluorescent 15/110mm 12/148mm Boost J-Bend Centerlock Sram XD Spokes: Sapim D-Light J-bend Nipples: Sapim Brass Black External

Santa-Cruz-Hightower-on-Light-Bicycle-RM29C07-wheels

Rusli : Ordered RM29C07 wheelset with DT240 EXP in May 2020 for my Trek EX Fuel and my experience with Light Bicycle has been very pleasant. Wheels have no issue at all and Light Bicycles's customer's service is excellent. Now the wheel is on my SC Hightower. Building a LB Road wheelset when typing this review.

Singapore

RM29C07-mtb-carbon-wheels-with-braided-UD-matte

Light Bicycle : RIMS: RM29C07 Braided UD Matte 28H External Holes No Drain Holes With Access Holes HUB-F: DT SWISS 240 EXP Black 15 / 110mm BOOST straight pull Centerlock 28H HUB-R: DT SWISS 240 EXP Black 12 / 148mm BOOST straight pull Centerlock 28H EXP 54T Sram XD SPOKES: Sapim CX Ray Black NIPPLES: DT Swiss Aluminum Black

light-bicycle-29er-rm29c07-mtb-wheels-review

Jonathan : Love my LB wheels!

United States

View More Reviews >>

COMMENTS

ron 2020/04/28

Is also aviable with hub: DT240S, Boost, 28H, 6-bolt, straigt pull, Sram XD What does it weight and coast? cheers ron

LightBicycle 2020/04/29

Hi Ron, Yes, the DT 240s boost hubs that you want are available. We do have straight pull, 6-bolt, DT SWISS 240s, 15/110mm boost, 12/148mm boost in stock. The 29er wheelset cost would be USD956.8/pair built with RM29C07 (35mm wide) and DT 240s BOOST hubs, Sapim CX-Ray spokes. The estimated weight would be 1485g+/-5. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Forrest 2019/05/15

I don't understand your site. You show wheelsets, but only talk about the rims. Do you sell wheelsets or not? If so, do they have boost or not on the 29er sets? Thank you

LightBicycle 2019/05/16

Hi Forrest, You have to click " global". Then you can see more hubs and spokes option. Because we offer quite a few hubs/spokes option for wheelset. So, it is hard to show on the first page. Sorry for the confusion. When you click " global" , you can see boost hubs for this 29er wheeelset. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Marc 2018/08/24

Hi, Is a rear hub 12x157 also available.. Thx

LightBicycle 2018/08/27

Hi Marc, Do you mean 12*157mm DH hubs or super boost hub? We have Industry Nine 12*157 super boost hub available. Will this ok with you? Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Justin 2018/06/01

If I order the 29c07 wheelset with dt swiss 350 12x142 hub for rear, can the hub be easily converted to QR/135?

LightBicycle 2018/06/01

Hi Justin, Yes, the DT 350 12*142 rear hub can be converted into 135mm*QR with the conversion kit. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Valdemar 2018/04/12

Good evening. I would like to buy a pair of wheels with the 29C07 rims with a 350 boost hubs. I would like to know how much the shipping costs to Portugal. Is there any additional tax to pay? Many thanks. Valdemar Coelho

LightBicycle 2018/04/13

Hi Valdemar, The shipping cost for one wheelset to Portugal is USD97.2 by EMS. The cost is not including the import customs tax. But we can lower the declared value of the wheelset so you can pay less tax Will this work for you? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

joe 2017/03/18

I would like to build the29C07 with DT 350 and 32 spokes, and I see they are only avalbile in 28 hole for this hub. Are they going to become available with the 32 spoke count soon?

LightBicycle 2017/03/20

Hi Joe, The 35mm wide 29er wheelset built with DT 350 boost hubs and DT competition race spokes is $733/pair. Or we have lighter spokes Sapim CX-ray, and the price is $84 added. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Bruce 2017/02/23

I would like to order CO2907 but want to be sure that both front & rear wheels are pass thru axles. Are dt350 hubs ok? I see you seem to like Hopes. Looks like my wheels will cost $750. What about shipping? Thanks, Bruce

LightBicycle 2017/02/24

Hello Bruce, Thanks for your inquiry. We can build the 35mm wide 29er wheelset with DT 350 hubs for you. For the hubs axle size, are there standard 15*100mm thru axle/ rear 12*142mm thru axle or boost 15*110mm thru axle/ rear 12*148mm thru axle? Below are the quotations for your reference. All pricing in USD. -WM29C07 (with DT 350 standard hubs): $713/pair -WM29C07 (with DT 350 boost hubs): $733/pair -Delivery cost: $78 for one wheelset to USA by EMS. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Nick 2017/02/04

Im interested in the 29Co7 with a boost 15x110 hope pro 4 hub 32 hole all mtn. UD matte with comp spokes, red nipple and red decal. can i get this but only a front wheel. I would also be happy to do a different hub if that changes anything? cost?

LightBicycle 2017/02/05

Hello Nick, Thanks for your inquiry. We can build the 35mm wide 29er front wheel for you. Please find our quotations as below. -WM29C07 front wheel (with Hope pro4 boost hub): $369/pcs -WM29C07 front wheel (with DT 350 boost hub): $344/pcs -WM29C07 front wheel (with DT 240S boost hub): $444/pcs Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Brett 2016/11/19

Hi, Can you get the German Tune King and Kong hubs and if so what would the cost be ? Cheers

LightBicycle 2016/11/21

Hello Brett, Thanks for your inquiry. Currently, only Hope pro4 and DT Swiss hubs are available, not German Tune King or Kong hubs. Sorry about that. Or you can order the rims only and build the wheels at your local shop, then you are able to get the wheels with the hubs you like, does that work for you? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Tomas 2016/09/15

Hi :) I have a Cannondale F-SI 3 Carbon: http://www.cannondale.com/USA/Bike/ProductDetail?Id=aa846bb7-45cb-4b9d-a616-581cabd8fcda And I want new and lighter Wheels. I use 35/30mm Wheels from Another Company on my other bike and I just love them. Can you build new Wheels with this rims 35/30mm to my Cannondale with the right Ai offset lacing? Best regards, Tomas

Light-Bicycle 2016/09/19

Hello Tomas, We are able to build the 35mm outer/ 30mm inner 29er wheels and make the rear wheel with 6mm offset. We have built some of this offset wheels for customers before. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Gerow 2016/09/09

I just need one of these rims. Is it possible to order a single, or do I have to order them in pairs?

Light-Bicycle 2016/09/10

Hello Gerow, Thanks for your support. It is okay to order just one rim. We have received your payment and will arrange manufacturing soon. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Soren 2016/09/04

Hi - I have a very light rigid 29r with v-brakes, which I race at a serious level. Question: Do you have any wide hooked or hookless 29r rims that can be customized to withstand brake pads on their side walls? I know this a very uncommon setup, but I would go far to upgrade this great rigid to wide rims. (Unfortunately, there is no way my fork can be upgraded to discs.). How about your 29C07? They seem to have a flat wall area...Thanks! Soren

Light-Bicycle 2016/09/05

Hello Soren, Thanks for your inquiry. For 29er rim, it is mtb rim and for disc brake only. The braking surface requires the rim’s straightness, and the RM29C07 is not straight enough to brake. So, only the road rim is able to be manufacture the braking surface. If you like the rim with brake tracks, then go with our U shape road rims. Our current rims are with special material and New high TG resin, it will provide better braking surface performance than basalt braking surface. Does that work for you? Rims profile of some U shape road rims for your reference. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Robin 2016/05/24

Hi - a few questions: - Does the DT Swiss 240s hub option use straight pull spokes? - Do you offer a 28H front wheel option? - Can the front wheel have radial lacing on the non-braking side? - Also does your price include shipping? (in my case to the UK) thanks!

Light-Bicycle 2016/05/25

Hello Robin, Thanks for your inquiry. -Currently, all of DT Swiss hubs we stock are J-bend version, so we will use J-bend spokes. -Yes, we can build the front wheel with DT 240S J-bend center lock hub (28H). Is that front 15mm TA? -The front wheel can be built in radial lacing on non-drive side. However, our builder doesn’t recommend the radial lacing as it puts extreme force on the flanges which may break off easily. 2 cross or 3 cross lacing patterns are what we recommend. -Our price doesn’t include shipping. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Ryan 2016/04/26

Would you guys be willing to build a set of wheels using these rims if i sent you the hubs i want to use? they hubs i will be using are dt swiss boost 240 hubs. 110mm front and 148mm rear.

Light-Bicycle 2016/04/27

Hi Ryan, The DT swiss 240s boost hubs are available here(J-bend and 32 hole). Do you prefer 6-bolt or center lock version? Do you need the rear hub for Shimano MTB 10/11s or SRAM XX1? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

DH 2015/12/01

I don't see the price with DT Swiss 240s hubs. How much more is that compared to the Hope hubs?

Light-Bicycle 2015/12/02

Hello Dalton, Thanks for your inquiry. Please find our quotations as below. -Wheelset price (with 35mm wide rims, Hope hubs): USD833/pair -Wheelset price (with 35mm wide rims, DT 240S hubs): USD957/pair Currently, we also have wider 38mm wide 29er rim. It is much wider and stronger. Would you like to have a try? Please find attached rim profile. Rim weave in 3k matte & UD matte are more popular. Which do you prefer Thanks, Light-bicycle

Rich 2015/12/26

Hi I've just ordered the 35mm. I'd like to have the 38mm please. Can you adjust my order?

Light-Bicycle 2015/12/28

Hello Rich, It is okay to update the rims to be with 38mm wide. Don't worry.We can email you the balance link for you to pay. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 40 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

We use cookies for a better experience. Learn more.

Customize

Your Cookie Preferences

We use cookies to improve your experience on this website. You may choose which types of cookies to allow and change your preferences at any time. Disabling cookies may impact your experience on this website. You can learn more by viewing our Cookie Policy.

Essential Cookies

Cookies required to enable basic website functionality.
Performance Cookies

Cookies used to understand how the website is being used.
Preference Cookies

Cookies that are used to enhance the functionality of the website.
Advertising Cookies

Cookies used to deliver advertising that is more relevant to your interests.

Aceept All Cookies

Save Preferences

Reject All Cookies

Save Preferences

Reject All Cookies

Accept All Cookies

Build Your Recon WHEELSET RM29C07 All Mountain/Enduro

Overview

Specs

Tech

Warranty

In The Box

Rims

Hubs

Other Parts

Overview

Specs

Rims

Hubs

Other Parts

Tech

Warranty

In The Box

Gallery
