carbon 650b rims 38mm wide hookless mountain bike rims tubeless compatible

INTERNATIONAL

NORTH AMERICAN

Ships from China to worldwide destination. Contact us if your location is not listed.

Ships from Canada/United States warehouse to North American countries only. Contact us if you have special requests.

  • 1

    RIM

  • 2

    ACCESSORIES

  • 3

    OVERVIEW

RIM

Version This is a required option.

All Mountain

Heavy Duty USD +10

The HD version has extra layers for increased stiffness and sidewall reinforcement. Ideal for large and aggressive riders.

+ $10.00 per rim
+ 40 - 50g per rim

Hole This is a required option.

16H

18H

20H

24H

28H

32H

36H

Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

Finish This is a required option.

glossy

matte

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Weave This is a required option.

12K

3K

UD

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

Decal This is a required option.

stealth

blue

green

magenta

orange

red

yellow


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Valve Stem This is a required option.

None

Add Valve Stem USD +7

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

Tubeless Tape This is a required option.

None

Add Tubeless Tape USD +6

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

Downhill 650B carbon rim

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks

Non-Stocked, typically ships within 1-2 weeks

Recon Pro orders start shipping in October.

- + PCS

Version This is a required option.

All Mountain

The HD version has extra layers for increased stiffness and sidewall reinforcement. Ideal for large and aggressive riders.

+ $10.00 per rim
+ 40 - 50g per rim

Hole This is a required option.

32H

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please contact us.

Finish This is a required option.

matte

Weave This is a required option.

UD

Decal This is a required option.

stealth

blue

green

magenta

orange

red

yellow


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Valve Stem This is a required option.

None

Add Valve Stem USD +7

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

Tubeless Tape This is a required option.

None

Add Tubeless Tape USD +8

We use a tubeless tape with high tensile strength and only one lap is required so it is very light. It uses a natural rubber adhesive that does not leave any residue on the rims.

Downhill 650B carbon rim

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks

Non-Stocked, typically ships within 1-2 weeks

Recon Pro orders start shipping in October.

- + PCS

Weight: 455.00g+/-15

Final total: USD 186.00+(3.5% paypal fee included)

Weight: 455.00g+/-15

Final total: USD 207.00+(3.5% paypal fee included)

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

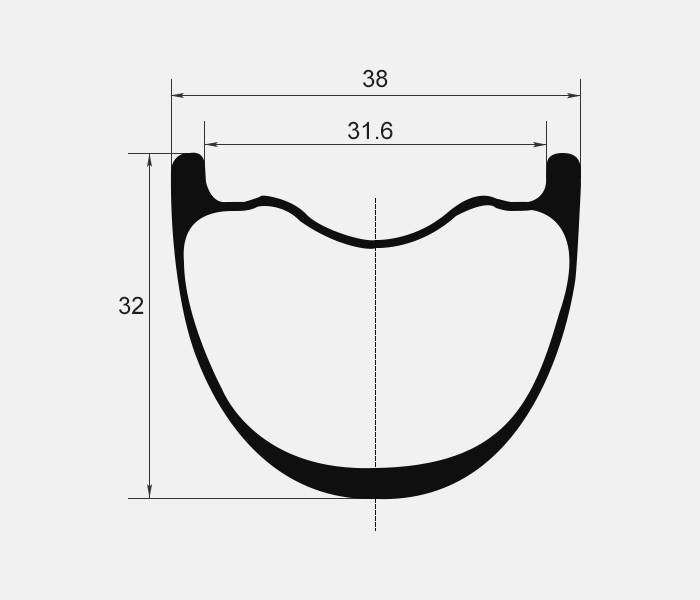

RIM SPECS

  • Size 650B
  • Use All Mountain/Enduro
  • Type Hookless
  • Tubeless Ready
  • Inner/Outer Width 31.6mm/38mm
  • Depth 32mm
  • ERD 536mm (not including nipple head dimension)
  • Weight AM 455+/-15g, HD 505+/-15g
  • Weight Limit 140kg
  • Max Rec. Spoke Tension 145kgf
  • Max Rec. Tyre Pressure 35psi
  • Recommended Tire 2.3" ~ 3.1"

Teleport to the wheelset building page.

The 38mm rims are very popular amongst riders looking for a strong and wide carbon rim. The 31.6mm internal width works well with high volume tires and the wide bead seat helps to prevent tire burping on tubeless setups. These imposing rims have a 32mm depth so you will get a very responsive wheel that can hold it’s line through rough terrain.


For really aggressive riders or those using the bike park from time to time, we have an HD version. The HD version receives an extra wrap of 3k carbon fiber for additional wall thickness and reinforcement so they can handle G-outs better than the normal version.

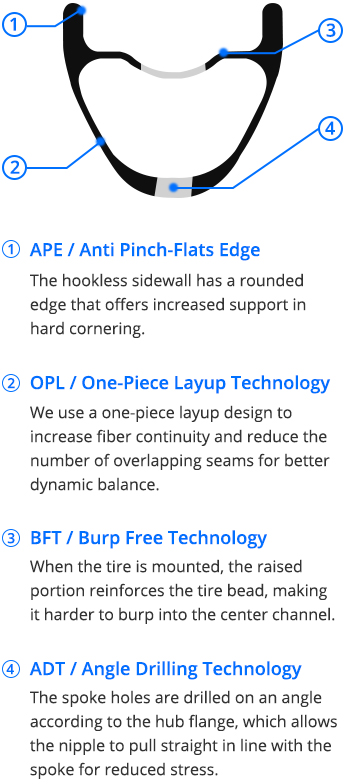

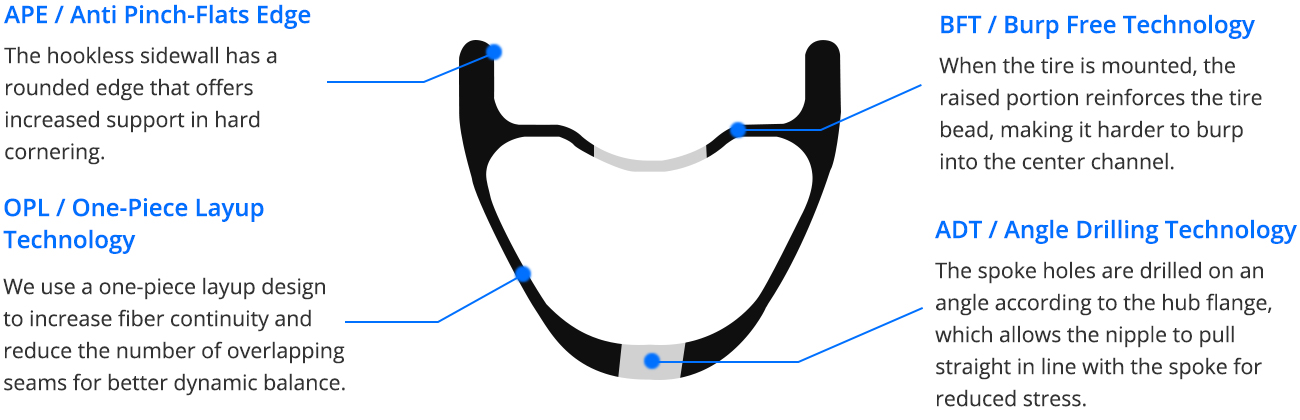

Hookless: Carbon fiber flows continuously over the bead area to provide the best impact resistance and a significant strength increase compared to a clincher rim.


Manufacturing process: Our air bladders are made from a special material which produces smoother walls, result in a lighter rim, and are completely removed without harsh chemicals. They are removed through the valve hole with a unique process so that the rim does not have to be patched like traditional manufacturers use. This significantly improves the strength of the rims. Read More about our process


T700: Constructed with premium Toray T700 carbon fiber. The best strength to weight ratio with no expense spared.


Precise layup: Each rim carries its own layup schedule documents which are followed meticulously by the layup workers. Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim.


Angled Holes: Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress. This results in fewer broken spokes and nipples.


U-Shape: U-shape profile spreads the force of impacts and creates a more robust product.


Bead lock: The small ridges on either side of the drop channel help secure tubeless tires in place. The bead lock makes it easier to seal up tubeless tires with a floor pump, and they are incredibly hard to burp.


Tubeless: While the rims are optimized for a tubeless setup with the addition of tubeless tape, they also work with tubes.


Pro Series: from date of purchase, 3 years warranty
Non-Pro Series: from date of purchase, 15 months warranty

Crash Replacement: from date of purchase, 30 months with 10%+ discount subject to rim model

Know more about the warranty policy >>

Gallery

Geny Dean : I have my bike set and running thank you!
USA
1
Sonny Iskandar Bin Rasani : The rims were amazing, they preformed perfectly during the Asia Enduro Series in Nepal. I have some friends who are interested and have passed them your info accordingly.
Brunei
1
Lonnie Hardy : My new Giant Reign , 38mm rims with 2.6 Maxxis tires. I am loving these wheels!
USA
1
Ray Chan : Santa Cruz V10.6 2015 with light-bicycle RM650BC13 carbon rim
Hong Kong
1
Anson : 38MM with Nomad
Hong Kong
1
Kurt Kurtz : Good morning Kartrin, I am send a picture of my Happy Bike with the New Wheels. I will send one more with my daughter and I for your gallery. Thank you again for such an excellent product!
USA
1

COMMENTS

A

Adam 2018/06/05

Hi, Are these rims the only am/dh rims that you can manufacture in UST (without spoke holes on rim bed)? And could you build a wheelset with them as UST?


LightBicycle 2018/06/06

Hi Adam, We can customize made any rim as UST and build wheels with it. Note that his custom service does not require extra charge from you. The UST wheelset is without spoke access holes on rim bed. Please find attached pictures 650B UST wheelset for your reference. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

andy 2018/05/28

What size is the nipple hole? I know the outer is 8mm.


LightBicycle 2018/05/29

Hi Andy, The inner nipple hole size is 4.5mm+/-0.1 for external nipple holes. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

andy 2018/05/28

Can I lace the heavy duty 650b wheels in 4 cross?


LightBicycle 2018/05/29

Hi Andy, Normally, we build mtb bike wheels with 2X and 3X. I haven't heard of 4X. Do you have 4X lacing pattern picture? Then we can check on it for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

Sasa 2018/03/10

Hello, Is there a chance you would know the diameter of the holes on the rim? The ones that are covered by tubeless tape. I've got this set of rims on the way and I'd like buy VeloPlugs for them but I don't know if the holes are 8 mm or 8,5+ mm in diameter (and can't measure yet). Regards, Sasa


LightBicycle 2018/03/12

Hi Sasa, The spoke access holes on rim bed is 8mm. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Teguh 2017/08/15

Hi i am 76kg. For RM650BC13, which one do you recomend? The AM or heavy duty version? I am riding mainly enduro track but sometime also riding light DH track.


LightBicycle 2017/08/16

Hi Teguh, Thanks for your massage! We will recommend the front AM version/rear Heavy Duty version to you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

G

Garofalo 2017/06/04

Hi! I'm thinking about building my next LightBicycle wheelset for my downhill bike. So far i am very satisfied with the light cross country rims i bought from you. I'm wondering if this rim is your most suitable offer for a downhill bike. I use to ride quite hard on technical downhills in europe and in the alps. They will have to withstand big jumps and drops as well.. Would they be a good choice?


LightBicycle 2017/06/05

Hello Garofalo, Thanks for your continued support. According to your info, our 38mm wide 650B HD rim is strong enough for your riding. The HD version has extra layers for increased stiffness and sidewall reinforcement. Ideal for large and aggressive riders. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

H

Harold 2017/04/09

Hi, Can you lay up the rims with carbon over the nipple access holes... So the rim is tubeless without needing rim-tape? thanks


LightBicycle 2017/04/10

Hello Harold, Thanks for your inquiry. We can manufacture the 38mm wide 650B rims in UST version (without spoke holes on rim bed, only valve hole). Please find attached pictures. Is that what you like? Thanks, Lightbicycle


F

Florian 2017/07/28

Hi, I'm very interested in that UST version. Please can you provide me those pictures as well? Thanks, Florian


LightBicycle 2017/08/01

Hi Florian, Thanks for your inquiry! Yes, we can make the UST rims (no spole counts drilled in the rim bed). Please find attached picture for your reference. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

B

Bikecustomizer 2017/04/01

Hello i like to oder 2x RC650BC13 Havy Duty 32holes UD Matt and i like to now if there on stock ? Will the shipping go by Airship for the rims? How long it wil be normaly take to get the rim's to the Netherlands?


LightBicycle 2017/04/01

Hi Hamid, Thanks for your inquiry. We have 2X RM650BC13 rims in stock. If you order today, we can ship the rims to you in 2 business days. It takes around another 4~7 days for delivery by DHL. Does it work for you? Thanks, Lightbicycle


H

Hamid 2017/04/05

Hello Katrin, I just have make the order and hope for a fast delivery. Thank for the support. Regards, Hamid


LightBicycle 2017/04/06

Hi Hamid, Thanks for your inquiry. We have 2X RM650BC13 rims in stock. If you order today, we can ship the rims to you in 2 business days. It takes around another 4~7 days for delivery by DHL. Does it work for you? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Chris 2017/02/13

What is the main advantages and disadvantages between these and the en/am733 besides the dimensions?


LightBicycle 2017/02/14

Hello Chris, Please find below rims difference between RM650BC13 and AM/EN733. -Both rims feature angled spoke holes, a modern u-shaped profile, have a bead lock and work with or without tubes. Both rims also have a low profile hookless bead with a large radius which helps reduce pinch flats. -Our 40mm asymmetrical rims will have more even spoke tension than our 38mm which results in a more durable wheel build. The low tension spokes will be at higher tension compared to a traditional rim which results in less wheel re-truing. -The 40mm has slightly increased impact protection than the 38mm but both are quite strong, especially in the heavier/reinforced version of the rim. The 40mm are wider and deeper so the lateral and vertical stiffness are increased. -Both rims come with a 1-year warranty. The 40mm rims have a 2-year crash replacement policy at 25% discount, and the 38mm have a 1-year crash replacement policy at 15% discount. Thanks, Lightbicycle
