Build Your Recon RIM RM650BC02 Cross Country/ All Mountain

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.


RIM SPECS

  • Size 650B
  • Series RECON
  • Use Cross Country/ All Mountain
  • Type Hookless
  • Tubeless Ready
  • Inner/Outer Width 24mm/30mm
  • Depth 20mm
  • ERD 562mm (not including nipple head dimension)
  • Weight 370+/-15g
  • Offset 0mm (symmetric)
  • Weight Limit 120kg
  • Spoke Hole Angle ±5°
  • Spoke Tension ≤145kgf recommended
  • Tire Pressure 40psi/ 2.75bar
  • Tire 2.0" ~ 2.4" recommended

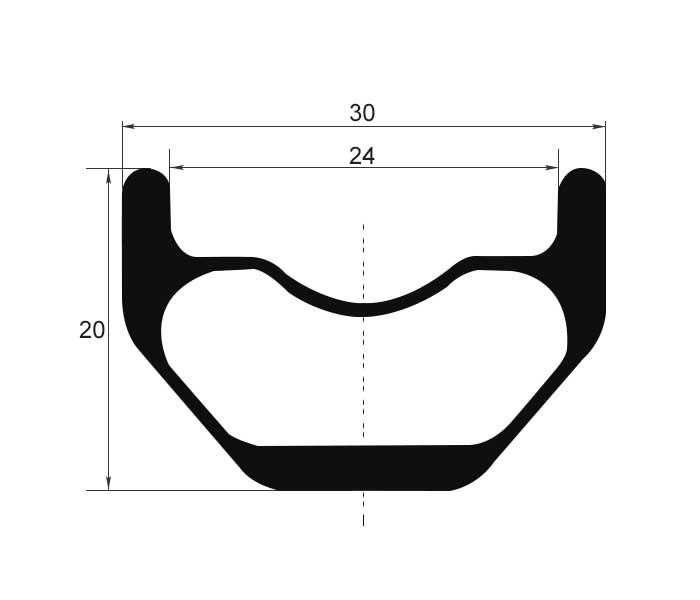

MTB carbon rim profile

TECH

Update: We already updated the clincher hooked rim to clincher hookless rim since October 31, 2014.
Most of rims specifications are the same between hooked and hookless rims. But there are slightly different, especially for the ERD and the inner width.


MTB 27.5″ rim specially for AM & XC racing,tubeless-compatible


Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>


Overview

Specs

Warranty

In The Box

Update: We already updated the clincher hooked rim to clincher hookless rim since October 31, 2014.
Most of rims specifications are the same between hooked and hookless rims. But there are slightly different, especially for the ERD and the inner width.


MTB 27.5″ rim specially for AM & XC racing,tubeless-compatible

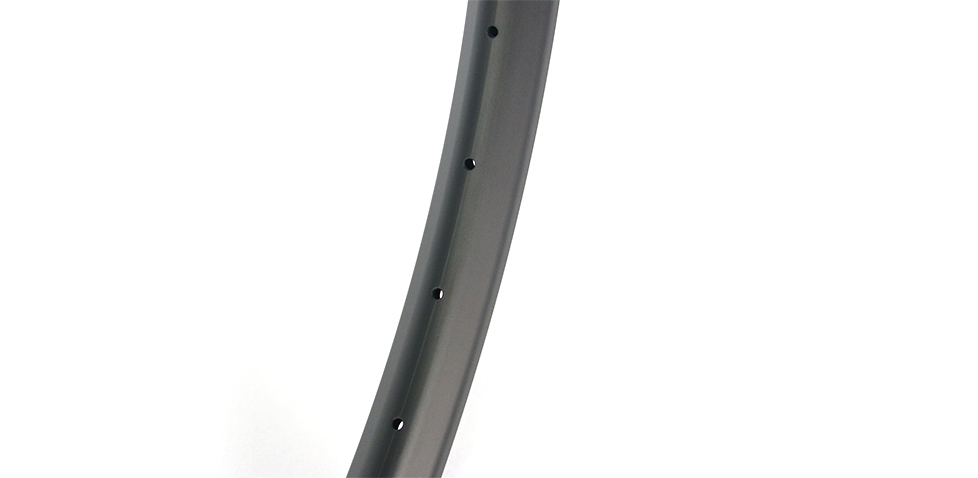

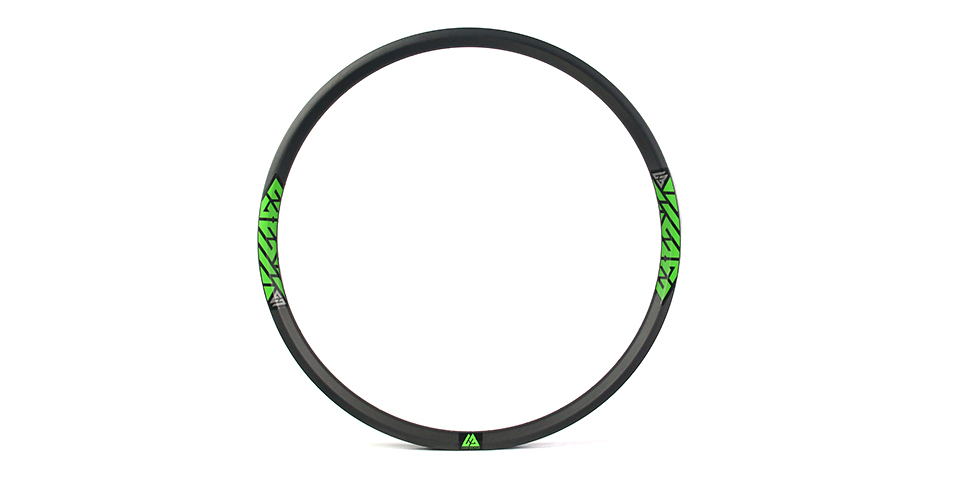

Gallery

Be the first to review this product and help riders of your style choose the most suited.

Write a review now >>

If you've got a longer story to tell and a few pictures won't cut it, check out our storytelling feature and consider sharing your story!

COMMENTS

J

Jeremy 2016/10/31

Hi i just bought a pair of LB AM 40mm rim from my local guys (AGS MTB), i'm lacing it to Chris King ISO hub. Whats the spoke length for 2x lacing? thank you.

Light-Bicycle 2016/10/31

Hello Jeremy, Thanks for your support! Due to the complexity and variations with calculating spoke lengths, we cannot guarantee the spokes will be the perfect length for your wheels.It will be great if you confirm the spokes length with your own builders. Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

stefano 2016/06/08

Good Afternoon, I kindly ask if it's possible to buy rims, spoke and nipples. I have a pair of dt 240 hub 32 holes (not straightpull), so my idea Is to buy rims, spoke and nipples and assemble myself. Could you give me an idea of the total amount of the order? kind regards

Light-Bicycle 2016/06/12

Hello Stefano, Sorry for the late reply. We were on the vacation in last 3 days (Dragon Boat Festival). It is okay to buy the rims/ spokes/ nipples to build the wheels by yourself. Which spokes and nipples do you like? We can quote accordingly for you. Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

Stephen 2016/05/31

Hi, I just ordered 2 of the EN733 rims. I will be building them with Hope evo 4 boost hubs. Can you tell me the spoke length for lacing these wheels. Thanks, Stephen

Light-Bicycle 2016/06/01

Hello Stephen, Thanks for your support. The rims you ordered are AM733. I double checked with our builder, and we will use below spoke length for AM733 wheelset built with Hope pro4 boost 32H hubs. -Lacing pattern: 3 cross for front and rear -Front: 261mm-drive side, 259mm-non drive side -Rear: 259mm-drive side, 261mm-non drive side Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Adrien 2016/03/09

Hi, Are the spokes holes asymmetricaly drilled ? Is it possible to order theses rims without internal drilling like mavic's UST rims ? Thank you, Adrien

Light-Bicycle 2016/03/10

Hello Adrien, Thanks for your inquiry. These rims can not be drilled with UST version. Because it is not deep enough for nipples to go through inside while building wheelset. Our 34mm width asymmetrical rim can do UST if you like. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

B

Ben 2016/01/13

Hi I'm just wondering for $170 does that get me one rim or two???

Light-Bicycle 2016/01/15

Hello Ben, Thanks for your inquiry. The price on our website is for single rim. All pricing in USD. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Thomas 2015/11/06

I weigh about 60kg, and I have a carbon fiber hardtail mountain bike. I am a XC rider only. No big jumps etc. What is your recommendation for wheels for me?

Light-Bicycle 2015/11/07

Hello Thomas, Thanks for your inquiry. According to your details, you are not a big rider, and we’d like to recommend the 27mm wide 650B XC light rims. Please find attached rim profile. RM650BC09 (27mm wide 650B rim) hookless: 320 /-15g, USD163/pcs Most of our customer choose rim weave 3k matte & UD matte. Do you like it? Spoke count in 32H? Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Mark 2015/10/18

May I please have a price for a RM650BC05 glossy 3k 32H No-Decal wheelset with me supplying the hubs Front hub 15mm/100mm 32H -Supplied Rear hub QR/135mm 32H -Supplied Pillar PSR Xtra spokes Black J-bend Pillar PT-734 nipples Red Thank you, Mark

Light-Bicycle 2015/10/19

Hello Mark, Thanks for your inquiry. We can build the 650B wheelset as following specs. -Rims: RM650BC05 rims, 3k glossy, 32H, no decals, 400 /-15g. Please find attached rim profile. -Hubs: We have Novatec/ Hope / DT Swiss 240S J-bend 6-bolt hubs with front 15mm/ rear 135mm QR. Which do you prefer? With freehub Shimano or Sram? -Spokes: Black, Pillar Aero X-TRA 1420 aero -Nipples: Pillar PT 734. Do you like black/blue/gold/green/red/silver? Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

K

keun 2015/08/11

Is ilnal Order 11 August 2015 I spent some time period is expected to be shipped to Korea?

Light-Bicycle 2015/08/12

Hello Keun, Thanks for your support. We have arranged manufacturing for your order. The manufacture lead time is around 12 days for rims, and around 4-7 days to delivery. We will email you the tracking number when your order is finished. Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Chris 2015/07/05

I'm looking for a wheel with the following spec: No decal Hookless 30mm wide 650B Rim weave 3k, Matte Pillar Aero X-TRA 1420 spoke (black) Pillar Bass PT nipple (RED). Hope Pro 2 Evo 15mm front (RED) Hope Pro 2 Evo 142x12 XD (RED) How much will it cost in individual components and to ship to Singapore? And how long will it take? Thanks

Light-Bicycle 2015/07/06

Hello Chris, Thanks for your inquiry. The 30mm wide 650B wheelset is USD799/pair (with Hope hubs). The shipping cost for one wheelset to Singapore is USD49.7. We can build the 650B wheelset as following specs. -Rims: Hookless 30mm wide 650B rims, 3k matte, 370 /-15g. 32H? Please find attached rim profile. -Hubs: Red, Hope pro2 evo front 15mm/ rear 12*142mm for Shimano 10s. -Spokes: Black, Pillar x-tra 1420 aero -Nipples: If you like brass Pillar Pt 734, only black and silver color are available. Is that ok for you? Or we have alloy nipples in red. Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Chris 2015/03/07

Hi, I'm looking for a 35mm wide front rim with e 30mm wide as rear rim, both hookless for tubeless use. Looking to build up with the Hope Pro EVO 40T hub in blue. Rims in matt coating with blue nipples. May I know what spokes you use and the price? Thanks.

Light-Bicycle 2015/03/08

Hello Chris, Thanks for your inquiry. Please find attached rim profile. The price for wheelset with following specs is USD811/pair - Rims: front 35mm wide 650B/rear 650B 30mm wide, hookless for both For rims, do you like 3k/12k/UD? glossy or matte/ 32H? - Hubs: blue, hope pro 2 evo, 40T, what hub axle size do you like for front & rear? standard qr or thru axle? - Spokes: black pillar psr x-tra 1420 aero - Nipples: pillar brass black/silver, or alloy black/red/blue/gold/green/silver? Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Chris 2015/03/07

Hi, I'm looking for a 35mm wide front rim with e 30mm wide as rear rim, both hookless for tubeless use. Looking to build up with the Hope Pro EVO 40T hub in blue. Rims in matt coating with blue nipples. May I know what spokes you use and the price? Thanks.

Light-Bicycle 2015/03/08

Hello Chris, Thanks for your inquiry. Please find attached rim profile. The price for wheelset with following specs is USD811/pair - Rims: front 35mm wide 650B/rear 650B 30mm wide, hookless for both For rims, do you like 3k/12k/UD? glossy or matte/ 32H? - Hubs: blue, hope pro 2 evo, 40T, what hub axle size do you like for front & rear? standard qr or thru axle? - Spokes: black pillar psr x-tra 1420 aero - Nipples: pillar brass black/silver, or alloy black/red/blue/gold/green/silver? Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Mark 2015/03/02

Hi there, I'm interested in the 650B XC, rim, can you explain what 3K and 12K is, does it relate to strength or lay up of the material? Also what spoke nipples do you recommend for the build. Regards Mark

Light-Bicycle 2015/03/03

Hello Mark, Thanks for your inquiry. For 3k/12k/UD, it is the outer carbon fiber layer to make the carbon fiber with different outlook, and all the inside carbon fiber are the same. So, the rim strength & weight is almost the same. 3k matte &UD matte are more popular. Which do you prefer? Please find attached pictures. Currently, we also have new hookless 27mm wide 650B XC rim. It is much lighter. Do you like it? Please find attached rim cross-section drawing. RM650BC02 (30mm wide 650B XC rim) hookless: 370 /-15g, USD163/pcs RM650BC09 (27mm wide 650B XC rim) hookless: 320 /-15g, USD163/pcs Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Thomas 2015/02/28

For 650b rims: Are the spoke holes offset? Do you have a dwg. Also, which side is the first hole after the stem hole? Does it look like this when looking from inside the rim (x=spoke hole, O =stem hole) X O X Thanks

Light-Bicycle 2015/03/01

Hello Thomas, Thanks for your inquiry. We can do nipple holes with angle, is it what you like? Please find attached pictures. And if you like to see the first hole after valve hole, you can see the wheelset picture. And let us know if there is any question. Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

K

kai 2015/02/07

Is it possible to get this rim in a clydesdale layup? I weigh 250lbs and will be using this on a bike that will be carrying a load, so 300 lbs total weight.

Light-Bicycle 2015/02/10

Hello Kai, Thanks for your inquiry. The max weight limit of 30mm wide 650 rim is 120kg. We only can added some carbon fibers to enhance the rim strength. We’d like to recommend hookless 35mm wide/ 38mm wide 650B rims. It is much wider and stronger. Do you like it? RM650BC05 (35mm wide 650B rim) hookless: 400 /-15g, USD175/pcs RM650BC13 (38mm wide 650B rim) hookless: 440 /-15g, USD180/pcs Please find attached rim cross-section drawings. For rim weave, do you prefer 3k, 12k or UD? Matte or glossy? 32H? Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

Sean 2015/01/24

Hi, Is it possible to make a 20-30g lighter version of this rim. I would like a standard 370g on the back and a lighter version for the front. I know there is the 22mm inner width lighter rim but would prefer to have both rims with 24mm. Thanks

Light-Bicycle 2015/01/27

Hello Sean, Thanks for your inquiry. The 30mm wide 650B rim weight is around 370 /-15g. We can pick up the light rim for front (weight under 365g). And the rear rim is around 360g-370g. Is that ok for you? RM650BC02 (30mm wide 650B rim) hookless: USD163/pcs Please find attached rim cross-section drawing. For rim weave, do you prefer 3k, 12k or UD? Matte or glossy? 32H? Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
