Build Your Recon RIM RM29C07 All Mountain/Enduro

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.


Buy wheelset

RIM SPECS

  • Model RM29C07
  • Material Toray T700 & T800 Premium Carbon Fiber
  • Size 29"/29er (ETRTO 622mm)
  • Series RECON
  • Use All Mountain/Enduro
  • Bead Type Hookless
  • Tubeless Capable Yes
  • Intended Use All Mountain/Enduro
  • Inner/Outer Width 30mm/35mm
  • Depth 25.5mm
  • ERD 589mm (not including nipple head dimension)
  • Rim Weight AM 420+/-15g, HD 465+/-15g
  • Profile Symmetric (0mm)
  • Max Cyclist Weight (on flat ground) 130kgs/ 286 lbs
  • Spoke Hole Angle ±5°
  • Spoke Tension 115~130kgf front disc side and rear drive side
  • Max Tire Pressure 40psi/ 2.75bar
  • Recommended Tire Width 2.2" ~ 2.7"

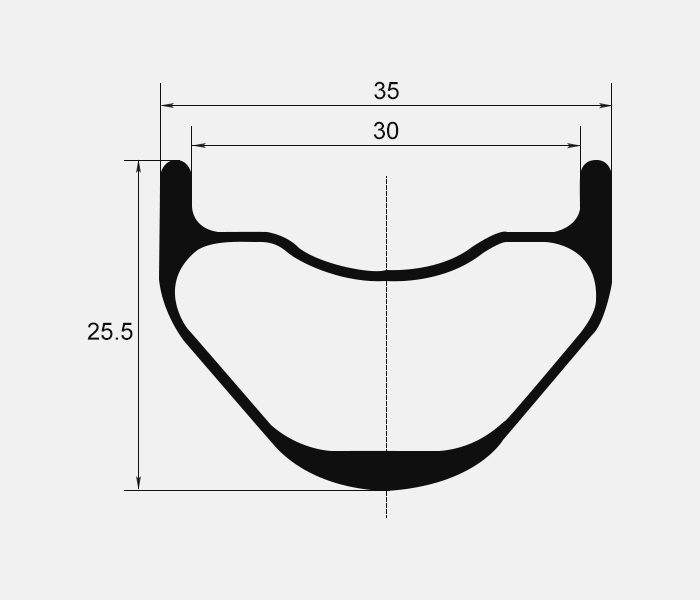

MTB carbon rim profile

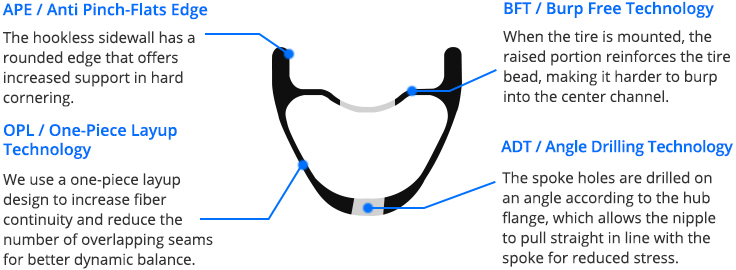

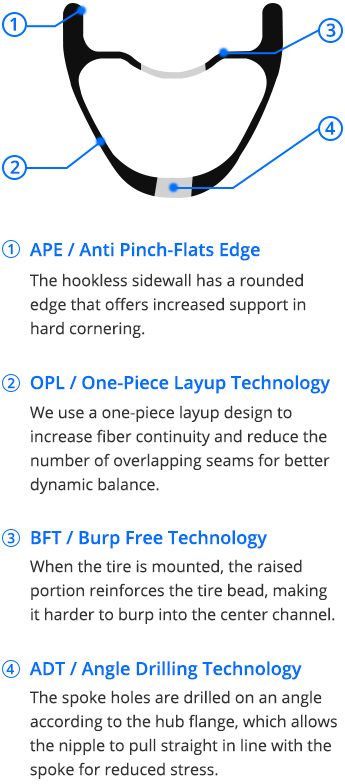

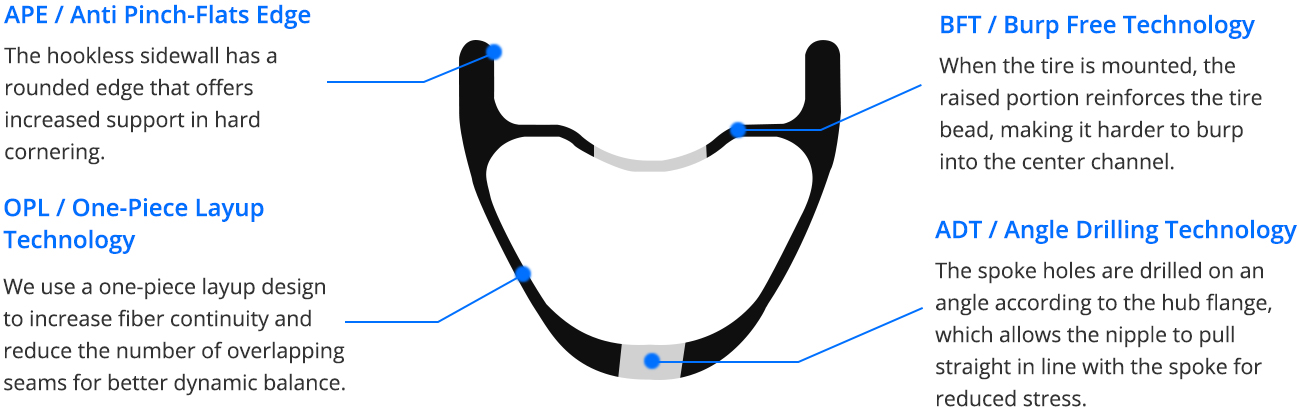

TECH

It is a wide, stiff, lightweight 29er bicycle carbon rims mtb. The best choice for strong aggressive riders who like big wheels 29er for mountain biking

If you like XC riding & light-weight rim, you can choose this bead hookless 29er rim. It is our most popular rim, and with better tubeless system. By eliminating the "hook" from the top of rim sidewalls, rims can be made with more precise dimensions. Tire and rim works perfectly to create a seal at the tire bed of rim RM29C06: bead hook-less rims carbon 29er light bike rim tubeless compatible >>


Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>


WHAT IS IN THE BOX


Overview

Specs

Tech

Warranty

In The Box

It is a wide, stiff, lightweight 29er bicycle carbon rims mtb. The best choice for strong aggressive riders who like big wheels 29er for mountain biking

If you like XC riding & light-weight rim, you can choose this bead hookless 29er rim. It is our most popular rim, and with better tubeless system. By eliminating the "hook" from the top of rim sidewalls, rims can be made with more precise dimensions. Tire and rim works perfectly to create a seal at the tire bed of rim RM29C06: bead hook-less rims carbon 29er light bike rim tubeless compatible >>

Gallery

light-bicycle-rm29c07-handbuilt-carbon-mountain-bike-wheels
Light Bicycle : RIMS: RM29C07 Enduro Marble Glossy 32H External Hole No Drain Holes With Access Holes HUB-F: Industry Nine Hydra Orange 15 / 110mm BOOST J-bend 6-bolt 32H Enduro Brand HUB-R: Industry Nine Hydra Orange 12 / 148mm BOOST J-bend 6-bolt 32H Enduro Brand 690T Sram XD Alloy SPOKE: Sapim D-Light 290mm NIPPLE: Sapim Customized Polyax Secure Lock External
1
light-bicycle-rm29c07-dt-swiss-350-boost-mtb-wheelset-29er
Light Bicycle : Rims: RM29C07 All Mountain UD Matte 32H External Hole No Drain Holes No Access Holes Hubs: DT SWISS 350 Black 15 / 110mm 12 / 148mm BOOST J-bend 6-bolt 32H NBK 54T Sram XD Spokes: Sapim D-Light Black J-bend Nipples: Sapim Brass Black Universal External
1
light-bicycle-27.5-29-mixed-size-mullet-emtb-wheels
Andrew : These have because my “go to wheels” now for all my bikes, regardless of type of bike or riding. The quality is right up there, they are strong but light. Handle on the trail as good as any I’ve tried. These are the only wheels I use now.
Australia
1
santa-cruz-trail-bike-on-light-bicycle-rm29c07-wheels-29er
Keven : RM29C07 Review These are my new trail wheels built with DT Swiss 350 hubs. They are light but still sturdy; great for technical trail riding. Looking forward to riding these in the Alps.
UK(Britain)
1
onyx-vesper-mtb-boost-hubs-fluorescent-pink
Light Bicycle : Rims: RM29C07 Heavy-Duty (465g) Matte UD 32/32H No Access Holes No Drain Holes Hubs: Onyx Vesper Powdercoat-Pink Fluorescent 15/110mm 12/148mm Boost J-Bend Centerlock Sram XD Spokes: Sapim D-Light J-bend Nipples: Sapim Brass Black External
2
Santa-Cruz-Hightower-on-Light-Bicycle-RM29C07-wheels
Rusli : Ordered RM29C07 wheelset with DT240 EXP in May 2020 for my Trek EX Fuel and my experience with Light Bicycle has been very pleasant. Wheels have no issue at all and Light Bicycles's customer's service is excellent. Now the wheel is on my SC Hightower. Building a LB Road wheelset when typing this review.
Singapore
1
RM29C07-mtb-carbon-wheels-with-braided-UD-matte
Light Bicycle : RIMS: RM29C07 Braided UD Matte 28H External Holes No Drain Holes With Access Holes HUB-F: DT SWISS 240 EXP Black 15 / 110mm BOOST straight pull Centerlock 28H HUB-R: DT SWISS 240 EXP Black 12 / 148mm BOOST straight pull Centerlock 28H EXP 54T Sram XD SPOKES: Sapim CX Ray Black NIPPLES: DT Swiss Aluminum Black
2
light-bicycle-29er-rm29c07-mtb-wheels-review
Jonathan : Love my LB wheels!
United States
1

View More Reviews >>

COMMENTS

C

CK 2021/03/01

Hi..would like to check if this rim is suitable for enduro riding style? https://www.lightbicycle.com/35mm-wide-29er-rims-beadless-for-bicycle-trail-or-mountain-bike-enduro-with-tubeless-compatibility.html

LightBicycle 2021/03/01

Hi Sir, May i have your weight and tire width please? Do you ride aggressively? Then we can check whether this 29er bike rims are okay for you. Thanks, Lightbicycle

C

CK 2021/03/12

My weight is 60kg. Tire front 2.5 and rear is 2.4. yes i ride aggresively.

LightBicycle 2021/03/12

Hi Chan, ​ There is EN version of this 29er bike rim. If you ride aggressively, you can choose Heavy Duty version. It is around 50g carbon fiber material added, to make rims stronger. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

P

Piecer 2019/03/25

Hi there! I'm looking to build this wheel onto a hub with 66.7mm flange width and 91.5mm flange diameter, 36 holes with 4-cross build, completely symmetrical so no dish. I'm also interested in adding a braking surface to the rim as my hub isn't disc compatible. Can you please advise on the pricing for this in total? And are you able to provide the spokes along with the rim? Thanks!

LightBicycle 2019/03/26

Hi Piecer, Yes, we can build a 36H mtb wheels with 4 cross lacing. You can purchase spokes and rims from us. Do you want to send us the hubs for wheel building? We can do that for you as well. What hubs are you planning to use? A link would be great. We need to confirm if the hubs are suitable for 4-cross lacing with our specialized wheel builder. We will need more detailed measurements of the hubs so we can calculate the spoke lengths. We might need to consider if you need a reinforced custom made rim. Do you use 14G spokes? Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

Simon 2018/07/11

Hi, I would like to have the correct lenght of the spokes for my wheels. The used rim would be RM29C07. The hub would be the MT Supadrive Boost Hub. Could you please help me and the spokes would be the Sapim race dubble buttet. Thank you in advance.

LightBicycle 2018/07/12

Hi Simon, Do you have the hub dimension link? If not, please provide attached "a~e" dimension. Then we can get the spoke length for your reference. Also, please check below questions. - Internal hole rim or external hole rim? - Hole count? - Front and rear axle width? - Straight pull or J-bend? - If you are using nipples with larger heads (double square, Squorx, or hex head for example), then we need to know this as the spokes are 1-2mm longer. - Do you have a spoke lacing preference? 2-cross or 3-Cross? Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

D

Dustan 2018/06/07

Can you please compare the performance differences between this model above and this one? https://www.lightbicycle.com/carbon-29er-mtb-rims-38mm-wide-hookless-tubeless-compatible-strongest.html

LightBicycle 2018/06/08

Hi Dustan, We just sent the difference of these two 29er rims to your email. Please check. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

V

Valentin 2018/02/16

Hello I need to replace a 35mm heavy duty rim 36h, o a boost hub rear wheel. Could you please tell me the correct spoke tension for both sides (without mounted tire). Thank you Valentin

LightBicycle 2018/02/16

Hi Valentin, Sorry for the late reply. We got your message about the spoke length. Can you list your hub spec and lacing pattern here? Then we can get the spoke length accordingly for you. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

G

Georg 2017/12/13

Hi, I purchased and got a pair of RM29C07's, looking nice! I have a question about building: I intended to use Sapim CX-Ray spokes, Polyax nipples and also Sapim HM-washers. Now it seem, the the washers try to 'straighten' the nipple (spoke line is not perfect anymore) while bringing tension to the spoke. It seems to be much better without the washers. Do you have experience or a recommendation about the washers ? FYI: I do know about the 5°-angled holes and respected this. Do you generally recommend these washers ? Thanks, Georg

LightBicycle 2017/12/14

Hello Georg, Thanks for your support. All our wheelsets are built without washers. And we do not have nipple washers here. The spoke hole strength is okay for without washers. Yes, the spoke holes are drilled at slight angles (5 degree). Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Mike 2017/11/06

I am looking to replace a rear roval traverse carbon rim only from my 2017 Specialized Enduro 29 with boost. Can you confirm the rim part number? I believe it would be RM29C07. Thanks

LightBicycle 2017/11/06

Hi Mike, May I know your tire width and your weight please? Then we can check which 29er rim is better for you. Do you like UD matte as attached? How many spoke holes do you like? Thanks, Lightbicycle

M

MIke 2017/11/10

Can you get to my question about the Roval wheel dated 2017-11-06

LightBicycle 2017/11/11

Hi Mike, We sent an email to you also. Have you got it? It is sales@lightbicycle.com Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Jonnie 2016/05/29

Hi LB Team, I'm super happy with my first set of rims from you and now also want to upgrade my new Enduro bike. Can you make me an offer for the following wheel set: Wheelset 29C07 Heavy Duty Layup Matte UD, no decals no valve 32h front, 36h rear ORANGE Hope Pro 4 Boost hubs (32h 15/110 front, 36h 12/148 rear) SRAM XX1 cassette body SAPIM CX RAY spokes Orange Aluminium nipples tubeless tape I know the orange Hope hubs and orange nipples are no stock option. I hope you still can arrange this... BR Jonnie

Light-Bicycle 2016/05/30

Hello Jonnie, Thanks for your continued support. The 35mm wide 29er HD wheelset with following specs is USD933/pair. -Rims: RM29C07, HD version, UD matte, no decals -Hubs: Hope pro4 boost front 15*110mm/ rear 12*148mm for Sram xx1. We can get the orange Hope boost hubs but both in 32H. Does that work for you? -Spokes: Black, Sapim cx-ray -Nipples: Alloy, only black and red are in stock. I am sorry about that. Thanks, Light-bicycle

J

Jonnie 2016/06/14

Hi, Just ordered. Excellent sales support like last time. I forgot one question. Do you see any trouble in installing the Schwalbe Procore system in the rims. I think the HD rum build shoulb be able to deal with the high tire pressure but as I do not insist to run Procore I rather ask you guys begore I do... Thanks

Light-Bicycle 2016/06/15

Hello Jonnie, Thanks for your support. For the Procore system, we do not have a lot of testing information on it, but so far the customers we've heard from say it's working. Personally, I think our 35mm rims do not have tire burping issues. The larger issue is with g-outs, not impacts from too low of pressure (generally speaking), so I am not sure if Procore is super beneficial. Thanks, Light-bicycle

M

Marc 2017/10/17

I'm running Schwalbe Procore on the RM29C14. One issue is the rim depth, it is too deep to install the retaining nut onto the valve. The system seems to work fine without it, using the Procore tube pressure to seal the valve to rim interface. The RM29C07 should be the ideal rim for the Procore System, being shallow enough to get the retaining nut onto the valve. One of the advantages of the Procore is an insurance policy - I have torn a tyre and continued to ride 1km of descent and 1km of transition to get back. The rim was undamaged as the result of having the Procore installed. The Procore Tube protects your rim from impacts from the ground.

LightBicycle 2017/10/18

Hi Marc, Procore valve stem is not deep enough for our 32mm deep rims. Some of our customers contacted with Schwalbe Procore, and Schwalbe Procore is going to make deeper valve stems. I think their deeper version should be ready now. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Chris 2017/06/29

Hi, what are the minimum and maximum tyre width for RM29C07? Thanks!

LightBicycle 2017/06/30

Hello Chris, Thanks for your inquiry. The recommended tires width for RM29C07 are 2.2''~ 2.7''. Or you can let us know the tires width you use, then we will double check accordingly. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Andrew 2017/06/16

I have a pair of the RMC29C14 wheels. What is the difference between those and the RMC29C07?

LightBicycle 2017/06/20

Hello Andrew, Thanks for your support. Please find attached rims profile of RM29C14 (38mm width) and RM29C07 (35mm width). Both rims are designed for all mountain or aggressive riding. The 38mm are wider and deeper so the lateral and vertical stiffness are increased. The 38mm has slightly increased impact protection than the 35mm but both are quite strong, especially in the heavier/reinforced version of the rim. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Thomas 2016/09/09

Hi, are you able to supply the RM29C07 plus black 100/15 and 142/12 Shimano compatible Hope pro4 hubs, i.e. not built up as a wheel set ? If so what would the price be ? Thanks...

Light-Bicycle 2016/09/10

Hello Thomas, Thanks for your inquiry. We are able to sell the rims and hubs to you, and you can build the wheels by yourself. Do you need spokes/nipples? Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Thomas 2016/07/01

Hi, I was wondering if you make a newer version of the 30mm internal width rim with the same rim shape as the RM29C14 and the RM29C19, with the more rounded shape? If so, what is the lead time on those? Thank you!

Light-Bicycle 2016/07/04

Hello Thomas, Thanks for your inquiry. We don’t revise the rim mold of RM29C07 until now. This rim is quite popular and hardly did our customers complain the design, so we will keep the rim shape. If you ride aggressively, and prefer U shape rim with bead-lock, then go with RM29C14. That is our strongest rim here. Ideal for large and aggressive riders. Above lead time is based on rims in UD matte 32H. If you have special requirement for rim weave/ finish/ hole counts, the lead time is around 12 days. Usually, it takes around 4-7 days to delivery. Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Jared 2016/06/23

Good day, I am looking to get 2 RM29C07 rims with the 12k weave and matte finish. How long would it take before these could ship in either 28 hole or 32 hole? Thank you

Light-Bicycle 2016/06/24

Hello Jared, Thanks for your inquiry. Lead time: around 12 business days for rims Delivery time: around 4-7 days. The lead time for 28H or 32H are the same. Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

Ray 2016/05/22

I currently have a set of RM29C06's that I am very pleased with. I would like to consider the RM29C07's but the lack of a bump before the center channel concerns me. Do the C07's have that feature or are like like the picture indicates? Also, would you be able to select rims that are at the lighter end of the inventory?

Light-Bicycle 2016/05/24

Hello Ray, Thanks for your continued support. Rim profile of RM29C07 attached for reference. The 29C07 is without the bead-lock but works well also. Some riders concerns the transition to hookless rim profiles will cause tyres blowing off or an increased likelihood of burping air from tubeless tyres. So we add bead lock ridges to make them without any fear and ride confidently. If you prefer the rim with bead lock, you can choose the 38mm width rim. Thanks, Light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Anders 2016/05/10

Is it possible to use this rim with 2:1 spoke pattern, e.g. on a Roval Traverse Fatty 29 24H (16/8) front hub? The spoke holes are slightly angled, right?

Light-Bicycle 2016/05/11

Hello Anders, Thanks for your inquiry. The RM29C07 can be drilled with 2:1 drilling. And the spoke holes are with /-5 degree. Is it 24H spoke holes laced on rim evenly? Thanks, light-bicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
