RM29C06 Carbon MTB Rim - Light Bicycle

Buy & Configure

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight:g+/-25

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight:g+/-25

Subtotal: USD +

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-20 g+/-25

Subtotal: USD +

Lead time:

ADD TO CART

Version This is a required option.

Version	RM29C06(d) Standard	RM29C06(d) Flyweight
Weight	360+/-15g	280+/-15g
Material	Toray T700	Toray T800 and T700
Layup	Standard Layup. Good for rear and front	New layup for weight saving. Best for front
Warranty	3 years warranty 3 years crash replacement with 10% discount	3 years warranty 3 years crash replacement with 10% discount
Max Weight	100kg	90kg

Standard

Flyweight USD +15

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc) at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

24H

28H

32H

36H

Full Custom

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 1-2 weeks LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Glossy

Matte

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 1-2 weeks LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

12K

Full Custom USD +15

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole help evacuate the water trapped inside the rim, using the centrifugal force of rolling wheels.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

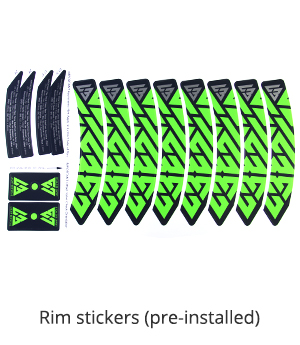

Decal This is a required option.

The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Stealth (Grey)

Blue

Green

Magenta

Orange

Red

Yellow

Blank (No decal)

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

None

Add Tubeless Tape USD +6 each

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 360.00g+/-15

Subtotal: USD 143+

PREVIOUS NEXT

RIM SPECS

Model RM29C06
Material Toray T700 & T800 Premium Carbon Fiber
Size 29"/29er (ETRTO 622mm)
Series RECON
Intended Use Cross Country

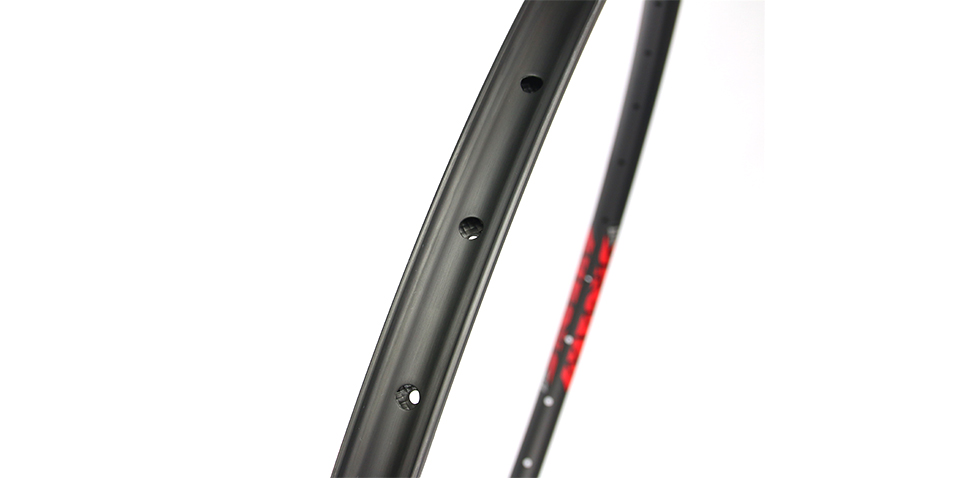

Bead Type Hookless
Tubeless Capable Yes

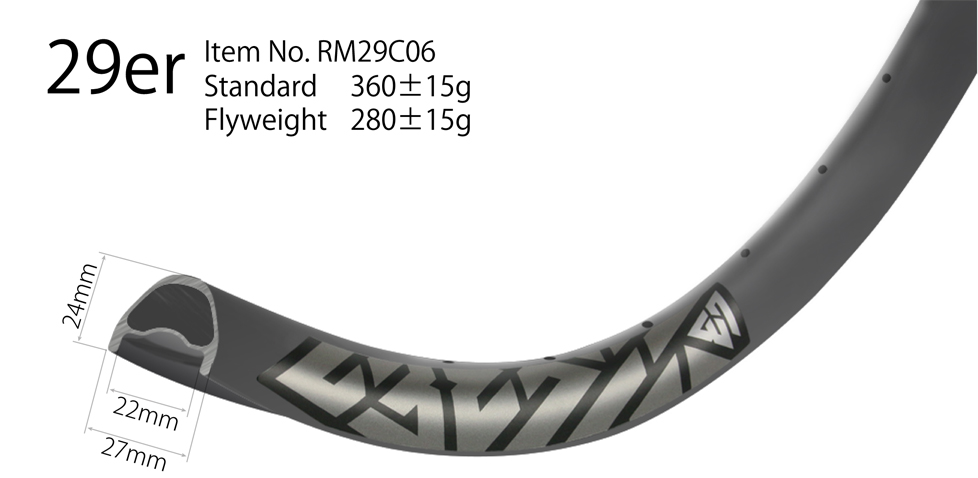

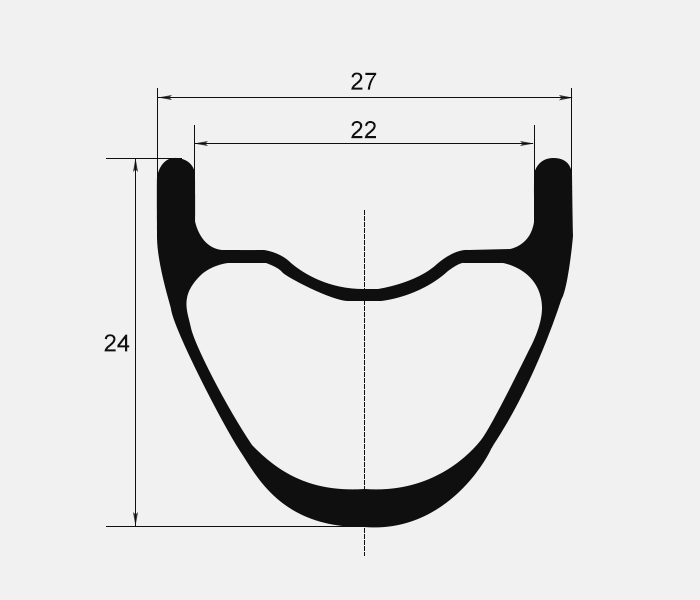

Inner/Outer Width 22mm/27mm
Depth 24mm
ERD 593mm (not including nipple head dimension)
Rim Weight Flyweight 280+/-15g, Standard 360+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) Flyweight 90kgs/ 198lbs, Standard 100kgs/ 220lbs
Spoke Hole Angle ±5°
Spoke Tension 120~130kgf front disc side and rear drive side
Max Tire Pressure 40psi/ 2.75bar
Recommended Tire Width 1.9" ~ 2.3"

Read more for TL tire pressure charts

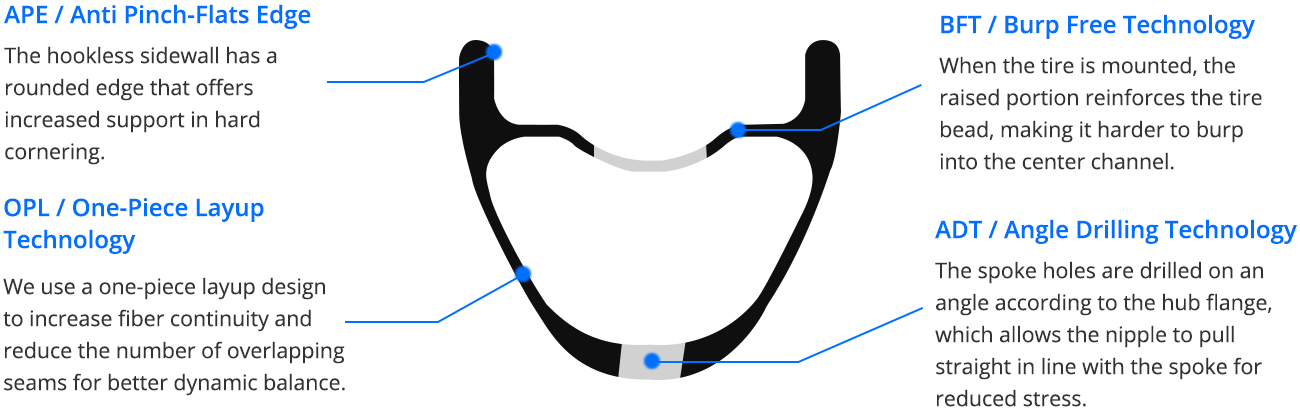

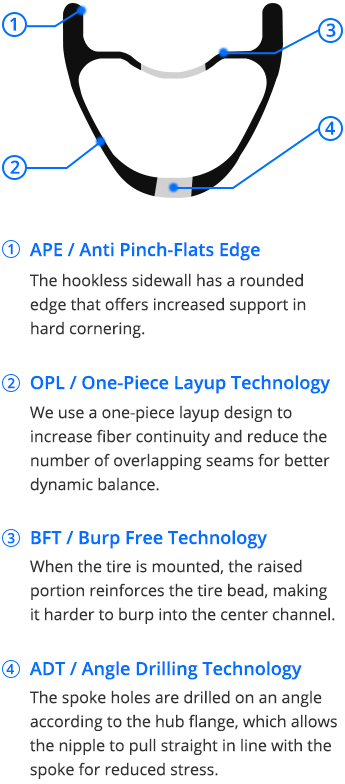

TECH

The Flyweight is a new series of rims from Light Bicycle. Targeted specifically towards racers who seek every possible edge on the race course. Our goal was to produce the lightest possible rim without sacrificing performance.

Drawing on our engineers’ years of experience and countless revisions in each step of the manufacturing process, we are able to produce a strong and stiff XC rim while dramatically reducing the weight.

Construction: We used a special uni-directional pre-preg with a very low fiber areal weight. This is an exclusive process to our Flyweight rims. To further reduce the weight we used a blend of Toray T700 and T800 specific layups. We opted for a new subtle ultralight waterslide graphic in glossy black with a matte finish overtop in the spirit of keeping these as true cross country race oriented rims.

Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>

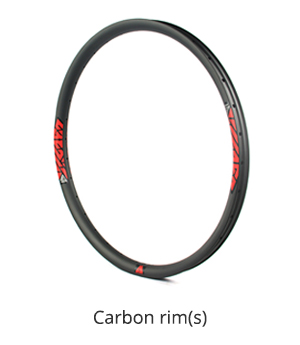

WHAT IS IN THE BOX

Gallery

gt-grade-carbon-pro-gravel-bike-on-light-bicycle-carbon-gravel-wheels

Adalberto: AR24 flyweight with Schwalbe G-One Allround on GT Grade Carbon. The rims are very light and seems sturdy.

Italy

RM29C06-flyweight-carbon-wheelset-with-continental-race-king-29er

Bjarne: My wheels arrived Yesterday, and I have now completed my build. Wuhuuu The LB wheels really complete this build.

Denmark

Light: Rims: AR24 disc (RM29C06d) Flyweight UD Satin 24/24H Tubeless Hubs: Carbon-Ti X-Hub 12/100mm 6-bolt Straight pull Black Carbon-Ti X-Hub 12 /142mm Straight pull 6-bolt Sram XDR 56T Black Spokes: Pillar Aero X-TRA 1420 Black Nipples: Sapim Aluminium Black External Decals: Stealth (Grey) Weight: 1097.48 grams

rm29c06-flyweight-front-wheel-with-carbon-ti-x-hub-sp-disc-measured-weight-523g

Light Bicycle: Rims: RM29C06 Matte UD 28/28H Tubeless-Ready Flyweight Hubs: Carbon-Ti X-Hub 15/110mm BOOST straight-pull 6-bolt Gold Carbon-Ti X-Hub 12/148mm BOOST Sram XD 6-bolt 56T Gold Spokes: Sapim CX Ray straight-pull black Nipples: Sapim Aluminium Gold External Weight: 1142 grams

Light Bicycle: Rims: RM29C06 matte ud 32/32h Hubs: Hope Pro4 Boost blue/red Spokes: Sapim D-Light Nipples: Sapim aluminum blue/red

29er-carbon-wheelset-matte-finish-paint-vs-paintless-finish

Light Bicycle: Front wheel: XC925 Standard matte UD 32H external hole 5 Years HUB-F Tune Cannonball 2.0 Lefty 2.0 J-bend 6-bolt Black 32H NBK SPOKE Sapim CX Ray Black J-bend uncertain NIPPLE Sapim Aluminium Black Polyax Secure Lock External Rear wheel: RM29C06 Standard matte UD 32H external hole HUB-R Tune Kong 12 / 142mm Shimano MTB 10/11S J-bend 6-bolt Black 32H 24T NBK SPOKE Sapim CX Ray Black J-bend uncertain NIPPLE Sapim Aluminium Black Polyax Secure Lock External

SEE MORE ADVENTURES

COMMENTS

Schmitty 2020/12/29

Do these rims require spoke washers for assembly?

LightBicycle 2020/12/30

Hi Sir, Our rims are predrilled professionally and rim spoke wall thickness is strong enough. No need to use nipple washers in wheel buildings at the standard procedure. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Jakob 2019/09/19

Hello, in 2017 I purchased a set of disc mtb wheels, WM29C06. I have since sold the bike, but still have the wheels. I would like to convert them for a CX bike with rim brakes. Are the rims capable of working? I am thinking the brake surface is the only thing in question. I am only 75KG and they will be used as pit wheels. Thank you, Jakob

LightBicycle 2019/09/20

Hi Jakob, So good to know that your WR29C06 still works well since 2017. The rim brake surface special material and resin system supposes to put on the rim before molding. You can not use a disc rims on a rim brake now. There is not special brake surface on these mtb bike wheels. So my suggestion is, buy a new set of wheels that made with rim brake. It would also take a lot of effort to convert a rim brake bike to a disc brake bike as well. So buying a new set would be the best option. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Tom 2019/06/23

Hi, how much are the 27mm 29er recon rims in flyweight version? I need a pair with 32h drilling for gravel/CX/fat road tyres. Highest psi I run is around 55psi. How much for 2 rims posted to the UK? What spoke tensions are recommended for these flyweight rims? Thanks, Tom.

LightBicycle 2019/06/27

Hi Tom, The flyweight version of 29er XC rim RM29C06 (27mm wide) is USD158 (UD, matte, 32H) each. For the flyweight version, our recommendation usage would be for the front wheel of a CX bike (or gravel bike). I would also have to point out that the rider weight limit of this particular rim is 90kg. If you are heavier than 90kg or riding a bit aggressive, the rim won't be a good choice. Normally, we recommend using the flyweight version for the front wheel and the standard version for the rear wheel. Riding with 55psi is totally ok for rim RM29C06 as our recommendation tire pressure is under 60psi. Max spoke tension is 135KGF. Please do not exceed 135kgf while wheel building. We also email you the spoke tension chat we normal use for your reference. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Tchell 2019/04/15

I am looking at the flyweight version of the RM29C06. I am 81Kg (180 lbs). I am a 60yo I ride mostly single track mountain trails in Utah. I am a strong rider on smooth single track. I do not do any rough rocky terrain , no drops, air etc. Could I go with the flyweight or standard?

LightBicycle 2019/04/16

Hi Tchell, Since you are not doing aggressive riding and not a heavy rider yourself, we recommend using the flyweight version on the front and the standard version on the back. Are you looking for building a complete 29er XC wheelset from us? or carbon fiber bike rims only? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Henrik 2018/08/19

Hi Are you planning to launch the flyweight version with a wider internal mesurement like e.g. 25 mm?? And will it be possible to order a wheelset with 24 spokes in front and 28 in rear ?? Kind regards Henrik

LightBicycle 2018/08/20

Hi Henrik, Yes, we are planning on launching a new MTB series that with few flyweight version rims. The estimated launch time would be around September. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Luke 2018/07/07

Hi There, Are these available with no decal? Thanks!

LightBicycle 2018/07/10

Hi Luke, Yes, you can order plain rims only (without the decals). Do you want the standard version or the flyweight version? If you do not choose on decal color, the bike rims will be shipped without any graphic. Don't worry. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Chris 2018/07/04

Ciao, I recently crashed my CZero carbon rims on my Scalpel Carbon. I'm considering to buy a pair of 29C06 Flyweight rims (to be re-build on existing hubs) . My weight approx 76-78 kg. Level of riding: XCO training/racing in all type of conditions. Does the 29C06 meet the requirements?

LightBicycle 2018/07/05

Hi Chris, Few questions for you before you place the order. Let me learn more about your riding condition to make the proper recommendation. 1. What is the tire width you use? The recommended tire width for RM29C06 is 2.0~2.2". 2. Are you an aggressive rider? You are not a big guy, so as long as you don't ride aggressively, The flyweight is ok. 3. Do you ride rocky terrain often? Then we can check whether flyweight version 29er mtb bike rim is strong enough for you. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

aaron 2018/07/01

Hello What are the spoke tensions for the 29C06 flyweight rims with dt swiss 240s straightpull hubs and with the dt swiss competion race spokes. Thanks

LightBicycle 2018/07/04

Hi Aaron, We use the following spoke tension range while building symmetrical MTB wheels, pls take it as reference Front hub: non-drive side 115~125kgf, Drive side 85~95kgf Rear hub: non-drive side 85~95kgf, Drive side 115~125kgf It’s better to make sure that the max spoke tension under 135kgf. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Dmitriy 2018/04/28

Hello ! The specified weight limit that includes? My weight is 90 kg. Consider buying a lightweight rim. For my weight, they fit? Or should I choose the standard version?

LightBicycle 2018/04/28

Hi sir, RM29C06 flyweight version is for light XC riding. Could you kindly tell me what kind of riding you do? Are you an aggressive rider? I need more info to tell whether the flyweight version is right for you. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Roger 2018/02/12

Why is the RM2906 only rated at 40PSI? The hookless rims from several other manufacturers can run higher pressure and theirs is hookless. I only need 10more PSI. I would like to run these at 50 PSI with a 28mm tire for both some gravel roads and some tarmac. I only weigh 72.5kg. I would love to use your RM2906 because it is so light but the PSI is making me think about it. I see your gravel rim but would rather use this rim if I can.

LightBicycle 2018/02/13

Hi Roger, 40psi is the tire pressure we recommend to you that keep tire safely on the rim and make sure your rims at their best performance during riding. Normally, nobody would ride over 40psi during riding. 70psi is the tire pressure we used on lab when testing the rim mounted with an inflated tire. 70psi is the max tire pressure. We highly NOT recommend run with high pressure. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Fkent 2018/02/06

I am right on the edge of the weight limit for the flyweight. I know the tires are rated for "XC", but what testing methods are being used to determine weight limit. Would the flyweights hold up to "trail" riding at their max rated capacity?

LightBicycle 2018/02/07

Hi sir, What kind of riding style will you ride on RM29C06 rims? Do you ride aggressively? Normally, RM29C06 flyweight is for racing only. While normal training, it is better to use standard version for daily training. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

sam 2018/01/03

Hi, Can I order the 29er flyweight rim without decals?

LightBicycle 2018/01/04

Hello Sam, Thanks for your inquiry. It is okay to order the 29er flyweight rim without decals. If you like to place the order through our website, you can leave a massage that “you like rims without decals” when you place the order. Then we will see it and send you the plain rims. When you checkout, there is a message box for leaving message. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

billy 2018/01/02

hello i want order rm29c06 flyweight rim x2,i would like to ask a question,can i use chinese?thx

LightBicycle 2018/01/02

Hello Billy, Thanks for your continued support. Sure. Please let us know your question in Chinese, then we will reply you accordingly. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Kevin 2017/10/13

Can you make a hooked version of the RM29C06 Flyweight capable of higher psi? Would make an excellent light rim for fatter road tires.

LightBicycle 2017/10/14

Hi Kevin, Thanks for you inquiry! Currently, we do not have this rim in hook version. Do you ride road or road disc? May I know your tire width and your weight please? What about your usually tire pressure? Then we can check which is the suitable and lightest rim for you. We have RG922 hook(29mm outer/22mm inner). It should be okay for you. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Rob 2017/10/02

What is the recommended smallest tyre to use on these rims? Would they be suitable for cyclocross? I am also interested in the new gravel rims (RG922), are they available yet? Thanks.

LightBicycle 2017/10/08

Hi Rob, Sorry for the late reply. We were on National Day vacation from October 1st to 7th. We are just back to work today. How much tire pressure will you use? Then we can check whether RM29C06 rim is okay or not for your cyclocross riding. It is hookless design, it is better to make sure the tire pressure is less than 40 psi while riding, to preventing from tire blowing out while riding. Please check our RG922 gravel rim profile as attached. It is 29mm wide and 28mm deep, with hook design. It can hold tire pressure that is higher than 100psi. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 113 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

^
