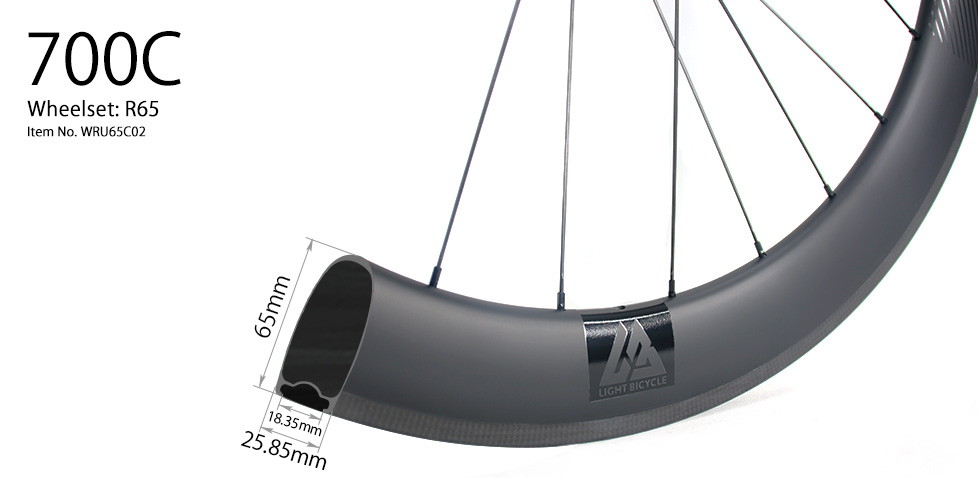

Build Your Falcon WHEELSET R65
All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.




Ships worldwide. See what's on sale>>
DEFAULT SETTINGS
Piece Weight: g+/-
Subtotal: USD +
Lead time:
ADD TO CART
You
missed some options.
Added to cart! View cart
Center Channel Hole This is a required option.
No Access Holes
DEFAULT SETTINGS
RIMS
Matte, UD, hook, blank (no decal), 24h, with drain holes
Paintless, UD, blank (no decal), 28h, with access holes
HUBS
DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t
12*100mm (F) & 12*142mm (R)
DT Swiss 350 Straightpull Centerlock Sram XD 18t
15/110mm (F) & 12/148mm (R) boost
SPOKES & NIPPLES
Sapim CX Sprint-rear drive side / CX Ray-other sides
Sapim aluminum black external
Sapim CX Ray & Sapim aluminum black external
ACCESSORIES
2 valves & 1 spare 18T ratchet
2 valves & 2 adapters (centerlock to 6-bolt)
Note: the wheelset price includes the warehouse transfer cost ($80).
Piece Weight: g+/-
Subtotal: USD + (discount price)
Lead time: typically ships in 3 business days
ADD TO CART
You
missed some options.
Added to cart! View cart

This item has gone out of stock currently.
More products are in transit and we will update the availability soon.
Leave a comment or email us (sales@lightbicycle.com) if you want to get notified when available.
You can also order this product from other shops.

We do not stock this item at the Australian shop. See what's available.
You can order this product from our Global / NA shops.
Please fill out this form if you are looking for a custom wheelset.
We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.
Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the US Shop. Check this link to see what items we stock, or send us an email to discuss.
Our Global Shop can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelsets. We will get back to you via email to discuss in 24hrs.

Our apologies, we do not stock this item at the CA Shop. Check this link to see what items we stock, or send us an email to discuss.
Our Global Shop can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelsets. We will get back to you via email to discuss in 24hrs.

The wheelsets are still in transit to this shop. We’ll update this page when they’re available. Learn more about our European shop.
You can order this product from our Global or North American shops.
Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.
DEFAULT SETTINGS
Piece Weight: g+/-
Subtotal: USD +
Lead time:
ADD TO CART
You
missed some options.
You
missed some options.
Added to cart! View cart

- 1
HUB
- 2
SPOKES/NIPPLES
- 3
RIM
- 4
ACCESSORIES/OTHERS
- 5
OVERVIEW
HUB
Shopping Style
Options
Features |
Quick Buy | Full Custom |
---|---|---|
Inventory | Parts in stock (Assembled upon order) |
Manufactured upon order |
Customization | Least customizable | 100% Customizable |
Lead Time | ≤ 3 days | 4 weeks typically |
Availability | Limited models | All models |
Shipping | Worldwide | Worldwide |
Quick Buy (In Stock)
Full Custom (Made to Order)
DEFAULT SETTINGS
Rims
Hook, matte, UD, with drain holes
Hook, matte, UD, with access holes, with drain holes
Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes
Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes
Paintless, UD, 5-year warranty, no drain holes
Grooved graphene surface, hook, matte, UD, with access holes, with drain holes
Grooved graphene surface, hook, matte, UD, no access holes, with drain holes
Matte UD, 32H, Centered (Staggered)
Hubs
Hope Pro 4 Fatsno J-bend 6-bolt
15/150mm (F) & 12/197mm (R) Sram XD
Straightpull centerlock black 24H
12/100mm & 12/142mm
Shimano Road 11S
DT Swiss straightpull / Bitex j-bend, centerlock, 28H
J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H
15/110mm boost & 12/148mm boost Sram XD
DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear
100mm QR & 130mm QR Shimano Road 11S
Spokes
Sapim CX Ray black
Sapim D-Light
Accessories
No decals/valves/tape
No decals/valves/tape/pads
No decals/valves
Piece Weight: g+/-
Subtotal: USD +
Lead time:
ADD TO CART
You
missed some options.
You
missed some options.
Added to cart! View cart
Hub Brand This is a required option.
Model | Weight | POE | Cost | Reliability | Quality | Unique Feature | Color Options | Warehouse Location | Website |
---|---|---|---|---|---|---|---|---|---|
Novatec | 287g | 27 | Low | Good | Good | Inexpensive | Three | China | NOVATEC |
Bitex | 258g | 24 | Low | Good | Good | Light | Two | China | BITEX |
DT 350 | 374g | 18/36/54 | Low | Better | Good | Quiet and reliable (18t option) |
One | China | DT SWISS |
DT 240S | 317g | 18/36/54 | Medium | Best | Best | Quiet and reliable (18t option) |
One | China/N.A. | DT SWISS |
DT 240 EXP | 299g | EXP 36 | Medium | Best | Best | Quiet and reliable (EXP 36 ) |
One | China/N.A. | DT SWISS |
DT 180 | 290g | EXP 36 | High | Best | Best | Super Light, EXP 36 | One | China/N.A. | DT SWISS |
Chris King | 326g | 45 | High | Best | Best | Rebuildable bearings | Nine | China | CHRIS KING |
Industry Nine | 327g | 60 | Medium | Better | Best | Loud, engagement | Eleven | China/N.A. | INDUSTRY NINE |
Onyx | 434g | Infinite | High | Better | Best | Silent, sprag clutch | Eighteen+ (Custom Available) |
North America | ONYX |
Carbon-Ti | 270g | 56 | High | Better | Best | Extreme Light | Nine | China | Caron-Ti |
ARC | 332g | 48 | Low | Better | Good | Economic and reliable | One | China | ARC |
Chosen | 260g | 24 | Low | Better | Good | Economic and reliable | One | China | Chosen |
Light Bicycle Pace-Hub | 275/285g | 36/48 | Low | Better | Good | Economic, reliable, light | One | China | Light Bicycle |
Light Bicycle Speed-Hub Gen3 |
275g | 36 | Low | Better | Good | Proprietary for Carbon Spokes Steel Bearing (upgradable to ceramic) |
Two | China | Light Bicycle |
Light Bicycle Speed-Hub Gen2 |
295g | 36 | Low | Better | Good | Proprietary for Carbon Spokes Steel Bearing (upgradable to ceramic) |
Two | China | Light Bicycle |
Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS
* POE = Points of Engagement
* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.
* Average weight will vary slightly depending on axle and freehub combination.
DT SWISS 180
DT SWISS 240 EXP
DT SWISS 350
Carbon-Ti X-Hub
Front Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

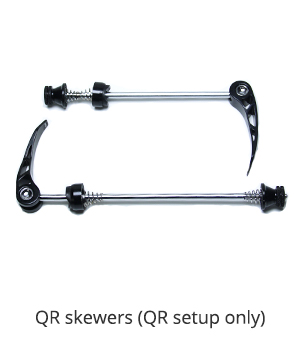

By default, skewers are only offered with QR hubs.
QR / 100mm
Rear Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.
By default, skewers are only offered with QR hubs.
QR / 130mm
Freehub Body This is a required option.

1. Shimano Road 11S works with 11/12-speed cassette directly or 8/9/10-speed mountain cassette with a spacer(s) .
2. Shimano MTB 10/11S works with 8/9-speed directly or 10-speed with a spacer or 11-speed road cassette if one of the inner cogs removed.
3. Campagnolo (Campy) 11S works with 9/10/11/12-speed Campy cassette with no spacers required.
4. Sram XDR could run XDR (road) cassette inherently and is compatible to run mountain bike XD cassette with a 1.85mm spacer.
5. Shimano Micro Spline (MS) works with 12-speed MS cassette only.
Shimano Road 11S
Campy 11S
Sram XDR
Spoke Head This is a required option.

J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes
straight pull
Brake System This is a required option.

6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt.
If you need the conversion kit, please contact us. Our hubs are provided without rotor lockrings by default.
Non Disc
Hub Color This is a required option.
Black
Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.
Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.
20H
Rear Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.
Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.
24H
Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 4 different models with varying points of engagement.
18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.
36T - Happy medium, doubles the engagement points.
54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.
24T - Made out of hardened steel as e-bike specific.
EXP 36 - With only a single spring, making the hubs faster and lighter. More precise contact makes a longer lifespan.
EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.
36T
54T
56T
EXP 36
EXP 54
Spoke This is a required option.

Brand | Model | Type | Thread Diameter (mm) | Weight(g) | Gauge | Riding Style | Available(Warehouse Location) |
---|---|---|---|---|---|---|---|
Sapim | Race | Double Butted | 2.0 - 1.8 - 2.0 | 5.7g (260mm) | 14G | Heavy Duty | North America, China |
Sapim | D-Light | Double Butted | 2.0 - 1.65 - 2.0 | 4.8g (260mm) | 14G | Versatile | North America, China |
Sapim | CX-Ray | Aero | 2.0 - 0.9/2.2 - 2.0 | 4.4g (260mm) | N/A | Light Aero | North America, China |
Sapim | CX-Sprint | Aero | 2.0 - 1.25/2.25 - 2.0 | 5.2g (260mm) | N/A | Light Aero | China |
DT SWISS | Competition Race | Double Butted | 2.0 - 1.6 - 2.0 | 4.8g (260mm) | 14G | Versatile | China |
Pillar | PSR X-TRA 1420 | Aero | 2.0 - 0.95/2.2 - 2.0 | 4.4g (260mm) | N/A | Inexpensive Aero | China |
Pillar | Wing 20 | Aero | 2.2 - 1.2/2.0 - 2.0 | 4.3g (260mm) | N/A | Light Aero | China |
Light Bicycle | Oil slick J-bend | Single butted | 2.0 - 2.0 - 1.95 | 6.7g (260mm) | 14G | Cool color | China |
Light Bicycle | Thrust-4 Carbon | Aero | 2.2-1.1/4.0-2.2 | 2.8g (SP, 260mm) | N/A | Light Aero/Stiff | China |
Berd | PolyLight | Rope-like | 2.0-1.8 | 2.5g (260mm) | N/A | Extreme Light | North America |
Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.
DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)
Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.
Pillar Wing 20 - Pillar patented highest level of aerodynamic bladed spoke reducing potential weak spots and twisting during tensioning. Currently, they are offered in oil slick color only with increased wear and corrosion resistance.
Sapim CX Sprint-Rear drive side/ CX Ray-Other sides - This customized combo increases the rear drive side power transmition efficiency significantly while grabs superior light-weight and aero performance.
Oil slick J-bend - They are made by a qualified manufacturer in Taiwan with custom design by Light Bicycle. They are J-bend only so do not order these spokes for SP hubs you configured in the previous step.
LB Thrust-4 Carbon - The Thrust-4 Carbon spokes are designed to boost high tensile strength. The 4mm all-road profile ensures great crosswind stability.
Berd PolyLight >> - It is constructed from an advanced polymer called ultra high molecular weight polyethylene (UHMWPE) and are widely considered to be the lightest bicycle spoke option in the world.
Pillar Aero X-TRA 1420
Sapim CX Ray
Sapim CX Sprint-Rear drive side/ CX Ray-Other sides
Nipple This is a required option.

Nipple Brand | Model | Material | Color | Length | Available (Warehouse Location) |
---|---|---|---|---|---|
Sapim | Double Square Secure Lock | Alloy | Black, Red, Green, Blue, Gold, Lime, Purple, Orange | 16mm | Norh America |
Sapim | Polyax/ Polyax Secure Lock | Alloy | Black, Red, Green, Blue, Gold, Lime, Purple, Orange | 14mm | China |
Sapim | Polyax Secure Lock | Brass | Black | 14mm | China/N.A. |
DT Swiss | DT SQUORX (PRO HEAD PRO LOCK) | Alloy | Black, Red | 15mm | China |
DT Swiss | Standard PRO LOCK | Brass | Black | 14mm | China | Light Bicycle | N/A | Brass | Oil slick | 14mm | China | Light Bicycle | Aluminium Black (for carbon spokes) | Alloy | Black | 8.9mm | China |
Please select Aluminium Black (for carbon spokes) nipples when you have chosen LB Flyweight Carbon spokes.
Aluminium Black
Aluminium Red
Brass Oil slick
Brass Black
Bead type This is a required option.
Hook
Brake System This is a required option.

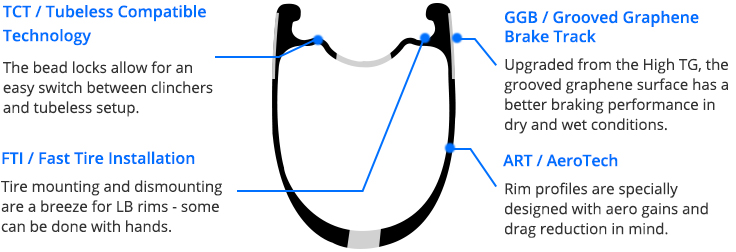

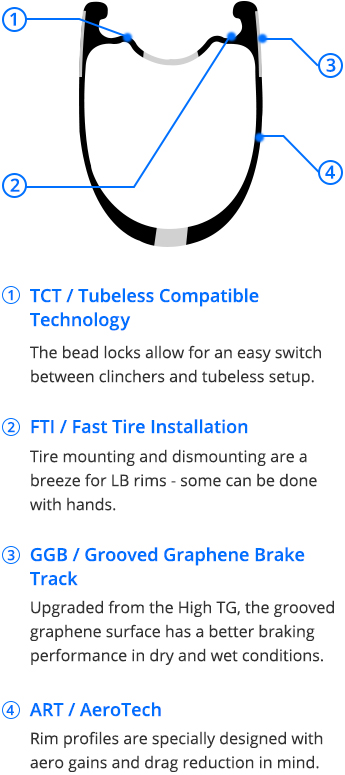

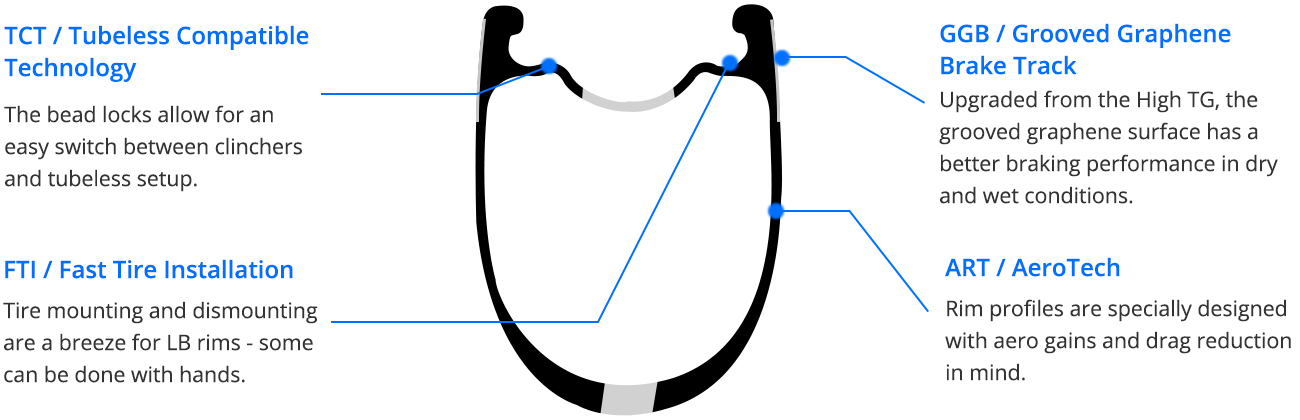

Non Disc - High TG Surface: Rim Brake 700C road rims use an advanced High TG resin system with a layer of graphene to help dissipate heat. The braking power and reliability is significantly improved over a basalt braking surface.
Non Disc - Grooved Graphene Surface: Our new resin system and construction method, combined with the 3k rim track, withstands over 280°C, dissipates heat, and lowers rim temperatures faster in between braking efforts. Gain confidence-inspiring brake performance on the steepest descents and wettest conditions with our matching brake pads. Also, graphene added to the rim brake track allows for greater resistance to overheating with improved heat dissipation and reduced temperature accumulation during heavy braking. The grooved track helps evacuate trapped moisture between pad and rim in wet conditions, and brings more resistance and force at the lever when conditions are dry.
Full Custom: This option (if provided here to choose) offers custom braking track in other various weaves (UD/12K/3K twill etc) with 1-2 weeks LONGER on manufacture and extra $10USD/rim only as a start (with High TG Surface by default). If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.
Disc: The disc version does not have a rim brake track and features a unique disc specific layup process. Our new layup is about 10g ~30g lighter by reducing the unnecessary material and utilizing elements of our Flyweight construction method.
Non Disc - High TG Surface
Non Disc - Grooved Graphene Surface USD +30
Full Custom USD +10
Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.
Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3-5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.
Glossy
Matte
Full Custom
Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.
The rim strength & weight is virtually identical.
Matte UD is the most popular and has a subtle look.
The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>
Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.
UD
3K
12K
Hexa-Comb USD +15
Full Custom USD +15
Center Channel Hole This is a required option.

With Access Holes: This is the traditional method. Spoke access holes are drilled in the center channel to allow the nipples to easily be fed through the rim. Tubeless tape is required to seal the rim.
No Access Holes: No spoke access holes are drilled in the center channel. Feeding the nipples through the rim is more challenging, but it allows for a tubeless setup without the need for tape. This kind of system is known as "road tubeless" and was made popular by Mavic. Some companies still refer to it as "UST style", however, UST is actually a specific interface between the tire and rim which was developed by a partnership between Mavic, Michelin, and Hutchinson.
Currently, rims with 'No Access Holes' do not work with our carbon spokes.
With Access Holes
No Access Holes
Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.
It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.
Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>
With Drain Holes

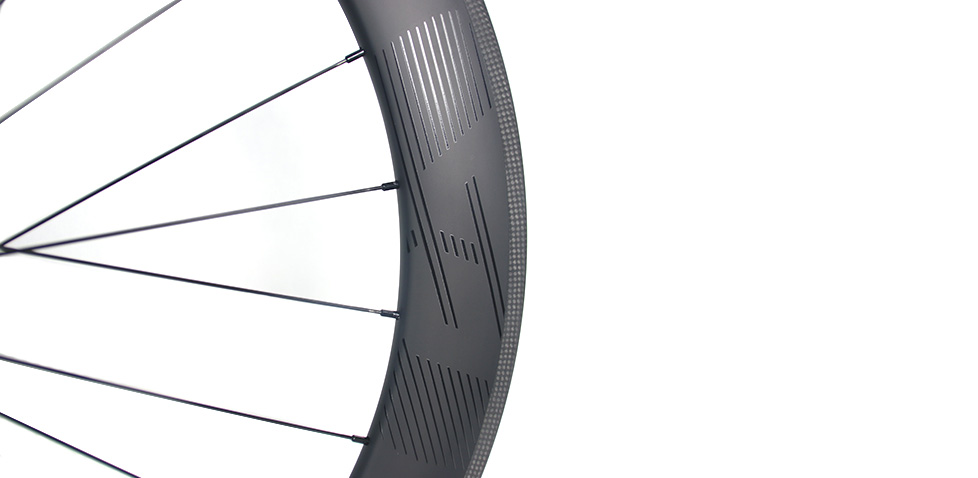

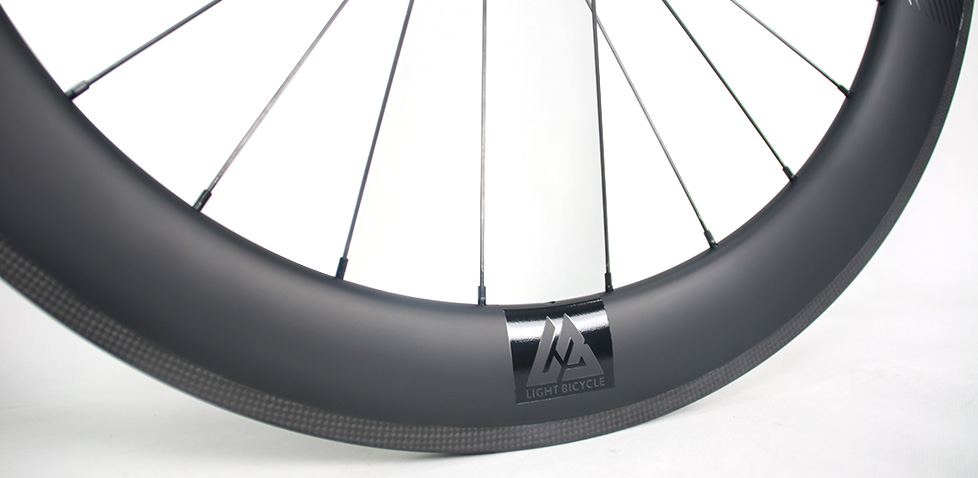

Decal This is a required option.

Road rims use super light waterslide decals (matte colors). The decal is very thin and applied under a clearcoat so they are non-removeable.
Pictures about light-bicycle decal >>
If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.
Blank (No decal)
Stealth (Grey)
Blue
Green
Magenta
Orange
Red
White
Yellow
Wheel Bag This is a required option.

Our all-new single wheel bag provides reliable storage for your wheel. Plus, an internal pocket is designed to store skewers and other tools. The wheel bag safely and comfortably accommodates most road and mountain bike wheels, including 700C, 26", 27.5", and 29" wheels. The wheel bag is with Light Bicycle logo by default. If you hope to get one without logo, please leave a note at checkout.
For a wheelset product, when selecting "Add Wheel Bag", you'll get two wheel bags; while for a single front/rear wheel product, you'll get one wheel bag.
None
Add Wheel Bag USD +25.5 each
Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions
None
Add Valve Stem USD +7 each
Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape
Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.
You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.
None
Add Tubeless Tape USD +6 each
Apply Tubeless Tape USD +6 each

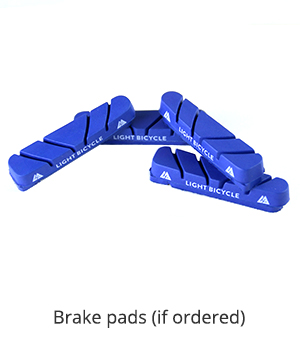

Brake Pads This is a required option.

By default, Shimano type is offered only (Contact us if you want Campagnolo type). 4 pads will be included. These high performance brake pads are designed for carbon bike rims only and offer excellent stopping power even in the wet.
Instructions of brake pads
None
Add Shimano-type Brake Pads USD +10
Rear Wheel Dishing Pattern This is a required option.

While the vast majority of frames require Centered (Traditional) dishing, those of Cannondale’s with Ai offset design (Asymmetric Integration) comply with a special kind of offset dishing for the rear wheel.
Know more about
Cannondale’s Ai technology >>
Centered (Traditional)
Send Photos for Shipping Confirmation This is a required option.

Send Photos for Shipping Confirmation could be offered at NO extra charge so that you could have your tailored products viewed/inspected before shipping and the photos shared with your friends in advance.
It takes about 1~3 business days added to the lead time subject to the orders queuing status.
If you have any special requirement on the photos, such as weight measurement, please leave a note at checkout.
Yes (1-3 days longer)
No ( I do not need photos)

Recon Pro orders start shipping in October.
-
+
Pair
Hub Brand This is a required option.
Model | Weight | POE | Cost | Reliability | Quality | Unique Feature | Color Options | Warehouse Location | Website |
---|---|---|---|---|---|---|---|---|---|
Novatec | 287g | 27 | Low | Good | Good | Inexpensive | Three | China | NOVATEC |
Bitex | 258g | 24 | Low | Good | Good | Light | Two | China | BITEX |
DT 350 | 374g | 18/36/54 | Low | Better | Good | Quiet and reliable (18t option) |
One | China | DT SWISS |
DT 240S | 317g | 18/36/54 | Medium | Best | Best | Quiet and reliable (18t option) |
One | China/N.A. | DT SWISS |
DT 240 EXP | 299g | EXP 36 | Medium | Best | Best | Quiet and reliable (EXP 36 ) |
One | China/N.A. | DT SWISS |
DT 180 | 290g | EXP 36 | High | Best | Best | Super Light, EXP 36 | One | China/N.A. | DT SWISS |
Chris King | 326g | 45 | High | Best | Best | Rebuildable bearings | Nine | China | CHRIS KING |
Industry Nine | 327g | 60 | Medium | Better | Best | Loud, engagement | Eleven | China/N.A. | INDUSTRY NINE |
Onyx | 434g | Infinite | High | Better | Best | Silent, sprag clutch | Eighteen+ (Custom Available) |
North America | ONYX |
Carbon-Ti | 270g | 56 | High | Better | Best | Extreme Light | Nine | China | Caron-Ti |
ARC | 332g | 48 | Low | Better | Good | Economic and reliable | One | China | ARC |
Chosen | 260g | 24 | Low | Better | Good | Economic and reliable | One | China | Chosen |
Light Bicycle Pace-Hub | 275/285g | 36/48 | Low | Better | Good | Economic, reliable, light | One | China | Light Bicycle |
Light Bicycle Speed-Hub Gen3 |
275g | 36 | Low | Better | Good | Proprietary for Carbon Spokes Steel Bearing (upgradable to ceramic) |
Two | China | Light Bicycle |
Light Bicycle Speed-Hub Gen2 |
295g | 36 | Low | Better | Good | Proprietary for Carbon Spokes Steel Bearing (upgradable to ceramic) |
Two | China | Light Bicycle |
Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS
* POE = Points of Engagement
* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.
* Average weight will vary slightly depending on axle and freehub combination.
Industry Nine Solix
Onyx Vesper
Front Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.
By default, skewers are only offered with QR hubs.
12 / 100mm
15 / 100mm
QR / 100mm
Rear Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.
By default, skewers are only offered with QR hubs.
12 / 142mm
QR / 135mm
Freehub Body This is a required option.

1. Shimano Road 11S works with 11/12-speed cassette directly or 8/9/10-speed mountain cassette with a spacer(s) .
2. Shimano MTB 10/11S works with 8/9-speed directly or 10-speed with a spacer or 11-speed road cassette if one of the inner cogs removed.
3. Campagnolo (Campy) 11S works with 9/10/11/12-speed Campy cassette with no spacers required.
4. Sram XDR could run XDR (road) cassette inherently and is compatible to run mountain bike XD cassette with a 1.85mm spacer.
5. Shimano Micro Spline (MS) works with 12-speed MS cassette only.
Shimano Road 11S Alloy
Sram XDR Alloy
Campy 11S Alloy
Spoke Head This is a required option.
J-bend
Brake System This is a required option.

6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt.
If you need the conversion kit, please contact us. Our hubs are provided without rotor lockrings by default.
6-bolt
Center lock
Hub Color This is a required option.
Anodized-Black
Anodized-Black Matte
Anodized-Blue
Anodized-Gold
Anodized-Green
Anodized-Orange
Anodized-Purple
Anodized-Red
Anodized-Silver
Black
Blue
Gold
Green
Lime
Orange
Pink
Powdercoat-Black Aura
Powdercoat-Blue Baby
Powdercoat-Blue Candy
Powdercoat-Green Antifreeze
Powdercoat-Green Fluorescent
Powdercoat-Green Kawasaki
Powdercoat-Pink Fluorescent
Powdercoat-Purple Candy
Red
Silver
Turquoise
Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.
Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.
24H
28H
Rear Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.
Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.
24H
28H
Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 4 different models with varying points of engagement.
18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.
36T - Happy medium, doubles the engagement points.
54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.
24T - Made out of hardened steel as e-bike specific.
EXP 36 - With only a single spring, making the hubs faster and lighter. More precise contact makes a longer lifespan.
EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.
605T
Sprag Clutch
Spoke This is a required option.

Brand | Model | Type | Thread Diameter (mm) | Weight(g) | Gauge | Riding Style | Available(Warehouse Location) |
---|---|---|---|---|---|---|---|
Sapim | Race | Double Butted | 2.0 - 1.8 - 2.0 | 5.7g (260mm) | 14G | Heavy Duty | North America, China |
Sapim | D-Light | Double Butted | 2.0 - 1.65 - 2.0 | 4.8g (260mm) | 14G | Versatile | North America, China |
Sapim | CX-Ray | Aero | 2.0 - 0.9/2.2 - 2.0 | 4.4g (260mm) | N/A | Light Aero | North America, China |
Sapim | CX-Sprint | Aero | 2.0 - 1.25/2.25 - 2.0 | 5.2g (260mm) | N/A | Light Aero | China |
DT SWISS | Competition Race | Double Butted | 2.0 - 1.6 - 2.0 | 4.8g (260mm) | 14G | Versatile | China |
Pillar | PSR X-TRA 1420 | Aero | 2.0 - 0.95/2.2 - 2.0 | 4.4g (260mm) | N/A | Inexpensive Aero | China |
Pillar | Wing 20 | Aero | 2.2 - 1.2/2.0 - 2.0 | 4.3g (260mm) | N/A | Light Aero | China |
Light Bicycle | Oil slick J-bend | Single butted | 2.0 - 2.0 - 1.95 | 6.7g (260mm) | 14G | Cool color | China |
Light Bicycle | Thrust-4 Carbon | Aero | 2.2-1.1/4-2.2 | 2.8g (SP, 260mm) | N/A | Light Aero/Stiff | China |
Berd | PolyLight | Rope-like | 2.0-1.8 | 2.5g (260mm) | N/A | Extreme Light | North America |
Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.
DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)
Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.
Pillar Wing 20 - Pillar patented highest level of aerodynamic bladed spoke reducing potential weak spots and twisting during tensioning. Currently, they are offered in oil slick color only with increased wear and corrosion resistance.
Sapim CX Sprint-Rear drive side/ CX Ray-Other sides - This customized combo increases the rear drive side power transmition efficiency significantly while grabs superior light-weight and aero performance.
Oil slick J-bend - They are made by a qualified manufacturer in Taiwan with custom design by Light Bicycle. They are J-bend only so do not order these spokes for SP hubs you configured in the previous step.
LB Thrust-4 Carbon - The Thrust-4 Carbon spokes are designed to boost high tensile strength. The 4mm all-road profile ensures great crosswind stability.
Berd PolyLight >> - It is constructed from an advanced polymer called ultra high molecular weight polyethylene (UHMWPE) and are widely considered to be the lightest bicycle spoke option in the world.
Berd PolyLight in Black
Berd PolyLight in White
Sapim CX Ray in Black
Sapim D-Light
Sapim D-light
Sapim Race
Sapim CX Ray in Silver
Alpina Extralite
Nipple This is a required option.

Nipple Brand | Model | Material | Color | Length | Available (Warehouse Location) |
---|---|---|---|---|---|
Sapim | Double Square Secure Lock | Alloy | Black, Red, Green, Blue, Gold, Lime, Purple, Orange | 16mm | North America |
Sapim | Polyax/ Polyax Secure Lock | Alloy | Black, Red, Green, Blue, Gold, Lime, Purple, Orange,Silver | 14mm | China |
Sapim | Polyax Secure Lock | Brass | Black | 14mm | China/N.A. |
DT Swiss | DT SQUORX (PRO HEAD PRO LOCK) | Alloy | Black, Red | 15mm | China |
DT Swiss | Standard PRO LOCK | Brass | Black | 14mm | China |
Aluminium Black
Aluminium Silver
Aluminium Red
Aluminium Blue
Aluminium Gold
Aluminium Green
Aluminium Lime
Aluminium Orange
Aluminium Purple
Brass Black
Bead type This is a required option.
Hook
Brake System This is a required option.

Non Disc - High TG Surface: Rim Brake 700C road rims use an advanced High TG resin system with a layer of graphene to help dissipate heat. The braking power and reliability is significantly improved over a basalt braking surface.
Non Disc - Grooved Graphene Surface: Our new resin system and construction method, combined with the 3k rim track, withstands over 280°C, dissipates heat, and lowers rim temperatures faster in between braking efforts. Gain confidence-inspiring brake performance on the steepest descents and wettest conditions with our matching brake pads. Also, graphene added to the rim brake track allows for greater resistance to overheating with improved heat dissipation and reduced temperature accumulation during heavy braking. The grooved track helps evacuate trapped moisture between pad and rim in wet conditions, and brings more resistance and force at the lever when conditions are dry.
Disc: The disc version does not have a rim brake track and features a unique disc specific layup process. Our new layup is about 10g ~30g lighter by reducing the unnecessary material and utilizing elements of our Flyweight construction method.
Non Disc - Grooved Graphene Surface USD +30
Hole Count This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h
MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please contact us.
16H
18H
20H
24H
28H
32H
36H
Finish This is a required option.
Glossy
Matte
Weave This is a required option.
12K
3K
UD
Drain Hole This is a required option.
No Drain Holes
Decal This is a required option.

Road rims use super light waterslide decals (matte colors). The decal is very thin and applied under a clearcoat so they are non-removeable.
Pictures about light-bicycle decal >>
If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.
Blank (No decal)
Stealth (Grey)
Blue
Green
Magenta
Orange
Red
White
Yellow

Recon Pro orders start shipping in October.
-
+
Pair
Piece Weight: 1602.00g+/-3%
Subtotal: USD 521+
Piece Weight: 1602.00g+/-3%
Subtotal: USD 521+
PREVIOUS
NEXT
You
missed some options.
You
missed some options.
Added to cart!
View cart or continue
shopping.

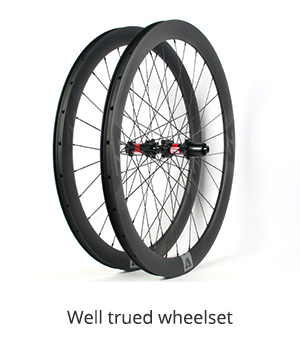

WHEELSET SPECS
RIMS
Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.
- Rim Model R65
- Material Toray T700 & T800 Premium Carbon Fiber
- Size 29”/700C (ETRTO 622mm)
- Series FALCON
- Intended Use Road
- Bead Type Clincher

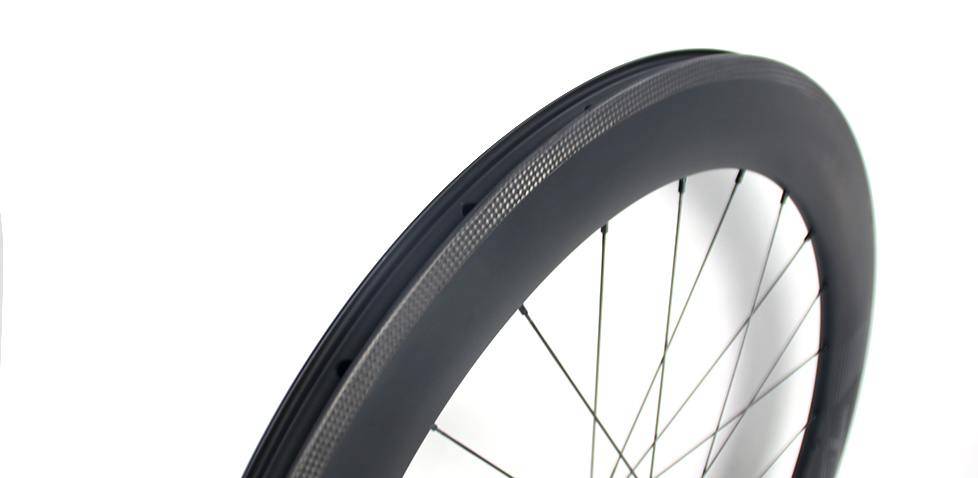

- Tubeless Capable Yes

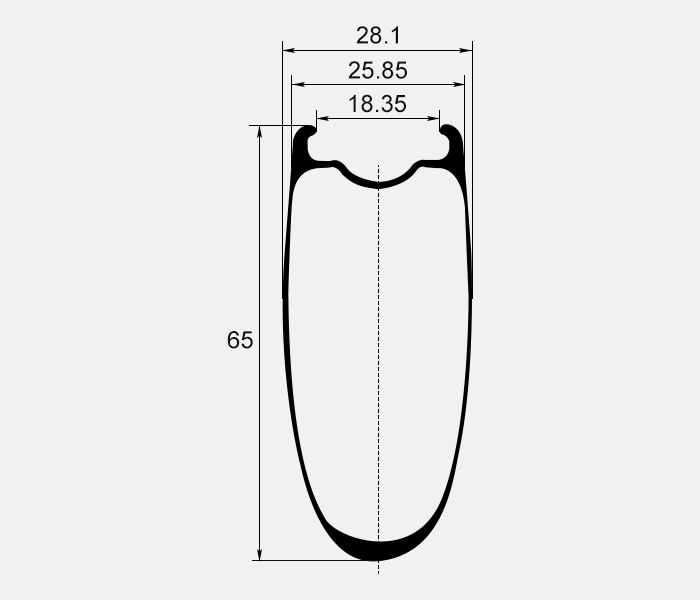

- Inner/Outer Width 18.35mm/25.85mm
- Depth 65mm
- ERD 510mm (not including nipple head dimension)
- Rim Weight 540+/-20g
- Profile Symmetric (0mm)
- Max Cyclist Weight (on flat ground) 135kg/ 298lbs
- Spoke Hole Angle ±8°
- Spoke Tension 100 ~115kgf front, 120~135kgf rear drive side
- Max Tire Pressure (with 25C) 120psi/ 8.27bar
- Recommended Tire Width 21C-38C
HUBS
We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).
- Model DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Carbon-Ti X-Hub, Industry Nine Solix, Onyx Vesper
- Front Axle Size QR / 100mm, 12 / 100mm, 15 / 100mm
- Rear Axle Size QR / 130mm, 12 / 142mm, QR / 135mm
- Driver Body Shimano Road 11S, Campy 11S, Sram XDR, Shimano Road 11S Alloy, Sram XDR Alloy, Campy 11S Alloy
- Hole 20H, 24H, 28H
OTHER PARTS
Leave a note at checkout or contact us if you want spare spokes or nipples.
- Spokes Pillar Aero X-TRA 1420, Sapim CX Ray, Sapim CX Sprint-Rear drive side/ CX Ray-Other sides, Berd PolyLight in Black, Berd PolyLight in White, Sapim CX Ray in Black, Sapim D-Light, Sapim D-light, Sapim Race, Sapim CX Ray in Silver, Alpina Extralite
- Nipples Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black, Aluminium Silver, Aluminium Blue, Aluminium Gold, Aluminium Green, Aluminium Lime, Aluminium Orange, Aluminium Purple
TECH
Featuring our new U-shaped profile and an incredibly aerodynamic 65mm depth, the R65 is the perfect partner for your time-trial, triathlon, or crit racing bike. These build up into some of our stiffest and most aerodynamic wheelsets and maintain top speed like no other. The 25mm outer width keeps things aerodynamically optimized with smoother rolling for your 25C ~ 28C tires.



WARRANTY
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

WHAT IS IN THE BOX














Featuring our new U-shaped profile and an incredibly aerodynamic 65mm depth, the R65 is the perfect partner for your time-trial, triathlon, or crit racing bike. These build up into some of our stiffest and most aerodynamic wheelsets and maintain top speed like no other. The 25mm outer width keeps things aerodynamically optimized with smoother rolling for your 25C ~ 28C tires.
Rims
Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.
- Rim Model: R65
- Material: Toray T700 & T800 Premium Carbon Fiber
- Size: 29”/700C (ETRTO 622mm)
- Series: FALCON
- Intended Use: Road
- Bead Type: Clincher
- Tubeless Capable: Yes
- Inner/Outer Width: 18.35mm/25.85mm
- Depth: 65mm
- ERD: 510mm (not including nipple head dimension)
- Rim Weight: 540+/-20g
- Profile: Symmetric (0mm)
- Max Cyclist Weight (on flat ground): 135kg/ 298lbs
- Spoke Hole Angle: ±8°
- Spoke Tension: 100 ~115kgf front, 120~135kgf rear drive side
- Max Tire Pressure (with 25C): 120psi/ 8.27bar
- Recommended Tire Width: 21C-38C
Hubs
We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).
- Model: DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Carbon-Ti X-Hub, Industry Nine Solix, Onyx Vesper
- Front Axle Size: QR / 100mm, 12 / 100mm, 15 / 100mm
- Rear Axle Size: QR / 130mm, 12 / 142mm, QR / 135mm
- Driver Body: Shimano Road 11S, Campy 11S, Sram XDR, Shimano Road 11S Alloy, Sram XDR Alloy, Campy 11S Alloy
- Hole: 20H, 24H, 28H
Other Parts
Leave a note at checkout or contact us if you want spare spokes or nipples.
- Spokes: Pillar Aero X-TRA 1420, Sapim CX Ray, Sapim CX Sprint-Rear drive side/ CX Ray-Other sides, Berd PolyLight in Black, Berd PolyLight in White, Sapim CX Ray in Black, Sapim D-Light, Sapim D-light, Sapim Race, Sapim CX Ray in Silver, Alpina Extralite
- Nipples: Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black, Aluminium Silver, Aluminium Blue, Aluminium Gold, Aluminium Green, Aluminium Lime, Aluminium Orange, Aluminium Purple
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.
Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.














-
Overview
Featuring our new U-shaped profile and an incredibly aerodynamic 65mm depth, the R65 is the perfect partner for your time-trial, triathlon, or crit racing bike. These build up into some of our stiffest and most aerodynamic wheelsets and maintain top speed like no other. The 25mm outer width keeps things aerodynamically optimized with smoother rolling for your 25C ~ 28C tires.
-
Specs
Rims
Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.
- Rim Model: R65
- Material: Toray T700 & T800 Premium Carbon Fiber
- Size: 29”/700C (ETRTO 622mm)
- Series: FALCON
- Intended Use: Road
- Bead Type: Clincher
- Tubeless Capable: Yes
- Inner/Outer Width: 18.35mm/25.85mm
- Depth: 65mm
- ERD: 510mm (not including nipple head dimension)
- Rim Weight: 540+/-20g
- Profile: Symmetric (0mm)
- Max Cyclist Weight (on flat ground): 135kg/ 298lbs
- Spoke Hole Angle: ±8°
- Spoke Tension: 100 ~115kgf front, 120~135kgf rear drive side
- Max Tire Pressure (with 25C): 120psi/ 8.27bar
- Recommended Tire Width: 21C-38C
Hubs
We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).
- Model: DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Carbon-Ti X-Hub, Industry Nine Solix, Onyx Vesper
- Front Axle Size: QR / 100mm, 12 / 100mm, 15 / 100mm
- Rear Axle Size: QR / 130mm, 12 / 142mm, QR / 135mm
- Driver Body: Shimano Road 11S, Campy 11S, Sram XDR, Shimano Road 11S Alloy, Sram XDR Alloy, Campy 11S Alloy
- Hole: 20H, 24H, 28H
Other Parts
Leave a note at checkout or contact us if you want spare spokes or nipples.
- Spokes: Pillar Aero X-TRA 1420, Sapim CX Ray, Sapim CX Sprint-Rear drive side/ CX Ray-Other sides, Berd PolyLight in Black, Berd PolyLight in White, Sapim CX Ray in Black, Sapim D-Light, Sapim D-light, Sapim Race, Sapim CX Ray in Silver, Alpina Extralite
- Nipples: Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black, Aluminium Silver, Aluminium Blue, Aluminium Gold, Aluminium Green, Aluminium Lime, Aluminium Orange, Aluminium Purple
-
Tech
-
Warranty
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
-
In The Box
Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.
Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.
Gallery
Evar : Had a race on my tt bike with Light Bicycle wheels on Saturday. The wheels are amazing!
Estonia
John : These are the first rims I purchased by LB, it's a customized 65 mm deep rim set. I've been riding them for a few thousand km now and they are totally worth it. Actually they were so convincing I wanted to add new wheels/rims to another bike again customized and I have been helped big time by Ms. Charlie Sū! Shout-out to the best consultation I've ever received. I have no doubt the new order will be as terrific as the first!
Germany

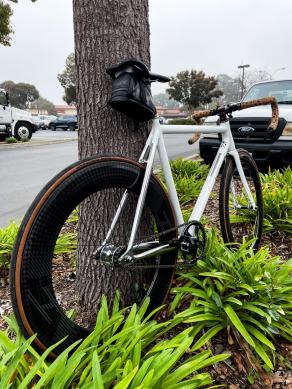

Light Bicycle : RIM-F: R65 Hook UD Matte Non Disc - High TG Surface 32H External Hole With Drain Holes With Access Holes
RIM-R: R88 Hook UD Matte Non Disc - High TG Surface 32H External Hole With Drain Holes With Access Holes
Alexandre : Assembled with Dt swiss 240 S Exp36, aerocomp bladed spokes
Very sexy and the ratchet sound mixted with the deep wheel is amazing
Canada
COMMENTS
P
Paul 2021/12/20
Hello! I’m looking to upgrade my wheels on my Cannondale Caad 10 with rum brakes (yes I know it’s old but still love the frame) and was wondering what you would recommend? I’d like to stick with at least a 40mm lip? Thanks

LightBicycle 2021/12/21
Hi Paul, Can you tell me the calipers you have on your bike right now? What would be the tire width you plan on running? I am thinking of the 25mm wide rims 700C bike, but worry if the caliper can fit the 25mm width. Or if you want to use narrower tires, 23mm rims might be a better fit. Thanks, Lightbicycle
REPLY
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
P
Phil 2020/12/13
What would you recommend for a 2016 Specialized S-Works Venge ViAs?

LightBicycle 2020/12/15
Hi Phil, The wheels 700C of the S-works Venge ViAs are Roval CLX 64. The internal is 20.7mm and the outer width is 29.9mm. Are you looking for a similar measurement wheelset? We do have a new coming in AR55 (21mm internal, 28mm outer width). It's a new rim from our Falcon Pro series, which is highly scratch-resistant, and stronger than traditional rims. Thanks, Lightbicycle
REPLY
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
C
CG 2020/11/30
Hi. Interested in 88mm non-disk QR wheelset with no drilled holes inside inner rim bed (for tubeless). Rear 18 spoke Sapim CXRay straight pull, laced 2:1. Front 16 spoke Sapim CXRay straight pull, laced radial.

LightBicycle 2020/12/01
Hi CG, Yes, we can build a 2:1 wheel with the R88 rim 700C for you. But please confirm that if your bike has enough spacing to put the R88 (18.82mm inner/26.54mm outer width), the widest area is 30mm. Will Bitex hubs work for you? It's the 2:1 we can get. Do you have any ideal hub in mind? Thanks, Lightbicycle
REPLY
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
J
Jambert 2020/09/08
Would you have 88mm deep wheels for my 2019 Specialized Sirrus Elite disk brake style. These are the specs for the brakes: FRONT BRAKE TRP Flow Set Control, hydraulic disc, resin pads, flat-mount, 160mm REAR BRAKE TRP Flow Set Control, hydraulic disc, resin pads, flat-mount, 140mm This is my bike: https://www.specialized.com/us/en/mens-sirrus-elite-alloy/p/154505?color=&searchText=80918-4002 Please get back to me asap. Thanks

LightBicycle 2020/09/09
Hi Jambert, I highly suggest you check with the frame spacing of your bike to ensure the R88 is ok to fit. Because the widest area of R88 is 30mm. Not sure if this is ok with you. The widest area of R65 is 28.09mm in case you are wondering. Is it your bike or brake caliper wide enough? The brake track area is around 25.6mm wide on R88 rims. Thanks, Lightbicycle
REPLY
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
Get in touch
Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.
E-mail is required for further contact.
Please enter a message.
We use cookies for a better experience. Learn more.
Customize
Accept
Your Cookie Preferences
We use cookies to improve your experience on this website. You may choose which types of cookies to allow and change your preferences at any time. Disabling cookies may impact your experience on this website. You can learn more by viewing our Cookie Policy.
-
Cookies required to enable basic website functionality.
-
Cookies used to understand how the website is being used.
-
Cookies that are used to enhance the functionality of the website.
-
Cookies used to deliver advertising that is more relevant to your interests.
Aceept All Cookies
Save Preferences
Reject All Cookies
Save Preferences
Reject All Cookies
Accept All Cookies
