700C V-shape 36mm depth hand-built carbon road disc wheels

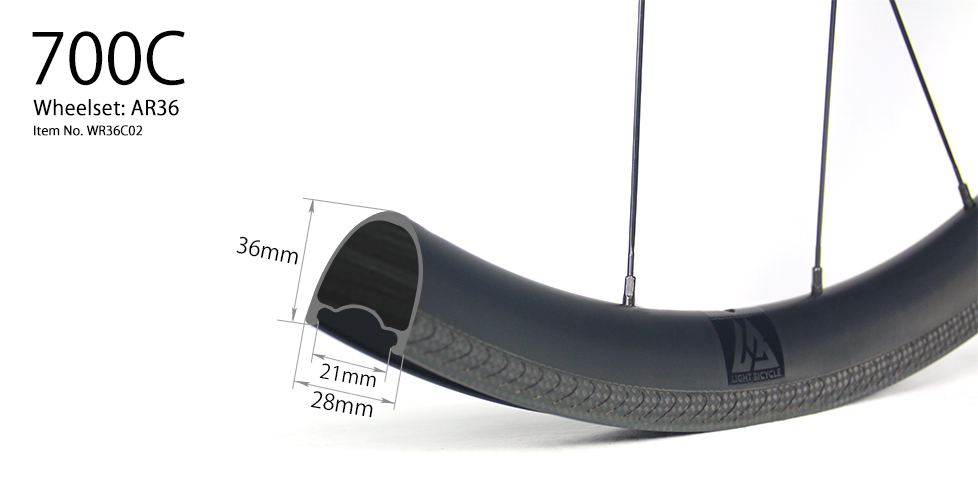

all-round-aero-dynamic-wide-road-bicycle-wheel

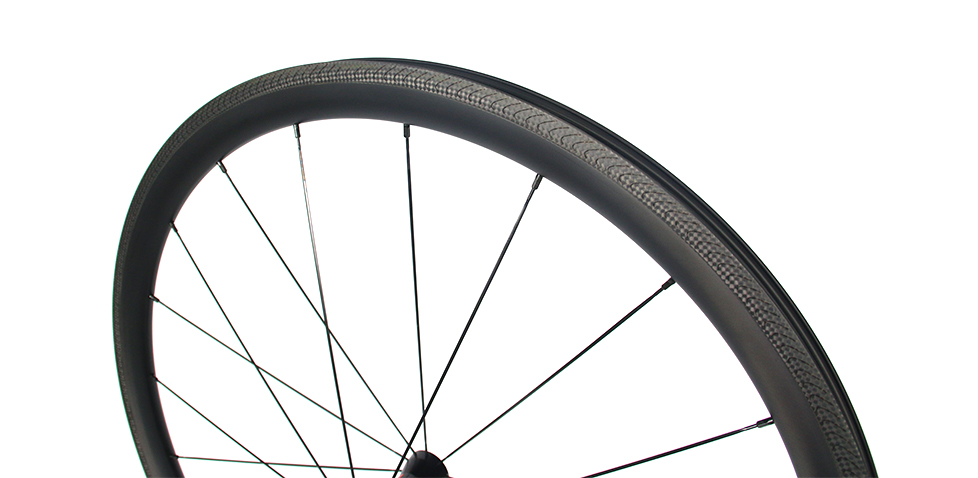

carbon-road-rim-with-Pillar-bladed-spokes

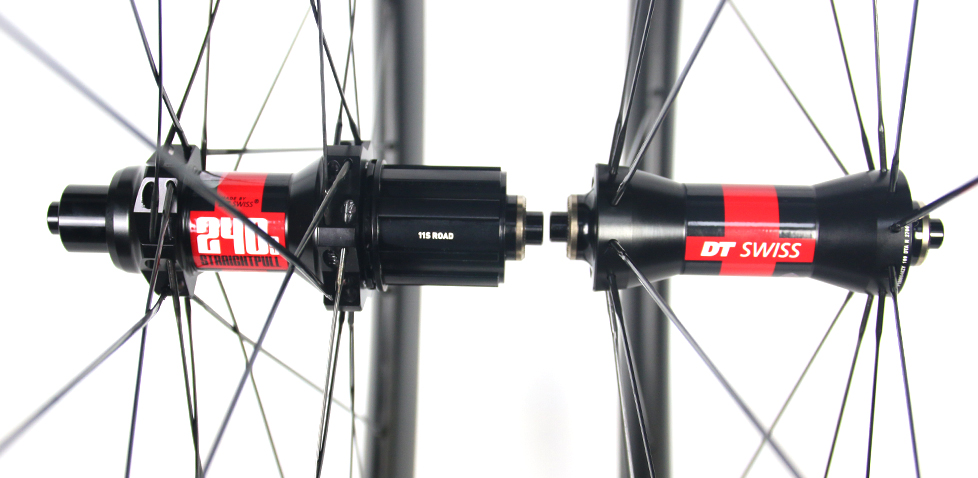

aero-benefit-carbon-road-wheel-with-DT-Swiss-hubs

Buy & Configure

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle) with your special requirements described.

Global (Ship Anywhere)

Options Features	Global Warehouse	North American Warehouse
Options Features	Availability	All models	Most popular models
Rim Customization	100% customizable	Default options, special order possible
Wheelset Customization	Yes	Yes
Lead Time	4 weeks / 3 days for Quick Buy	1 week typical
Shipping Region	Worldwide	North America
Wheel building fee	$30 USD per set	$50 USD per set
Warehouse Transfer Fee	No	USD20 per rim USD40 per wheelset
European Shipments Taxes, Duty or Brokerage	Not charged by us, may be charged by the carrier upon importation. (*Prepaid option available at checkout!)	Best to ship from Global warehouse due to excessive shipping costs
Canadian Shipments Taxes, Duty or Brokerage	Not charged by us, may be charged by the carrier upon importation	Charged by Light Bicycle upfront
Other Areas Taxes, Duty or Brokerage	Not charged by us, may be charged by the carrier upon importation	Not charged by us, may be charged by the carrier upon importation
Shipping Methods	EMS, EMS Plus, DHL, TPD, TNT, FedEx, MTS, SF	UPS

Shopping Style

Options Features	Quick Buy	Full Customize
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

QUICK BUY

FULL CUSTOMIZE

Bead type This is a required option.

hook

Finish This is a required option.

matte

Weave This is a required option.

Center Channel Hole This is a required option.

With Holes

Without Hole

Brake System This is a required option.

Non Disc - Grooved Graphene Surface

Disc

Decal This is a required option.

Blank

Front Holes Count This is a required option.

20h

Rear Holes Count This is a required option.

24h

Ｈole Count This is a required option.

24h

DEFAULT SETTINGS

HUBS

DT Swiss 350 StraightPull Shimano Road11s 18t

If Disc: F-12/100mm R-12/142mm Centerlock

If Non-disc (rim-brake): F-QR/100mm R-QR/130mm

SPOKES & NIPPLES

Sapim CX-Ray and aluminum black nipples

ACCESSORIES

Valve sterm (x2) are included

Weight:g+/-25

Subtotal: USD +

Lead time: typically ships in 3 days

ADD TO CART

Hub Brand This is a required option.

Model	Weight	POE	Cost	Reliability	Quality	Unique Feature	Color Options	Warehouse Location	Website
Novatec	287g	27	Low	Good	Good	Inexpensive	Three	China	NOVATEC
Bitex	258g	24	Low	Good	Good	Light	Two	China	BITEX
DT 350	374g	18/36/54	Low	Better	Good	Quiet and reliable (18t option)	One	China	DT SWISS
DT 240S	317g	18/36/54	Medium	Best	Best	Quiet and reliable (18t option)	One	China/N.A.	DT SWISS
DT 240S EXP	299g	EXP 36	Medium	Best	Best	Quiet and reliable (EXP 36)	One	China/N.A.	DT SWISS
DT 180	290g	EXP 36	High	Best	Best	Super Light, EXP 36	One	China/N.A.	DT SWISS
Chris King	326g	45	High	Best	Best	Rebuildable bearings	Nine	China	CHRIS KING
Industry Nine	327g	60	Medium	Better	Best	Loud, engagement	Eleven	China/N.A.	INDUSTRY NINE
Onyx	434g	Infinite	High	Better	Best	Silent, sprag clutch	Eighteen+ (Custom Available)	North America	ONYX
Carbon-Ti	270g	56	High	Better	Best	Extreme Light	Nine	China	Caron-Ti

See more about Light Bicycle's INFOGRAPHIC HUB OPTIONS

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

DT SWISS 180

DT SWISS 240 EXP

DT SWISS 350

Carbon-Ti X-Hub

Front Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, Quick Release skewers are offered with QR hubs.

QR / 100mm

Rear Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, Quick Release skewers are offered with QR hubs.

QR / 130mm

Freehub Body This is a required option.

1. Shimano Road 11S works with 8/9/10-speed mountain cassette with a spacer(s).
2. Shimano MTB 10/11S works with 8/9-speed directly or 10-speed with a spacer or 11-speed road cassette if one of the inner cogs removed.
3. Campagnolo (Campy) 11S works with 9/10/11/12-speed Campy cassette with no spacers required.
4. Sram XDR could run XDR (road) cassette inherently and is compatible to run mountain bike XD cassette with a 1.85mm spacer.
5. Shimano Micro Spline (MS) works with 12-speed MS cassette only.

Shimano Road 11S

Campy 11S

Sram XDR

Spoke Head This is a required option.

J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes

straight pull

Brake System This is a required option.

Road-Rim-High-TG-Surface-Grooved-Graphene-Surface

Disc: The disc hub has optional 6-bolt or center lock version.The matched disc rim does not have a brake track and features a unique disc specific layup process. Our new layup is about 10g ~30g lighter by reducing the unnecessary material and utilizing elements of our Flyweight construction method.

Non Disc(Rim brake): By default, the rim brake 700C road rims come with an advanced High TG surface whose braking power and reliability is significantly improved over a basalt braking surface.

Our newest Grooved Graphene Surface is ready now. The price is $30 added for each rim. If you would like to update with newest brake tracks, please contact us at sales@lightbicycle.com.

Non Disc

Hub Color This is a required option.

Black

Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

20H

Rear Holes Count This is a required option.

24H

Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 3 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

EXP 36 - With only a singlel spring, making the hubs faster and lighter, more complete engagement of the 36 ratchet teeth for more precise contact, and therefore a longer lifespan.

EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.

18T

36T

54T

56T

EXP 36

Spoke This is a required option.

Brand	Model	Type	Thread Diameter (mm)	Weight(g)	Gauge	Riding Style	Available(Warehouse Location)
Sapim	Race	Double Butted	2.0 - 1.8 - 2.0	5.7g (260mm)	14G	Heavy Duty	North America, China
Sapim	D-Light	Double Butted	2.0 - 1.65 - 2.0	4.8g (260mm)	14G	Versatile	North America, China
Sapim	CX-Ray	Aero	2.0 - 0.9/2.3 - 2.0	4.4g (260mm)	N/A	Light Aero	North America, China
DT SWISS	Competition Race	Double Butted	2.0 - 1.6 - 2.0	4.8g (260mm)	14G	Versatile	China
Pillar	PSR X-TRA 1420	Aero	2.0 - 0.95/2.2 - 2.0	4.4g (260mm)	N/A	Inexpensive Aero	China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

Pillar Aero X-TRA 1420

Sapim CX Ray

Nipple This is a required option.

Nipple Brand	Model	Material	Color	Length	Available (Warehouse Location)
Sapim	Double Square Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	16mm	Norh America
Sapim	Polyax/ Polyax Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	14mm	China
Sapim	Polyax Secure Lock	Brass	Black	16mm	China
DT Swiss	DT SQUORX (PRO HEAD PRO LOCK)	Alloy	Black, Red	15mm	China
DT Swiss	Standard PRO LOCK	Brass	Black	14mm	China

Aluminium Black

Aluminium Red

Brass Black

Bead type This is a required option.

Rim width (hook): 28mm external/21mm internal
Rim width (hookless): 28mm external/22.5mm internal

Both hook and hookless rims are built using the same dimensions and materials.

The hookless version is designed with low pressure impact resistance in mind. If you are planning to run a higher tire pressure, the hooked version would be a better choice. See the tyre pressure information on the following RIM SPECS section of this page.

hook

hookless

Brake System This is a required option.

Non Disc - High TG Surface: Rim Brake 700C road rims use an advanced High TG resin system with a layer of graphene to help dissipate heat. The braking power and reliability is significantly improved over a basalt braking surface.

Non Disc - Grooved Graphene Surface: Our new resin system and construction method, combined with the 3k rim track, withstands over 280°C, dissipates heat, and lowers rim temperatures faster in between braking efforts. Gain confidence-inspiring brake performance on the steepest descents and wettest conditions with our matching brake pads. Also, graphene added to the rim brake track allows for greater resistance to overheating with improved heat dissipation and reduced temperature accumulation during heavy braking. The grooved track helps evacuate trapped moisture between pad and rim in wet conditions, and brings more resistance and force at the lever when conditions are dry.

Disc: The disc version does not have a rim brake track and features a unique disc specific layup process. Our new layup is about 10g ~30g lighter by reducing the unnecessary material and utilizing elements of our Flyweight construction method.

Non Disc - High TG Surface

Non Disc - Grooved Graphene Surface USD +30

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

glossy

matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

12K

Center Channel Hole This is a required option.

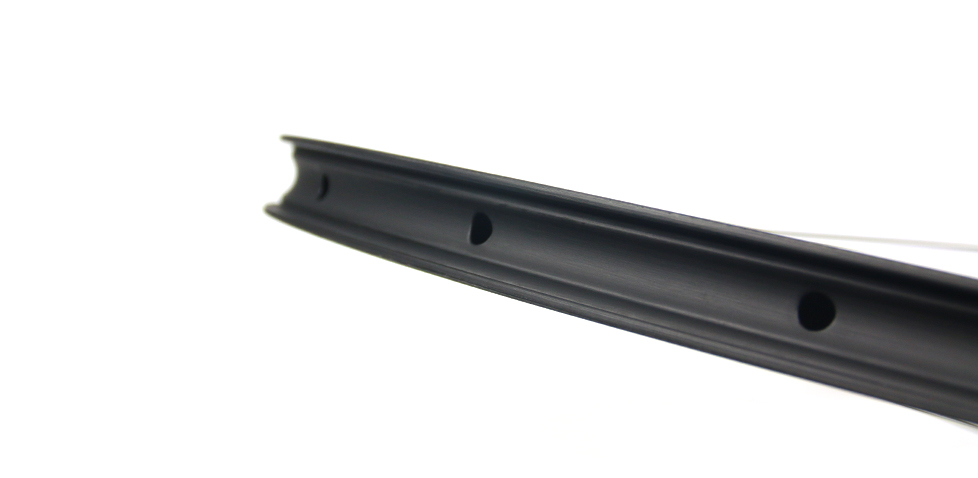

WITH HOLES: This is the traditional method. Holes are drilled in the center channel to allow the nipples to easily be fed through the rim. Tubeless tape is required to seal the rim.

WITHOUT HOLES: No holes are drilled in the center channel. Feeding the nipples through the rim is more challenging, but it allows for a tubeless setup without the need for tape. This kind of system is known as "road tubeless" and was made popular by Mavic. Some companies still refer to it as "UST style", however, UST is actually a specific interface between the tire and rim which was developed by a partnership between Mavic, Michelin, and Hutchinson.

With Holes

Without Holes

Decal This is a required option.

Road rims use super light waterslide decals (matte colors). The decal is very thin and applied under a clearcoat so they are non-removeable.

Pictures about light-bicycle decal >>

If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.

Pictures about custom graphics >>

Blank (No decal)

Stealth (Grey)

Blue

Green

Magenta

Orange

Red

White

Yellow

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

Brake Pads This is a required option.

4 pads will be included. These high performance brake pads are designed for carbon bike rims only and offer excellent stopping power even in the wet.
Instructions of brake pads

None

Add Brake Pads USD +10

Recon Pro orders start shipping in October.

- + Pair

Weight: 1361.00g+/-25

Subtotal: USD 505+

PREVIOUS NEXT

WHEELSET SPECS

RIMS

Teleport to the rim page.

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Rim Model AR36
Size 700C
Series FALCON
Use Road/CX/Gravel
Type Clincher
Tubeless Ready

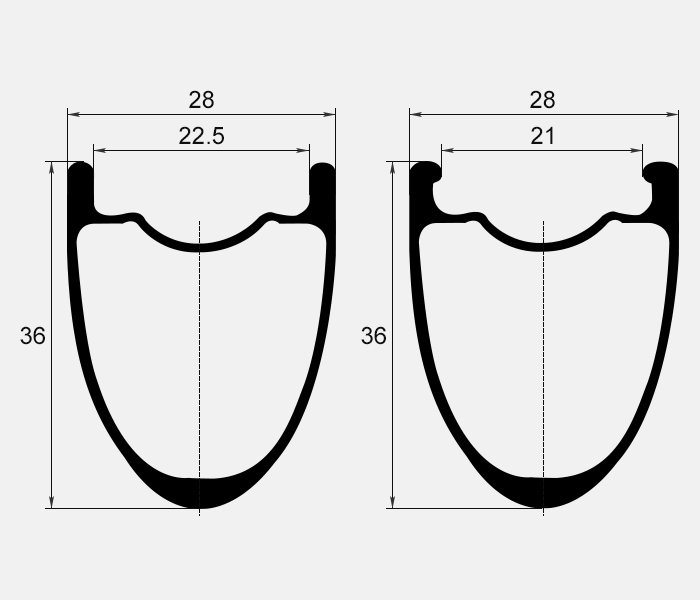

Inner/Outer Width Hook 21mm/28mm, Hookless 22.5mm/28mm
Depth 36mm
ERD 568mm (not including nipple head dimension)
Weight 440+/-15g
Offset 0mm (symmetric)
Weight Limit 125kg
Spoke Hole Angle ±5°
Spoke Tension 100 ~110kgf (radial) /115 ~130kgf (disc) front, 120~130kgf rear
Tire Pressure (with 25C) Hook: 110psi, Hookless: 70psi max
Tire 23C~43C recommended

HUBS

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Carbon-Ti X-Hub
Front Axle Size QR / 100mm
Rear Axle Size QR / 130mm
Driver Body Shimano Road 11S, Campy 11S, Sram XDR
Hole 20H, 24H

OTHER PARTS

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes Pillar Aero X-TRA 1420, Sapim CX Ray
Nipples Aluminium Black, Aluminium Red, Brass Black

Read more for actual road tire width

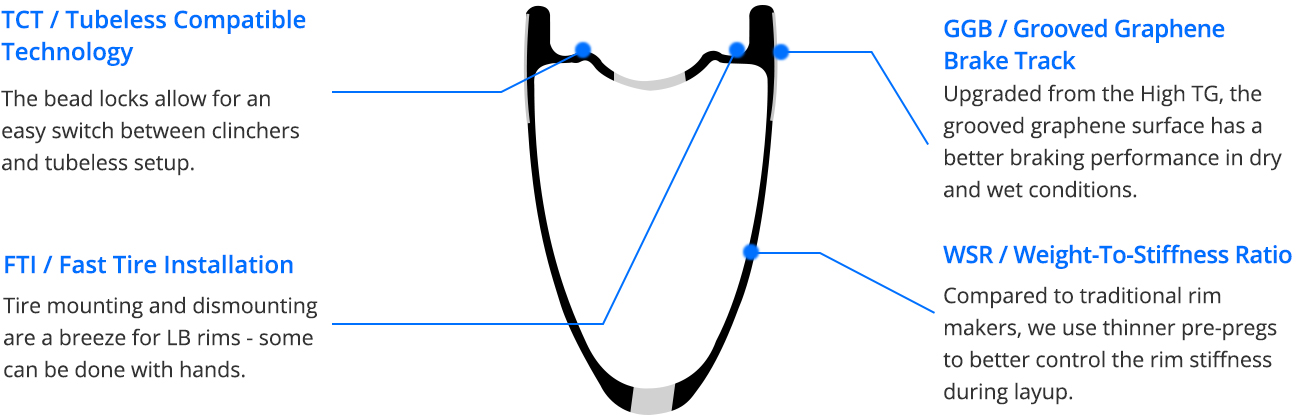

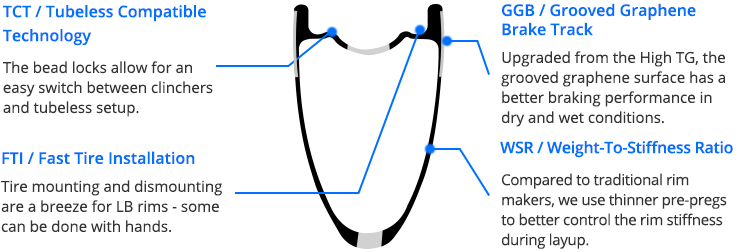

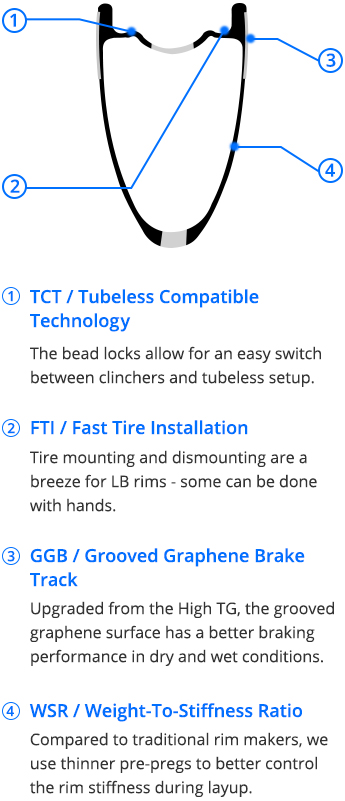

TECH

The most versatile option in our road lineup, together with its sibling AR36 disc, the 36mm can handle cyclocross, road racing, and all-day gravel rides. The mid-depth rim profile has a reassuring stiffness, building confidence through ruts and railing corners. It remains compliant for long-distance and weighs at just 440g per rim.

This wide tubeless ready platform has a 21mm internal width, suitable for a wide range of tire choices.

Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>

WHAT IS IN THE BOX

Gallery

ar36-non-disc-road-water-drain-hole-Grooved-Graphene-Surface-carbon-rim

LB : AR36 (RR36C02) Non-Disc grooved graphene surface satin UD 28H external nipple hole without Spoke access holes With water drain hole Weight: 881 grams Price: $368

AR36-non-disc-road-3k-matte-stealth-decal-carbon-wheelset

LB : Rims: AR36 700c Falcon 20/24H Hubs: Bitex RAF10 RAR9 QR / 100mm QR / 130mm J-bend Spokes: Sapim CX Ray Nipples: Sapim Aluminium Black Stealth decals Weight: 1306 grams Price: $624.2

Ron : Staggered 36/46mm 28 wide loving it!

United States

AR36-rim-brake-road-carbon-wheelset-matte-finish-blue-sticker

LB : Rims: AR36 non-disc 700c falcon 20/24H Hubs: Bitex RAF10/RAR9 J-bend QR / 100mm QR / 130mm Spokes: Pillar Aero X-TRA 1420 Nipples: Sapim Brass Black

light-bicycle-ar36-700c-carbon-road-bike-wheelset-review

Scott : They arrived! They look good and ride even better.

United States

Panda : The wheelset has been great! Here's the configuration. RR36C02 wheelset. Hub Novatec 411SB/412SB Center Lock Straight Pull Shimano freehub, Spokes Pillar Aero X-TRA 1420 bladed 28Fx28R black, Nipples Sapim Polyax Black

United States

SEE MORE ADVENTURES

COMMENTS

Mike 2020/10/21

Hi there, Can you make any of you gravel wheelsets in 26inch wheel size and for the rim brake? If yes, weight-wise they need to carry between 80kg to 120kg of the load (If I take my daughter to the nursery) Mainly road/city use with occasional off-road/gravel. I'm planning to use 28mm (26x1 1/8) tyres and potentially something 26 x 1.5 for winter. Can you lace them to QR/100mm front and QR/135mm in the back? I suppose that we are looking at minimum 28H front and 32H back. Also do you use Americal Classic hubs: (for example Micro 58 front and 210 rear)? Kind regards, Mike

LightBicycle 2020/10/21

Hi Mike, We have attached RM26C02(23mm inner/30mm wide), hook version. For this rim, it is okay to have rim brake version.https://www.lightbicycle.com/wider-mtb-26er-carbon-bike-rim-26-inch-rims.html We have Industry Nine hydra or Torch hubs from 100mm QR/rear 135mm QR. We do not have American Classic hubs. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

kenny 2019/09/10

Is there any way to order a wheelset with a fixed gear/track hub in the rear?

LightBicycle 2019/09/11

Hi Kenny, Sure, we have DT Swiss and Novatec track hubs here. We can build track wheels with this 700C rims for you. We sent quotation to your email, Please check. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Michael 2019/08/14

Hi Light Bicycle Support Team, may I ask, would it possible to order the AR36 Rim-Brake Rim with silver Industry Nine Torch Classic Road Hubs? Thanks a lot! Regards Michael

LightBicycle 2019/08/15

Hi Michael, we can build the AR36 road disc wheelset with Industry Nine hubs for you even though the option is not available online currently. We send you the wheelset price to your email address directly. Please check. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Gary 2019/06/27

I'm looking to purchase a set of wheels. Will I be charged customs or duty taxes if they are shipped to the United States. The North American division does not have the choice hubs I'm looking for. Also, I received a 3% discount code and it does not seem to be valid.

LightBicycle 2019/06/27

Hi Gary, 1. What hub are you looking for? I can check the availability for you if you want the road 28mm wide 700C wheelset to be shipped from North America warehouse. 2. Yes, there will be customs fees charged by your local authority. But we usually lower the declared value to USD220 for one wheelset so you can pay less tax. Let me know if this work for you. 3. Have you activated the coupon code by share to Facebook? You can copy the code only when it's activated. There are some conditions for the activation, You will need to use the same device for sharing and coupon code application. But, I can use the discount for you if you can send me a screenshot with your post. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Gary 2019/06/14

I'm looking to build up a set of wheels for cyclocross. 33mm tubeless tires.. Do I need hook or hookless rims?

LightBicycle 2019/06/15

Hi Gary, If you are not running under 80psi, then go with hook version to make the tire sit tight onto the rim, if you are running under 80psi, you can choose hookless. But we do really recommend you to go for hook version. There are really less people choosing hookless for cyclocross wheels. It is more safe when you ride higher tire pressure. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Sam 2019/06/09

I'm trying to work out whether to get the hook or hookless rims. I ride on the road only and run 28mm tyres. Tyre pressure is typically around 65psi. Do the hookless rims provide a better aero profile for the tyre than the hooked? Is either stronger than the other for a) hits and b) potential damage from tyre levers during rim fitting? Regards

LightBicycle 2019/06/10

Hi Sam, For more than 65PSI on road disc wheelset, we do recommend hook version. And most customers order hook. There are really few customers choosing hookless. For hook, it can hold higher tire pressure to prevent from tires blowing off. For hook and hookless the aero performance is the same. For RR36C02 rims/wheels, they are easy to mount/take off tires. Our engineers do not need brake levers at all. For using brake level, if it is rubber levers, it will not damage the rims normally. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Jake 2019/05/19

Does light bicycle have rim brake wheels?

LightBicycle 2019/05/20

Hi Jake, Yes, we canufacture this 700C wheelset hat you are interested in a rim-brake version. Here's the quote for your ref, you can add the item to your cart at https://www.lightbicycle.com/site/share-cart?id=414 Or do you like to have other specs for the wheelset? Let me know and I will quote accordingly. You can click global and choose "non disc" hubs. Then this wide road wheelset will be with rim brake accordingly. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Nathan 2019/04/06

Hi, I would like to buy a set of RG922 rims with onyx hubs that have a XD free hub body with 6 bolt brakes and 12/142 mm axle. Thanks Nate

LightBicycle 2019/04/09

Hi Nate, I saw our sales have arranged invoice for RG922 gravel wheelset with Onyx hubs for you, and you have placed the already. Thank you so much for your support! Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

James 2019/02/20

Hi. Can you please quote me for the following wheelset configuration? Thanks so much. RIMS: WR36C02 HUBS: INDUSTRY NINE FRONT AXLE: 15/100 REAR AXLE: 12/142 FREEHUB BODY: SRAM XDR ALLOY SPOKE HEAD: J-BEND BRAKE SYSTEM: 6-BOLT HUB COLOR: BLUE FRONT HOLES; 28H REAR HOLES: 28H RATCHET: 60T SPOKE: SAPIM CX RAY NIPPLE: ALUMINUM BLACK BEAD TYPE: HOOKLESS FINISH: MATTE WEAVE: UD DECAL: NONE VALVE STEM: NONE TUBELESS TAPE: YES

LightBicycle 2019/02/21

Hi James, We have lots of Industry Nine hubs in our US warehouse. I have forwared your inquiry to our US team and they will contact you ASAP. Or you can call +1 (253) 216-2535 for urgent service. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

David 2019/02/10

I’m looking at the wr6c02, but wanted to get a hub with an xd driver (or even better would be an XDR driver, and Novatec is fine). Is this possible? 15x100 and 12x142, centerlock, 28 hole. Spain spokes and brass nipples. Matte and UD weave, hookless. With valve stems, tubeless tape, and an extra spoke of each length used. If possible, can I get a quote? Thanks

LightBicycle 2019/02/16

Hi David Currently, we only have XDR freehub is only available for DT Swiss 240s/350. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

^
