700C V-shape 56mm depth hand-built carbon road disc wheels - 30mm wide and tubeless compatible

INTERNATIONAL

Ships from China to worldwide destination. Contact us if your location is not listed.

Ships from Canada/United States warehouse to North American countries only. Contact us if you have special requests.

  • 1

    HUB

  • 2

    SPOKES/NIPPLES

  • 3

    RIM

  • 4

    ACCESSORIES

  • 5

    OVERVIEW

HUB

Hub Brand This is a required option.

DT SWISS 240S

DT SWISS 350

Novatec A291SB-SL / F482SB-SL
(Non-disc Only)

Bitex RAF10 / RAR9
(Non-disc Only)

Novatec D791SB / D792SB
(Disc Only)

Model Weight POE Cost Reliability Quality Unique Feature Color Options Warehouse Location Website
Novatec 287g 27 9 4 4 Light Three China NOVATEC
Bitex 258g 24 9 4 4 Light Two China BITEX
DT 350 374g 18/36/54 7 8 7 Quiet and reliable
(18t option)
One China DT SWISS
DT 240S 320g 18/36/54 3 10 9 Quiet and reliable
(18t option)
One China DT SWISS
Industry Nine 400g 60 3 9 9 Loud, engagement Eleven North America INDUSTRY NINE
Onyx 434g Infinite 2 9 9 Silent, sprag clutch Eighteen+ (Custom Available) North America ONYX

* For the rank: 1 Worst, 10 Best.

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

Front Axle This is a required option.

12 / 100mm

15 / 100mm

QR / 100mm

Front-hub-axle

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

Rear Axle This is a required option.

12 / 142mm

QR / 130mm

QR / 135mm

Rear-hub-axle

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

Freehub Body This is a required option.

Shimano Road 11S

Campy 11S

Shimano 11 speed road freehubs come with a spacer ring. If you have an 11 speed road cassette then you do not need to use this spacer. If you have a 8/9/10 speed cassette, you will need to use the space behind the cassette. Campy 10 and 11 speed use the same freehub body.
Sram XD-R Freehubs do not need a spacer if you have an XD-R (Road) cassette. Mountain bike XD cassettes can be run with a spacer on an XD Freehub.

Spoke Head This is a required option.

straight pull

J-bend

J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes

Brake System This is a required option.

6-bolt

Center lock

Non Disc

Non-disc: Our new resin system and construction method, combined with the 3k rim track, withstands over 280°C, dissipates heat, and lowers rim temperatures faster in between braking efforts. Gain confidence-inspiring brake performance on the steepest descents and wettest conditions with our matching brake pads. Also, graphene added to the rim brake track allows for greater resistance to overheating with improved heat dissipation and reduced temperature accumulation during heavy braking. The grooved track helps evacuate trapped moisture between pad and rim in wet conditions, and brings more resistance and force at the lever when conditions are dry.

Disc: The disc version does not have a rim brake track and features a unique disc specific layup process. Our new layup is about 10g ~30g lighter by reducing the unnecessary material and utilizing elements of our Flyweight construction method.

Hub Color This is a required option.

Black

Red

White

Front Holes This is a required option.

20H

24H

28H

32H

Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

Rear Holes This is a required option.

24H

28H

32H

Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

Ratchet This is a required option.

18T

24T

27T

36T

54T

DT Swiss hubs use star ratchets and are available in 3 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

Spoke This is a required option.

Pillar Aero X-TRA 1420

Sapim CX Ray USD +46

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

Nipple This is a required option.

Aluminium Black

Aluminium Red

Brass Black

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Finish This is a required option.

glossy

matte

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Weave This is a required option.

12K

3K

UD

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

Decal This is a required option.

No

stealth

blue

green

magenta

orange

red

white

yellow

Road rims use super light waterslide decals (glossy black). The decal is very thin and applied under a clearcoat so they are non-removeable.

Pictures about light-bicycle decal >>

If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.

Pictures about custom graphics >>

Valve Stem This is a required option.

None

Add Valve Stem USD +7

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

Tubeless Tape This is a required option.

None

Add Tubeless Tape USD +6

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

Brake Pads This is a required option.

None

Add Brake Pads USD +10

4 pads will be included. These high performance brake pads are designed for carbon bike rims only and offer excellent stopping power even in the wet.
Instructions of brake pads

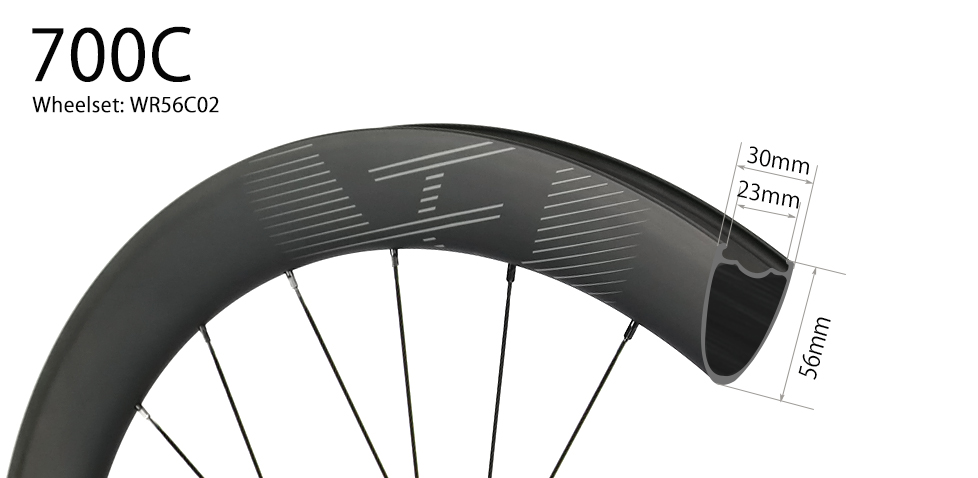

wheels-56mm

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks

Non-Stocked, typically ships within 1-2 weeks

Recon Pro orders start shipping in October.

- + Pair

Weight: 920.00g+/-25

Final total: USD 633.00+(3.5% paypal fee included)

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

RIM SPECS

  • Size 700C
  • Use Road
  • Type Clincher
  • Tubeless Ready
  • Inner/Outer Width 23mm/30mm
  • Depth 56mm
  • ERD 527mm (not including nipple head dimension)
  • Weight Non Disc 490+/-15g, Disc 460+/-15g
  • Offset 0mm (symmetric)
  • Weight Limit 135kg
  • Spoke Hole Angle ±6°
  • Spoke Tension 135kgf
  • Tyre Pressure 130psi
  • Tire 28C~50C recommended

Teleport to the rim page.

Our widest road rim yet, the new 30mm external and 23mm internal width 56mm deep disc road bike wheels provide the perfect platform for anything from a 28C to 50C road, gravel, or cyclocross tire. Available as both a road disc rim and rim brake specific wheel, this incredibly stiff and aerodynamic 56mm carbon clincher is just as at home on your road race bike as it is on your gravel rig. Whether you're sprinting for primes or tackling a 200 mile gravel epic, the versatile RR56C02 are the deep road bike wheels that are up for the challenge.

High TG: Our new resin system and construction method, combined with the 3k rim track, withstands over 280°C, dissipates heat, and lowers rim temperatures faster in between braking efforts. Gain confidence-inspiring brake performance on the steepest descents and wettest conditions with our matching brake pads.


Graphene Brake Track : Graphene added to the rim brake track allows for greater resistance to overheating with improved heat dissipation and reduced temperature accumulation during heavy braking. The grooved track helps evacuate trapped moisture between pad and rim in the wet, and brings more resistance when conditions are dry so less force at the lever is required.


AeroTek: Our latest aerodynamic profile decreases lateral wind resistance and is both more stable and faster in a crosswind. A wider profile allows for larger and more efficient tires to be used without an aerodynamic penalty. Traditionally a tire can form a lightbulb shape when mounted on a narrow rim, but the airflow is much smoother with our wider rims.


DuoTek: Our clincher rims are manufactured in two pieces and then joined together. When designing the rims, our engineers, in every detail, demanded fewer joints. Fewer joints mean higher strength and stability.


TuffTek: A high-grade customized epoxy resin is used in our prepreg, creating a stable base for all of our road rims. Epoxy is less brittle than polyester resins and offers excellent flexural strength. Our consistent resin system, coupled with a precise layup schedule, allows for an extremely reliable and durable product.


Tubeless : All of our rims are tubeless compatible with bead seat retention. In most cases a floor pump is all that is needed to seal our rims. The bead shape is tailored to each rim width to achieve the best fit. Our hookless and clincher profiles have a smooth radius to reduce the chance of a pinch flat.


T700: Constructed with premium Toray T700 carbon fiber. The best strength to weight ratio with no expense spared.


For Non-Pro Series Rims: From the date of purchase, 15 Months Warranty
For Pro Series Rims: From the date of purchase, 3 Years Warranty. Light Bicycle is pleased to offer the options to purchase an extended 5-year Premium warranty or lifetime Premium warranty with minimum charge respectively.

Crash Replacement: It is applicable with the same period as to warranty time range that you purchased for the rim in terms of 15-month/ 3-year/ 5-year/ Lifetime, with 10%+ discount subject to rim model.

Know more about the warranty policy >>

COMMENTS

K

Kirk 2018/11/15

Hi, can you put together a price for me with these rims(rr56co2) and i9 hubs? 12x100 front and 12x142 rear. With Black Friday deal


LightBicycle 2018/11/15

Hi Kirk, We sent the RR56C02 road disc wheelset quotation for your check in your email. Please check. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

O

Olivier 2018/09/28

Hi, I am looking for a wheel with this exact profile, but in a U shape. Are you planning to offer it in the near future? Thanks


LightBicycle 2018/09/28

Hi Olivier, According to our lab testing result, RR56C02(30mm wide, 56mm deep gravel rim) will be at it's the best performance with V-shape. So we won't publish the U-shape version of this model. We can discuss more by mail. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

P

Philip 2018/09/21

I would like to use these wheels for touring, as well as commuting and club rides. When I'm fully packed for touring, the weight of rider + luggage + bike is around 125 kg. My frame is compatible with has 12 mm thru axles. Would 28 spokes be enough, or would you suggest going to 32? As an option, would it be possible to combine a a Shutter Precision PL-8X-M 12x100mm front dynamo hub (32 J bend spokes), with a rear DT SWISS 350 hub (with 32 J bend spokes)? Thanks in advance


LightBicycle 2018/09/25

Dear Philip Sorry for the late reply, our office was closed for three days because of our public vacation last week. 1. The max weight limit for the RR56C02 (30mm wide, 56mm deep) gravel rim. So it would be ok for you when you all packed up. Since you are riding touring, I imagine that you won't ride aggressively. So 28H would be ok. The rim is very deep so it would be strong enough. But if you want to reinforce the wheelset, 32H will be better. 2. Yes, we do build SP dynamo hub on wheels for our customers before. The PL-8X-M, 32H, 12/100mm is available. 3. About the rear hub, We do have 32H DT Swiss 350 hub available. Do you want center lock or 6-bolt? Please check out your inbox to see my detailed quote and discuss more. Thanks Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

Stefan 2018/09/13

Dear LB, can you please send me a quote for the WR56C02 wheelset with DT Swiss 350 hubs (QR 100/135) as well as a cross section plot. Thank you, Stefan


LightBicycle 2018/09/14

Hi Stefan, We just sent the road disc wheelset price to your email. Please check. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

E

Erik 2018/09/04

Hi- I just wanted to check and see if you were still on track to be releasing a U-shaped version of this rim sometime soon? Thanks


LightBicycle 2018/09/05

Hi Erik, According to our lab testing result, RR56C02 will be at it's the best performance with V-shape. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

W

Warwick 2018/09/03

Hi LB, Could you please send me the cross section drawing for this rim WR56C02 please? Also what other hubs do you stock to build with, do you still have industry nine or Chris king available?


LightBicycle 2018/09/04

Hi Warwick, Attaching with the rim profile as you requested. Yes, Industry Nine and Chris King hubs are available offline. Could you be more specific about what you want so I can check if it's possible to purchase from our supplier? We also have Tune hubs, Onyx racing hubs available. Will you be interested? Then we can get the WR56C02 road disc wheelset price accordingly for your check. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Tom 2018/08/22

Hi, I think this has been asked above; but will you make 28mm / 30mm outer width wheels (23mm inner width) with 56mm depth? I am looking for a wheel with this exact profile, but in a U shape. Thanks, Tom


LightBicycle 2018/08/23

Hi Tom, If it is 23mm inner width, the rim outer width will be around 30mm. 28mm outer width will make the rim wall thickness thin and the rim is weaker. If you like 28mm outer width, the inner width will be smaller than 23mm. We have 28mm wide 46mm deep rim. Is it okay for you? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

Sandy 2018/08/13

Hi, are there any plans to make a U-shaped version of this rim?


LightBicycle 2018/08/14

Hi Sandy, For Deep wider U shape gravel rims, they will be ready around October. It is around 30mm~32mm wide. Is it okay? Thanks, Lightbicycle


K

Kael 2018/10/03

Hi LightBicycle, Can you please provide more details/specs regarding the U shape gravel rims you mentioned above? Will they basically be a more blunt ~32mm external width version of the RR56c02? How deep will they be? And how wide both internally and externally? A disc brake rim approximately 32mm external/24mm internal width and anywhere from 50-65mm deep is exactly what I'm looking for (for road use). Regards, Kael (possible returning customer).


LightBicycle 2018/10/08

Hi Kael, 1. The benefits of U shape rims are: adding stiffness, due to a slight widening of the rim, and better braking, with a slightly angled brake track, not grew much in weight. And they are light, fast. when hitting a few windy sections, it could not feel a thing in the crosswinds. 2. Our new gravel wheels are with 30mm outer/ 23mm inner width, and they are designed for wider tires. May I know why you prefer a 24 internal width and 50-65 depth? Is there any advantage for wider gravel wheel? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

K

Karel 2018/07/27

I'm looking for a light rim for my gravel bike, I'd like to go 650B (27.5") so that I can mount wider tires (48mm or 50mm). The bike has disk brakes. The 27.5" rim you offer has a max tire pressure of 40 psi only which is a bit low. To my surprise, the above presented wheel, that also allows mounting 50mm tires, is good for a tire pressure of 160 psi ?? I don't understand


LightBicycle 2018/07/28

Hi Karel, I realized that you are looking for a wide, gravel, 27.5" rim for your bike. But currently, we only have one 27.5 gravel rim. It's RG722 (22.4mm inner/29mm outer width, 36mm deep. Is it okay for you. It is okay to hold 160psi for this hook rim. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

B

Bart 2018/07/24

Hello, I'm a bit confused regarding V or U-shaped wheels. I read that U-shaped wheels are aerodynamically better to handle crosswinds. And I like rinding a wider tyre, Conti's GP4000 28mm for example, that are effectively 30mm wide, so I would think these 30mm wheels would suit that perfectly. My only hesitation is why these aren't U-shaped wheels? Do you advice these or another wheelset to accommodate those 30mm tyres for a road bike? Thanks in advance, Bart.


LightBicycle 2018/07/24

Hi Bart, Do you ride disc or non disc? Then we can check which road wheelset is better for you. Thanks, Lightbicycle


B

Bart 2018/07/24

Thank you for the quick response! I'm looking for a road disc wheelset that perfectly fits a Continental GP4000SII 700x28c (30mm actual width). Since these WR56C02 wheels are 30mm wide, the tyre would sit flush with the rim, which is a good thing I think. However, if an U-shape is aerodynamically better suited, then I don't know what's best, since there are no 30mm wide U-shaped wheels on offering, right? Or maybe I'm focussing too much on the V-shape versus U-shape thing, I really don't know. Any advice is welcome! Kind regards, Bart.


LightBicycle 2018/07/25

Hi Bart, For U shape and V shape different, it depends on your living area also. Is it windy a lot there? The U-Shaped profile also decreases lateral wind resistance and is both more stable and faster in a crosswind than a traditional V-Shaped wheel. If there is no side wind area, V shape will be faster than U shape. For RR56C02 rims are 30mm wide, they have better tire mounting on your 28C tire. The V shape will not afftec tire sitting at all. The rim width will affect tire suiting, but the rim shape will not. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.
