Build Your Falcon Pro RIM AG48

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy wheelset

AG48

Global Shop

EU Shop

Ships worldwide. See what's on sale>>

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the US Shop. Check this link to see what items we stock, or send us an email to discuss.

Our Global Shop can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelsets. We will get back to you via email to discuss in 24hrs.

Our apologies, we do not stock this item at the CA Shop. Check this link to see what items we stock, or send us an email to discuss.

The wheelsets are still in transit to this shop. We’ll update this page when they’re available. Learn more about our European shop.

You can order this product from our Global or North American shops.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

DEFAULT SETTINGS

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Brake System This is a required option.

Hook is for road riders who value aerodynamic gains and mostly ride on smoother roads. If you plan to run high pressure, then a hooked/clincher rim is a safe bet.

Hookless is for those who are running wider tires, lower pressures, or are riding on rougher roads. You will benefit from a more comfortable ride due to the higher volume and increased impact protection. Gravel riders and cyclocross riders are often in this situation.

Both hook and hookless rims are built using the same dimensions and materials.
Find more about Hook VS Hookless >>

Disc

Version This is a required option.

Version	Weight	Material	Layup	Max Load
Standard	Standard	Toray T700 & T800 Premium Carbon Fiber	Standard Layup	120 kgs
Flyweight	10g - 20g lighter	Toray T700 & T800 &T1100 Premium Carbon Fiber	Light weight Lay up	100 kgs

Front Flyweight / Rear Standard with specific layup is also a good option that proves the harmony of weight and strength.

Standard

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

24H

Finish This is a required option.

Paintless: The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.

Crystal Painting: A fantastic painting effect designed by Light Bicycle.

Full Custom: This option offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3~5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR REQUIREMENT IN QUOTES IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed to finalize the details.

Paintless

Full Custom

Weave This is a required option.

Center Channel Hole This is a required option.

With Access Holes: This is the traditional method. Spoke access holes are drilled in the center channel to allow the nipples to easily be fed through the rim. Tubeless tape is required to seal the rim.

No Access Holes: No spoke access holes are drilled in the center channel. Feeding the nipples through the rim is more challenging, but it allows for a tubeless setup without the need for tape. This kind of system is known as "road tubeless" and was made popular by Mavic. Some companies still refer to it as "UST style", however, UST is actually a specific interface between the tire and rim which was developed by a partnership between Mavic, Michelin, and Hutchinson.

Currently, rims with 'No Access Holes' do not work with our carbon spokes.

With Access Holes

No Access Holes

Rim Warranty This is a required option.

For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

5 Years

Lifetime USD +100/rim

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Decal This is a required option.

1. Grey Laser Engraving (Falcon Pro) - Our laser engraving technology is eco-friendly and adds a snappy, polished aesthetic to your new rims.
Please note: Contrary to rims with any coated/painted finishes (matte, glossy and satin) as well as Crystal Painting, laser engraving could work with paintless rims only.

2. Full Custom - Add some additional personalization and go full custom with your rim graphics! Laser engraving is available in one colour (light grey) and starts at $5 USD per rim. If you select this option, LEAVE YOUR REQUEST IN QUOTES IN THE NOTES AT CHECKOUT. For example: "I need my personalized logo printed" or "Just text 'ABC racing' ". We will reach out to you once the order is placed to finalize the details of custom graphics.

Grey Laser Engraving (Falcon Pro)

Full Custom (Laser only) USD +5

Blank (No decal)

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Valve Stem This is a required option.

None

Add Black Valve Stem USD +9.9 each

Add Champagne Gold Valve Stem USD +9.9 each

Add Green Valve Stem USD +9.9 each

Add Silver Valve Stem USD +9.9 each

Add Red Valve Stem USD +9.9 each

Add Orange Valve Stem USD +9.9 each

Add Blue Valve Stem USD +9.9 each

Add Gold Valve Stem USD +9.9 each

Add Purple Valve Stem USD +9.9 each

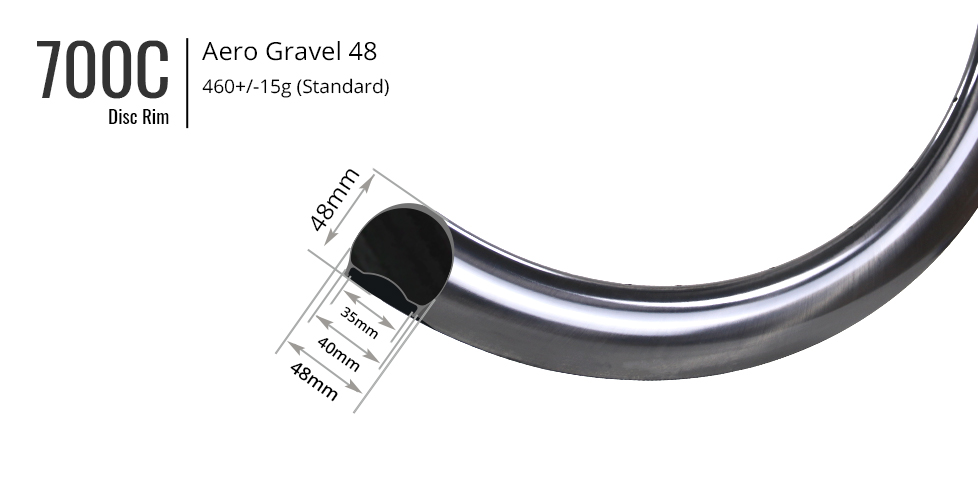

AG48 Disc rim Aero Gravel Wheelset LightBicycle 20260804115025 4aa7b7

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 460.00g+/-15

Subtotal: USD 309+

PREVIOUS NEXT

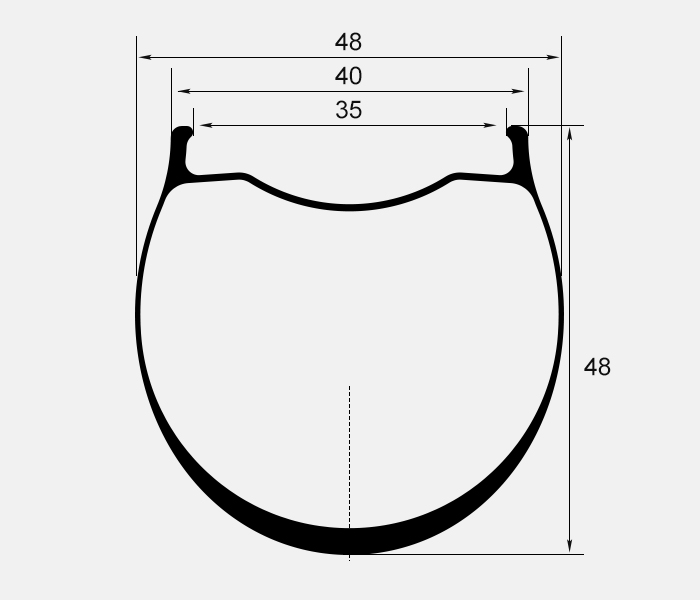

RIM SPECS

Rim Model AG48 Disc
Material Toray T700 & T800 Premium Carbon Fiber
Size 29”/700C (ETRTO 622mm)
Intended Use Gravel
Bead Type Hybrid Hook
Tubeless Capable Yes
Inner/Outer Width 35mm/40mm
Depth 48mm
Rim Weight Standard 460+/-15g
ERD 542mm (not including nipple head dimension)
Profile Symmetric (0mm)
Max Cyclist Weight Standard 135kg/ 298lbs
Spoke Hole ±8°
Spoke Tension 120~135kgf front disc side and rear drive side
Max Tire Pressure (with 45C) 55psi/3.79bar
Recommended Tire Width 44C~55C

Designed for the new era of ultra-wide gravel racing, the Aero Gravel AG48 Disc rim bridges the gap between massive tire volume and pure aerodynamic speed. Charge harder, ride wider, and leave the pack behind.

Built on a 35mm internal and 40mm external carbon chassis, the AG48 creates a seamless junction with 44c to 55c tires. This aerodynamic contour slices through harsh crosswinds while delivering razor-sharp cornering support and incredible vibration dampening. Clocking in at just 460g thanks to our precision ultralight layup, it feels light under pedal load and eager on the climbs, providing explosive acceleration on steep pitches.

The rim has passed our in-house R&D impact test of 105J (UCI standard 40J).

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Rim Model: AG48 Disc
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 29”/700C (ETRTO 622mm)
Intended Use: Gravel
Bead Type: Hybrid Hook
Tubeless Capable: Yes
Inner/Outer Width : 35mm/40mm
Depth: 48mm
Rim Weight: Standard 460+/-15g
ERD: 542mm (not including nipple head dimension)
Profile: Symmetric (0mm)
Max Cyclist Weight: Standard 135kg/ 298lbs
Spoke Hole: ±8°
Spoke Tension: 120~135kgf front disc side and rear drive side
Max Tire Pressure (with 45C): 55psi/3.79bar
Recommended Tire Width: 44C~55C

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

Designed for the new era of ultra-wide gravel racing, the Aero Gravel AG48 Disc rim bridges the gap between massive tire volume and pure aerodynamic speed. Charge harder, ride wider, and leave the pack behind.

Built on a 35mm internal and 40mm external carbon chassis, the AG48 creates a seamless junction with 44c to 55c tires. This aerodynamic contour slices through harsh crosswinds while delivering razor-sharp cornering support and incredible vibration dampening. Clocking in at just 460g thanks to our precision ultralight layup, it feels light under pedal load and eager on the climbs, providing explosive acceleration on steep pitches.

The rim has passed our in-house R&D impact test of 105J (UCI standard 40J).
Specs
Rims

Rim Model: AG48 Disc

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 29”/700C (ETRTO 622mm)

Intended Use: Gravel

Bead Type: Hybrid Hook

Tubeless Capable: Yes

Inner/Outer Width : 35mm/40mm

Depth: 48mm

Rim Weight: Standard 460+/-15g

ERD: 542mm (not including nipple head dimension)

Profile: Symmetric (0mm)

Max Cyclist Weight: Standard 135kg/ 298lbs

Spoke Hole: ±8°

Spoke Tension: 120~135kgf front disc side and rear drive side

Max Tire Pressure (with 45C): 55psi/3.79bar

Recommended Tire Width: 44C~55C

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

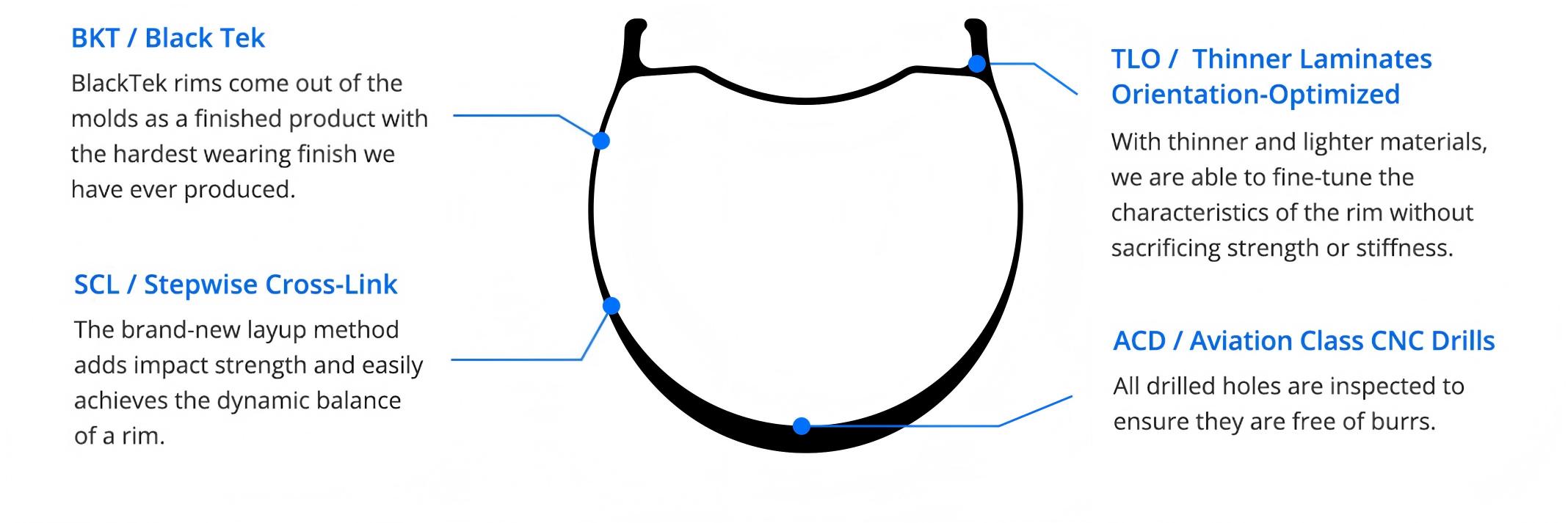

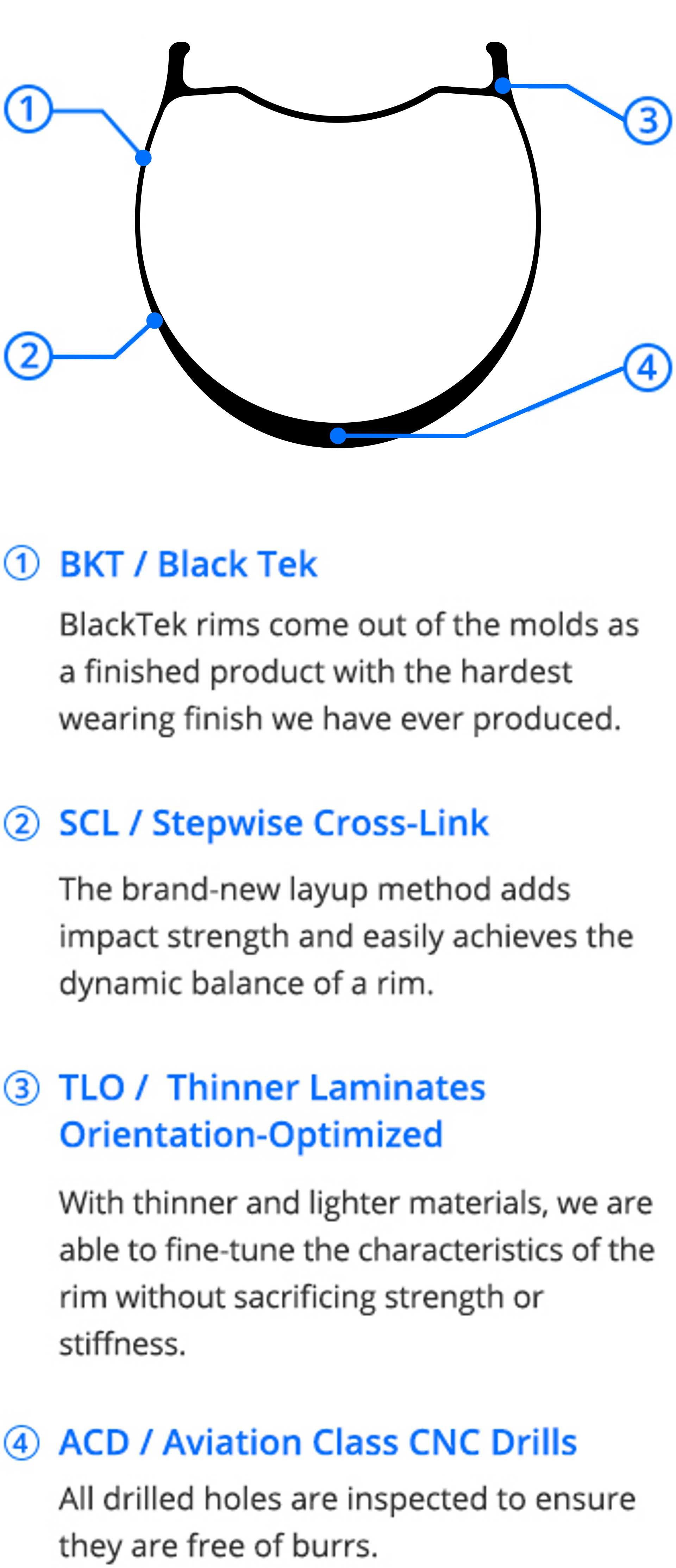

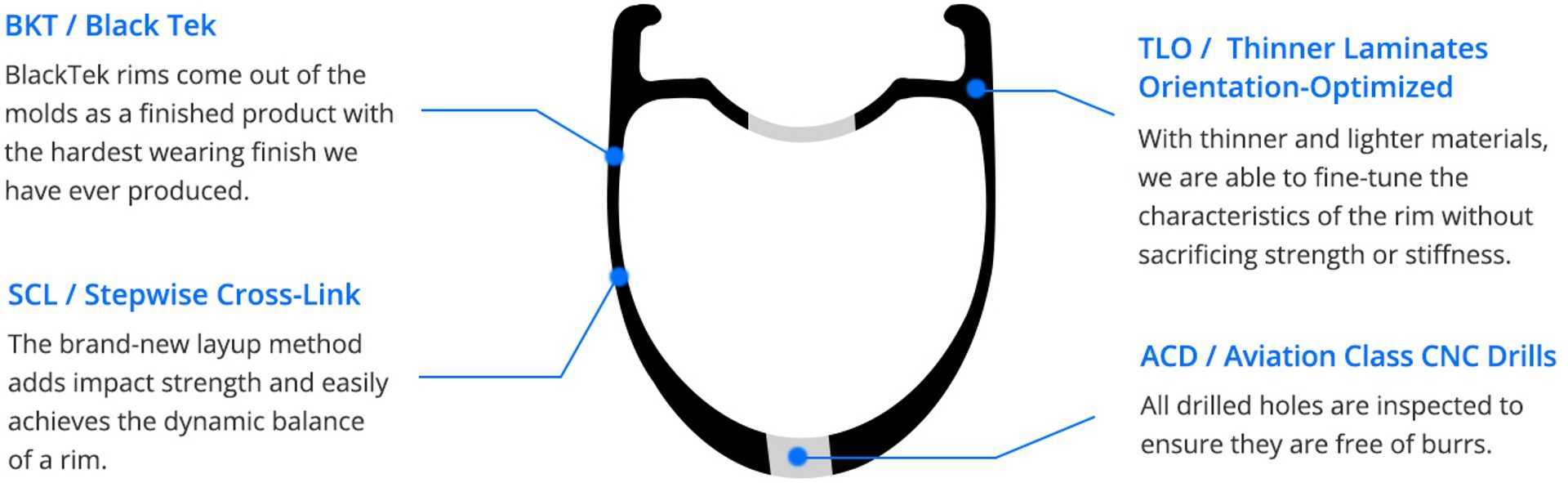

Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

light-bicycle-ag48-disc-review-speed-meets-the-trail

Hu : AG48 Disc Aero Gravel Wheels

light-bicycle-ag48-disc-review-where-aero-speed-meets-striking-custom-aesthetics

Ye : AG48 Disc on a Bastion Bike

View More Reviews >>

Rider Story

We would love to hear your story and earn a $50 reward. Tell us your personal riding story that highlights the joys and challenges of riding.

Share your rider story now >>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Specialized	Tarmac SL8	Colnago	V3
	Tarmac SL7		V4R/C68
	ALLEZ SPRINT		V3R/C64
	Aethos S-Works 2026		V5RS
Trek	MADONE SLR GEN8	Cannondale	SUPERSIX EVO G4
	MADONE SLR GEN7		SUPERSIX EVO G3
	EMONDA SLR		SYSTEMSIX
	MADONE SLR		LAB71
Quick Pro	ER:ONE		Supersix Evo 1 2023
Scott	NEW ADDICT RC	Factor	OSTRO VAM
	ADDICT		02 VAM
	NEW FOIL RC	Rose	Rose Xlite 6
	FOIL		Backroad 2019
Cervelo	R5	Pinarello	Dogma F12
	Caledonia
Please provide bike photo if you have any of the bikes listed below.
BMC	TMR 01
	SLR 01
	Teammachine SLRO1
Bianchi	Specialissima RC
Deda	OCR/BOTECHIA OCR
FOCUS	IZALCOMAX
Merida	REACTO/SCULTURA
Orbea	ORCA OMX/OMR
Ribble	CGR SL
Ridley	HELIUM SLX
	NOAH
TIME	ADH
Wilier	CENTO 10
	Triestina
	ZERO
	FLANTEE SLR/CENTO 10 SL
Can't find your bike model? Please let us know at sales@lightbicycle.com.

No.	Test Item	Test Standard	Compliance Rate	Measured Data
1	Drops Stiffness Vertical Test (Upwards)	50kgf static pressure deformation ≤ ( 11 ) MM	100%	10.01/9.81
2	Drops Stiffness Vertical Test (Downwards)	50kgf static pressure deformation ≤ ( 11 ) MM	100%	10.12/9.94
3	Hoods Stiffness Vertical Test (Downwards)	30kgf static pressure deformation ≤ ( 6 ) MM	100%	5.26/5.26
4	Handlebar In-Phase Loading Fatigue Test	Stage1: F=(+/-400) N=(+/-40.8) kgf, Frequency 2HZ, Cycles (150000)	100%	150,000 cycles, product intact
5	Handlebar In-Phase Loading Fatigue Test	Stage2: F=(+/-440) N=(+/-44.9) kgf, Frequency 2HZ, Cycles (100000)	100%	100,000 cycles, product intact
6	Handlebar Out-Phase Loading Fatigue	Stage1: F=(+/-280) N=(+/-28.6) kgf, Frequency 2HZ, Cycles (150000)	100%	150,000 cycles, product intact
7	Handlebar Out-Phase Loading Fatigue	Stage2: F=(+/-308) N=(+/-31.4) kgf, Frequency 2HZ, Cycles (100000)	100%	100,000 cycles, product intact
8	Impact Test	55J	100%	55J
9	Product Weight	( 250 +/-15 ) g	100%	259g

Use	Lightweight Road Riding
Width	340/380mm, 360/400mm, 375/415mm, 395/435mm
Stem Length	90mm, 100mm, 110mm, 120mm, 130mm
Material	Toray T700 & T800 Carbon Fiber
Finish	Matte/Glossy/Paintless/Custom Paint
Weave	UD/Marble
Weight	Starting from 250g
Reach	70mm
Drop	123mm
Stack	36.3mm
Steer Size	1-1/8″ (28.6mm), OD2 not Compatible
Flare	9°
Sweep	4°
Stem Angle	-10°
Impact Strength	Surpasses 55J Impact Test
Rider Weight Limit	120 kgs
Cable Routing	Internal & External
Computer Mount	Default Alloy Aluminum or 3D-Printed Titanium
Spacer	Universal 52mm/56mm or 3D-Printed Custom
Bolts	Titanium
Warranty	3-Year Warranty, contact us for our US$129 Handlebar Free Replacement Program.

Build Your Falcon Pro RIM AG48

Overview

Specs

Tech

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Tech

Warranty

In The Box

Gallery

Rider Story
