RECON PRO rim AM927 All Mountain

AM927 asymmetric rim profile carbon 29 inch carbon rims mtb

Buy & Configure

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

RIM SPECS

  • Size 29er
  • Series RECON PRO
  • Use All Mountain
  • Type Hookless
  • Tubeless Ready

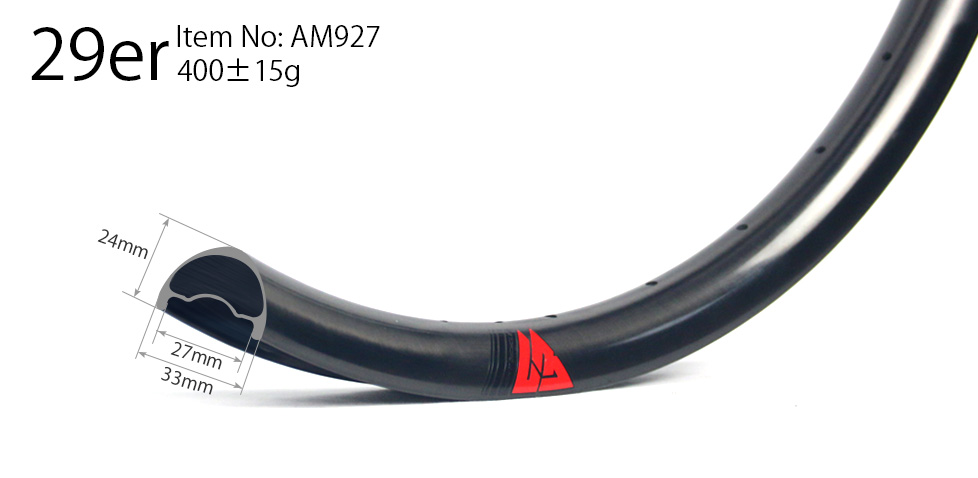

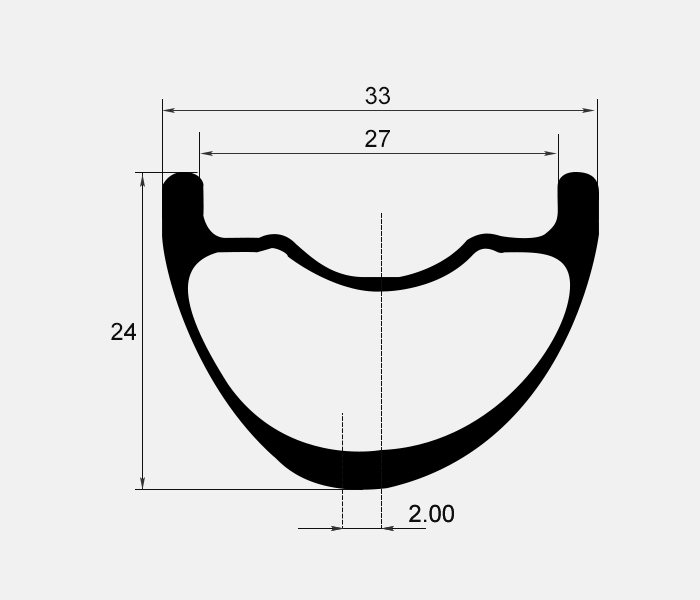

  • Inner/Outer Width 27mm/33mm
  • Depth 24mm
  • ERD 591mm (not including nipple head dimension)
  • Weight 400+/-15g
  • Offset 2mm (asymmetric)
  • Weight Limit 130kg
  • Spoke Hole Angle ±6°
  • Spoke Tension 145kgf
  • Tyre Pressure 20-40psi recommended
  • Tire 2.1" ~ 2.7" recommended

Read more for TL tire pressure charts

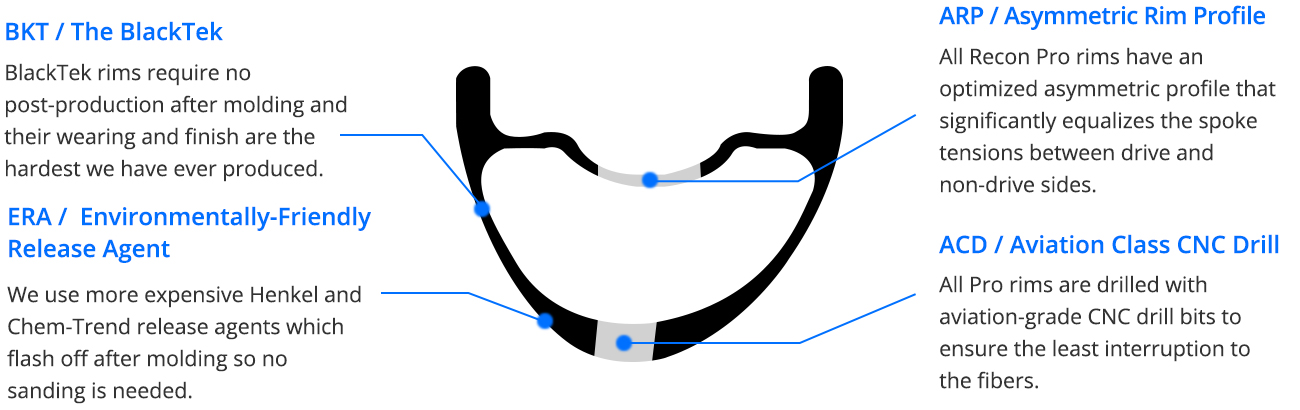

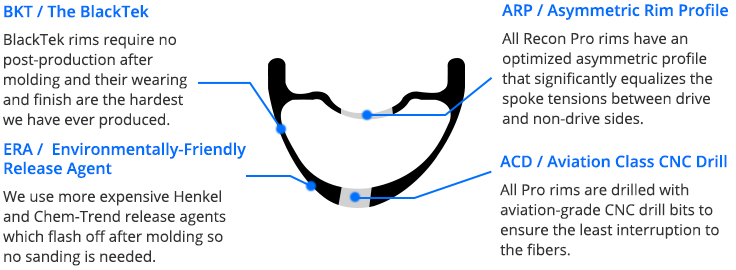

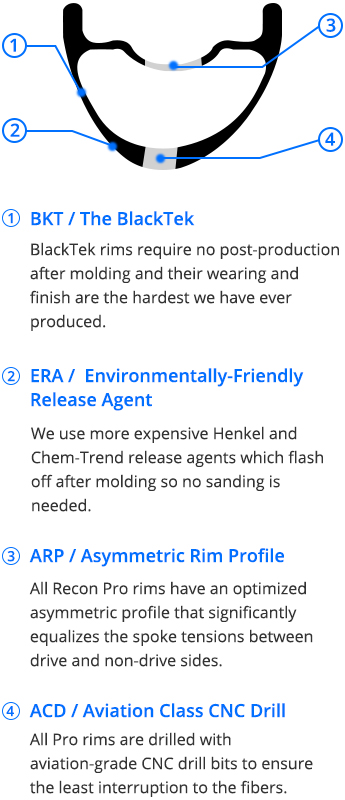

TECH

Our swiss army knife of mountain bike rims: technical XC race, light enduro, endurance, or just good plain mountain biking! The AM927’s are really light, fast, compliant, and can create a quiver-killer wheelset.

A sensible 27mm internal width keeps things modern, but doesn’t overkill in the stiffness or width department. Want to run 2.1” tires for an XC race one day, 2.3’s for an all day epic, then burly 2.4’s for some double black trails the next? No problem! The AM927’s are a great choice for riders wanting a versatile lightweight rim that feels at home on a wide range of terrain.


Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>


WHAT IS IN THE BOX


Gallery

Francis: My SWorks Epic with LB AM927 wheelset (Sapim CX RAY spokes and DT Swiss 180 EXP hubs with ceramic bearings).
Philippines
1
Light: Rims: AM927 Recon Pro Series UD Paintless 28/28H tubeless-ready standard weight Hubs: DT SWISS 240S 15 / 110mm BOOST 6-bolt IS J-bend Black DT SWISS 240S 12 / 148mm BOOST Sram XD 54T 6-bolt IS J-bend Black Spokes: DT Swiss Competition Race Black J-bend Nipples: DT SWISS Brass Black External Weight: 1494.44 grams
1
Light Bicycle: Rims: AM927 28H paintless UD Hubs: DT SWISS 240S EXP 15/110mm 12/148mm BOOST straight pull Center lock Black 28/28H Spokes: Sapim CX Ray Nipples: Sapim Aluminium Red
2
Light Bicycle: Rims: AM927 29ER Recon Pro 28/28H Hubs: DT Swiss 240s SP CL 15/100mm 12/142mm Spokes: Sapim CX Ray Nipples: Sapim Aluminum red Decals: Red Valve Sticker (STMTB03 (for pro rims)) Red Replaceable Rim Sticker (STMTB02 (for non-pro rims))
1
Viko: Recon Pro AM927 rims laced into Hadley Racing hubs with Sapim CX Ray spokes. Actual weight of the rims: 396g (LB weight: 400g)
Hungary
1
Gilbert: Wow! I shaved 1 lb and very happy with these wheels. The engagement is crazy good. You won’t be disappointed guys! Plus the customer service is outstanding!! Thanks LB! Wheels: AM927 Pro Recon 29er Hubs: I9 Hydras turquoise
United States
1

COMMENTS

A

Alan 2021/01/06

Hi I interested in your am927. How much it cost to ship to Singapore? And if I want a complete wheelset. What avaliable hub do you have?


LightBicycle 2021/01/06

Hi Alan, 1. Yes, we can ship to Singapore. The cost will be USD75 for one 29er wheelset by EMS plus delivery. 2. You can go to the wheelset page to find out what's optional. https://www.lightbicycle.com/Hand-built-AM927-asymmetric-rim-profile-carbon-fiber-mtb-29er-wheels.html 3. If what you want is not listed, we also have lots of customization options that we can do for you. From finish to decals, spoke holes, etc. Hub list for your ref in case you like to know. https://www.lightbicycle.com/newsletter/Light-Bicycle-Bike-Hub-List-of-2020.html Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

E

Enrique 2021/01/03

Hi Good day! I was wondering if I can run a 43mm tyre (Panaracer gravel king sk) with these rims. I read about the rim WR38 with 25mm inner width accepting 32mm tyres without problems, so I guess a 27mm inner width won't be a problem for a 43mm tyres. am I right? Thank you very much in advance Cheers


LightBicycle 2021/01/04

Hi Enrique, The AM927 is an All Mountain specific MTB rim 29er , while WR38 is a gravel rim 700C. Theoretically, a road tire with 43c width (around 1.7") will be ok to mount. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Mike 2020/09/10

hi there - two questions: 1) can you make a flyweight version of the AM927 at about 330g? Weight limit would be 55kg for a very light woman. I will not ask for a warranty rim. 2) do you offer bicycle industry discounts/


LightBicycle 2020/09/11

Hi Mike, Yes, we can make an ultra-light version of AM927 29er bike rim. But the lightest we can get is 340g. For safety reasons, we cannot make the AM927 anything lighter. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Marc 2020/04/14

Hello im interested in the AM927 pro carbon 32 hole rims only how much for 2 and shipped to australia also estimated time of delivery in these testing times cheers marc


LightBicycle 2020/04/14

Hi Marc, We have these 29er rims mtb bike ready for ship right now. We just sent you the email about delivery options to Australia. Please check. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

G

Gio 2018/11/23

Hello, I purchased in the past some of your rims. I'm interested in your model AM927, with inner channel 27mm. I do XC racing and I already use other Chinese carbon rims, significatively lighter at 320-330gr inner cahnndl 27mm, T800. Is there a way to produce your AM927 in version flyweight, below 310gr or lighter? Thank you Best regards, G.Cristini


LightBicycle 2018/11/24

Hi Gristini, Thanks for your continuous support! If you like flyweight rims, we have XC925 29er XC rims as below. https://www.lightbicycle.com/XC925-asymmetric-rim-profile-carbon-29-inch-carbon-rims-mtb.html Thanks, Lightbicycle


T

Thomas 2019/01/09

Can you make this rim in a flyweight? I'm looking for 27mm internal, not the 25mm that you already make in flyweight.


LightBicycle 2019/01/09

Hi Thomas, If you like customized AM927 to be with lighter version, it can be around 35g~40g lighter. Is that okay for you? Thanks, Lightbicycle


A

Alexi 2019/05/08

Hi, Lightbicycle! Please confirm if you offer AM927 rim in light version. If you have had same experience, what weght could I expect? I would like to order. Thanks


LightBicycle 2019/05/10

Hi Alexi, do you like to customized lighter version for AM927 29er bike rim? We can manufacture 340g+/-15 version, but for customized lighter weight, it will need extra cost USD12 each. Thanks, Lightbicycle


J

Jay 2020/01/24

I'd be interested in how the custom "light weight" AM927 rims came out. Are they as durable? Are the dimensions different? Is the warranty different?


LightBicycle 2020/01/25

Hi Jay, Thanks for your reaching out!If you like customized lighter version of AM927 29 inch rims, we can make them around 20g~30g lighter. Does it work for you? The warranty is the same, still 5 years.Why do you need lighter version? May i know your weight and riding style? Do you ride aggressively? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

V

Viko 2019/12/26

Hi, I'm interested in a pair of AM927 rims. I already have the Hope Pro 4 Boost (F+R, 32 holes) hubs. Do you guys also sell matching spokes? Could I please have a quote for the rims, spokes and nipples (black brass) posted to UK? Thanks!


LightBicycle 2019/12/27

Hi Viko, Yes, It is okay to order AM927 29er mountain bike rims together with spokes and nipples. We just sent you the quotation to your email. Please check. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

P

Paul 2019/10/26

Hi team, I'm about to upgrade my bike to a HB 130. The rear hub is 130mm x17mm as Hope believe a symmetrical rear wheel is better. Is it possible to order one of these rims in symmetrical drilling?


LightBicycle 2019/10/26

Hi Paul, If you choose symmetric 29er rim, we have below RM29C07 35mm wide 29er bike rim. Does it work for you?https://www.lightbicycle.com/35mm-wide-29er-rims-beadless-for-bicycle-trail-or-mountain-bike-enduro-with-tubeless-compatibility.html  Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

thierry 2019/04/20

How much time to deliver in france?


LightBicycle 2019/04/22

Hi Thierry, Are you interested in AM927 29er rims only or complete wheelset 29er? The lead time is around 2 days for 32h, and 5~7 days for 28H. For delivery, it takes another 7~12 days to arrive. Is it okay for you? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

E

Eric 2019/02/20

Bonjour Je suis intéressé par 2 jantes AM927. Quel serait votre meilleur tarif pour une expédition en France. Cordialement


LightBicycle 2019/02/21

Hi Eric, Please check our quotation as below. AM927 recon pro rim, UD paintless, 32H, USD269each Shipping cost: USD50 for 2 rims to France by EMS delivery. There is another delivery named TPD, it is tax prepaid. It is USD89.1 for 2 rims by TPD delivery, but you will not have to pay tax or VAT. Which shipping do you prefer? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

D

danny 2019/01/19

hi, can i check whats the internal diameter for this rim thanks


LightBicycle 2019/01/21

Hi Danny, For AM927 29er rim, it is with 33mm outer width/27mm inner width. Please find the rim profile in your email. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
