Carbon beadless 50mm wide bicycle 650b rims for 27.5 plus bikes tubeless compatible

BUYING OPTIONS

Global warehouse ship to most countries while the North America warehouse only ship to the United States and Canada

GLOBAL
NORTH AMERICA
  • 1

    RIM

  • 2

    ACCESSORIES

  • 3

    OVERVIEW

RIM

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

16H

18H

20H

24H

28H

32H

36H

Spoke hole drilling This is a required option.

Centered drilling is the most popular.

centered

offset

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

glossy

matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

12K

3K

UD

Decal This is a required option.


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Stealth

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

carbon fat bike rims

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + PCS

Hole Count This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please contact us.

32H

Spoke hole drilling This is a required option.

Centered drilling is the most popular.

centered

Finish This is a required option.

matte

Weave This is a required option.

UD

Decal This is a required option.


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Stealth

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

We use a tubeless tape with high tensile strength and only one lap is required so it is very light. It uses a natural rubber adhesive that does not leave any residue on the rims.

None

Add Tubeless Tape USD +8 each

carbon fat bike rims

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + PCS

Weight: 450.00g+/-15

Final total: USD 173.00+

Weight: 450.00g+/-15

Final total: USD 193.00+

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

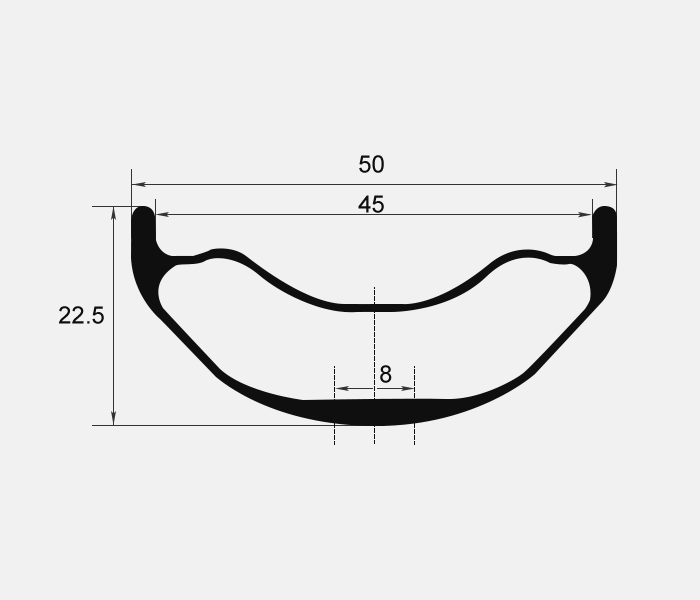

RIM SPECS

  • Size 650B
  • Use Plus
  • Type Hookless
  • Tubeless Ready
  • Inner/Outer Width 45mm/50mm
  • Depth 22.5mm
  • ERD 557mm (not including nipple head dimension)
  • Weight 450+/-20g
  • Offset 0mm (symmetric)
  • Drilling Offset ±4mm
  • Weight Limit 140kg
  • Spoke Hole Angle ±5°
  • Spoke Tension ≤145kgf recommended
  • Tyre Pressure ≤35psi recommended
  • Tire 2.8" ~ 3.1" recommended

Teleport to the wheelset building page.

With a huge 45mm internal width and the ability to run anything from a 2.8” tire right up to a monstrous 3.2”, the XC745 (RM650BC15) will give you the smooth rolling traction you’ve always wanted.


Typically, stock alloy plus wheelsets are built with heavier spokes to make up for their lack of stiffness. With a vertically compliant rim and significant side stiffness, lighter spokes are used to reduce overall wheel weight. Upgrading to our plus rims can easily save more than a pound off of a stock rims! Breath new life into your ride and bring a new level of responsiveness, stiffness, and control.

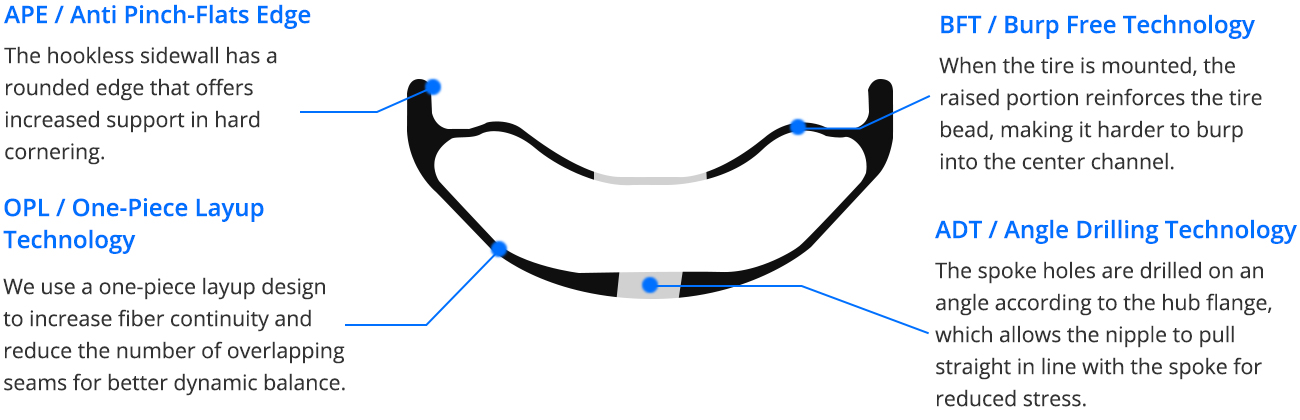

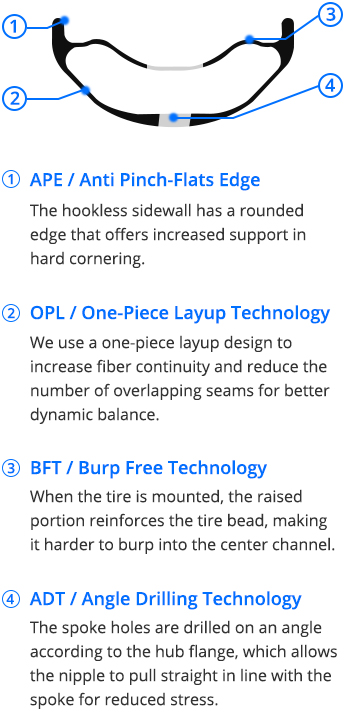

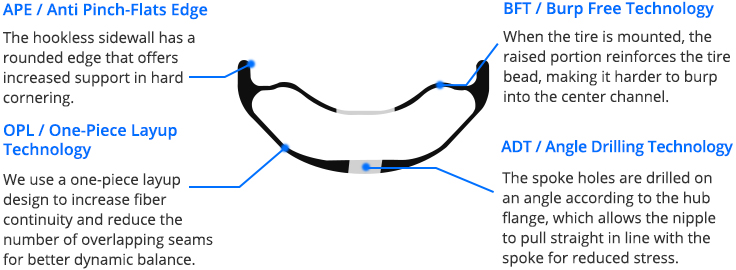

Hookless: Carbon fiber flows continuously over the bead area to provide the best impact resistance and a significant strength increase compared to a clincher rim.


Manufacturing process: Our air bladders are made from a special material which produces smoother walls, result in a lighter rim, and are completely removed without harsh chemicals. They are removed through the valve hole with a unique process so that the rim does not have to be patched like traditional manufacturers use. This significantly improves the strength of the rims. Read More about our process


T700: Constructed with premium Toray T700 carbon fiber. The best strength to weight ratio with no expense spared.


Precise layup: Each rim carries its own layup schedule documents which are followed meticulously by the layup workers. Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim.


Angled Holes: Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress. This results in fewer broken spokes and nipples.


Bead lock: The small ridges on either side of the drop channel help secure tubeless tires in place. The bead lock makes it easier to seal up tubeless tires with a floor pump, and they are incredibly hard to burp.


Tubeless: While the rims are optimized for a tubeless setup with the addition of tubeless tape, they also work with tubes.


For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Know more about the warranty policy >>

Gallery

Konstantin : Hand-built carbon 27.5 inch mountain bike 650b plus wheels 50mm wide beadless tubeless compatibleTitan Rocket on the hard wheels with huge mud clearance
Russia
1
Fabio : From Italy - Specialized Fattie 650B with carbon rims n° RM650BC14, super rims !
Italy
1
Dries : Set of RM650BC14 rims, 45mm internal, with Boost Hope hubs and Sapim spokes on my Liteville H3. Rear rim has an extra reinforcement that added 50gr to the weight. I'm some kind of a clydesdale to be honest.
Netherlands
1
Jim Crissman : New Salsa Pony Rustler. 27.5 with 50 mm LB carbon rims. Orange decals match orange ano Onyx hubs. 3" Schwalbe Nobby Nics. 130 mm Rock Shok Pike. Sram XX1 crankset with 28-tooth chain ring, XO1rear derailleur. 10-42 cassette. Tires mounted flawlessly with hand pump. Three months of hard use now. Rides like a dream.
USA
1
Marco : Specialized Stumpjumper FSR 6Fattie / RockShox Pike& DebonAir / LB RM650BC14 / Sram X01 / Shimano XT 2016 Trail 180/180 / Maxxis Chronicle 27.5x3" / Specialized Purgatory 27.5x3" / Hope Evo Pro boost110/148 / DT Revolution = 13.43kg.
Switzerland
1

COMMENTS

R

rob 2019/03/01

Hi there, do you have rims that are 650b by 50mm or 650b by 45mm? can you let me know? rim or wheelset. than you. please see the https://www.jonesbikes.com/jones-plus-swb-complete-bicycle/ i would like to build a bike like this one. thank you Rob


LightBicycle 2019/03/01

Hi Rob, For 650B plus 50mm wide or 45mm wide rims, we have below two rims option. Which do you prefer? RM650BC14: 50mm wide, 450g+/-20, 3 years warranty, USD173 each https://www.lightbicycle.com/Carbon-beadless-50mm-wide-bicycle-650b-rims-for-27-5-plus-bikes-tubeless-compatible.html AM740: 46mm wide asymmetrical, 480g+/-15, 3 years warranty, USD164 each https://www.lightbicycle.com/Carbon-beadless-46mm-wide-bicycle-650b-rim-for-27-5-plus-bikes-tubeless-compatible.html Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

K

Kdubs12358 2018/10/30

Would it be possible to get a custom wheelset built with these rims laced to DT350 fat bike hubs?


LightBicycle 2018/10/31

Hi Kdubs, Yes, we can build this 650B wheelset with DT 350 fat bike hubs for you. Pls make sure you are using 2.8~3.1" tires to build the wheels. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Jill 2017/07/19

Is there anyway to ask for the lighest weight of these rims to be used for a wheelset build. I am 110 lbs so do not want a heavy rim. 450g -455g is OK but would not want to get something 470-490g.


LightBicycle 2017/07/20

Hi Jill, Thanks for your inquiry! Okay, We will try our best to pick up the rims less than 460g for you. Does it work for you? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

P

Paul 2016/12/04

Hello, what is the spoke hole offset on the offset rims?


LightBicycle 2016/12/05

Hello Paul, Thanks for your inquiry. For 50mm plus rim with offset drilling, it is offset by 4mm. Rim profile attached for your reference. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

B

Ben 2016/11/02

If I place my order can you please send me rims that weigh 430g or less? I'm willing to wait


Light-Bicycle 2016/11/02

Hello Ben, Thanks for your inquiry. RM650BC14 (50mm width): weight under 455g, $200/pcs I double checked with our engineer, and we only can manufacture the rims around 450g ~ 455g. If the rim at 430g, it is not strong enough for your riding and will affect the rims strength. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

F

Fabio 2016/08/31

Hullo, is possible to buy two rims RM650 BC14, one rim with 24 holes and an other with 28 holes ? thank you very much Fabio


Light-Bicycle 2016/09/01

Hello Fabio, Thanks for your inquiry. It is okay to order 2pcs RM650BC14 in 24H/28H. For drilling pattern, center drilling as attached picture is more popular. Does that work for you? Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

V

Vincent 2016/06/16

Hi, are you able to build the 650 plus rim with Hope Pro 4 fat hub - Front 110mm boost and Rear 177mm?


Light-Bicycle 2016/06/16

Hello Vincent, Thanks for your continued support. Sure. The 50mm wide 650B plus wheelset with following specs is $896/pair. -Rims: RM650BC14, 450 /-20g. Rims in UD 32H the same as before? Center drilling? -Hubs: Black, Hope pro4 front 15*110mm boost/ rear 12*177mm TA. With freehub Shimano or Sram? -Spokes: Black, DT competition race -Nipples: Alloy or brass? Silver or black? Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

Sandy 2016/05/26

Your 50 mm 29er rims are great with 3.0 tires on my krampus. I'm not sure why folks are unhappy with that width


Light-Bicycle 2016/05/27

Hello Sandy, Thanks for your support. We are so happy you are enjoying the rims. It would be great to see a picture of them on your bike! Happy Trails! Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Matt 2016/05/25

I wish these were 40 ID. These rims are too wide for the optimal 2.8" plus tires.


Light-Bicycle 2016/05/26

Hello Matt, Thanks for your inquiry. Our 650B plus rim is with 50mm outer/ 45mm inner width. Don’t worry, it can work well with 2.8’’ tires. The recommend tires width are 2.8’’ – 3.1’’. Thanks, Light-bicycle


N

Nicol 2017/01/11

"650B plus rim is with 50mm outer/ 45mm inner width" -- is this the standard size for 650B plus?


LightBicycle 2017/01/12

Hello Nicol, Thanks for your inquiry. Yes, our 50mm wide 650B plus rim is the standard size. The recommend tires width are 2.8’’ ~ 3.1’’. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Tony 2016/05/18

I am interested in the RM650BC14 but with a 40mm internal and 45mm outer. Can you tell me when / if this will be made? Thanks in advance Tony


Light-Bicycle 2016/05/19

Hello Tony, Thanks for your inquiry. Currently, only 40mm and 50mm outer width rims are available. Rims profile attached for reference. We will discuss with our engineers, and will let you know once we have a plan to make the 40mm internal and 45mm outer rim. Thanks, Light-bicycle


C

Cam 2016/07/08

Hi there, I would like to buy a 37-41 mm internal width 27.5 rim for my plus bike. The 45mm and 33mm internal rims are not ideal for 2.8" tires. When will you be coming out with such a rim? Keep up the good work! - Cam


Light-Bicycle 2016/07/09

Hello Cam, Thanks for your inquiry. Currently, we don't have the 37mm~41mm inner width rims. We might manufacture this kind of rim in the future. But it's hard to tell the availability of time frame. The most similar rims are 33.6mm inner rim(AM733) and 45mm inner(RM650BC14). Is it OK for you? AM733: 2.3''~3.1'' tires RM650BC14: 2.8''~3.1'' tires Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.
