Hand-built AM930 asymmetric rim profile carbon fiber mtb 29er wheels

BUYING OPTIONS

Global warehouse ship to most countries while the North America warehouse only ship to the United States and Canada

GLOBAL
NORTH AMERICA
  • 1

    HUB

  • 2

    SPOKES/NIPPLES

  • 3

    RIM

  • 4

    ACCESSORIES

  • 5

    OVERVIEW

HUB

Spoke This is a required option.

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

DT Swiss Competition Race

Sapim CX Ray

Nipple This is a required option.

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Aluminium Black

Aluminium Red

Brass Black

Finish This is a required option.

Our Recon Pro rims feature BlackTek and come out of molds as a finished product, with a scratch resistant and near flawless finish, eliminating the need for sanding or painting.

paintless

Weave This is a required option.

UD

Rim Warranty This is a required option.

For Recon Pro Series ( MTB rim), Falcon Pro (future road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

5 Years

Lifetime USD +50/rim

Decal This is a required option.

The stock graphic is a glossy black waterslide for a subtle look. Avery vinyl logo-kits are available in 11 colours. The vinyl is replaceable and easy to install.

No

Black

Blue

Green

Magenta

Orange

Red

White

Yellow

Silver

Gold

Turquoise

Purple

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

paintless-wheels-29er

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + Pair

Spoke This is a required option.

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

Sapim CX Ray

Sapim D-Light

Sapim Race

Nipple This is a required option.

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Aluminium Black

Aluminium Red

Aluminium Blue

Aluminium Gold

Aluminium Green

Aluminium Lime

Aluminium Orange

Aluminium Purple

Finish This is a required option.

Our Recon Pro rims feature BlackTek and come out of molds as a finished product, with a scratch resistant and near flawless finish, eliminating the need for sanding or painting.

paintless

Weave This is a required option.

UD

Rim Warranty This is a required option.

For Recon Pro Series ( MTB rim), Falcon Pro (future road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

5 Years

Lifetime USD +50/rim

Decal This is a required option.

The stock graphic is a glossy black waterslide for a subtle look. Avery vinyl logo-kits are available in 11 colours. The vinyl is replaceable and easy to install.

Blue

Green

Magenta

Orange

Red

Yellow

Black

White

Silver

Gold

Turquoise

Purple

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

We use a tubeless tape with high tensile strength and only one lap is required so it is very light. It uses a natural rubber adhesive that does not leave any residue on the rims.

None

Add Tubeless Tape USD +8 each

paintless-wheels-29er

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + Pair

Weight: 880.00g+/-25

Final total: USD 588.00+

Weight: 880.00g+/-25

Final total: USD 648.00+

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

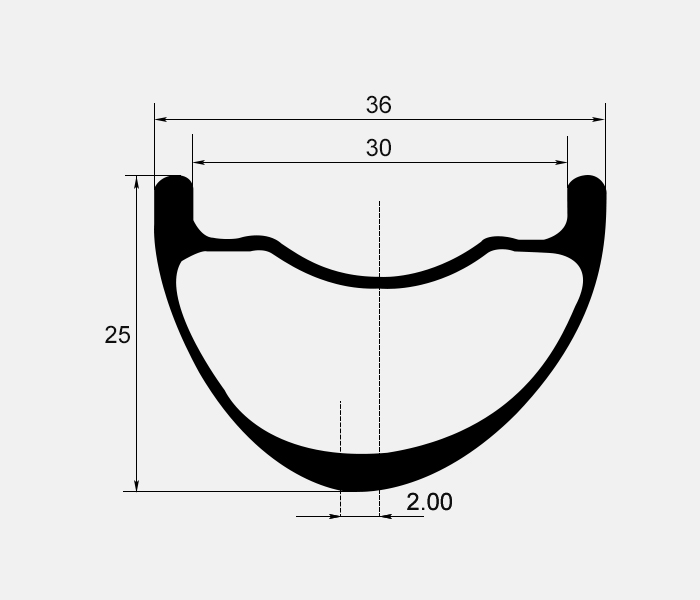

RIM SPECS

  • Size 29er
  • Use All Mountain
  • Type Hookless
  • Tubeless Ready
  • Inner/Outer Width 30mm/36mm
  • Depth 25mm
  • ERD 589mm (not including nipple head dimension)
  • Weight 440+/-15g
  • Offset 2mm (asymmetric)
  • Weight Limit 135kg
  • Spoke Hole Angle ±6°
  • Spoke Tension ≤145kgf recommended
  • Tyre Pressure ≤35psi recommended
  • Tire 2.2" ~ 2.7" recommended

Teleport to the rim page.

Our new wide format All Mountain wheel is a show stopper with its new scratch resistant BlackTek finish. Run all your favourite high volume tires and enjoy the benefits of our modern asymmetric profile.


The 30mm internal width has become one of the most popular widths in recent years, and for good reason! With the advancement of lightweight wide carbon rims, you get the traction and high volume benefits of a wide rim without all of the added weight. The AM930’s will give you a more reliable tubeless fit, increased stiffness, and significantly lower weight over a stock wheelset. Breath new life into your bike!

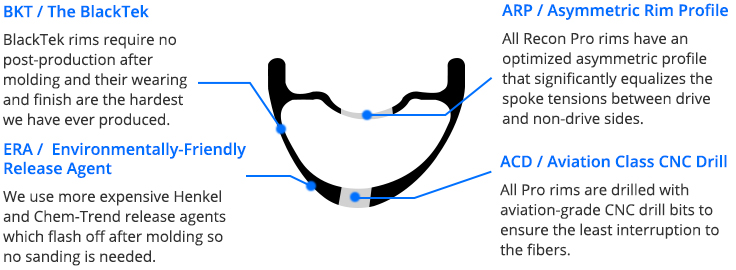

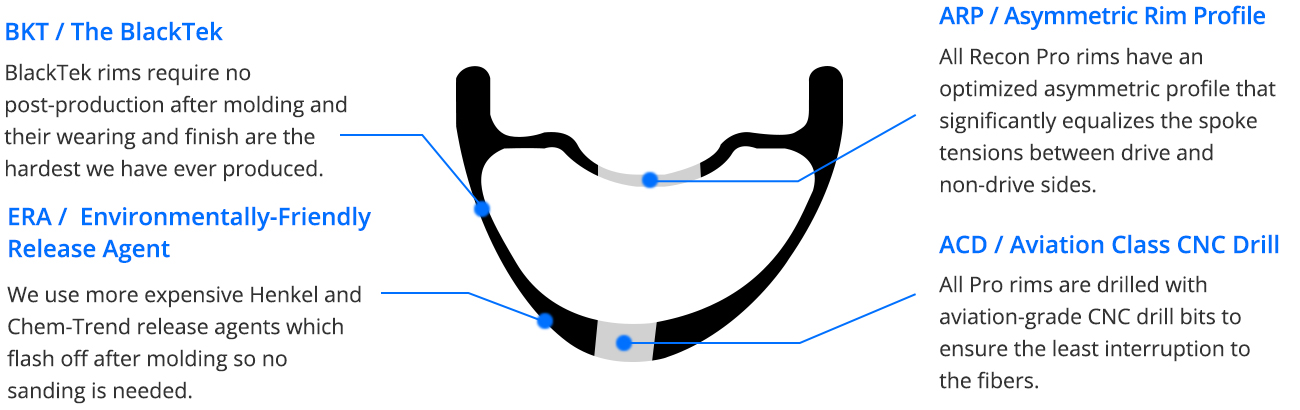

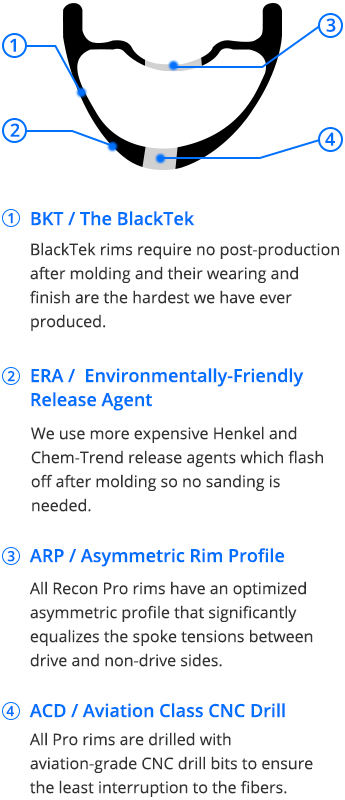

ExoTek: Our Recon Pro rims are designed to come out of the molds as a finished product which requires the most high quality manufacturing processes. The new resin system has superior consistency and forms the smoothest and most durable finish we’ve ever created. From a lengthened fatigue life to more robust interlaminar bonds, ExoTek raises the bar in performance and aesthetic.


EcoTek : Built from the highest grade of steel, we’ve engineered a completely new series of molds and developed a process that delivers a near flawless product. More time is taken through the layup and assembly process so that no post-production finishing is required. This new process is more environmentally friendly because it requires less heating cycles, no sanding, and no painting.


BlackTek : Rims featuring BlackTek come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clearcoat. BlackTek rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed. This is the most hard wearing and scratch resistant finish we have ever produced.


Asymmetric : Over the years, we’ve optimized an asymmetric profile that maintains the outright impact performance of a symmetric design but enjoys the benefits of offset spoke holes. This design significantly equalizes spoke tension between drive and non-drive spokes which results in a stronger wheel build that stays true longer.


Tubeless : All of our rims are tubeless compatible with bead seat retention. In most cases a floor pump is all that is needed to seal our rims. The bead shape is tailored to each rim width to achieve the best fit. Our hookless and clincher profiles have a smooth radius to reduce the chance of a pinch flat.


For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
