RECON PRO WHEELSET EN732

Hand-built EN732 asymmetric rim profile carbon fiber mtb 650B wheels

Buy & Configure

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

WHEELSET SPECS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

  • Model EN732
  • Material Toray T700 & T800 Premium Carbon Fiber
  • Size 650B
  • Series RECON PRO
  • Intended Use Enduro/DH
  • Bead Type Hookless
  • Tubeless Capable Yes

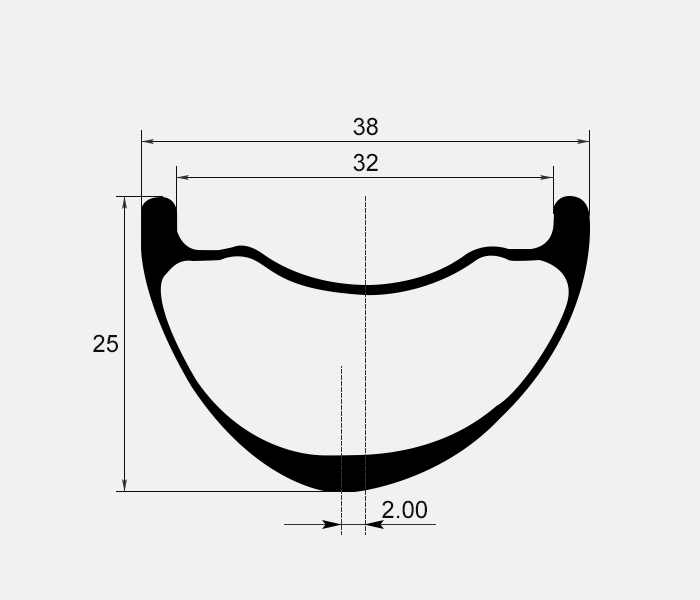

  • Inner/Outer Width 32mm/38mm
  • Depth 25mm
  • ERD 550mm (not including nipple head dimension)
  • Weight 470+/-15g
  • Profile Asymmetric (2mm)
  • Max Cyclist Weight (on flat ground) 140kg/ 309lbs
  • Spoke Hole Angle ±7°
  • Spoke Tension 120~130kgf front disc side and rear drive side
  • Max Tire Pressure 40psi/ 2.75bar
  • Recommended Tire Width 2.3" ~ 3.1"

Read more for TL tire pressure charts

HUBS

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

  • Model DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Hope Pro 4, Chris King ISO AB / ISO B, Industry Nine Hydra, Industry Nine 1/1, Bitex BX212F / BX212R, Onyx Vesper
  • Front Axle Size 15 / 100mm, 15 / 110mm BOOST, 15 / 100mm Torque, 15 / 110mm RS-1, 15 / 110mm Torque, 20 / 110mm, 20 / 110mm BOOST DH, 20 / 110mm Old DH, Lefty 2.0 Supermax, QR / 100mm
  • Rear Axle Size 12 / 142mm, 12 / 148mm BOOST, 12 / 150mm, 12 / 157mm, 12 / 157mm Super BOOST, QR / 135mm, Single Speed
  • Driver Body Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy, Shimano Micro Spline XTR Alloy
  • Hole 28H, 32H

OTHER PARTS

Leave a note at checkout or contact us if you want spare spokes or nipples.

  • Spokes DT Swiss Competition Race, Sapim CX Ray, Oil slick J-bend, Sapim D-Light, Sapim Race
  • Nipples Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black, Aluminium Blue, Aluminium Gold, Aluminium Green, Aluminium Lime, Aluminium Orange, Aluminium Purple

TECH

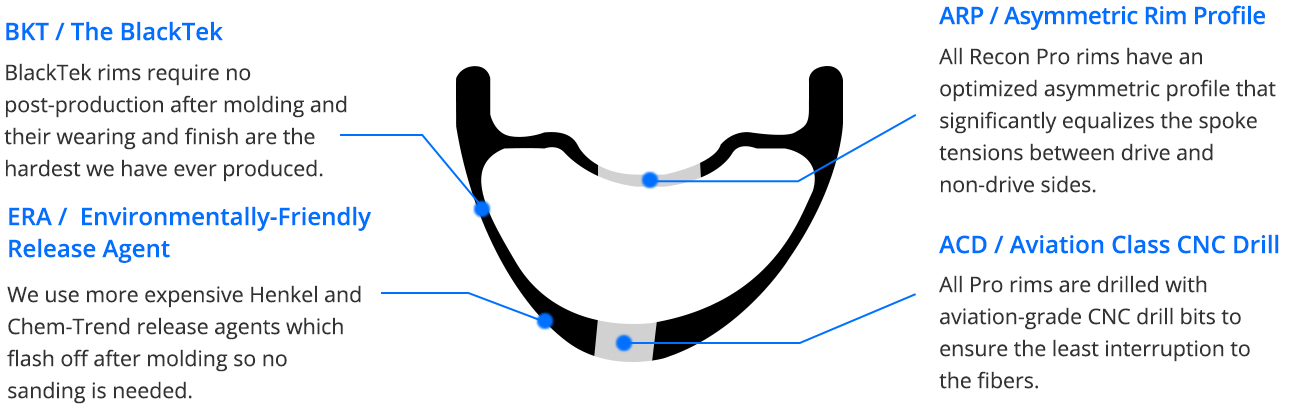

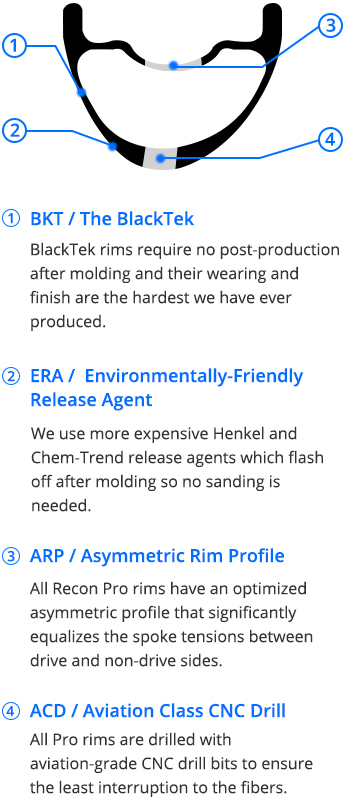

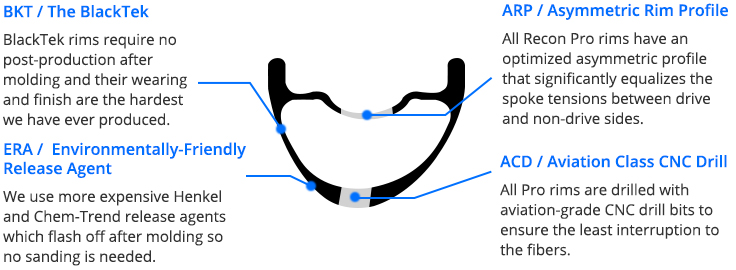

The new Enduro workhorse in our lineup is ready for today’s hard charging riders and racers. A heavily reinforced layup and new manufacturing technique will bring newfound confidence to your ride.

Targeted towards the high demands of top level enduro racing, the EN732 features a 32mm internal width, making it suited to the new breed of wide trail tires in the 2.3-2.8" range. This wheelset is stiff and precise for exceptional tracking through rough terrain, featuring a heavy duty layup with thickened sidewalls for increased protection against rock strikes and impact resilience. These wheels are suitable for heavier riders, and feel at home on longer travel bikes.

E-bike Approved! This wheel is designed to be compatible with mid-drive e-bikes.


Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>


WHAT IS IN THE BOX


Gallery

Kelvin: Had received the rim and extremely satisfying
Singapore
1
Light Bicycle: EN732 UD 32H With Holes external hole paintless 5 Years EN732 UD 32H With Holes external hole paintless 5 Years HUB-F 6-bolt 32H J-bend Blue Hope Pro 4 NBK 20 / 110mm BOOST DH HUB-R 44T 6-bolt J-bend Blue Hope Pro 4 32H 12 / 157mm NBK Sram XD Alloy SPOKE Sapim Race Black J-bend uncertain NIPPLE Sapim Aluminium Blue Polyax Secure Lock External
2

COMMENTS

M

Morten 2019/02/16

Hi, I am interested in your EN732 carbon wheel set for my 2018 Cannondale Jekyll 2 enduro bike. That bike requires the rim of the rear wheel to be offset 3mm for even spoke tension due to asymmetric rear. Can you build that way? Also, in this case should the spoke holes in the rear rim be drilled without offset? Thanks, Morten


LightBicycle 2019/02/18

Hi Morten, We can build the 3mm offset for the rear wheel for you without extra charges(is it as the attachment shows?), but the EN732 650B rim is with asymmetrical rim design(Not offset drilling), so it won't be a good fit for your bike. We do have symmetrical rims that close to EN732, will it be ok with you? I recommend the RM650BC13 HD(Heavy Duty) version for you. The rim profile is very close to EN732. Here are the rim specs for your reference. symmetric, RM650BC13, 38mm outer/31.6mm inner. https://www.lightbicycle.com/carbon-650b-rims-38mm-wide-hookless-mountain-bike-rims-tubeless-compatible.html Thanks, Lightbicycle
