Hand-built carbon AM740 asymmetric 27.5 inch mountain bike 650b wheels 46mm wide tubeless compatible

BUYING OPTIONS

Global warehouse ship to most countries while the North America warehouse only ship to the United States and Canada

GLOBAL
NORTH AMERICA
  • 1

    HUB

  • 2

    SPOKES/NIPPLES

  • 3

    RIM

  • 4

    ACCESSORIES

  • 5

    OVERVIEW

HUB

Spoke This is a required option.

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

DT Swiss Competition Race

Sapim CX Ray

Nipple This is a required option.

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Aluminium Black

Aluminium Red

Brass Black

Version This is a required option.

AM - This model is mid-weight and suitable for all mountain and trail riding. Can be used for light-duty enduro.
EN - This version has additional reinforcement and is suitable for more aggressive riders. It's the best choice for Enduro style riding.

AM740

EN740 USD +5

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

glossy

matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

12K

3K

UD

Decal This is a required option.


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Stealth

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

mtb wheels 650b

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + Pair

Spoke This is a required option.

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

Sapim CX Ray

Sapim D-Light

Sapim Race

Nipple This is a required option.

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Aluminium Black

Aluminium Red

Aluminium Blue

Aluminium Gold

Aluminium Green

Aluminium Lime

Aluminium Orange

Aluminium Purple

Version This is a required option.

AM - This model is mid-weight and suitable for all mountain and trail riding. Can be used for light-duty enduro.
EN - This version has additional reinforcement and is suitable for more aggressive riders. It's the best choice for Enduro style riding.

AM740

EN740 USD +5

Finish This is a required option.

matte

Weave This is a required option.

UD

Decal This is a required option.


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Stealth

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

We use a tubeless tape with high tensile strength and only one lap is required so it is very light. It uses a natural rubber adhesive that does not leave any residue on the rims.

None

Add Tubeless Tape USD +8 each

mtb wheels 650b

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + Pair

Weight: 960.00g+/-25

Final total: USD 358.00+

Weight: 960.00g+/-25

Final total: USD 418.00+

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

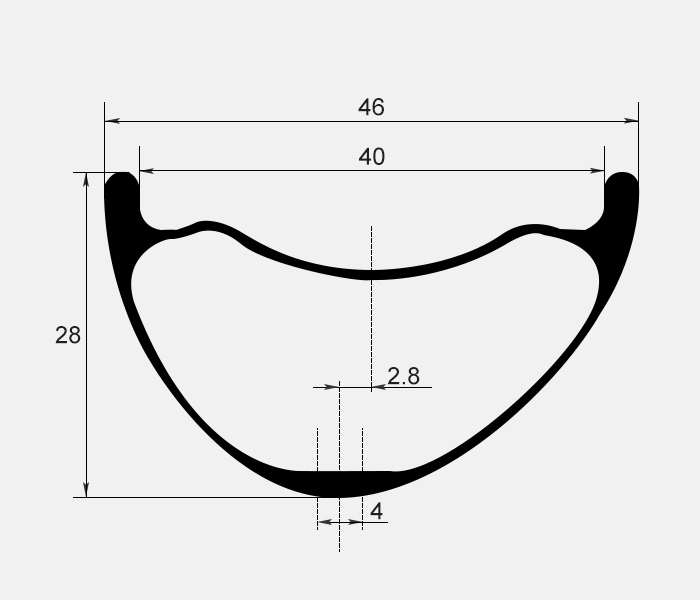

RIM SPECS

  • Size 650B
  • Use All Mountain/Plus
  • Type Hookless
  • Tubeless Ready
  • Inner/Outer Width 40mm/46mm
  • Depth 28mm
  • ERD 545mm (not including nipple head dimension)
  • Weight AM 480+/-15g, EN 530+/-15g
  • Offset 2mm (asymmetric)
  • Weight Limit 135kg
  • Spoke Hole Angle ±8°
  • Spoke Tension ≤145kgf recommended
  • Tyre Pressure ≤35psi recommended
  • Tire 2.8" ~ 3.1" recommended

Teleport to the rim page.

As more bikes become compatible with massive 2.8-3.2” tires, AM740’s are the opportunity to upgrade your ride into a plus bike, while still experiencing the incredible traction and stiffness only a lightweight carbon wheelset provides.


Not only are carbon plus wheels dramatically lighter than alloy, they are stronger as well. Running your alloy rims at low pressure usually means plenty of dents and a sluggish ride. Fortunately, AM740 solves both these problems with an incredibly durable and stiff profile, unleashing a new level of performance from your plus bike.

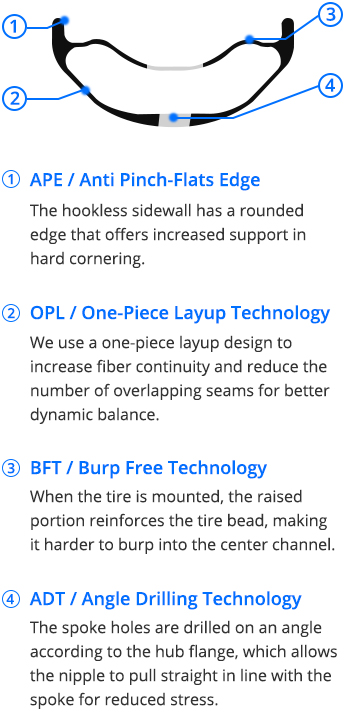

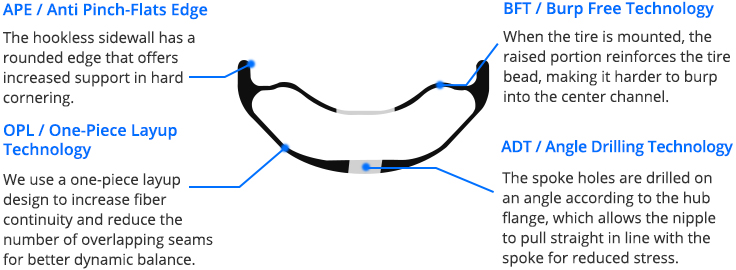

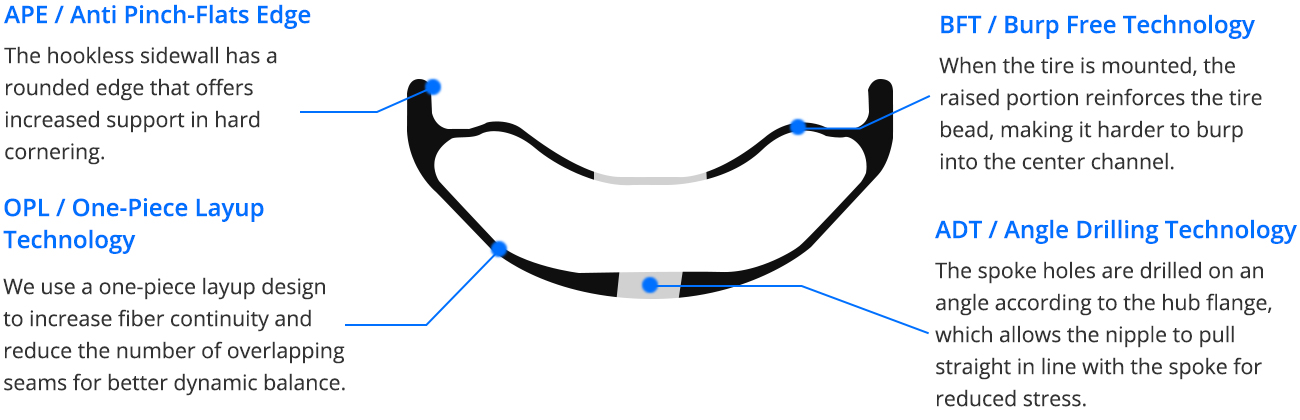

Hookless: Carbon fiber flows continuously over the bead area to provide the best impact resistance and a significant strength increase compared to a clincher rim.


Manufacturing process: Our air bladders are made from a special material which produces smoother walls, result in a lighter rim, and are completely removed without harsh chemicals. They are removed through the valve hole with a unique process so that the rim does not have to be patched like traditional manufacturers use. This significantly improves the strength of the rims. Read More about our process


Hand-Built: Each wheelset is painstakingly built by hand to tension within 5% variance. Each spoke's tension rating is recorded in our system, as is the roundness and lateral tolerance.


T700: Constructed with premium Toray T700 carbon fiber. The best strength to weight ratio with no expense spared.


Precise layup: Each rim carries its own layup schedule documents which are followed meticulously by the layup workers. Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim.


Angled Holes: Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress. This results in fewer broken spokes and nipples.


U-Shape: U-shape profile spreads the force of impacts and creates a more robust product.


Bead lock: The small ridges on either side of the drop channel help secure tubeless tires in place. The bead lock makes it easier to seal up tubeless tires with a floor pump, and they are incredibly hard to burp.


Asymmetrical: The profile allows for equalized spoke tension which creates a stronger wheel that stays true.


Tubeless: While the rims are optimized for a tubeless setup with the addition of tubeless tape, they also work with tubes.


For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Know more about the warranty policy >>

GALLERY

Adventure collection from all over the world.

LEARN MORE

COMMENTS

L

Lorenzo 2018/11/22

Hi, I am interested in the following wheelset built on AM740 rims REINFORCED, as I ride an ebike (2.8 tires) in very rocky terrain (my weight is 85kg, ebike 23kg): Front axle:15 / 110mm BOOST Rear axle: 12 / 148mm BOOST Freehub body:Shimano MTB 10/11S Brake system:6-bolt Front holes:28H Rear holes:28H Hub Color:Black Hub :Hope Pro 4 Finish:matte Weave:UD Also, could you please give me a price for TPD delivery? Thank you, L.


LightBicycle 2018/11/23

Hi Lorenzo, Yes, we can make a stronger version for you considering your riding condition. With extra carbon fiber, the estimated weight of the rims would be 630±25g. Is it ok with you? 28H would be a little risky to ride on rocky terrain, especially with an e-bike. I would recommend you go with 32H spoke count. For E-bike wheelset, it is better to choose DT competition 2.0/1.8/2.0 spokes or sapim race 2.0/1.8/2.0 spokes. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

B

Bill 2018/08/29

I’m looking at a pivot switchblade that has one 57 x 12 rear hub spacing can you build that?


LightBicycle 2018/08/29

Hi Bill, Do you mean 12*157mm DH or 12*157mm super boost? We have both of them. Please check which you like. Then we can quote accordingly for you. Do you like rear 650B wheel only or front+rear wheels? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

B

Bill 2018/08/29

The bike I’m looking out runs a 152 spacing on the rear hub can you build a rear wheel to fit that


LightBicycle 2018/08/29

Hi Bill, Do you mean 12*157mm spacing? DH or super boost? We have both of them. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

K

Kirk 2018/05/31

Hello. I am a 200lb rider. I am wondering if I should get the AM740 or the EN740. I am not an extremely aggressive rider on a full suspension 130mm travel bike.


LightBicycle 2018/05/31

Hi Kirk, Basing on your weight, my suggestion is to go with the enduro version (EN740), 650B enduro rim. The additional carbon fiber makes the rims stronger and stiffer. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

P

Peter 2018/05/26

Is it possible to order for Cannondale AI standard? 6 mm offset. /Peter


LightBicycle 2018/05/28

Hi Peter, Yes, we can make a wheelset for your Cannondale AI frame with 6mm offset. We actually build quite some wheels with AI 6mm offset for our customer in the past. Which fork do you use? What we built for our customers are like the attachment suggests. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Max 2018/01/14

Hello, Is it possible to order a set with 29 am928 front and 650b am740 rear? Thanks Max


LightBicycle 2018/01/15

Hello Max, Thanks for your inquiry. It is okay to order front AM928/ rear AM740 wheelset. Do you like to put this wheelset on 29er or 650B bike? What is the tire width you use? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

D

david 2018/01/09

I would like to order : Front axle:15 / 110mm BOOST Rear axle:12 / 148mm BOOST Freehub body:Shimano MTB 10/11S Brake system:6-bolt Front holes:28H Rear holes:28H Spoke head:straight pull Hub Color:Black Hub Brand:DT SWISS Hub Model:350 Spoke:Sapim CX Ray Nipple:Aluminium Black Spoke hole drilling:centered Finish:matte Weave:UD Decal:blue Valve Stem:Add Valve Stem Tubeless Tape:Add Tubeless Tape Ratchet: 54, are available? and for an enduro use with an E-mtb wuith plus tyres are suitable? Thank you


LightBicycle 2018/01/10

Hello David, Thanks for your inquiry. We can build the AM740 wheelset with DT 350 boost hubs and Sapim cx-ray spokes. May I know what your electric bike weight is? What is your weight? Then we will check if we need to add some carbon fiber to enhance the rims’ strength. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Tom 2017/06/10

I would like to order : Front axle:15 / 110mm BOOST Rear axle:12 / 148mm BOOST Freehub body:Shimano MTB 10/11S Brake system:6-bolt Front holes:28H Rear holes:28H Spoke head:straight pull Hub Color:Black Hub Brand:DT SWISS Hub Model:240S Spoke:Sapim CX Ray Nipple:Aluminium Black Spoke hole drilling:centered Finish:matte Weave:UD Decal:red Valve Stem:Add Valve Stem Tubeless Tape:Add Tubeless Tape Is the wheelset currently avavilable? Thank you


LightBicycle 2017/06/12

Hello Tom, Thanks for your continued support. The DT 240S straight pull 6-bolt boost hubs will be available within 10 days. Does it work for you? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

Stephen 2017/05/07

Hello guy's just looking for recommendation really, thinking of going carbon rims on my enduro bike, I do a lot of uplift days & aggressive trail rides at home (peak district in Derbyshire, UK) I'm looking at 40mm AM wheel sets are they up to the job? I'm 6ft & about 175lbs & ride at least 3 times a week with some all day rides too! Oh & lead time to the UK for delivery too! many thanks Steve.


LightBicycle 2017/05/08

Hello Stephen, Thanks for your inquiry. The AM740 is design for plus bike but suitable for aggressive mountain bike riding also. May I know what the tire width you use normally? Then we will double check if the AM740 is the best choice. Because I think our AM733 is more suitable for your riding. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

jerry 2017/04/24

good afternoon, I would like to know the price for 2 ea. AM740 rims only, UD Matte 32 hole no decals and drilled for presta. Thank you, Jerry


LightBicycle 2017/04/25

Hello Jerry, Thanks for your inquiry. AM740 (46mm plus asymmetric): 480 /-15g, $269.24 each Delivery cost: $50 for two rims to USA by EMS. All pricing in USD. Rim specs: UD mate, 32H, no decals, for Presta valve. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
