AR56 28mm external wide grooved graphene brake trake wheel

Build Your Falcon RIM AR56 - 28mm

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy wheelset

Global Shop

US Shop

EU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the US Shop. Check this link to see what items we stock, or send us an email to discuss.

Our Global Shop can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelsets. We will get back to you via email to discuss in 24hrs.

Our apologies, we do not stock this item at the CA Shop. Check this link to see what items we stock, or send us an email to discuss.

DEFAULT SETTINGS

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Bead type This is a required option.

Hook

Brake System This is a required option.

Road-Rim-High-TG-Surface-Grooved-Graphene-Surface

Non Disc - High TG Surface: Rim Brake 700C road rims use an advanced High TG resin system with a layer of graphene to help dissipate heat. The braking power and reliability is significantly improved over a basalt braking surface.

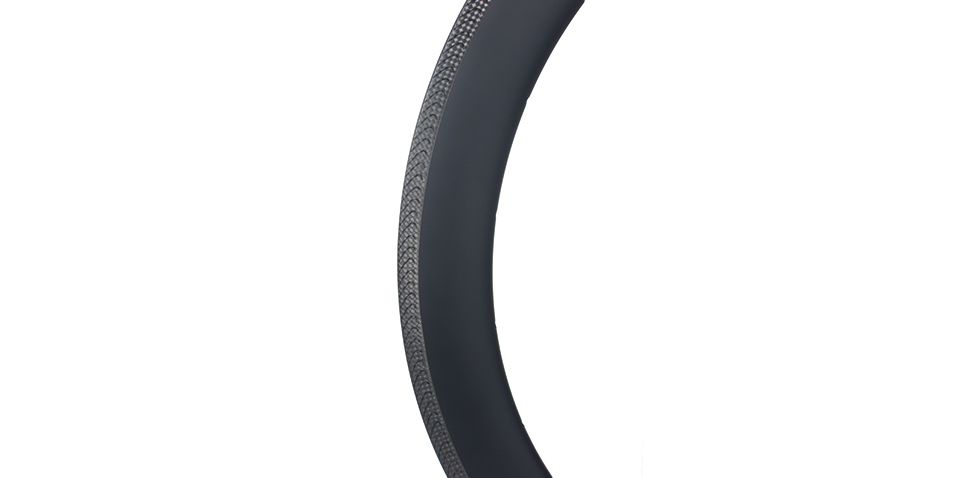

Non Disc - Grooved Graphene Surface: Our new resin system and construction method, combined with the 3k rim track, withstands over 280°C, dissipates heat, and lowers rim temperatures faster in between braking efforts. Gain confidence-inspiring brake performance on the steepest descents and wettest conditions with our matching brake pads. Also, graphene added to the rim brake track allows for greater resistance to overheating with improved heat dissipation and reduced temperature accumulation during heavy braking. The grooved track helps evacuate trapped moisture between pad and rim in wet conditions, and brings more resistance and force at the lever when conditions are dry.

Full Custom: This option (if provided here to choose) offers custom braking track in other various weaves (UD/12K/3K twill etc) with 1-2 weeks LONGER on manufacture and extra $10USD/rim only as a start (with High TG Surface by default). If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Disc: The disc version does not have a rim brake track and features a unique disc specific layup process. Our new layup is about 10g ~30g lighter by reducing the unnecessary material and utilizing elements of our Flyweight construction method.

Non Disc - High TG Surface

Non Disc - Grooved Graphene Surface USD +30

Full Custom USD +10

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

20H

24H

28H

32H

Full Custom

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3-5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Glossy

Matte

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

12K

Hexa-Comb USD +15

Full Custom USD +15

Center Channel Hole This is a required option.

With Access Holes: This is the traditional method. Spoke access holes are drilled in the center channel to allow the nipples to easily be fed through the rim. Tubeless tape is required to seal the rim.

No Access Holes: No spoke access holes are drilled in the center channel. Feeding the nipples through the rim is more challenging, but it allows for a tubeless setup without the need for tape. This kind of system is known as "road tubeless" and was made popular by Mavic. Some companies still refer to it as "UST style", however, UST is actually a specific interface between the tire and rim which was developed by a partnership between Mavic, Michelin, and Hutchinson.

Currently, rims with 'No Access Holes' do not work with our carbon spokes.

With Access Holes

No Access Holes

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Decal This is a required option.

Road rims use super light waterslide decals (matte colors). The decal is very thin and applied under a clearcoat so they are non-removeable.

Pictures about light-bicycle decal >>

If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.

Pictures about custom graphics >>

Blank (No decal)

Stealth (Grey)

Blue

Green

Magenta

Orange

Red

White

Yellow

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Brake Pads This is a required option.

By default, Shimano type is offered only (Contact us if you want Campagnolo type). 4 pads will be included. These high performance brake pads are designed for carbon bike rims only and offer excellent stopping power even in the wet.
Instructions of brake pads

None

Add Shimano-type Brake Pads USD +10

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 450.00g+/-15

Subtotal: USD 163+

PREVIOUS NEXT

RIM SPECS

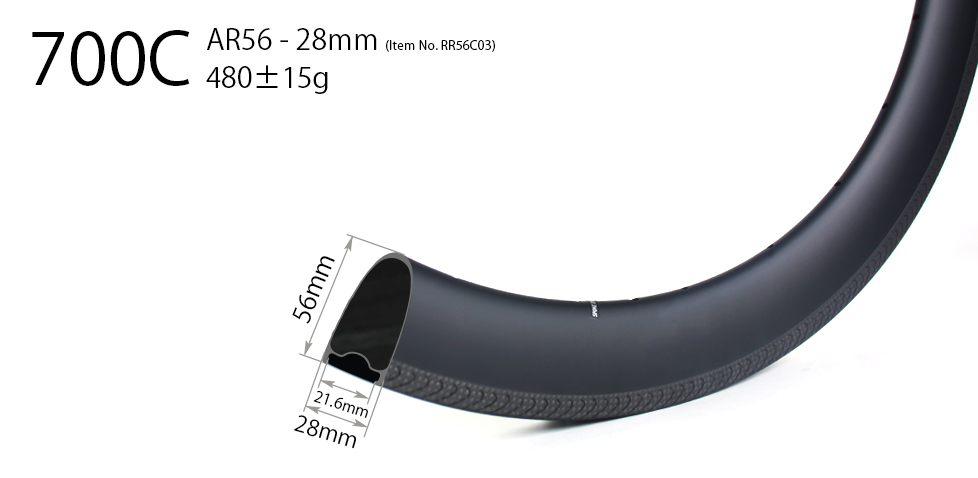

Rim Model AR56 (28mm wide)
Material Toray T700 & T800 Premium Carbon Fiber
Size 29”/700C (ETRTO 622mm)
Series FALCON
Intended Use Road/CX
Bead Type Clincher
Tubeless Capable Yes

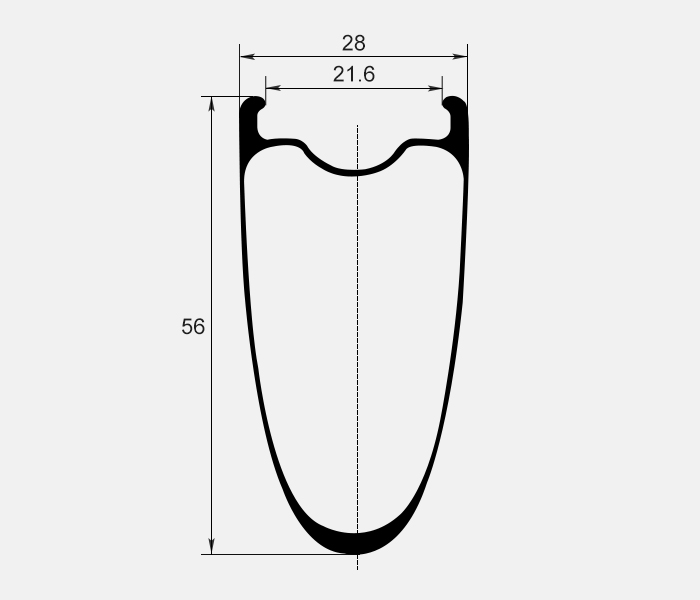

Inner/Outer Width 21.6mm/28mm
Depth 56mm
ERD 528mm (not including nipple head dimension)
Rim Weight 480+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) 135kg/ 298lbs
Spoke Hole Angle ±8°
Spoke Tension 100 ~115kgf front, 120~135kgf rear drive side
Max Tire Pressure (with 25C) 110psi/ 7.58bar
Recommended Tire Width 23C~43C

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Rim Model: AR56 (28mm wide)
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 29”/700C (ETRTO 622mm)
Series: FALCON
Intended Use: Road/CX
Bead Type: Clincher
Tubeless Capable: Yes
Inner/Outer Width: 21.6mm/28mm
Depth: 56mm
ERD: 528mm (not including nipple head dimension)
Rim Weight: 480+/-15g
Profile: Symmetric (0mm)
Max Cyclist Weight (on flat ground): 135kg/ 298lbs
Spoke Hole Angle: ±8°
Spoke Tension: 100 ~115kgf front, 120~135kgf rear drive side
Max Tire Pressure (with 25C): 110psi/ 7.58bar
Recommended Tire Width: 23C~43C

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

The 28mm external and 21.6mm internal width 56mm road rim provides the perfect platform for anything from a 23C to 43C road, gravel, or cyclocross tire and makes tubeless set up a breeze. This incredibly stiff and aerodynamic 56mm road rim is just as at home on your road race bike as it is on your gravel rig. Whether you're sprinting for primes or tackling a 200-mile gravel epic, the versatile AR56 is up for the challenge.
Specs
Rims

Rim Model: AR56 (28mm wide)

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 29”/700C (ETRTO 622mm)

Series: FALCON

Intended Use: Road/CX

Bead Type: Clincher

Tubeless Capable: Yes

Inner/Outer Width: 21.6mm/28mm

Depth: 56mm

ERD: 528mm (not including nipple head dimension)

Rim Weight: 480+/-15g

Profile: Symmetric (0mm)

Max Cyclist Weight (on flat ground): 135kg/ 298lbs

Spoke Hole Angle: ±8°

Spoke Tension: 100 ~115kgf front, 120~135kgf rear drive side

Max Tire Pressure (with 25C): 110psi/ 7.58bar

Recommended Tire Width: 23C~43C

Read more for actual road tire width

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

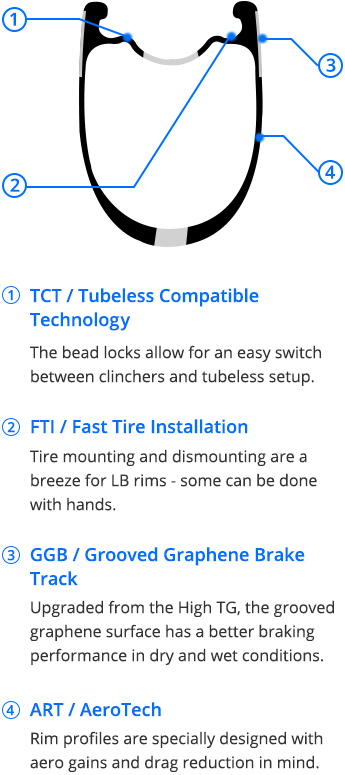

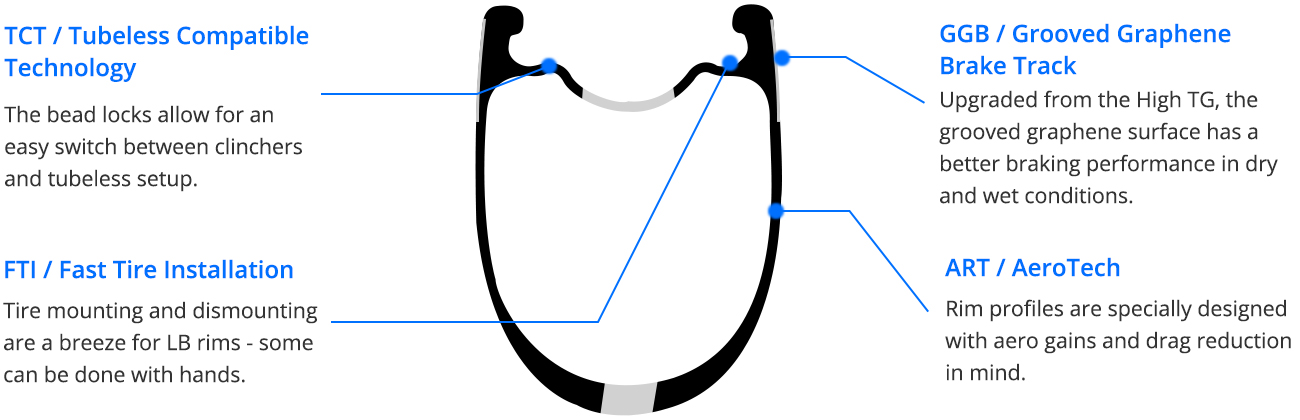

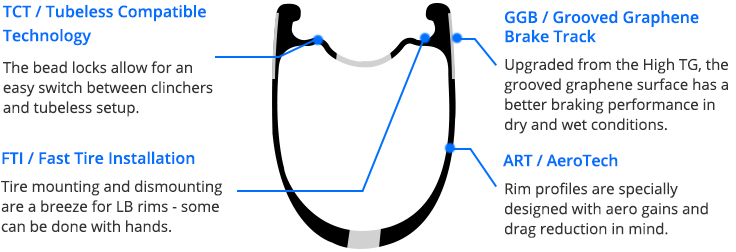

Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

light-bicycle-ar56-non-disc-carbon-wheelset-grooved-graphene-surface

Light Bicycle : RIMS: AR56 - 28mm Hook UD Glossy Non Disc - Grooved Graphene Surface 20H/24H External Hole With Drain Holes No Access Holes HUB-F: DT SWISS 350 Black QR / 100mm straight pull Non Disc 20H HUB-R: DT SWISS 350 Black QR / 130mm straight pull Non Disc 24H 54T Shimano Road 11S SPOKE: Sapim CX Sprint-Rear drive side/ CX Ray-Other sides NIPPLE: Sapim Brass Black

light-bicycle-ar56-rim-brake-carbon-fiber-wheelset-grooved-graphene-surface-

Light Bicycle : RIMS: RR56C03 Hook UD Satin Non Disc - Grooved Graphene Surface 20H/24H External Hole With Drain Holes With Access Holes HUB-F: Novatec A291SB-SL Black QR / 100mm J-bend Non Disc 20H HUB-R: Novatec F482SB-SL Black QR / 130mm J-bend Non Disc 24H 27T Shimano Road 11S SPOKE: Sapim CX Sprint-Rear Drive Side/ CX Ray-Other Sides NIPPLE: Sapim Brass Oil Slick

light-bicycle-ar56-custom-carbon-wheelset-non-disc

Ryo : AR56 Rim Brake Wheelset. 20H/24H on Bitex hubs. Sapian CX Ray with brass nipples. 21/28mm internal/external width. Overall a very stiff, light and fast wheelset. The hubs roll better than expected. Cheating the wind comes to mind when powering through on flats. Free speed on downhills. Enjoying the fun

United States

light-bicycle-rr56C03-disc-heavy-duty-carbon-wheelset-laced-to-hope-pro--hubs

Ryo : Tandem wheelset. Built for strength and speed. The wheelset may be difficult to see in the photo but they are AR56 ehanced rims, hooked, hexa-comb, Sapim race spokes, brass nipples, 36 holes with Hope Pro 5 Hubs in Orange to match the bike. The rim internal width is 21 to match the 32c GP 5000. Looks to be a perfect combination. I got to say these are amazing. They are very strong to survive the Los Angeles pot holes in the area. And they roll incredibly fast on flats and descents. The wheelset replace the factory 27.5x50 wheelset, saving me almost 6 lbs over stock rims with tires.

United States

hand-built-light-bicycle-ar56-28-carbon-wheelset

Dylan : Great wheelset for my first fixed gear build. Hand built the wheels myself, but the quality of the rims was great - almost a year later, 1,500 miles, and haven’t even trued them yet! Here to order a set of hoops to build up a set for a cheap retro TT rim brake build!

United States

light-bicycle-ar56-rim-brake-56mm-deep-aero-carbon-wheels-all-road-bike

Erik : By first build AR56 rim brake satin 3k Sapim CX RAY Hope RS4

Germany

specialized-roubaix-sl4-rim-brake-on-light-bicycle-carbon-wheels

JT : Specialized SL4 Roubaix (rim brake) with AR46 front, AR56 rear (satin finish on both). Bitex RAF12 front and RAR12 rear hubs, which I highly recommend due to larger, more durable bearings for not much extra in price (+$50) or weight (+25g). Three LB logos with color to match frame, and black LB valve stem decal (the true stealth option, in my opinion). Sapim CX-Sprint spokes on drive side, CX-Ray on all others. Full 2x lacing on rear wheel, 0x (radial) on front.

United States

light-bicycle-12k-twill-vertical-weave-carbon-road-wheel-56mm-deep

Light Bicycle : Rims: AR56-28 Non-Disc Grooved Graphene Surface Hook 12K Twill Vertical Satin With Drain Holes No Access Holes Hubs: Bitex RAF10 RAR9 Black QR / 130mm J-bend Non-Disc 20/24H NBK 24T Shimano Road 11S Spokes: Sapim CX Sprint-Rear drive side/ CX Ray-Other sides Nipples: Sapim Brass Black

View More Reviews >>

COMMENTS

Mikolaj 2024/12/27

Hi, i am your customer. I bought few years ago rims from you, they act really good, and the quality is high. I would like to buy another one. I am from EU. I saw that you have new shop in EU, but there are only two types of wheels. Is there any possibility to buy two rims by EU shop to avoid all the tax fees? All best Mikolaj

LightBicycle 2024/12/27

Hi Mikolaj, Happy New Year! It is great to hear that you like our rims/wheels. Currently, we do not have rims only in EU shop. But we can ship rims from China, and we can ship it by TPD delivery, The shipping cost includes tax cost. Which rims are you interested in? I can quote accordingly for your check. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Don 2023/08/18

Hi, I'm looking to build a set of rim brake wheels on my Chris King r45 hubs. Looking at the AR56 - 30mm rims. Can I get price and weight with the options below. Hole: 16f and 20r Finish: Matte Weave: Braided UD Brake Track: high TG? not sure Weight Style: Ultra-Light (lightest option,54kg rider) Center Channel Hole: No Access Holes Drain Hole: With Drain Holes Decal: Blank (No decal) Valve Stem: Add Valve Stem Tubeless Tape: None Brake Pads: None

LightBicycle 2023/08/19

Hi, Thanks for reaching out! I sent you a quote through email, please check it kindly. Have a nice day! Light Bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Adam 2022/04/02

Really helpful customer service. I could’t decide what wheels to choose and they helped me a lot. All my questins where answered quickly. I really recommend wheels from lightbicycle!

LightBicycle 2022/04/05

Hi Adam, It is our pleasure to help you! Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Alessandro 2022/03/08

Hi, I just bought the AR56 28mm rims, do you know what spokes will work best on these rims and what length spoke I would need to fit them to my Chris King R45 hubs? Thanks! A

LightBicycle 2022/03/09

Hi Alessandro, We just sent spoke length for AR56 road disc wheels with Chris King R45D hubs to your email. Pleasse check. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Build Your Falcon RIM AR56 - 28mm

Overview

Specs

Tech

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Tech

Warranty

In The Box

Gallery
