Trilight-c21-tri-spoke-front-wheel-disc-brake

Trilight-C21-disc-brake-tri-spoke-wheel-front

Build Your Falcon Pro WHEEL Trilight-C21 Disc Front

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Hub Brand This is a required option.

Model	Weight	POE	Cost	Reliability	Quality	Unique Feature	Color Options	Warehouse Location	Website
Novatec	287g	27	Low	Good	Good	Inexpensive	Three	China	NOVATEC
Bitex	258g	24	Low	Good	Good	Light	Two	China	BITEX
DT 350	374g	18/36/54	Low	Better	Good	Quiet and reliable (18t option)	One	China	DT SWISS
DT 240S	317g	18/36/54	Medium	Best	Best	Quiet and reliable (18t option)	One	China/N.A.	DT SWISS
DT 240 EXP	299g	EXP 36	Medium	Best	Best	Quiet and reliable (EXP 36 )	One	China/N.A.	DT SWISS
DT 180	290g	EXP 36	High	Best	Best	Super Light, EXP 36	One	China/N.A.	DT SWISS
Chris King	326g	45	High	Best	Best	Rebuildable bearings	Nine	China	CHRIS KING
Industry Nine	327g	60	Medium	Better	Best	Loud, engagement	Eleven	China/N.A.	INDUSTRY NINE
Onyx	434g	Infinite	High	Better	Best	Silent, sprag clutch	Eighteen+ (Custom Available)	North America	ONYX
Carbon-Ti	270g	56	High	Better	Best	Extreme Light	Nine	China	Caron-Ti
ARC	332g	48	Low	Better	Good	Economic and reliable	One	China	ARC
Chosen	260g	24	Low	Better	Good	Economic and reliable	One	China	Chosen
Light Bicycle Speed-Hub	335g	24/36	Low	Better	Good	Proprietary for Carbon Spokes	One	China	Light Bicycle

Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

DT SWISS 240 EXP

DT SWISS 350

Chosen

Front Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 100mm

9 / 100mm Track

Brake System This is a required option.

6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt. If you need the conversion kit, please contact us. Our hubs are provided without rotor lockrings by default.

Center lock

None

Hub Color This is a required option.

Black

Brake System This is a required option.

Disc

Finish This is a required option.

The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with an inherent scratch resistant and near flawless finish, eliminating the need for coating or painting (weight saved as well). We name this kind of superior finish the paintless.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Matte/Glossy etc at no extra charge with added 100g/wheel and 1-2 weeks LONGER on manufacture. If you select this option and LEAVE YOUR REQUIREMENT IN QUOTES IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed to finalize the details.

Paintless

Full Custom

Weave This is a required option.

Valve Hole Type This is a required option.

Presta

Decal This is a required option.

Removable sticker in Metal Silver or Golden is selectable for a powerful looking.

Custom Sticker(removable) is also available. If you select this option and LEAVE YOUR REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Blank (No decal)

Metal Silver

Metal Golden

Custom Sticker

Valve Stem This is a required option.

For some extreme cases, you need to install/ remove the valve stem with the help of daily-use pliers.

None

Apply Valve Stem USD +7 each

Valve Adaptor This is a required option.

To work with some types of pumps, the adaptor is needed to inflate Trilight wheel with the valve installed inside the bladed spoke for aero purpose.

None

Add Valve Adaptor USD +8

Send Photos for Shipping Confirmation This is a required option.

Send Photos for Shipping Confirmation could be offered at NO extra charge so that you could have your tailored products viewed/inspected before shipping and the photos shared with your friends in advance.

It takes about 1~3 business days added to the lead time subject to the orders queuing status.

If you have any special requirement on the photos, such as weight measurement, please leave a note at checkout.

Yes (1-3 days longer)

No ( I do not need photos)

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 784.00g+/-25

Subtotal: USD 585+

PREVIOUS NEXT

WHEELSET SPECS

RIMS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

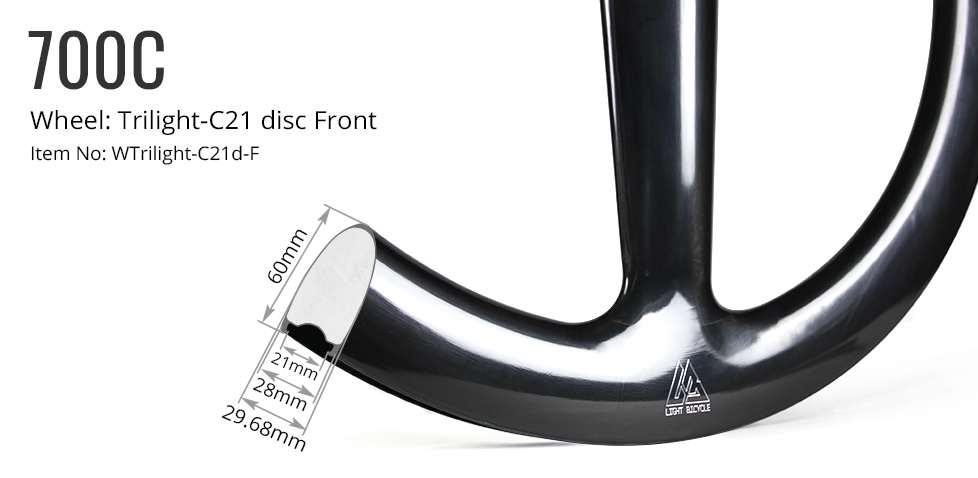

Model Trilight-C21 disc
Introduction >>
Material Toray T700 & T800 Premium Carbon Fiber
Size 29”/700C
Bead Type Clincher
Series FALCON PRO
Intended Use Road/ Track
Bead Type Clincher
Tubeless Capable Yes
Inner/Outer Width 21mm/28mm
Weight (hub excluded) 680+/-25g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) 150kg/ 331lbs
Max Tire Pressure (with 25C) 130psi/ 8.96bar
Recommended Tire Width 25C-38C

HUBS

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model DT SWISS 240 EXP, DT SWISS 350, Chosen
Front Axle Size 12 / 100mm, 9 / 100mm Track

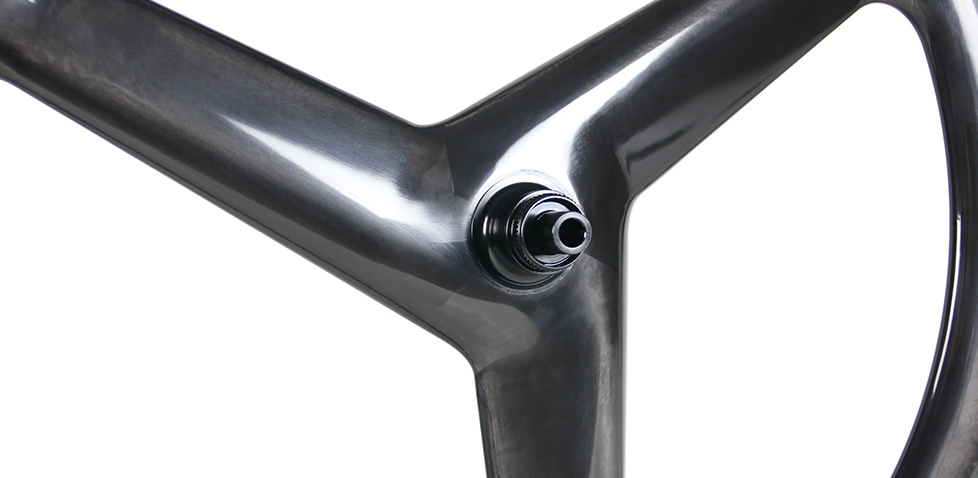

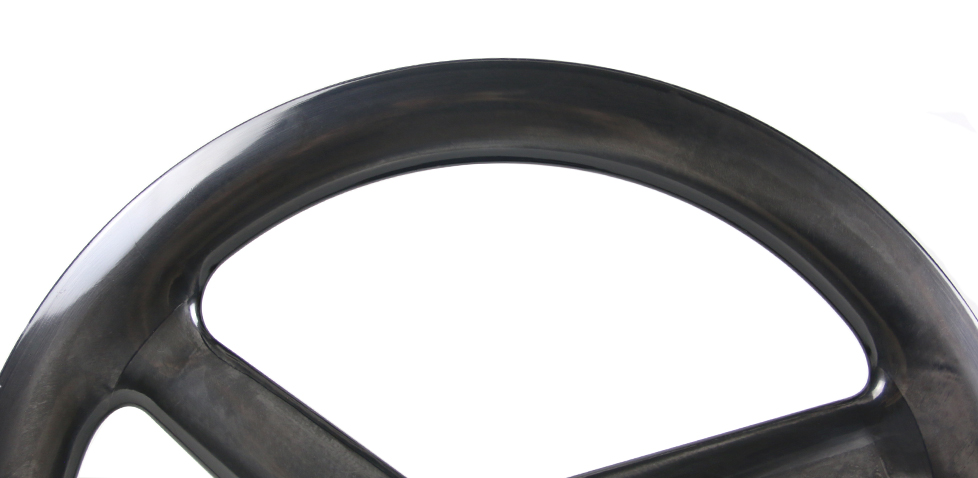

Featuring an airfoil shape, the Trilight is perfect for road, triathlon, and time trial applications. The rounded lead edge of the tri-spoke is designed to slice through the wind and help you get the fastest time. The 3-spoke also features enhanced strength and lateral stiffness, allowing you to ride hard and accelerate responsively. The 60mm aero optimized rim height adds extra rigidity and aerodynamics to the build.

The 21mm versatile inner width suits the wheel with everything from 25c road tires to 38c gravel ones. The rim bed is designed to fit both clinchers (with tubes) and tubeless tires.

The Trilight is available in various versions: rim brake-front, rim brake-rear, disc brake-front, disc brake-rear. Get an aero upgrade to your speed weapon now!

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model: Trilight-C21 disc
Introduction >>
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 29”/700C
Bead Type: Clincher
Series: FALCON PRO
Intended Use: Road/ Track
Bead Type: Clincher
Tubeless Capable: Yes
Inner/Outer Width: 21mm/28mm
Weight (hub excluded): 680+/-25g
Profile: Symmetric (0mm)
Max Cyclist Weight (on flat ground): 150kg/ 331lbs
Max Tire Pressure (with 25C): 130psi/ 8.96bar
Recommended Tire Width: 25C-38C

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: DT SWISS 240 EXP, DT SWISS 350, Chosen
Front Axle Size: 12 / 100mm, 9 / 100mm Track

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

Featuring an airfoil shape, the Trilight is perfect for road, triathlon, and time trial applications. The rounded lead edge of the tri-spoke is designed to slice through the wind and help you get the fastest time. The 3-spoke also features enhanced strength and lateral stiffness, allowing you to ride hard and accelerate responsively. The 60mm aero optimized rim height adds extra rigidity and aerodynamics to the build.

The 21mm versatile inner width suits the wheel with everything from 25c road tires to 38c gravel ones. The rim bed is designed to fit both clinchers (with tubes) and tubeless tires.

The Trilight is available in various versions: rim brake-front, rim brake-rear, disc brake-front, disc brake-rear. Get an aero upgrade to your speed weapon now!
Specs
Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model: Trilight-C21 disc
Introduction >>

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 29”/700C

Bead Type: Clincher

Series: FALCON PRO

Intended Use: Road/ Track

Bead Type: Clincher

Tubeless Capable: Yes

Inner/Outer Width: 21mm/28mm

Weight (hub excluded): 680+/-25g

Profile: Symmetric (0mm)

Max Cyclist Weight (on flat ground): 150kg/ 331lbs

Max Tire Pressure (with 25C): 130psi/ 8.96bar

Recommended Tire Width: 25C-38C

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: DT SWISS 240 EXP, DT SWISS 350, Chosen

Front Axle Size: 12 / 100mm, 9 / 100mm Track

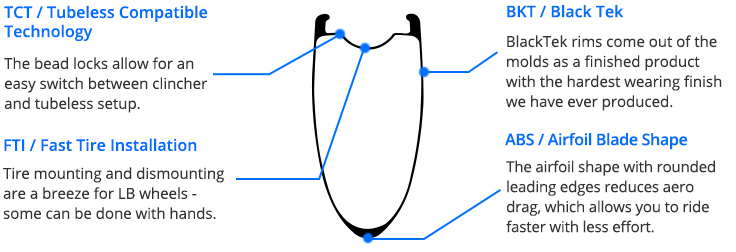

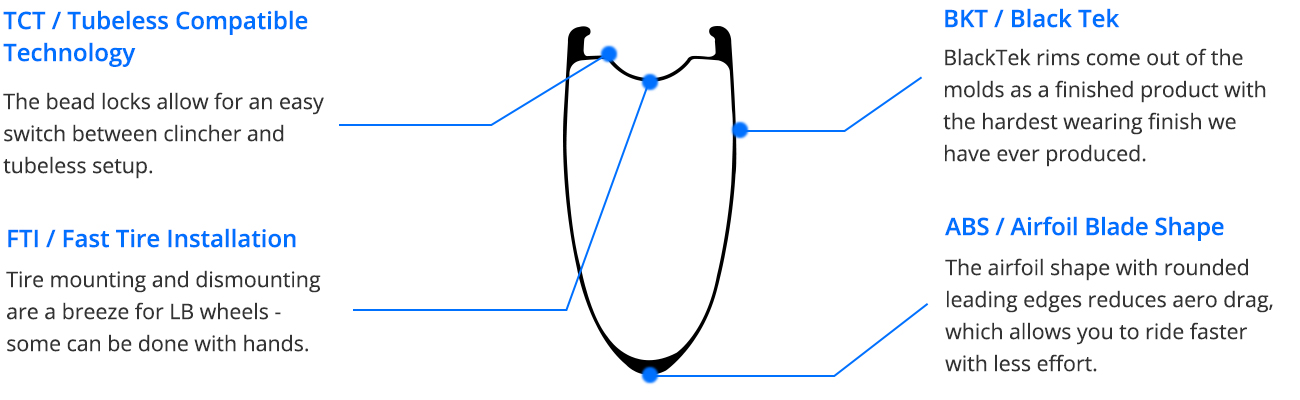

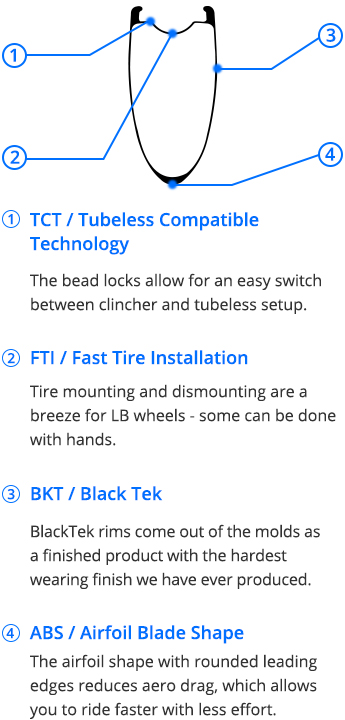

Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

Light Bicycle : Rim: Trilight-C21d Front Wheel Hook UD Paintless Disc With Valve Cover Hub-F: DT SWISS 350 Black 12 / 100mm Center lock

Light-Bicycle-Trilight-C21-Disc-700C-3-Spoke-Clincher-Wheelset

Light Bicycle : Carbon Structure: Trilight-C21 Disc Brake Front & Rear 3-Spoke Paintless UD Tubeless-Ready With Valve Cover Hubs: DT SWISS 240 EXP 12/100mm 12/142mm Centerlock 36T Shimano Road 11S

Light Bicycle : All-New Trilight-C21 3-Spoke Wheel

View More Reviews >>

COMMENTS

Will 2023/07/06

I love these trilight wheels! Are they still available for disc brakes? Thanks, Will

LightBicycle 2023/07/07

Hi Will, Yes, the Trillight-C21 disc wheel 700C is still available, but due to the riding season, the production time will take about 2 months, does it work for you? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

lawrence 2022/10/24

Hi, are the new trilight wheels tubeless ready?

LightBicycle 2022/10/25

Hi Lawrence. Yes, the new 3-spoke wheel 700C Trilight-C21 is tubeless-ready. You can use both tube and tubeless tires as you wish. Will you use rim brake or disc? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Apidej 2022/10/16

Are these tri spoke available in rim brake version? Cheers

LightBicycle 2022/10/19

Hi Apidej, Yes, we do have a rim brake version Tri-light wheel 700C available. Do you want the front wheel or the rear wheel? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

We use cookies for a better experience. Learn more.

Customize

Your Cookie Preferences

We use cookies to improve your experience on this website. You may choose which types of cookies to allow and change your preferences at any time. Disabling cookies may impact your experience on this website. You can learn more by viewing our Cookie Policy.

Essential Cookies

Cookies required to enable basic website functionality.
Performance Cookies

Cookies used to understand how the website is being used.
Preference Cookies

Cookies that are used to enhance the functionality of the website.
Advertising Cookies

Cookies used to deliver advertising that is more relevant to your interests.

Aceept All Cookies

Save Preferences

Reject All Cookies

Save Preferences

Reject All Cookies

Accept All Cookies

Build Your Falcon Pro WHEEL Trilight-C21 Disc Front

Overview

Specs

Tech

Warranty

In The Box

Rims

Hubs

Overview

Specs

Rims

Hubs

Tech

Warranty

In The Box

Gallery
