beadless carbon 650B mountain bike wheelset with 35mm wide tubeless compatible hand-built MTB wheels 27.5

BUYING OPTIONS

Global warehouse ship to most countries while the North America warehouse only ship to the United States and Canada

GLOBAL
  • 1

    HUB

  • 2

    SPOKES/NIPPLES

  • 3

    RIM

  • 4

    ACCESSORIES

  • 5

    OVERVIEW

HUB

Spoke This is a required option.

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

DT Swiss Competition Race

Sapim CX Ray

Nipple This is a required option.

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Aluminium Black

Aluminium Red

Brass Black

Version This is a required option.

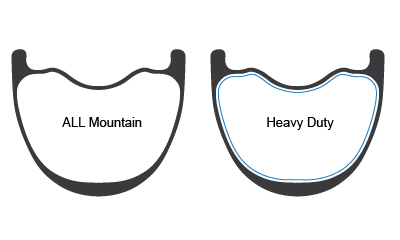

The HD version has extra layers for increased stiffness and sidewall reinforcement. Ideal for large and aggressive riders.

+ $10.00 per rim
+ 40 - 50g per rim

All Mountain

Heavy Duty USD +5

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

glossy

matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

12K

3K

UD

Decal This is a required option.


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Stealth

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

650B carbon wheelset

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + Pair

Weight: 800.00g+/-25

Final total: USD 380.00+

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

RIM SPECS

  • Size 650B
  • Use All Mountain/Enduro
  • Type Hookless
  • Tubeless Ready

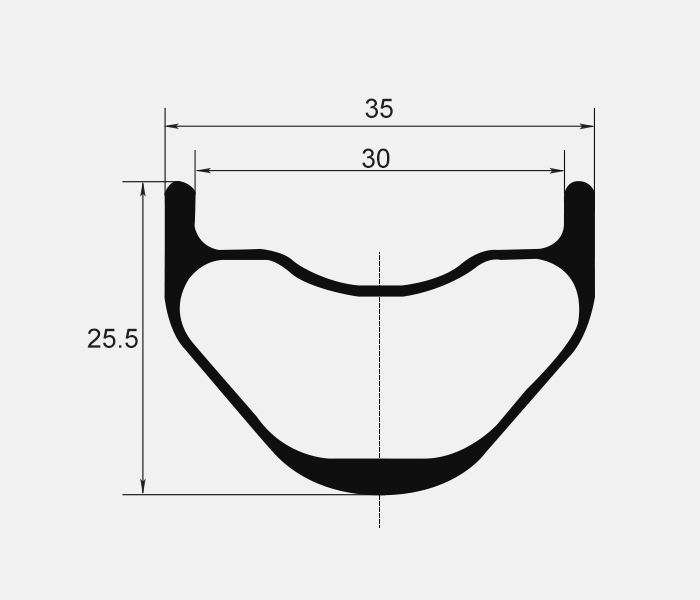

  • Inner/Outer Width 30mm/35mm
  • Depth 25.5mm
  • ERD 551mm (not including nipple head dimension)
  • Weight AM 400+/-15g, HD455+/-15g
  • Offset 0mm (symmetric)
  • Weight Limit 130kg
  • Spoke Hole Angle ±5°
  • Spoke Tension ≤145kgf recommended
  • Tyre Pressure ≤35psi recommended
  • Tire 2.2" ~ 2.7" recommended

Teleport to the rim page.

The 35mm wheels have been a mainstay in our lineup for years. They have a wide profile, are super light at just 400g, and are not overly stiff. Suitable for light enduro, but they are primarily used for trail riders who enjoy all day adventures due to their low rotational weight and compliance.

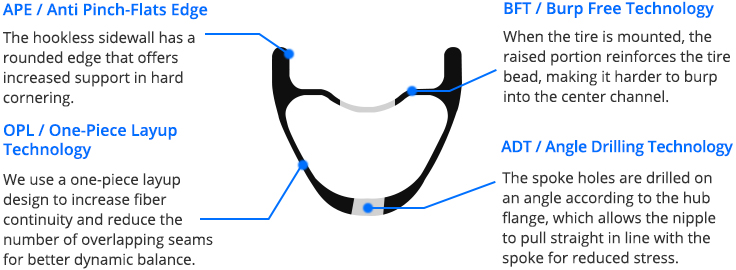

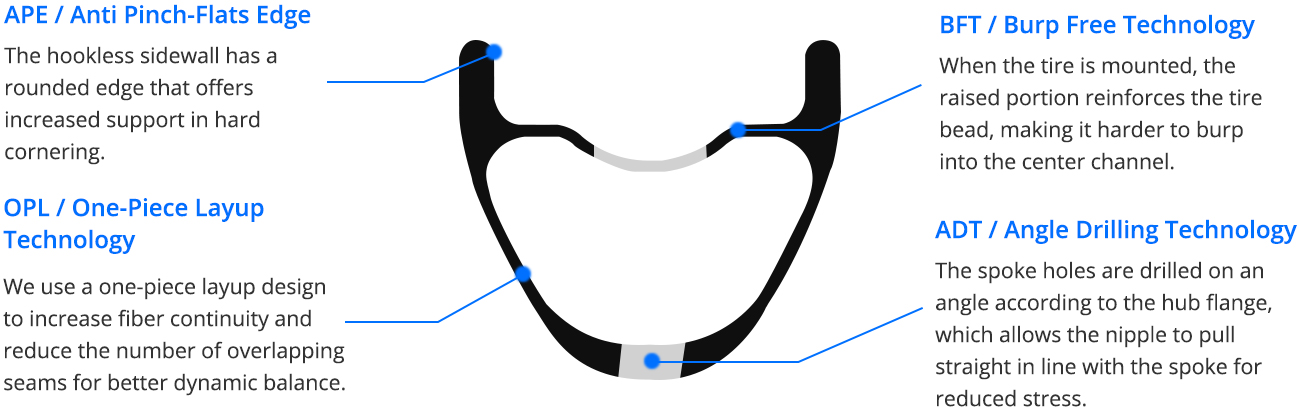

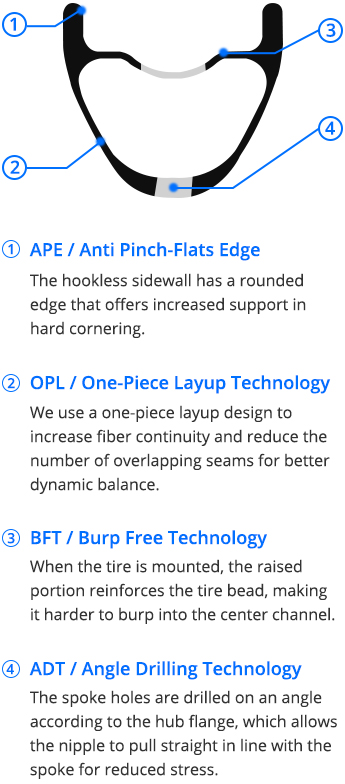

Hookless: Carbon fiber flows continuously over the bead area to provide the best impact resistance and a significant strength increase compared to a clincher rim.


Manufacturing process: Our air bladders are made from a special material which produces smoother walls, result in a lighter rim, and are completely removed without harsh chemicals. They are removed through the valve hole with a unique process so that the rim does not have to be patched like traditional manufacturers use. This significantly improves the strength of the rims. Read More about our process

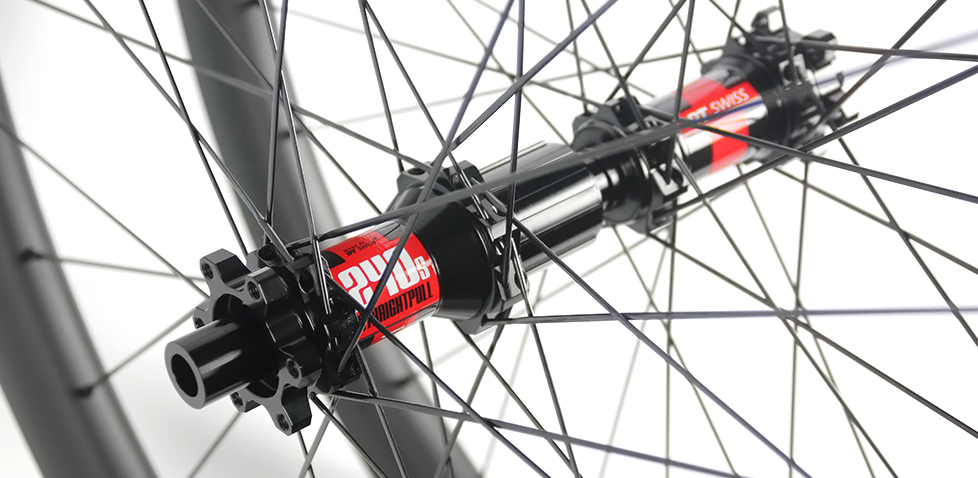

Hand-Built: Each wheelset is painstakingly built by hand to tension within 5% variance. Each spoke's tension rating is recorded in our system, as is the roundness and lateral tolerance.


T700: Constructed with premium Toray T700 carbon fiber. The best strength to weight ratio with no expense spared.


Precise layup: Each rim carries its own layup schedule documents which are followed meticulously by the layup workers. Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim.


Angled Holes: Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress. This results in fewer broken spokes and nipples.


Tubeless: While the rims are optimized for a tubeless setup with the addition of tubeless tape, they also work with tubes.


For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Know more about the warranty policy >>

Gallery

Chris Hamilton : Here you guys go. Please add to your gallery...awesome wheelset...really impressed...Turner BurnerCarbon UD matte 32mm DH spec, 650b, Hope hubs, Sapim black spokes, gold nipples....Gets many positive comments here in US
USA
1
Felix Pambuccian : It arrived in perfect condition and the quality is very good - thanks! I have enjoyed using it a lot - it feels great and looks very nice on my bike! I also wanted to thank you for your excellent communication and help during the process of selecting and buying the wheel. I have told other people who I bike with about the excellent service that you and Light Bicycle provide.
USA
1
ang cheaa yeeng : Merry Christmas! Here are some pics. :-)
Singapore
1
E3:20 N.Sight : 2015 Norco Sight 7.1 650b with Carbon Rims DT Swiss 240S Hubs San Diego, CA. USA
USA
1
35mm : this rims are nice.
Switzerland
1
tomaz : De Vinci Troy, Porland-OR
USA
1

COMMENTS

A

Andrew 2018/08/23

I have a 12mm thru axel in my front hub. Do you offer the 650BC05 wheelset with a 12mm thru axel front hub?


LightBicycle 2018/08/23

Hi Andrew, We have got your message. Thank you for your interested. Do you like front 12*100mm thru axle disc hubs? Is it your bike mtb disc or road road disc? Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Andrew 2018/08/23

I have a 12mm thru axel in my front hub. Do you offer the 650BC05 wheelset with a 12mm thru axel front hub?


LightBicycle 2018/08/24

Hi Andrew, We have got your message. Thank you for your interested. Do you like front 12*100mm thru axle disc hubs? Is it your bike mtb disc or road road disc? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Cobus 2018/05/27

I am looking for a set of wheels for my new Gravelgrinder (Lynskey GR260). I need deeper section rims that can take rider weight of 100kg for non-aggressive (gravel) riding. Width of 32/34 is fine. What do you recommend?


LightBicycle 2018/05/28

Hi Cobus, We have a new gravel rim coming out around this week, which I think might be a good fit for you. Attaching with the rim profile for your ref. If you are interested, I can make a reservation for your first. RR56C02, 23mm inner/30mm outer width, 56mm deep Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

K

Karen 2018/05/01

Hi there, could you recommend a strong and light wheel set for my Pivot Mach 5.5. I'm 120lbs and don't ride too aggressively but trails are rocky and i like the 2.6 tires on the bike. Thanks !


LightBicycle 2018/05/02

Hi Karen, According to your description, RM650BC05(35mm wide 650B bike rim) will be a good fit for you. But you mentioned the rocky terrain, you might want to consider choosing the enduro version for the better impact resistance (additional carbon fiber layer ) Thanks, Lightbicycle


K

Karen 2018/05/02

thanks, that is the one I am looking at. do I need 32hole or 28hole rims ?


LightBicycle 2018/05/03

Dear Karen, 32 spokes wheel is stronger than 28 spokes wheel but certainly heavier. But the weight difference (about 35g) is worth for the additional strength. Especially for the rocky terrain you ride on. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

N

Nick 2017/07/29

Hello, I have a Santa Cruz Bronson C, im looking for a wheel that will support a 650B 2.4in tire (maxxis high roller), 6 bolt brake and boost axle spec, and the DT Swiss 350 hubs. I typically ride rocky terrain and ride aggressively. What wheel would you recommend? Also, how does hub hole count affect wheel builts? not sure how 28/32 hole would affect me Thanks


LightBicycle 2017/07/31

Hi Nick, Thanks for your inquiry! According to your riding style, we recommend WM650C13 wheelset to you. It is more deeper and stronger than WM650C05 wheelset. And it can also fit 2.4 inch tires. For spoke count, more spokes offer more strength, so 32H for the front and rear wheels is better choice. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Cybercorreio 2017/07/23

Hi, I am looking for a wheelset of Carbon 650b wheels - boost- 110mm up front and 148 rear I Need a Front rim with a 30mm internal width and the rear one can be 27mm or up 30mm. The front hub should be light and roll well, the rear one the same but stronger. Mainly with a quick engagement like DT ratchet system. The use is all - mountain on the Alps. I would appreciate your advice with components , price and weight. By the way, is a ZDF free hub for SRAM 12 gears. Thanks Pedro


LightBicycle 2017/07/24

Hi Cybercorreio, We recommend front RM650BC13 31.8mm inner wide rim/rear EN728 28mm inner wide rim) we recommend is much stronger. Does it work for you. If yes, please let us know what hubs and spokes you like. We can quote accordingly for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

F

Frank 2016/11/23

Hello, I have a 650B Yeti SB5C and wish to upgrade my wheels to a carbon set. I was hoping to use Chris King hubs. Can you suggest the best wheel set combination that would suit. I was hoping to use the 32 spoke configuration. I run SRAM 11 speed. Also, I was hoping to fit the widest rim acceptable for my bike size. Thanks Frank


LightBicycle 2016/11/24

Hello Frank, Thanks for your inquiry. We are able to build the 650B wheels with Chris King ISO 32H hubs. May I know what your riding terrain is normally? Do you ride aggressively? What is your weight? Then we will do some recommendations and quote accordingly. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Camber 2016/08/18

Need a direct replacement of my current Roval wheels 650b and will be upgrading tbe groupset from GX SRAM to X11 Eagle 1 x 12. Please advice the wheelset for all mountain/ fast trail bike. How much and what is the delivery to Brunei. Thanks.


Light-Bicycle 2016/08/19

Hello Sir, Thanks for your inquiry. We have 34mm/ 35mm/ 38mm/ 40mm wide 650B wheels for all mountain riding and fast trail bike. May I know what the tire width you will use? Do you ride aggressively? What is your weight? Then we will do some recommendations and quote accordingly. Hope and DT Swiss hubs are available with Sram xx1 freehub body. Both hubs are with nice quality. Which do you prefer? Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

K

Kevin 2016/07/07

I'm still a little confused about the decal options. I want a RM650BC05 wheelset can I get it with the new decal graphic in the silver or grey. The picture shows the rim that way, but when I go to the decal selection option is shows that old decal design and no silver. Is the new decal design in silver available with the RM650BC05 wheelset? Thanks.


Light-Bicycle 2016/07/08

Thanks for your inquiry. Please find the new sticker(removable). You like stealth color, right? It's OK to have this kind of stickers on RM650BC05 wheelset. https://www.lightbicycle.com/light-bicycle/EN728-asymmetric-rim-profile-carbon-27.5-inch-mtb-rims/enduro-carbon-rim.jpg May I know the RM650BC05 wheelset specification you'd like? It's OK to send a screenshot for my reference. Then I can make the purchasing links for you. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

Randy 2016/05/26

Hi i am building up a 650b bike with the new boost options on it . I weigh about 83 kg . and ride harder terrain in B.C. I am wondering what options is best for me ? the 34 mm or the 35 mm ? Also is there an option to pick your new decal style on all rims ? Thanks Randy .


Light-Bicycle 2016/05/27

Hello Randy, Thanks for your inquiry. According to your details, I will recommend the EN728 or 38mm width wheels. Both are quite strong. Technically the 38mm yields a slightly higher impact resistance, but it's quite close. You will get more even spoke tension with the asymmetrical rim which makes for a more durable wheel build, so the 34mm has the advantage there. If you prefer a slightly more round and more natural tire profile with medium stiffness, go with the asymmetrical rims. If you prefer a wider more squared off profile with more volume, then go with the 38's. Our newest stickers are available in a variety of colors on all mtb rims. Picture attached for reference. Thanks, Light-bicycle


N

Nehme 2016/07/05

Does this mean that the EN728 are stronger than this wheelset? Even the HD version?


Light-Bicycle 2016/07/07

Hi Nehme, Thanks for your inquiry. EN728(34mm wide) and RM650BC05(35mm wide): --Both rims feature angled spoke holes, have a bead lock and work with or without tubes. Both rims also have a low profile hookless bead with a large radius which helps reduce pinch flats. --Our 34mm asymmetrical rims will have more even spoke tension than our 35mm which results in a more durable wheel build. The low tension spokes will be at higher tension compared to a traditional rim which results in less wheel re-truing. --The 34mm is deeper so the vertical stiffness is increased. Riders that prefer a more compliant ride would be happier on the 34mm rims. The 34mm rims with their new layup design have the best strength to weight ration in our lineup. --Both rims come with a 1-year warranty. The 34mm rims have a 2-year crash replacement policy at 25% discount, and the 35mm have a 1-year crash replacement policy at 15% discount. --The 34mm rims come with the highest quality vinyl decals in a new design. You can choose between 7 colours and they are easily replaceable if you want to replace them in the future. The 35mm has thin decals applied under the clear coat which are not replaceable. These are also no charge, optional, and available in 8 colours. Thanks, light-bicycle
