carbon tubeless compatible fat bike rim 90mm wide double-wall construction hookless for 26 inch fat bikes

INTERNATIONAL

Ships from China to worldwide destination. Contact us if your location is not listed.

Ships from Canada/United States warehouse to North American countries only. Contact us if you have special requests.

  • 1

    RIM

  • 2

    ACCESSORIES

  • 3

    OVERVIEW

RIM

Hole This is a required option.

16H

18H

20H

21H

24H

28H

32H

36H

Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

Spoke hole drilling This is a required option.

centered

dual

offset

Centered drilling is the most popular.

Finish This is a required option.

glossy

matte

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Weave This is a required option.

12K

3K

UD

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

Decal This is a required option.

No

grey

blue

green

magenta

orange

red

white

yellow

These rims use waterslide decals. The decal is very thin and applied under a clearcoat so they are non-removeable.

Pictures about light-bicycle decal >>

If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.

Pictures about custom graphics >>

26 inch fat bikes

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks

Non-Stocked, typically ships within 1-2 weeks

Recon Pro orders start shipping in October.

- + PCS

Weight: 650.00g+/-30

Final total: USD 272.00+(3.5% paypal fee included)

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

RIM SPECS

  • Size 26er
  • Use Sand, Snow, Single Track
  • Type Hookless
  • Tubeless Ready
  • Inner/Outer Width 85mm/90mm
  • Depth 20mm
  • ERD 535mm (not including nipple head dimension)
  • Weight 650+/-30g
  • Offset 0mm (symmetric)
  • Drilling Offset ±19.5mm
  • Weight Limit 120kg
  • Spoke Hole Angle ±3°
  • Spoke Tension ≤135kgf recommended
  • Tyre Pressure ≤25psi recommended
  • Tire 4.3" ~ 5.0" recommended

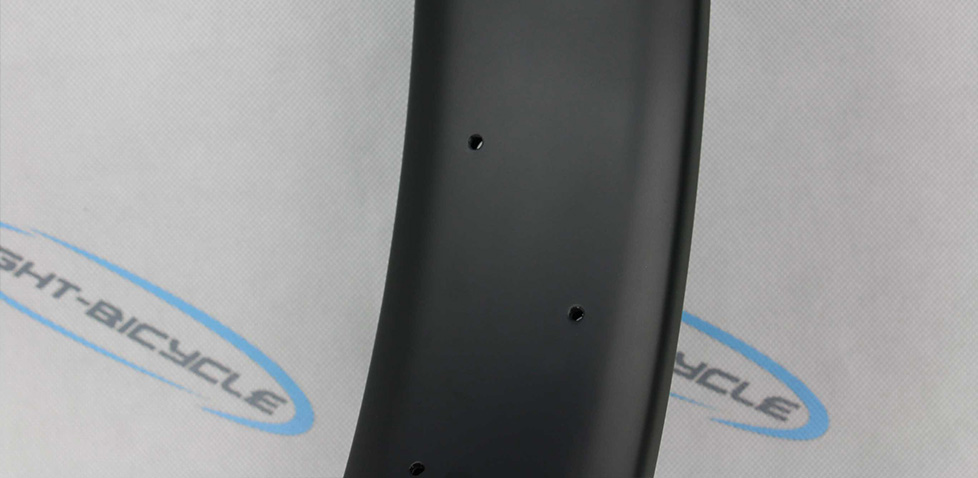

Our widest Fatbike rims feature a massive 85mm width, fitting the largest tires on the market. The low profile 22mm height keeps the weight down to a minimum while still retaining excellent side stiffness.


A wide shelf with sloped bead seats aids tubeless tire setup and retention, and you can expect to shave 1.5 pounds off a similar alloy wheelset in rim weight alone.

Manufacturing process: Our air bladders are made from a special material which produces smoother walls, result in a lighter rim, and are completely removed without harsh chemicals. They are removed through the valve hole with a unique process so that the rim does not have to be patched like traditional manufacturers use. This significantly improves the strength of the rims. Read More about our process


T700: Constructed with premium Toray T700 carbon fiber. The best strength to weight ratio with no expense spared.


Tubeless: Tubeless (no tube) system performs perfectly at super low pressure. The rim mold is modified with better tubeless tyre setup , this design not only reinforces sidewall, also provides superior tire seal, especially for tubeless tires. Tubeless makes your fat bikes much lighter.


Double-wall: Double-wall construction makes fat bike rim with better stiffness and ride handling.


Ultra low profile: it makes fat rims light-weight and fast-rolling. The super-flat design provides better pinch flat protection.


Fast tire installtion: deeper tire bead channel provides easy tire mounting & dismounting for fat bike wheels.


Precise layup: Each rim carries its own layup schedule documents which are followed meticulously by the layup workers. Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim.

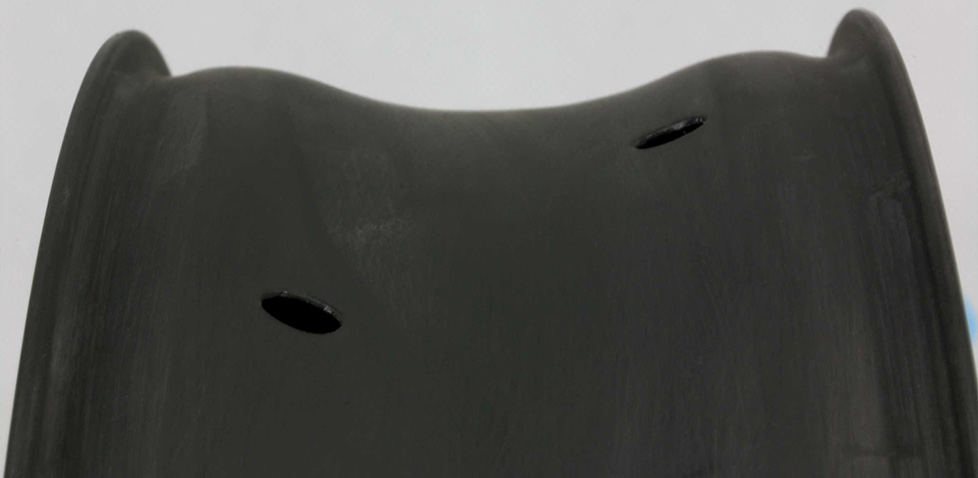

Angled Holes: Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress. This results in fewer broken spokes and nipples.


Bead lock: The small ridges on either side of the drop channel help secure tubeless tires in place. The bead lock makes it easier to seal up tubeless tires with a floor pump, and they are incredibly hard to burp.


For Non-Pro Series Rims: From the date of purchase, 15 Months Warranty
For Pro Series Rims: From the date of purchase, 3 Years Warranty. Light Bicycle is pleased to offer the options to purchase an extended 5-year Premium warranty or lifetime Premium warranty with minimum charge respectively.

Crash Replacement: It is applicable with the same period as to warranty time range that you purchased for the rim in terms of 15-month/ 3-year/ 5-year/ Lifetime, with 10%+ discount subject to rim model.

Know more about the warranty policy >>

Gallery

Ray : My Specialized Fat Boy Expert with Light-Bicycle carbon rims. Set up tubeless, of course.
USA
1

COMMENTS

A

Aaron 2018/02/02

Looking for a complete wheelset for my fat bike. Specs below, what is the quote? RSNOW02 32h Dt Swiss 350 hubs 54t Dt swiss spokes black brass nipples 15x150/12x197 Thank You


LightBicycle 2018/02/02

Hi Aaron, We can the wheelset price to your email. Please check. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Jared 2016/11/22

What are the weights of the different wheelset options. I'm looking for a 150*15 front axle and 197*12 rear with Shimano drive and Alloy nipples. I'm undecided on hub or spoke option until the weights are posted. Thank you.


LightBicycle 2016/11/23

Hello Jared, The weight will be different with different hubs. Which hubs and spokes do you like? Then we can get the wheelset weight accordingly for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

mervin 2016/08/16

How much to ship 2 rims to Singapore?


Light-Bicycle 2016/08/17

Hello Mervin, Thanks for your inquiry. The shipping cost is $41.50 USD for two fat bike rims to Singapore by EMS. Thanks, Light Bicycle


R

Ray 2017/12/31

@Mervin. Have you ordered already? I'm new to fatbikes and researching on building my first... just have the frame and fork. :-) Did you end up ordering? Would be helpful to compare notes...


LightBicycle 2018/01/03

Hello Ray, Thanks for your inquiry. The customer Mervin had ordered a pair of 85mm wide fat bike rims and some mtb rims. Rim profile attached for your reference. Most of our customers choose this rim and give us nice feedback. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

John 2016/05/24

Hi, what is the price for a rim only (not made up into a wheel) for: - 90mm width - 32H offset - UD weave - delivered to UK? And what is the price if I ordered two rims instead of one? Thanks - JR


Light-Bicycle 2016/05/25

Hello John, Thanks for your inquiry. RSNOW02 (90mm width fat bike rim): 650 /-30g, $263/pcs Rims in UD, 32H and offset are fine. Is that UD matte? Shipping with EMS for one rim is $50, and it is $64 for two rims. All pricing in USD. You can save much shipping cost if order two rims. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Martin 2016/03/17

Hello there. Can you please quote me for the following: Hope fatsno front 135mm 15mm thru axle front hub, 90mm carbon rim, black decals, centred with silver spokes. Hope fatsno rear 170mm qr axle, 90mm carbon rim, black decals, centred with silver spokes. I would require them shipped to the UK. Thanks very much, Martin


Light-Bicycle 2016/03/18

Hello Martin, Thanks for your inquiry. The 90mm wide 26er fat bike wheelset with following specs is USD1039/pair -Rims: RSNOW02, centered drilling, 32H, 650 /-30g. UD matte? -Hubs: Black, Hope fatsno front 15*135mm thru axle/ rear 170mm QR. With freehub Shimano or Sram? -Spokes: Only black spokes are available. Does that work for you? -Nipples: Silver, brass Please find attached light-bicycle decal in black. Does that work for you? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

B

Boris 2016/01/31

please give a quote for the following wheelset: - 90 mm double wall carbon rims center drilled, presta valve, UD matte finish no decals - 150 mm thru axle DT Swiss 350 Big Ride front hub - 197 mm thru axle DT Swiss 350 Big Ride rear hub shimano/sram 9/10 freehub - black DT Swiss Competition spokes - black DT Swiss Pro Lock nipples shipping to Russia what actual weight will be?


Light-Bicycle 2016/02/01

Hello Boris, Thanks for your inquiry. Currently, only Hope fatsno hubs are available, not DT Swiss 350 Big Ride hubs. Does that work for you? If so, we can build the 26er fat bike wheels as following specs. -Rims: RSNOW02, 90mm width 650 /-30g, UD matte, 32H, center drilled, no decals, presta valve. -Hubs: Hope fatsno front 15*150mm TA/ rear 197mm TA for Shimano 10s -Spokes: Black, DT competition round -Nipples: Black. Alloy or brass? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

D

David 2016/01/23

If you plan to make a 650b (27.5") fat bike rim I'd suggest making it 100 mm wide rather than 80 mm. Wider seems to be the trend. Note the HED B.F.D 26x100 mm rims. I have a Trek Farley 9.8 w/ 27.5x80 rims. I'd be very interested in going 100 mm wide to give the tire more volume. Please email me if a 650b x 100 mm becomes available.


Light-Bicycle 2016/01/25

Hello David, Thank you so much for your suggestion. We will discuss with our engineers, and will let you know once we have a plan to manufacture the 650B 100mm width fat bike rim. It would be best to keep in touch with us by signing up for our newsletter for the announcement. The newsletter sign up is located at the bottom left of our website. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Chris 2015/09/26

am interested in the following wheelset... - 90 mm double wall carbon rims - 135mm QR front hub that can convert to 142 TA later - 170mm QR rear hub that can convert to 177 TA later - center drilled - presta valve - 3k matte finish - hope pro2 evo fatsno 6-bolt disc hub in BLUE (can you get this hub in blue?) - black Sapim CX-RAY spokes - blue nipples (whichever model is most durable in wet conditions) - shimano compatible 9/10 free hub Thanks! Chris.


Light-Bicycle 2015/09/29

Hello Chris, Thanks for your inquiry. The price for wheelset with following specs is USD1133/pair, the delivery cost is USD92 for this wheelset to USA by EMS. - Rims: 90mm wide hookless, 3k, matte, center drilled, no decal - Hubs: blue, Hope Fatsno hubs, front 15*142mm/ rear 12*177mm, shimano 9/10S - Spokes: black sapim cx-ra spokes - Nipples: blue PT734 pillar alloy Thanks, Light-bicycle


S

Scott 2015/11/17

Im interested in a similar package as the above with a couple of adjustments. - 90 mm double wall carbon rims - 135mm QR front hub that can convert to 142 TA later - 190mm QR rear hub - center drilled - presta valve - 3k matte finish(Plain no pattern Mat finish) - hope pro2 evo fatsno 6-bolt disc hub in Black - black Sapim CX-RAY spokes - White nipples if not available Black(whichever model is most durable in wet conditions) - shimano compatible 9/10 free hub


Light-Bicycle 2015/11/18

Hello Scott, Thanks for your inquiry. The 90mm wide 26er wheelset with following specs is USD1164/pair (USD1164-USD20=USD1144). -Rims: RSNOW02, 90mm width, center drilling, 650 /-30g, with presta valve. 3k without painting? Please find attached rims profile. -Hubs: Black, Hope fatsno front 135mm QR/ rear 190mm QR for Shimano 9/10S. But we don’t have the convert kit here. You need to buy it separately. -Spokes: Black, Sapim cx-ray -Nipples: Alloy or brass? Silver or brass? Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

andrew 2015/08/20

hi. Does the Nipple need special washers to install in the rim? Or is it ok to directly put Nipple inside the rim?


Light-Bicycle 2015/08/21

Hello Andrew, Thanks for your inquiry. And all our wheelsets are built without washers. The spoke hole strength is ok for without washers, and you can pi the nipple inside the rim directly. RSNOW02 (90mm wide 26er fat bike rim): 650 /-15g, USD268/pcs Please find attached rim profile. Rim weave in 3k matte & UD matte are more popular. Do you like it? For drilling, do you like centered drilling, offset drilling or dual spoke hole pattern? Please find attached profiles. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

B

Bob 2015/06/25

Are you guys making any 27.5" x 80mm carbon rims in the future?


Light-Bicycle 2015/06/26

Hello Bob, Thanks for your inquiry. Currently, we only have 50mm wide 650B rims. We will discuss with our engineers and will let you know once we have a plan to make the 80mm wide 650B rims. Is that popular now? Thanks, Light-bicycle


B

Bob 2015/10/13

Yes, Trek is making their 2 high end fat bikes (Farley 9.8 & 9.6) with 27.5' x 80mm rims.


Light-Bicycle 2015/10/14

Hello Bob, Thanks for your contact. Are you interested 27.5inch with 80mm width? Or 26er? Single-wall or double-wall? If yes, do you have the rim profile? Currently, we also have some plans to open new fat bike rim mold. Any suggestion will be appreciated. Thanks, Light-bicycle


J

Jeff 2016/01/11

Where did you guys end up with this? I'd love a set of 80mm 27.5 rims.


Light-Bicycle 2016/01/12

Hello Jeff, Thanks for your inquiry. Currently, only the 50m wide 650B plus rim is available. We will discuss with our engineers and will let you know once we have a plan to make the 80mm wide 650B rims. If you need rims urgently, we’d like to recommend the 650 plus rim which is lighter and more nimble than a fat bike. Also, it is more capable in sand or snow, and perfectly suited to 2.8-3.3" tires. Please find attached rim profile. RM650BC14 (50mm width plus): 450 /-15g, USD200/pcs Thanks, Lightbicycle
