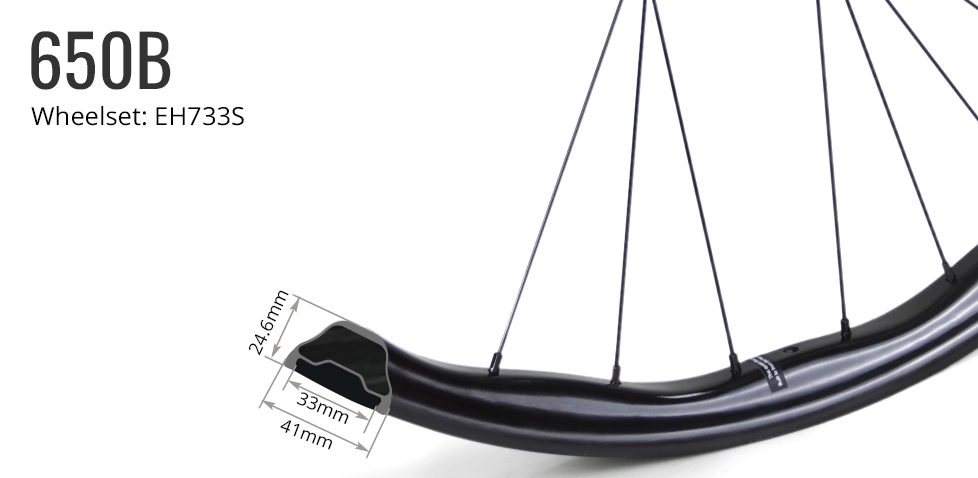

Build Your Recon Pro WHEELSET EH733S
All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.
Global Shop
NA Shop
EU Shop
AU Shop
Ships worldwide. See what's on sale>>
Drain Hole This is a required option.
With Drain Holes
Center Channel Hole This is a required option.
No Access Holes
Version This is a required option.
Front Flyweight / Rear Standard
Weave This is a required option.
The elegant hand-twisted weave, Braided UD, continues to gain traction among our riders.
The braided pattern requires a more sophisticated and time-consuming carbon layup, compared to traditional UD (Uni-Directional) and 3K weaves.
Get a wheelset that sets your bike apart from others' now.
Braided UD
DEFAULT SETTINGS
RIMS
Matte, UD, hook, blank (no decal), 24h
Paintless, UD, blank (no decal), 28h, with access holes
Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes
HUBS
DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t
12/100mm (F) & 12/142mm (R)
DT Swiss 350 Straightpull Centerlock Sram XD 18t
15/110mm (F) & 12/148mm (R) boost
DT Swiss 350 straightpull centerlock Shimano Road 11s 36t
12*100mm (F) & 12*142mm (R)
SPOKES & NIPPLES
Sapim CX Sprint-rear drive side / CX Ray-other sides
Sapim aluminum black external
Sapim CX Ray & Sapim aluminum black external
Sapim CX Sprint-rear drive side / CX Ray-other sides
Sapim aluminum black external
ACCESSORIES
2 valves & 1 spare 18t ratchet
2 valves & 2 adapters (centerlock to 6-bolt)
2 valves & 1 spare 18t ratchet
Note: the wheelset price includes the warehouse transfer cost ($80).
Piece Weight: g+/-
Subtotal: USD +
Lead time: typically ships in 2 days
ADD TO CART
You
missed some options.
Added to cart! View cart
This item has gone out of stock. The new inventory is still in transit, and we’ll update this page asap when the wheelsets are available. More info about our European warehouse.
You can order it from our Global Warehouse or have a look at other products.
If you have any questions or want faster shipping, please email us (sales@lightbicycle.com) or leave a comment.
We do not stock this item at the European warehouse. See what we stock currently.
You can order this product from our Global or North American warehouse.
Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.
Center Channel Hole This is a required option.
No Access Holes
DEFAULT SETTINGS
RIMS
Matte, UD, hook, blank (no decal), 24h, with drain holes
Paintless, UD, blank (no decal), 28h, with access holes
HUBS
DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t
12*100mm (F) & 12*142mm (R)
DT Swiss 350 Straightpull Centerlock Sram XD 18t
15/110mm (F) & 12/148mm (R) boost
SPOKES & NIPPLES
Sapim CX Sprint-rear drive side / CX Ray-other sides
Sapim aluminum black external
Sapim CX Ray & Sapim aluminum black external
ACCESSORIES
2 valves & 1 spare 18T ratchet
2 valves & 2 adapters (centerlock to 6-bolt)
Note: the wheelset price includes the warehouse transfer cost ($80).
Piece Weight: g+/-
Subtotal: USD + (discount price)
Lead time: typically ships in 3 business days
ADD TO CART
You
missed some options.
Added to cart! View cart
This item has gone out of stock currently.
More products are in transit and we will update the availability soon.
Leave a comment or email us (sales@lightbicycle.com) if you want to get notified when available.
You can also order this product from other shops.
We do not stock this item at the Australian shop. See what's available.
You can order this product from our Global / NA shops.
Please fill out this form if you are looking for a custom wheelset.
We'll get back to you soon to study the customization requests via email.
Our apologies, we do not offer this item at the Global warehouse.
Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.
Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.
Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.
- 1
HUB
- 2
SPOKES/NIPPLES
- 3
RIM
- 4
ACCESSORIES/OTHERS
- 5
OVERVIEW
HUB
Shopping Style
Options
Features |
Quick Buy | Full Custom |
---|---|---|
Inventory | Parts in stock (Assembled upon order) |
Manufactured upon order |
Customization | Least customizable | 100% Customizable |
Lead Time | ≤ 3 days | 4 weeks typically |
Availability | Limited models | All models |
Shipping | Worldwide | Worldwide |
Quick Buy (In Stock)
Full Custom (Made to Order)
DEFAULT SETTINGS
Rims
Hook, matte, UD, with drain holes
Hook, matte, UD, with access holes, with drain holes
Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes
Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes
Paintless, UD, 5-year warranty, no drain holes
Grooved graphene surface, hook, matte, UD, with access holes, with drain holes
Grooved graphene surface, hook, matte, UD, no access holes, with drain holes
Matte UD, 32H, Centered (Staggered)
Hubs
Hope Pro 4 Fatsno J-bend 6-bolt
15/150mm (F) & 12/197mm (R) Sram XD
Straightpull centerlock black 24H
12/100mm & 12/142mm
Shimano Road 11S
DT Swiss straightpull / Bitex j-bend, centerlock, 28H
J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H
15/110mm boost & 12/148mm boost Sram XD
DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear
100mm QR & 130mm QR Shimano Road 11S
Spokes
Sapim CX Ray black
Sapim D-Light
Accessories
No decals/valves/tape
No decals/valves/tape/pads
No decals/valves
Piece Weight: g+/-
Subtotal: USD +
Lead time:
ADD TO CART
You
missed some options.
You
missed some options.
Added to cart! View cart
Hub Brand This is a required option.
Model | Weight | POE | Cost | Reliability | Quality | Unique Feature | Color Options | Warehouse Location | Website |
---|---|---|---|---|---|---|---|---|---|
Novatec | 287g | 27 | Low | Good | Good | Inexpensive | Three | China | NOVATEC |
Bitex | 258g | 24 | Low | Good | Good | Light | Two | China | BITEX |
DT 350 | 374g | 18/36/54 | Low | Better | Good | Quiet and reliable (18t option) |
One | China | DT SWISS |
DT 240S | 317g | 18/36/54 | Medium | Best | Best | Quiet and reliable (18t option) |
One | China/N.A. | DT SWISS |
DT 240 EXP | 299g | EXP 36 | Medium | Best | Best | Quiet and reliable (EXP 36 ) |
One | China/N.A. | DT SWISS |
DT 180 | 290g | EXP 36 | High | Best | Best | Super Light, EXP 36 | One | China/N.A. | DT SWISS |
Chris King | 326g | 45 | High | Best | Best | Rebuildable bearings | Nine | China | CHRIS KING |
Industry Nine | 327g | 60 | Medium | Better | Best | Loud, engagement | Eleven | China/N.A. | INDUSTRY NINE |
Onyx | 434g | Infinite | High | Better | Best | Silent, sprag clutch | Eighteen+ (Custom Available) |
North America | ONYX |
Carbon-Ti | 270g | 56 | High | Better | Best | Extreme Light | Nine | China | Caron-Ti |
ARC | 332g | 48 | Low | Better | Good | Economic and reliable | One | China | ARC | Chosen | 260g | 24 | Low | Better | Good | Economic and reliable | One | China | Chosen | Light Bicycle Speed-Hub V1.0/V2.0 |
335g | 24-V1.0/ 36-V2.0 | Low | Better | Good | Proprietary for Carbon Spokes Steel Bearing-V1.0/ Ceramic-V2.0 |
One | China | Light Bicycle |
Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS
* POE = Points of Engagement
* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.
* Average weight will vary slightly depending on axle and freehub combination.
DT SWISS 350
Industry Nine Hydra
Industry Nine 1/1
Front Axle This is a required option.
If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.
By default, skewers are only offered with QR hubs.
15 / 110mm BOOST
Rear Axle This is a required option.
If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.
By default, skewers are only offered with QR hubs.
12 / 148mm BOOST
Freehub Body This is a required option.
1. Shimano Road 11S works with 11/12-speed cassette directly or 8/9/10-speed mountain cassette with a spacer(s) .
2. Shimano MTB 10/11S works with 8/9-speed directly or 10-speed with a spacer or 11-speed road cassette if one of the inner cogs removed.
3. Campagnolo (Campy) 11S works with 9/10/11/12-speed Campy cassette with no spacers required.
4. Sram XDR could run XDR (road) cassette inherently and is compatible to run mountain bike XD cassette with a 1.85mm spacer.
5. Shimano Micro Spline (MS) works with 12-speed MS cassette only.
Shimano MTB 10/11S
Sram XD
Shimano MTB 10/11S Alloy
Sram XD Alloy
Shimano Micro Spline Alloy
Shimano Micro Spline
Spoke Head This is a required option.
J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes
J-bend
Brake System This is a required option.
6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt.
If you need the conversion kit, please contact us. Our hubs are provided without rotor lockrings by default.
6-bolt
Hub Color This is a required option.
Black
Front Holes Count This is a required option.
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.
Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.
32H
Rear Holes Count This is a required option.
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.
Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.
32H
Ratchet This is a required option.
DT Swiss hubs use star ratchets and are available in 4 different models with varying points of engagement.
18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.
36T - Happy medium, doubles the engagement points.
54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.
24T - Made out of hardened steel as e-bike specific.
EXP 36 - With only a single spring, making the hubs faster and lighter. More precise contact makes a longer lifespan.
EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.
24T
690T
90T
Spoke This is a required option.
Brand | Model | Type | Thread Diameter (mm) | Weight(g) | Gauge | Riding Style | Available(Warehouse Location) |
---|---|---|---|---|---|---|---|
Sapim | Race | Double Butted | 2.0 - 1.8 - 2.0 | 5.7g (260mm) | 14G | Heavy Duty | North America, China |
Sapim | D-Light | Double Butted | 2.0 - 1.65 - 2.0 | 4.8g (260mm) | 14G | Versatile | North America, China |
Sapim | CX-Ray | Aero | 2.0 - 0.9/2.2 - 2.0 | 4.4g (260mm) | N/A | Light Aero | North America, China |
Sapim | CX-Sprint | Aero | 2.0 - 1.25/2.25 - 2.0 | 5.2g (260mm) | N/A | Light Aero | China |
DT SWISS | Competition Race | Double Butted | 2.0 - 1.6 - 2.0 | 4.8g (260mm) | 14G | Versatile | China |
Pillar | PSR X-TRA 1420 | Aero | 2.0 - 0.95/2.2 - 2.0 | 4.4g (260mm) | N/A | Inexpensive Aero | China |
Pillar | Wing 20 | Aero | 2.2 - 1.2/2.0 - 2.0 | 4.3g (260mm) | N/A | Light Aero | China |
Light Bicycle | Oil slick J-bend | Single butted | 2.0 - 2.0 - 1.95 | 6.7g (260mm) | 14G | Cool color | China |
Light Bicycle | LB Flyweight Carbon (Regular Edition-Bladed) | Aero | 3.2-1.5/3-3.2 | 2.65g (SP, 260mm); 2.8g (J-bend,260mm) | N/A | Light Aero/Stiff | China |
Light Bicycle | LB Flyweight Carbon (Regular Edition-Butted) | Aero | 2.3 - 2/2.3-2.3 | 2.3g (SP, 260mm) | N/A | Light/Stiff | China |
Berd | PolyLight | Rope-like | 2.0-1.8 | 2.5g (260mm) | N/A | Extreme Light | North America |
Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.
DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)
Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.
Pillar Wing 20 - Pillar patented highest level of aerodynamic bladed spoke reducing potential weak spots and twisting during tensioning. Currently, they are offered in oil slick color only with increased wear and corrosion resistance.
Sapim CX Sprint-Rear drive side/ CX Ray-Other sides - This customized combo increases the rear drive side power transmition efficiency significantly while grabs superior light-weight and aero performance.
Oil slick J-bend - They are made by a qualified manufacturer in Taiwan with custom design by Light Bicycle. They are J-bend only so do not order these spokes for SP hubs you configured in the previous step.
LB Flyweight Carbon Regular Edition >> -It maximizes wheel stiffness while keeping things more aero, designed to unlimit your hub choice making your wheels more customizable than ever.
LB Flyweight Carbon Special Edition >> - It maximizes wheel stiffness while keeping things light, designed to pair seamlessly with our Speed Hubs through the use of specially designed aluminium nipples.
Berd PolyLight >> - It is constructed from an advanced polymer called ultra high molecular weight polyethylene (UHMWPE) and are widely considered to be the lightest bicycle spoke option in the world.
Sapim Race
Oil slick J-bend
Nipple This is a required option.
Nipple Brand | Model | Material | Color | Length | Available (Warehouse Location) |
---|---|---|---|---|---|
Sapim | Double Square Secure Lock | Alloy | Black, Red, Green, Blue, Gold, Lime, Purple, Orange | 16mm | Norh America |
Sapim | Polyax/ Polyax Secure Lock | Alloy | Black, Red, Green, Blue, Gold, Lime, Purple, Orange | 14mm | China |
Sapim | Polyax Secure Lock | Brass | Black | 14mm | China/N.A. |
DT Swiss | DT SQUORX (PRO HEAD PRO LOCK) | Alloy | Black, Red | 15mm | China |
DT Swiss | Standard PRO LOCK | Brass | Black | 14mm | China | Light Bicycle | N/A | Brass | Oil slick | 14mm | China | Light Bicycle | Aluminium Black (for carbon spokes) | Alloy | Black | 8.9mm | China |
Please select Aluminium Black (for carbon spokes) nipples when you have chosen LB Flyweight Carbon spokes.
Aluminium Black
Aluminium Red
Brass Oil slick
Brass Black
Finish This is a required option.
Paintless: The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.
Crystal Painting: A fantastic painting effect designed by Light Bicycle.
Full Custom: This option offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3~5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR REQUIREMENT IN QUOTES IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed to finalize the details.
Paintless
Glossy Crystal Painting (silver) USD +20
Weave This is a required option.
The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.
The rim strength & weight is virtually identical.
Matte UD is the most popular and has a subtle look.
The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>
Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.
UD
Drain Hole This is a required option.
The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.
It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.
Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>
With Drain Holes
No Drain Holes
Rim Warranty This is a required option.
For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.
5 Years
Lifetime USD +100/rim
Decal This is a required option.
1. Grey Laser Engraving (Recon Pro) - Our laser engraving technology is eco-friendly and adds a snappy, polished aesthetic to your new rims.
Please note: Contrary to rims with any coated/painted finishes (matte, glossy and satin) as well as Crystal Painting, laser engraving could work with paintless rims only.
2. Full Custom - Add some additional personalization and go full custom with your rim graphics! Laser engraving is available in one colour (light grey) and starts at $5 USD per rim. If you select this option, LEAVE YOUR REQUEST IN QUOTES IN THE NOTES AT CHECKOUT. For example: "I need my personalized logo printed" or "Just text 'ABC racing' ". We will reach out to you once the order is placed to finalize the details of custom graphics.
Grey Laser Engraving (Recon Pro)
Blank (No decal)
Full Custom (Laser only) USD +5
Valve Stem This is a required option.
We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions
None
Add Valve Stem USD +7 each
Tubeless Tape This is a required option.
Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape
Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.
You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.
None
Add Tubeless Tape USD +6 each
Apply Tubeless Tape USD +6 each
Send Photos for Shipping Confirmation This is a required option.
Send Photos for Shipping Confirmation could be offered at NO extra charge so that you could have your tailored products viewed/inspected before shipping and the photos shared with your friends in advance.
It takes about 1~3 business days added to the lead time subject to the orders queuing status.
If you have any special requirement on the photos, such as weight measurement, please leave a note at checkout.
Yes (1-3 days longer)
No ( I do not need photos)
Recon Pro orders start shipping in October.
-
+
Pair
Piece Weight: 1828.00g+/-3%
Subtotal: USD 1124+
PREVIOUS
NEXT
You
missed some options.
You
missed some options.
Added to cart!
View cart or continue
shopping.

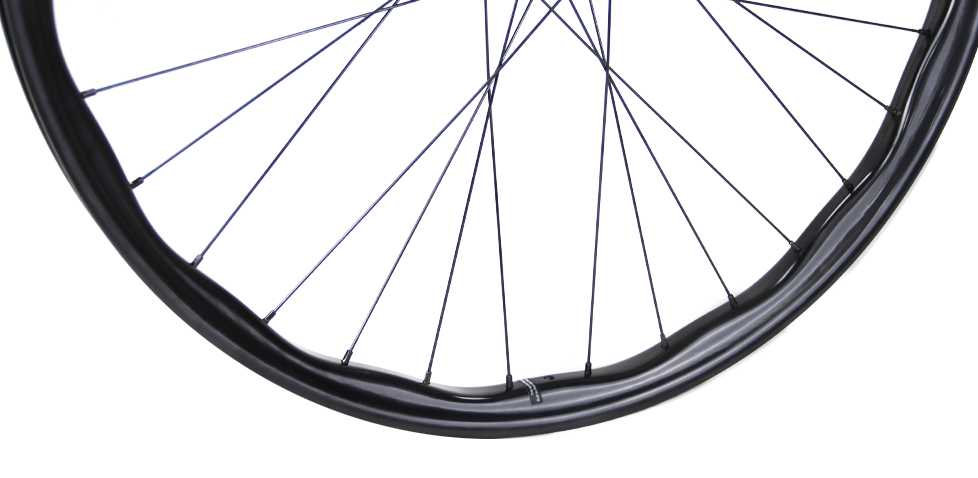

WHEELSET SPECS
RIMS
Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.
- Model EH733S
- Material Toray T700 & T800 Premium Carbon Fiber
- Size 27.5"/650B (ETRTO 584mm)
- Series RECON PRO
- Intended Use E-Bike
- Bead Type Hybrid Hook
- Tubeless Capable Yes

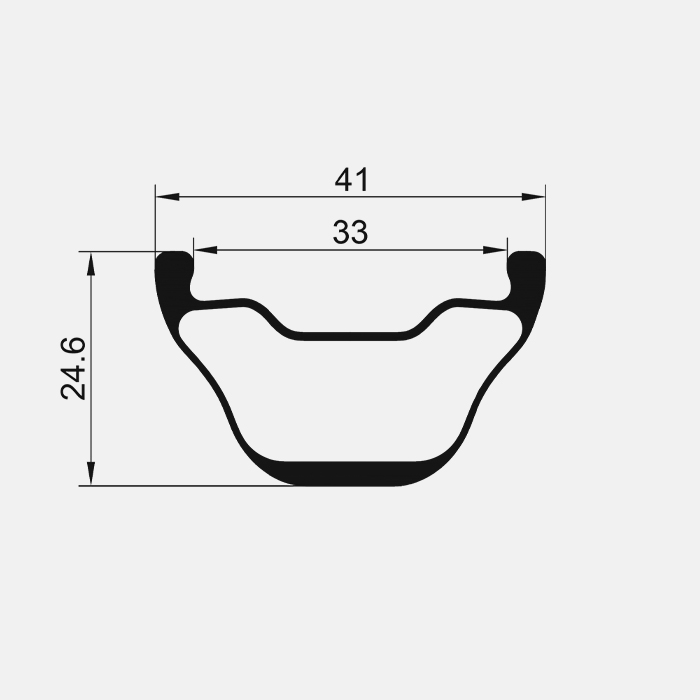

- Inner/Outer Width 33mm/41mm
- Depth 22.14mm~26.83mm
- Dual ERD 548.6/558mm (not including nipple head dimension)
- Rim Weight 490+/-15g
- Profile Symmetric (0mm)
- Max Cyclist Weight (on flat ground) 140kg/ 309lbs
- Spoke Hole Angle ±10°
- Spoke Tension 120~130kgf front disc side and rear drive side
- Max Tire Pressure 40psi/ 3.1bar
- Recommended Tire Width 2.3" ~ 3.1"

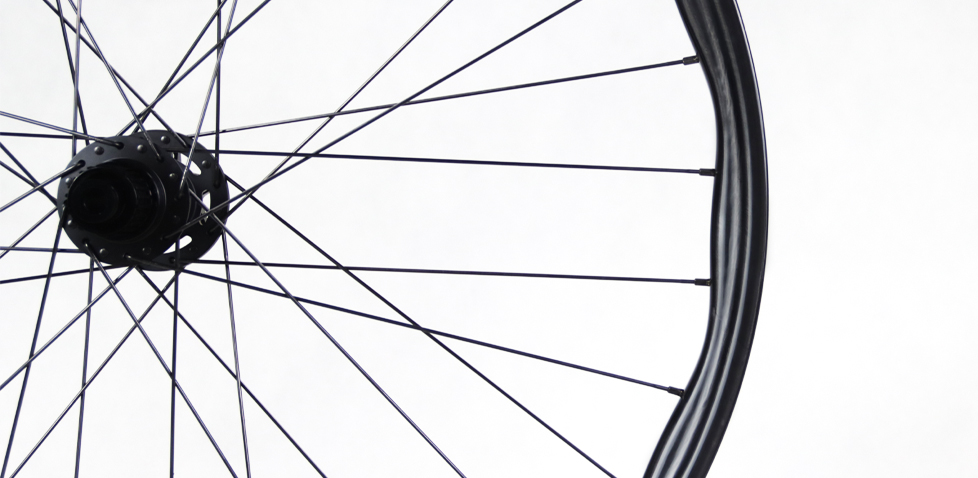

HUBS
We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).
- Model DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1
- Front Axle Size 15 / 110mm BOOST
- Rear Axle Size 12 / 148mm BOOST
- Driver Body Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline Alloy, Shimano Micro Spline
- Hole 32H
OTHER PARTS
Leave a note at checkout or contact us if you want spare spokes or nipples.
- Spokes Sapim Race, Oil slick J-bend
- Nipples Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black
TECH

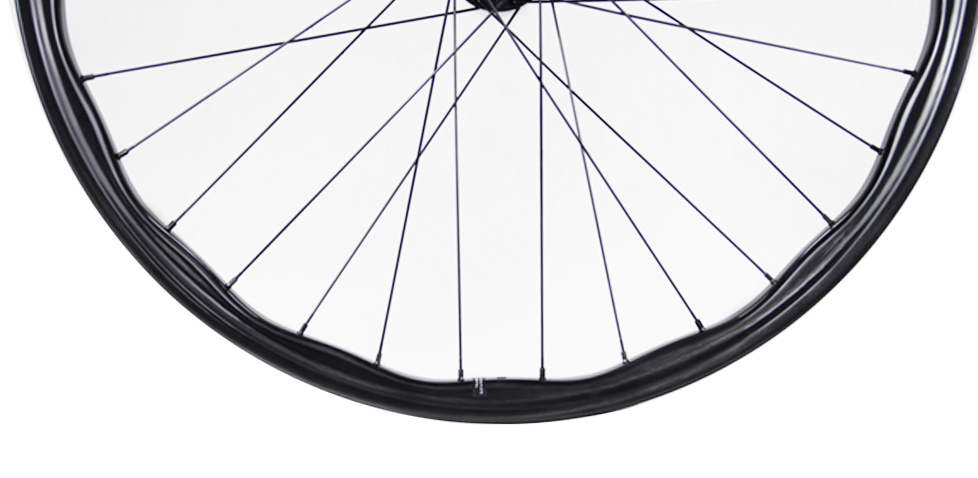

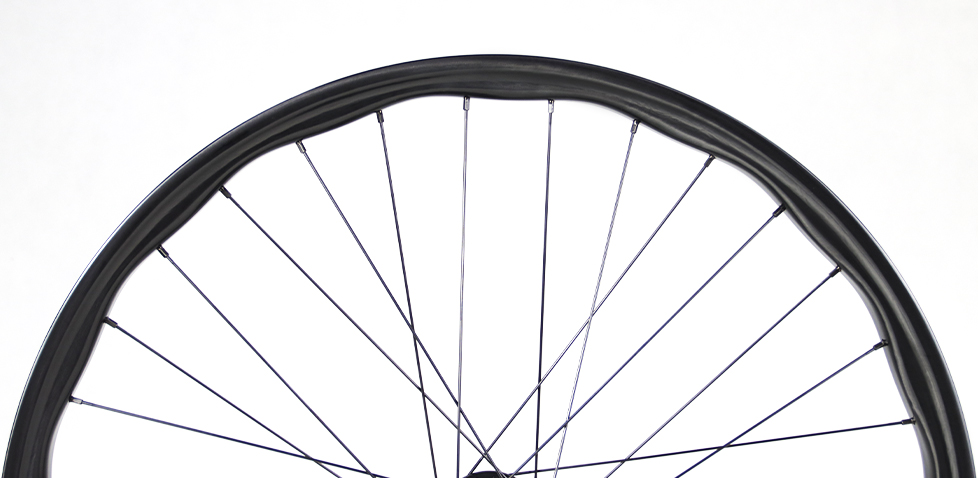

The EH733S uses the S-Flow profile, with a stepped sidewall and ribbed inner circumference. Compared to the smooth wall structure, the wavy wheels reach a harmonious balance between weight and strength - vital grams are dropped while the key areas are precisely reinforced. Experience a light feeling as riding on a lighter unpowered mountain bike. The EH733S 27.5-inch carbon rim comes in at only 490g per rim.
Reliability is a top priority in developing this e-mtb-oriented carbon wheelset. The waved inner circumference of the rim creates a Dual-ERD system for the wheel build. The bracing angles of two sides of the spokes are more even than traditional wheels, which means that the wheels tend to stay true longer. The wheel has passed our 155J in-house impact energy test with ease. Designed to last!
When configuring the wheelset, you will find a variety of hubs and spokes from brands like DT Swiss, I9, and Sapim to personalize your build. We only list some of the most popular ones, so feel free to get in touch with us to special order. With over 10 years of wheel building expertise, we calculate the spoke lengths, handlace the wheels to the desired pattern, add up the tensions, true the wheels, and do stress-reliving to a perfect state out-of-box. You can install the wheels to start a new adventure immediately upon receiving it.
We also offer the product in 29" with a bit wider profile. Just talk with us if you want a mullet configuration with a 29 front wheel and a 27.5 rear wheel.
WARRANTY
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
WHAT IS IN THE BOX
The EH733S uses the S-Flow profile, with a stepped sidewall and ribbed inner circumference. Compared to the smooth wall structure, the wavy wheels reach a harmonious balance between weight and strength - vital grams are dropped while the key areas are precisely reinforced. Experience a light feeling as riding on a lighter unpowered mountain bike. The EH733S 27.5-inch carbon rim comes in at only 490g per rim.
Reliability is a top priority in developing this e-mtb-oriented carbon wheelset. The waved inner circumference of the rim creates a Dual-ERD system for the wheel build. The bracing angles of two sides of the spokes are more even than traditional wheels, which means that the wheels tend to stay true longer. The wheel has passed our 155J in-house impact energy test with ease. Designed to last!
When configuring the wheelset, you will find a variety of hubs and spokes from brands like DT Swiss, I9, and Sapim to personalize your build. We only list some of the most popular ones, so feel free to get in touch with us to special order. With over 10 years of wheel building expertise, we calculate the spoke lengths, handlace the wheels to the desired pattern, add up the tensions, true the wheels, and do stress-reliving to a perfect state out-of-box. You can install the wheels to start a new adventure immediately upon receiving it.
We also offer the product in 29" with a bit wider profile. Just talk with us if you want a mullet configuration with a 29 front wheel and a 27.5 rear wheel.
Rims
Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.
- Model: EH733S
- Material: Toray T700 & T800 Premium Carbon Fiber
- Size: 27.5"/650B (ETRTO 584mm)
- Series: RECON PRO
- Intended Use: E-Bike
- Bead Type: Hybrid Hook
- Tubeless Capable: Yes
- Inner/Outer Width: 33mm/41mm
- Depth: 22.14mm~26.83mm
- Dual ERD: 548.6/558mm (not including nipple head dimension)
- Rim Weight: 490+/-15g
- Profile: Symmetric (0mm)
- Max Cyclist Weight (on flat ground): 140kg/ 309lbs
- Spoke Hole Angle: ±10°
- Spoke Tension: 120~130kgf front disc side and rear drive side
- Max Tire Pressure: 40psi/ 3.1bar
- Recommended Tire Width: 2.3" ~ 3.1"
Hubs
We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).
- Model: DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1
- Front Axle Size: 15 / 110mm BOOST
- Rear Axle Size: 12 / 148mm BOOST
- Driver Body: Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline Alloy, Shimano Micro Spline
- Hole: 32H
Other Parts
Leave a note at checkout or contact us if you want spare spokes or nipples.
- Spokes: Sapim Race, Oil slick J-bend
- Nipples: Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.
Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.
-
Overview
The EH733S uses the S-Flow profile, with a stepped sidewall and ribbed inner circumference. Compared to the smooth wall structure, the wavy wheels reach a harmonious balance between weight and strength - vital grams are dropped while the key areas are precisely reinforced. Experience a light feeling as riding on a lighter unpowered mountain bike. The EH733S 27.5-inch carbon rim comes in at only 490g per rim.
Reliability is a top priority in developing this e-mtb-oriented carbon wheelset. The waved inner circumference of the rim creates a Dual-ERD system for the wheel build. The bracing angles of two sides of the spokes are more even than traditional wheels, which means that the wheels tend to stay true longer. The wheel has passed our 155J in-house impact energy test with ease. Designed to last!
When configuring the wheelset, you will find a variety of hubs and spokes from brands like DT Swiss, I9, and Sapim to personalize your build. We only list some of the most popular ones, so feel free to get in touch with us to special order. With over 10 years of wheel building expertise, we calculate the spoke lengths, handlace the wheels to the desired pattern, add up the tensions, true the wheels, and do stress-reliving to a perfect state out-of-box. You can install the wheels to start a new adventure immediately upon receiving it.
We also offer the product in 29" with a bit wider profile. Just talk with us if you want a mullet configuration with a 29 front wheel and a 27.5 rear wheel.
-
Specs
Rims
Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.
- Model: EH733S
- Material: Toray T700 & T800 Premium Carbon Fiber
- Size: 27.5"/650B (ETRTO 584mm)
- Series: RECON PRO
- Intended Use: E-Bike
- Bead Type: Hybrid Hook
- Tubeless Capable: Yes
- Inner/Outer Width: 33mm/41mm
- Depth: 22.14mm~26.83mm
- Dual ERD: 548.6/558mm (not including nipple head dimension)
- Rim Weight: 490+/-15g
- Profile: Symmetric (0mm)
- Max Cyclist Weight (on flat ground): 140kg/ 309lbs
- Spoke Hole Angle: ±10°
- Spoke Tension: 120~130kgf front disc side and rear drive side
- Max Tire Pressure: 40psi/ 3.1bar
- Recommended Tire Width: 2.3" ~ 3.1"
Hubs
We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).
- Model: DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1
- Front Axle Size: 15 / 110mm BOOST
- Rear Axle Size: 12 / 148mm BOOST
- Driver Body: Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline Alloy, Shimano Micro Spline
- Hole: 32H
Other Parts
Leave a note at checkout or contact us if you want spare spokes or nipples.
- Spokes: Sapim Race, Oil slick J-bend
- Nipples: Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black
-
Warranty
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
-
In The Box
Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.
Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.
Gallery
Get in touch
Feel free to leave a comment if you have any questions or suggestions on our products or other issues.
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
We use cookies for a better experience. Learn more.
Customize
Accept
Your Cookie Preferences
We use cookies to improve your experience on this website. You may choose which types of cookies to allow and change your preferences at any time. Disabling cookies may impact your experience on this website. You can learn more by viewing our Cookie Policy.
-
Cookies required to enable basic website functionality.
-
Cookies used to understand how the website is being used.
-
Cookies that are used to enhance the functionality of the website.
-
Cookies used to deliver advertising that is more relevant to your interests.
Aceept All Cookies
Save Preferences
Reject All Cookies
Save Preferences
Reject All Cookies
Accept All Cookies
