Build Your Recon RIM RM26C05

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy wheelset

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Version This is a required option.

All Mountain (AM) - This version is mid-weight and suitable for all mountain and trail riding.

Enduro (EN) - This version comes out with additional reinforcement (Heavy Duty) and is the right fit for more aggressive riders pedaling on enduro.

All Mountain

Enduro USD +5

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

28H

32H

36H

Full Custom

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3-5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Glossy

Matte

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

12K

Full Custom USD +15

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Decal This is a required option.

The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Silver

Blue

Green

Magenta

Orange

Red

Yellow

Blank (No decal)

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 420.00g+/-15

Subtotal: USD 154+

PREVIOUS NEXT

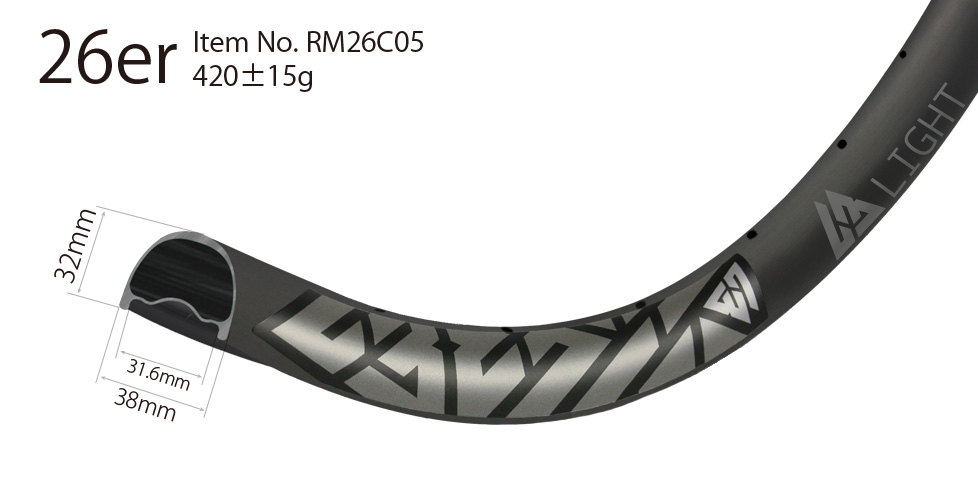

RIM SPECS

Model RM26C05
Material Toray T700 & T800 Premium Carbon Fiber
Size 26" (ETRTO 559mm)
Series RECON
Intended Use All Mountain/Enduro
Bead Type Hookless
Tubeless Capable Yes

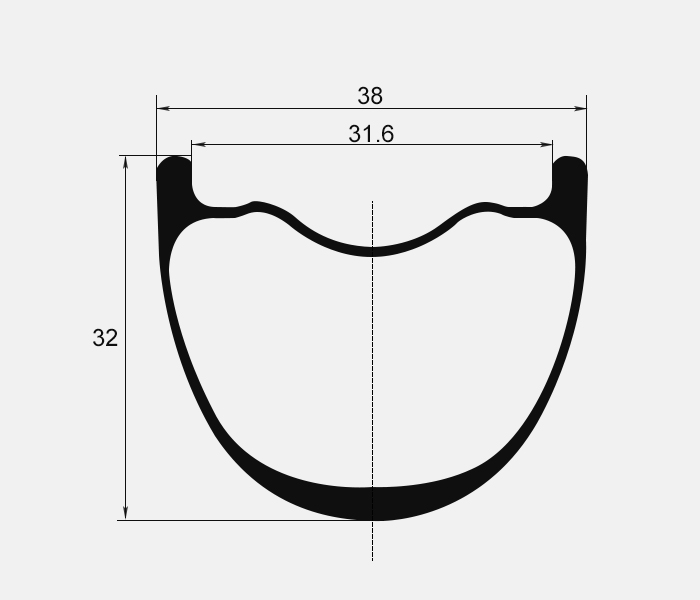

Inner/Outer Width 31.6mm/38mm
Depth 32mm
ERD 511mm (not including nipple head dimension)
Rim Weight AM 420+/-15g, HD485+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) 140kgs/ 309lbs
Spoke Hole Angle ±6°
Spoke Tension 115~130kgf front disc side and rear drive side
Max Tire Pressure 40psi/ 2.75bar
Recommended Tire Width 2.3" ~ 3.1"

Looking for the playfulness of 26'' rims in a package tough enough to handle whatever the mountain throws at it? The AM632 (RM26C05) offers a wide profile, modern shape, and versatility to handle everything from a trail tire to a high volume all-mountain or reinforced enduro tire. The EN version has an extra wrap of 3k carbon fiber around the nipple bed, reinforced sidewalls to support G-Out forces, and increased rim stiffness, increasing suitability for aggressive riders over 200 pounds.

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.)

Model: RM26C05
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 26" (ETRTO 559mm)
Series: RECON
Intended Use: All Mountain/Enduro
Bead Type: Hookless
Tubeless Capable: Yes
Inner/Outer Width: 31.6mm/38mm
Depth: 32mm
ERD: 511mm (not including nipple head dimension)
Rim Weight: AM 420+/-15g, HD485+/-15g
Profile: Symmetric (0mm)
Max Cyclist Weight (on flat ground): 140kgs/ 309lbs
Spoke Hole Angle: ±6°
Spoke Tension: 115~130kgf front disc side and rear drive side
Max Tire Pressure: 40psi/ 2.75bar
Recommended Tire Width: 2.3" ~ 3.1"

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

Looking for the playfulness of 26'' rims in a package tough enough to handle whatever the mountain throws at it? The AM632 (RM26C05) offers a wide profile, modern shape, and versatility to handle everything from a trail tire to a high volume all-mountain or reinforced enduro tire. The EN version has an extra wrap of 3k carbon fiber around the nipple bed, reinforced sidewalls to support G-Out forces, and increased rim stiffness, increasing suitability for aggressive riders over 200 pounds.
Specs
Rims

Model: RM26C05

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 26" (ETRTO 559mm)

Series: RECON

Intended Use: All Mountain/Enduro

Bead Type: Hookless

Tubeless Capable: Yes

Inner/Outer Width: 31.6mm/38mm

Depth: 32mm

ERD: 511mm (not including nipple head dimension)

Rim Weight: AM 420+/-15g, HD485+/-15g

Profile: Symmetric (0mm)

Max Cyclist Weight (on flat ground): 140kgs/ 309lbs

Spoke Hole Angle: ±6°

Spoke Tension: 115~130kgf front disc side and rear drive side

Max Tire Pressure: 40psi/ 2.75bar

Recommended Tire Width: 2.3" ~ 3.1"

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

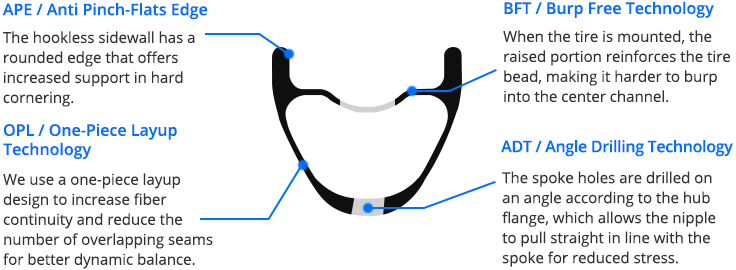

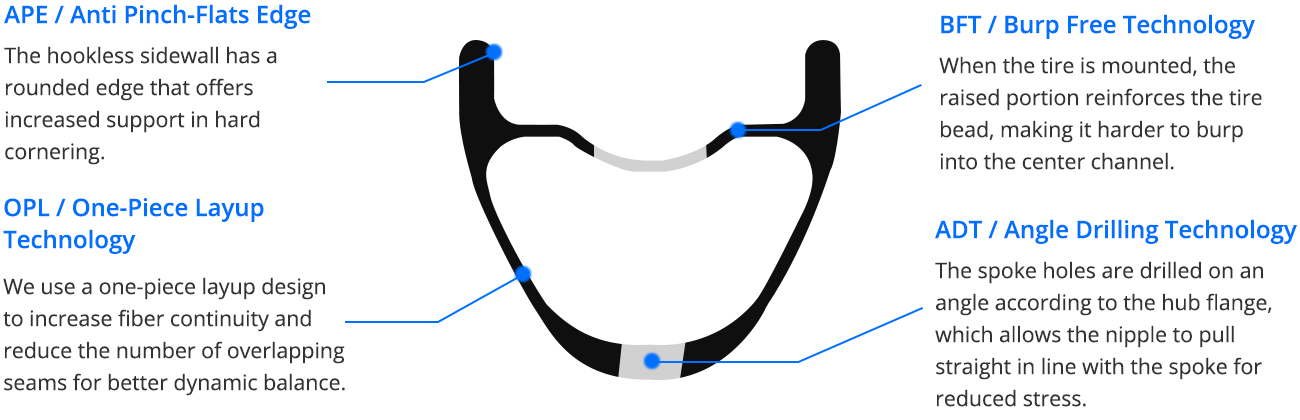

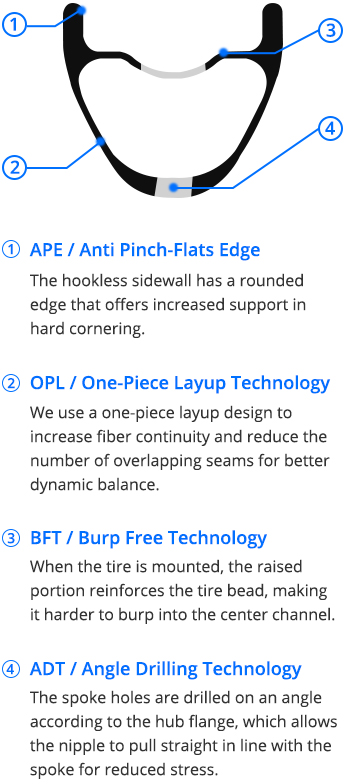

Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

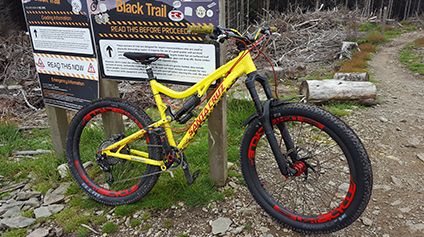

Gallery

light-bicycle-mixed-depth-carbon-wheelset-en732-front-rm26c05-rear

Fang : RIM-F: EN732 UD Matte 32H External Hole No Drain Holes With Access Holes RIM-R: RM26C05 Enduro UD Matte 32H External Hole No Drain Holes With Access Holes HUB-F: Industry Nine Hydra Black 15 / 110mm BOOST J-bend 6-bolt 32H HUB-R: Industry Nine Hydra Black 12 / 148mm BOOST J-bend 6-bolt 32H Enduro Brand 690T Sram XD SPOKE: Sapim Race Black J-bend Standard Head NIPPLE: Sapim Brass Black Universal External

China

light-bicycle-rm26c05-26-inch-carbon-fiber-rims-built-on-a-skillclown-heart-dirt-jump-bike

Add a comment...

China

Light Bicycle : Rims: RM26C05 All Mountain Braided UD Glossy 24/32H External Hole No Drain Holes With Access Holes Sticker: Light Bicycle - Grey

Inspired-trials-bike-on-Light-Bicycle-RM26C05-wheels

Joe : I’m interested in your carbon rims but I’d like to run higher tyre pressure. Do you sell rims that will take 60 psi?

Singapore

James : Santa Cruz Blur TRc

Australia

Geoffrey : This is when i laced up my hadleys for the first time myself. So happy with my first wheel build.these were 26er down hill HD 38mm wide. Best wheels i have ever owned

Australia

Thomas : Finally finished the winter upgrade of my Liteville 301 Mk 11. Total weight now is 13kg.w.o. pedals. Hammered down the great trails of the Val Venosta in Italy. All good with the wheels just I was shaken up. Can recommend the rims of LB to anyone.

Germany

Folken : Zerode G2 with LB RM26C05 "UST style" rim without nipple installation holes in the rim bead. Tubeless setup is easy AF

Finland

View More Reviews >>

COMMENTS

Eric 2022/09/12

I am looking for a custom 26 inch rim for my ebike project. I only need a wide rim for tire 26x2.2 with the following rim profile : Inner Width: 26mm Outer Width: 35mm Depth: 42mm or 45mm An aluminum rim would also work for me as weight is not important. Would that be possible ? Thanks

LightBicycle 2022/09/13

Hi Eric, 42-45mm depth is unusual for MTB bike rims. Are you sure this is what you want? It would be super stiff and uncomfortable to ride. Especially for heavy bikes on trails. Which is why majority of MTB rims are under 35mm deep. The RM26C03 might be a good fit for your requirements. We can make a reinforced version to make it stronger. As per e-bike's profile, we suggest adding 50-100g carbon fiber to key parts of the rims. Let me know your thoughts. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T 2022/04/09

Will the NA warehouse have any RM26C03 or RM26C05 in stock soon. Really would like to purchase a set of rims, but I am turned off by the shipping cost.

LightBicycle 2022/04/09

Hi Sir, Sorry, we will not have RM26C03 and RM26C05 26er bike rims in the NA warehouse stock. You could order from the Global warehouse directly. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Alex 2021/01/24

Hello. I’m interested in 26 inch Recon PRO rims. Is it any chance you will make it? Or may be it is possible to get a pair on special order? Thank you

LightBicycle 2021/01/25

Hi Alex, Currently, we only have 26er bike rims in recon series. Does it work for you? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Morné 2018/06/15

Hi Do you recommend using nipples washers when lacing these rims? Thanks Morné

LightBicycle 2018/06/15

Hi Morne, We do not use nipple washers here for building wheels. The spoke holes’ wall strength is strong enough. But if you insist to use nipples, it is okay if you do not mind weight adding. Sapim nipple washers are okay if you like. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Mitch 2017/04/26

Would love to buy a set of 26" x 40mm (inside) rims. please please please

LightBicycle 2017/04/27

Hello Mitch, Thanks for your inquiry. Please find attached rim profile of our new 26er plus rim. RM26C06 (46mm plus): 450g /-15, $195 each Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Jose 2017/03/19

Hello, What is the difference between the 26CO5 and the RM2605 rims? I will use the rims for Enduro style riding...

LightBicycle 2017/03/20

Hi Jose, Both 26C05 and RM26C05 are the same. It refers to 38mm wide 26er rim. Do you like to compare the RM26C03 and RM26C05? If so, may I know if you ride aggressively? What the tire width you will use? What is your weight? Then we will do some recommendations. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

nigel 2017/01/09

Hi, Do you plan to build a 40mm / 50mm 26 rim? I am quite interested in converting my 650b bike to 26 ? Cheers

LightBicycle 2017/01/09

Hello Nigel, Thanks for your inquiry. Are you looking for 26 plus rim? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Ray 2016/07/20

Hi, I've just ordered a 26er DH rim, what is the max and min pressure use with tubeless tire the rim? I found 2 max pressure on the product page (70 and 40 psi). Thanks.

Light-Bicycle 2016/07/20

Hello Ray, Thanks for your support. The max tire pressure for our RM26C05 rim is 70psi, and the recommend max tire pressure is 40psi. If the tire pressure is under 40psi, that is fine. But if you inflate over 70psi, the tire or the rim will be damaged. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Patrick 2016/07/10

Can I get a pair of these with the newer black and grey decals like on the-26er Hand-built Endro Downhill carbon fiber wheelset 38mm wide tubeless compatible? Thanks

Light-Bicycle 2016/07/11

Hello Patrick, Thanks for your inquiry. Sure. Please find attached picture. Is that what you like? It is free. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Will 2016/05/18

I am looking at the 26" RM26C05 Carbon Wheels. Do you have or can you get i9 hubs?

Light-Bicycle 2016/05/19

Hello Will, Thanks for your inquiry. Currently, only Hope and DT Swiss hubs are available. Does that work for you? Currently, we do not have any I9 hubs. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Frank 2016/05/17

What's the effective diameter (internal diameter) of these Rims? I'm trying to figure out the correct spoke length.. thanx

Light-Bicycle 2016/05/18

Hello Frank, Thanks for your support. The 38mm wide 26er rim ERD is 515mm (not including nipple head dimension). Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

martha 2016/05/16

Hi Can this rim take 3" tyres?

Light-Bicycle 2016/05/17

Hello Martha, Thanks for your inquiry. Yes, the RM26C05 is okay to work with the 3’’ tyres. Below is a link for reference. https://www.lightbicycle.com/tire-size-chart-for-bicycle-rim.html Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Fuzz 2016/04/23

Hi do you guys ship to singapore? Would you care to provide the shipping cost and the hubs offered with wheel builds? Thanks

Light-Bicycle 2016/04/25

Hi Fuzz, It's OK to ship the wheels to Singapore. Could you please fill out this form? Then I will make the price quotation and tell the wheels weight accordingly. https://www.lightbicycle.com/custom-mountain-wheels.html Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Stefan 2016/04/19

Hello Team Light Bicycle, the Schwalbe Procore valve I want to use, doesn't fit through the rim hole. It has 8.2mm Diameter. Is it possible to drill the hole bigger without damaging the rim? mb

Light-Bicycle 2016/04/20

Hello Stefan, Thanks for your inquiry. It's OK to drill the nipple hole(Schrader) with 8mm or 8.5mm. Is it OK for you? May I know which rim you'd like? Then I can mail the cross-section drawing of the rim and more info. accordingly. Thanks, Lightbicycle

Stefan 2016/04/20

Thanks for the quick answer =) Yes, 8.5mm would be big eneough for the Procore Shrader. Its a RM26C05 (HD) rim, but I already recieved it. Is it possible that I drill it to 8.5mm without damaging the rim? mb

Light-Bicycle 2016/04/21

Hi Stefan, We usually drill the nipple hole with professional drilling machines. If you drill the nipple hole by yourself, I am afraid you will damage it. Could you please ask your local shop and check whether they provide drilling service? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Mike 2016/01/18

Hello I have dual suspension bike and am in the process of adding an Bafang 1000 W mid drive motor I am in the initial stages of putting together an action plan with regards to strengthening all aspects - (wheelset in this particular step)

Light-Bicycle 2016/01/19

Hello Mike, Thanks for your inquiry. Did you mean you would like to mount our rims on your custom motor bike? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 37 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Build Your Recon RIM RM26C05

Overview

Specs

Tech

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Tech

Warranty

In The Box

Gallery
