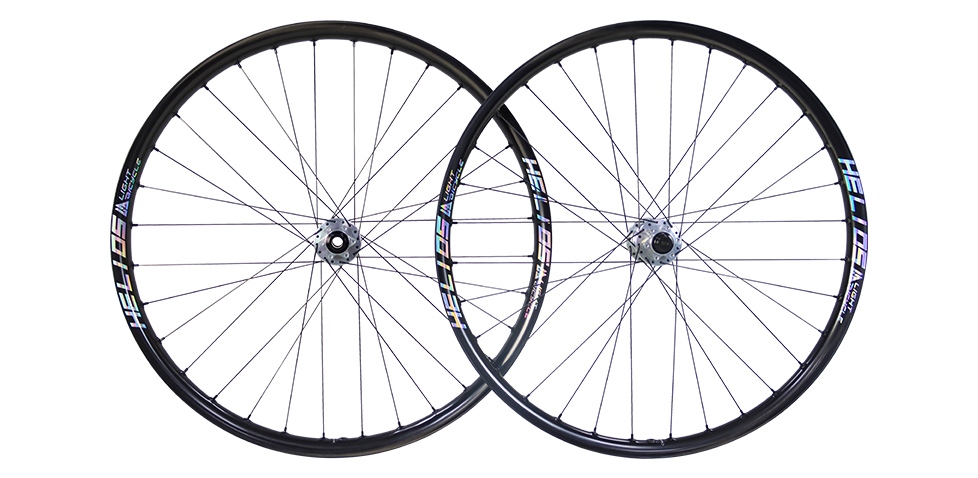

Build Your Helios WHEELSET WMHelios-DH932
All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.
WHEELSET SPECS
RIMS
Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.
- Rim Model Helios-DH932
- Series Helios
- Material Toray T700 & T800 Premium Carbon Fiber
- Size 29"/29er (ETRTO 622mm)
- Intended Use Down Hill
- Bead Type Hookless
- Tubeless Capable Yes

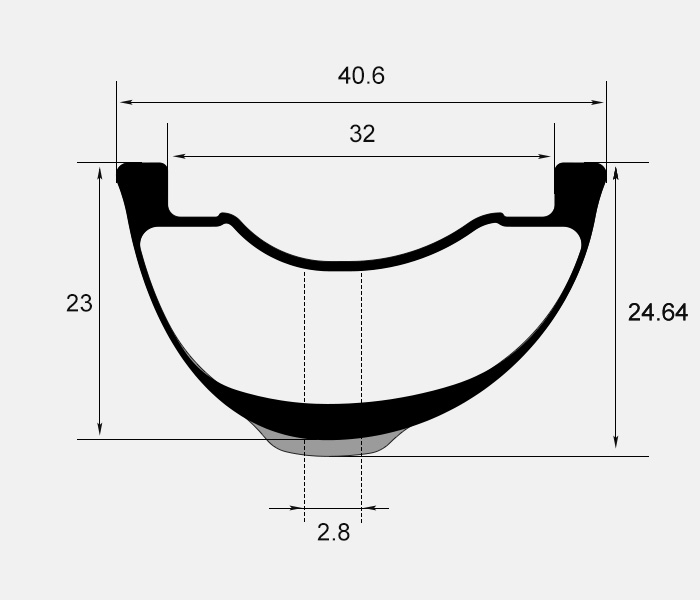

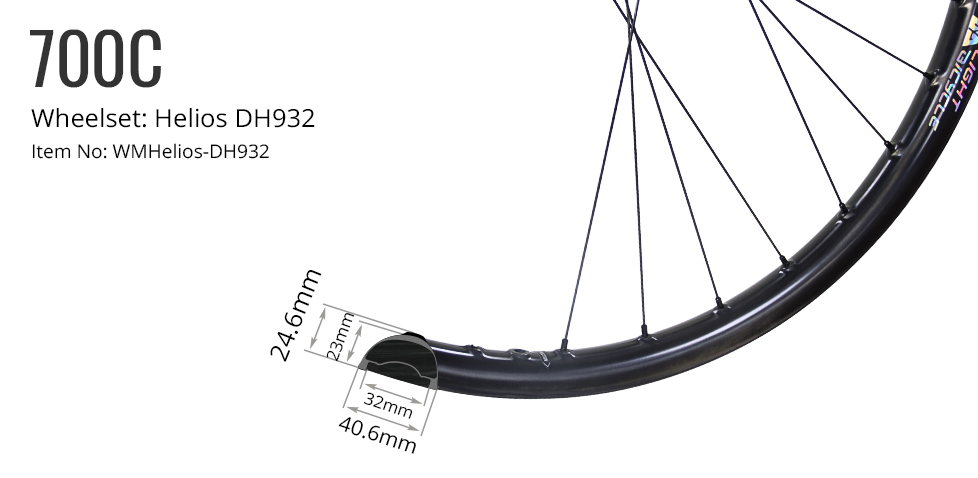

- Inner/Outer Width 32mm/40.6mm
- Depth 22mm
- ERD 589mm (not including nipple head dimention)
- Rim Weight 255+/-15g
- Profile Symmetric (2.8mm)
- Max Cyclist Weight (on flat ground) 150kg/331Ibs
- Spoke Hole Angle ±7°
- Spoke Tension 120~130kgf front disc side and rear drive side
- Max Tire Pressure 30psi/ 2.07bar
- Recommended Tire Width 2.3"~2.8"
HUBS
We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).
- Model DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1
- Front Axle Size 15 / 110mm BOOST
- Rear Axle Size 12 / 148mm BOOST
- Driver Body Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline Alloy, Shimano Micro Spline
- Hole 32H
OTHER PARTS
Leave a note at checkout or contact us if you want spare spokes or nipples.
- Spokes Sapim CX Ray, Sapim D-light, Berd PolyLight in Black, Berd PolyLight in White, Sapim CX Ray in Black, Sapim D-Light, Sapim Race, Sapim CX Ray in Silver, Alpina Extralite
- Nipples Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black, Aluminium Silver, Aluminium Blue, Aluminium Gold, Aluminium Green, Aluminium Lime, Aluminium Orange, Aluminium Purple

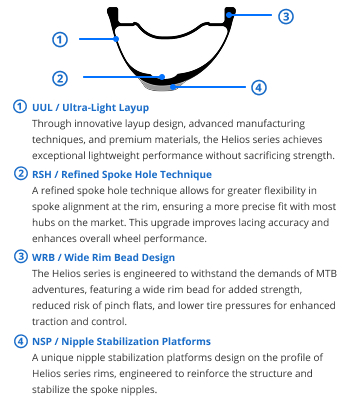

TECH
At Light Bicycle, our story begins with carbon mountain bike rims—and it never ends. Our first carbon MTB rim was born in 2011. Over the years, our MTB wheels have won the unanimous favor of riders. With the innovation and changes in the mountain bike wheels market, we are excited to introduce the all-new Helios Mountain Rim Series.

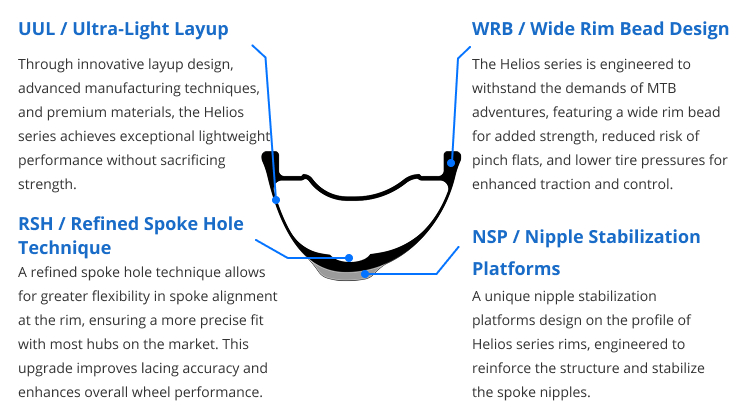

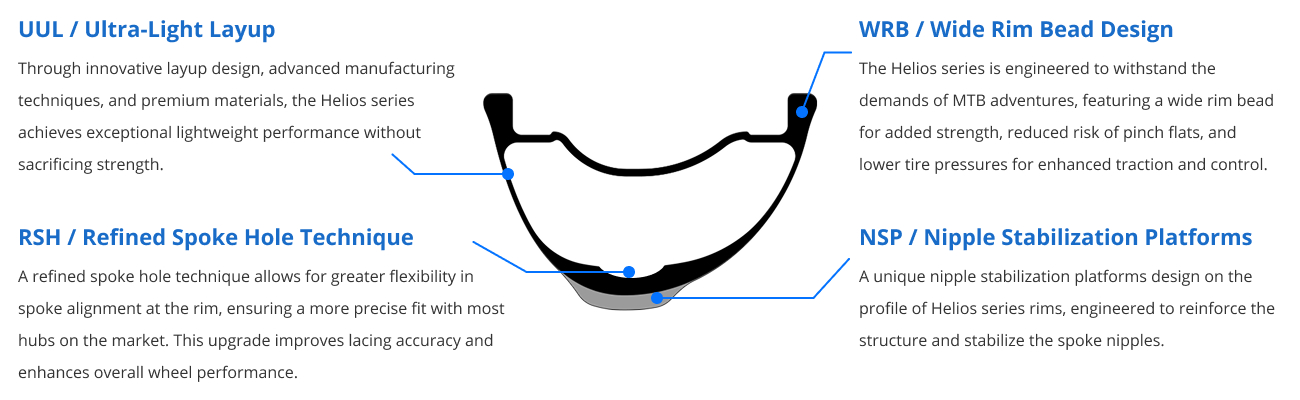

As our first downhill model, Helios EN932 is the ultimate choice for aggressive riders. Crafted with superior materials and technology, this rim offers exceptional strength and durability while minimizing weight, enhancing your riding performance. Utilizing high-tech materials for maximum athletic performance, including advanced impact-resistant composites, we better disperse stress upon impact while maintaining a lightweight design, suitable for various rigorous riding conditions. The 4.3mm bead design on the outer wall of the tire lip provides better shock dispersion and prevents the tire from snakebiting on impact, offering an additional layer of security.
Currently we are building this wheel with Boost hubs. They are available in boost spacing. 15 x 110 Front / 12 x 142 Rear. Freehubs available are: Shimano MTB 10/11S, Shimano Micro Spline, and the SRAM XD etc.
The tire pressure for this rim is recommended at 35 psi. The rider's weight limit is 331lbs. The positive stiffness test on the rim has reached 165J.
WARRANTY
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
At Light Bicycle, our story begins with carbon mountain bike rims—and it never ends. Our first carbon MTB rim was born in 2011. Over the years, our MTB wheels have won the unanimous favor of riders. With the innovation and changes in the mountain bike wheels market, we are excited to introduce the all-new Helios Mountain Rim Series.
As our first downhill model, Helios EN932 is the ultimate choice for aggressive riders. Crafted with superior materials and technology, this rim offers exceptional strength and durability while minimizing weight, enhancing your riding performance. Utilizing high-tech materials for maximum athletic performance, including advanced impact-resistant composites, we better disperse stress upon impact while maintaining a lightweight design, suitable for various rigorous riding conditions. The 4.3mm bead design on the outer wall of the tire lip provides better shock dispersion and prevents the tire from snakebiting on impact, offering an additional layer of security.
Currently we are building this wheel with Boost hubs. They are available in boost spacing. 15 x 110 Front / 12 x 142 Rear. Freehubs available are: Shimano MTB 10/11S, Shimano Micro Spline, and the SRAM XD etc.
The tire pressure for this rim is recommended at 35 psi. The rider's weight limit is 331lbs. The positive stiffness test on the rim has reached 165J.
-
Overview
At Light Bicycle, our story begins with carbon mountain bike rims—and it never ends. Our first carbon MTB rim was born in 2011. Over the years, our MTB wheels have won the unanimous favor of riders. With the innovation and changes in the mountain bike wheels market, we are excited to introduce the all-new Helios Mountain Rim Series.
As our first downhill model, Helios EN932 is the ultimate choice for aggressive riders. Crafted with superior materials and technology, this rim offers exceptional strength and durability while minimizing weight, enhancing your riding performance. Utilizing high-tech materials for maximum athletic performance, including advanced impact-resistant composites, we better disperse stress upon impact while maintaining a lightweight design, suitable for various rigorous riding conditions. The 4.3mm bead design on the outer wall of the tire lip provides better shock dispersion and prevents the tire from snakebiting on impact, offering an additional layer of security.
Currently we are building this wheel with Boost hubs. They are available in boost spacing. 15 x 110 Front / 12 x 142 Rear. Freehubs available are: Shimano MTB 10/11S, Shimano Micro Spline, and the SRAM XD etc.
The tire pressure for this rim is recommended at 35 psi. The rider's weight limit is 331lbs. The positive stiffness test on the rim has reached 165J.
-
Specs
-
Warranty
-
In The Box
Gallery
Be the first to review this product and help riders of your style choose the most suited.
If you've got a longer story to tell and a few pictures won't cut it, check out our storytelling feature and consider sharing your story!
