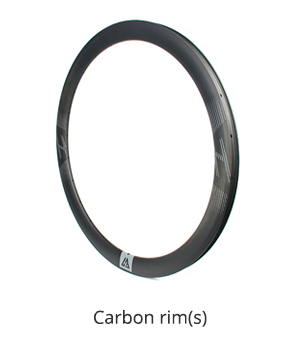

55mm deep carbon 700C 25mm wide road rim clincher U shape tubeless compatible high TG resin surface

BUYING OPTIONS

Global warehouse ship to most countries while the North America warehouse only ship to the United States and Canada

GLOBAL
  • 1

    RIM

  • 2

    ACCESSORIES

  • 3

    OVERVIEW

RIM

Brake System This is a required option.

Road-Rim-High-TG-Surface-Grooved-Graphene-Surface

Non Disc - High TG Surface: Rim Brake 700C road rims use an advanced High TG resin system with a layer of graphene to help dissipate heat. The braking power and reliability is significantly improved over a basalt braking surface.

Non Disc - Grooved Graphene Surface: Our new resin system and construction method, combined with the 3k rim track, withstands over 280°C, dissipates heat, and lowers rim temperatures faster in between braking efforts. Gain confidence-inspiring brake performance on the steepest descents and wettest conditions with our matching brake pads. Also, graphene added to the rim brake track allows for greater resistance to overheating with improved heat dissipation and reduced temperature accumulation during heavy braking. The grooved track helps evacuate trapped moisture between pad and rim in wet conditions, and brings more resistance and force at the lever when conditions are dry.

Disc: The disc version does not have a rim brake track and features a unique disc specific layup process. Our new layup is about 10g ~30g lighter by reducing the unnecessary material and utilizing elements of our Flyweight construction method.

Disc

Non Disc - High TG Surface

Non Disc - Grooved Graphene Surface USD +30

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

16H

18H

20H

24H

28H

32H

36H

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

glossy

matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

12K

3K

UD

Decal This is a required option.

Road rims use super light waterslide decals (glossy black). The decal is very thin and applied under a clearcoat so they are non-removeable.

Pictures about light-bicycle decal >>

If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.

Pictures about custom graphics >>

No

Stealth

Blue

Green

Magenta

Orange

Red

White

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

Brake Pads This is a required option.

4 pads will be included. These high performance brake pads are designed for carbon bike rims only and offer excellent stopping power even in the wet.
Instructions of brake pads

None

Add Brake Pads USD +10

clincher-road-bike-rims

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + PCS

Weight: 490.00g+/-15

Final total: USD 159.00+

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

RIM SPECS

  • Size 700C
  • Use Road/CX
  • Type Clincher
  • Tubeless Ready

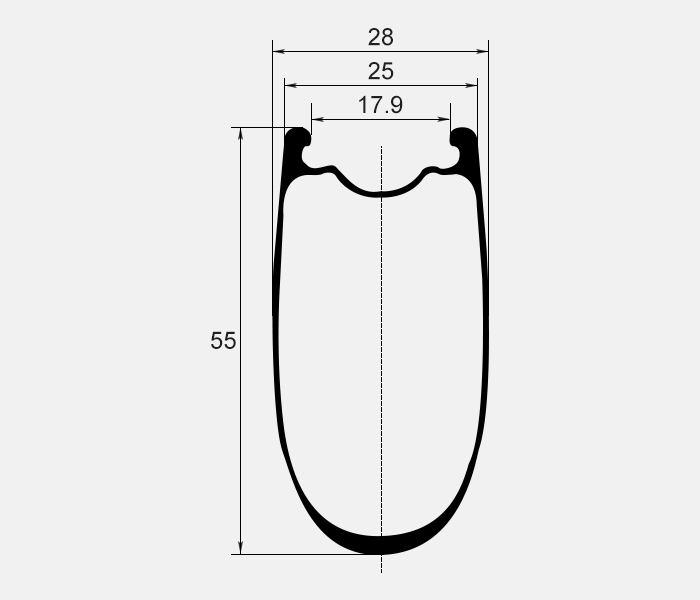

  • Inner/Outer Width 17.9mm/25mm
  • Depth 55mm
  • ERD 530mm (not including nipple head dimension)
  • Weight Non Disc 515+/-15g, Disc 490+/-15g
  • Offset 0mm (symmetric)
  • Weight Limit 130kg
  • Spoke Hole Angle ±6°
  • Spoke Tension 100 ~110kgf (radial) /115 ~130kgf (disc) front, 120~130kgf rear
  • Tyre Pressure 130psi recommended max
  • Tire 21C-38C recommended

Teleport to the wheelset building page.

Looking to turn your road or tri bike into an aero machine? With a 55mm profile, the U55 is deep enough to give your an aerodynamic advantage without compromising ride quality in the stiffest crosswinds.


Comfortable as a race oriented wheelset or a daily driver, the 25mm outer width keeps things aerodynamically optimized with smoother rolling for your 25C ~ 28C tires.

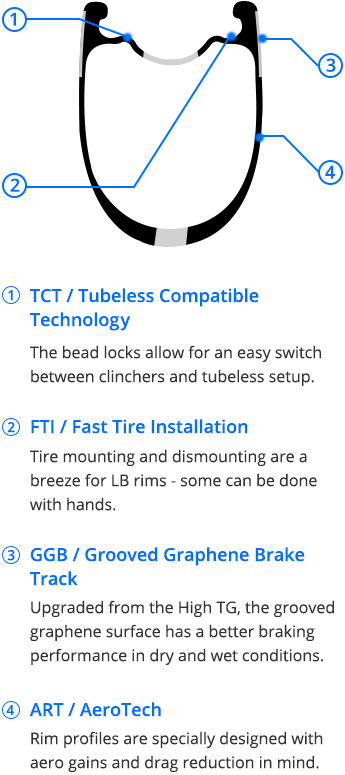

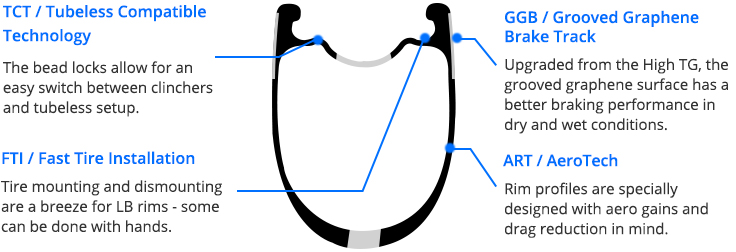

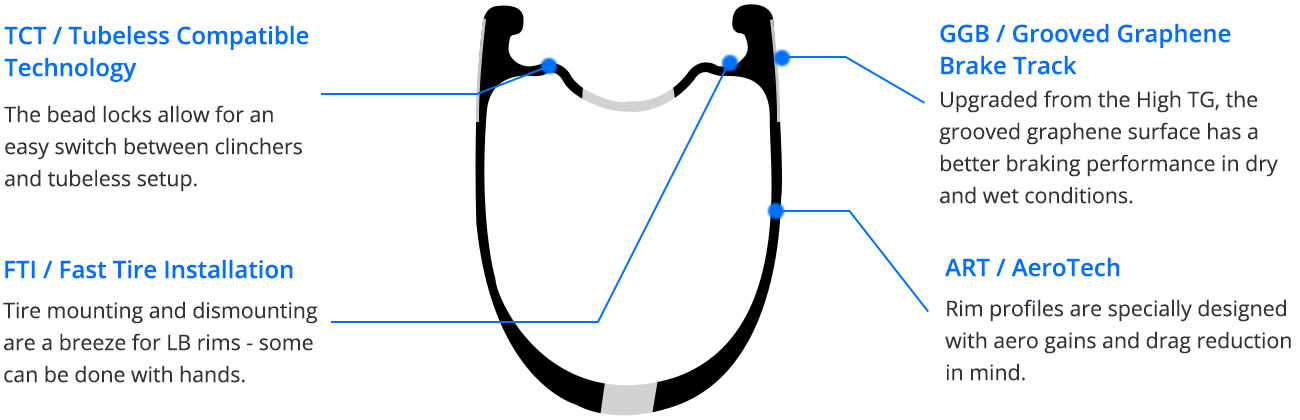

High TG: Our new resin system and construction method, combined with the 3k rim track, withstands over 280°C, dissipates heat, and lowers rim temperatures faster in between braking efforts. Gain confidence-inspiring brake performance on the steepest descents and wettest conditions with our matching brake pads.


Graphene Brake Track : Graphene added to the rim brake track allows for greater resistance to overheating with improved heat dissipation and reduced temperature accumulation during heavy braking. The grooved track helps evacuate trapped moisture between pad and rim in the wet and brings more resistance when conditions are dry so less force at the lever is required. At this stage, with this newest brake track, you could order road Non-disc rims only directly online, however, please contact us at sales@lightbicle.com if you want to order a complete wheelset with that.


AeroTek: Our latest aerodynamic profile decreases lateral wind resistance and is both more stable and faster in a crosswind. A wider profile allows for larger and more efficient tires to be used without an aerodynamic penalty. Traditionally a tire can form a lightbulb shape when mounted on a narrow rim, but the airflow is much smoother with our wider rims.


DuoTek: Our clincher rims are manufactured in two pieces and then joined together. When designing the rims, our engineers, in every detail, demanded fewer joints. Fewer joints mean higher strength and stability.


TuffTek: A high-grade customized epoxy resin is used in our prepreg, creating a stable base for all of our road rims. Epoxy is less brittle than polyester resins and offers excellent flexural strength. Our consistent resin system, coupled with a precise layup schedule, allows for an extremely reliable and durable product.

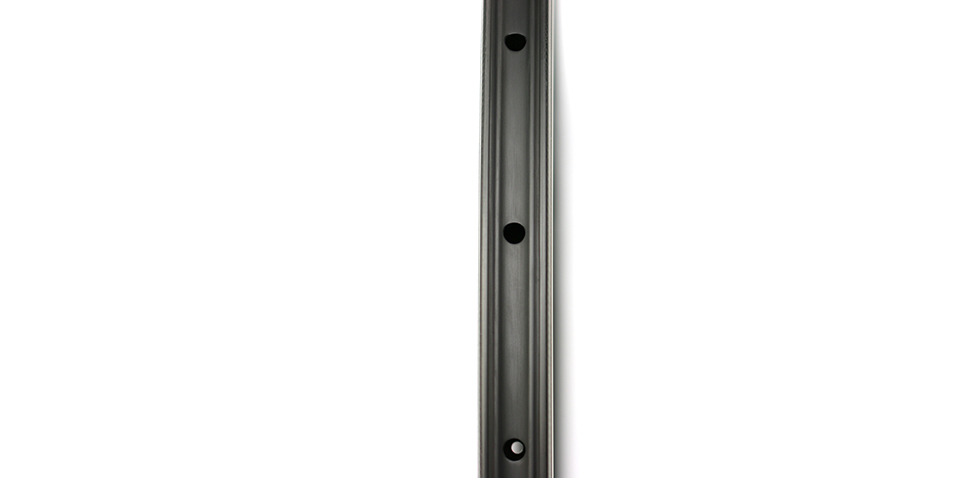

Tubeless : All of our rims are tubeless compatible with bead seat retention. In most cases a floor pump is all that is needed to seal our rims. The bead shape is tailored to each rim width to achieve the best fit. Our hookless and clincher profiles have a smooth radius to reduce the chance of a pinch flat.


T700: Constructed with premium Toray T700 carbon fiber. The best strength to weight ratio with no expense spared.


For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Know more about the warranty policy >>

Gallery

Peter : 45mm U-shape rims built up for my track bike. The front has a brake track which is great for getting to the velodrome. They look great and the build quality looks and feels fantastic.
UK
6
Stephen Turcot : Hey! I just wanted to say I’m loving the rims and to send you a picture of the bike for your site!
Canada
1
Georg : My wheelset has yesterday arrived. I already mounted them. Wow, they are amazing :-) The weight is 1582g without quick release. [WHEELSET CONFIGURATIONS] Rims: RRU55C02, clincher, 25mm wide, 55mm deep, UD, matte, with brake surface, front 20H/rear 24H Hubs: F Black Novatec A291SB-SL QR / 100mm Non-Disc 20H J-bend R Black Novatec A291SB-SL, QR / 130mm Shimano Road 11S Non-Disc 24H J-bend Spokes: Pillar Aero X-TRA 1420 Black Nipples: Black Sapim Aluminium Polyax External
Switzerland
1
kevin Turley : U-shaped 55 tubeless ready DT Swiss 350 hubs and 3K finish on 2017 Specialized Roubaix. I am extremely satisfied with the build from light Bicycle. The wheels are flawless. Although I didn't make large gains in weight loss, the cool factor of my bike went up immensely. Thank Yo
USA
1
Yusseri Yusoff : Ordered a pair of 32-spoked 55mm U rims for a custom build, with Ultegra hubs. Turned out really nice. Sweet ride.
Malaysia
1
Steve Bandy : Hoping for the best. Dallas, Texas has a large cycling community. A favorable review would probably go a long way here. Having the wheel built by a very good mechanic with top of the line bladed spokes. Will use it training and racing all summer. I only average about 250 km per week so not at upper levels but at 95kg and doing faster rides averaging 35kph it should be a good test of your product. As a salesman I do appreciate the effort your company puts into communicating with the customer before and after the sale. When the wheel is finished I'll get feedback from the mechanic on ease of build and let you know his initial opinion.
United States
3

COMMENTS

D

Doug 2019/07/03

I’m concerned the 25mm rim width will not clear my Shimano brake calipers.


LightBicycle 2019/07/05

Hi Doug, ​ ​Sorry for the late reply. It was night time here when you emailed. I just checked on Shimano BR-R561. It is okay for 28mm wide tires. So, your brake calipers are wide enough for 25mm wide or 28mm wide 700C wheelsets. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Taichiro 2019/06/08

What is the internal diameter of this rim(eyelet to eyelet)? I need this value for the Sapim spoke calculator. Thanks.


LightBicycle 2019/06/10

Hi Sir, The internal diameter of the rim is 523mm=633mm (OD) - 55mm*2(depth). You will also need the rim thickness for Sapim spoke length calculator, it's 3.5mm=[530mm(ERD)- 523mm(ID)]/2 Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Andre 2019/05/08

Hello, what is the recommended nipple length for the 55mm deep carbon 700C 25mm wide rims? Thanks Andre


LightBicycle 2019/05/09

Hi Andre, Usually, we use 14mm length external nipples for RRU55C02 700C bike rims, 10mm for the internal nipples. BTW, we don't use washers while building, but you can use nipple washers if you don't might adding the weight. The spoke holes on our rims are drilled with a certain angle so the nipple can seat well on the inner side of the rim and align well with the hub flange angle. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

L

Luis 2019/04/30

I’m on your page, where should I mark to buy wheel rims ?


LightBicycle 2019/05/01

Hi Luis, We got your message! Do you like rims or complete road bike wheelset? Is it 25mm wide/55mm deep U shape road wheels you like? disc or non disc? Here is the wheelset page for road 25mm wide wheels 55mm deep. https://www.lightbicycle.com/U-shape-55mm-depth-Hand-built-700C-carbon-25mm-wide-clincher-road-bicycle-wheels-for-tubeless-compatible.html Or you can list your 700C wheelset specs here. I can quote for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Tony 2019/02/23

Hi looking to buy rims only 55mm deep carbon clinchers can I do this and I want to put tubes in them 24/28 holes kind regards Tony


LightBicycle 2019/02/25

Hi Tony, It is okay to buy the 55mm depth 700C clincher rims in 24H/28H. Do you like UD matte and without brake tracks? It is tube compatible and also tubeless compatible. If you like to ride with tube, it is the same as normal rims and the same using. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

Rob 2018/04/08

Hi, Would these rims work for track cycling use? Thanks.


LightBicycle 2018/04/09

Hi Rob, The RRU55C02 can be used on track bikes. The inner width is 17.9mm. You only need the rims or you want a complete road wheelset? disc or non disc for this track wheelset? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

D

Drew 2018/02/23

Hi There, would you be able to share rim profiles for this model RRU55C and RRU45C? Also, do you have plans to make an 88mm deep rim with the new brake track in the 25mm width at brake track?


LightBicycle 2018/02/23

Hi Drew, We sent the rim profiles through email. Have you got it? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

remi 2018/02/21

Hi what are my options for hubs for the disc brake version of these wheels? what are the prices


LightBicycle 2018/02/23

Hi Remi, For disc road wheels, we have Novatec, DT SWISS 240s and 350 optional. Which do you prefer? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Meta 2018/01/23

Hi. -Could you manufacture this in a 'heavy duty' (HD) version too? How much weight would this add? -Internal nipple holes: Would this still allow tubeless tires?


LightBicycle 2018/01/24

Dear Meta I am Charlie from LIGHT BICYCLE. Thank you for your inquiry! Yes, we can make RRU55C02 as heavy duty version by adding extra material. Pls note that the rim would add 50g more weight and USD8 each. You can use tubeless tires on internal nipple rims. Rims with internal nipple will turn out like attachment.FYI, internal nipple holes diameter is narrow than external, it's about 2.3~2.5mm. Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

D

dan 2017/03/03

can this rim be drilled in a 21 hole pattern?


LightBicycle 2017/03/04

Hello Dan, Thanks for your inquiry. Yes, the U55mm rims can be drilled in 21H. Please find attached pictures of the drilling pattern. Which do you prefer? Also, what is the hole count for front rim? Thanks, Lightbicycle
