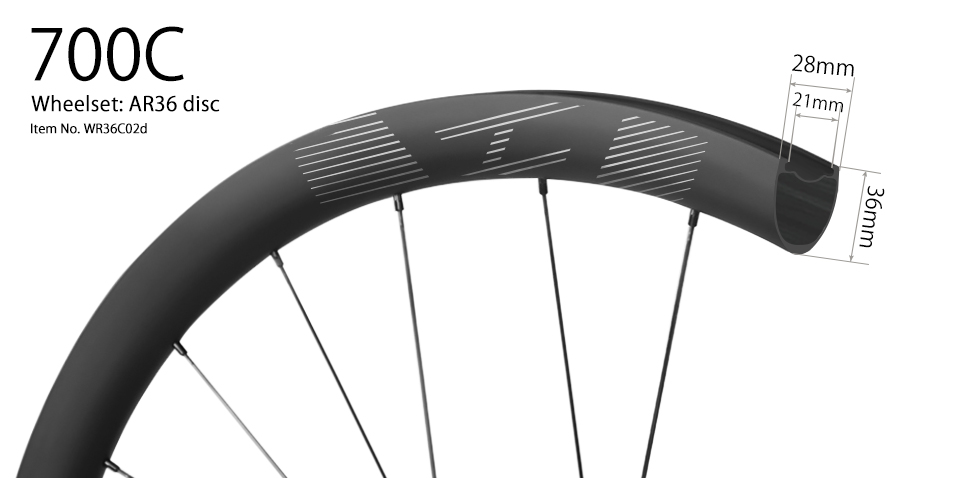

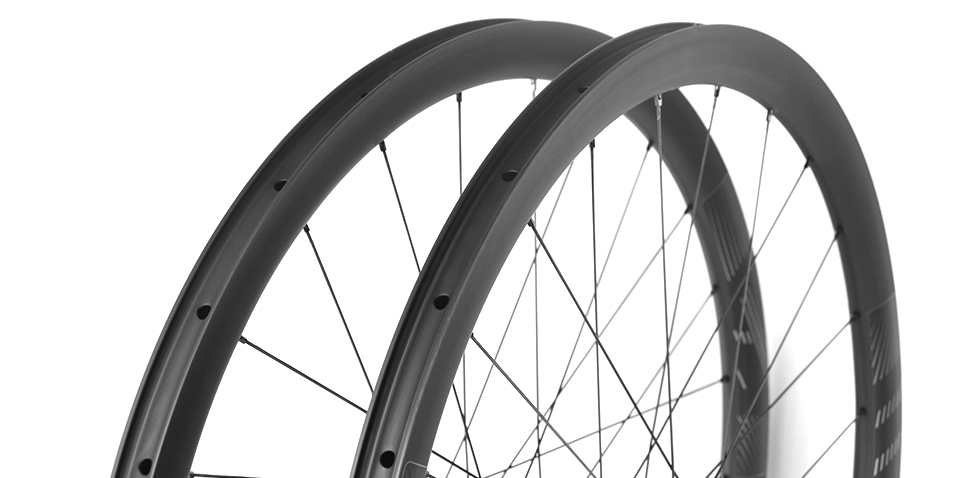

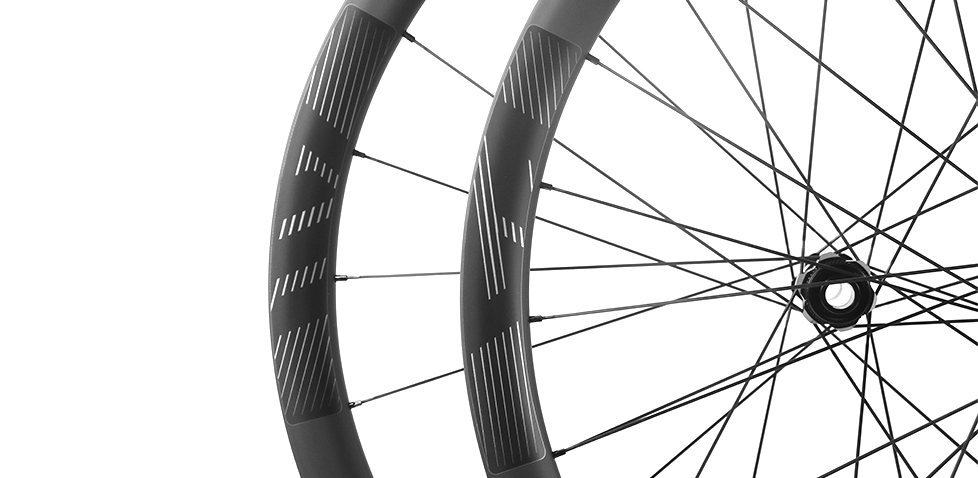

700C Gravel-Optimized-Aero-Shape 36mm depth hand-built carbon road disc wheels - 28mm wide and tubeless compatible

    •

Buy & Configure

Global warehouse ship to most countries while the North America warehouse only ship to the United States and Canada

GLOBAL OPTIONS
NORTH AMERICA OPTIONS
  • 1

    HUB

  • 2

    SPOKES/NIPPLES

  • 3

    RIM

  • 4

    ACCESSORIES

  • 5

    OVERVIEW

HUB

Hub Brand This is a required option.

Model Weight POE Cost Reliability Quality Unique Feature Color Options Warehouse Location Website
Novatec 287g 27 Low Good Good Inexpensive Three China NOVATEC
Bitex 258g 24 Low Good Good Light Two China BITEX
DT 350 374g 18/36/54 Low Better Good Quiet and reliable
(18t option)		 One China DT SWISS
DT 240S 317g 18/36/54 Medium Best Best Quiet and reliable
(18t option)		 One China/N.A. DT SWISS
DT 180 290g 36 High Best Best Super Light, EXP One China/N.A. DT SWISS
Chris King 326g 45 High Best Best Rebuildable bearings Nine China CHRIS KING
Industry Nine 327g 60 Medium Better Best Loud, engagement Eleven China/N.A. INDUSTRY NINE
Onyx 434g Infinite High Better Best Silent, sprag clutch Eighteen+
(Custom Available)		 North America ONYX

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

DT SWISS 180

DT SWISS 240S

DT SWISS 350

Chris King R45D

Novatec D411SB / D412SB

Industry Nine Torch

Front Axle This is a required option.

Front-hub-axle

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, no Quick Release skewers are offered with hubs.

12 / 100mm

15 / 100mm

QR / 100mm

Rear Axle This is a required option.

Rear-hub-axle

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, no Quick Release skewers are offered with hubs.

12 / 142mm

QR / 135mm

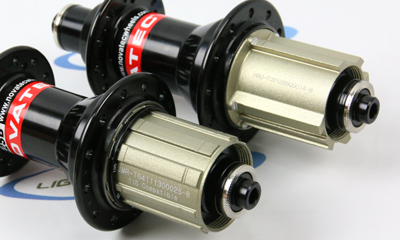

Freehub Body This is a required option.

Shimano 11 speed road freehubs come with a spacer ring. If you have an 11 speed road cassette then you do not need to use this spacer. If you have a 8/9/10 speed cassette, you will need to use the space behind the cassette. Campy 10 and 11 speed use the same freehub body.
Sram XD-R Freehubs do not need a spacer if you have an XD-R (Road) cassette. Mountain bike XD cassettes can be run with a spacer on an XD Freehub.

Shimano Road 11S

Shimano Road 11S Alloy

Sram XDR

Spoke Head This is a required option.

J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes

straight pull

J-bend

Brake System This is a required option.

6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt. If you need the conversion kit, please contact us.

6-bolt

Center lock

Hub Color This is a required option.

Black

Matte Mango

Orange

Red

Turquoise

Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

24H

28H

Rear Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

24H

28H

Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 3 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

EXP - With only a singlel spring, making the hubs faster and lighter, more complete engagement of the ratchet teeth for more precise contact, and therefore a longer lifespan.

18T

27T

36T

45T

54T

60T

EXP

Spoke This is a required option.

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

Pillar Aero X-TRA 1420

Sapim CX Ray

Nipple This is a required option.

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Aluminium Black

Aluminium Red

Brass Black

Bead type This is a required option.

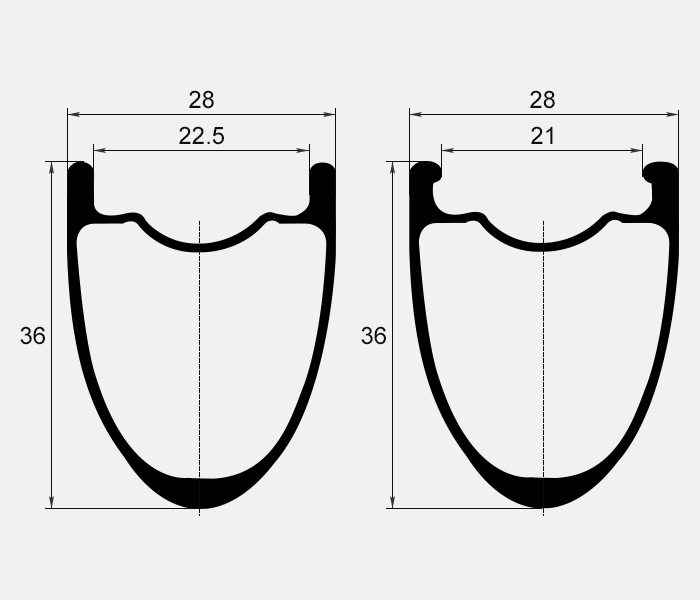

Rim width (hook): 28mm external/21mm internal
Rim width (hookless): 28mm external/22.5mm internal

Both hook and hookless rims are built using the same dimensions and materials. The max tire pressure for hooked version of the rim is 160psi. The hookless version of the rims features more impact strength and a max tire pressure of 80psi.

The hookless version is designed with low pressure impact resistance in mind. If you are planning to run a tire pressure above 80psi, the hooked version would be a better choice.

hook

hookless

Brake System This is a required option.

Disc

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

glossy

matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

12K

3K

UD

Center Channel Hole This is a required option.

WITH HOLES: This is the traditional method. Holes are drilled in the center channel to allow the nipples to easily be fed through the rim. Tubeless tape is required to seal the rim.


WITHOUT HOLES: No holes are drilled in the center channel. Feeding the nipples through the rim is more challenging, but it allows for a tubeless setup without the need for tape. This kind of system is known as "road tubeless" and was made popular by Mavic. Some companies still refer to it as "UST style", however, UST is actually a specific interface between the tire and rim which was developed by a partnership between Mavic, Michelin, and Hutchinson.

With Holes

Without Holes

Decal This is a required option.

Road rims use super light waterslide decals (glossy black). The decal is very thin and applied under a clearcoat so they are non-removeable.

Pictures about light-bicycle decal >>

If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.

Pictures about custom graphics >>

No

Stealth (Grey)

Blue

Green

Magenta

Orange

Red

White

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

carbon-wide-road-wheels-36mm-deep

Recon Pro orders start shipping in October.

- + Pair

Hub Brand This is a required option.

Model Weight POE Cost Reliability Quality Unique Feature Color Options Warehouse Location Website
Novatec 287g 27 Low Good Good Inexpensive Three China NOVATEC
Bitex 258g 24 Low Good Good Light Two China BITEX
DT 350 374g 18/36/54 Low Better Good Quiet and reliable
(18t option)		 One China DT SWISS
DT 240S 317g 18/36/54 Medium Best Best Quiet and reliable
(18t option)		 One China/N.A. DT SWISS
DT 180 290g 36 High Best Best Super Light, EXP One China/N.A. DT SWISS
Chris King 326g 45 High Best Best Rebuildable bearings Nine China CHRIS KING
Industry Nine 327g 60 Medium Better Best Loud, engagement Eleven China/N.A. INDUSTRY NINE
Onyx 434g Infinite High Better Best Silent, sprag clutch Eighteen+
(Custom Available)		 North America ONYX

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

DT SWISS 180

DT SWISS 240S

DT SWISS 350

Industry Nine Torch

Onyx Vesper

Front Axle This is a required option.

Front-hub-axle

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, no Quick Release skewers are offered with hubs.

12 / 100mm

15 / 100mm

QR / 100mm

Rear Axle This is a required option.

Rear-hub-axle

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, no Quick Release skewers are offered with hubs.

12 / 142mm

QR / 135mm

Freehub Body This is a required option.

Shimano 11 speed road freehubs come with a spacer ring. If you have an 11 speed road cassette then you do not need to use this spacer. If you have a 8/9/10 speed cassette, you will need to use the space behind the cassette. Campy 10 and 11 speed use the same freehub body.
Sram XD-R Freehubs do not need a spacer if you have an XD-R (Road) cassette. Mountain bike XD cassettes can be run with a spacer on an XD Freehub.

Shimano Road 11S Alloy

Sram XDR Alloy

Campy 11S Alloy

Spoke Head This is a required option.

J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes

straight pull

J-bend

Brake System This is a required option.

6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt. If you need the conversion kit, please contact us.

6-bolt

Center lock

Hub Color This is a required option.

Anodized-Black

Anodized-Black Matte

Anodized-Blue

Anodized-Green

Anodized-Orange

Anodized-Purple

Anodized-Red

Anodized-Silver

Black

Blue

Gold

Green

Lime

Orange

Pink

Powdercoat-Black Aura

Powdercoat-Blue Baby

Powdercoat-Blue Candy

Powdercoat-Gold

Powdercoat-Green Antifreeze

Powdercoat-Green Fluorescent

Powdercoat-Green Kawasaki

Powdercoat-Pink Fluorescent

Powdercoat-Purple Candy

Purple

Red

Silver

Turquoise

Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

24H

28H

Rear Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

24H

28H

Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 3 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

EXP - With only a singlel spring, making the hubs faster and lighter, more complete engagement of the ratchet teeth for more precise contact, and therefore a longer lifespan.

18T

36T

54T

60T

EXP

Sprag Clutch

Spoke This is a required option.

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

Sapim CX Ray

Sapim D-Light

Sapim Race

Nipple This is a required option.

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Why no brass option? The North America warehouse uses Sapim double square secure lock alloy nipples. The oversized head offers 100% thread engagement and a significant increase in strength. The corrosion-resistant anodized treatment makes the need for heavy brass nipples irrelevant. If you want black brass nipples regardless, you can let us know in the notes section at checkout

Aluminium Black

Aluminium Red

Aluminium Blue

Aluminium Gold

Aluminium Green

Aluminium Lime

Aluminium Orange

Aluminium Purple

Bead type This is a required option.

hook

Brake System This is a required option.

Disc

Finish This is a required option.

matte

Weave This is a required option.

UD

Decal This is a required option.

Road rims and flyweight rims use super light waterslide decals (glossy black). The decal is very thin and applied under a clearcoat so they are non-removeable.

Non-removable black waterslide graphics

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

We use a tubeless tape with high tensile strength and only one lap is required so it is very light. It uses a natural rubber adhesive that does not leave any residue on the rims.

If you would like to purchase an additional roll of tape (not installed), then you can find that in the accessories section here- Buying Tubeless Rim Tape

None

Apply Tubeless Tape USD +8 each

carbon-wide-road-wheels-36mm-deep

Recon Pro orders start shipping in October.

- + Pair

Weight: 1361.00g+/-25

Final total: USD 505+

Weight: 820.00g+/-25

Final total: USD 398+

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

RIM SPECS

  • Rim Model AR36 disc
  • Size 700C
  • Use Road/CX/Gravel
  • Type Clincher
  • Tubeless Ready
  • Inner/Outer Width Hook 21mm/28mm, Hookless 22.5mm/28mm
  • Depth 36mm
  • ERD 568mm (not including nipple head dimension)
  • Weight 410+/-15g
  • Offset 0mm (symmetric)
  • Weight Limit 125kg
  • Spoke Hole Angle ±5°
  • Spoke Tension 115 ~130kgf front, 120~130kgf rear
  • Tyre Pressure Hook: 130psi, Hookless: 80psi (recommended max)
  • Tire 23C~43C recommended

Teleport to the rim page.

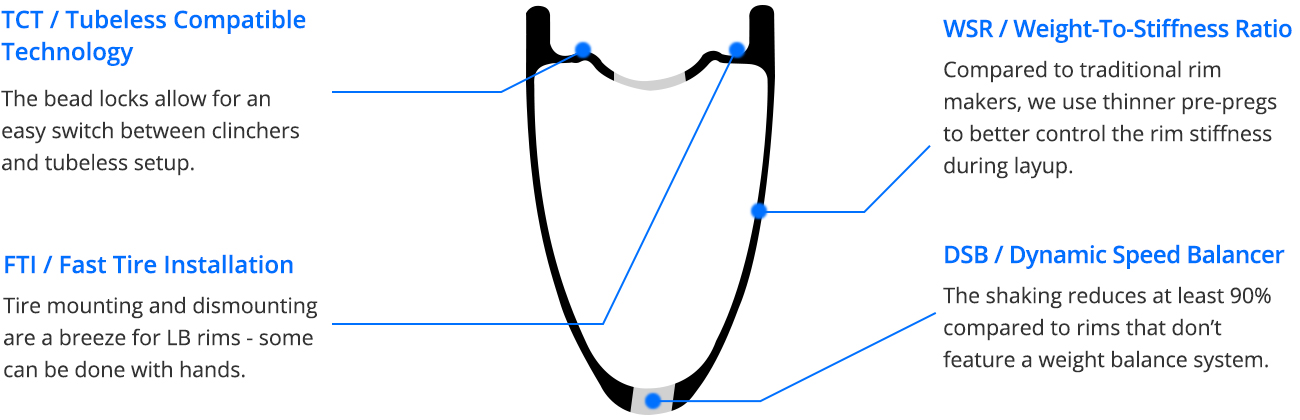

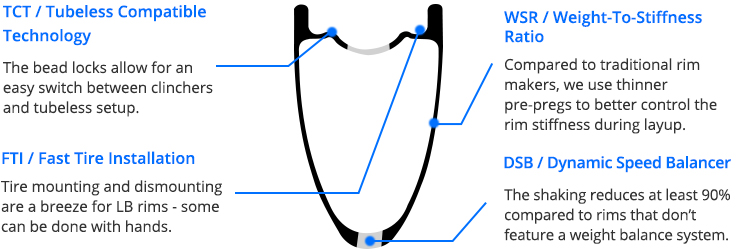

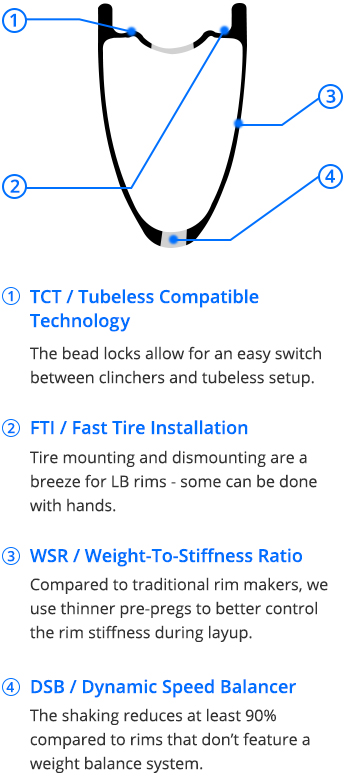

MTB carbon rim profile

The most versatile option in our road lineup, the 36mm can handle cyclocross, road racing, and all-day gravel rides. The mid-depth rim profile has a reassuring stiffness, building confidence through ruts and railing corners. It remains compliant for long distance and weighs at just 410g per rim.


This wide tubeless ready platform has a 21mm internal width, suitable for a wide range of tire choices.

AeroTek: Our latest aerodynamic profile decreases lateral wind resistance and is both more stable and faster in a crosswind. A wider profile allows for larger and more efficient tires to be used without an aerodynamic penalty. Traditionally a tire can form a lightbulb shape when mounted on a narrow rim, but the airflow is much smoother with our wider rims.


DuoTek: Our clincher rims are manufactured in two pieces and then joined together. When designing the rims, our engineers, in every detail, demanded fewer joints. Fewer joints mean higher strength and stability.


TuffTek: A high-grade customized epoxy resin is used in our prepreg, creating a stable base for all of our road rims. Epoxy is less brittle than polyester resins and offers excellent flexural strength. Our consistent resin system, coupled with a precise layup schedule, allows for an extremely reliable and durable product.


Tubeless : All of our rims are tubeless compatible with bead seat retention. In most cases a floor pump is all that is needed to seal our rims. The bead shape is tailored to each rim width to achieve the best fit. Our hookless and clincher profiles have a smooth radius to reduce the chance of a pinch flat.


T700: Constructed with premium Toray T700 carbon fiber. The best strength to weight ratio with no expense spared.


For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Know more about the warranty policy >>

GALLERY

Adventure collection from all over the world.

LEARN MORE

COMMENTS

B

Ben 2020/03/10

I am running skewers. Can i speck the wheels with skewers?

LightBicycle 2020/03/10

Hi Ben, yes, we can pack the skewers along with the wheelset if you order a complete wheelset 700C. What hubs do you like for this AR36 wheelset disc? Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

Stephen 2020/02/27

Hi, can you give me a price via email for the AR36 wheelset with dt Swiss rear hub and shutter precision front dynamo hub. Requirements are: 12mm x 100 front and 12mm x 142 rear, 28 spokes, centre lock disc and 36t ratchet. Thank you!

LightBicycle 2020/02/28

Hi Stephen, Yes, sure. We just sent an email for this 28mm wide road disc wheels 700C quotation. Please check. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

B

brannbrann 2020/01/12

Just a testimonial. I took delivery of the AR36 disc a few months back, with DTSwiss 180 hubs, Sapim spokes, and tubeless tape and valves. While I was not able, or courageous enough, to get a pair of GP5000 TL to fit, I was able to put on a set of Schwalbe One tubeless tires on the AR36. I was able to seat the tires easily with just a track pump, so no problems there at all. Oh, now for the good part :) These wheels have totally transformed my bike! It is an Allez Sprint Disc, and I am still surprised at how good these wheels feel on this bike. It has become super responsive, super smooth, and surprisingly quiet. On my old aluminum wheels, they gave a hypnotic sound, but not so much with the AR36. They are very quiet when rolling. Well, the freewheel of the DT 180s is quite loud, but silent when pedaling. But the responsiveness of the wheels is so surprising. Turn in is instant, sprinting out of the saddle is instant, and just rolling along is comfortable. They do catch wind, however. Because of the instant response with these wheels, it makes you correct your line through corners. I've found I need to be extra vigilant going downhill. Thank you so much for making these! If I ever upgrade to a new bike, these wheels will be coming with me! Cheers, Brann

LightBicycle 2020/01/13

Hi Brann, Thanks for reaching out with the awesome review. So happy to hear that you are satisfied with our 700C road disc wheels. Such an encouragement to us all. As a matter of fact, I was wondering if it's possible for you to tell your story and allow us to share it with the LB site's visitors? We have this Storytelling section, which riders can tell their own LB story and share the experience with others. It's totally ok if you don't want to share your face, people would still love to learn more about the 180 hubs as they are just come out of the market. EXP riding on the field would be so excited to read. Again, the LB team so excited to hear from one more customer 's feedback. Your satisfaction is always the drive of our innovation. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

Styve 2019/11/02

Hello, I m looking for a new wheelset but i want to use à front dynamo hub. Is it possible to mount thé front wheel with à "shutter precision" hub ? Thank's Styve

LightBicycle 2019/11/05

Hi Styve, We have quite a few dynaomo hubs here. Please let us know what hub specs you like for this road front wheel. Is it 15*100mm or 12*100mm? center lock or 6-bolt? We just sent you front road wheel with shutter precision hub for your reference through email. Please check. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

reda 2019/08/24

hello i am looking to purchase carbon rim brake wheelset i need a 44-45 mm depth and i want a dt swiss hub240s or a hub of high qulaity and guaranteed i live in belgium may you please send me an email with the options and the price and the exact weight... note: i may be in need for a disc wheelset too if i get a good deal Thank you :D

LightBicycle 2019/08/26

Hi Sir, Our R45(25mm wide, 45mm deep) 700C road wheelset will meet your needs. Do you like disc or non disc? We just send you the non disc wheelse quotation to your email. Please check. For disc wheelset, do you like the same rim width and depth? Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

LEAVE COMMENTS

We are here for you if you need any assistance.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
