700C V-shape 36mm depth hand-built carbon road disc wheels - 28mm wide and tubeless compatible

BUYING OPTIONS

Global warehouse ship to most countries while the North American warehouse only ship to the United States and Canada

GLOBAL
NORTH AMERICAN
  • 1

    HUB

  • 2

    SPOKES/NIPPLES

  • 3

    RIM

  • 4

    ACCESSORIES

  • 5

    OVERVIEW

HUB

Spoke This is a required option.

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

Pillar Aero X-TRA 1420

Sapim CX Ray

Nipple This is a required option.

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Aluminium Black

Aluminium Red

Brass Black

Bead type This is a required option.

Rim width (hook): 28mm external/21mm internal
Rim width (hookless): 28mm external/22.5mm internal

Both hook and hookless rims are built using the same dimensions and materials. The max tire pressure for hooked version of the rim is 160psi. The hookless version of the rims features more impact strength and a max tire pressure of 80psi.

The hookless version is designed with low pressure impact resistance in mind. If you are planning to run a tire pressure above 80psi, the hooked version would be a better choice.

hook

hookless

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

glossy

matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

12K

3K

UD

Decal This is a required option.

Road rims use super light waterslide decals (glossy black). The decal is very thin and applied under a clearcoat so they are non-removeable.

Pictures about light-bicycle decal >>

If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.

Pictures about custom graphics >>

No

Stealth

Blue

Green

Magenta

Orange

Red

White

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

Brake Pads This is a required option.

4 pads will be included. These high performance brake pads are designed for carbon bike rims only and offer excellent stopping power even in the wet.
Instructions of brake pads

None

Add Brake Pads USD +10

disc-wheel-36mm

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + Pair

Spoke This is a required option.

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

Sapim CX Ray

Sapim D-Light

Sapim Race

Nipple This is a required option.

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Aluminium Black

Aluminium Red

Aluminium Blue

Aluminium Gold

Aluminium Green

Aluminium Lime

Aluminium Orange

Aluminium Purple

Bead type This is a required option.

hook

Finish This is a required option.

matte

Weave This is a required option.

UD

Decal This is a required option.

Road rims and flyweight rims use super light waterslide decals (glossy black). The decal is very thin and applied under a clearcoat so they are non-removeable.

Non-removable black waterslide graphics

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

We use a tubeless tape with high tensile strength and only one lap is required so it is very light. It uses a natural rubber adhesive that does not leave any residue on the rims.

None

Add Tubeless Tape USD +8 each

disc-wheel-36mm

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + Pair

Weight: 820.00g+/-25

Final total: USD 338.00+

Weight: 820.00g+/-25

Final total: USD 398.00+

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

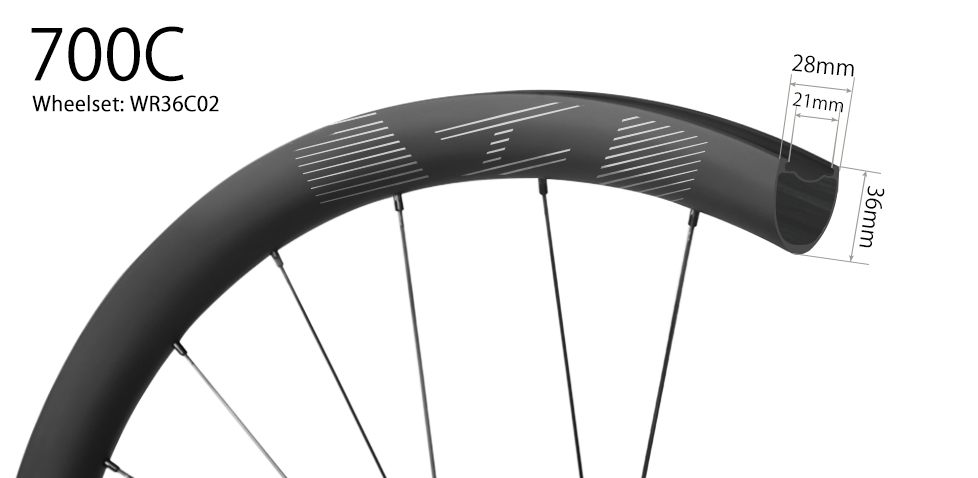

RIM SPECS

  • Size 700C
  • Use Road/CX/Gravel
  • Type Clincher
  • Tubeless Ready
  • Inner/Outer Width Hook 21mm/28mm, Hookless 22.5mm/28mm,
  • Depth 36mm
  • ERD 568mm (not including nipple head dimension)
  • Weight Non Disc 440+/-15g, Disc 410+/-15g
  • Offset 0mm (symmetric)
  • Weight Limit 125kg
  • Spoke Hole Angle ±5°
  • Spoke Tension 100 ~110kgf (radial) /115 ~130kgf (disc) front, 120~130kgf rear
  • Tyre Pressure Hook: 130psi, Hookless: 80psi (recommended max)
  • Tire 25C~43C recommended

Teleport to the rim page.

The most versatile option in our road lineup, the 36mm can handle cyclocross, road racing, and all-day gravel rides. The mid-depth rim profile has a reassuring stiffness, building confidence through ruts and railing corners. It remains compliant for long distance and weighs at just 410g per rim.


This wide tubeless ready platform has a 21mm internal width, suitable for a wide range of tire choices.

High TG: Our new resin system and construction method, combined with the 3k rim track, withstands over 280°C, dissipates heat, and lowers rim temperatures faster in between braking efforts. Gain confidence-inspiring brake performance on the steepest descents and wettest conditions with our matching brake pads.


Graphene Brake Track : Graphene added to the rim brake track allows for greater resistance to overheating with improved heat dissipation and reduced temperature accumulation during heavy braking. The grooved track helps evacuate trapped moisture between pad and rim in the wet, and brings more resistance when conditions are dry so less force at the lever is required.


AeroTek: Our latest aerodynamic profile decreases lateral wind resistance and is both more stable and faster in a crosswind. A wider profile allows for larger and more efficient tires to be used without an aerodynamic penalty. Traditionally a tire can form a lightbulb shape when mounted on a narrow rim, but the airflow is much smoother with our wider rims.


DuoTek: Our clincher rims are manufactured in two pieces and then joined together. When designing the rims, our engineers, in every detail, demanded fewer joints. Fewer joints mean higher strength and stability.


TuffTek: A high-grade customized epoxy resin is used in our prepreg, creating a stable base for all of our road rims. Epoxy is less brittle than polyester resins and offers excellent flexural strength. Our consistent resin system, coupled with a precise layup schedule, allows for an extremely reliable and durable product.


Tubeless : All of our rims are tubeless compatible with bead seat retention. In most cases a floor pump is all that is needed to seal our rims. The bead shape is tailored to each rim width to achieve the best fit. Our hookless and clincher profiles have a smooth radius to reduce the chance of a pinch flat.


T700: Constructed with premium Toray T700 carbon fiber. The best strength to weight ratio with no expense spared.


For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Know more about the warranty policy >>

GALLERY

Adventure collection from all over the world.

LEARN MORE

COMMENTS

A

Andrew 2018/11/17

Do you offer a 24h front and 28h rear (2-cross for both) build option for this set? Doesn't allow that combo when selecting build options. Thanks so much! Cheers, A.


LightBicycle 2018/11/17

Hi Andrew, It is okay to build this road disc wheelset front 24H/rear 28H. The price is the same. You can leave a message on the order that you like front 24H/ rear 28H. Then we will see it and double check with you after getting your order. Or you can leave your wheelset specs here, we can work on invoice accordingly for you. Thanks, Lightbicycle


LightBicycle 2018/11/19

Hi Andrew, It is okay to build this road disc wheelset front 24H/rear 28H. The price is the same. You can leave a message on the order that you like front 24H/ rear 28H. Then we will see it and double check with you after getting your order. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

stefan 2018/11/05

hello do you also have the cx-ray spokes and the nipples in silver available? thanks.


LightBicycle 2018/11/09

Hi Stefan, Sorry, we have only black ones. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Morten 2018/11/05

Hi, do build rear wheels that fit Cannondale AI frames (the rim must be moved 6 mm to the left)? Regards Morten


LightBicycle 2018/11/06

Hi Morten, According to the Cannondale official website, the AI system requires put the drivetrain 6mm to the right. Which means the wheelset must be adjusted accordingly. Otherwise, the whole set won't be balanced. We've built a lot of offset wheelset for the Cannondale AI system for our customers for now. So we are well experienced in this. Are you looking for a wheelset for your AI frames? I understand that you are looking at the WR36C02 (28mm wide, 36mm depth). The wheelset was designed for gravel road riding. Are you planning on using it for your bike project? What would be the tire width you use? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

Rosario 2018/10/18

I would like to have some clarifications: 1. except the weight difference, is there any difference in terms of performance (rolling resistance) between the DT Swiss 240 and 350? 2. For a road "racing" bike is better a ratchet 18 or 36? Please clarify why... 3. what's the difference between Pillar and Sapim spokes?


LightBicycle 2018/10/20

Hi Rosario, Please check our reply as below. 1. DT Swiss 240S hubs are with higher end parts inside than 350 hubs. 2. The 36t or 54t provides a noticeable amount of extra engagement points which helps when ratcheting your freehub during slow speed technical situations. It will help the wheelset feel more responsive overall. The 18t is more reliable as the grooves are the deepest in the star ratchet, whereas the 54t has the shallowest grooves and the 36t is right in between those 2. If you put out a lot of torque and don't like messing with your equipment, stick with the 18t, but if you want more engagement the 36/54t offer a noticeable performance gain. 3. Pillar PSR X-TRA 1420: An inexpensive bladed spoke, great for XC and trail riding. Sapim CX-RAY: Our most durable bladed spoke. Its low weight, aerodynamics, and flexibility make it a popular choice for racing at all levels. Thanks, Lightbicycle


R

Rosario 2018/10/21

Thanks for your reply. Having high end parts doesn’t always mean having better performance. I would be grate if you can be more specific letting me know if the 350 hub is less efficient and has less performances than the 240 s. For example I mean putting same output power on the flat...is the speed of the 350 and 240 the same? Thanks


LightBicycle 2018/12/08

Hi Rosario, DT 240S hubs are lighter than 350 hubs. The DT 240S have stainless bearings. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

L

Lucas 2018/09/30

Hi, are the aluminium nipples you use for these wheels Sapim-brand? Thanks. Regards, Lucas


LightBicycle 2018/10/07

Hi Lucas, If you choose the spokes with Sapim cx-ray, we will use Sapim alloy nipple. Choosing DT competition race spokes, we will use DT alloy nipples. Which spokes do you prefer? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

chris 2018/09/04

When will you have this wheel back in stock? What is the current build time/ wait time for this wheel using DT240s hubs in centerlock, QR (9x100,9x135)? Also will a U shape version of this wheel ever be available? thanks


LightBicycle 2018/09/05

Hi Chris, 1. Our road disc wheels are ordered to make (in your case, 3k, matte, stealth decals). We don't usually stock road wheels. 2. Our quick release hubs of DT Swiss 240s are with 5mm diameter. We have 5*100mm/5*130mm standard QR here. Is it working for you? 3. The lead time for a complete wheelset is usually 15 days. Shipping would take another 7~ 10 days ( by EMS). Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Mark 2018/09/01

Hi, I just came across your site, I'm looking for a wheel set for cyclocross and road 25-40 mm tires, rim brake, seems hard to find. I've never built a wheel and am not sure of best combinatioms/components. Is there a way to speak to someone directly to be walked through process, and can you buy just a rear wheel?


LightBicycle 2018/09/03

Hi Mark, Yes, you can buy just a rear wheel. But it's not available online. You can order it by mail though. Below is a quote for our one of our best-sellers CX wheels. About 50% of our customer choose the RR36C02 you are looking at for CX riding. You should know that there is two version of the rim, hook, and hookless. If you are riding under 40psi, you should go with the hookless version. If higher, choose the hooked version instead. What hub and spokes do you like for rear wheel? Then we can quote accordingly for you. Thanks, Lightbicycle


C

chris 2018/09/04

I am looking for this wheel in 3K matte finish with stealth light bicycle graphics. when will the rim be back in stock?


LightBicycle 2018/09/11

Hi Chris, Regarding your inquiry about the WR36C02 road disc wheels. 1. Our road wheels are ordered to make (in your case, 3k, matte, stealth decals). We don't usually stock road wheels. 2. Our quick release hubs of DT Swiss 240s are with 5mm diameter. We don't have 9mm*100/9mm*135 available. Will 5*100mm/5*130mm 3. The lead time for a complete wheelset is usually 15 days. Shipping would take another 7~ 10 days ( by EMS). Thanks, Lightbicycle
